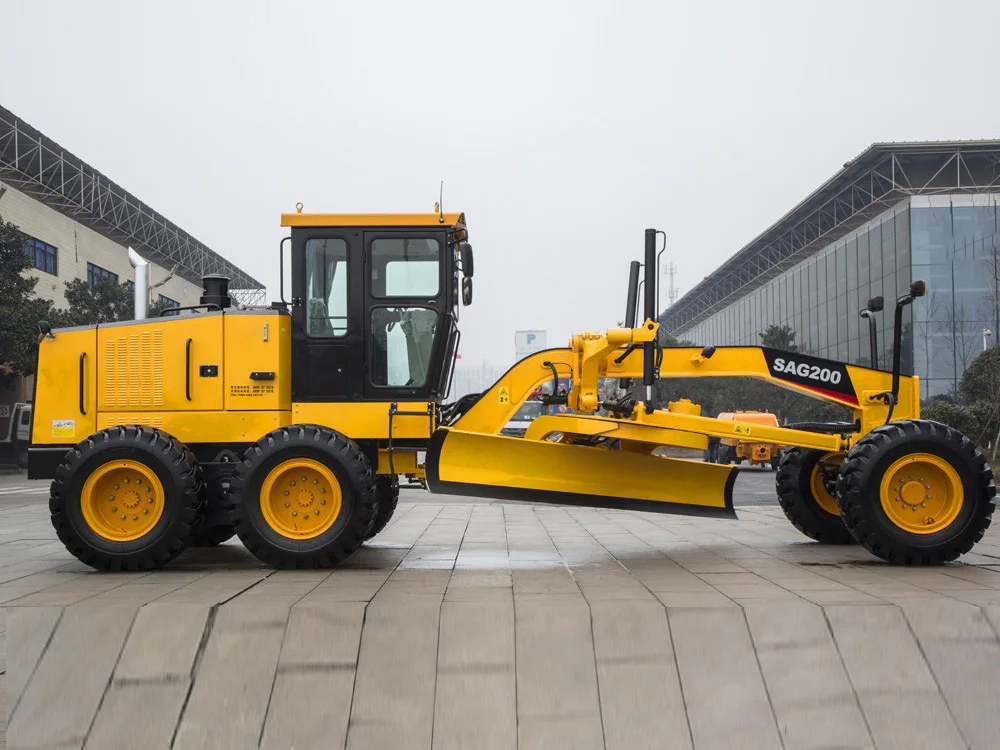

High Quality Professional Design Chinese Tech Top 230Hp Motor Grader With AC Hot in UAE STG230C 8

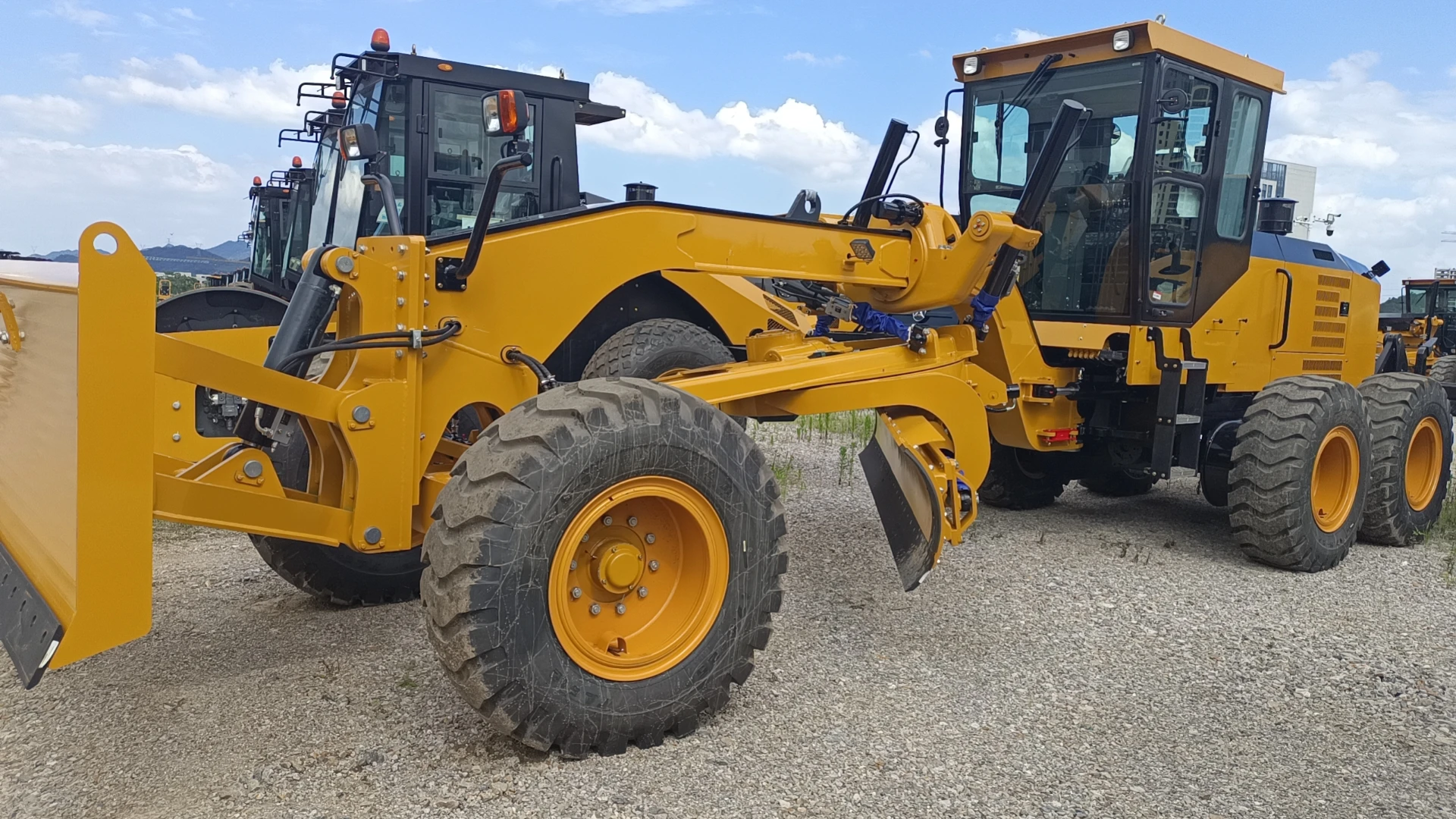

High Quality Professional Design Chinese Tech Top 230Hp Motor Grader With AC Hot in UAE STG230C-8

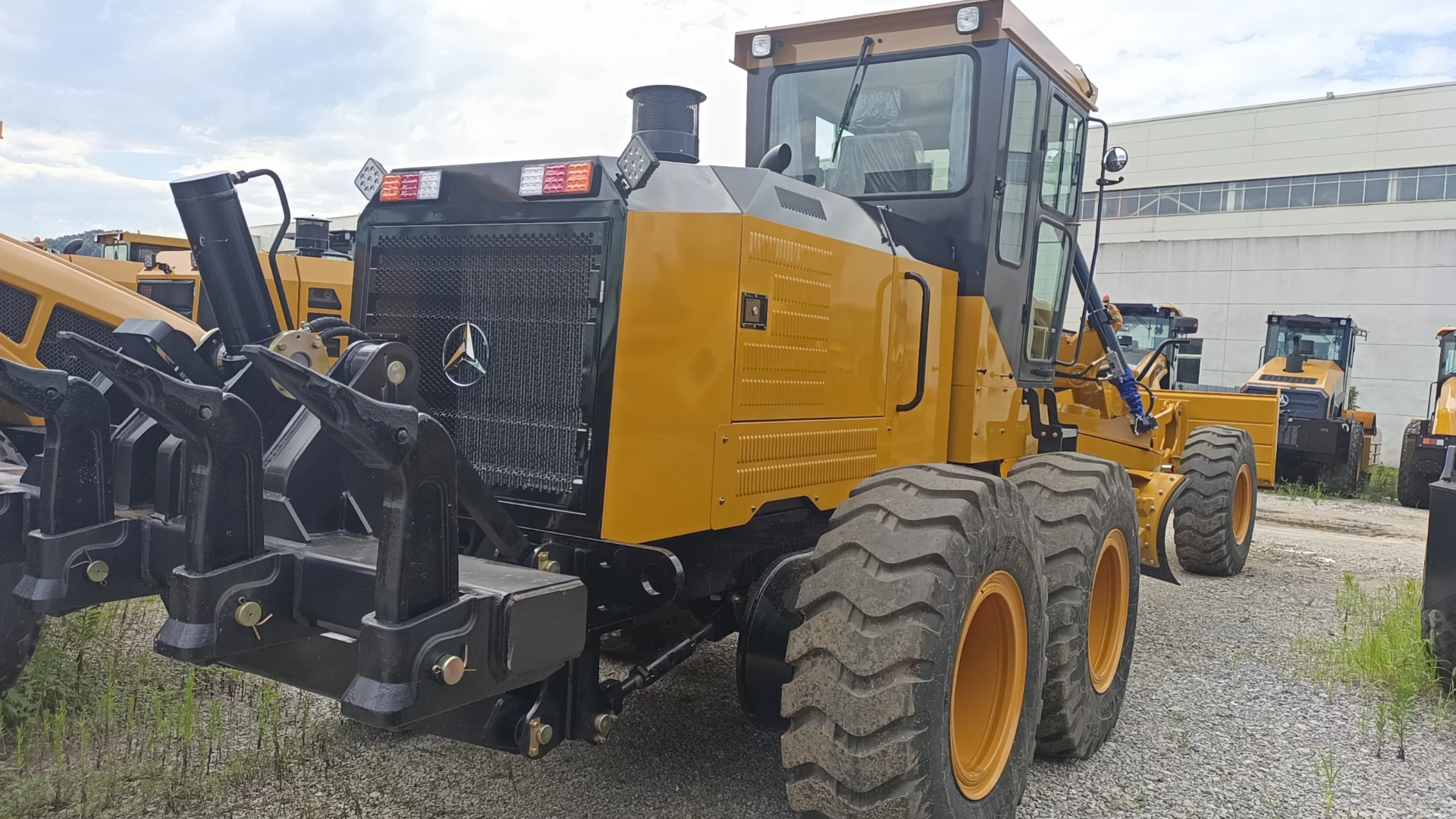

High Quality Professional Design Chinese Tech Top 230Hp Motor Grader With AC Hot in UAE STG230C-8

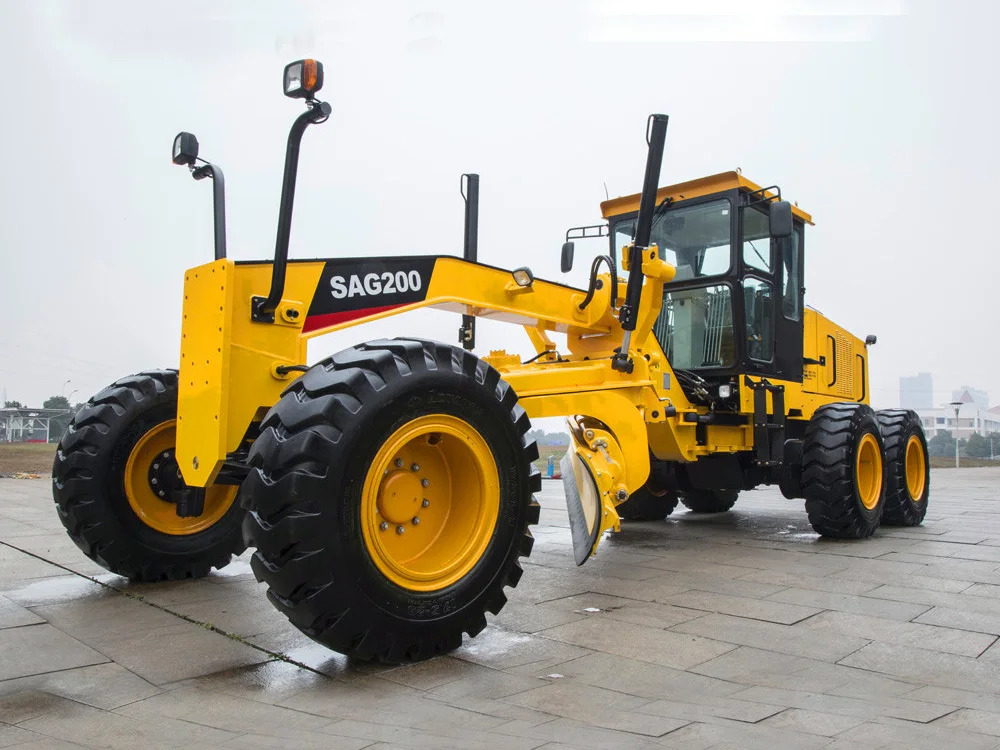

High Quality Professional Design Chinese Tech Top 230Hp Motor Grader With AC Hot in UAE STG230C-8

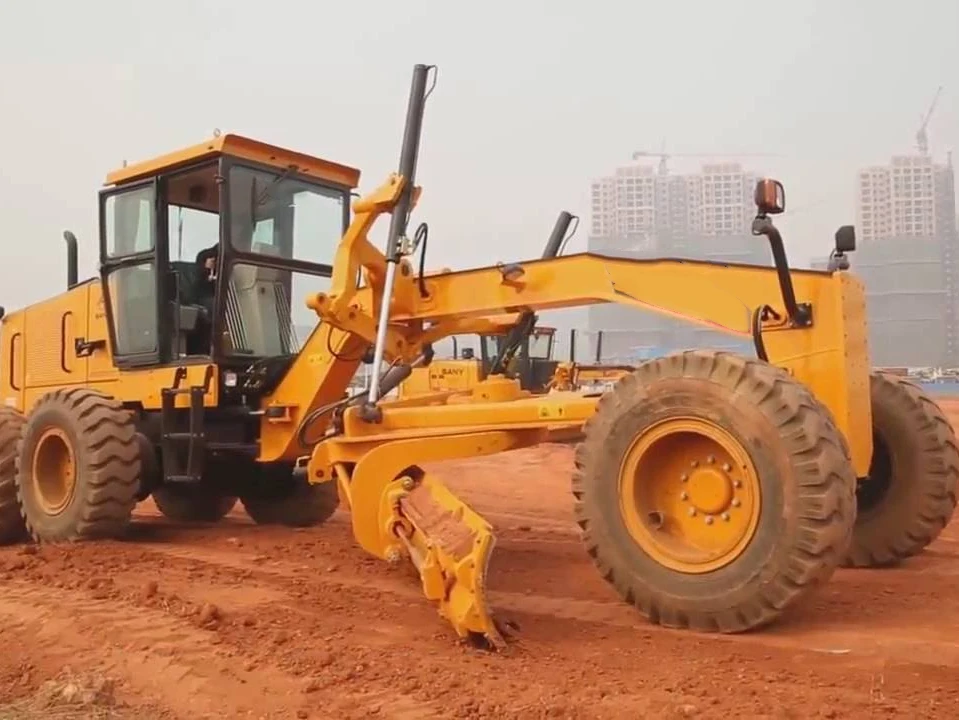

High Quality Professional Design Chinese Tech Top 230Hp Motor Grader With AC Hot in UAE STG230C-8
High Quality Professional Design Chinese Tech Top 230Hp Motor Grader With AC Hot in UAE STG230C-8
High Quality Professional Design Chinese Tech Top 230Hp Motor Grader With AC Hot in UAE STG230C-8

High Quality Professional Design Chinese Tech Top 230Hp Motor Grader With AC Hot in UAE STG230C 8

Share on (1601246431391):


Price:$69,500.00 - $70,400.00

Quantity:


Product Overview

Description



Exhibition


ABOVE You can refer what you are interested.
Willow Shen
If you need any information, welcome to contact me.
Please leave a message at the bottom of the details page.


SIMILAR PRODUCTS




Products Description


Manufacturer Motor Grader 170HP China Road Grader Price
Model Brief & Main Information:
1. SAAUNNY DeEUutz diesel engine, 170kw, Euro III
2. JINGADGDA axel
3. SAAUNNY A/C cabin
4. Blade size: 4270*620mm
5. Operating weight: 17.5ton
6. With front blade & rear rippers

Dimension: 9080mm × 2740mm × 3310mm / 15t
Shipping way: RORO/BULK/40FR

Performance Characteristics:
The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.

1. SAAUNNY DeEUutz Engine, and JINGADGDA Drive Axle make the drive system power matching more reasonable and reliable.

2. Double-circuit hydraulic brake system makes the brake more reliable and stable.

3. Steering to the load sensing system, the main hydraulic components adopt international support to ensure the stability and reliability of the system.

4. Use special enhanced work devices.

5. The blade body adopts adjustable large chute and double slide mechanism, and the working blade adopts high-strength and wear-resistant material.

6.Various options expand the machine's performance and working range.


Product Paramenters


Item
STG230C-8
Basic parameters
Engine model
D07S3-231E0
Rated power/speed
154kW/2000RPM
Overall dimension (standard)
9080mm*2740mm*3310mm
Total weight (standard)
16600kg
Tire specification
17.5-25
Ground clearance (front axle)
430mm
Tread
2156mm
Space of front and rear axles
6219 mm
Performance parameters
Forward velocity
6/10/13/21/27/42km/h
Reverse speed
6/13/27km/h
Tractive effort f=0.75
77kN
Maximum gradeability
25%
Tire inflation pressure
260kPa
Working system pressure
16MPa
Transmission pressure
1.3—1.8Mpa
Working parameters
Maximum steering angle of front wheel
±50°
Maximum slant angle of front wheel
±17°
Maximum oscillating angle of front axle
±15°
Maximum oscillating angle of equilibrium box
±15°
Maximum steering angle of frame
±27°
Minimum turning radius
7.3m
Scrape knife
Maximum lift height
450mm
Maximum cutting depth
500mm
Maximum tilt angle
90°
Cutting angle
28°—70°
Angle of revolution
360°
Length & chord height
3660*610mm
Oil filling amount
Coolant
50L
Fuel tank
280L
Engine
24L
Transmission
38L
Hydraulic oil
110L
Drive axle
28L
Balancing box
46 L
