Howo 8X4 Heavy Duty Diesel Dump Truck with Left Steering Manual Transmission Euro 2 Emission Standard Howo Brand
- Category: >>>
- Supplier: Heavy Duty Truck (hangzhou) Co. Ltd.Heavy Ltd.
Share on (1601246924539):
Product Overview
Description
Recommend Products
Product Description
Engine | WP12.400E201,400hp, Euro Ⅱ | ||||||
Clutch | Single-plate dry diaphragm spring clutch, diameter 430 mm, hydraulically operating with air assistance | ||||||
Transmission | HW19710, 10 forward and 2 reverse, manual | ||||||
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | ||||||
Front Axle | VGD95 | ||||||
Rear Axles | HC16 (2x16000Kg) Ratio: 4.8 | ||||||
Chassis | Enhanced version of multiple-leaf spring (Front 10 pieces, Rear 12 pieces) | ||||||
Fuel tank | With one 300 L fuel tank with locking fuel cap | ||||||
Steering | ZF power steering, model ZF8118 , hydraulic steering with power assistance Ratio: 22.2-26.2 | ||||||
Brakes | Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Without ABS (Optional) | ||||||
Wheel & Tires | Rims width: 8.5 Tires : 12.00R20 | ||||||
Cab | HW76 cab, one sleeper, all steel forward control, 55°hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, exterior sun visor, stereo radio, safety belts, air horn, air conditioner, and single berths with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner, adjustable roof flap. With air conditioner (optional) | ||||||
Electrics | Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW Alternator: 3-phrase, 28V, 2240W; Batteries: 2×12, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp | ||||||
Cargo Body | 7600x2300x1500mm, Front lifting, bottom 8mm, side 6mm | ||||||
Dimensions in mm | Wheel base Front wheel track Rear wheel track Front overhang Rear overhang Approach angle(o) Departure angle(o) Overall Dimension | 3625+1350 2022 1830 1500 1670 19 26 10500x2550x3450mm | |||||
Weight in kg | Net weight Maximum load mass Front axle loading capacity Rear axle loading capacity | 18000 40000 18000 16000×2 | |||||
Performance | Maximum driving speed(km/h) Maximum grade ablility (%) Minimum ground clearance(mm) Minimum turning circle(m) | 78 35 290 15 | |||||

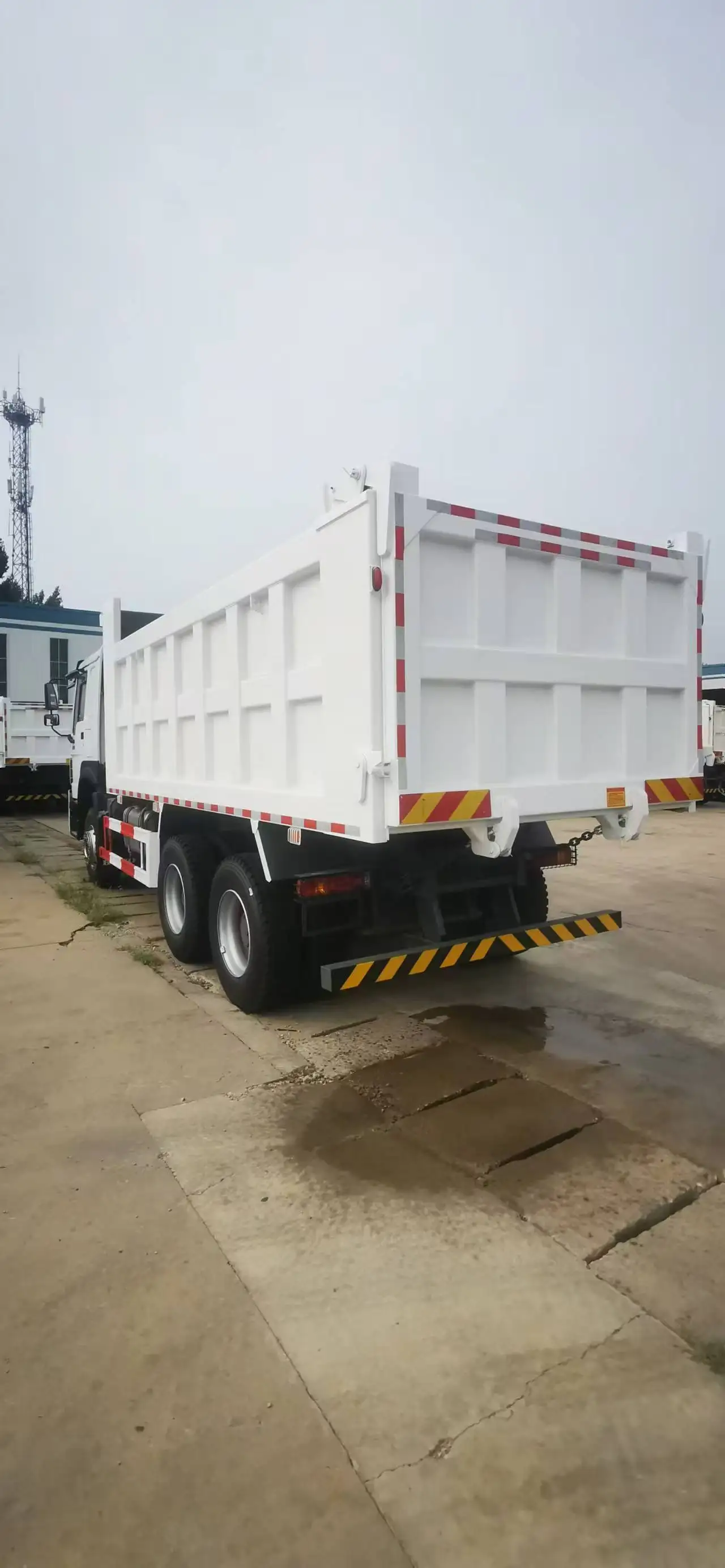

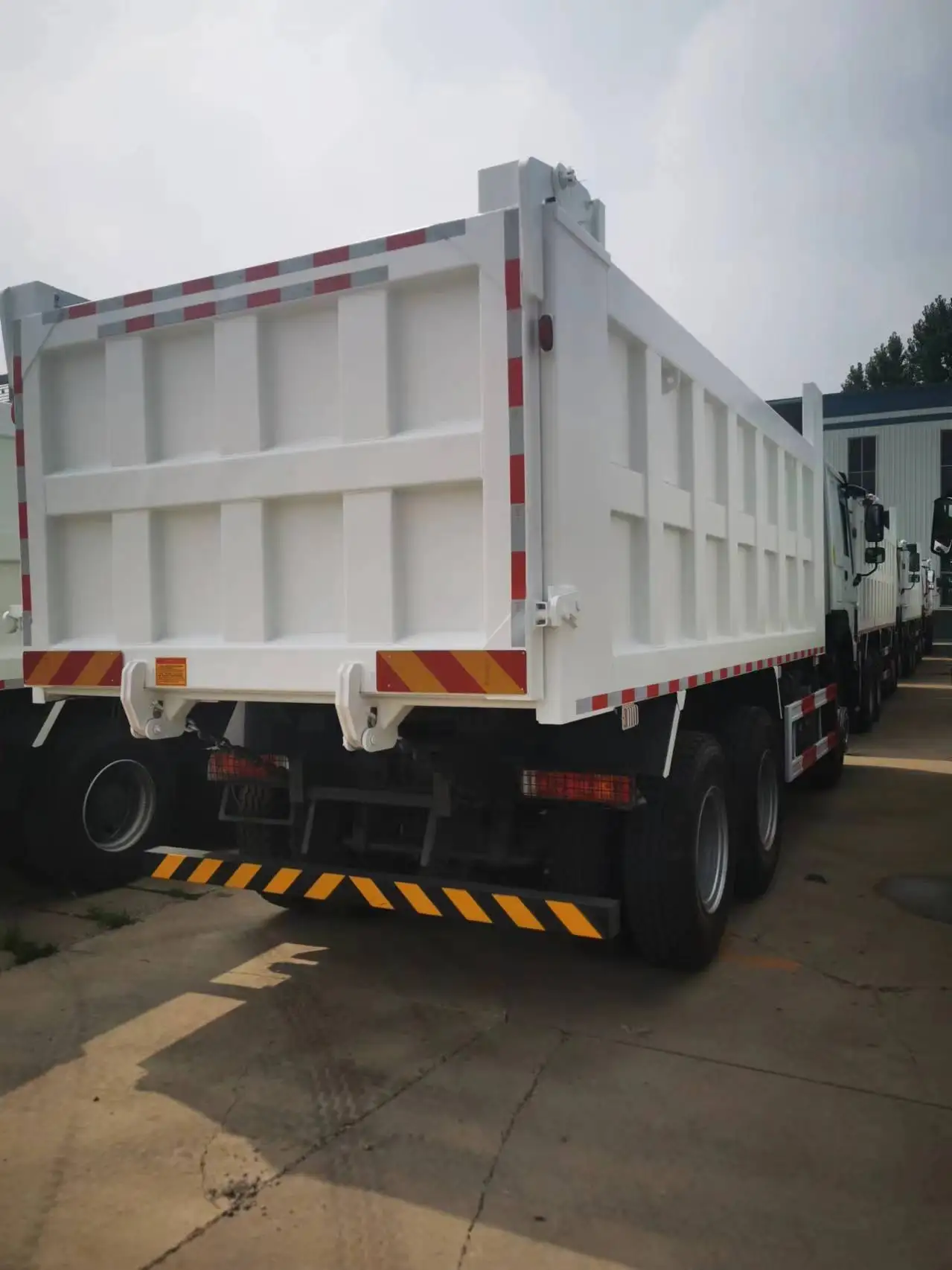

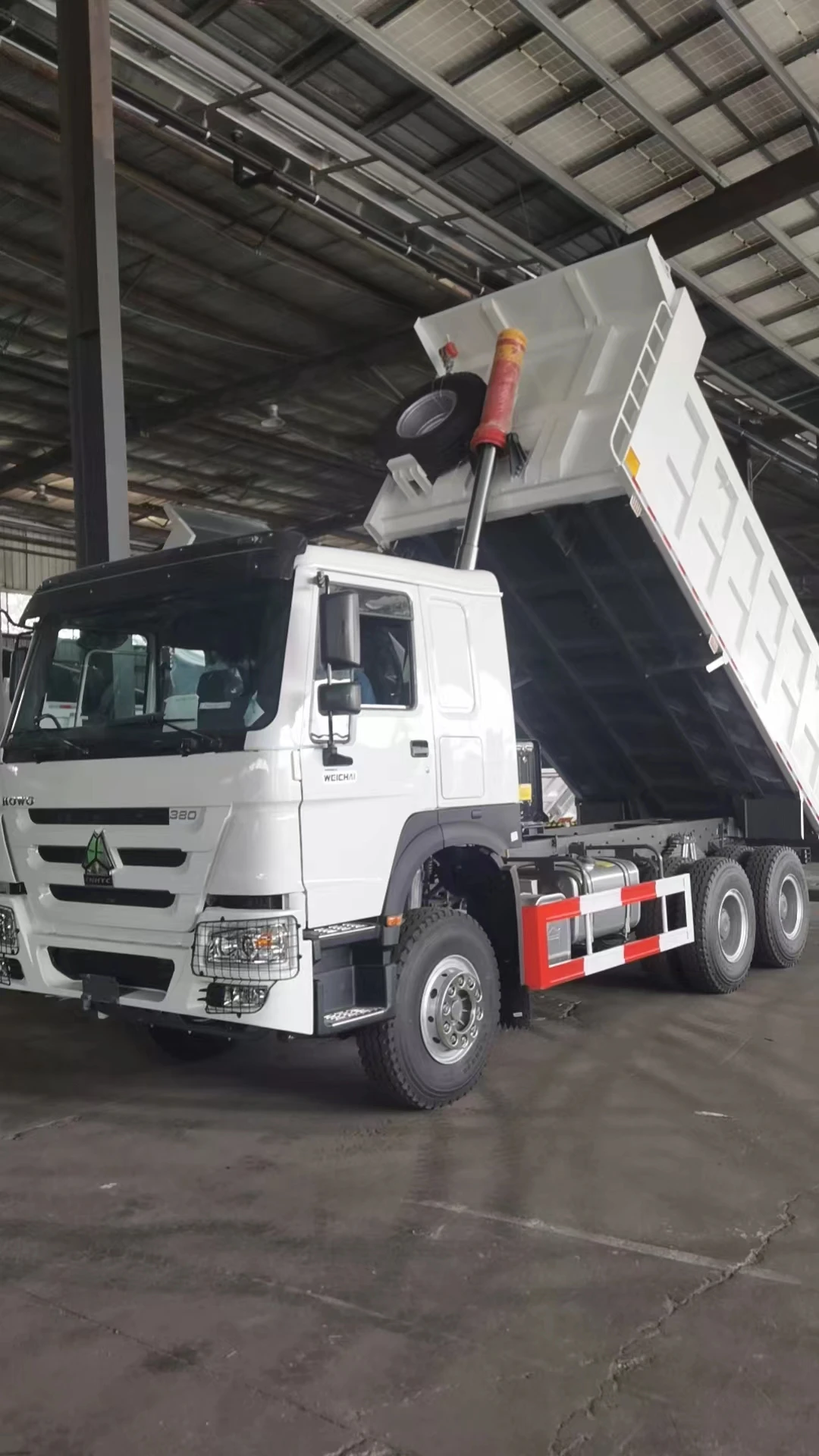

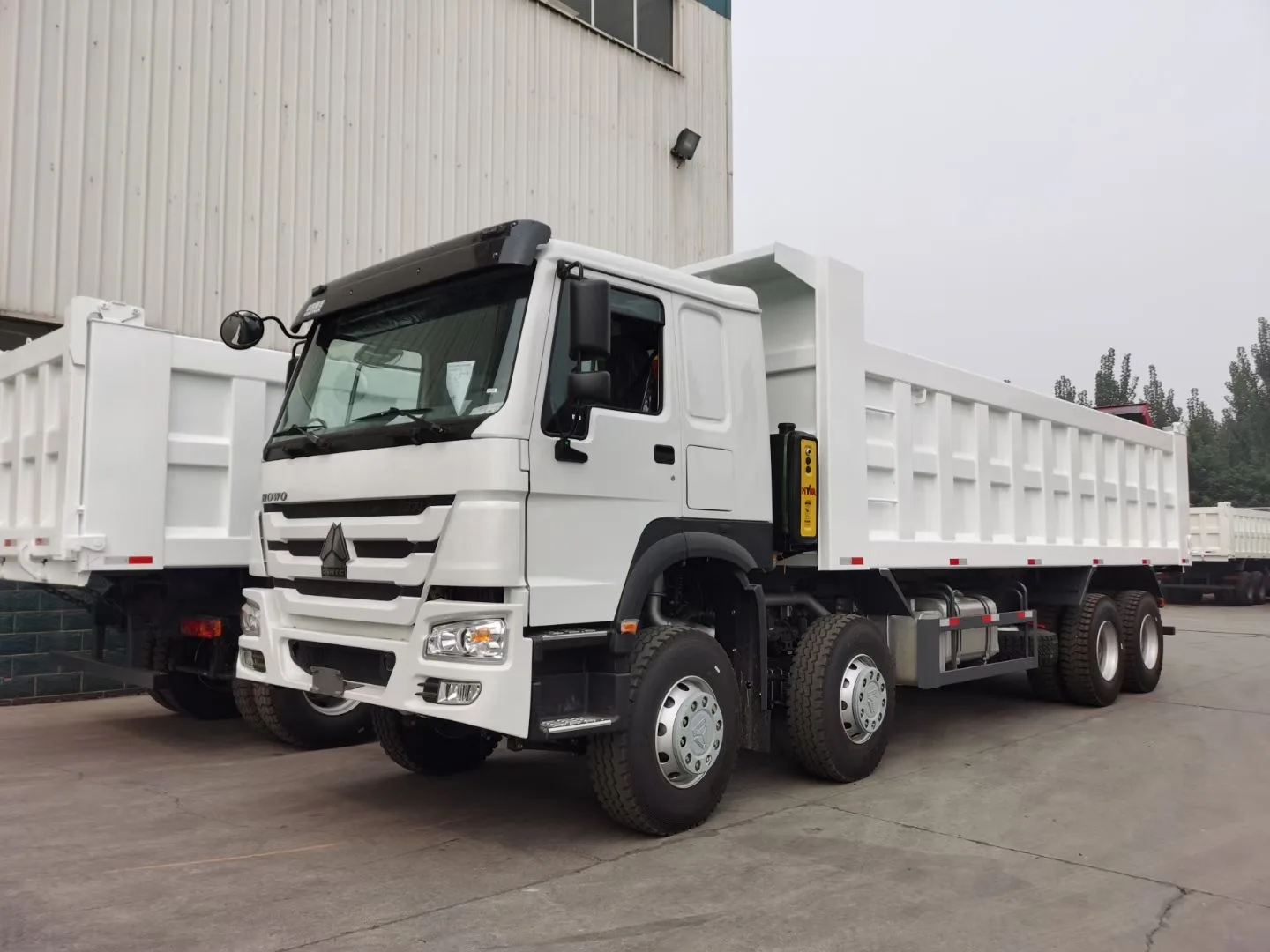

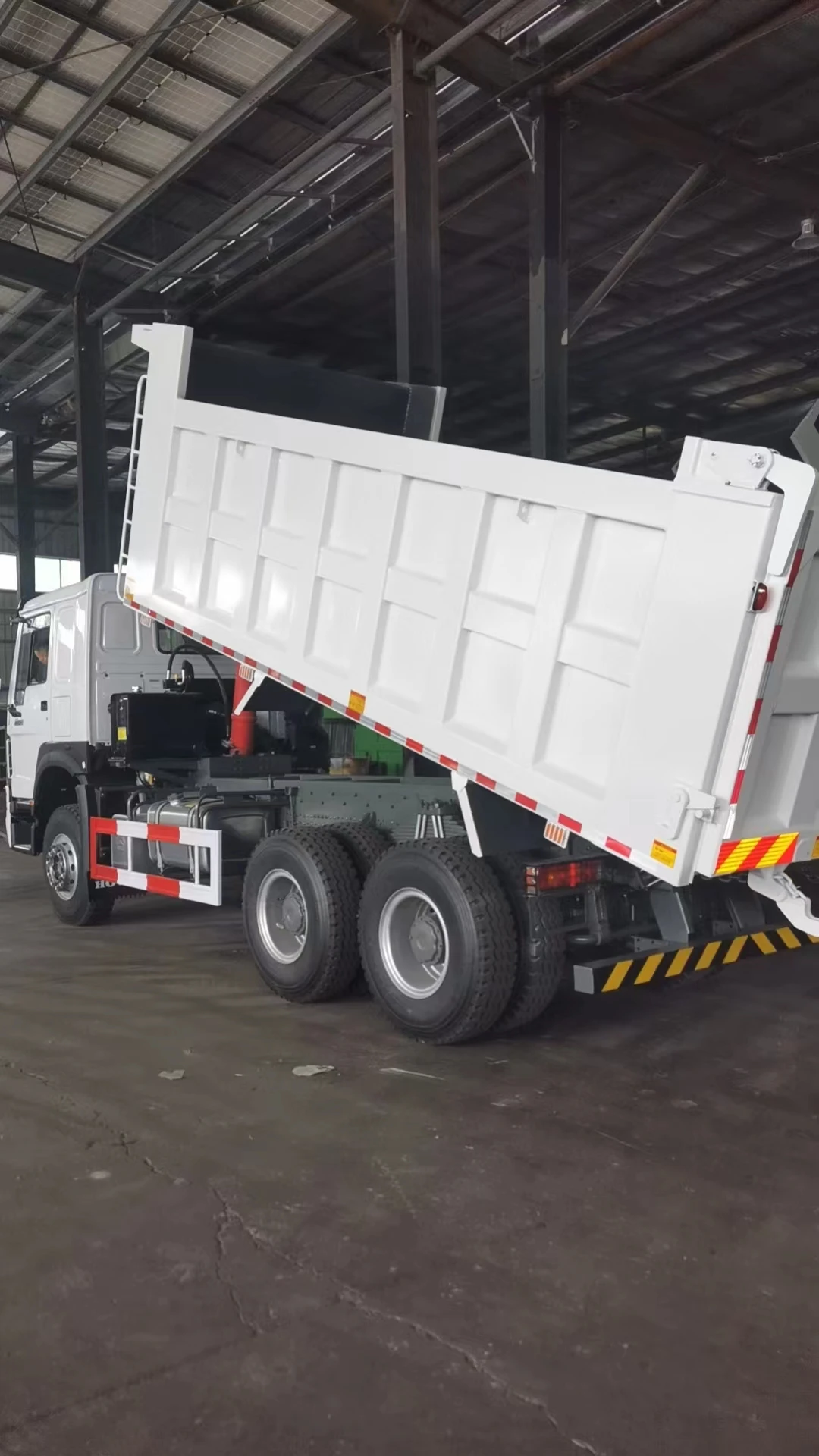

Details Images
Packing & Delivery

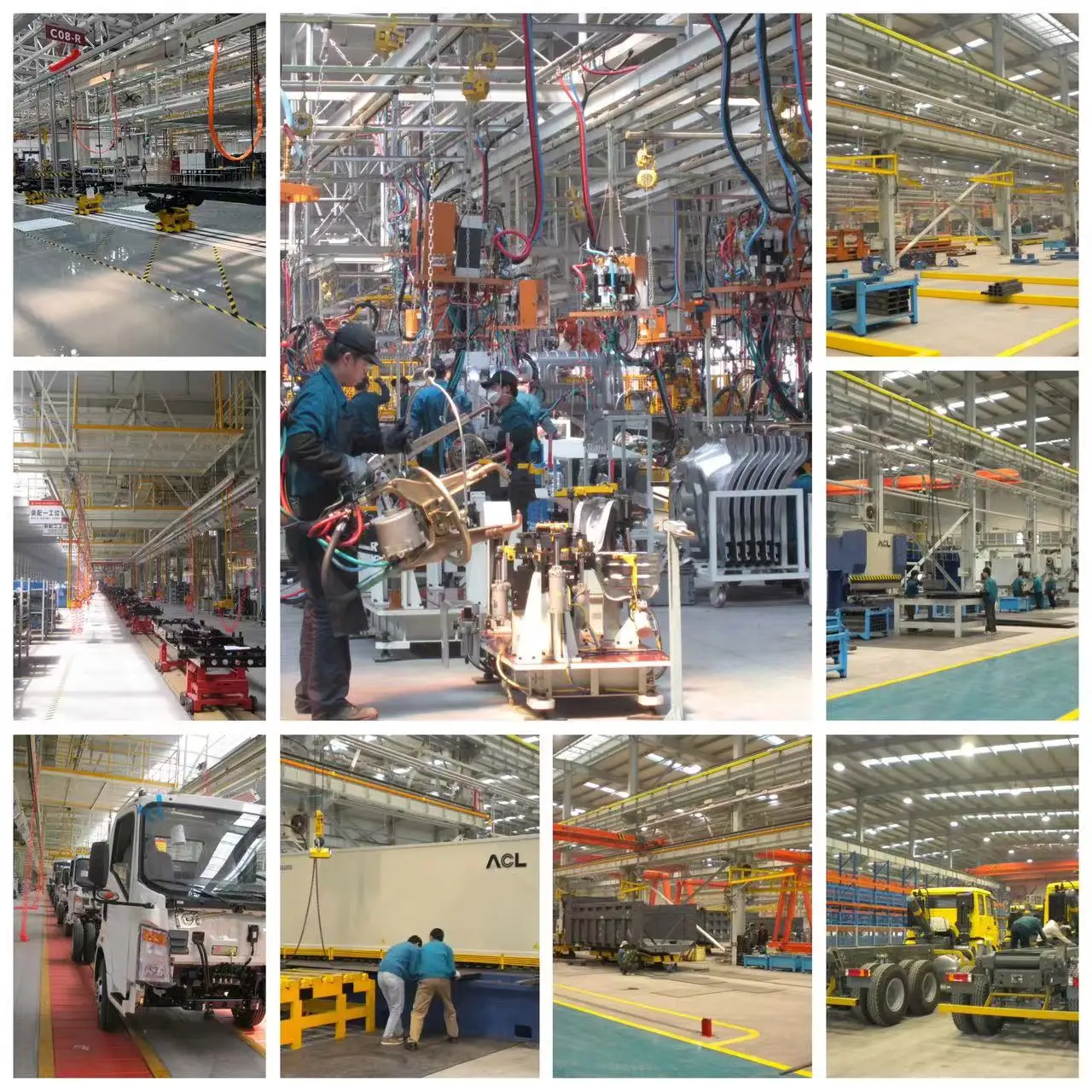

FACTORY
Customer Photos
FAQ
1. How to ship?
1). FOB, CIF terms, we will effect shipment and furnish the master bill of lading issued by shipping line.
2). FOB items, buyer should nominate shipping line or shipping agency in China.
3). Shipped by train, we will discuss with buyer to get agreement on details.
2. How about the quality?
1). Best quality tires.
2). Top 1 brand in China, top 8 brand in the world.
3. How about the delivery?
If the products you need are all stock available, we will arrange shipment within 3-5 days, once receiving your down payment. If the products you need is out of stock, we will arrange production asap, normally, the shipment will be effected within 25 days.
1). FOB, CIF terms, we will effect shipment and furnish the master bill of lading issued by shipping line.
2). FOB items, buyer should nominate shipping line or shipping agency in China.
3). Shipped by train, we will discuss with buyer to get agreement on details.
2. How about the quality?
1). Best quality tires.
2). Top 1 brand in China, top 8 brand in the world.
3. How about the delivery?
If the products you need are all stock available, we will arrange shipment within 3-5 days, once receiving your down payment. If the products you need is out of stock, we will arrange production asap, normally, the shipment will be effected within 25 days.
4.What about the payment terms is acceptable?
1). T/T : 30% T/T in advance deposit, 70% T/T in balance before delivery.
2). Letter of credit: 100% irrevocable letter of credit.
2). Letter of credit: 100% irrevocable letter of credit.
