Product Overview
Description
Convenient Factory Direct Selling Cement Floor Vibratory Leveling Concrete Screed Machines Laser For Sale

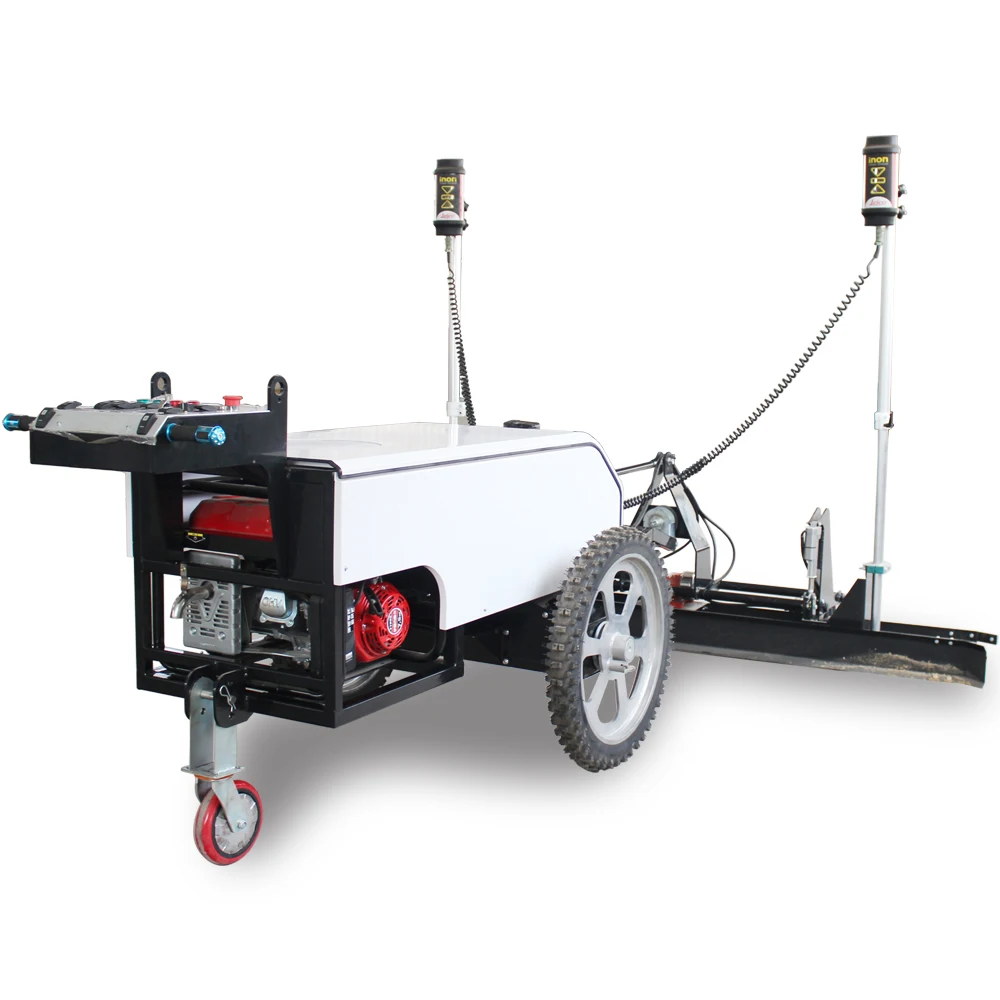

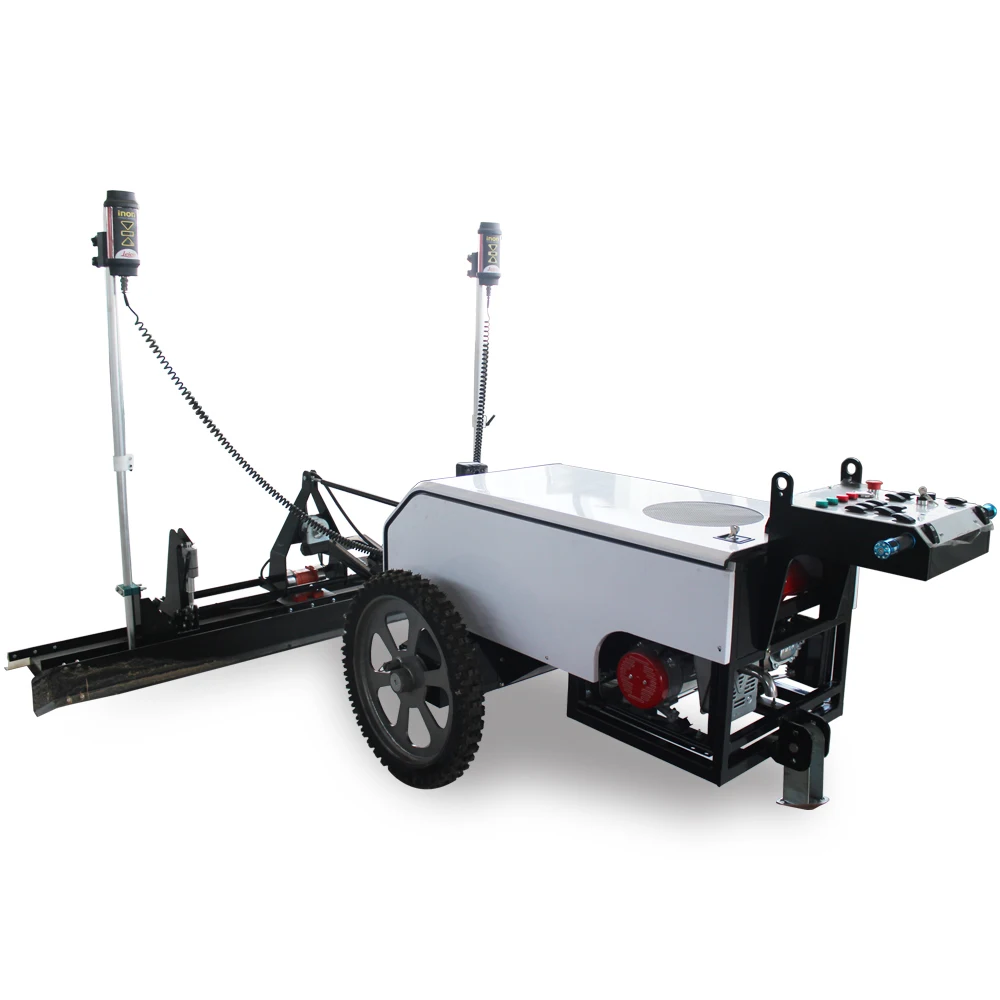

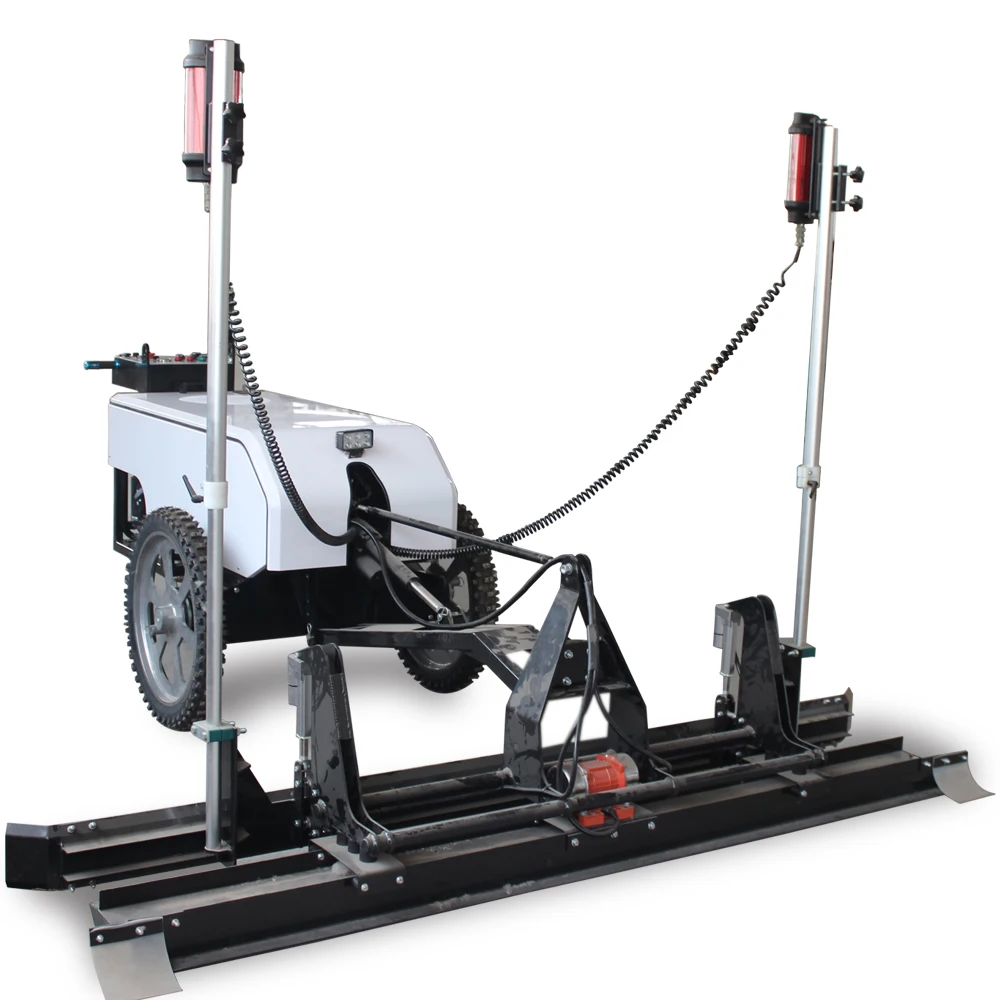

The laser screed machine is mainly used for the concrete road surface, and the slurry lifting, vibrating, and leveling of the road surface in the paving construction can improve the flatness of the concrete surface. It is often used for bridge deck construction and township road construction.
Laser leveling machine is used in a large area of concrete construction, such as a workshop, supermarket, warehouse, airport, playground, etc. A laser leveling machine can meet the construction requirements of a large areas and high flatness.
Products Description
Right now Living Trueview chatting about the machines' details
(Ask for the catalog of the machine/pictures&videos for your website and advertisement/User instructional video/User Manual of special model/special OEM requirements about the machine/Free gifts )
The price listed and some of the pictures are for references,more detailed information
Model | LS-330 |
Power type | Honda GX210 |
Power | 3000w |
Fuel tank | 40L |
Lube oil | 1.5L |
Fuel consumption | 150g/kwh |
Wheel tyre | Soild width tyre |
Laser emitter | Topcon |
Laser receiver | Topcon or Leica |
Control effect | Slab or Slope |
Working width | 2.5m(2.8m,3.0m for select) |
Paving mode | Auto+manual |
Compacting force | 500N |
Vibratory frequency | 50HZ |
Control mode | Panel+remote control |
Walking speed | 0-70m/min |
Control mode | Mirocomputer scan |
Driving mode | Electric |
Overall size | 2554*2500*1500mm |
Weight | 480KGS |
Product Overview
FEATURES:
1. Use high accuracy laser device, close loop control technology and precision integrated hydraulic system, and microcomputer automatic control.2. Screed assembly is hydraulic controlled. Integrated with laser system and computer control system, the machine will self-level and finish the screeding work with high efficiency.
3. The Laser transmitter which measures the elevation is independent, located, so there is no worry about the accumulative error. Compared with the traditional way, the construction joints will be greatly reduced, so the maintenance cost and slab use will be down greatly.
4. The flat and dual slope can be fully automatic controlled by the transmitter. For the complex floor which has high requirement for drainage, the 3-D floor processing system can be used.
5. The forward-seated operation can widen operator vision, reduce the labor intensity and improve working efficiency
6. Steering, forward and reverse of the machine are all controlled by the integrated handles. Operation buttons and controller which are located on the one side of the seat, is user-friendly.
7. The machine with solid puncture-proof tire can do the screeding on the mat reinforcement.
8. The high-pressure cleaning system, can easily remove the concrete on the machine to insure the normal use and prolong the service life.
Details Images

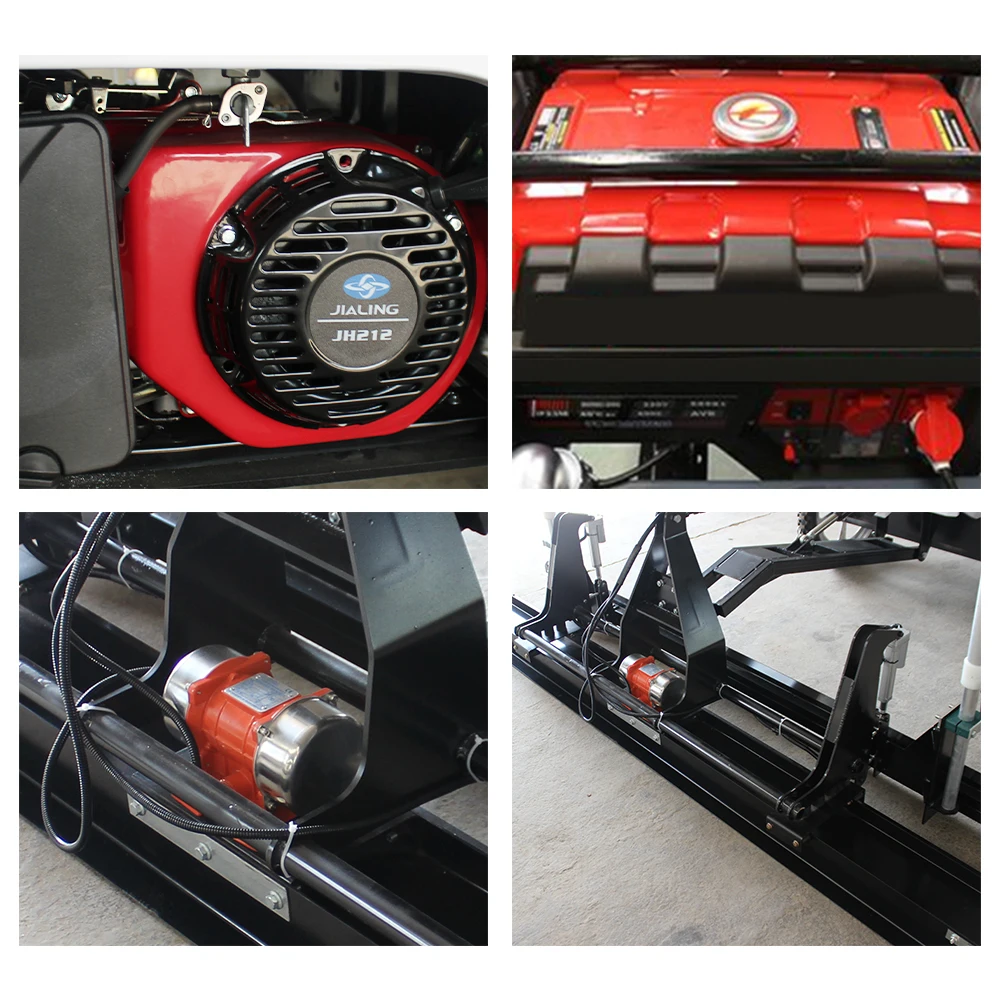

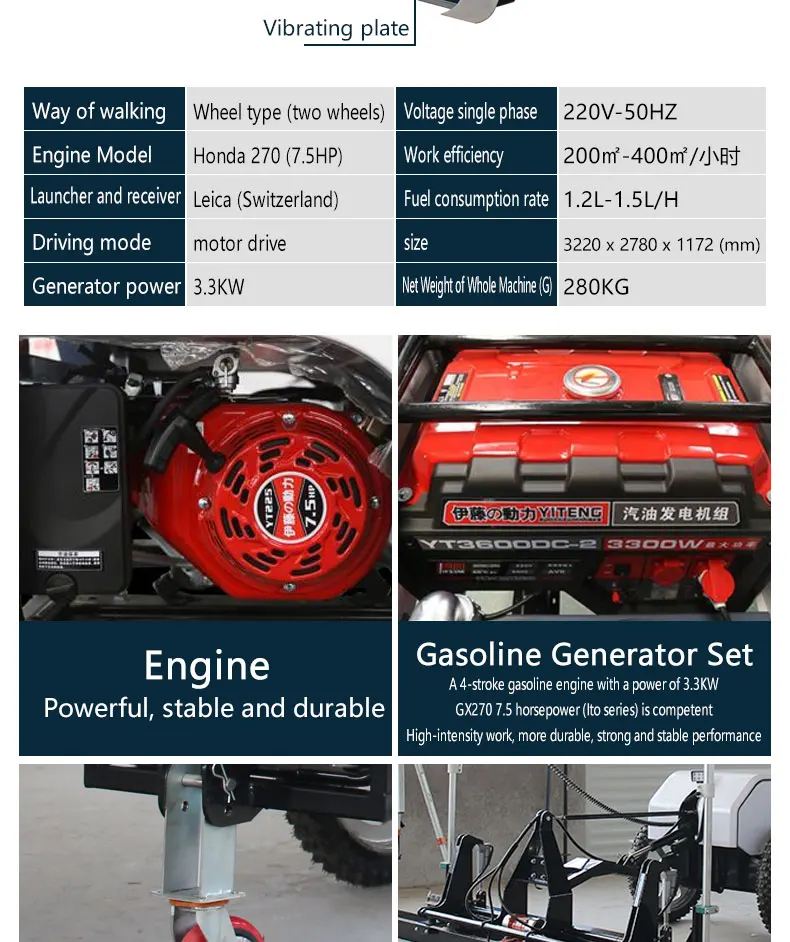

Engine
Brand Honda GX210 engine, strong power, and stable performance.
High-intensity work, more durable, strong and stable performance.

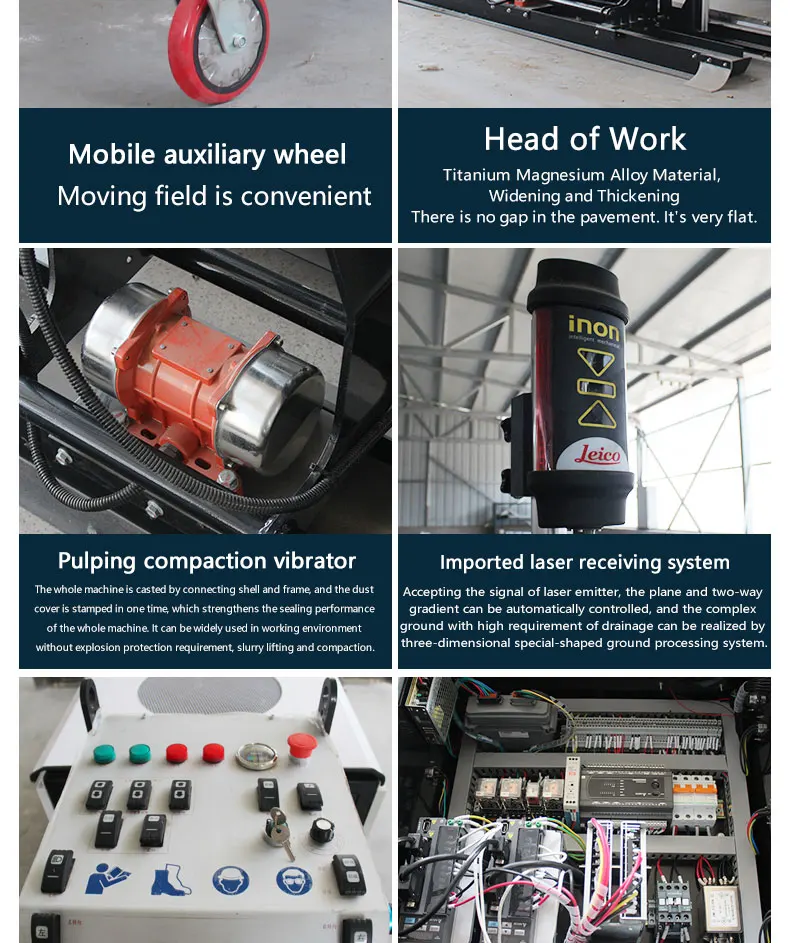

Pulping compaction vibrator.
The whole machine adopts the casing, the base is cast in one piece, and the dust cover is stamped and formed at one time, which strengthens the sealing performance of the whole machine and can be used in the working environment without explosion-proof requirements.

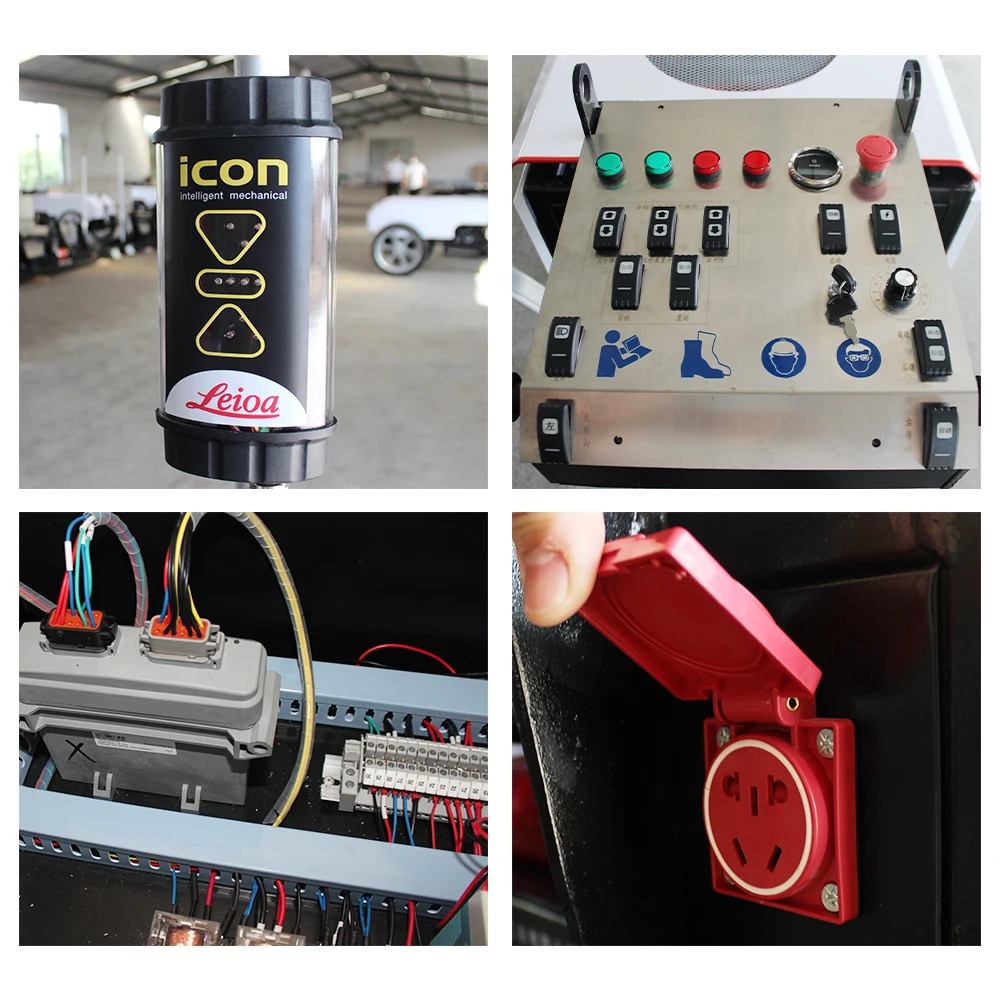

Laser receiving system
It can automatically control the plane and two-way slope by receiving the signal of the laser transmitter. The special-shaped ground treatment system can also be selected for the complex-shaped ground with high drainage requirements.
Operation Integrated Console
The integrated control platform such as throttle, start, forward and rear legs are user-friendly, easy to understand, and easy to operate.Brand electrical appliances
Voltage stability, quality assurance
Product packaging
Exporting package
1 unit was packed into an iron frame and then packed with 5 layers of corrugated carton. 4 strips reinforced the carton. the fix package guaranteed the machines were not damaged during transportation
Company Profile
In 2000, “Ideal machinery” started a small workshop in Changge city, assembling rebar cutting machines and bending machines.through 20 years of development and relied on word-of-mouth advertising, our product involved kinds of the light construction machine.In order to push our machines into the overseas market, the Brand “Ideal machinery” is established in 2015 and started export trading. until now, nearly 10,000 sets of our machines are servicing the overseas construction sites now.
