Product Overview
Description

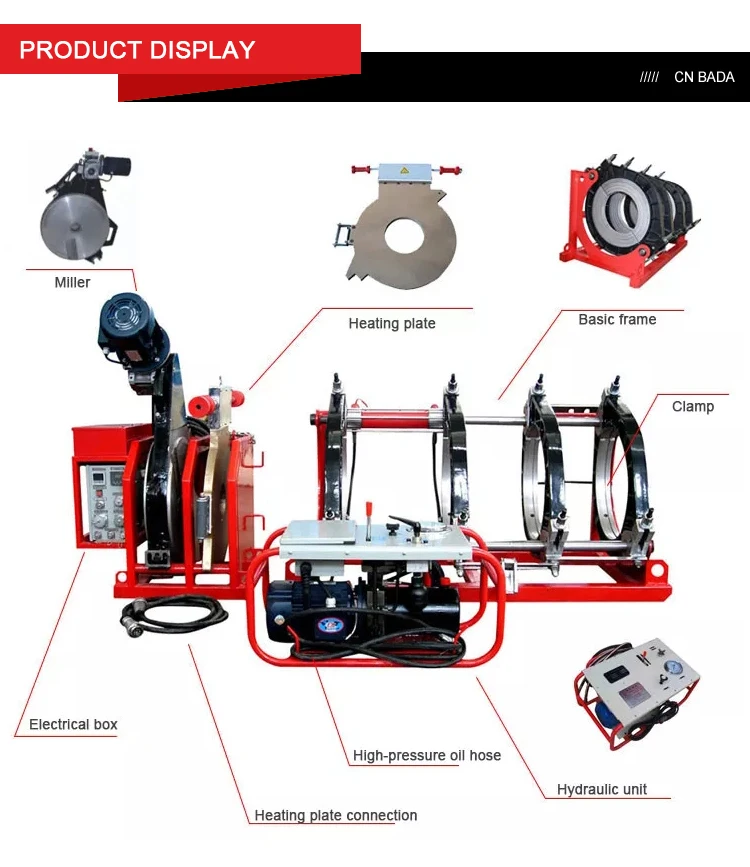

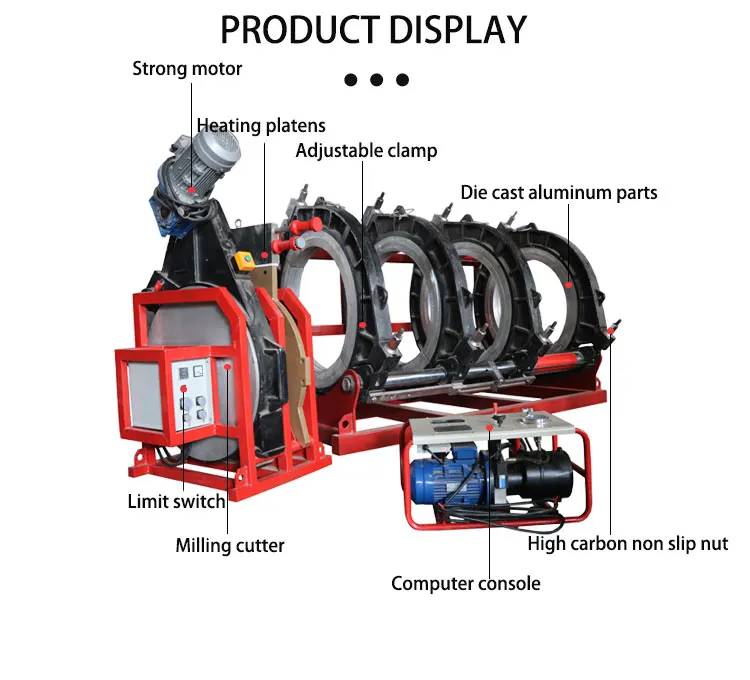

This High quality multifunctional plastic 630-800 hdpe pipe butt fusion welding machine for hdpe pipe is able to weld pipes and fittings with material pe pipe，hdpe pipe , operation easily and suitable for any complex work condition. It Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
BADA 315-500 MM Hydraulic Butt Fusion Welding Machine (SDBD 315-500 ) | ||||||
Welding diameters (mm) | 315-500MM | Working Voltage | 380V, 50Hz | |||
Heating plate temperature | 270°C | Heating plate power | 8.0KW | |||
Heating plate surface temperature(170-250°C) | <±7°C | Milling cutter power | 1.5KW | |||
Pressure adjustment range | 0-10MPa | Hydraulic station power | 1.5KW | |||
Cross-sectional area of the cylinder | 2306 mm² | Lifter power | — | |||
Total Power | 11.0KW | |||||
BADA 400-630 MM Hydraulic Butt Fusion Welding Machine (SDBD 630-400) | ||||||
Welding diameters (mm) | 400-630MM | Working Voltage | 380V, 50Hz | |||
Heating plate temperature | 270°C | Heating plate power | 9.2KW | |||
Heating plate surface temperature(170-250°C) | <±7°C | Milling cutter power | 1.5KW | |||
Pressure adjustment range | 0-10MPa | Hydraulic station power | 1.5KW | |||
Cross-sectional area of the cylinder | 2306 mm² | Lifter power | — | |||
Total Power | 12.2KW | |||||
BADA 630-800 MM Hydraulic Butt Fusion Welding Machine (SDBD 800-630 ) | ||||||
Welding diameters (mm) | 315-500MM | Working Voltage | 380V, 50Hz | |||
Heating plate temperature | 270°C | Heating plate power | 12.5KW | |||
Heating plate surface temperature(170-250°C) | <±7°C | Milling cutter power | 2.2KW | |||
Pressure adjustment range | 0-16MPa | Hydraulic station power | 2.2KW | |||
Cross-sectional area of the cylinder | 3179 mm² | Lifter power | 0.5KW | |||
Total Power | 17.4KW | |||||
BADA 710-1000 MM Hydraulic Butt Fusion Welding Machine (SDBD 1000-710 ) | ||||||
Welding diameters (mm) | 710-1000MM | Working Voltage | 380V, 50Hz | |||
Heating plate temperature | 270°C | Heating plate power | 21.7KW | |||
Heating plate surface temperature(170-250°C) | <±10°C | Milling cutter power | 3.0KW | |||
Pressure adjustment range | 0-16MPa | Hydraulic station power | 3.0KW | |||
Cross-sectional area of the cylinder | 3886 mm² | Lifter power | 1.1KW | |||
Total Power | 28.8KW | |||||
BADA 800-1200 MM Hydraulic Butt Fusion Welding Machine (SDBD 1200-800 ) | ||||||
Welding diameters (mm) | 800-1200MM | Working Voltage | 380V, 50Hz | |||
Heating plate temperature | 270°C | Heating plate power | 30.0KW | |||
Heating plate surface temperature(170-250°C) | <±10°C | Milling cutter power | 4.0KW | |||
Pressure adjustment range | 0-25MPa | Hydraulic station power | 3.0KW | |||
Cross-sectional area of the cylinder | 5063 mm² | Lifter power | 1.1KW | |||
Total Power | 38.1KW | |||||
BADA 1200-1600 MM Hydraulic Butt Fusion Welding Machine (SDBD 1600-1200 ) | ||||||
Welding diameters (mm) | 1200-1600MM | Working Voltage | 380V, 50Hz | |||
Heating plate temperature | 270°C | Heating plate power | 47KW | |||
Heating plate surface temperature(170-250°C) | <±12°C | Milling cutter power | 5.5KW | |||
Pressure adjustment range | 0-25MPa | Hydraulic station power | 9.7KW | |||
Cross-sectional area of the cylinder | 6300 mm² | Lifter power | 1.5KW | |||
Total Power | 63.7KW | |||||

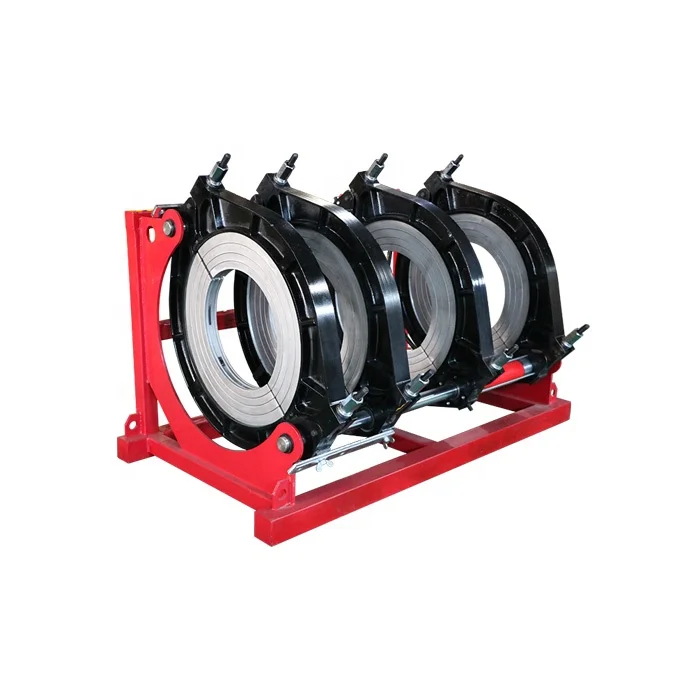

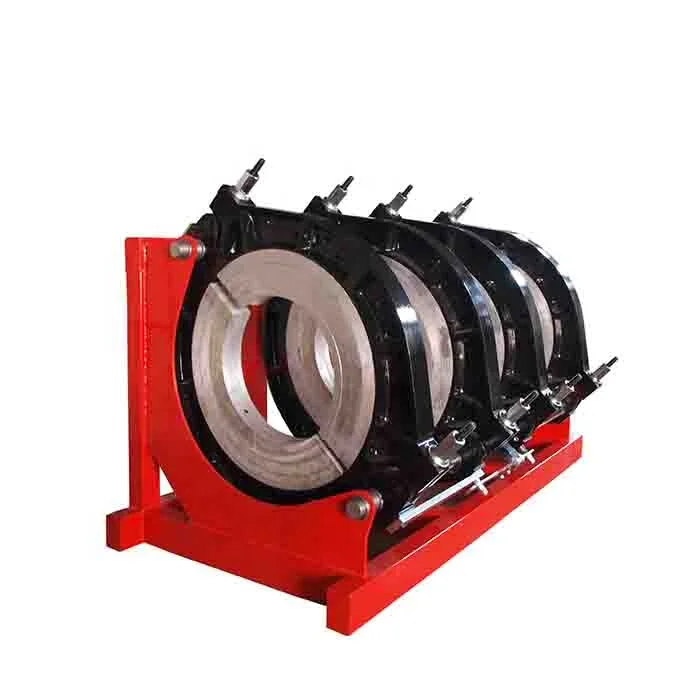

Base frame
The base frame is made of standard zl104 aluminum material, supporting plastic pipes or fittings through two fixed clamps and two movable clamps.
The BADA butt welding machine base frame uses the hydraulic pressure on the system to carry two pistons on the metal rod to move the clamps back and forth, providing the necessary movement for the welding process. A heating plate separator is installed on the base frame. After the heating plate heats the pipe, the heating plate and the pipe can be well separated.
The BADA butt welding machine base frame uses the hydraulic pressure on the system to carry two pistons on the metal rod to move the clamps back and forth, providing the necessary movement for the welding process. A heating plate separator is installed on the base frame. After the heating plate heats the pipe, the heating plate and the pipe can be well separated.

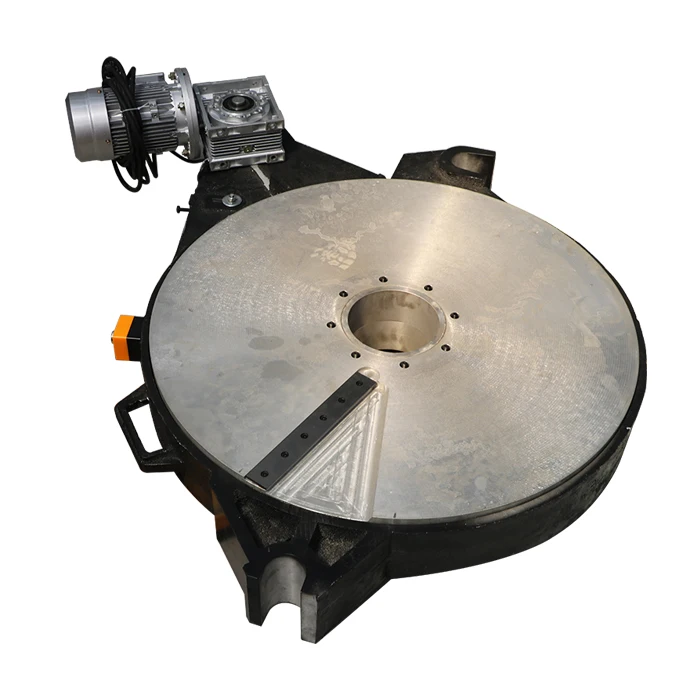

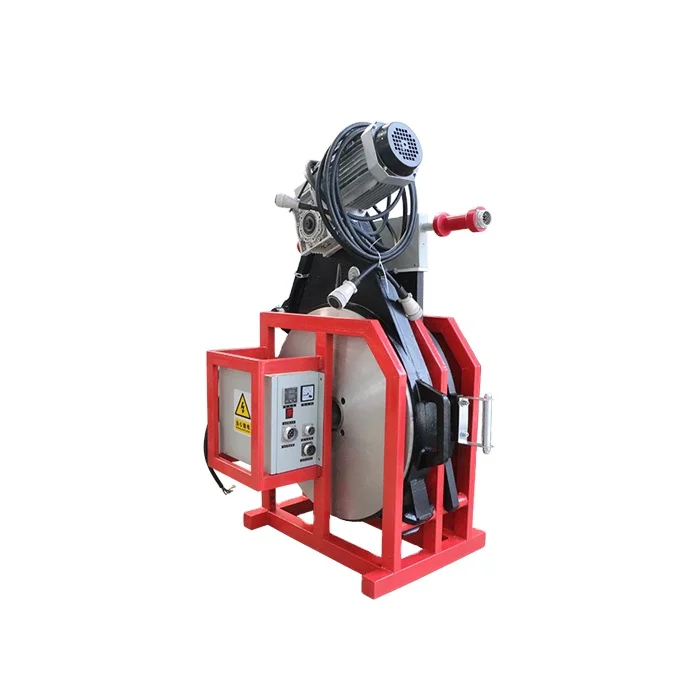

Planing tool
The planing tool is a tool to clean and smooth both ends of the pipe before the heating process.
The BADA butt welding machine planing tool is designed for self-aligning planing machines, always producing parallel pipe surfaces. There is an emergency stop switch. If an erroneous operation occurs during construction, the emergency stop switch can be used directly to stop the operation. Driven by gears to avoid chain breakage when milling thick pipes. A powerful motor and special material blades are used to make the cutting surface more perfect
The BADA butt welding machine planing tool is designed for self-aligning planing machines, always producing parallel pipe surfaces. There is an emergency stop switch. If an erroneous operation occurs during construction, the emergency stop switch can be used directly to stop the operation. Driven by gears to avoid chain breakage when milling thick pipes. A powerful motor and special material blades are used to make the cutting surface more perfect

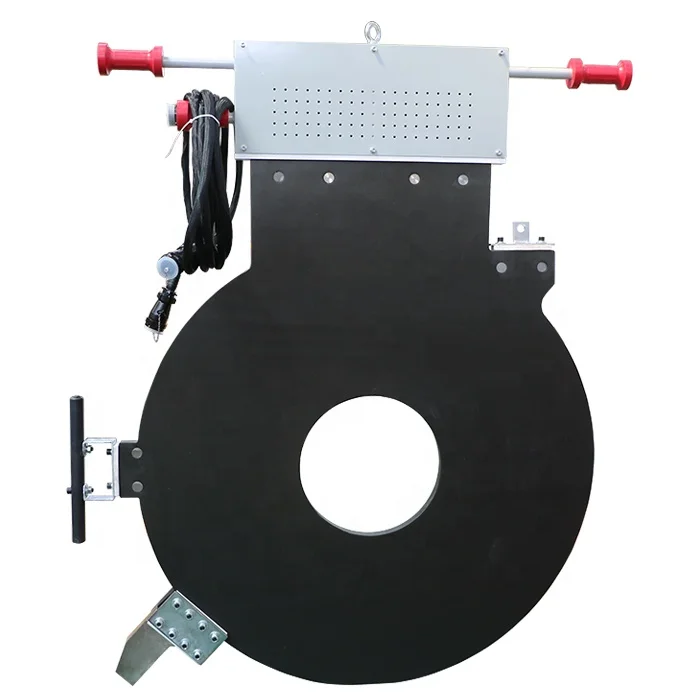

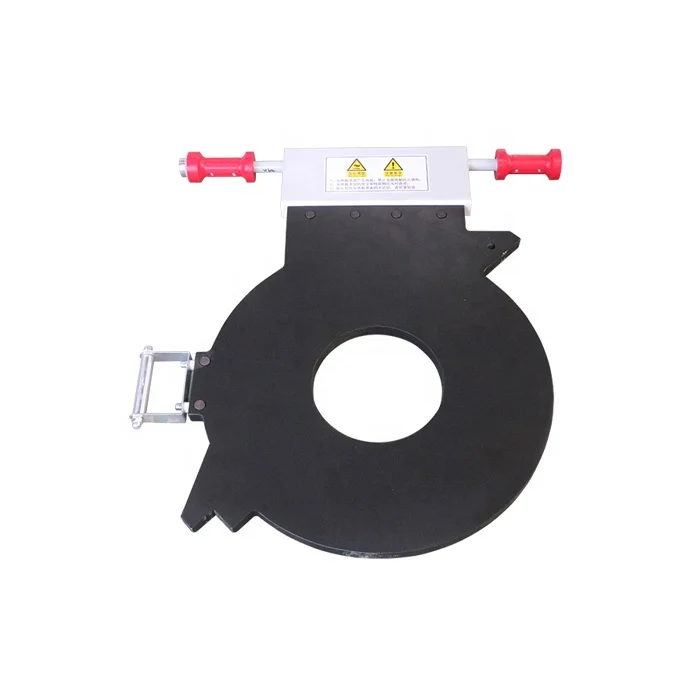

Heating plate
Before welding, the pipe end will be heated by this heater. The setting of the heater will be completed through the thermostat on the plate.
The BADA butt welding machine heating plate uses imported PTFE-coated heating elements with uniform surface temperature. The heating plate is connected to a PT100 sensor and can be directly connected to a data logger. Independent temperature difference control system, the temperature difference control is the smallest range of similar machines in China
The BADA butt welding machine heating plate uses imported PTFE-coated heating elements with uniform surface temperature. The heating plate is connected to a PT100 sensor and can be directly connected to a data logger. Independent temperature difference control system, the temperature difference control is the smallest range of similar machines in China

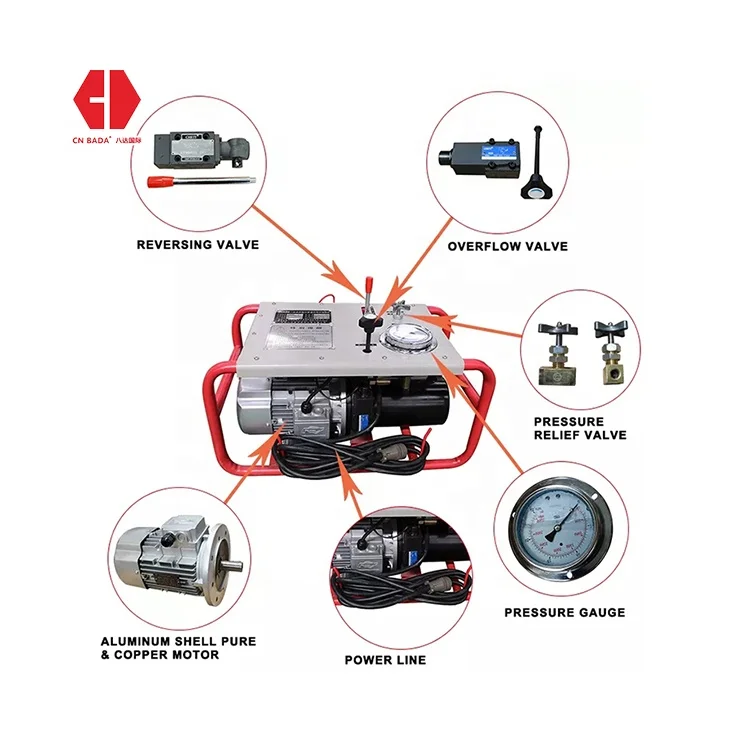

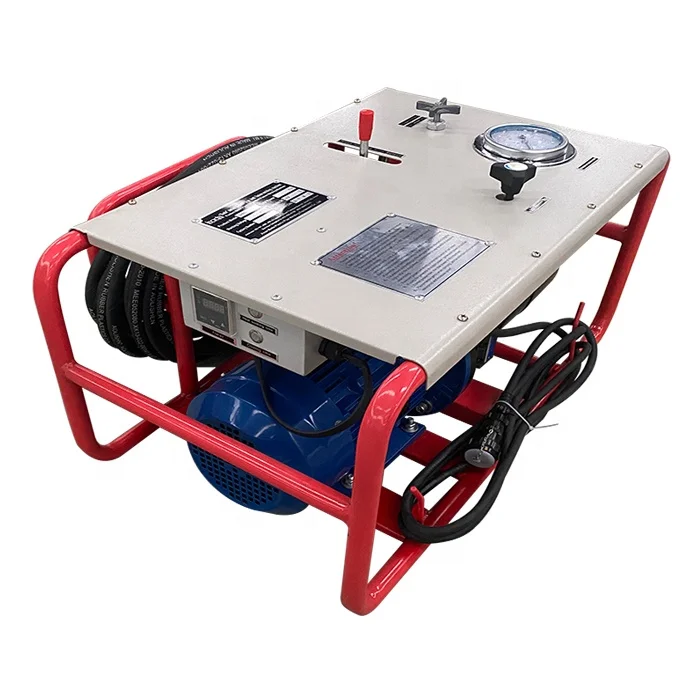

Hydraulic unit
Connect the hydraulic unit to the main frame to provide power for welding of connecting pipes or accessories.
The hydraulic unit of the BADA butt welding machine can be connected to a data logger. Large instrument panel, high-density shockproof instrument panel, independent dual-channel timer, can record two time periods of heat absorption and cooling, automatic alarm at the end of timing, the oil circuit module in the hydraulic device is made of aluminum, which is corrosion-resistant, light weight and long cycle life.
The hydraulic unit of the BADA butt welding machine can be connected to a data logger. Large instrument panel, high-density shockproof instrument panel, independent dual-channel timer, can record two time periods of heat absorption and cooling, automatic alarm at the end of timing, the oil circuit module in the hydraulic device is made of aluminum, which is corrosion-resistant, light weight and long cycle life.
When our welds pipe together with data logger, the welding process is in a semi-automatic way, continuous repeat of the welding cycles and automatic control of preset parameters. Data Logger can store up to 1000 welding cycles and sum them into a encrypted EXCEL file. This report can be transferred to a PC/Laptop through a USB port.
Successful Project
Project in Southeast Asia
Project in Southeast Asia
Project in Russia
Related Products
1.The shipping: 3 days after received payment
2.The packaging: standard export plywood cases
3:Our machine will be wraped by plastic film, put into a wooden box at last. This type of packages is avoid getting rusty easily.
2.The packaging: standard export plywood cases
3:Our machine will be wraped by plastic film, put into a wooden box at last. This type of packages is avoid getting rusty easily.
FAQ
1. Q:What is your payment terms ?
A:100% TT in advance . Western Union , D/P, Credit card payment on line .
2. Q:What’s your delivery time ?
A:3-5 days after payment
A:100% TT in advance . Western Union , D/P, Credit card payment on line .
2. Q:What’s your delivery time ?
A:3-5 days after payment
3.Q:How about your Guarantee and Service ?
A:All designed according to ISO21307:2011(E), ISO12176-1 and DVS2207/1(08/2007)
International warranty: 12 months. Any parts broken or does not work under normal operating, we are free to provide.
International warranty: 12 months. Any parts broken or does not work under normal operating, we are free to provide.
4.Q: What shipment is it to our destination?
A: In general,we transfer goods by sea in order to save cost.If your shipping date is urgent,we could also consider to ship by air.
A: In general,we transfer goods by sea in order to save cost.If your shipping date is urgent,we could also consider to ship by air.
