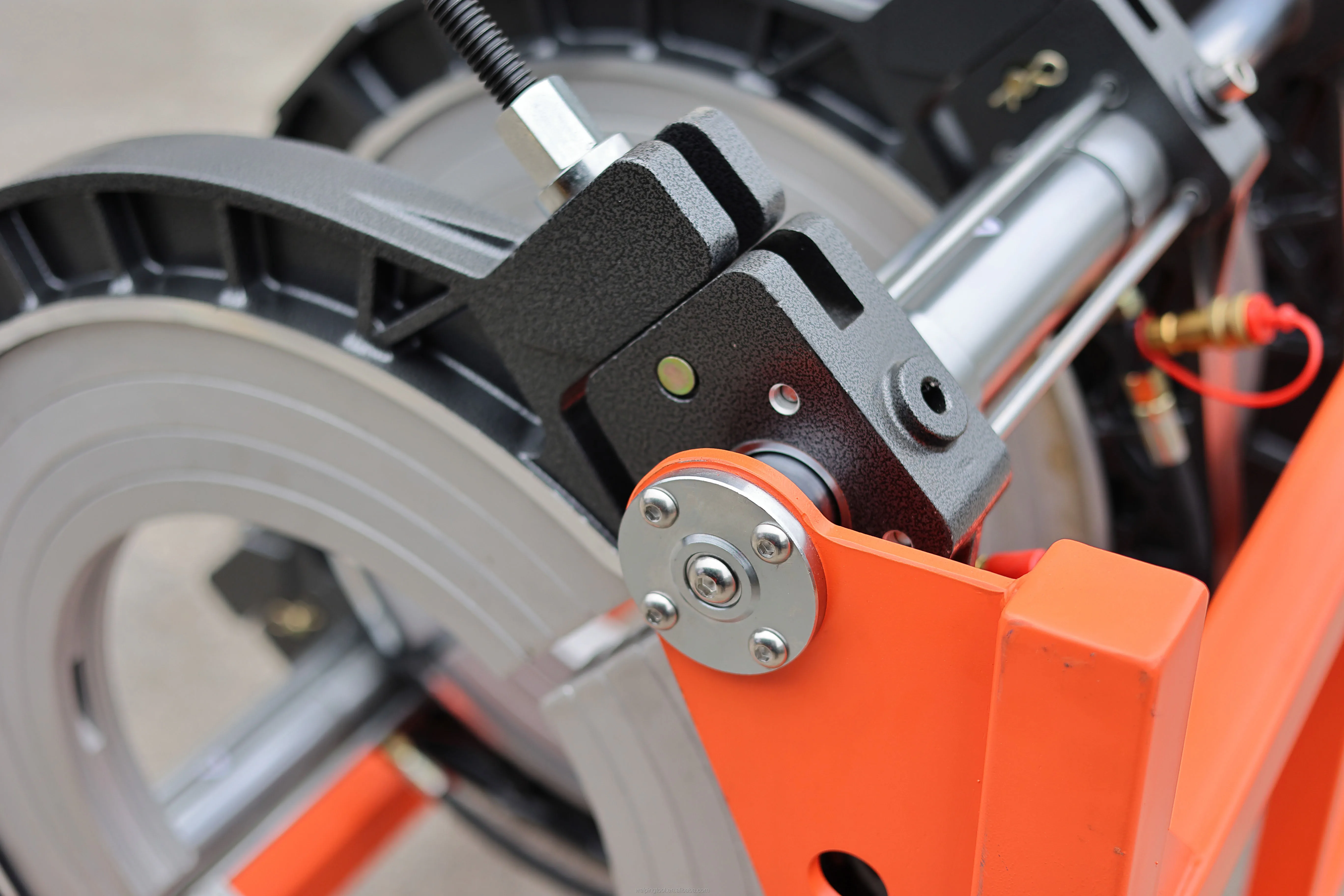

Hydraulic Butt Fusion Machine, 630mm PE Fusion Welding Machine
- Category: >>>
- Supplier: Hangzhou Welping Machinery Equipment Co. Ltd.
Share on (1601249807498):
Product Overview
Description
WP630B hydraulic butt fusion welding machine
HDPE, PE, PP pipes have been used extensively around the world. Butt fusion welding is an effective, trouble free connectingmethod for PE, HDPE pipes. In pressurized piping applications, butt fusion welding can provide excellent performance, just like awhole pipe.
To achieve a good jointing, a steady, precise, robust butt welding machine is critical. WELPING had been developing, manufacturing and distributing various butt fusion welding machine since 2005. It's our pleasure to help you build reputation in the piping project.

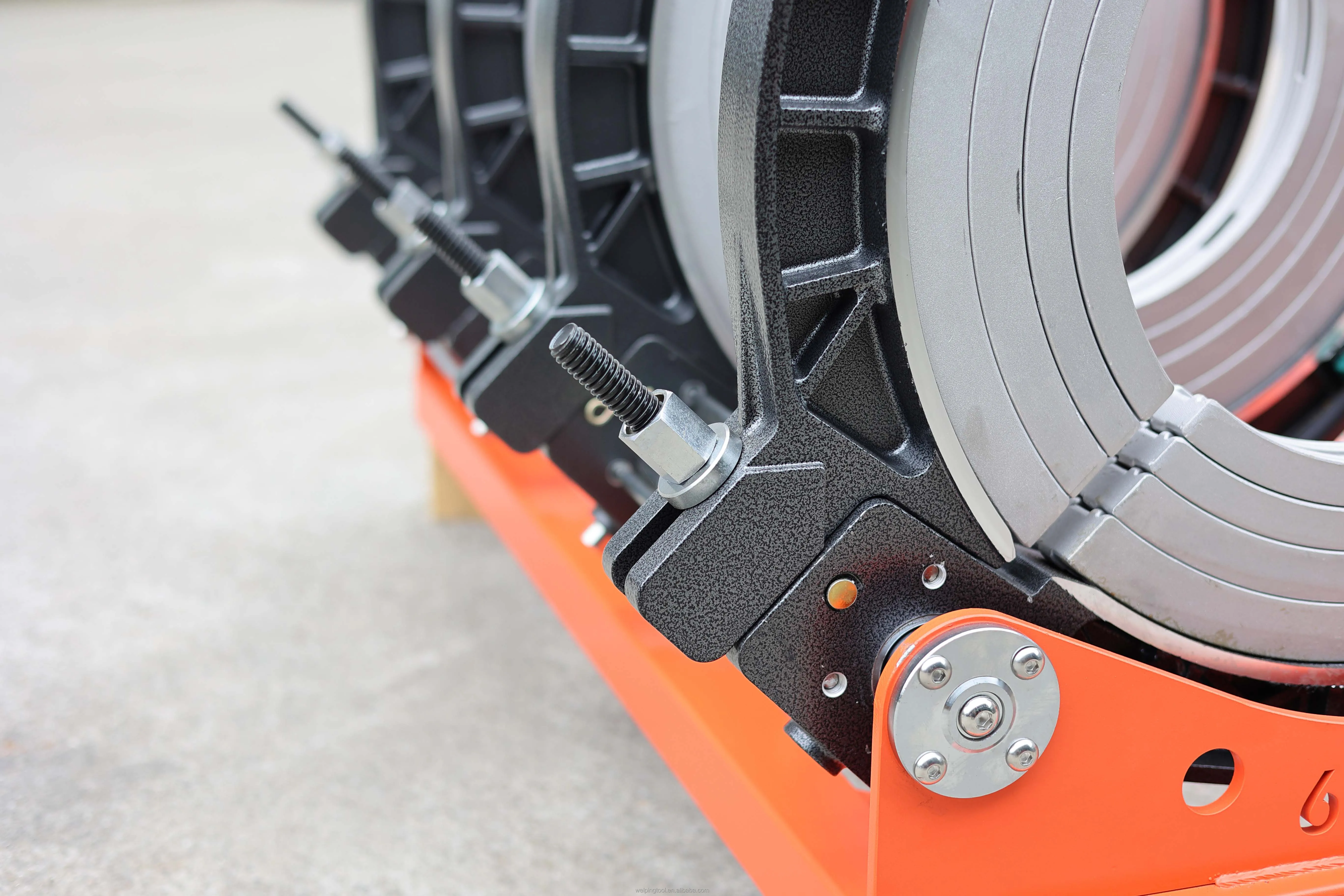

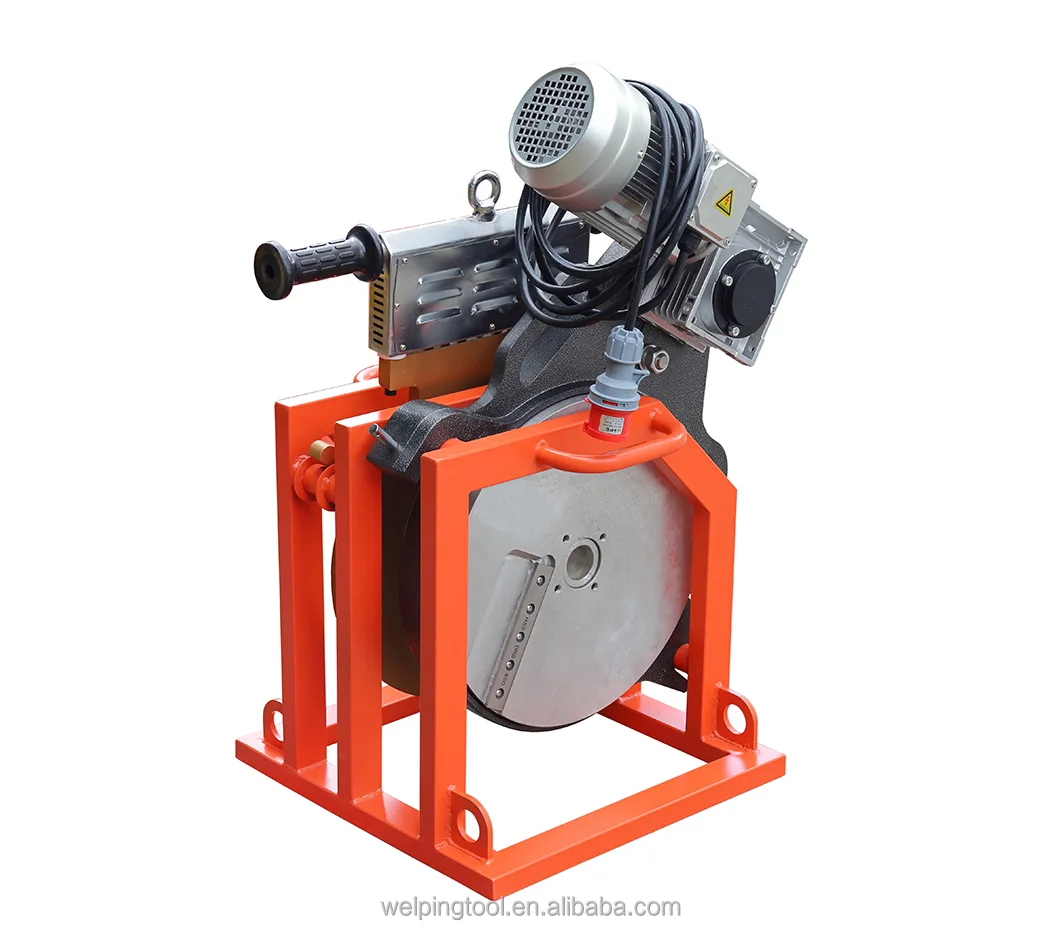

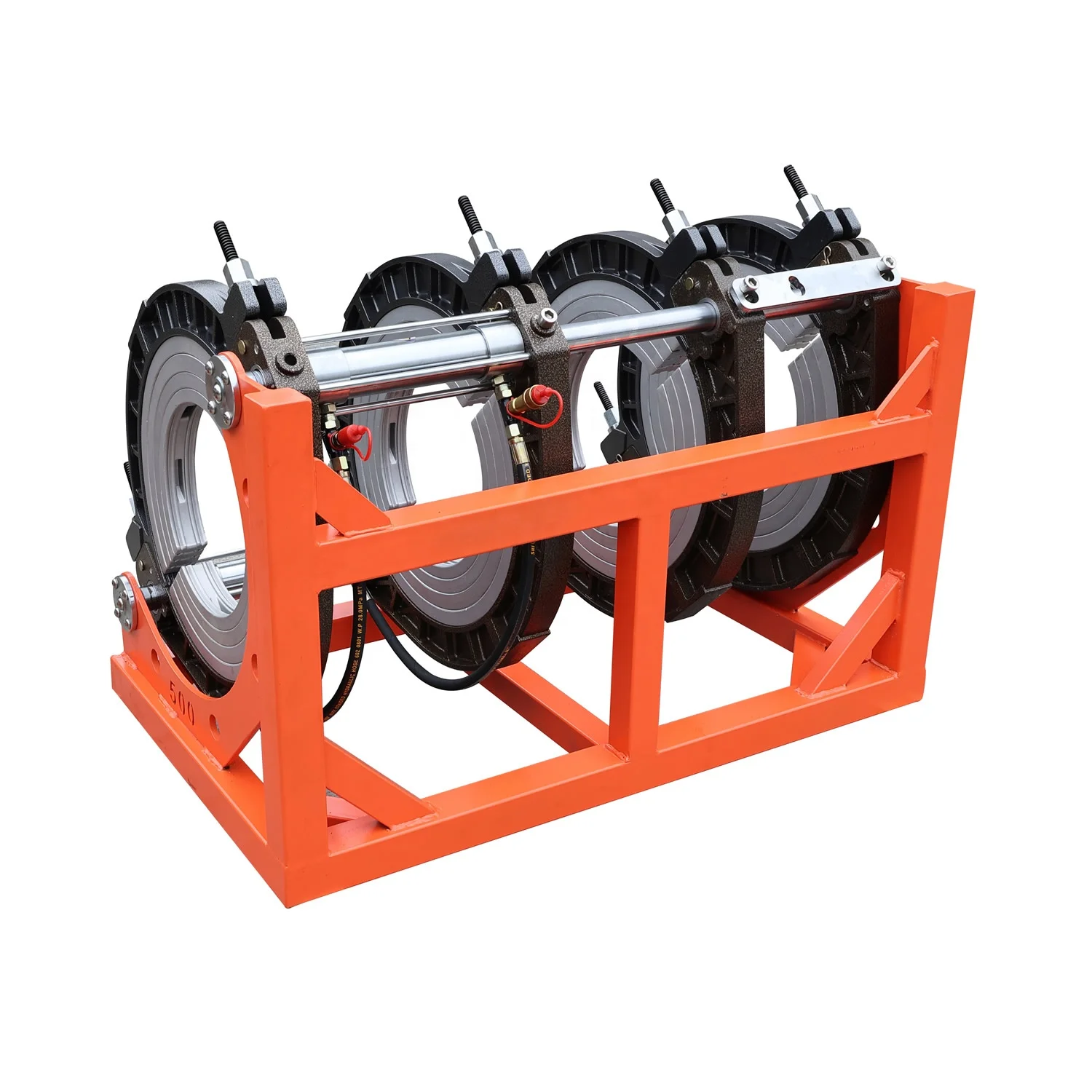

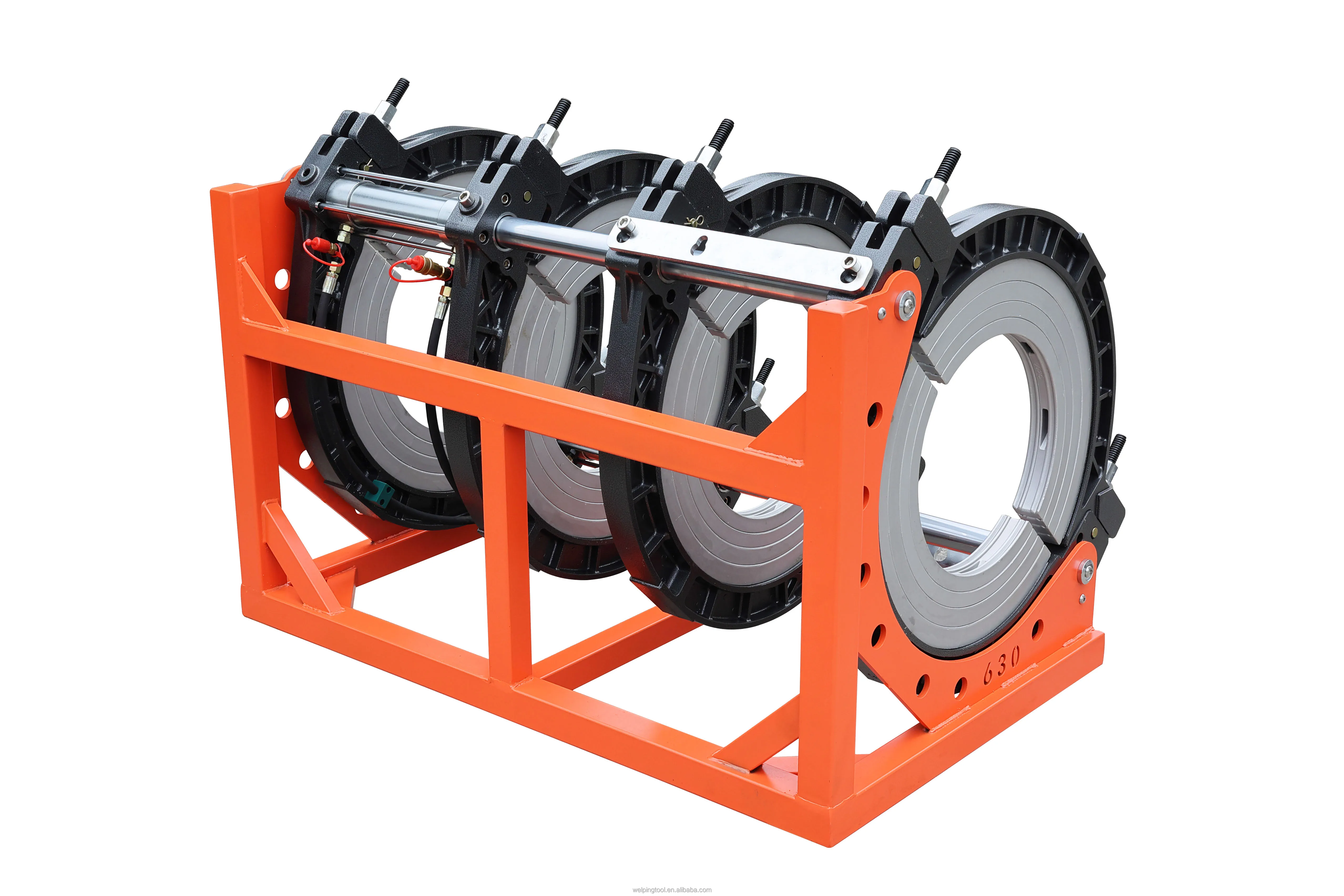

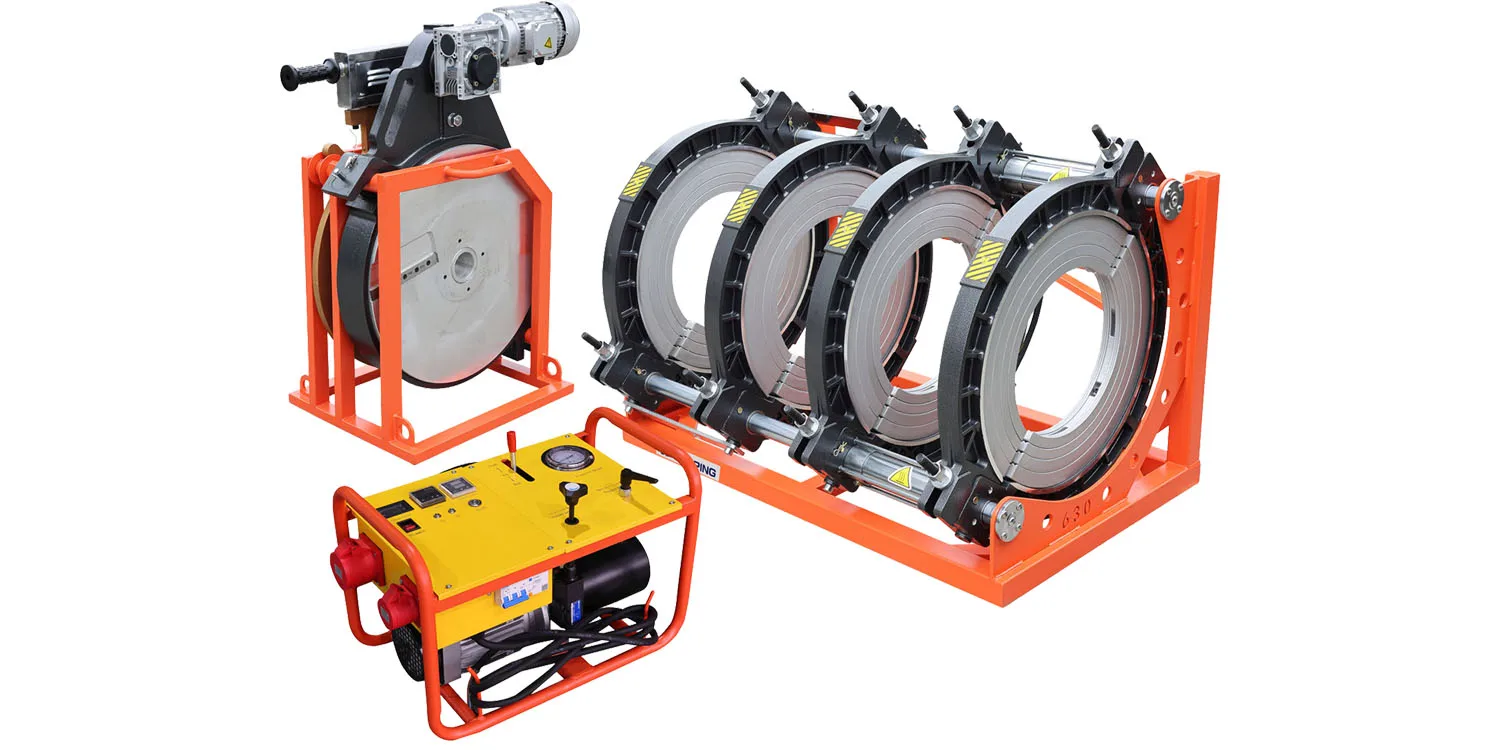

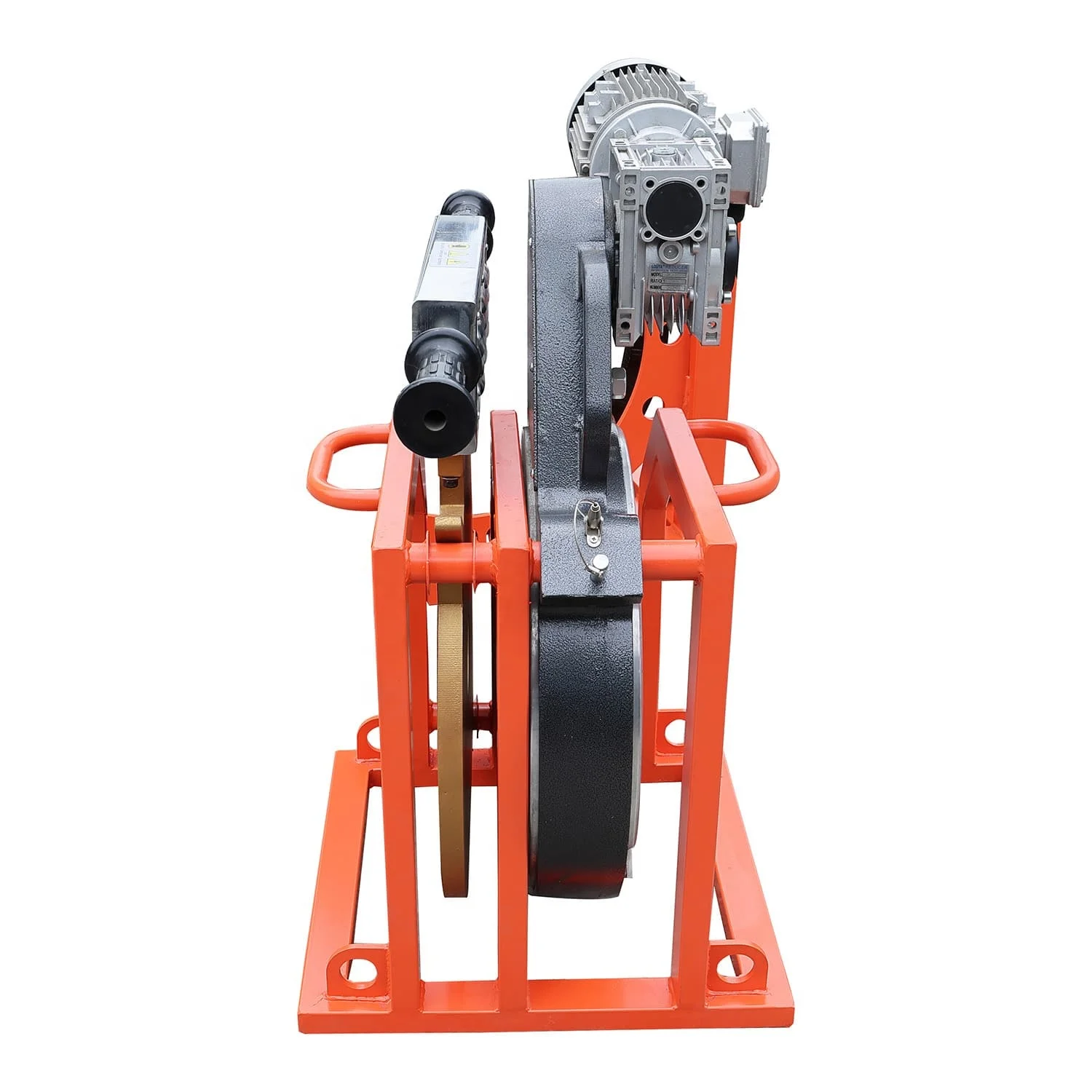

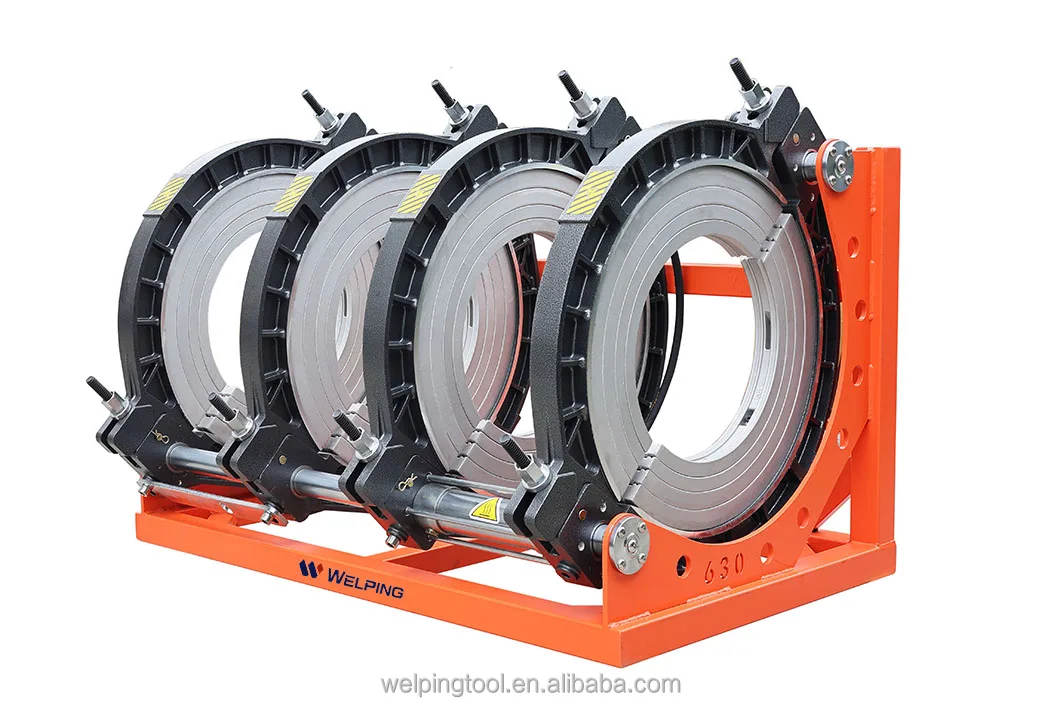

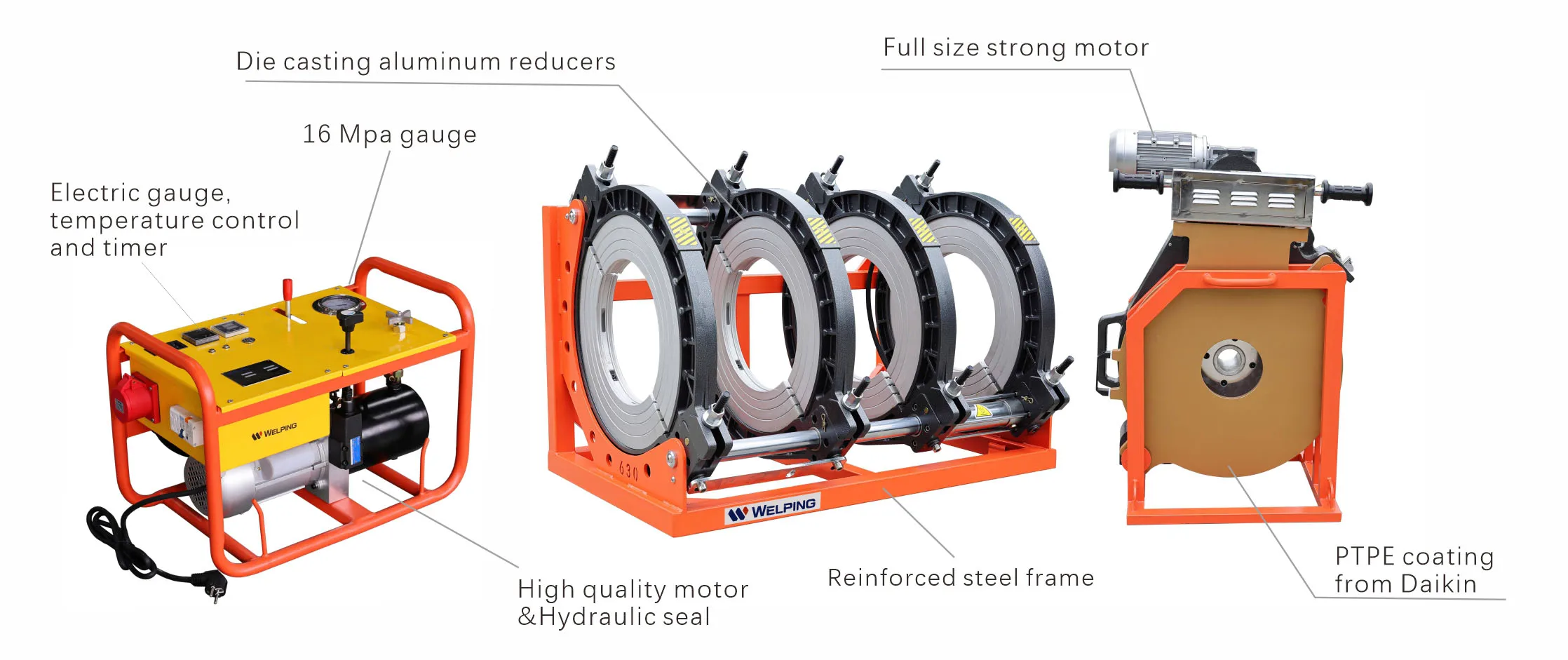

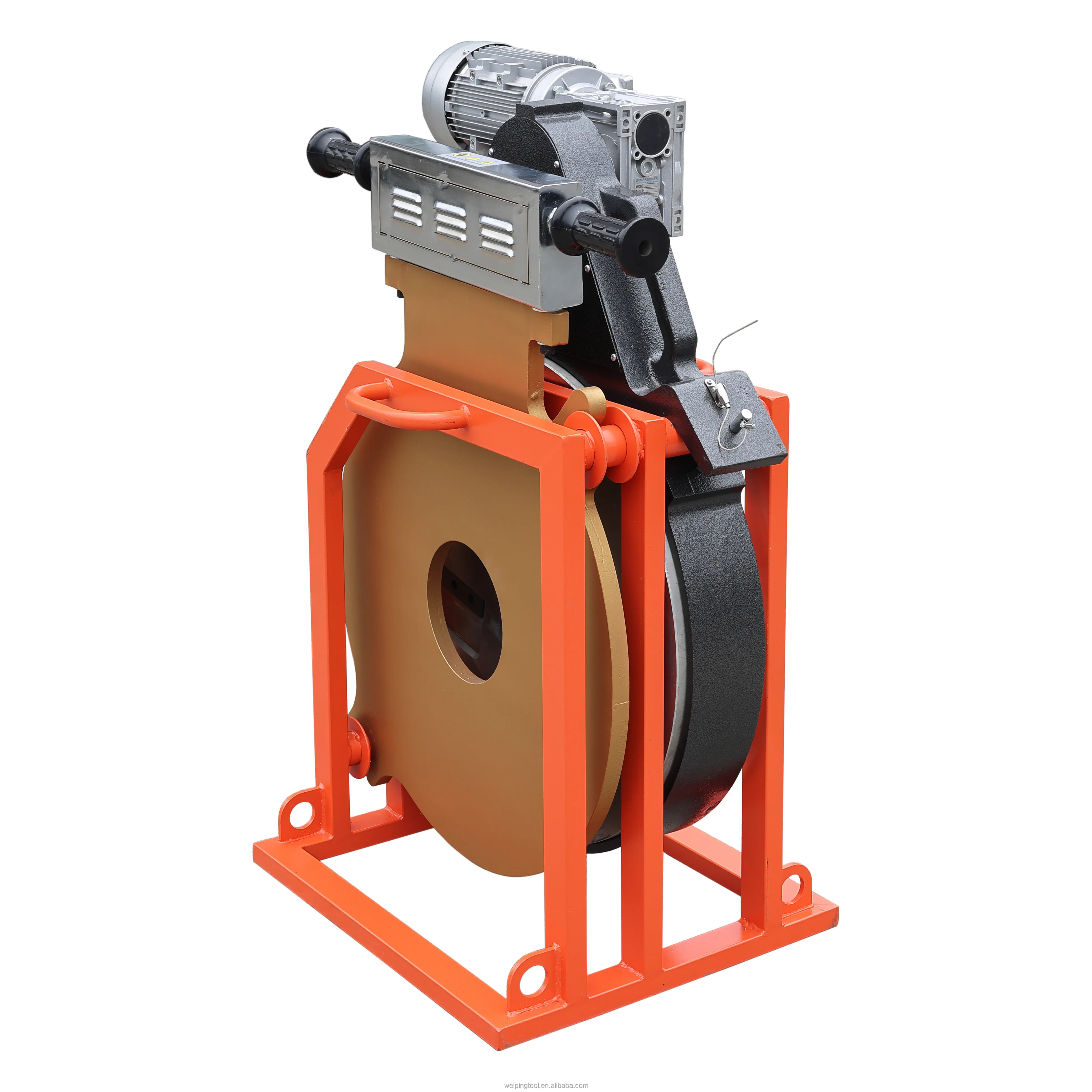

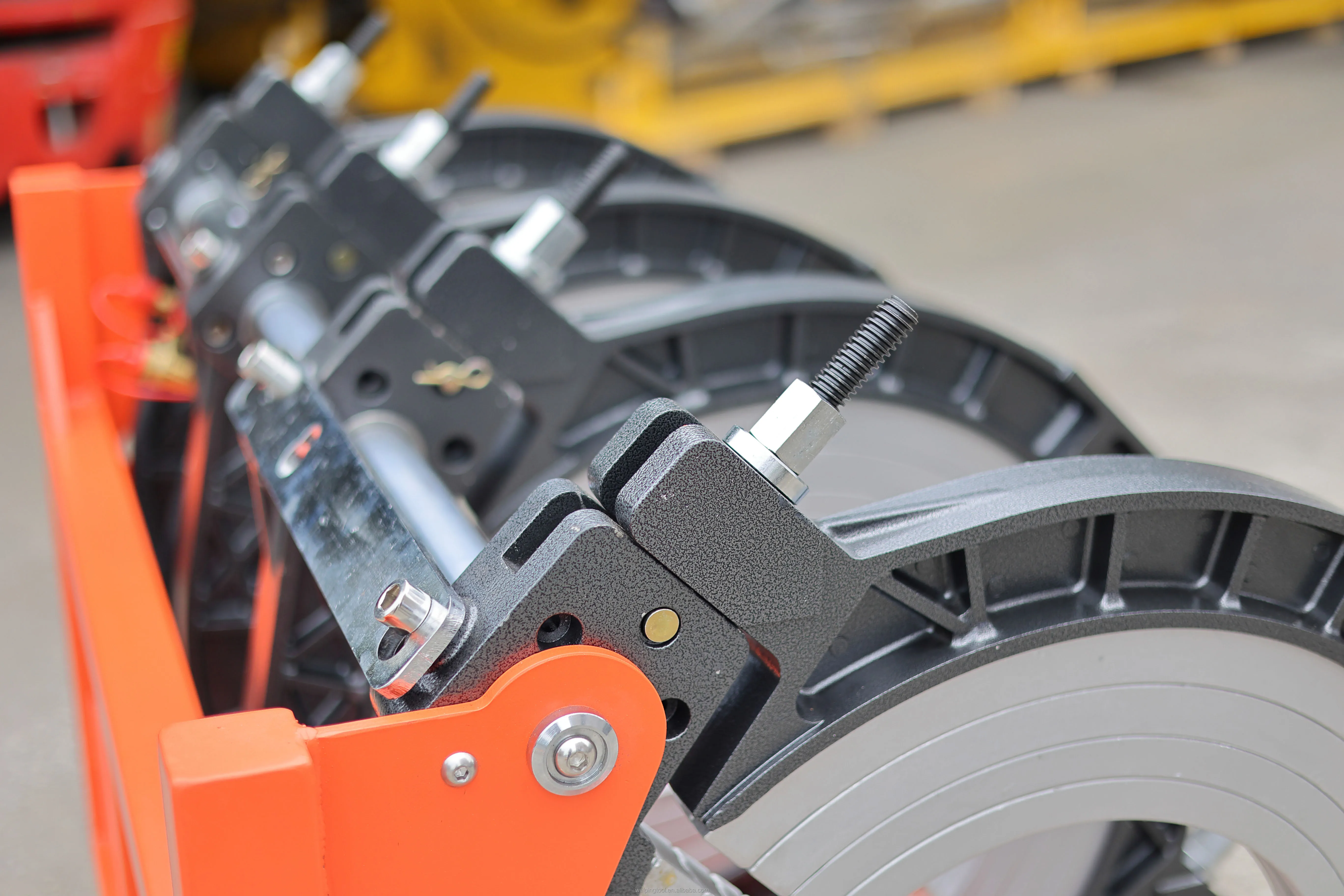

The Hydraulic butt fusion welding machine, mainly consists of 3 major parts: Carriage (also called frame or base), planing tool(also called trimmer or facer) and heater, hydraulic station with control device. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating, hydraulic station provides actuation and control.
To achieve a good jointing, a steady, precise, robust butt welding machine is critical. WELPING had been developing, manufacturing and distributing various butt fusion welding machine since 2005. It's our pleasure to help you build reputation in the piping project.
The Hydraulic butt fusion welding machine, mainly consists of 3 major parts: Carriage (also called frame or base), planing tool(also called trimmer or facer) and heater, hydraulic station with control device. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating, hydraulic station provides actuation and control.
Productiion Specifications
Model | WP630B |
Suitable materials | PE,PP, PB. PVDF |

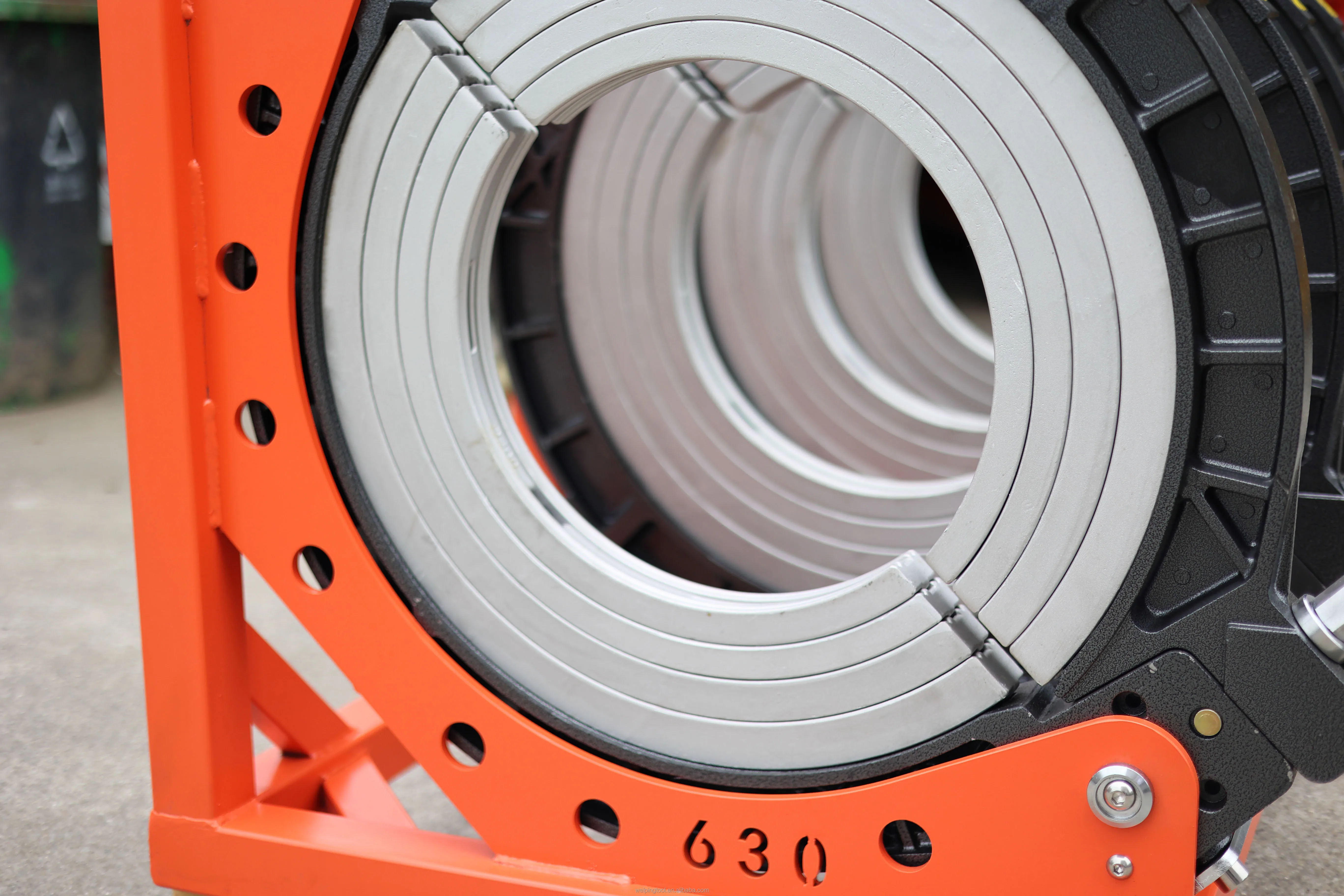

Range | 315-355-400-450-500-560-630 mm |
Power supply | 110V/220V |
Frequency | 50HZ |
Total power | 10.1 KW |
Heating plate | 7.5 KW |
Planing tool | 1.5 KW |
Hydraulic station | 1.1 KW |
Pressure adjusting range | 0-16 Mpa |
Hydraulic oil | L-HM46 |
Max.Temperature of heating plate | 270ºC |
Temp.Deviation in Surface | ±5ºC |
Total Weight | 560kg |
Net weight | 475kg |
Basic Frame （plywood case） | 135.5*91.5*100.5cm |
planing tool & heating plate（plywood case） | 103*62*125cm |
Hydraulic Unit （plywood case） | 67.5*53*73cm |
WP630B hydraulic butt fusion welding machine
Our Machines And Tools Accept Customizing Requirement, Such As Color, Different Parts Combination, Even Minor StructureModifications.
Our Sales Representatives And Experienced Engineers Can Help You Decide The Optimized Options.We Provide Standard 18 Months Warranty For Complete Machines And Tools, And Still Provide Service After Warranty.

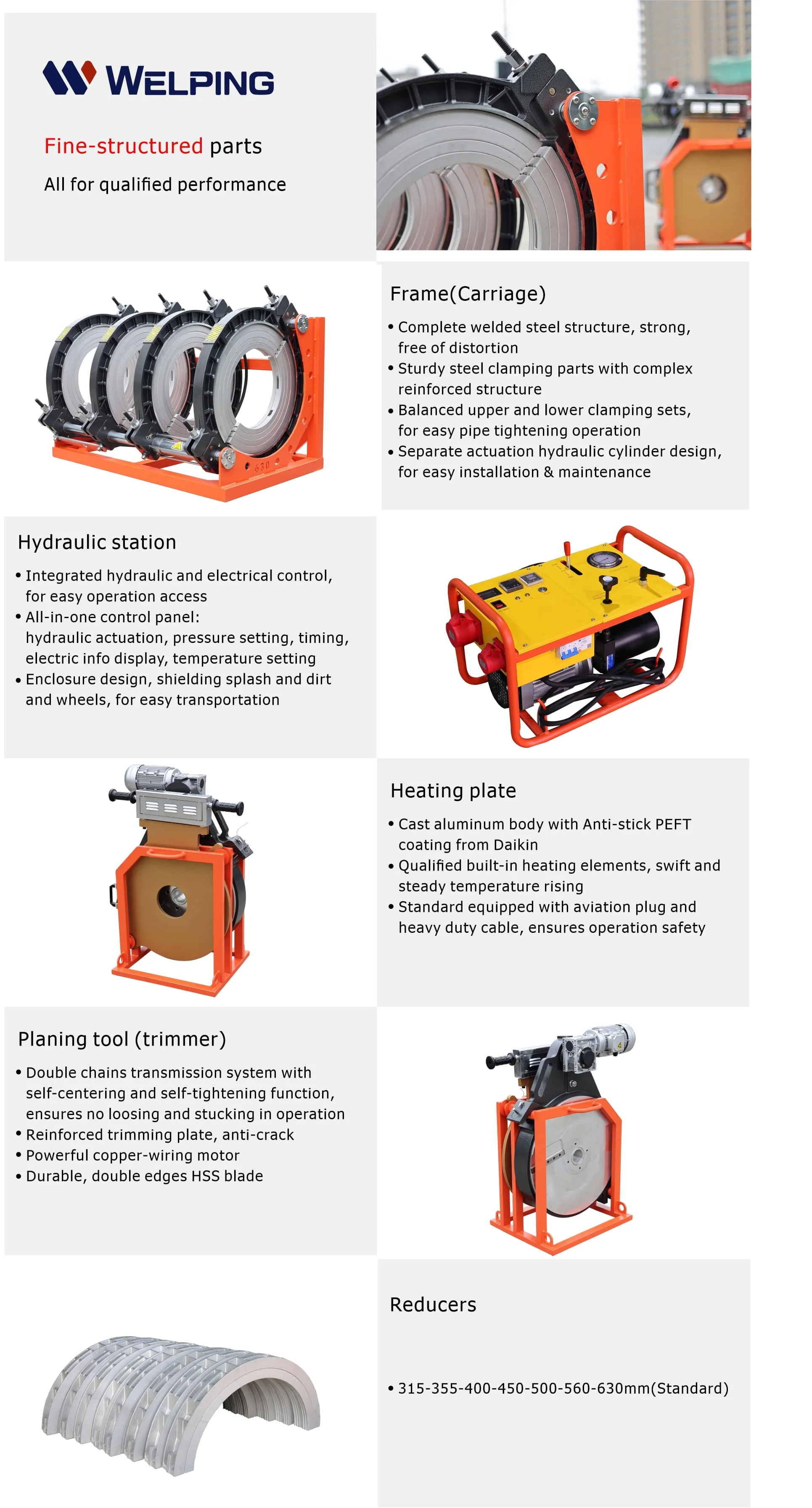

Product Features
Applications
Product packaging
WP630B butt welding | Length (cm) | Width (cm) | Height (cm) | N.W. | G.W. |
package 1 | 133.5 | 91.5 | 100.5 | 245 | 290 |
package 2 | 100.3 | 62 | 125 | 165 | 195 |
package 3 | 67.5 | 53 | 73 | 65 | 75 |
