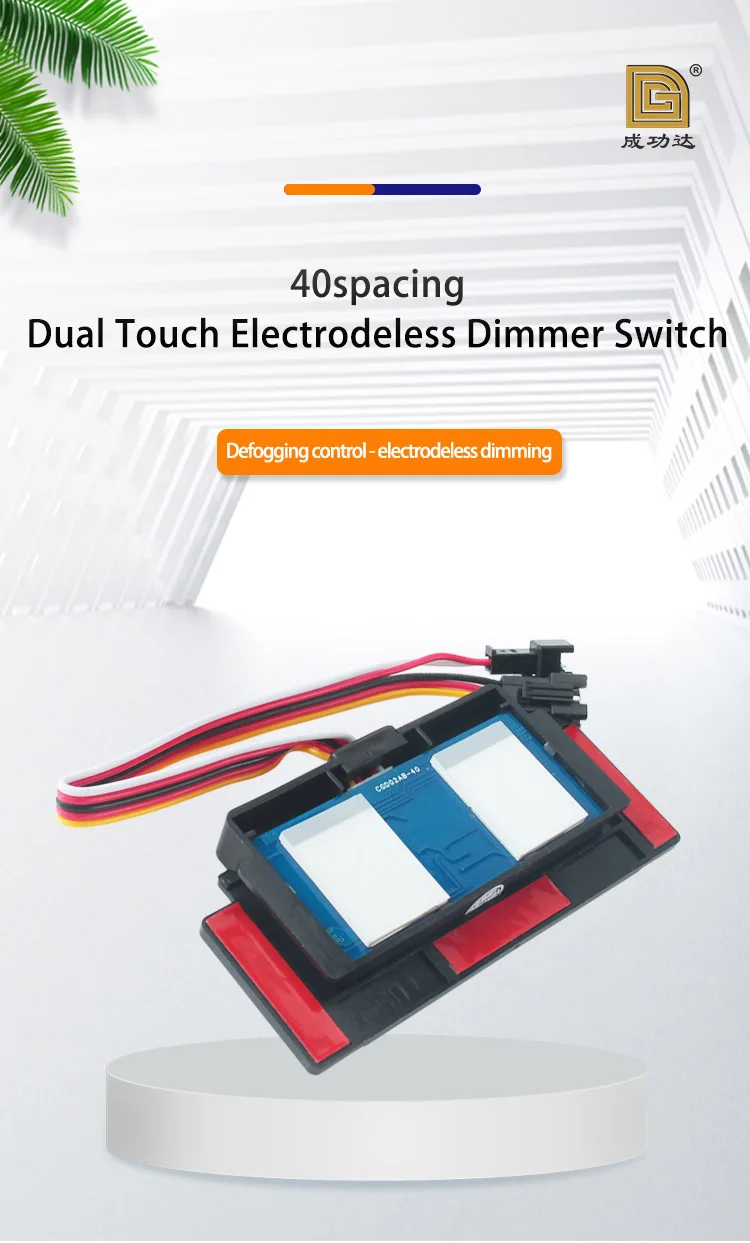

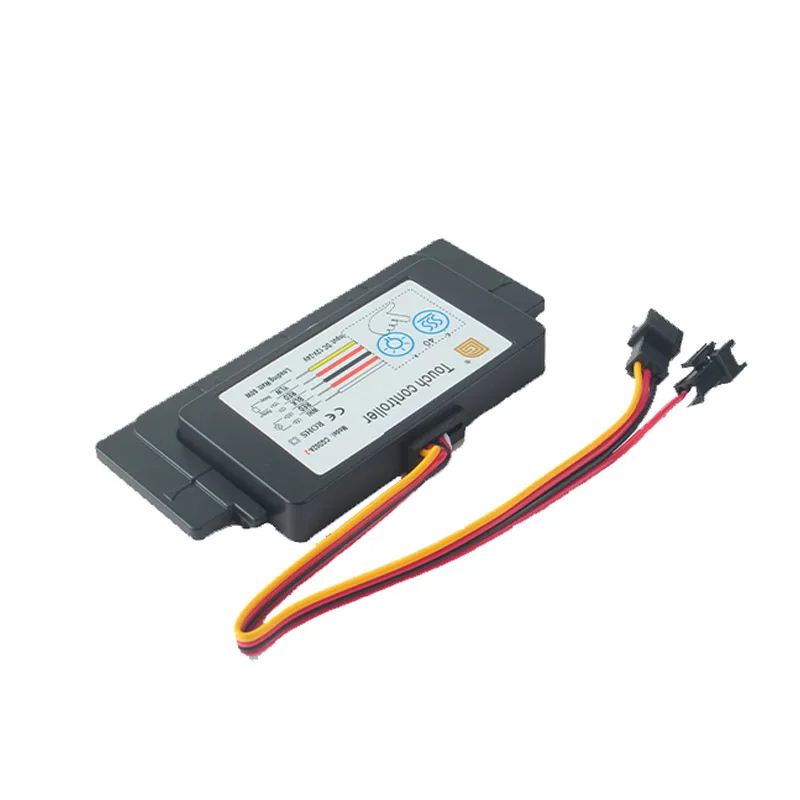

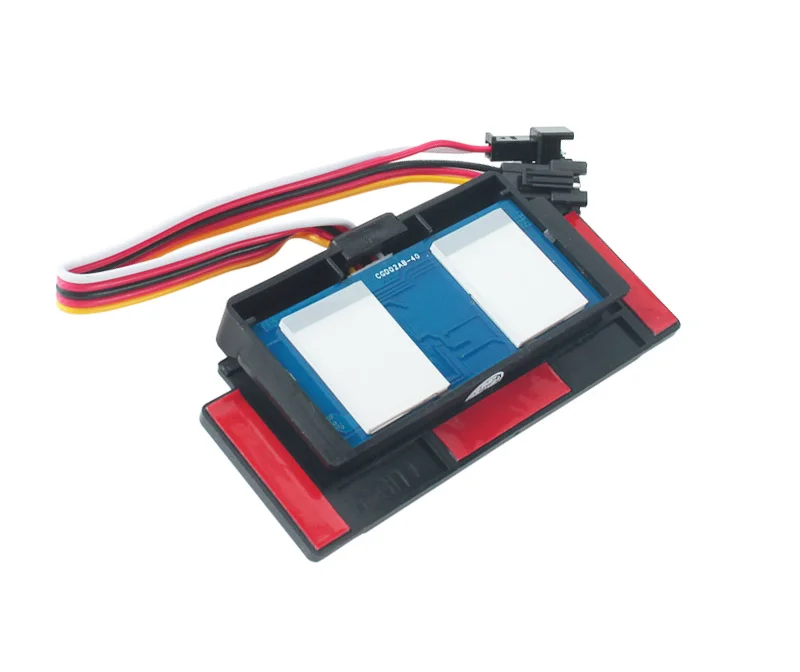

CGD intelligent mirror touch sensor switch 40 bathroom double touch stepless dimming switch anti fog factory direct sales

Product Overview

Description

CGD intelligent mirror touch sensing switch 40 room dual touch infinite dimming switch anti fog factory direct sales

switch

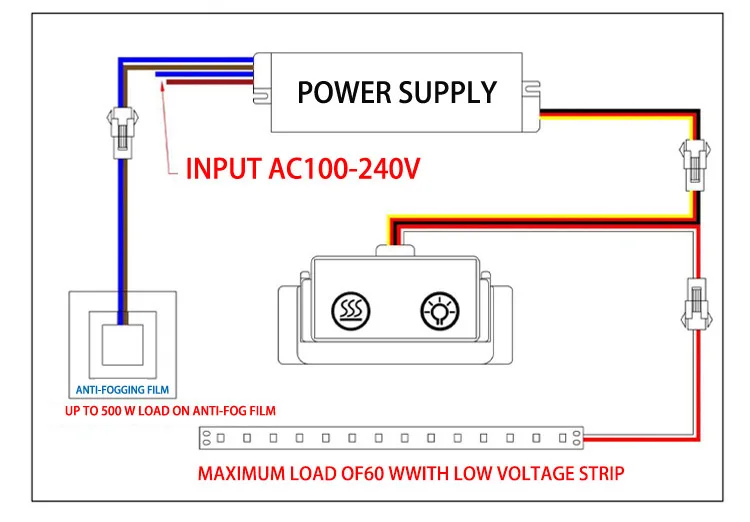

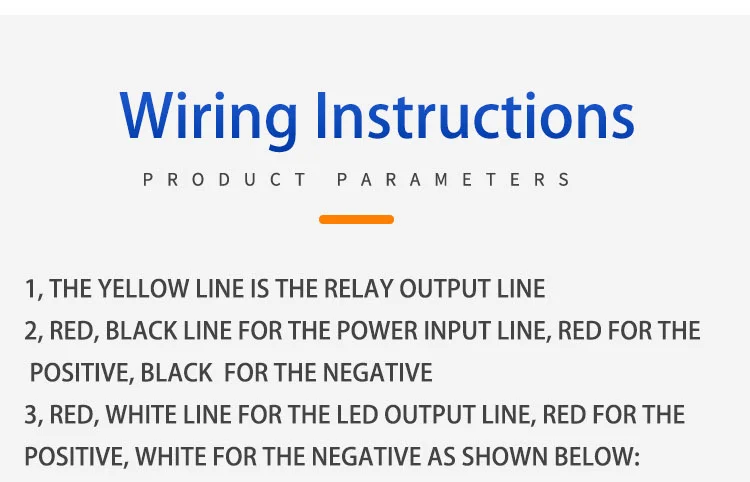

Dual touch infinite dimming switch+220V anti fog film+power supply (built-in relay) wiring diagram

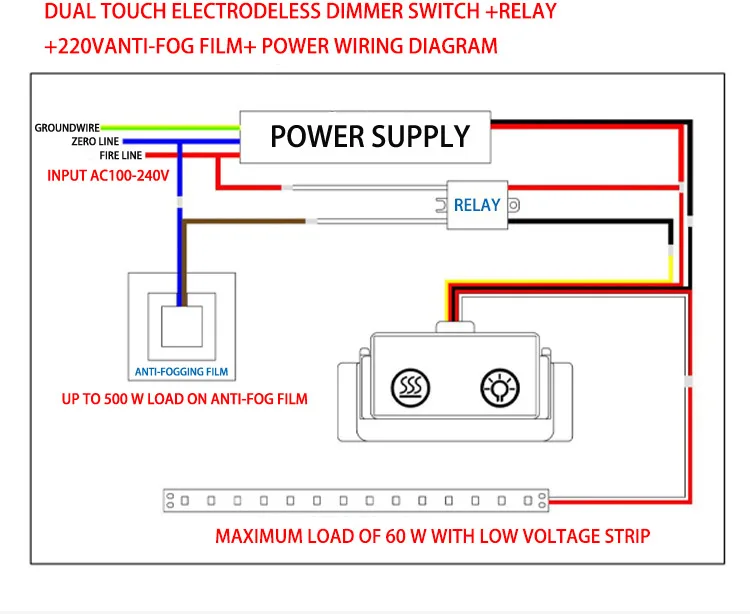

 Dual touch infinite dimming switch+relay+220V anti fog film+power wiring diagram

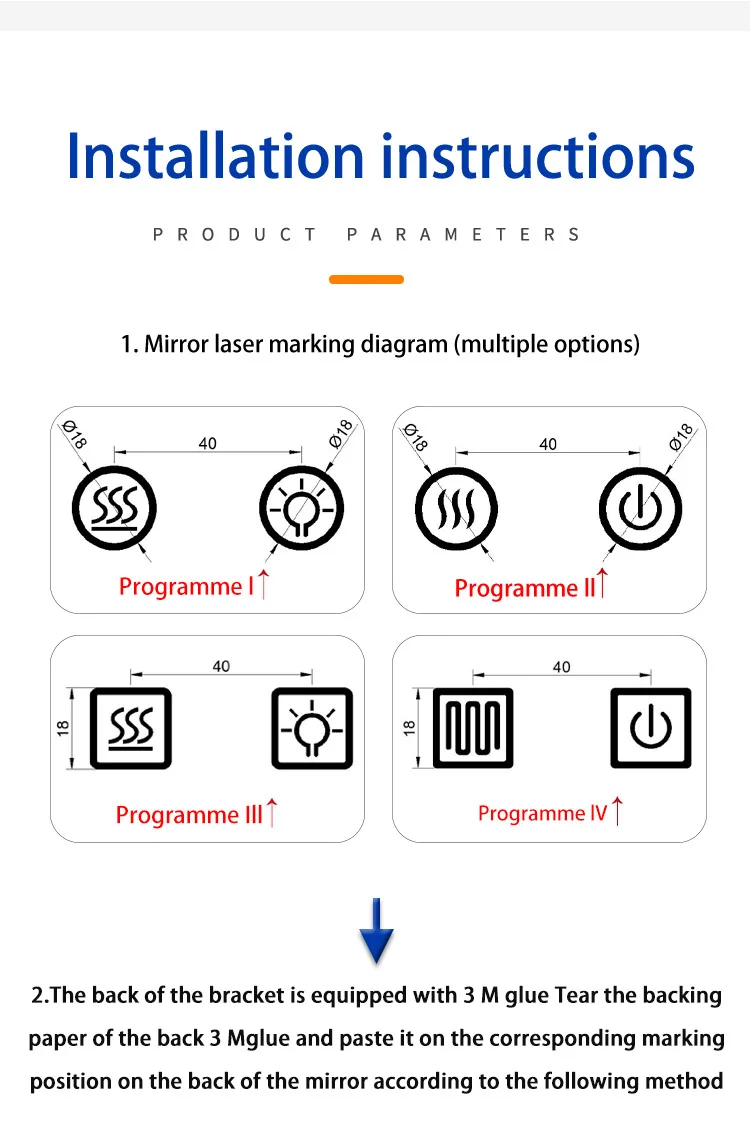

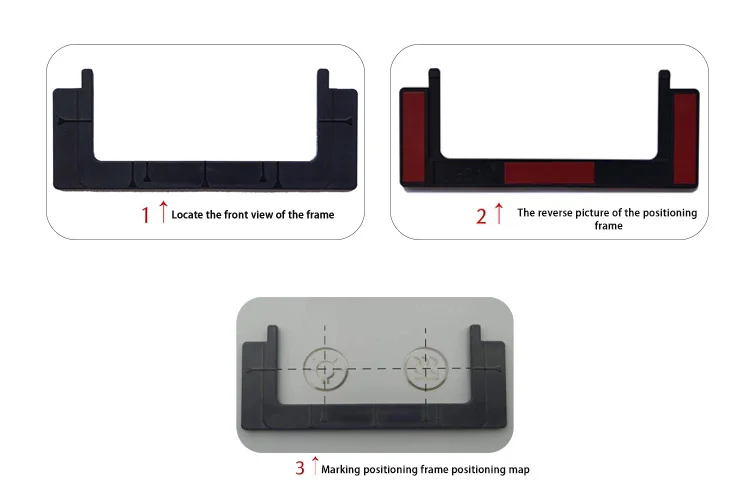

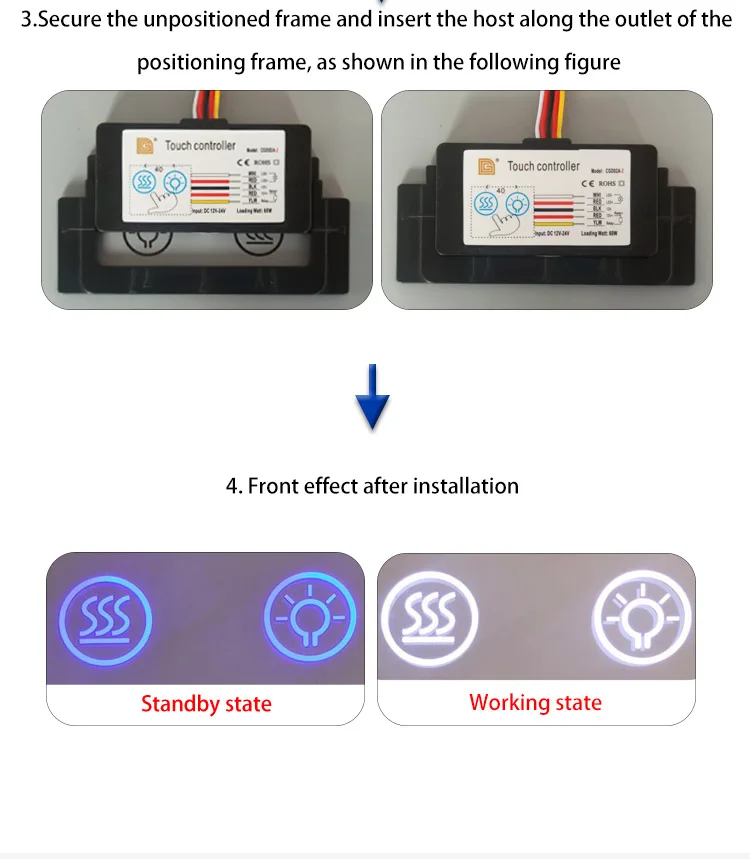

The specific operation method for aligning the positioning box is as follows:

There is a common positioning line on the left and right sides of the positioning frame, and there is a long positioning line and a short positioning line on the lower frame. To install a 40 pitch dual touch infinite dimming switch, only the short positioning line is needed. When pasting, the exit of the positioning frame should face directly above the button marking; The positioning lines on the left and right borders are aligned with the center of the marking; The two short positioning lines on the lower border should be aligned with the center of the marking on the left positioning line and the center of the marking on the right positioning line, and pasted flat.
