Chinese Famous Brand 5 Ton Diesel Forklift Truck CPCD50 with Factory Price for Sale
- Category: >>>
- Supplier: Richmchn Machinery Engineering (Shanghai) Co. Ltd.Richmchn Ltd.
Share on (1601251052782):
Product Overview
Description
Products Description
Factory Price 5 Ton Diesel Forklift CPCD50 with Fork Positioner and Side Shift
Product Features
1. Transmission box, drive axle and other core parts are self-made by HELI, their box manufacturing and assembly equipment has reached international advanced level. The key parts of the box are imported , and box assembly failure rate is low, and has the best quality of domestic box.
2. With attachment of various types of the masts, all use double built-in hose pulley block, and have compact structure, beautiful appearance, good passage capacity , are first adopted in our country (Patent technology).
3. All lifting mast pipeline have equipped with explosion proof safety valve to ensure the safety of the lifting process.
4. Exhaust system use corrugated pipe to realize flexible connection with frame , and reduce the vibration and noise of the whole vehicle.
5. The steering axle and the frame connection place has done the shock absorption processing, and the shock of whole vehicle has reduced by 30 %.
6. Using intake muffler can suppress the intake pulse, so can reduce the intake noise.
7. Hose joint and transition joint in pipeline are sealed with cone form, which has good sealing effect.
8. Seal for the key parts of the cylinder are imported by NOK , which contribute to sealing reliable and quality stable.
9. Steering trapezium use optimal program, and the maximum error is less than 1°, can reduce tire wear and improve service life.
Applications:
1. Transmission box, drive axle and other core parts are self-made by HELI, their box manufacturing and assembly equipment has reached international advanced level. The key parts of the box are imported , and box assembly failure rate is low, and has the best quality of domestic box.
2. With attachment of various types of the masts, all use double built-in hose pulley block, and have compact structure, beautiful appearance, good passage capacity , are first adopted in our country (Patent technology).
3. All lifting mast pipeline have equipped with explosion proof safety valve to ensure the safety of the lifting process.
4. Exhaust system use corrugated pipe to realize flexible connection with frame , and reduce the vibration and noise of the whole vehicle.
5. The steering axle and the frame connection place has done the shock absorption processing, and the shock of whole vehicle has reduced by 30 %.
6. Using intake muffler can suppress the intake pulse, so can reduce the intake noise.
7. Hose joint and transition joint in pipeline are sealed with cone form, which has good sealing effect.
8. Seal for the key parts of the cylinder are imported by NOK , which contribute to sealing reliable and quality stable.
9. Steering trapezium use optimal program, and the maximum error is less than 1°, can reduce tire wear and improve service life.
Applications:
As lifting and transporting machineries, this serie forklift trucks are widely used for loading, unloading and
transporting the packaged goods in factories, warehouses, stations, wharves, ports and so on. With other attachments of fork lift trucks., they can be used for the handling of the bulk goods and unpackaged goods.
transporting the packaged goods in factories, warehouses, stations, wharves, ports and so on. With other attachments of fork lift trucks., they can be used for the handling of the bulk goods and unpackaged goods.
PRODUCT SPECIFICATIONS
Specification | Unit | CPCD50 |
Power type | Diesel | |
Load capacity | kg | 5000 |
Load center | mm | 600 |
Pallet fork maximum height (with block shelf) | mm | 4400 |
Maximum lifting height | mm | 3000 |
Free hoisting height | mm | 200 |
Overall height (upper frame protection) | mm | 2450 |
Full length (with cargo fork) | mm | 4710 |
Full width | mm | 2045 |
The minimum ground clearance (the door) | mm | 200 |
The minimum turning radius (outer) | mm | 3240 |
Least square channel width | mm | 3200 |
Pallet fork a*b*c | mm | 1220*150*55 |
Maximum speed (full/empty) | km/h | 24/29 |
Maximum traction(full/empty) | KN | 63 |
Maximum gradeability (full/empty) | % | 38/19 |
Tire type (before/after) | 2/2 | |
Engine manufacturers/models | CA6110 | |
Rated power | KW/rpm | 83/2000 |
Rated torque | Nm/rpm | 450/1400-1500 |
Height of overhead guard(cabin) | 2180 | 2180 |
Seat height/stand height | 1125 | 1125 |
Coupling height | 325 | 325 |
Overall height | 3880 | 3940 |
Length t face of forks | 2810 | 2870 |
Overall width | 1225 | 1225 |
Fork dimensions ISO2331 | 45/125/1070 | 50/125/1070 |
Fork carriage ISO 2328,class/type A,B | IIIA | IIIA |
Fork carriage width | 1100 | 1100 |
Ground clearance,laden,below mast | 135 | 135 |
Ground clearance,centre of wheelbase | 145 | 145 |
Aisle width for pallets 1000*1200 crossways | 4180 | 4220 |
Aisle width for pallets 800*1200 crossways | 4310 | 4350 |
Turning radius | 2425 | 2460 |
Internal turning radius | 650 | 650 |
Type of drive unit | Hydraulic | Hydraulic |
Operating pressure for attachments | 210 | 210 |
Oil volume for attachments | 64 | 64 |

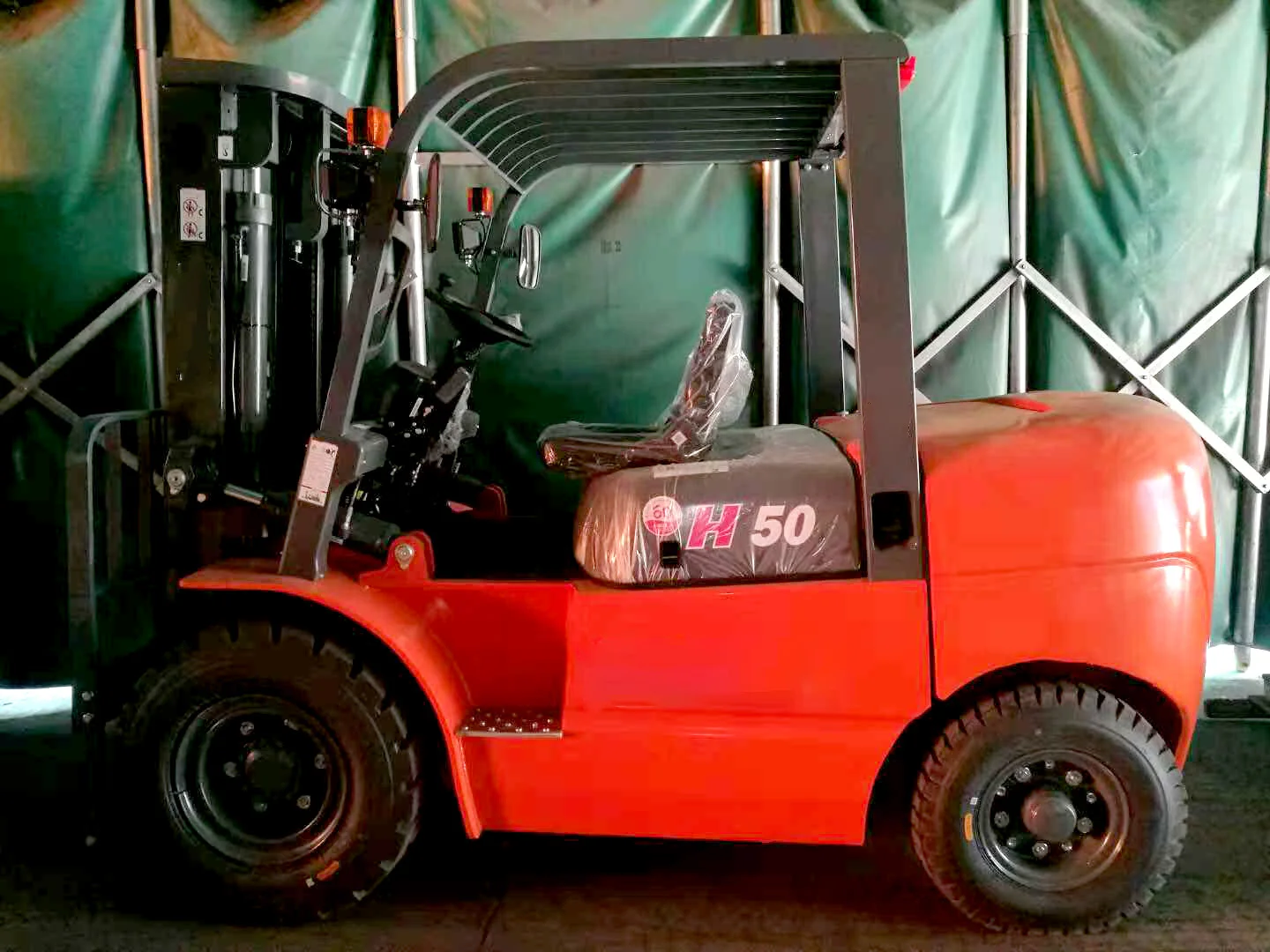

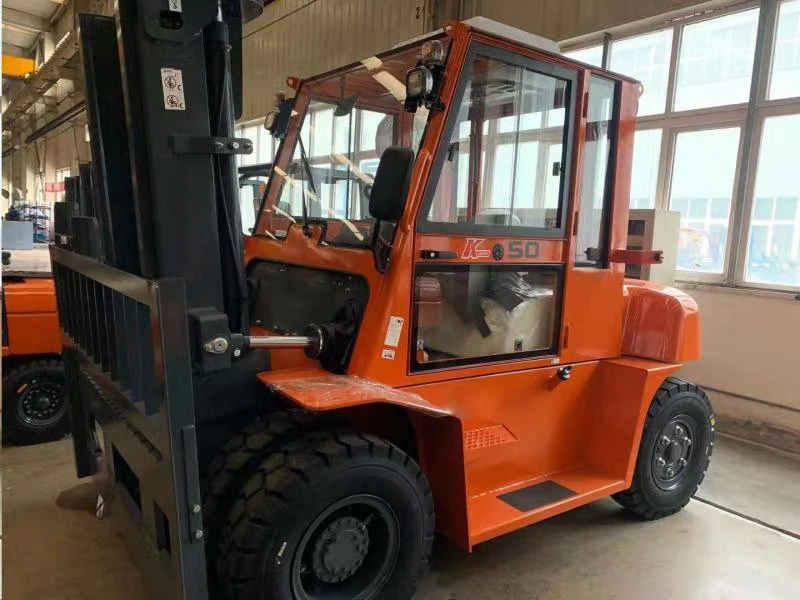

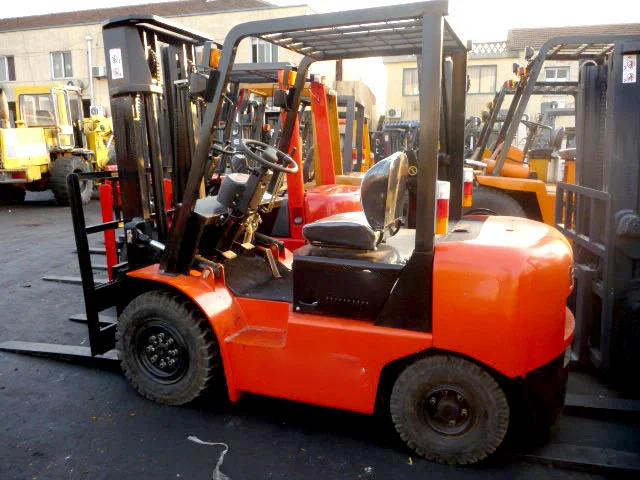

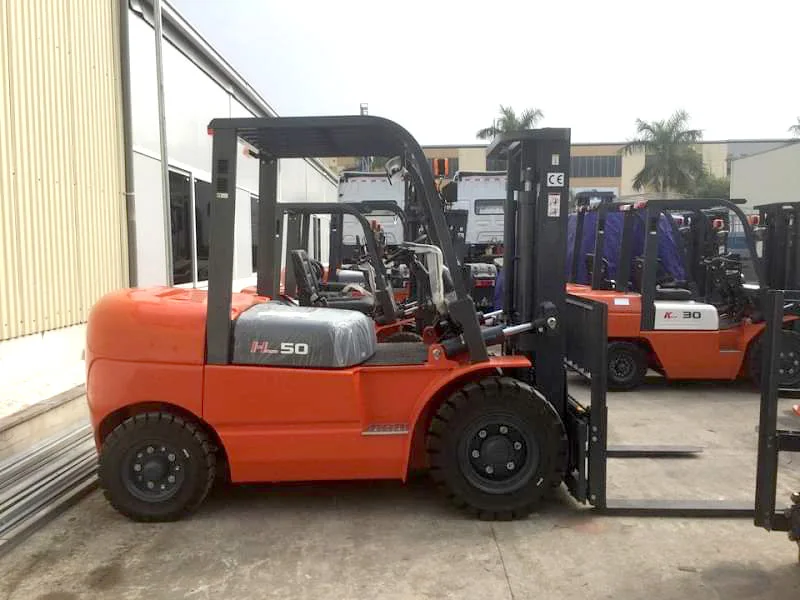

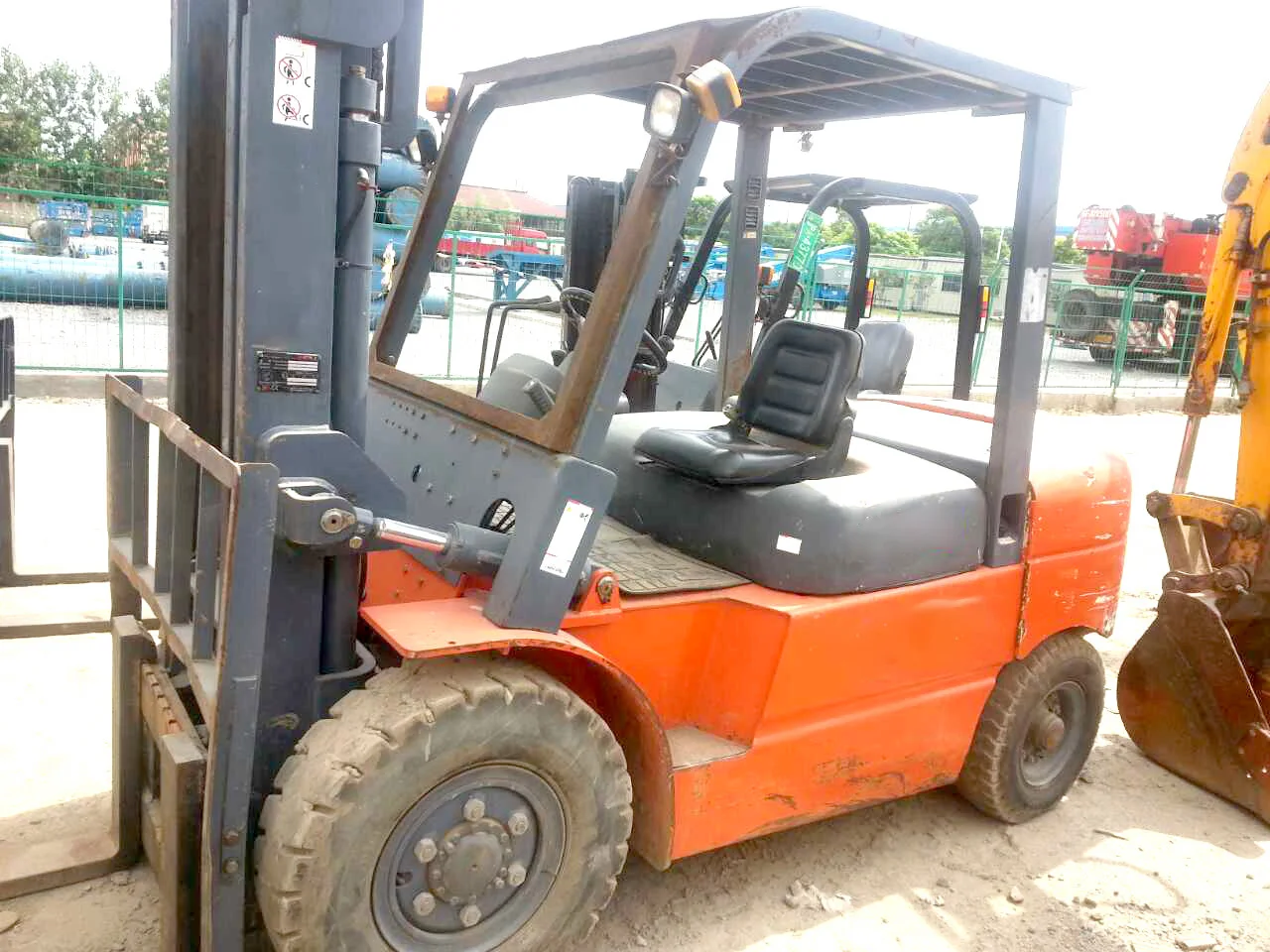

Pictures
