1080P PTZ Conference Camera 10X Optical HDM1 USB LAN supply church Streaming Online Video POE SDI NDI
- Category: >>>
- Supplier: Shenzhen Tongveo Innovation Technology Co. Ltd.
Share on (1601251717369):
Product Overview
Description
Product Description

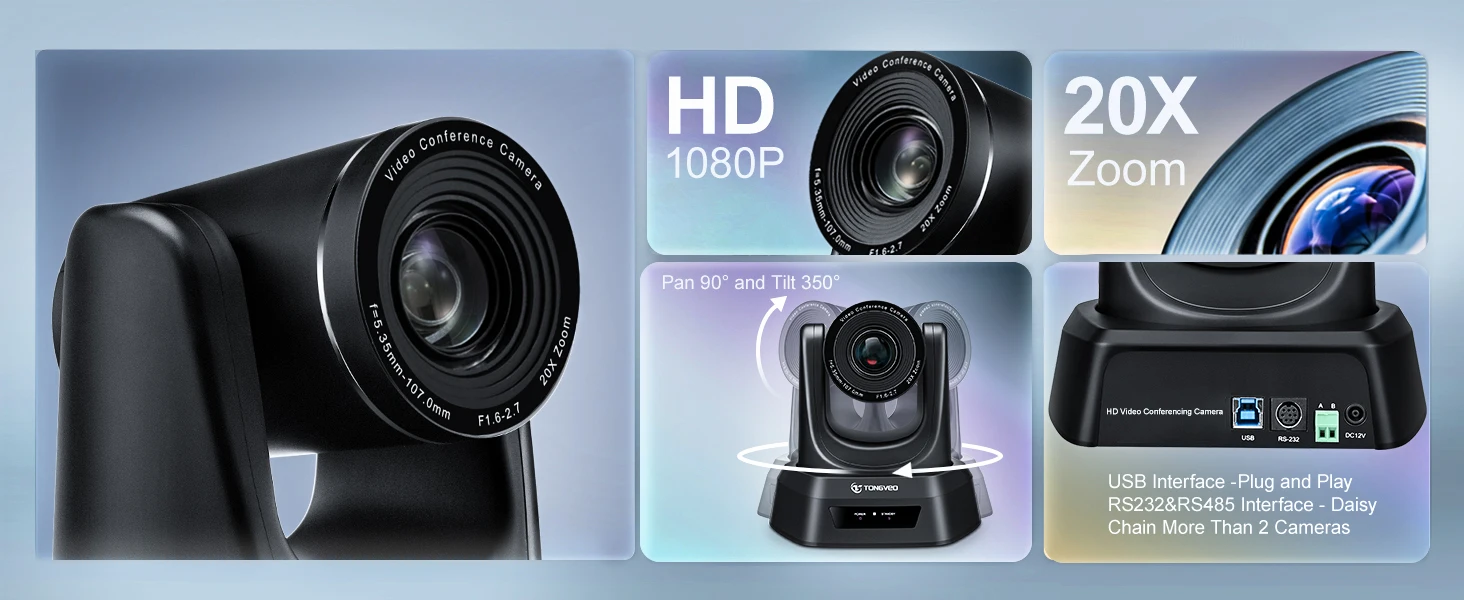

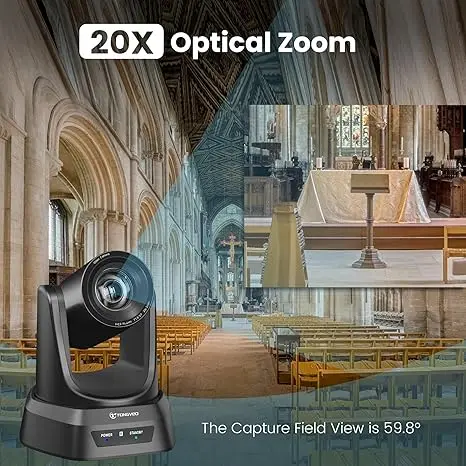

20X optical zoom
The 20X optical zoom lens and 59.8° field of view capture detailed and expansive scenes. Ideal for streaming church services and worship events with professional-grade quality, this camera delivers exceptional results for all your video conferencing and live streaming needs.
Parameters
Sensor | 1/2.8''SONY CMOS |
Effective Pixels | 2.38 mega pixel |
Video Signals | 1080p@60/50/30/25fps, 720p@60/50/30/25fps |
Zoom | 20x optical zoom |
Lens | f=5.5-110mm |
Aperture | F1.6-3.5 |
Horizontal Angle | 55.8°(W)-3.2°(T) |
Vertical Angle | 32.2°(W)-1.8°(T) |
Diagonal Angle | 61°(W)-3.64°(T) |

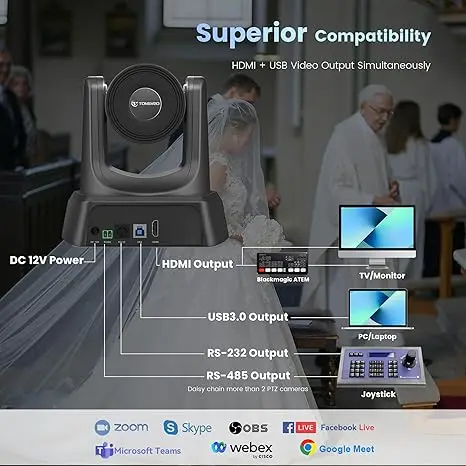

Video Output | USB, HDMI |
LAN | / |
Network Protocol | / |
Video Encoding Format | H.264, H.265, MJPG, YUY2 |
Video Resolution | 1080P (1920 *1080) etc |
Signal Standard | NTSC/PAL |
Preset Position | User can set up to 255 presets (10 presets by IR remote) |
Control Interface | RS-232 (input only), RS-485, USB |
Shutter | 1/30s-1/10000s, auto |
Baud Rate | 2400/4800/9600/38400bps |
Control Protocol | VISCA, PELCO-D, PELCO-P(RS-232, RS-485) |
USB Protocol | UVC1.1 |
Minimal Illumination | 0.1Lux |
SNR | ≥50dB |
Horizontal Rotation | 350° (±175°) 0.1°/s～100°/s |
Vertical Rotation | 180° (±90°)0.1°/s～80°s |
Power Supply | DC 12V/2A |
Power Consumption | 12W |
Work Temperature | 0℃ to 40°C |
Work Humidity | 20%～80% RH |
Store Temperature | -20°C to 60°C |
Store Humidity | 20%～90% RH |
Product Size | 181*184*174mm/285*217*197mm(before / after packing) |
Product Weight | 1.5kg/2.0kg (net / gross weight) |
Application Scenarios
Variety set up methods
FAQ
1. How about your delivery time?
We have Samples in stock for the same day shipping, For bulk order, please contact us for the delivery time.
2.What can I buy from you?
Conference camera, all in one webcam, Bluetooth microphone, speakerphone.
3.Is it easy to operation?
Yes, easy to Plug-in, Driver free, Plug&Play
4. Is your video conferencing camera quality certified?
Yes. We can provide the professional certificates like FCC, CE, ROHS, CSA, etc.
5.Which payment form you can accept?
T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
6.Which shipping way can you provide?
We can provide shipping by sea, by air and by express.
7.What’s your after-sale service?
Our quality warranty period is 3 years. Any quality problem will be solved to customer satisfactions.
8.Can I put my own logo on products?
Yes.We Provide OEM/ODM service, we accept customer’s design, logo, lable, package ,etc.
We have Samples in stock for the same day shipping, For bulk order, please contact us for the delivery time.
2.What can I buy from you?
Conference camera, all in one webcam, Bluetooth microphone, speakerphone.
3.Is it easy to operation?
Yes, easy to Plug-in, Driver free, Plug&Play
4. Is your video conferencing camera quality certified?
Yes. We can provide the professional certificates like FCC, CE, ROHS, CSA, etc.
5.Which payment form you can accept?
T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
6.Which shipping way can you provide?
We can provide shipping by sea, by air and by express.
7.What’s your after-sale service?
Our quality warranty period is 3 years. Any quality problem will be solved to customer satisfactions.
8.Can I put my own logo on products?
Yes.We Provide OEM/ODM service, we accept customer’s design, logo, lable, package ,etc.
9: What kind of camera and microphone should I use?
Most laptops and monitors come with built-in cameras and microphones—these work great for Tongveo software. For meeting room spaces, we have video conferencing cameras and Omnidirectional microphones that are specifically designed for small huddle rooms,conference and boardrooms, and large auditorium spaces. You can contact us for more information on different meeting room systems.
10.Can I bring more than one person into a call at the same time?
Yes. We currently offer group calling for up to 500 different participants, which could be 500 people dialing in from their
laptops ,pad or mobile phones, 500 different video conferencing systems full of people or some mix of individuals and video conferencing systems. And depending on your preferences, there are some different layout options for how you want to view those larger group calls.
laptops ,pad or mobile phones, 500 different video conferencing systems full of people or some mix of individuals and video conferencing systems. And depending on your preferences, there are some different layout options for how you want to view those larger group calls.
