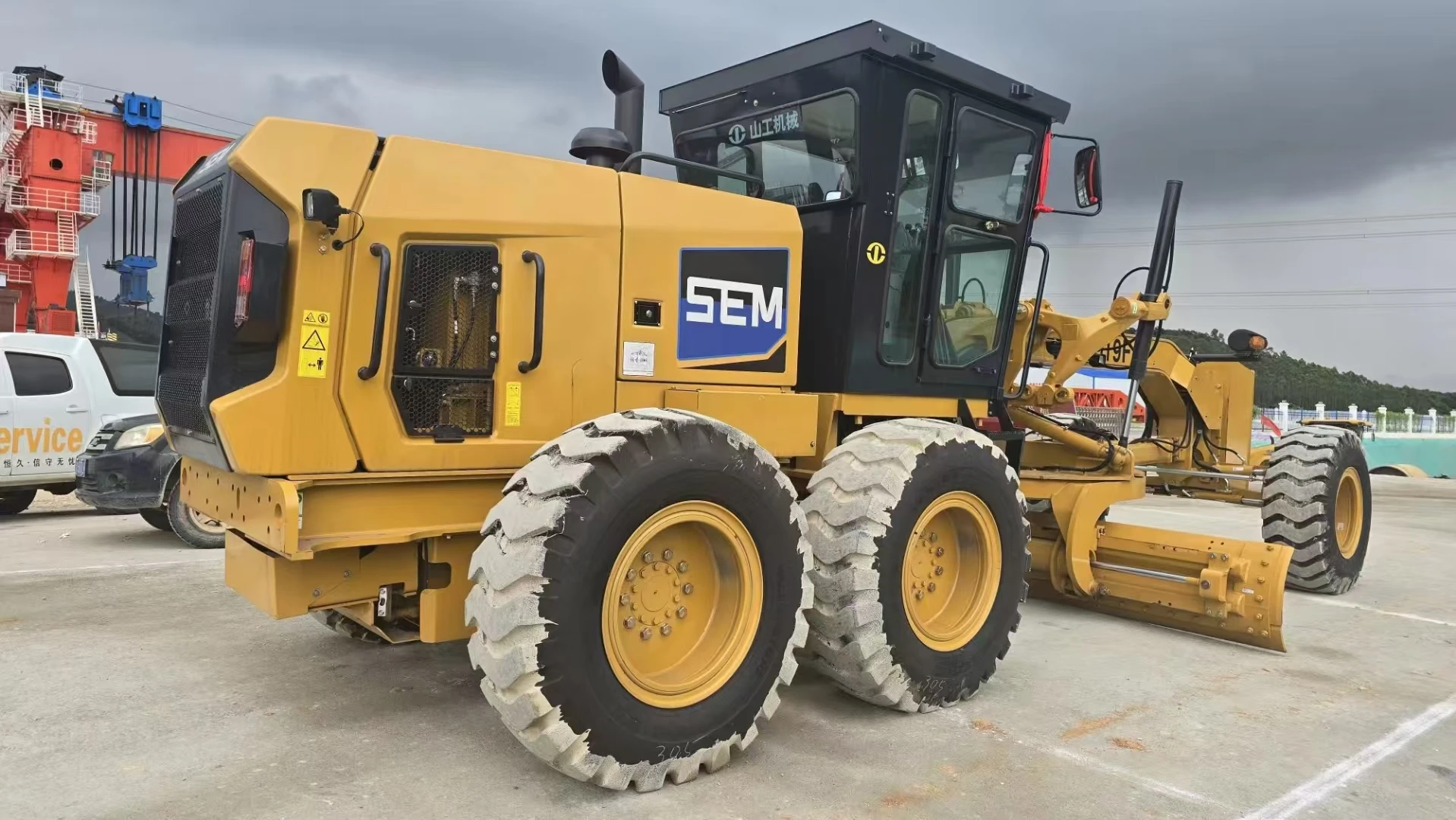

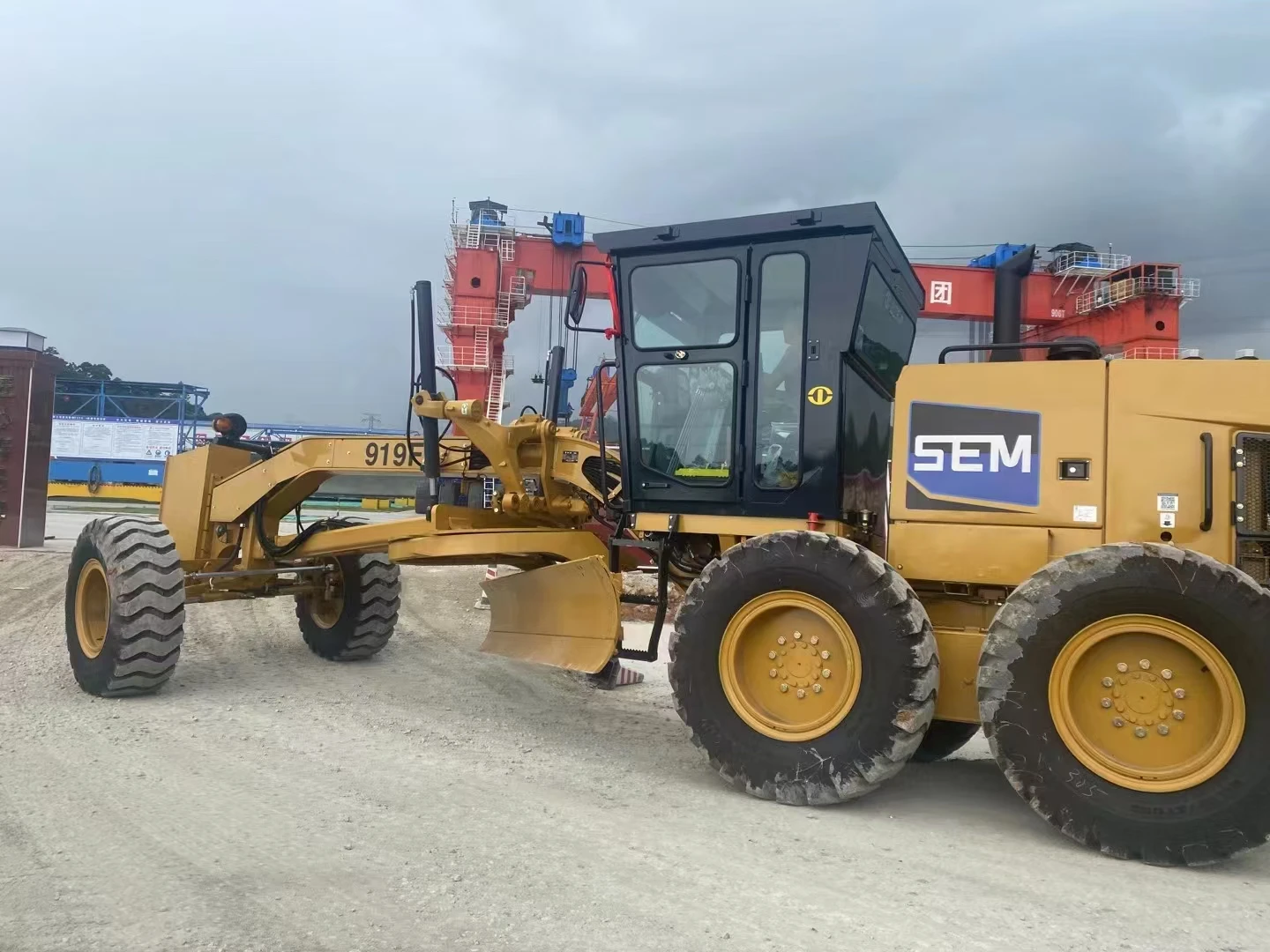

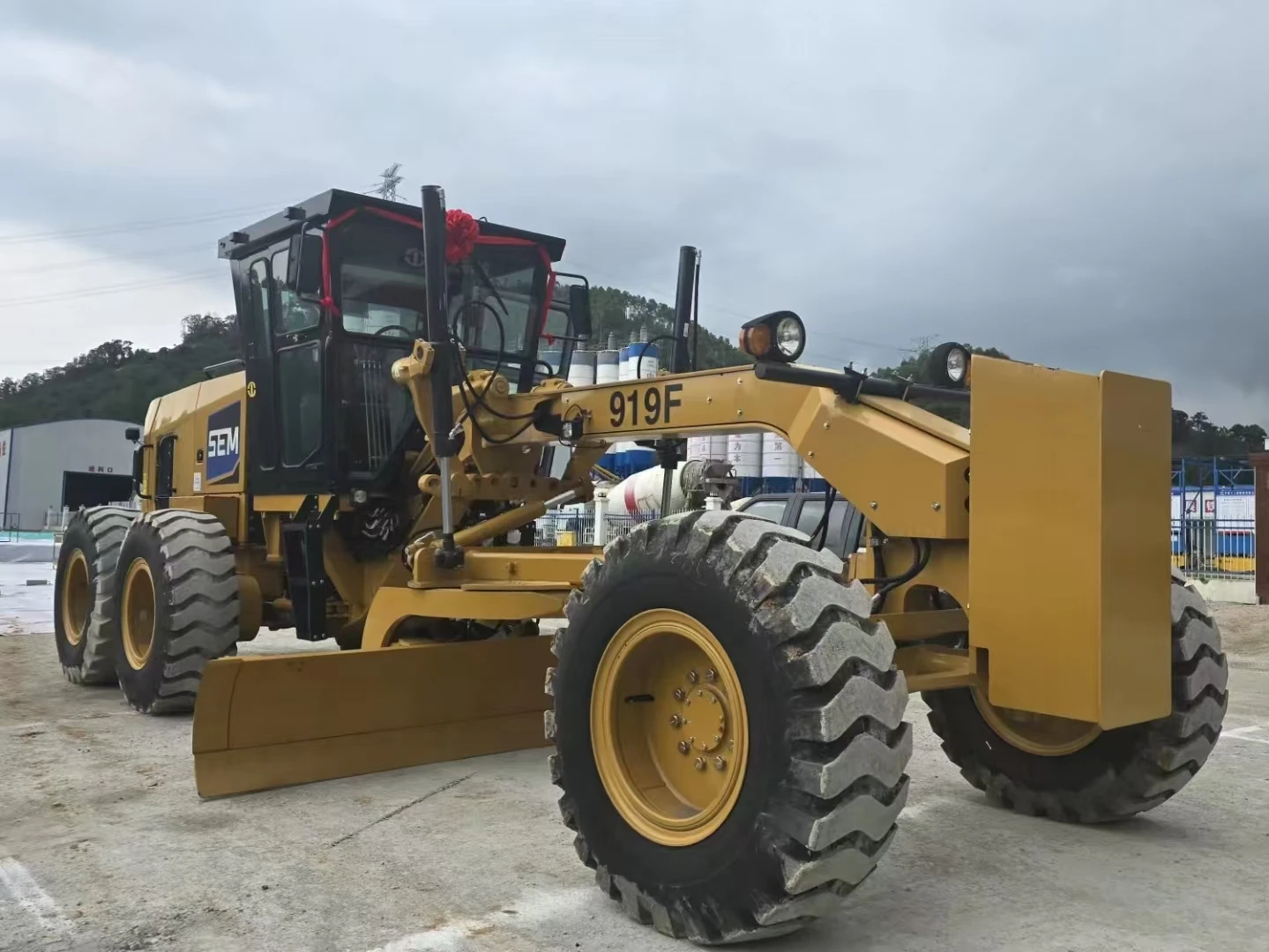

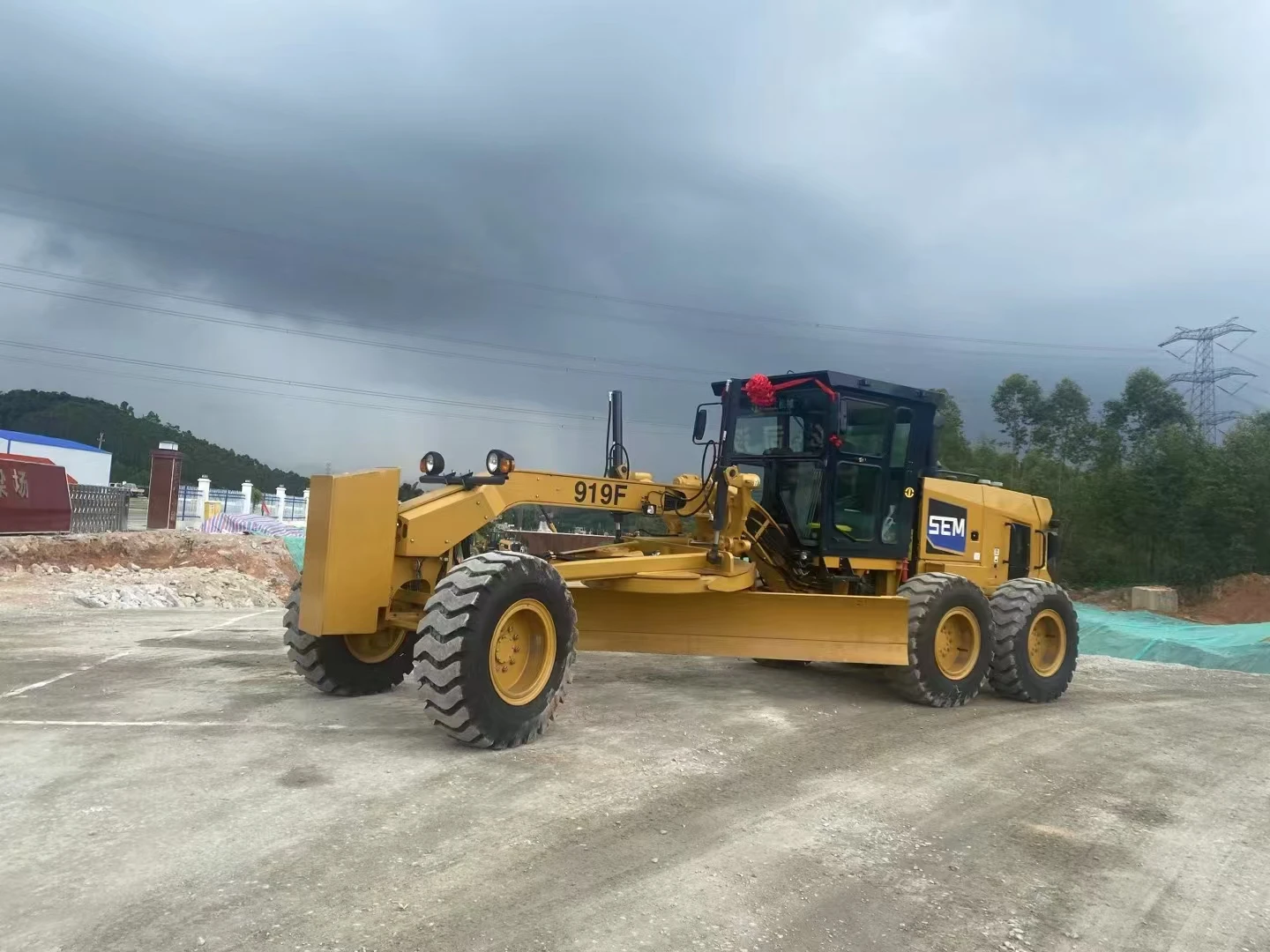

Brand New China Motor Grader 190Hp Small Motor Grader With Rear Ripper 919F for Sale

Shandong SEM919 grader

Blade performance

Blade length x height (mm) 3974

Blade lifting height (mm) 475

Scraper depth (mm) 715

Tilt angle of shovel (°) Front 40/Rear 5

engine

Model SC8D190.1G2 from Shangchai

Rated power (kw/rpm) 140/2200

Maximum torque (N.m) 720

Displacement (L) 8.82

Other Explanation: National II Emissions

Horsepower (horsepower) 181-250 horsepower

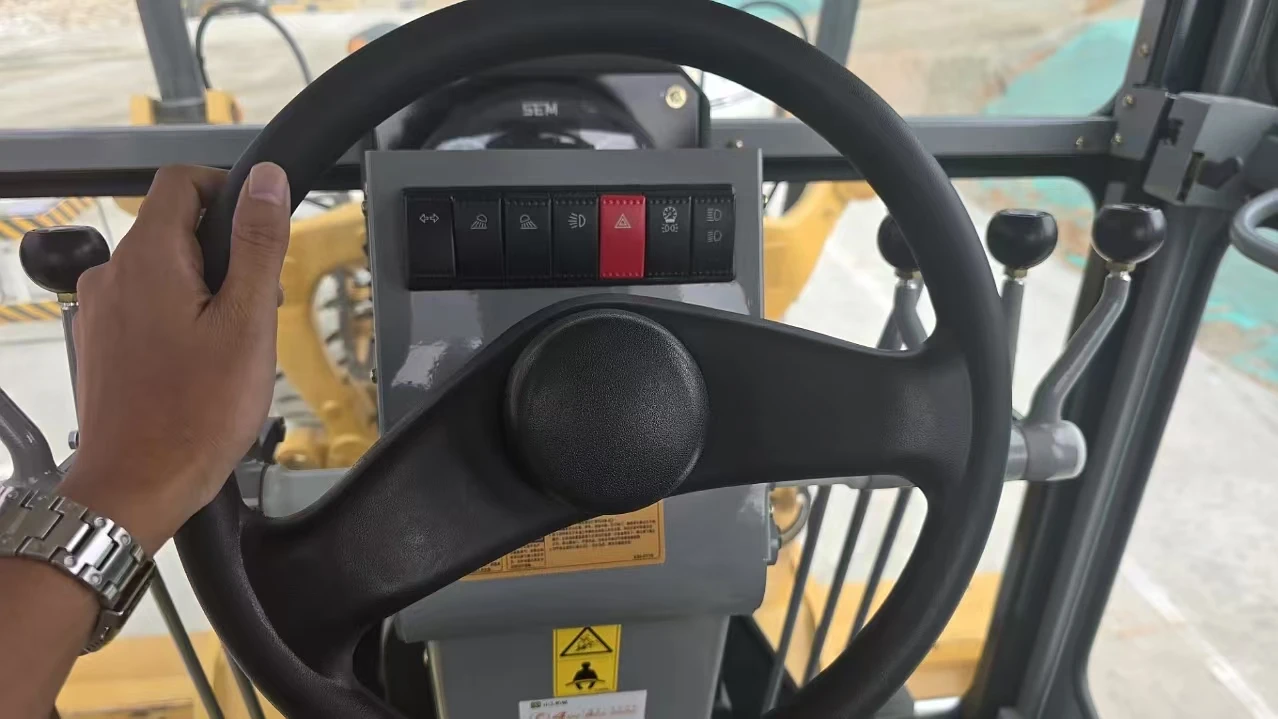

steering system

Minimum turning radius (m) 7.8

braking system

Service brake air top oil drum brake

Parking brake pneumatic spring assisted drum brake

Hydraulic system

Hydraulic pump type load sensing

Main pump pressure (Kpa) 22 MPa

transmission case

Transmission model 6WG180

Transmission form: fixed axis power shift

Maximum speed (km/h) 40

Maximum Traction Force (kN) 78

Tire parameters

Tire specifications 17.5-25

Operating weight

Basic complete machine (kg) 15130

Specifications&Dimensions

Blade to front wheel distance (mm) 2538

Total length of the machine (mm) 10324

Overall width of the machine (mm) 2630

Whole machine height (mm) 3360

Front and rear axle wheelbase (mm) 6138

Middle and rear wheelbase (mm) 1538

Track width (mm) 2185

Minimum ground clearance (mm) 341
