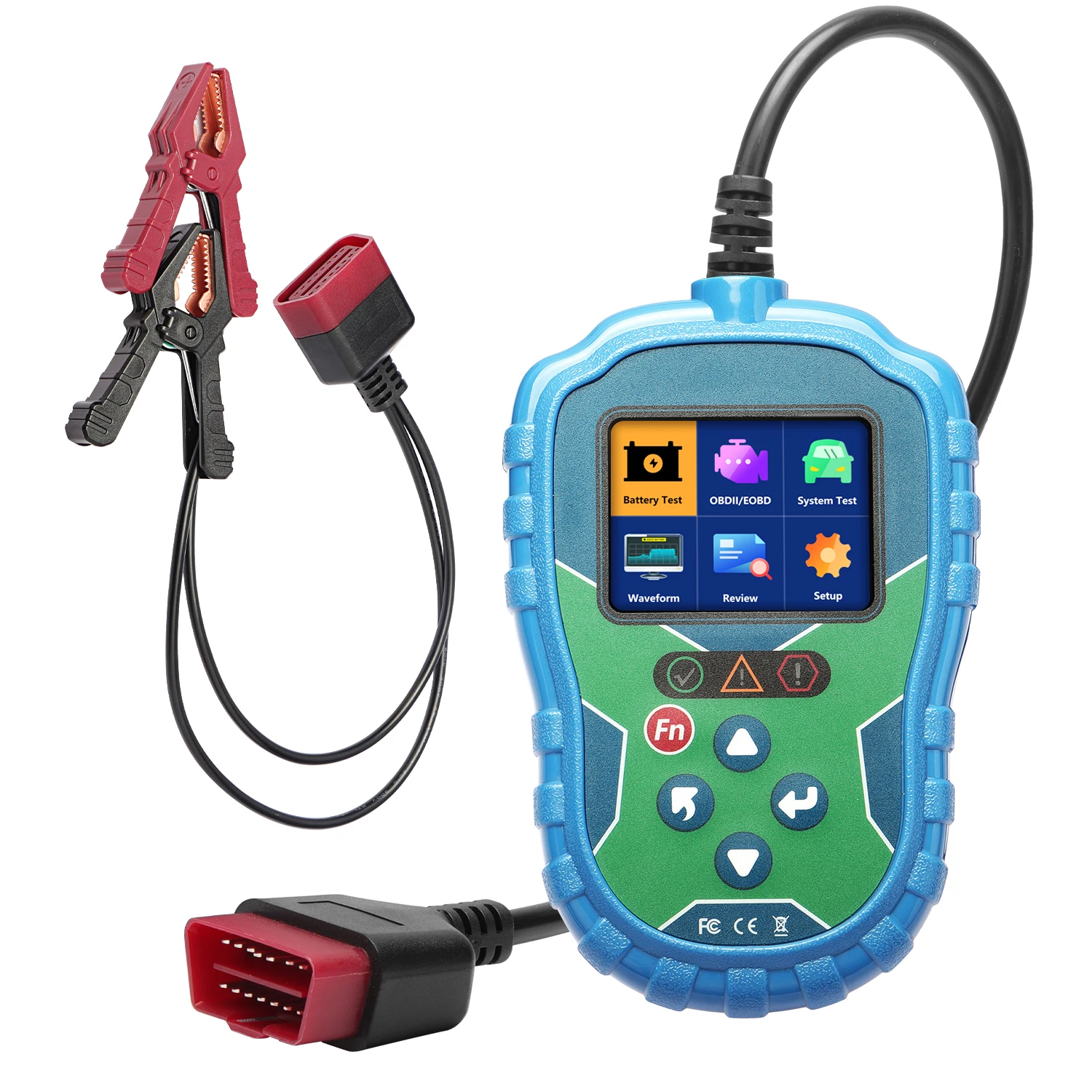

Car diagnostic tool 2 in 1 Engine Analyzer OBD2 Scanner Battery test High precision high and low temperature BA570
- Category: >>>
- Supplier: Shenzhen Leagend Optoelectronics Co. Ltd.
Share on (1601254074643):
Product Overview
Description
Product description.
● Read or clear engine trouble codes
● Dynamic display of data flow information, supporting 249 ECU operating parameters (live data)
● View freeze frame data and I/M status information
● Check and turn off the engine indicator (MlL), clear the code, and reset the detector
● Read vehicle information (Vehicle identification number VIN, Calibration Identification number IDs, Calibration Verification number CVNs)
● Dynamic display of data flow information, supporting 249 ECU operating parameters (live data)
● View freeze frame data and I/M status information
● Check and turn off the engine indicator (MlL), clear the code, and reset the detector
● Read vehicle information (Vehicle identification number VIN, Calibration Identification number IDs, Calibration Verification number CVNs)
Function and Features
● Dual system detection, optional engine system and transmission system

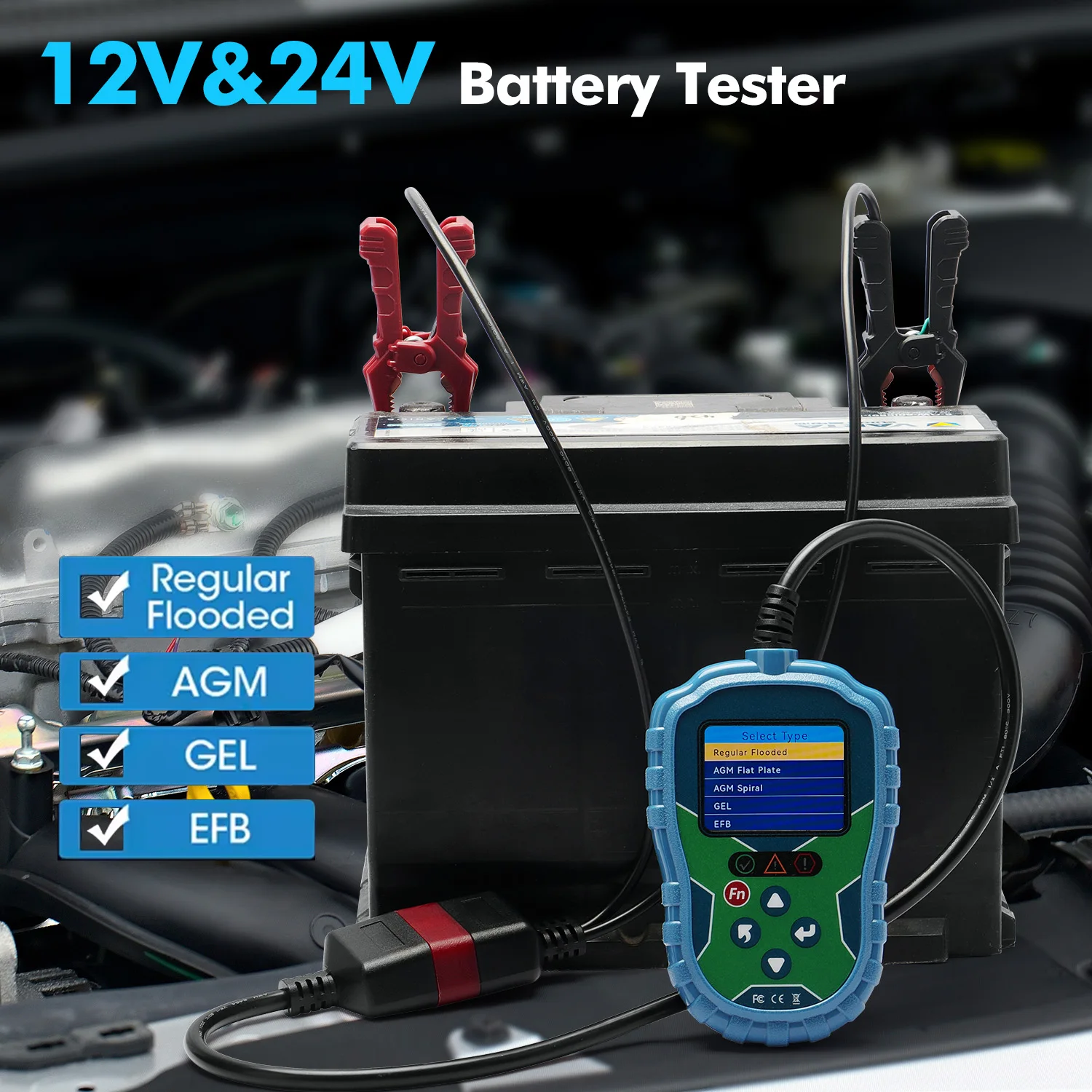

● Test the 12V/6V Lead-acid Battery CCA (cold cranking amps)/internal resistance/voltage/state of charge/state of health

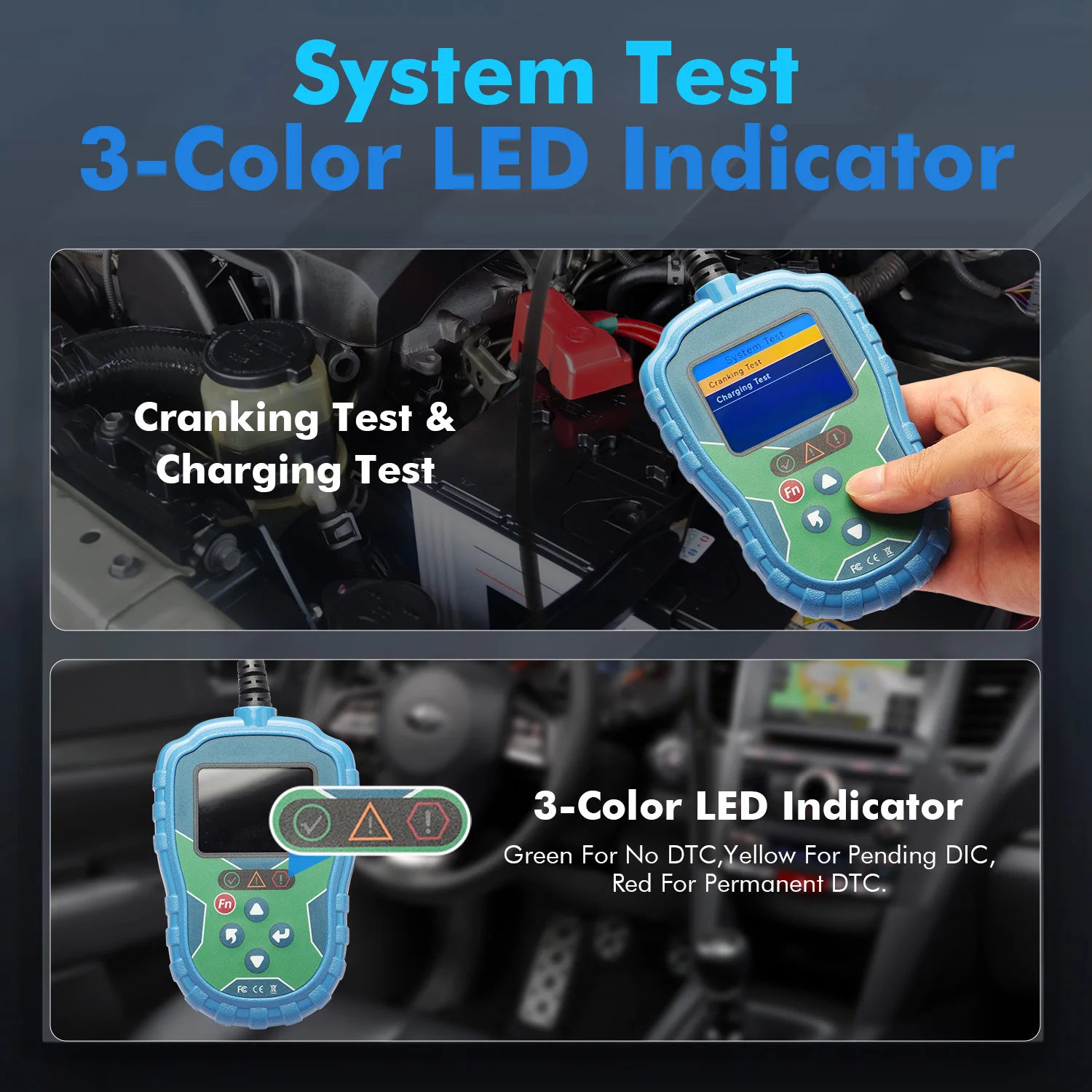

● Test the 24V/12V vehicle starting system and charging system
● Built-in LED lights for battery and OBD II diagnosis status
● One-key quick test function for batch battery continuous test, real-time voltage curve, OBD II diagnosis
● Real-time voltage curve graphic display, can be saved up to 120 seconds and played back
● Can save up to 1750 historical test records, including battery test, starting test, charging test, voltage curve and engine diagnosis report, 350 each
● Test the 12V/6V Lead-acid Battery CCA (cold cranking amps)/internal resistance/voltage/state of charge/state of health
● Test the 24V/12V vehicle starting system and charging system
● Built-in LED lights for battery and OBD II diagnosis status
● One-key quick test function for batch battery continuous test, real-time voltage curve, OBD II diagnosis
● Real-time voltage curve graphic display, can be saved up to 120 seconds and played back
● Can save up to 1750 historical test records, including battery test, starting test, charging test, voltage curve and engine diagnosis report, 350 each
Language | English, French, Dutch, German, Spanish, ltalian, Russian, Portuguese, Polish and Finnish |
Display | 2.4" TFT color screen |
Supported Battery | All 12V & 6V lead-acid engine starting batteries : Regular Flooded ,AGM,GEL,EFB |

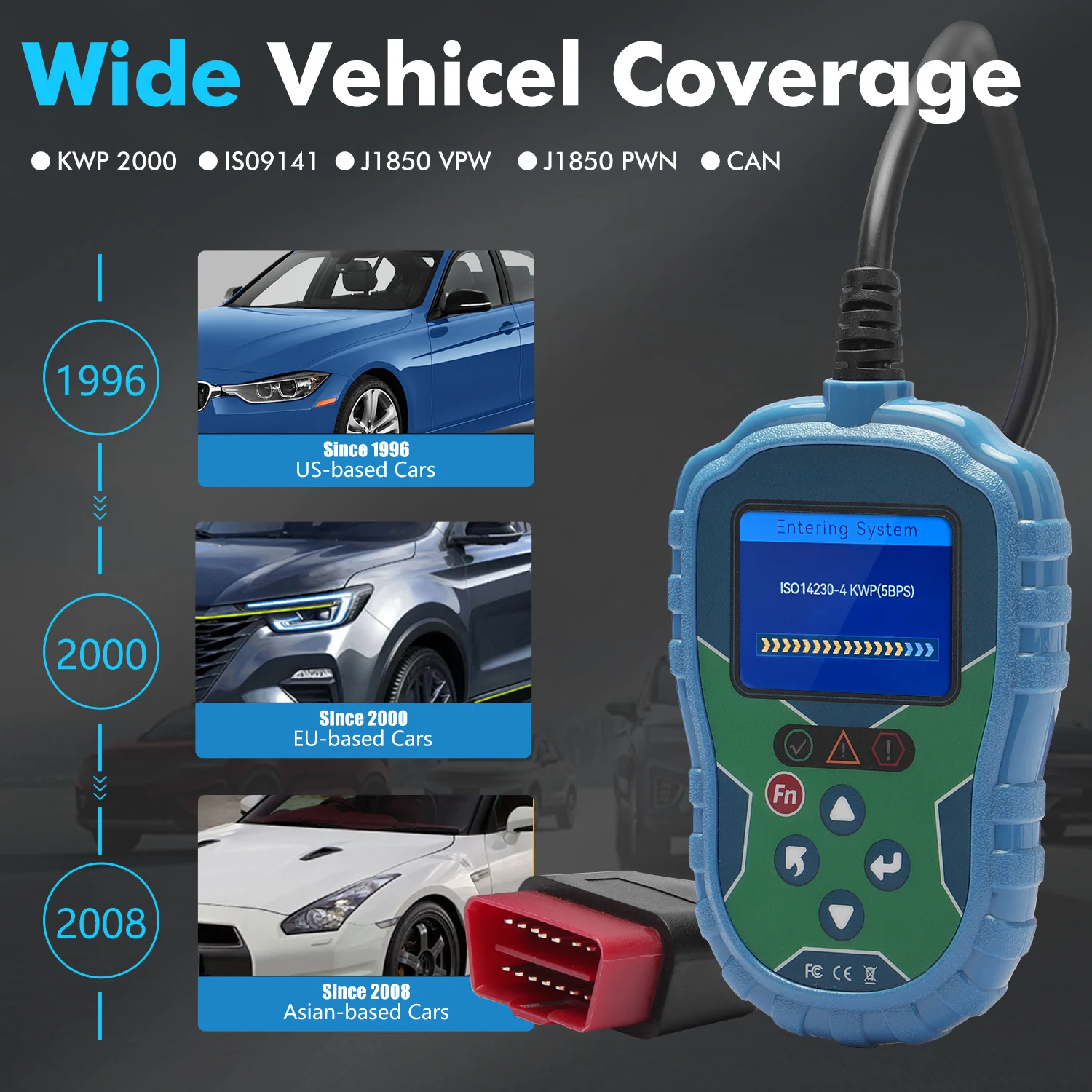

Supported Models | OBD II/EOBD car, SUV, light truck |
Supported Protocols | CAN, VPW, PWM, ISO9141, KWP2000 |
Test Standard and Range | JIS(26A17-245H528) CCA/BCI/CA/MCA/EN/SAE(20-2000) DIN/IEC(20-1400),GB(2-220Ah) |
Input Voltage | 5V-32V DC |
Operating Temperature | -10°C~60°C(14F~140F) |
Storage Temperature | -20°C~70°C(-4F~158F) |
