4mm spiral steel powder silo roll forming machine grain bin sheet machine silo sheet roll forming machine
- Category: >>>
- Supplier: Botou Kefa Roll Forming Machine Co. Ltd.
Share on (1601255208260):
Product Overview
Description

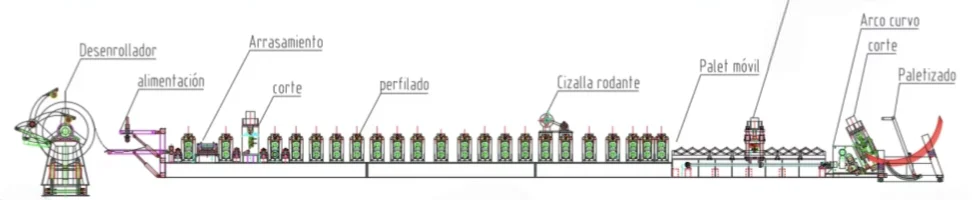

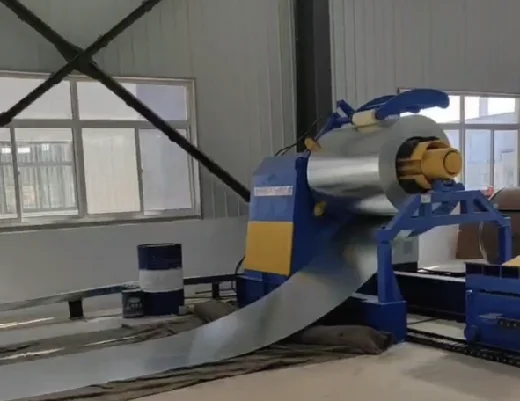

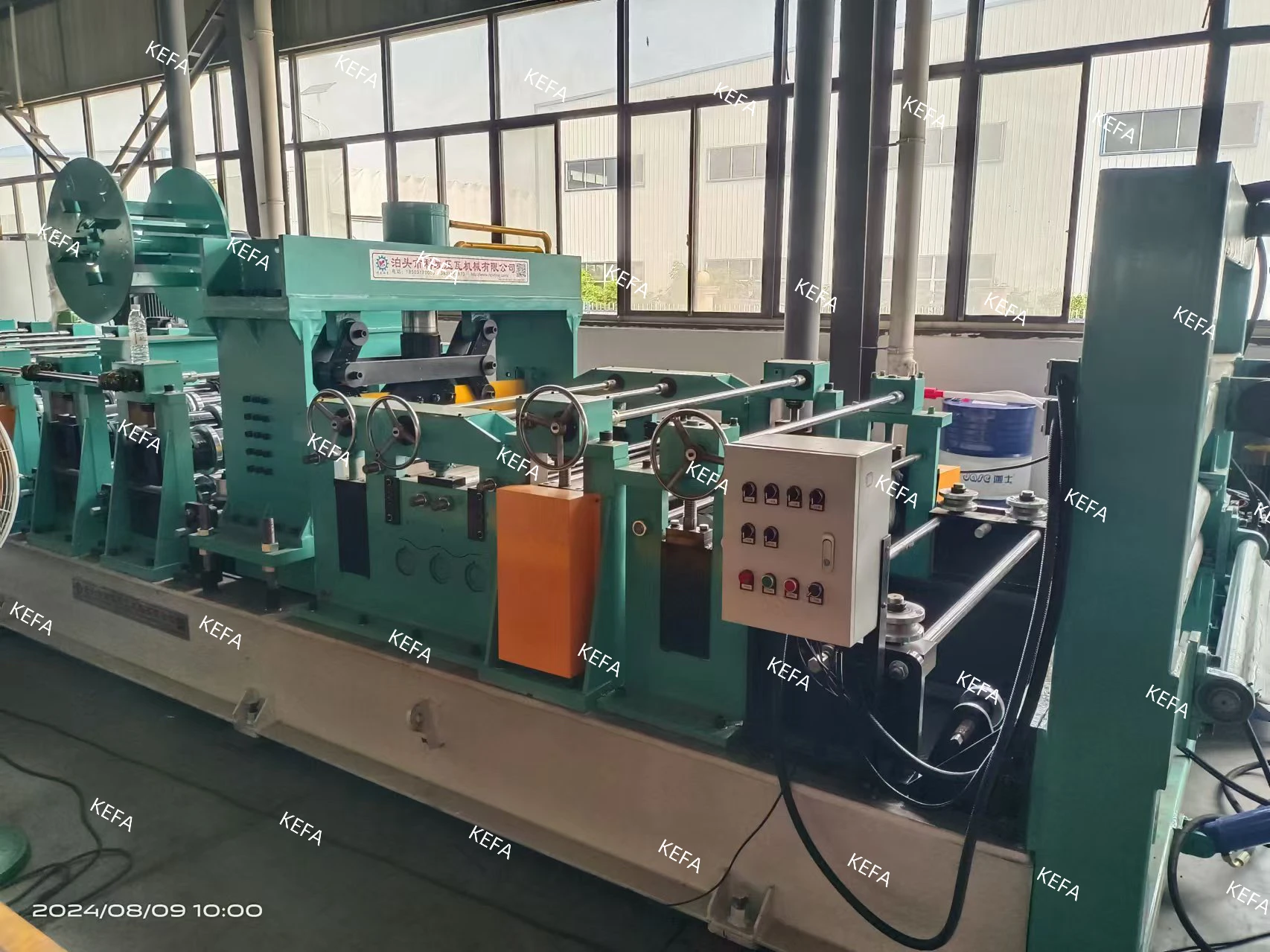

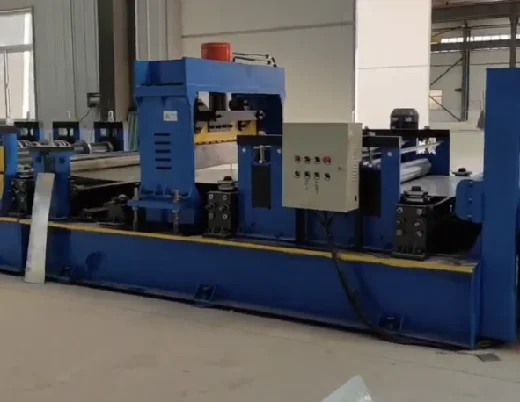

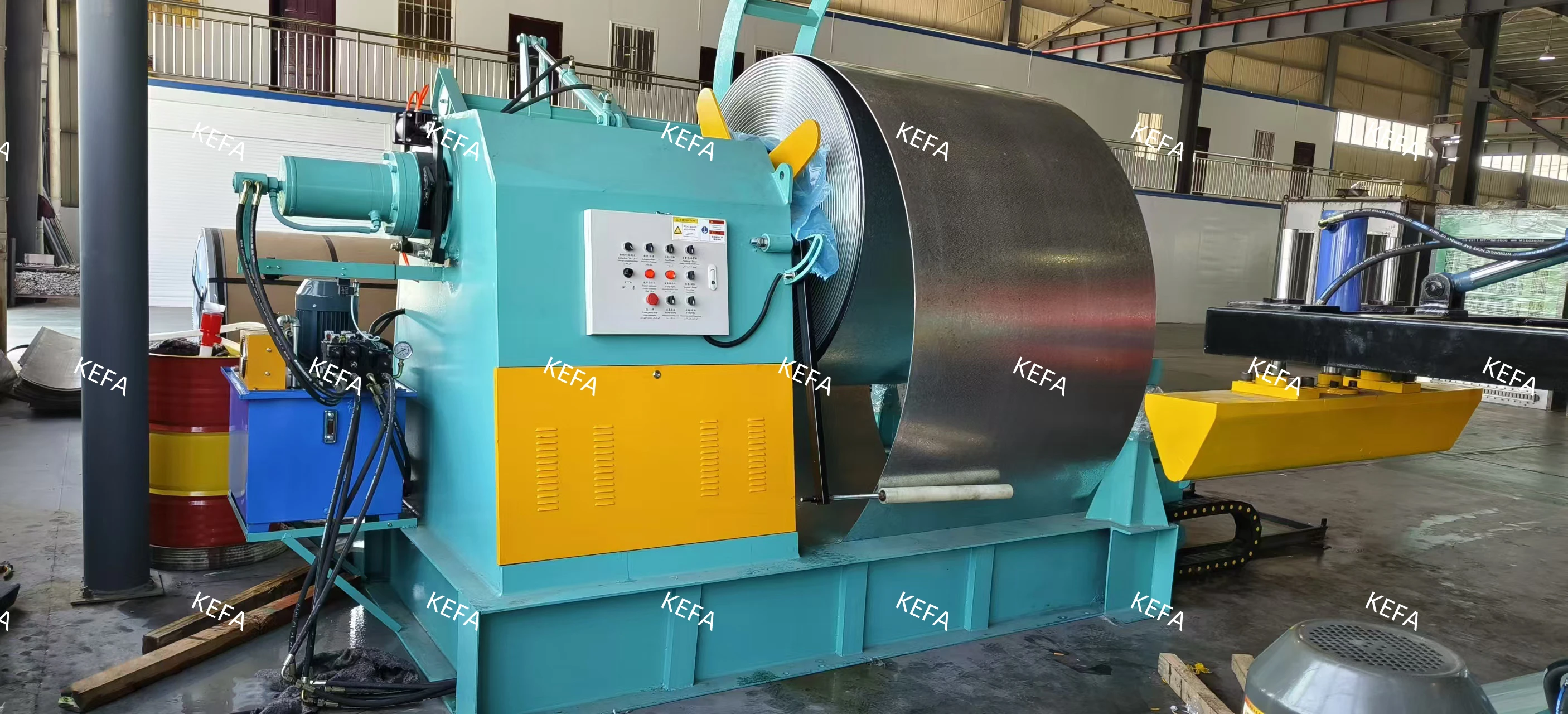

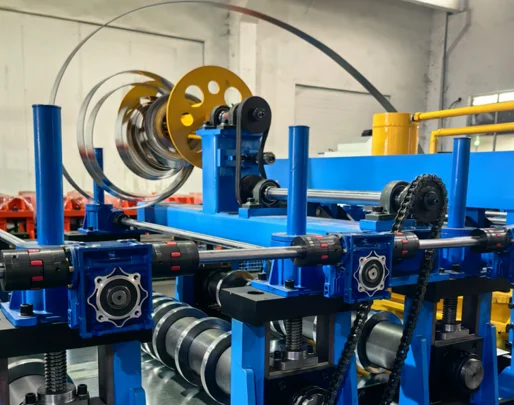

Hydraulic decoiler -Shovel head device(Auxiliary feeding +Leveling) --Pre Cutting--Roll Forming Machine-Sliting & Waste Wire Collecting--Movable Pallet-Punching--Movable Pallet--Bending--Hydraulic Cutting-Receive Table
PRODUCT ADVANTAGES
PRODUCT INFORMATION

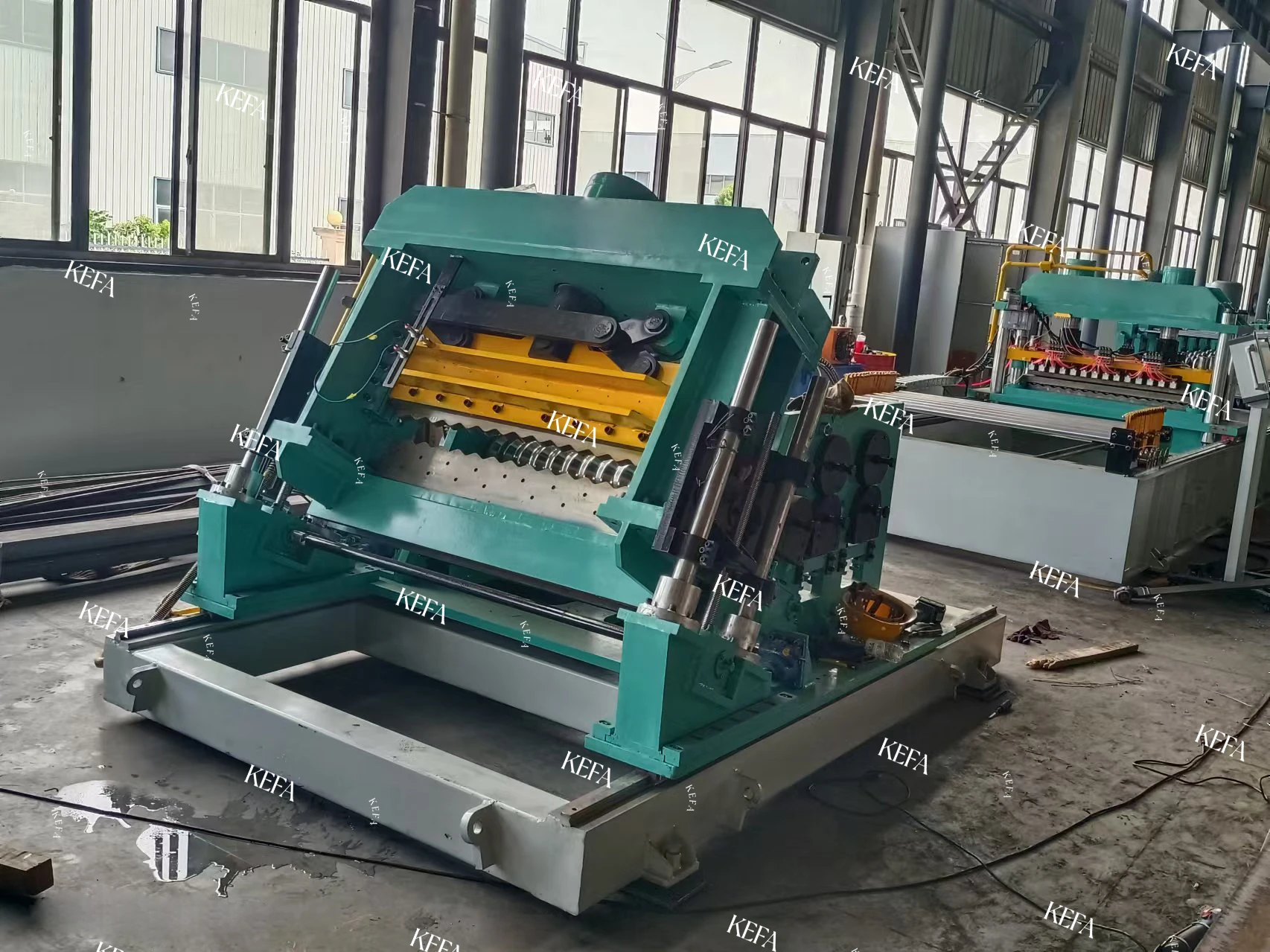

KEFA-Silo roll forming machine

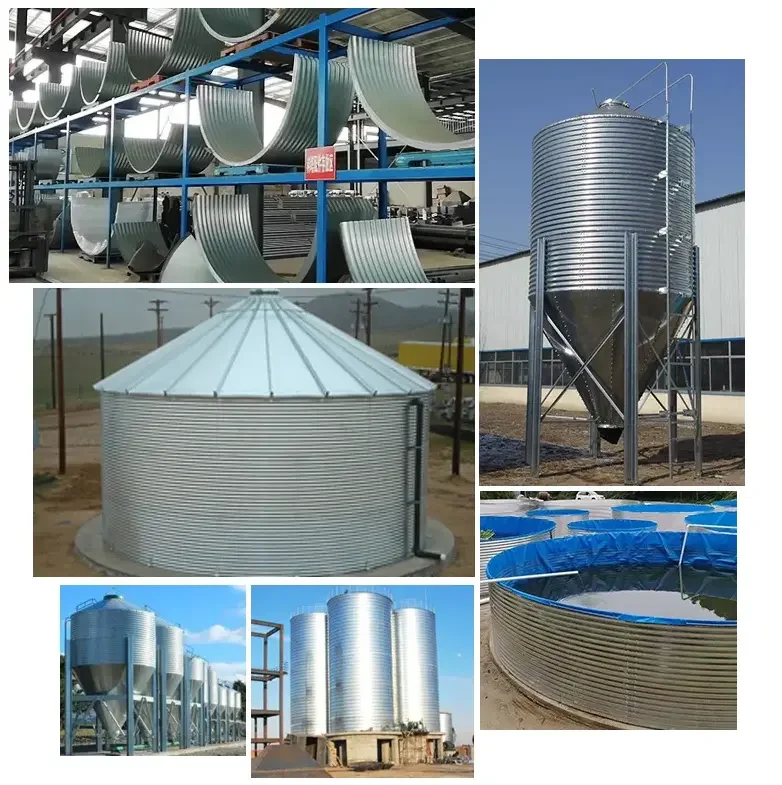

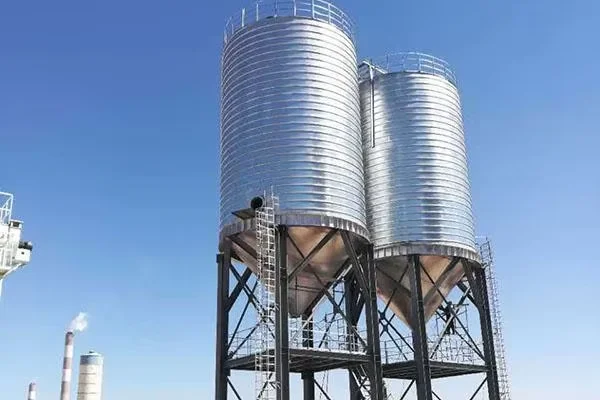

This equipment can be widely used in grain storage enterprises and food processing enterprises. It can effectively kill pests in grain piles including eggs, pupae, etc. during various growth periods. It is an indispensable and ideal storage equipment for national grain storage depots.
Main parameters of the roll forming machine
1 | Materials : | 1.5-3.0mm galvanized coils |

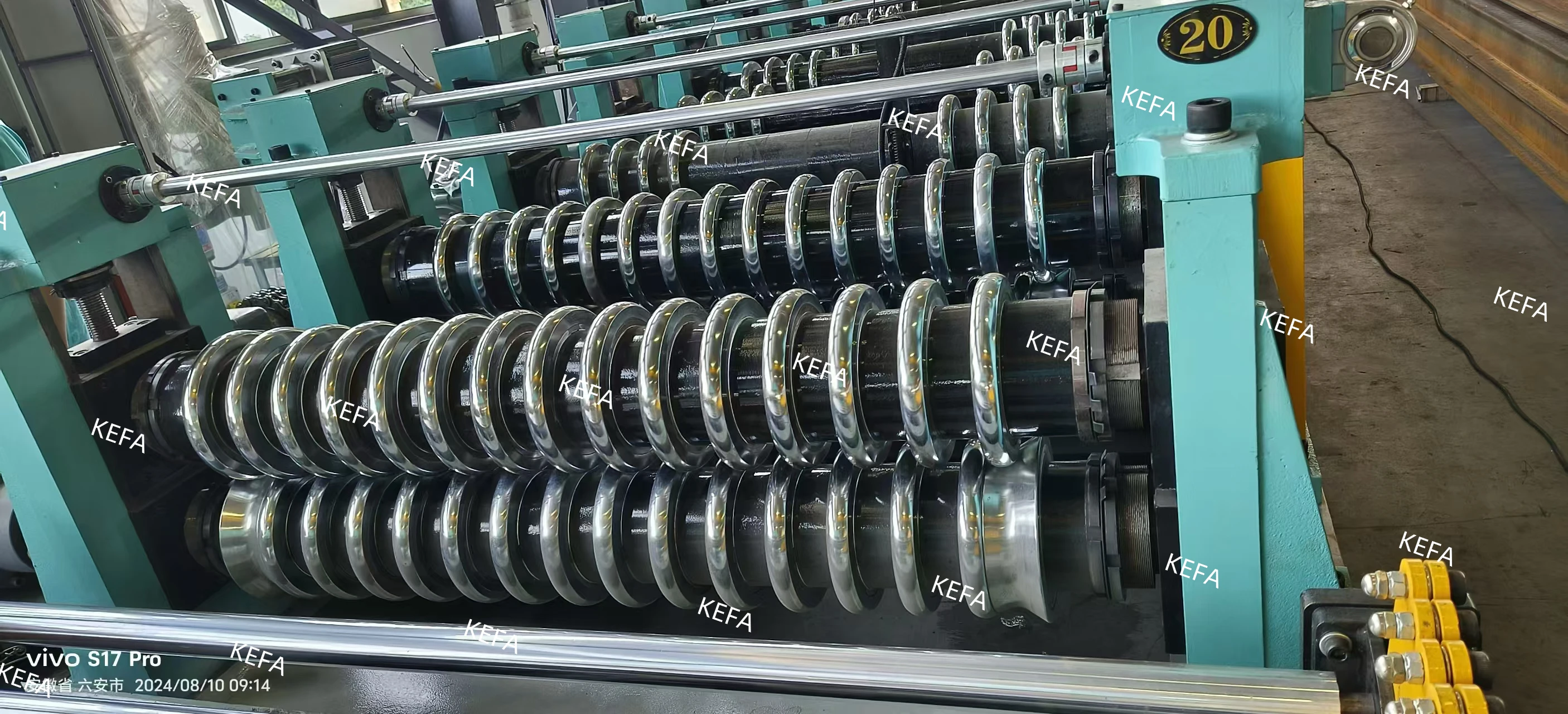

2 | Forming steps: | about 20 stations |
3 | Material of rollers: | Gcr15 steel precision-machined, high frequency quenching HRC58-62 |
4 | Material of main shaft : | 45# high quality steel (diameter>50) |
5 | Cutting: | hydraulic cutting; quenching HRC58-62 |
6 | Electronic control: | PLC control Panasonic Brand |
7 | Dimension of machine: | 11500mmX1350mmX800mm |
8 | Working speed: | 12-15m/min |
9 | Drive system: | gear box drive |
10 | main motor power: | 90kw |

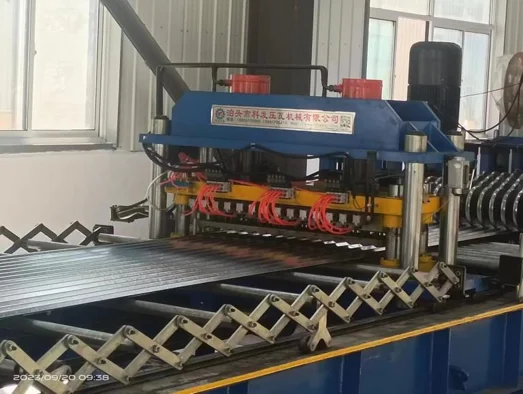

11 | Punching moulds: | 3 sets of punching dies at one time |
12 | Curving machine: | Curving continuously to make the sheets straight, the min Radius 1.8m, the Radius can be adjustable. |
13 | Cutting: | Hydraulic cutting |
EXCLUSIVE SERVICE
PRODUCTION PROCESS
TESTING EQUIPMENT
PRODUCT LIST
·SCAFFOLD MAKING MACHINE· |
·PORTABLE ROLLFORMER· |
·SPLIT SETROCK BOLT MACHINE· |
·SHUTTER PROFILE MACHINE· |
·ELECTRICAL ROLLFORMING MACHINE· |
·RACK ROLL FORMING MACHINE· |
·ROAD GUARDRAIL MACHINE· |
·BIN/SILO MAKING MACHINE· |
·DRYWALL PROFILE MACHINE· |
·ROOFING PANELROLL FORMING MACHINE· |
·SHIPPING CONTAINER PROFILE MACHINE· |
·METAL DECK ROLLFORM MACHINE· |
·WALLCLADDING ROLLFORMING MACHINE· |
·PURLIN/CHANNELROLL FORMING MACHINE· |
·SLITTING/LEVELING/CUTTING LINE· |
·TRAILER PROFILE MACHINE· |
·AGRICULTURAL ROLLFORM MACHINE· |
·DOOR & WINDOW FRAME MACHINE· |
·FENCE ROLL FORMING MACHINE· |
We are a leading manufacturer specializing in custom cold roll forming equipment and automatic production lines. With astrong focus on innovation and quality,we pride ourselves on delivering top-of-the-line solutions to meet the diverse needs of our clients.
our extensive range of roll forming machines includes over a hundred types, Road Guardrail Machine …and many more.We ensure that all our products are manufactured to the highest standards,using cutting-edge technology and premium materials.
our team of skilled professionals is dedicated to delivering reliable and efficient equipment tailored to meet the specific requirements of our clients. For inquiries,customized solutions,or more information about our products and services,please feel free to reach out to us.
our extensive range of roll forming machines includes over a hundred types, Road Guardrail Machine …and many more.We ensure that all our products are manufactured to the highest standards,using cutting-edge technology and premium materials.
our team of skilled professionals is dedicated to delivering reliable and efficient equipment tailored to meet the specific requirements of our clients. For inquiries,customized solutions,or more information about our products and services,please feel free to reach out to us.
Q HOW TO MAINTAIN THE MACHINE?
A add mechanical lubrication equipment to chain, bearing and cutting slideevery month. Add mechanical lubrication to the case every half a year.
Q DO YOU SELL ONLY STANDARD MACHINES?
A No, most of our machines are built according to customers specifications,using top brand name components.
Q HOW MANY WORKERS TO OPERATE THE MACHINE?
A Only 1-2 workers.
Q HOW TO VISIT YOUR COMPANY?
A A.Fly to TlANJlN airport: By high speed train From TlANJlN Station to CangzhouWest Station(1 hour), then we can pick you up .
B.Fly to Beijing airport: By high speed train From Beijing Nan Station toCangzhou West Station(1 hour), then we can pick you up .
C.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao toCangzhou West station(4.5 hours), then we can pick you up.
Q WHAT CAN YOU DO IF THE MACHINE BROKEN?
A Our machine's warranty period is 12months,if the broken parts can't berepaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
Q HOW CAN ITRUST YOU THAT MACHINES PASTED TESTINGRUNNING BEFORE SHIPPING?
A 1) We record the testing video foryour reference. Or,
2) Please visit company and test machine if convenient.
