Product Overview
Description
PRODUCT ADVANTAGES
01

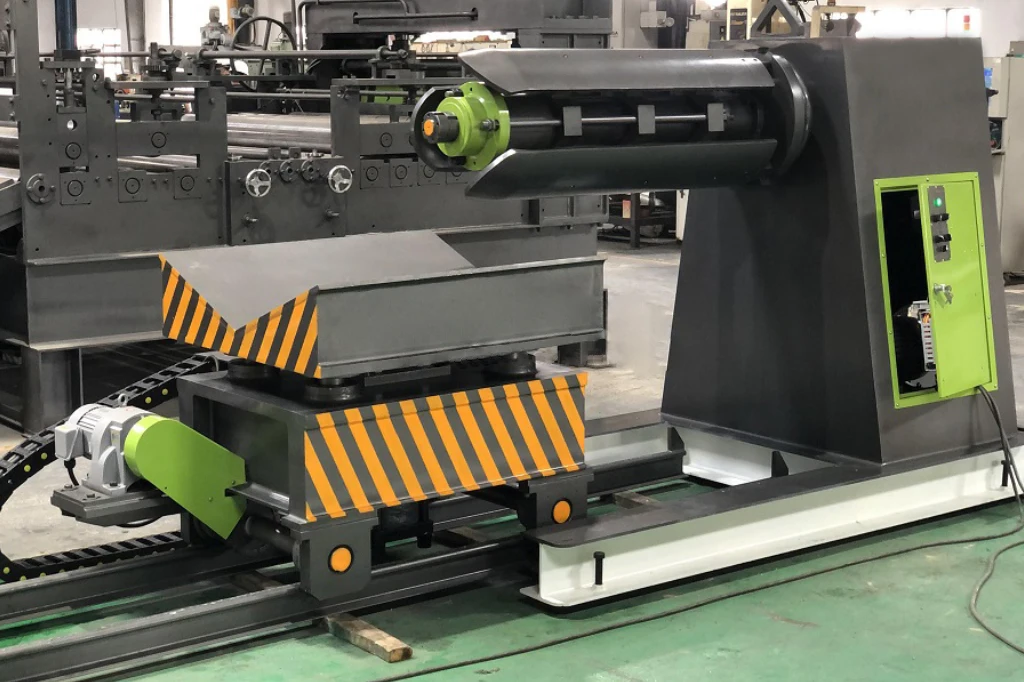

Hydraulic unwinding machine
Technical parameters:
( 1)Coil weight:5T
(2)Coil width:600- 1500mm
(3)Expansion and contraction of the mandrel:①490~①560mm
(4)Main motor power:5.5 kw
(5)Working pressure of expansion and contraction cylinder:≈12MPa
(6)The way of power transmission:sprocket drive
( 1)Coil weight:5T
(2)Coil width:600- 1500mm
(3)Expansion and contraction of the mandrel:①490~①560mm
(4)Main motor power:5.5 kw
(5)Working pressure of expansion and contraction cylinder:≈12MPa
(6)The way of power transmission:sprocket drive

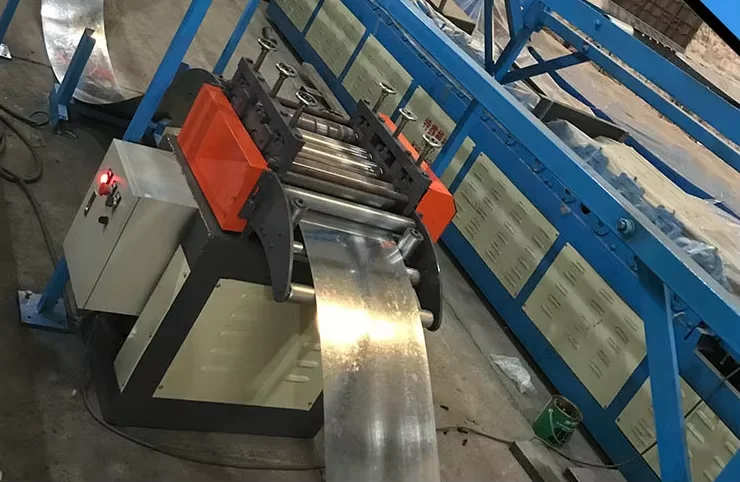

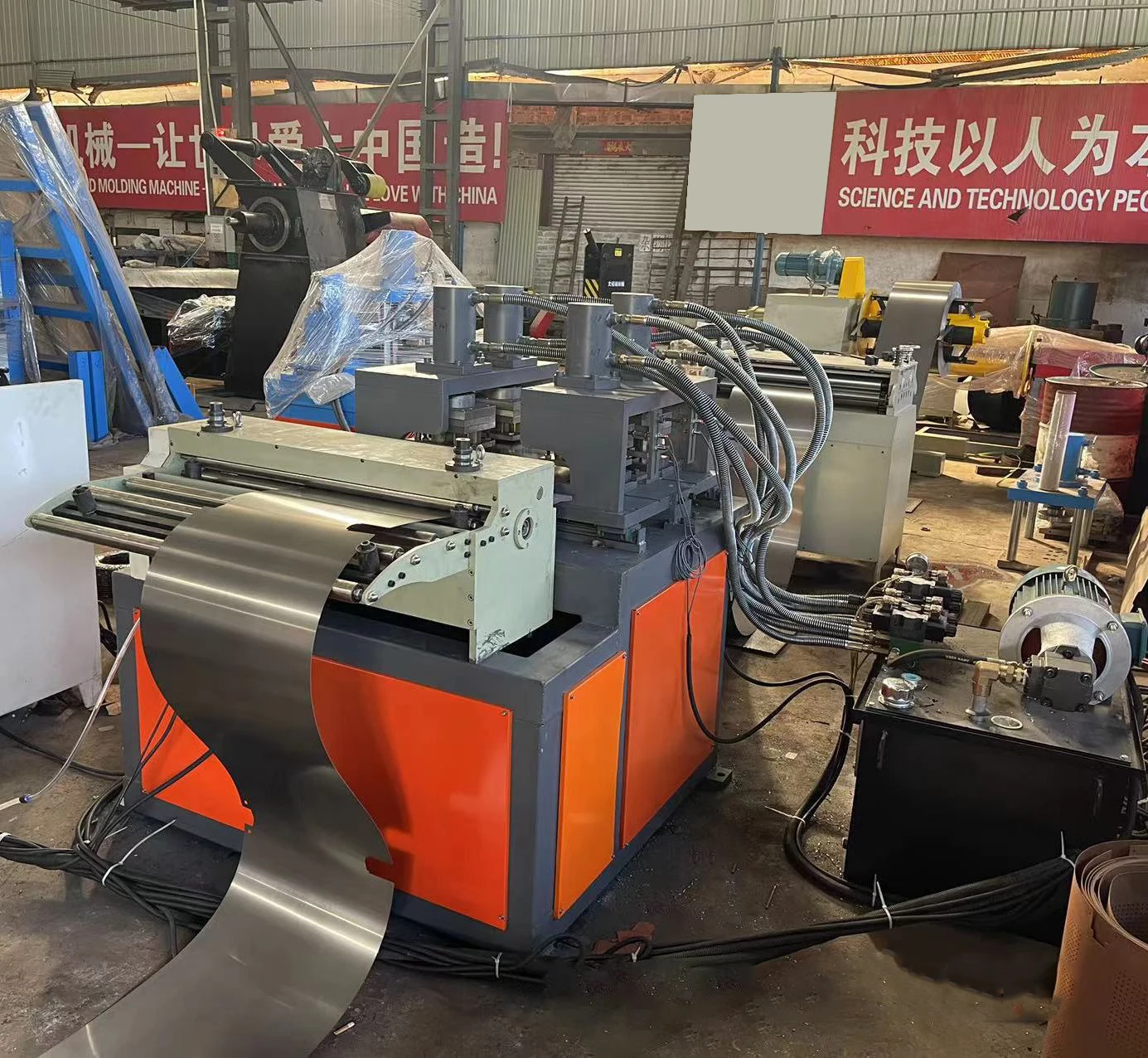

02 Leveling Rollers
7 rolls leveling, 3 rolls up and 4 rolls down Diameter is 80mm, chrome and HRC60 heat treatment to secure the smooth surface Leveling Raw Material thickness:1.6mm Max Leveling Raw Material width:500mm
03
Servo Feeder Usage: Applied to control the width and position of the steel sheet,which is guided intothe correct position of machine to make surethe panel is neat and parallel.1. Nc-500 CNC feeder + G0500
2. Power: 2.3KW
3. Working width: 500 mm4. Working thickness range: 1.ómm
3. Working width: 500 mm4. Working thickness range: 1.ómm
04
Entry Guides 1. With several support rollers, to feed the material more smoothly
2. Equipped with 2 groups nylon wheels in themiddle of the platform, prevent the materialsurface from being damaged, and feed thematerial more easily and quickly
3. Can be With hand wheels to adjust thefeeding size, more conveniently
4. Optional With manual cutters to cut feedmaterial more easily
05

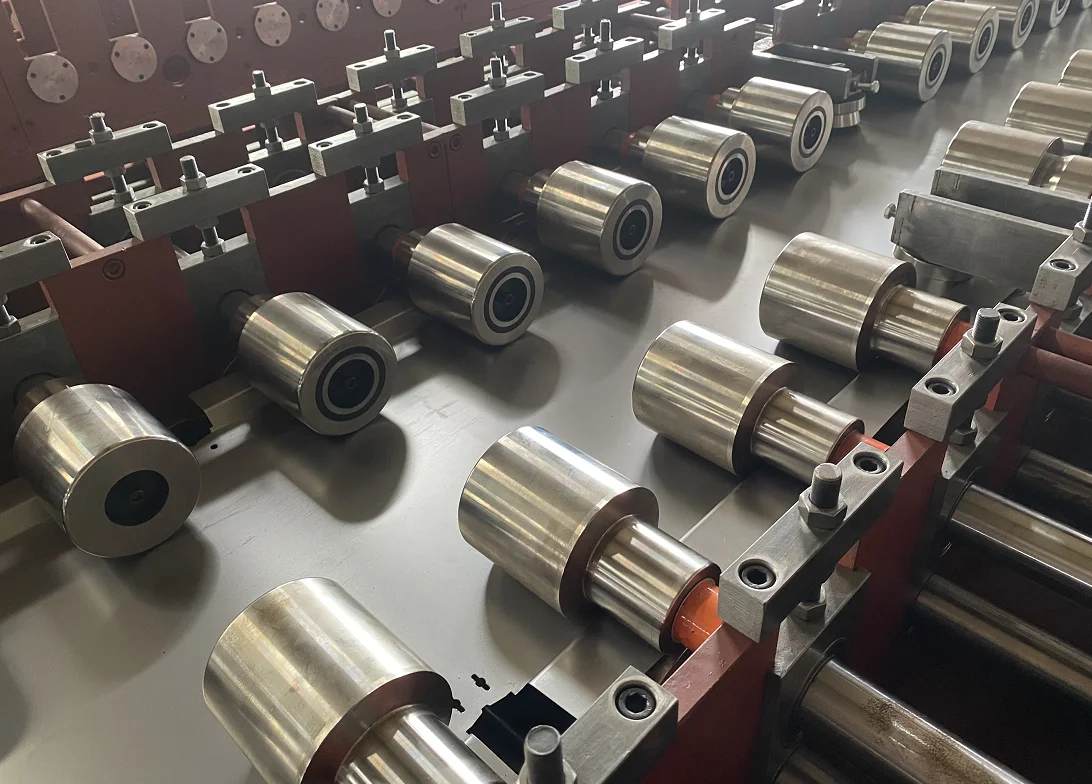

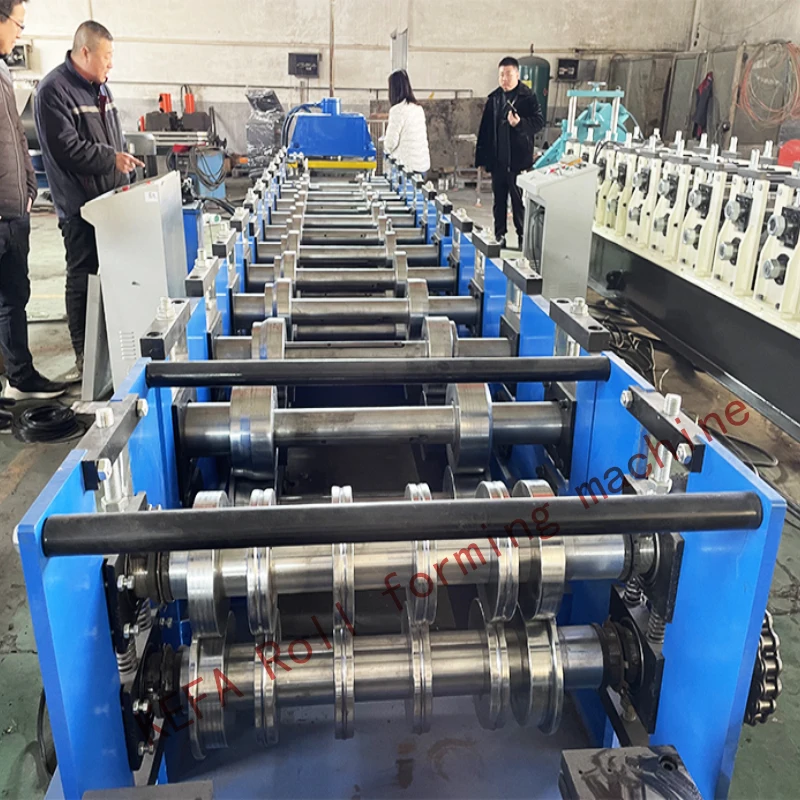

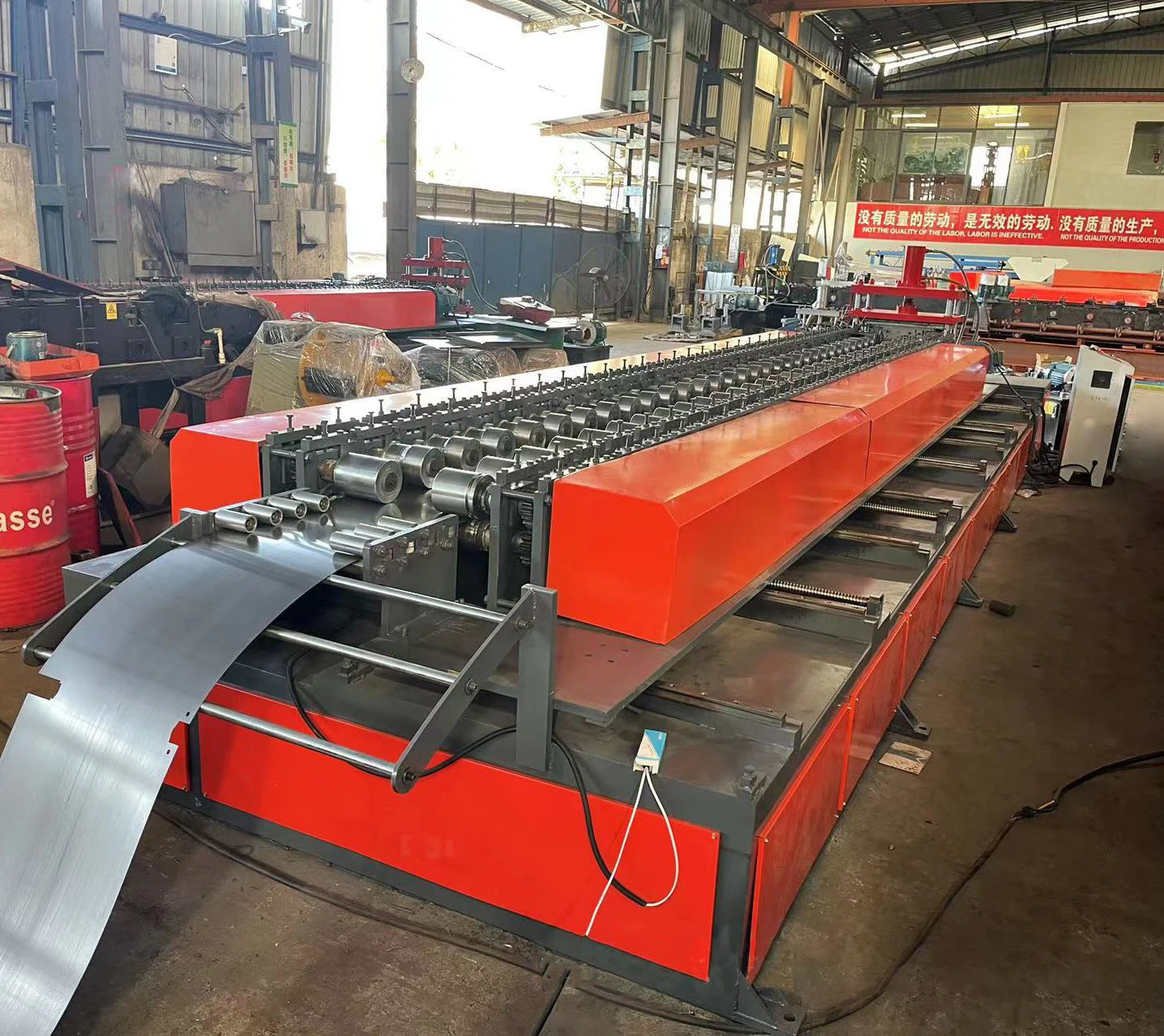

Roll Forming Consist pairs of contoured roll tools. While the
coil stock is passing through successioncontoured rolls the material bends toits desired shape. 1.Rolling shaft .40CrSTEEL,Tempering treatment to preventdeformed and improve hardness,Shaftdiameter.75mm2.Roller:Cr12 steel,Chromed treatment,improve the hardness and prevent abrasion,anti corrosion increase service life.
coil stock is passing through successioncontoured rolls the material bends toits desired shape. 1.Rolling shaft .40CrSTEEL,Tempering treatment to preventdeformed and improve hardness,Shaftdiameter.75mm2.Roller:Cr12 steel,Chromed treatment,improve the hardness and prevent abrasion,anti corrosion increase service life.
06

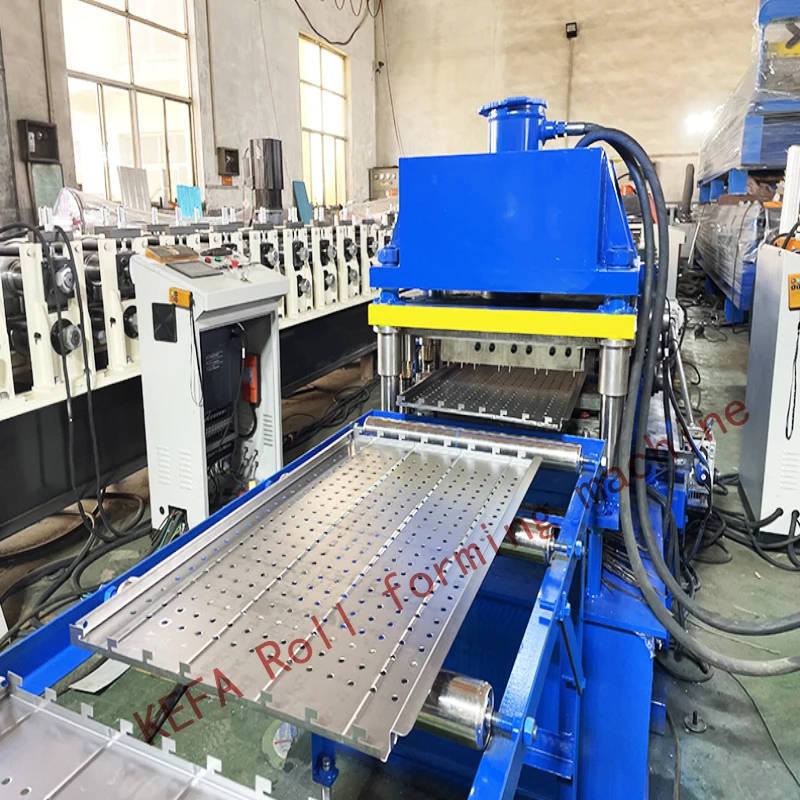

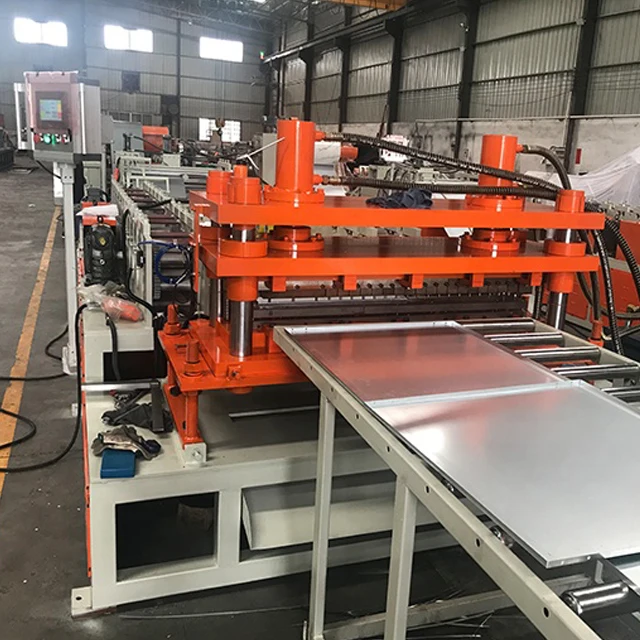

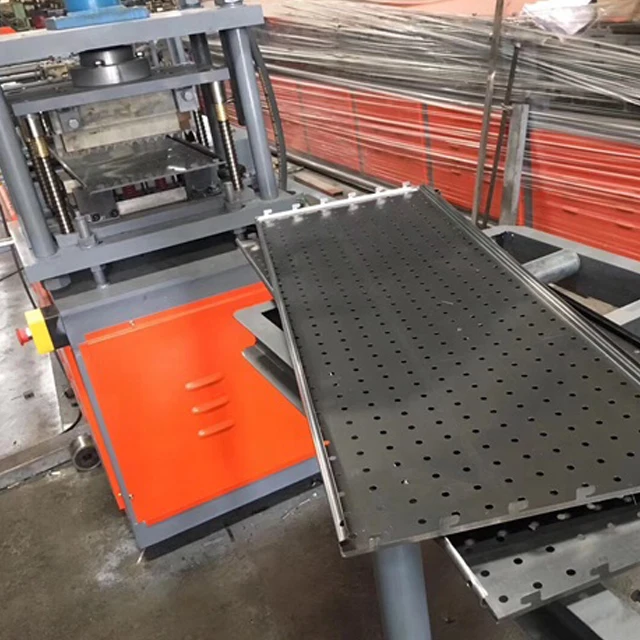

Cutting & Bending
Cutting & Bending
Work type: Hydraulic cutting Driving
method: By pillar type cylinder Cutting devicestructure: Guide pillar type Cutter material:GB-Cr12 with heat treatment Cutting lengthtolerance:+1mm/3m Cutting feature. Steadyand safe working condition Oil tube and wiresconnection All the tubes and wires will bemarked by the numbers or letters,So it will bevery easy to connect for the
unprofessional client.
method: By pillar type cylinder Cutting devicestructure: Guide pillar type Cutter material:GB-Cr12 with heat treatment Cutting lengthtolerance:+1mm/3m Cutting feature. Steadyand safe working condition Oil tube and wiresconnection All the tubes and wires will bemarked by the numbers or letters,So it will bevery easy to connect for the
unprofessional client.
07
Hydraulic pump station Hydraulic station: the brand is Lichao,Shanghai,Main Advantage：Fast cooling, low failure rate, extending the service life of the hydraulic pump station,ensure the equipment can operate 24 hours without downtime
06

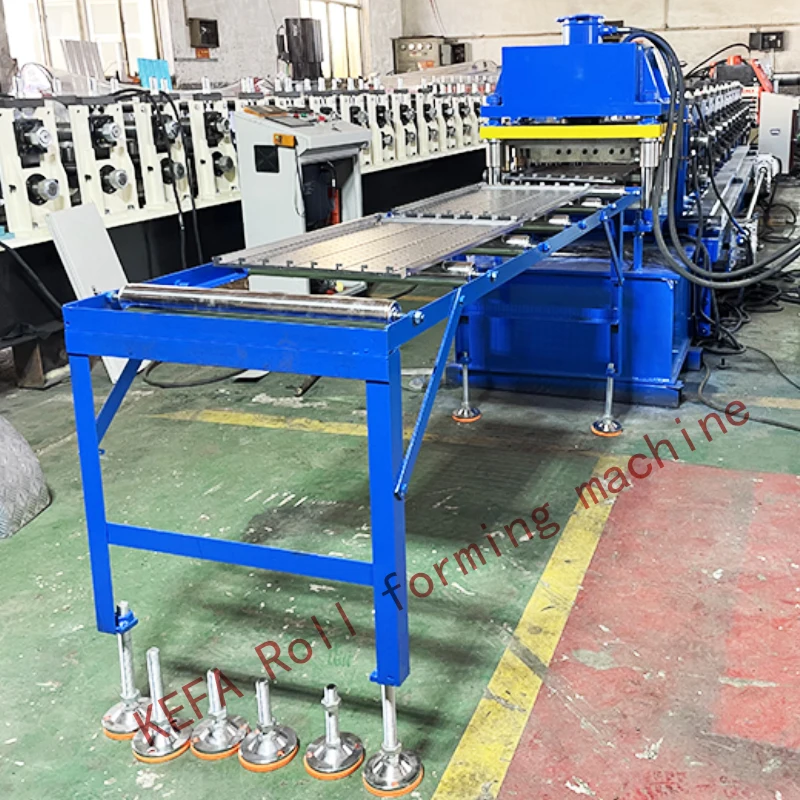

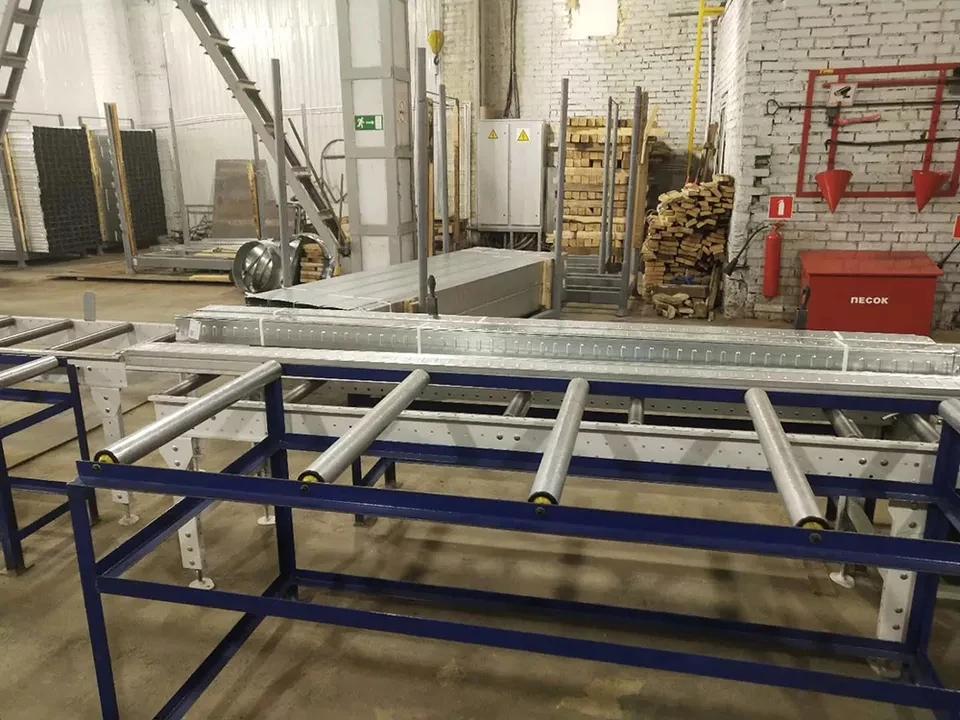

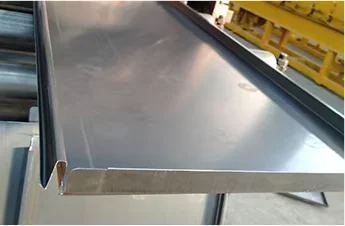

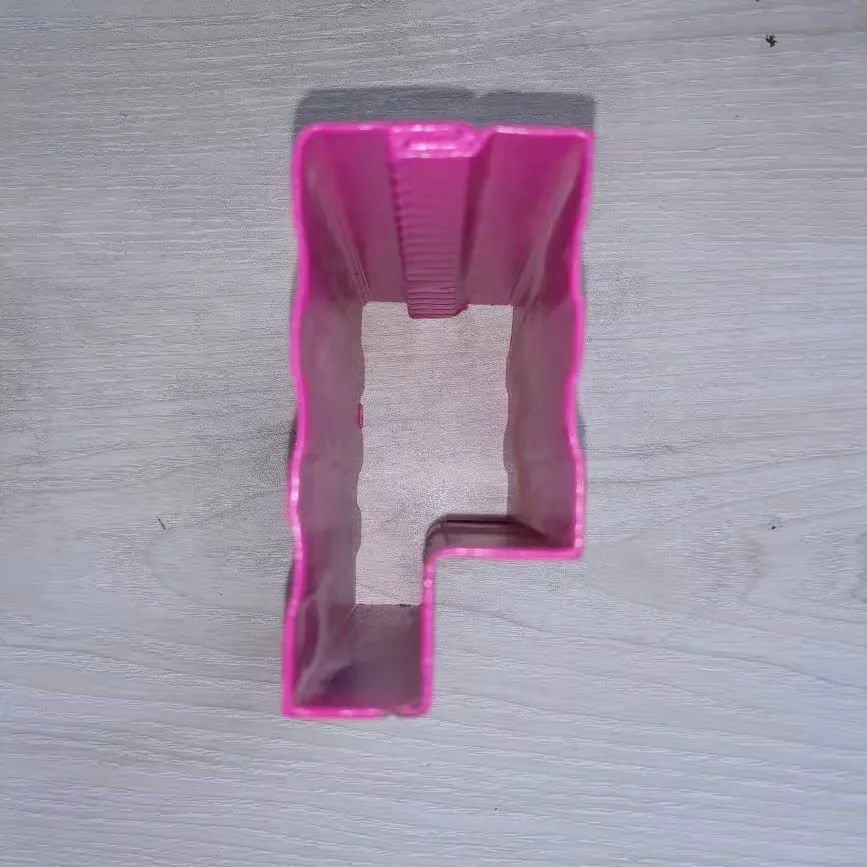

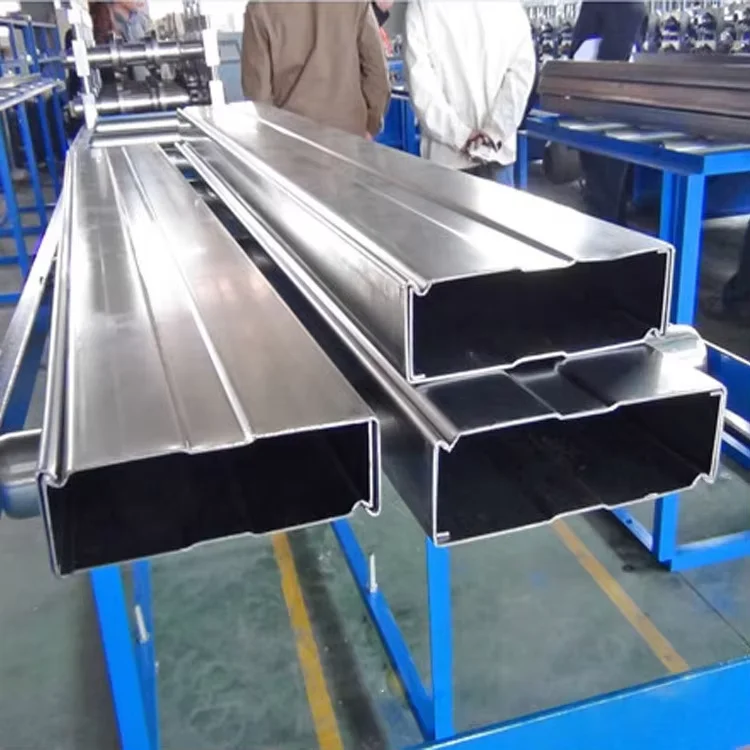

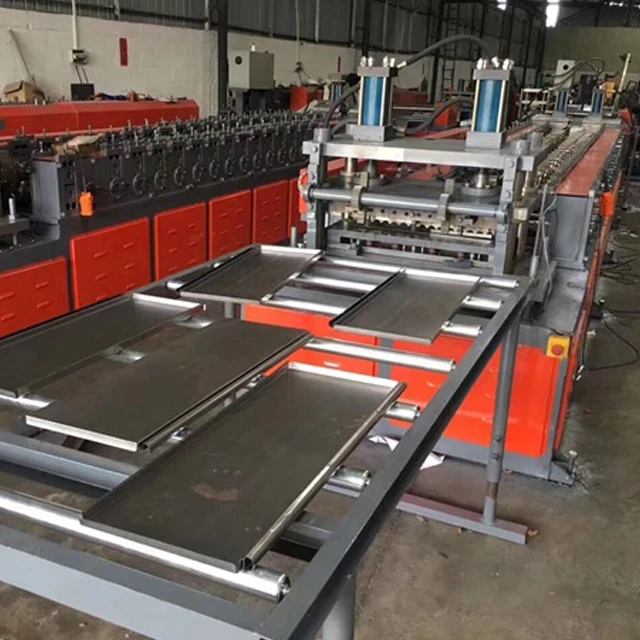

Finished Product Collect Table Length：3 meters Width：0.5 meter (adjustable)
Material：Steel bar weldedPRODUCT INFORMATION

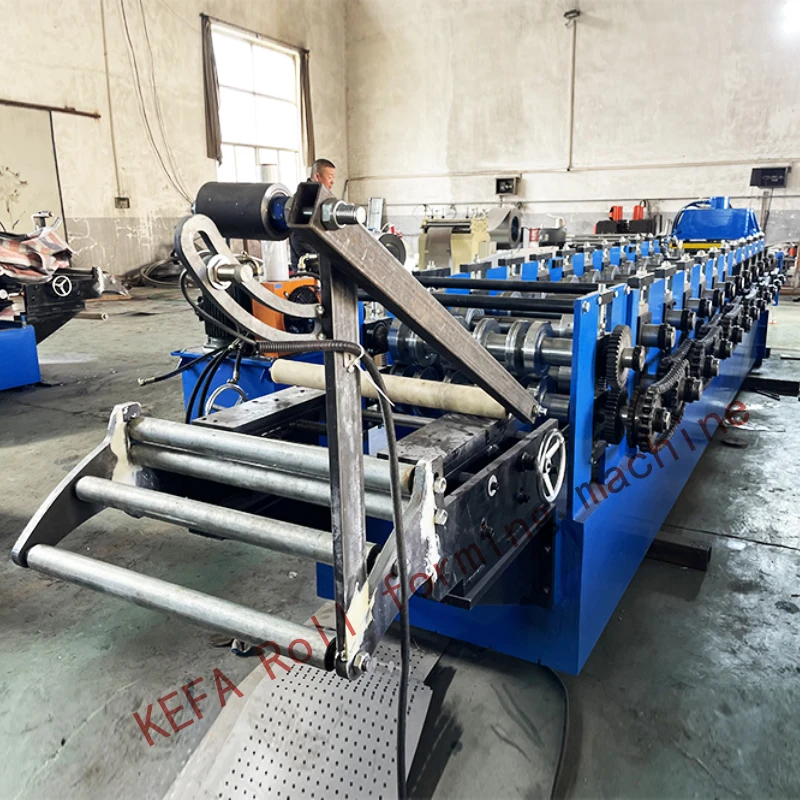

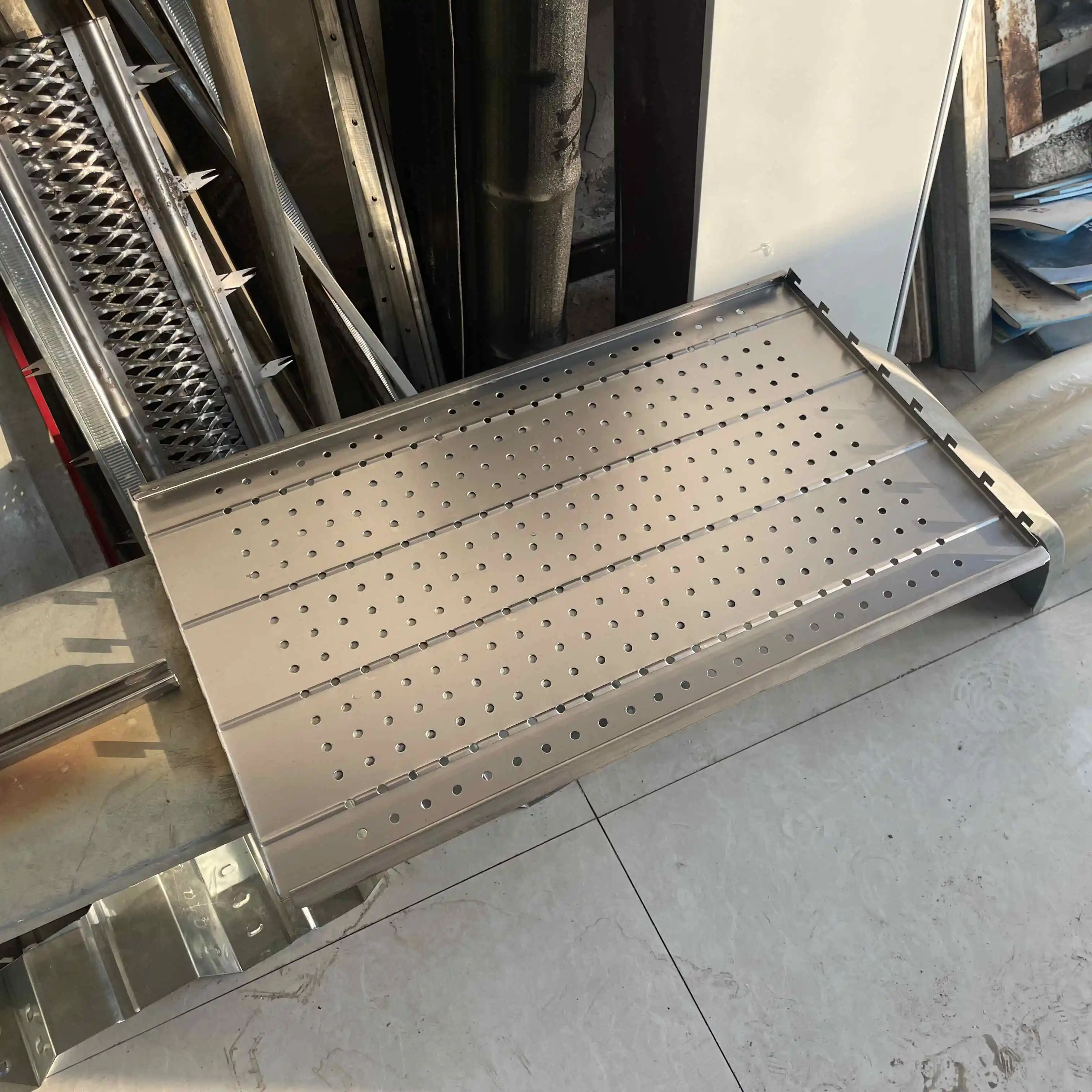

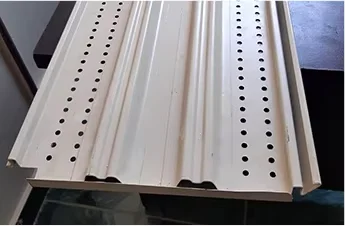

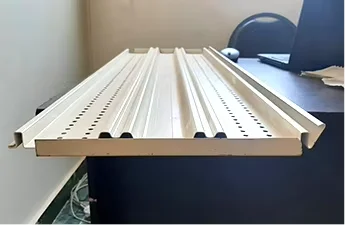

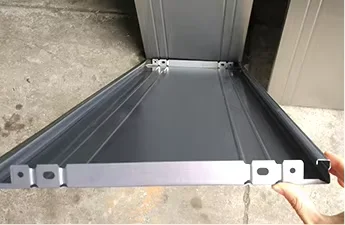

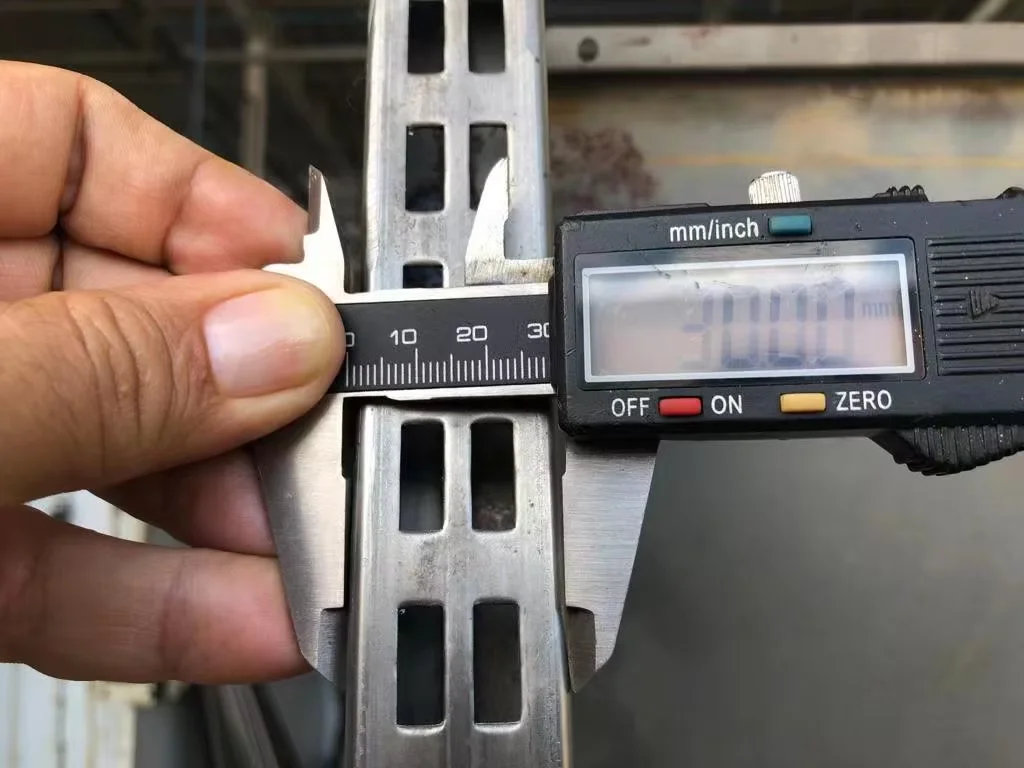

KEFA-Rack Panel profile roll forming machine advantage
1.The width be automatic adjusted by PLC.
2.shelf layer panel cold roll forming machine adopts memorial arch frame type,independent roller station make the
machine more beautiful and stability.
3.Al the rollers are through quench treatment ,CNC machine treatment twice and polished on the surface to guarantee the
accuracy and long life.
4.we also have other type of shelf layer panel cold roll forming machine. lt is with the whole adjusting system to change the sizes of the shelf panel. it no need to change the spacer one by one, just change the screw whole on the machine so that can adjust different sizes. this design is much convenient and quick than the changing spacer machine line.
2.shelf layer panel cold roll forming machine adopts memorial arch frame type,independent roller station make the
machine more beautiful and stability.
3.Al the rollers are through quench treatment ,CNC machine treatment twice and polished on the surface to guarantee the
accuracy and long life.
4.we also have other type of shelf layer panel cold roll forming machine. lt is with the whole adjusting system to change the sizes of the shelf panel. it no need to change the spacer one by one, just change the screw whole on the machine so that can adjust different sizes. this design is much convenient and quick than the changing spacer machine line.
5.The cutting is hydraulic cutting, you can change different blades for different sizes of the shelf.

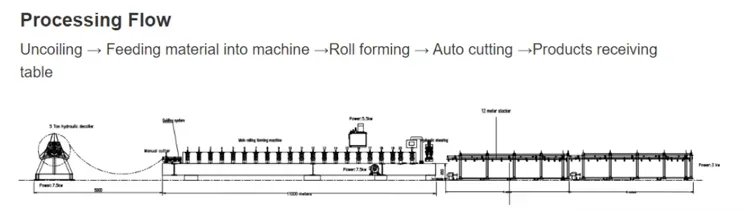

Main parameters of the roll forming machine
Decoiler: | Manual decoiler | * Hydraulic decoiler (Optional) |
Forming station : | According to your profile drawings | * With straighten revise rollers |
Main machinemotor brand : | Shanghai Lichao (Famouse Brand) | * Siemens (Optional) |
Driving system : | Chain drive or Gear drive | * Gearbox drive (Optional) |
Machine structure: | Cantilever type | *Forged lron station (Optional) |
Forming speed: | 10-20 (M/MIN) | *Or according to your profile drawings |
Rolling Shaft: | 40Cr Steel Material | *(Modulation, fine turning, fine grinding) |
Rollers' material: | CR12 Steel (Quenching, fine turningand grinding of inner holes andsurfaces, Hard chrome) | * SKD-11 (0ptional) |
Cutting system : | Post-cutting | * Pre-cutting (Optional) |
Frequency changer brand : | Yaskawa | *Siemens (Optional) |
PLC brand : | Delta,Touch Screen | *Siemens (Optional) |
Power supply: | 380V 50Hz 3ph | * Or according to your requirment |
Machine color: | Industrial blue | * Or according to your requirment |
Runout Table: | Roller type,non-power | *Motorized,Drop off,auto stack(Optional) |
