High Speed High Precision Metal Stud And Track Roll Forming Machine U Stud Track Roll Forming Machine Steel Stud Making Machine
High Speed High Precision Metal Stud And Track Roll Forming Machine U Stud Track Roll Forming Machine Steel Stud Making Machine
High Speed High Precision Metal Stud And Track Roll Forming Machine U Stud Track Roll Forming Machine Steel Stud Making Machine
High Speed High Precision Metal Stud And Track Roll Forming Machine U Stud Track Roll Forming Machine Steel Stud Making Machine
High Speed High Precision Metal Stud And Track Roll Forming Machine U Stud Track Roll Forming Machine Steel Stud Making Machine
High Speed High Precision Metal Stud And Track Roll Forming Machine U Stud Track Roll Forming Machine Steel Stud Making Machine
High Speed High Precision Metal Stud And Track Roll Forming Machine U Stud Track Roll Forming Machine Steel Stud Making Machine

High Speed High Precision Metal Stud And Track Roll Forming Machine U Stud Track Roll Forming Machine Steel Stud Making Machine

Share on (1601257912807):


Price:$12,000.00 - $15,000.00

Quantity:


Product Overview

Description









PRODUCT ADVANTAGES


01
Standard unwinding machine
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading
capacity:5T,Inner diameter: 500-508mm.


02

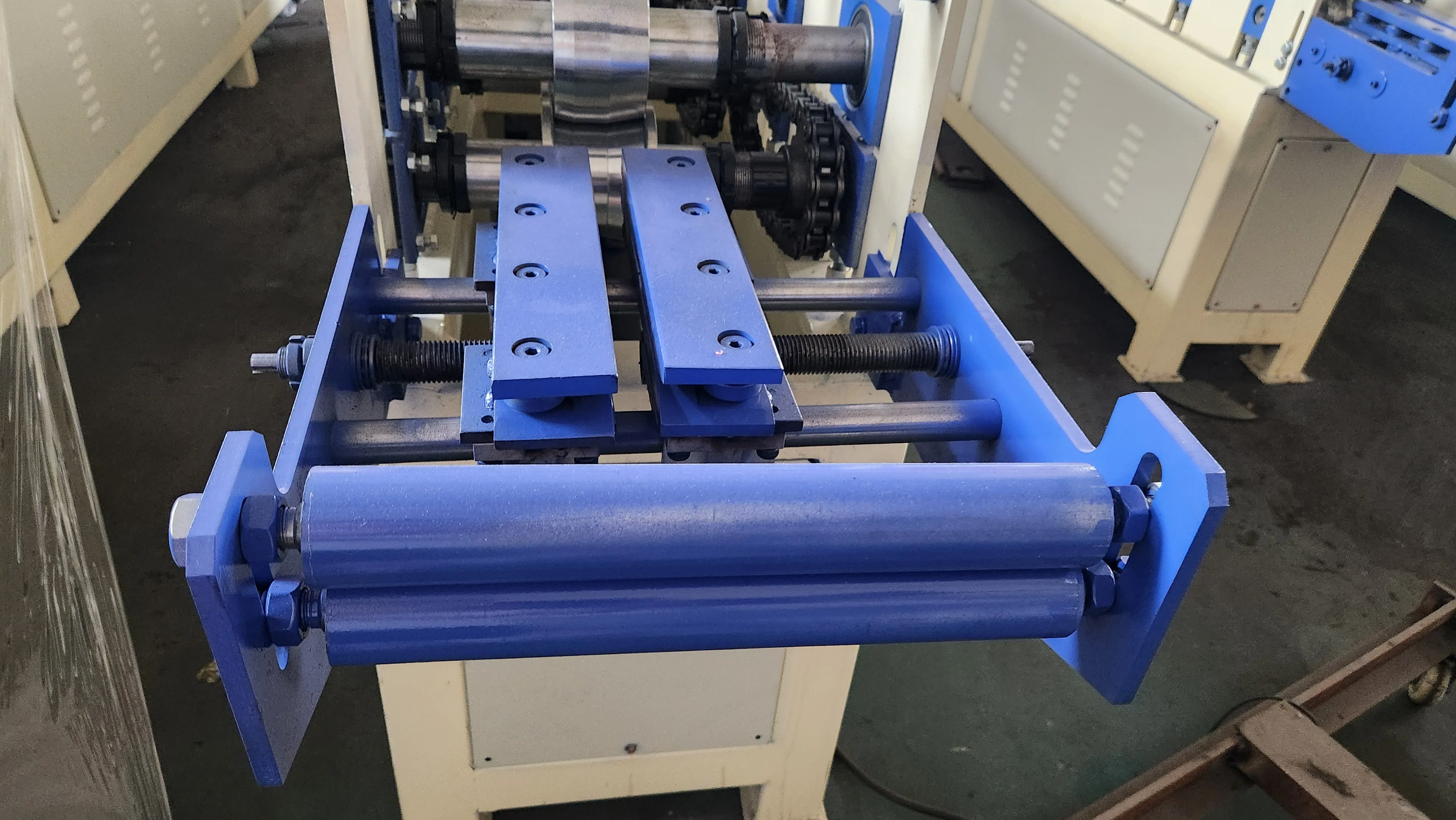

Entry Guides
1. With several support rollers, to feed the material more smoothly
2. Equipped with 2 groups nylon wheels in the middle of the platform, prevent the material surface from being damaged, and feed the material more easily and quickly
3. Can be With hand wheels to adjust the feeding size, more conveniently
4. Optional With manual cutters to cut feed material more easily


03

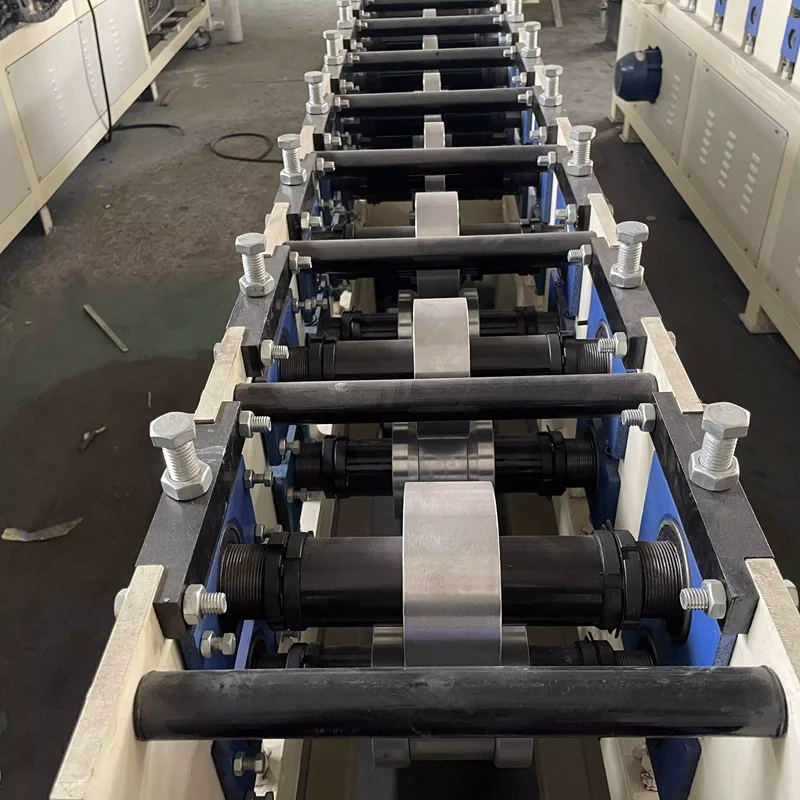

Roll Forming
Cr12 (also known as D3) steel is a high-carbon, high-chromium steel alloy used in the production of rollers for various
applications, including the manufacturing of asymmetrical sectional steel, round steel, and flat steel. Cr12 steel is known for
its high wear resistance, toughness, and strength, making it an ideal material for roller production. used for roll forming
machine.


04

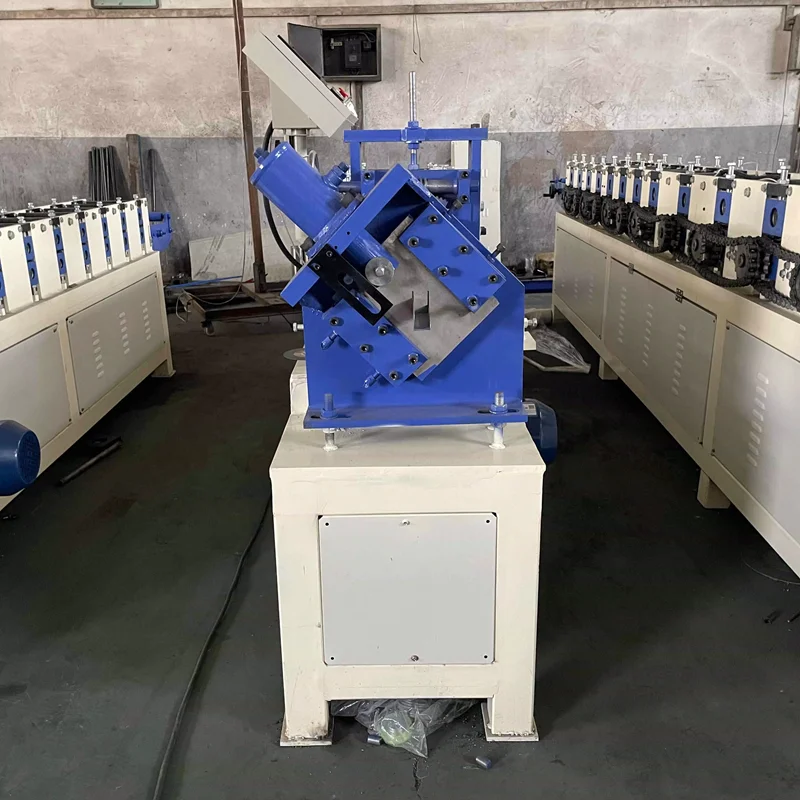

Cutting device
1.Our machine uses hydraulic shearing.
2.Cutting as stop forming line cuts length +/- 1 mm and very high line speed cuts the blank or profile single word. Press is
designed to accept type die or dropping die without slug while cutting.


06
PLC & CONTROL PANELS
Frequency brand:Delta,PLC brand:Delta Screen type:Touch screen, also have buttons on the panel Scree language:English/Chinese/Spanish Low pressure electric part:Schneider brand Encode:Omron brand Remark:Support multi ordersinput,ensure the machine can work continuously according to different request without stop. All the electrical parts are branded with high quality, it can be fixed easily if damaged.


07
Hydraulic pump station
Hydraulic station: the brand is Lichao,Shanghai,Main Advantage：Fast cooling, low failure rate, extending the service life of the hydraulic pump station,ensure the equipment can operate 24 hours without downtime


PRODUCT INFORMATION

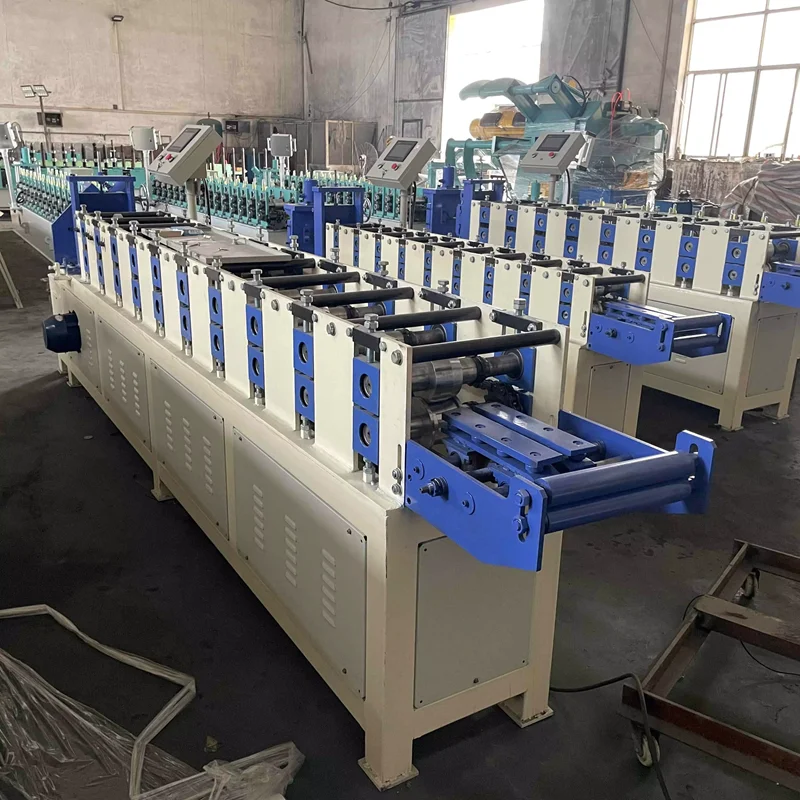

KEFA-U Track roll forming machine
Light Gauge Interior Structural Steel Frame C stud U track Roll Forming Machine for metal structure building industry

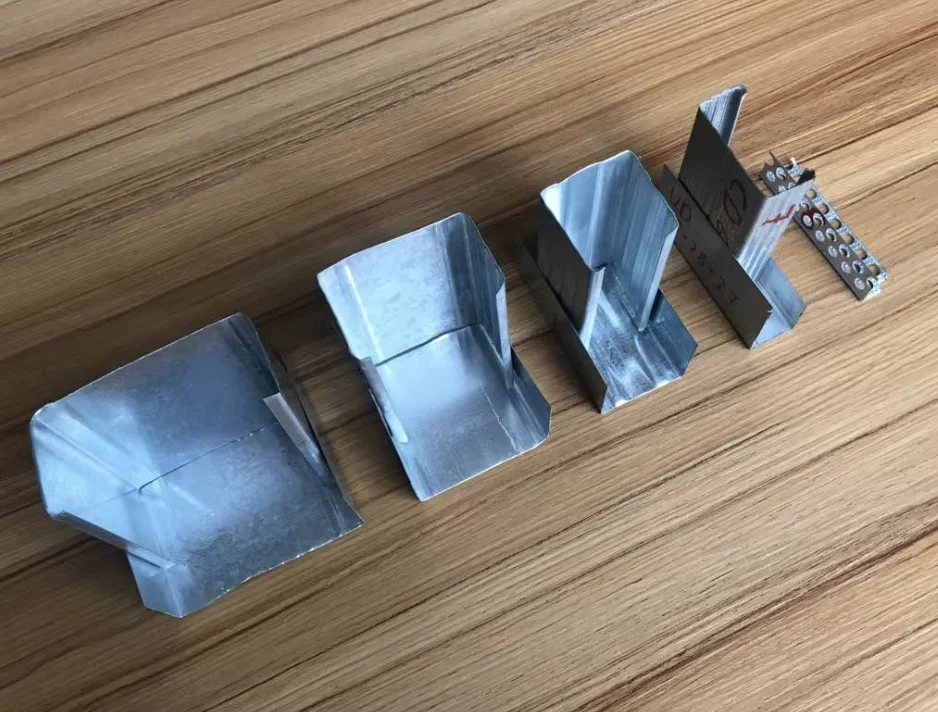

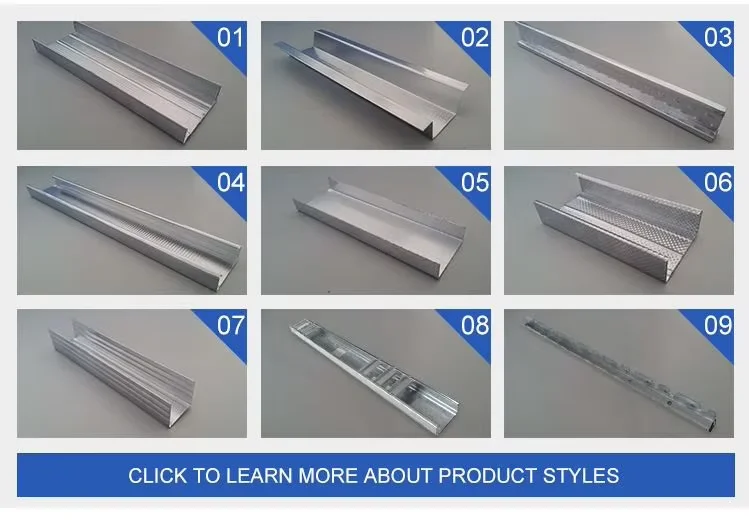

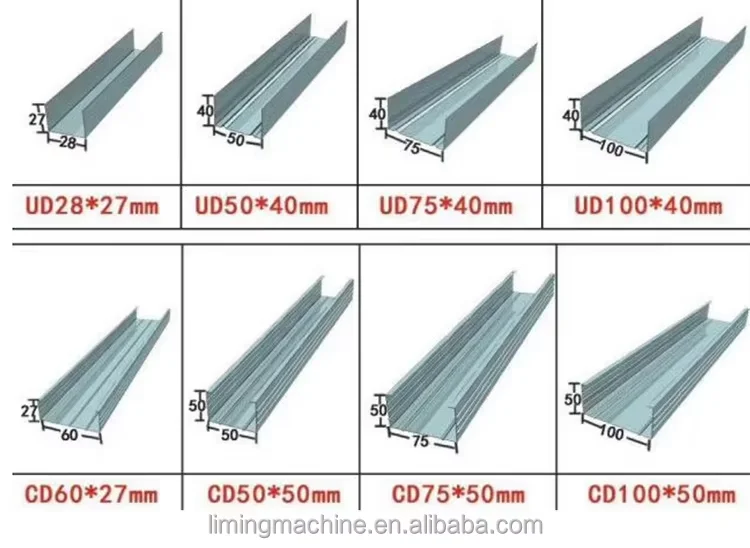

light gauge steel framing machine makes C Stud U Track profiles or Ceiling profiles channels, which are used to provide support
for plaster board panels. The light gauge steel are highly technical profiles and must satisfy precise operating
characteristics,complementing each other to form a high quality, sturdy frame work.Our montante OC and Guia UD Light Gauge Steel
roll Forming Machines are with high speed and accuracy.


Main parameters of the roll forming machine


1
Items
U track roll forming machine
2
Total powver
5.5kw (3 phase, 50hz,380v)
3
Dimension (LxWxH)
5.0m x1.2m x1.6m
4
Weight
2.6 tons
5
Roller station
12 pairs
6
Frame
Ibeam 200mm
7
Material thickness
0.4mm-0.6mm
8
Material width
141mm
9
Transmission system
Hydraulic
10
Cutting system
Hydraulic cylinder (profile cutting system)Material SKD11 Japan
11
Control system
PLC, touchscreen
12
Runout table
Manual 4m,100kg load
13
Manual uncoiler
1.5 tons


EXCLUSIVE SERVICE












PRODUCTION PROCESS




TESTING EQUIPMENT




PRODUCT LIST


·SCAFFOLD MAKING MACHINE·
·PORTABLE ROLLFORMER·
·SPLIT SETROCK BOLT MACHINE·
·SHUTTER PROFILE MACHINE·
·ELECTRICAL ROLLFORMING MACHINE·
·RACK ROLL FORMING MACHINE·
·ROAD GUARDRAIL MACHINE·
·BIN/SILO MAKING MACHINE·
·DRYWALL PROFILE MACHINE·
·ROOFING PANELROLL FORMING MACHINE·
·SHIPPING CONTAINER PROFILE MACHINE·
·METAL DECK ROLLFORM MACHINE·
·WALLCLADDING ROLLFORMING MACHINE·
·PURLIN/CHANNELROLL FORMING MACHINE·
·SLITTING/LEVELING/CUTTING LINE·
·TRAILER PROFILE MACHINE·
·AGRICULTURAL ROLLFORM MACHINE·
·DOOR & WINDOW FRAME MACHINE·
·FENCE ROLL FORMING MACHINE·






We are a leading manufacturer specializing in custom cold roll forming equipment and automatic production lines. With astrong focus on innovation and quality,we pride ourselves on delivering top-of-the-line solutions to meet the diverse needs of our clients.
our extensive range of roll forming machines includes over a hundred types, Road Guardrail Machine …and many more.We ensure that all our products are manufactured to the highest standards,using cutting-edge technology and premium materials.
our team of skilled professionals is dedicated to delivering reliable and efficient equipment tailored to meet the specific requirements of our clients. For inquiries,customized solutions,or more information about our products and services,please feel free to reach out to us.
















Q HOW TO MAINTAIN THE MACHINE?
A add mechanical lubrication equipment to chain, bearing and cutting slideevery month. Add mechanical lubrication to the case every half a year.
Q DO YOU SELL ONLY STANDARD MACHINES?
A No, most of our machines are built according to customers specifications,using top brand name components.
Q HOW MANY WORKERS TO OPERATE THE MACHINE?
A Only 1-2 workers.
Q HOW TO VISIT YOUR COMPANY?
A A.Fly to TlANJlN airport: By high speed train From TlANJlN Station to CangzhouWest Station(1 hour), then we can pick you up .
B.Fly to Beijing airport: By high speed train From Beijing Nan Station toCangzhou West Station(1 hour), then we can pick you up .
C.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao toCangzhou West station(4.5 hours), then we can pick you up.
Q WHAT CAN YOU DO IF THE MACHINE BROKEN?
A Our machine's warranty period is 12months,if the broken parts can't berepaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
Q HOW CAN ITRUST YOU THAT MACHINES PASTED TESTINGRUNNING BEFORE SHIPPING?
A 1) We record the testing video foryour reference. Or,
2) Please visit company and test machine if convenient.
