40ft Cargo 3 axle track dumper rear tipping dump semi trailer truck dumper Special Vehicle Automotive Motor ST ZZX GSN Transport
- Category: >>>
- Supplier: Guangzhou Panda Auto Technology Co. Ltd.Guangzhou Ltd.
Share on (1601258392313):
Product Overview
Description
Trailer Description
10.5m semi-trailer rear flip configuration table | ||||||||
Serial number | product name | 10.5m rear tipping self-unloading | OEM | |||||
1 | Dimensions | 10500*2550*3500mm | ||||||
2 | Internal dimensions | 9800*2320*600mm | ||||||
3 | brand | OEM | ||||||
4 | Design Parameters | Main vehicle parameters | Towing height: 1310±2mm; front/rear turning radius: ≧2300mm/≦2200mm; tractor specifications: 6*4 | |||||
5 | Tank truck parameters | Front overhang: 1280mm, Wheelbase: 5000+2620mm, Rear overhang: 1600mm, Height at traction pin: 1775mm, Height at three axles: 1750mm | ||||||
6 | Frame and accessories configuration | Name | Specification | Material | ||||
7 | Beam | 14 on top , 14 on bottom , 8 on vertical board | B700TH | |||||
8 | Sub-beam | 120*100*6mm* 2 pieces | Square tube | |||||
9 | Edge beam | 140*80*5mm | Square tube | |||||
10 | Crossbeam | 3.0mm | High-strength 700 encryption | |||||
11 | floor | 3.0mm | High strength 700 | |||||
12 | Box side guard | Height 600mm side plate 2.0mm | High strength 700 | |||||
13 | suspension | 8mm triple spring plate suspension pin Φ70mm | OEM | |||||
14 | Traveling mechanism and standard parts | Axles | 3 axles, 13 tons axle, 16 tons brake pads, Manual adjustment arm | OEM | ||||
15 | Spring plate | 10*13*90mm press 4 | OEM | |||||
16 | Cylinder | 196-5-7300 | Domestic cylinder | |||||
17 | Tire | 12R22.5 18PR*13 | exquisite | |||||
18 | Steel Rims | 9.022.5*14mm*12pcs | OEM | |||||
19 | Gas tank | 3 | Aluminum Alloy | |||||
20 | ABS | none | OEM | |||||
21 | Front outrigger | 19-inch 28/80 linkage | fu hua | |||||
22 | Traction pin | Ø5 0 Assembled | OEM | |||||
23 | Curb Weight | about 9.5 tons | OEM | |||||
24 | use for | Undertake the transportation of steel, sand, soil, ore, coal, building materials and other bulk scattered goods Cargo | ||||||

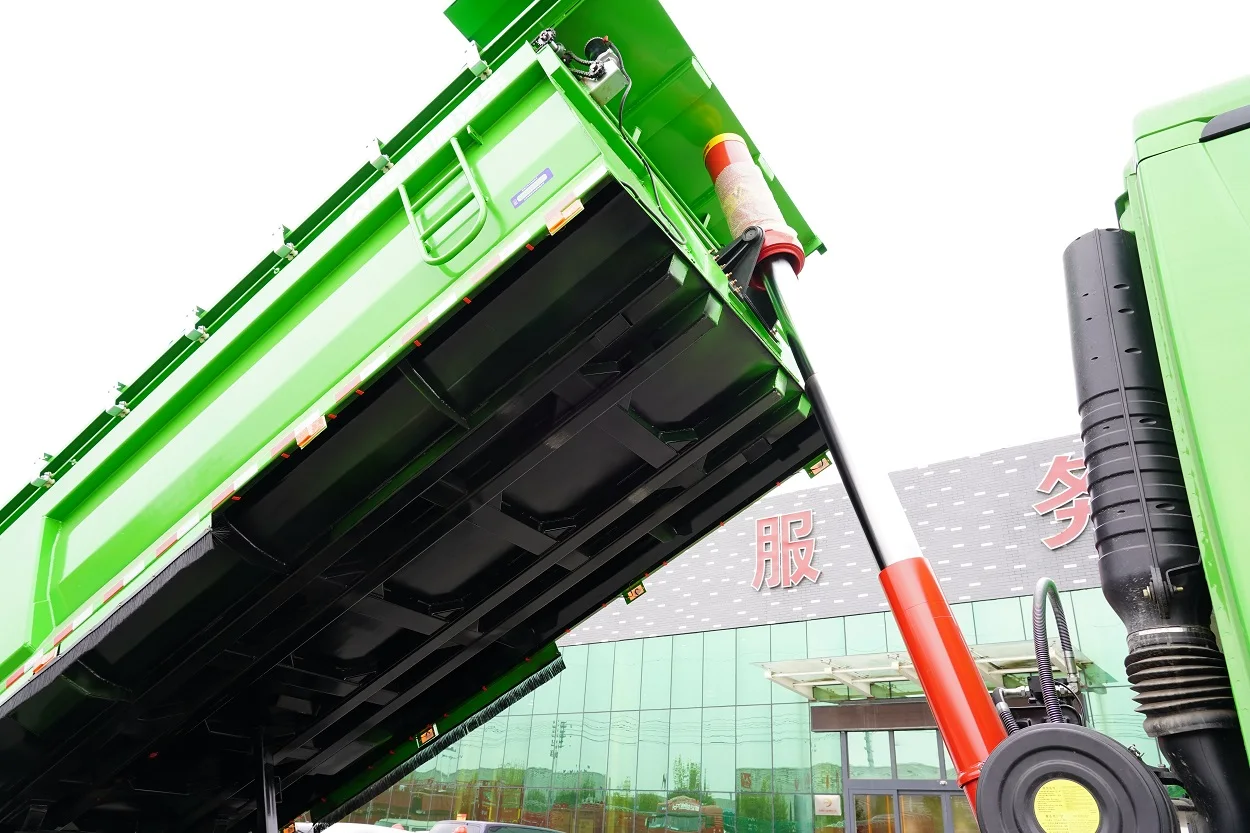

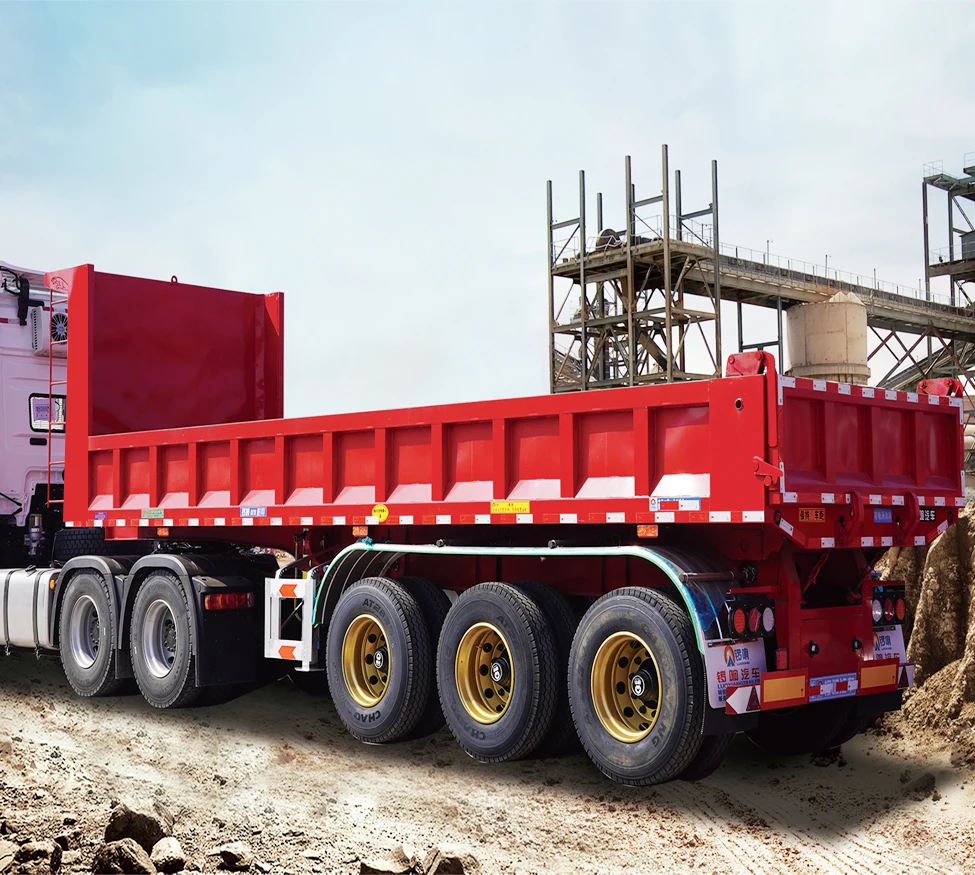

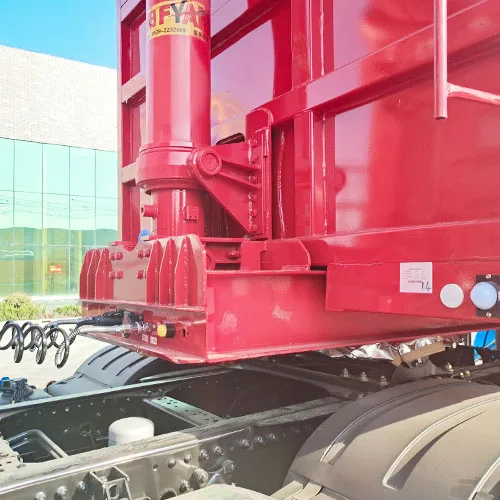

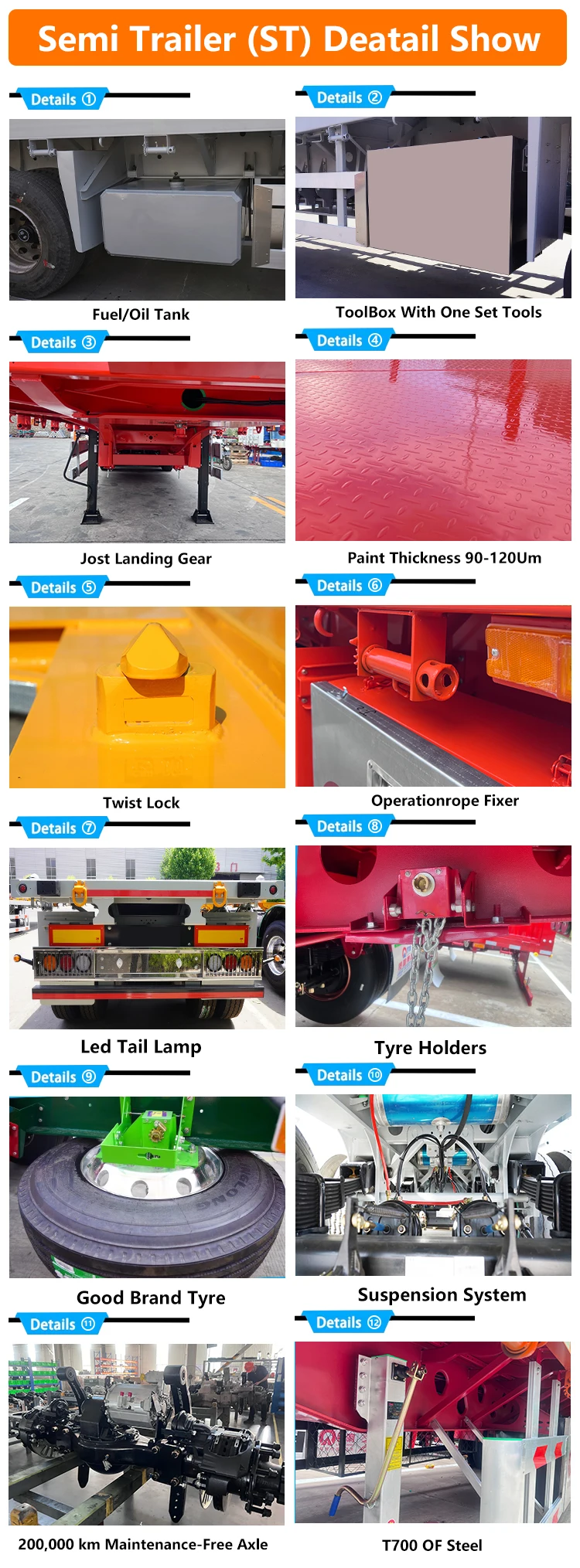

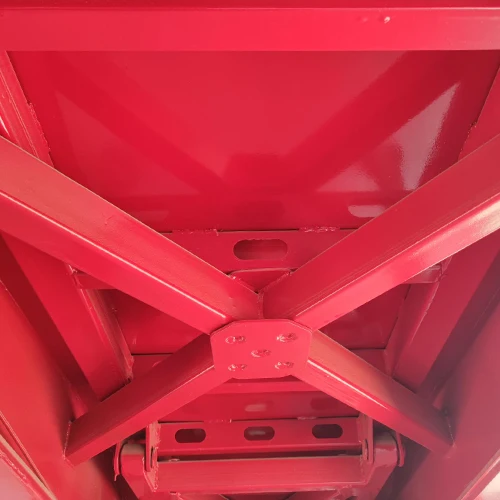

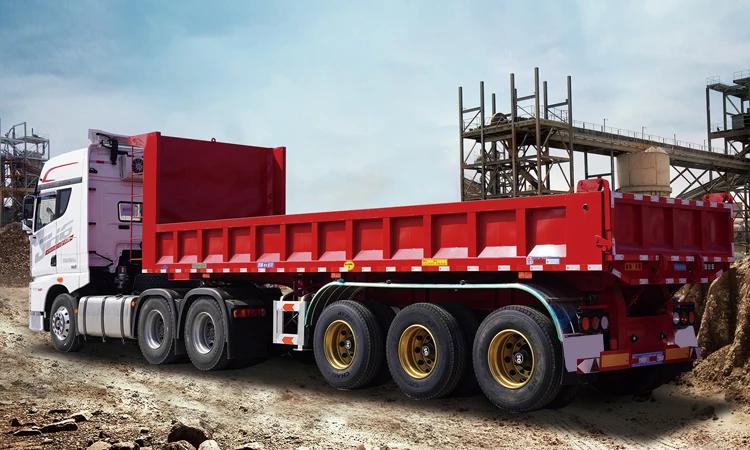

3axle 40ft Rear Tipper/Dumper Semi Trailer Detail Show

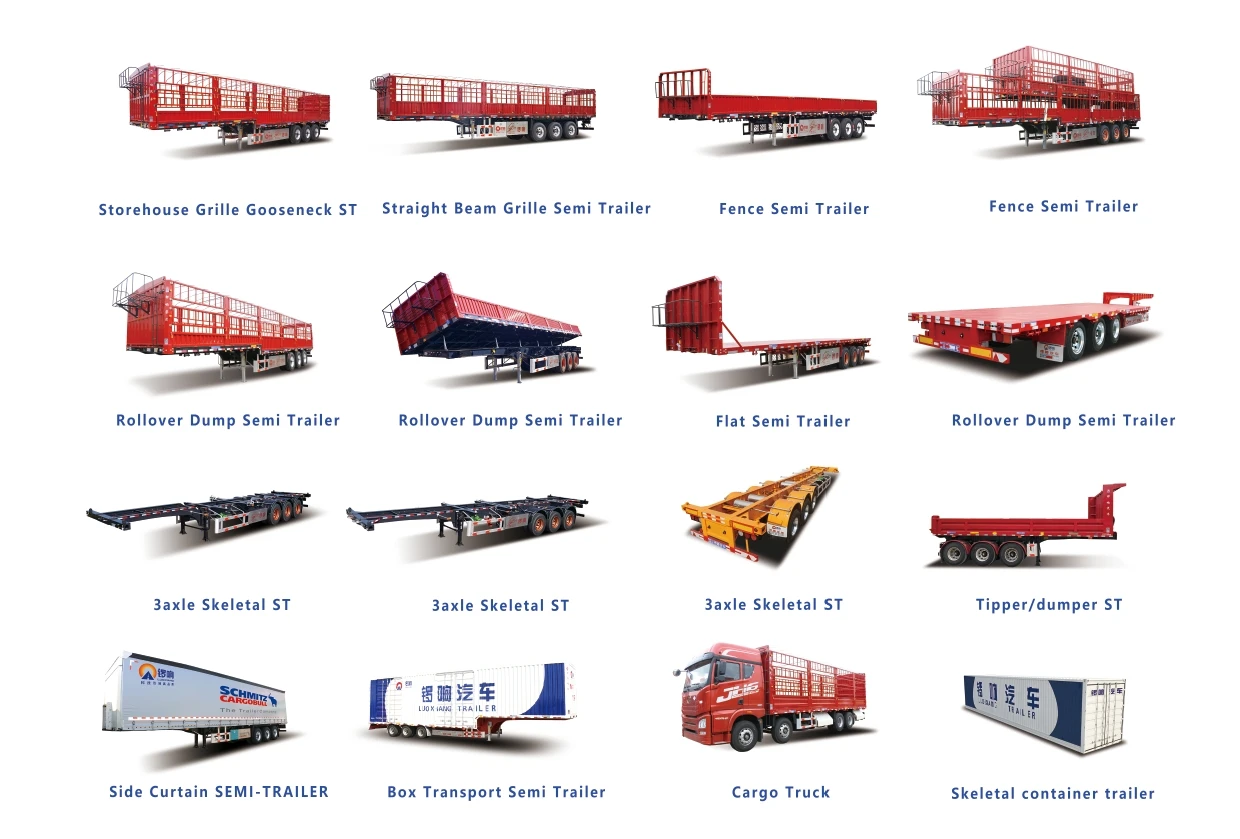

Trailer Catalogue
SemiTrailer:
1.Full trailer 2.Semi trailer(ST) 3.Skeletal ST 4.Gooseneck ST 5.Flatbed ST 6.Low flatbed ST 7.Wall semi trailer ST 8.StorehouseST 9. Tipper/dumper ST 10. Tank ST 11.Cargo Trailer 12.Sliding semi-trailer 13. Changeable width low-bed trailer 14. Oil tankspecify chassis 15.Specify terminal trailer 16. Van trailer17. heavy duty low-bed trailer 18.Skeletal container trailer 19.Bulldozer specify low-bed trailer 20.transverse flex low-bedtrailer 21. Air suspension low-bed trailer 22.Spreader transport trailer 23. Refer trailer 24. High sidewall semi-trailer 25.Semitrailer for lodging 26.Silo tank semitrailer 27.Garbage truck 28.Cementing truck
1.Full trailer 2.Semi trailer(ST) 3.Skeletal ST 4.Gooseneck ST 5.Flatbed ST 6.Low flatbed ST 7.Wall semi trailer ST 8.StorehouseST 9. Tipper/dumper ST 10. Tank ST 11.Cargo Trailer 12.Sliding semi-trailer 13. Changeable width low-bed trailer 14. Oil tankspecify chassis 15.Specify terminal trailer 16. Van trailer17. heavy duty low-bed trailer 18.Skeletal container trailer 19.Bulldozer specify low-bed trailer 20.transverse flex low-bedtrailer 21. Air suspension low-bed trailer 22.Spreader transport trailer 23. Refer trailer 24. High sidewall semi-trailer 25.Semitrailer for lodging 26.Silo tank semitrailer 27.Garbage truck 28.Cementing truck
SemiTrailer Designation:
1.GFL 2.GHY 3.GJY 4.CLX 5.GSN 6.GYY 7.TD8 8.TP 9.TTS 10.XBY 11.XXB 12.XYK 13.ZZX 14.GHS 15.GJB 16.GLJ 17.GMF 18.GYS 19.TCL 20.TJZ21.TPY 22.XBW 23.XLC 24.XXY
1.GFL 2.GHY 3.GJY 4.CLX 5.GSN 6.GYY 7.TD8 8.TP 9.TTS 10.XBY 11.XXB 12.XYK 13.ZZX 14.GHS 15.GJB 16.GLJ 17.GMF 18.GYS 19.TCL 20.TJZ21.TPY 22.XBW 23.XLC 24.XXY
Special Vehicle Trailer Video
Certificate
Exhibition and Partner
Contact Us
Packing and Shipping
Q1: When will it be delivered(Trailer&Special Vehicle&Automotive)?
A1: Normally, it takes 15 working days after receiving your payment.
Q2: How about Company and factory introduction?
A2: Guangzhou Panda Trailer Automotive group,founded in 2009,covers a total area of 1,100Mu,It has two special vehi- cle companies,We currently have the first trailer "robot welding production line" in China, the first trailer "electrophoretic coating；powder spray production line", the first trailer new national standard "axle automation production line" in China, the first trailer whole vehicle "intelligent assembly production line" in China, and the world's first new national standard "disc brake automation production line".Our single factory production and sales have been leading for eight consecutive years. ,and three key parts manu- facturing companies of special vehicles,axle,Nach and smier. 300,000 square meters of standardized workshops have been built and 3000 employees are now employed.
Q3:What can I buy from you?
A3:2alex3alexSemiTrailer,Side dump car,dumper,3Axle Flatbed Trailer, 3Axle Side Wall Trailer,3Alxe Skeletal Trailer,3Axle Curtain Side Trailer,3Axle Draw Bar Store House Trailer/Boom truck.
Q4: Can the Trailer get shipped directly from China to the local city?
A4:Of course it can be shipped directly from China to local city.However, it will also depends on the destination port whether can declare the vehicle without complex procedure or less paperwork，Normally, we will choose the closest with the easier declaration.
Q5:Our 2Alex 3Alex Trailer Adavantages?
A5:
(1)Uniform weld, no missed welding or multiple welding, uniform vehicle force, long service life
(2)Parts installation, no error, less maintenance rate, less maintenance costs, long service life
(3)During the driving of the tire, it will not cause unnecessary wear of the tire due to the error caused by manual production, and increase the driving distance of the tire
(4) Trailer paint electrophoresis, uniform thickness, strong adhesion, will not rust because of manual operation, damage the beauty of the car, reduce the service life of the car
(5)The use of high-strength steel T700, the proportion of steel in the vehicle is relatively high, the service life of the car is longer, and the load is more.
(6) The Trailer factory is automated, and the delivery cycle is fast, which is 1/5 of the time of manual production.
(1)Uniform weld, no missed welding or multiple welding, uniform vehicle force, long service life
(2)Parts installation, no error, less maintenance rate, less maintenance costs, long service life
(3)During the driving of the tire, it will not cause unnecessary wear of the tire due to the error caused by manual production, and increase the driving distance of the tire
(4) Trailer paint electrophoresis, uniform thickness, strong adhesion, will not rust because of manual operation, damage the beauty of the car, reduce the service life of the car
(5)The use of high-strength steel T700, the proportion of steel in the vehicle is relatively high, the service life of the car is longer, and the load is more.
(6) The Trailer factory is automated, and the delivery cycle is fast, which is 1/5 of the time of manual production.

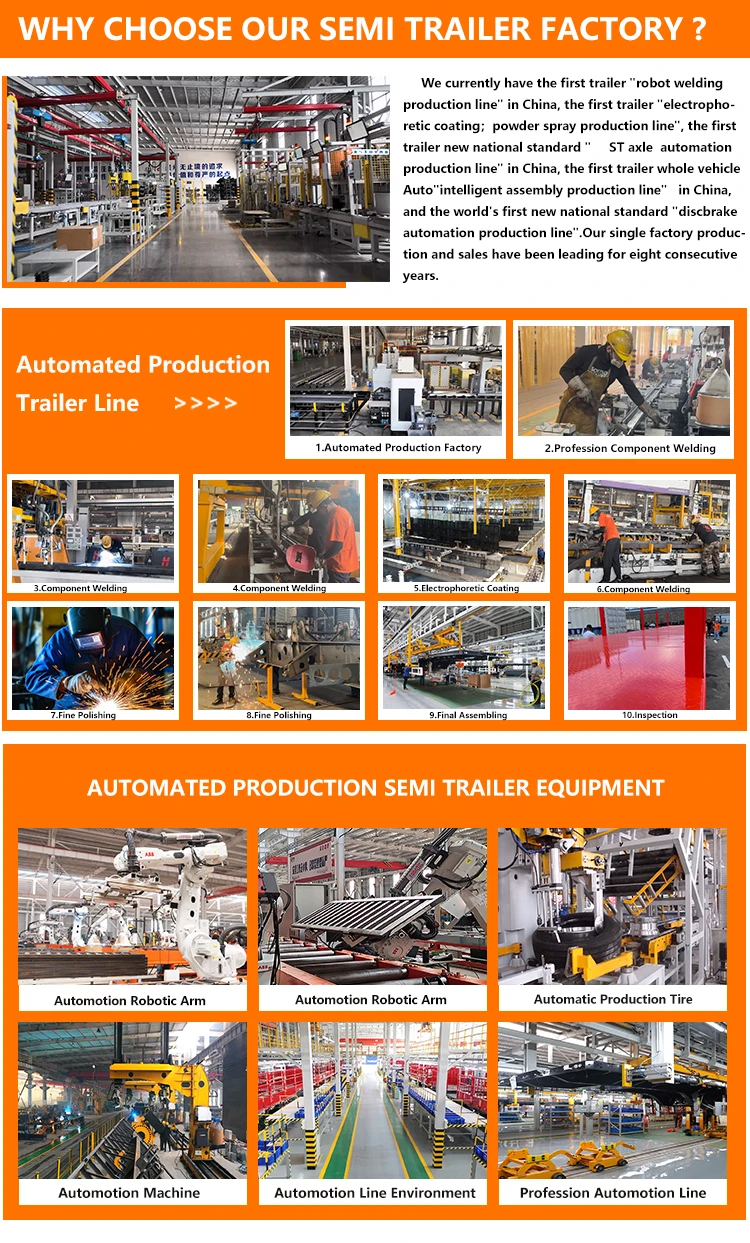

Q6:Our Automated Factory Semi Trailer Adavantages?
(1). ST Semi Trailer Axle's 200,000 km maintenance-free，Fully automated production line, precise and uniform welds, no multiple welding, missed welding, uniform vehicle force, strong bearing capacity, 1/4 life.
(2). Vehicle paint electrophoresis, uniform thickness, strong adhesion, will not rust because of manual operation, appearance is close to perfect, paint guarantee for 8 years.
(3). The delivery cycle is shorter, faster, the quality is more stable, the fastest delivery is 10 days, the annual output is 40,000 units.
(2). Vehicle paint electrophoresis, uniform thickness, strong adhesion, will not rust because of manual operation, appearance is close to perfect, paint guarantee for 8 years.
(3). The delivery cycle is shorter, faster, the quality is more stable, the fastest delivery is 10 days, the annual output is 40,000 units.
