Professional Motorcyle Electronic 2 Jars Ultrasonic Fuel Injector Tester Cleaner Machine
- Category: >>>
- Supplier: Guangzhou Rui Di Auto Technology Co. Ltd.
Share on (1601258490143):
Product Overview
Description

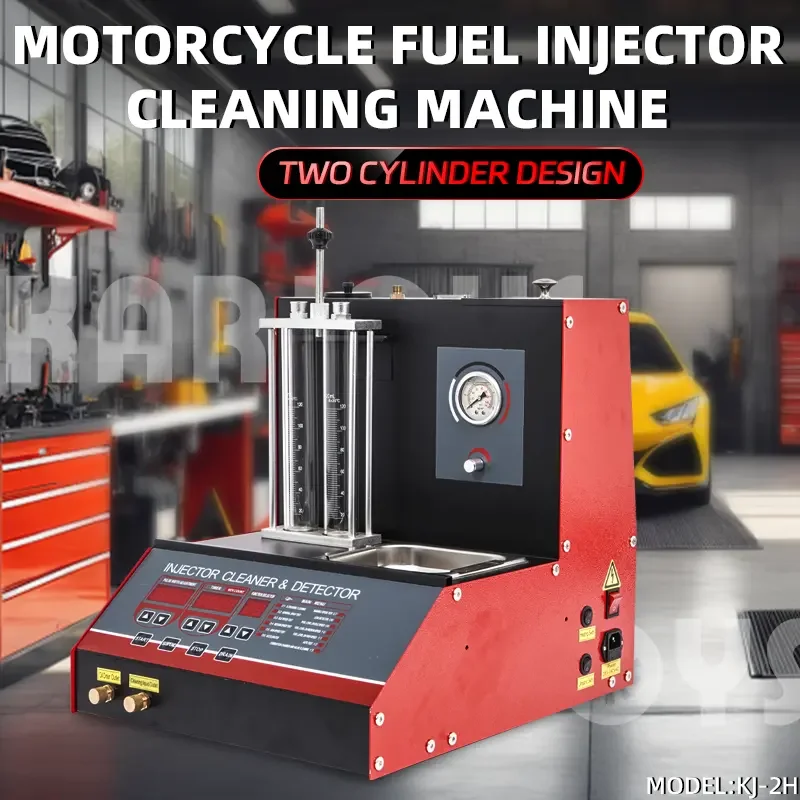

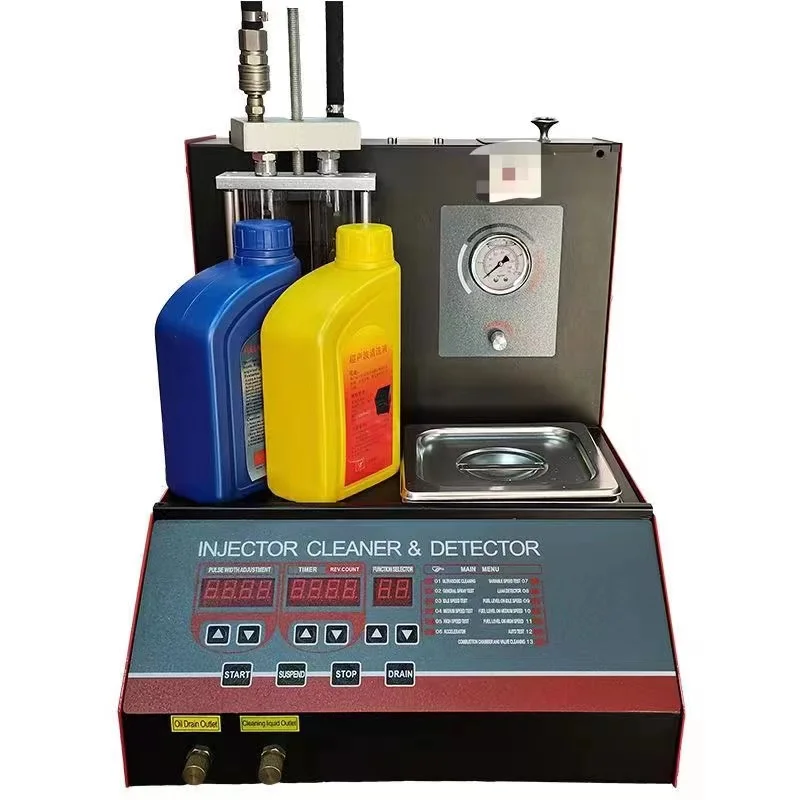

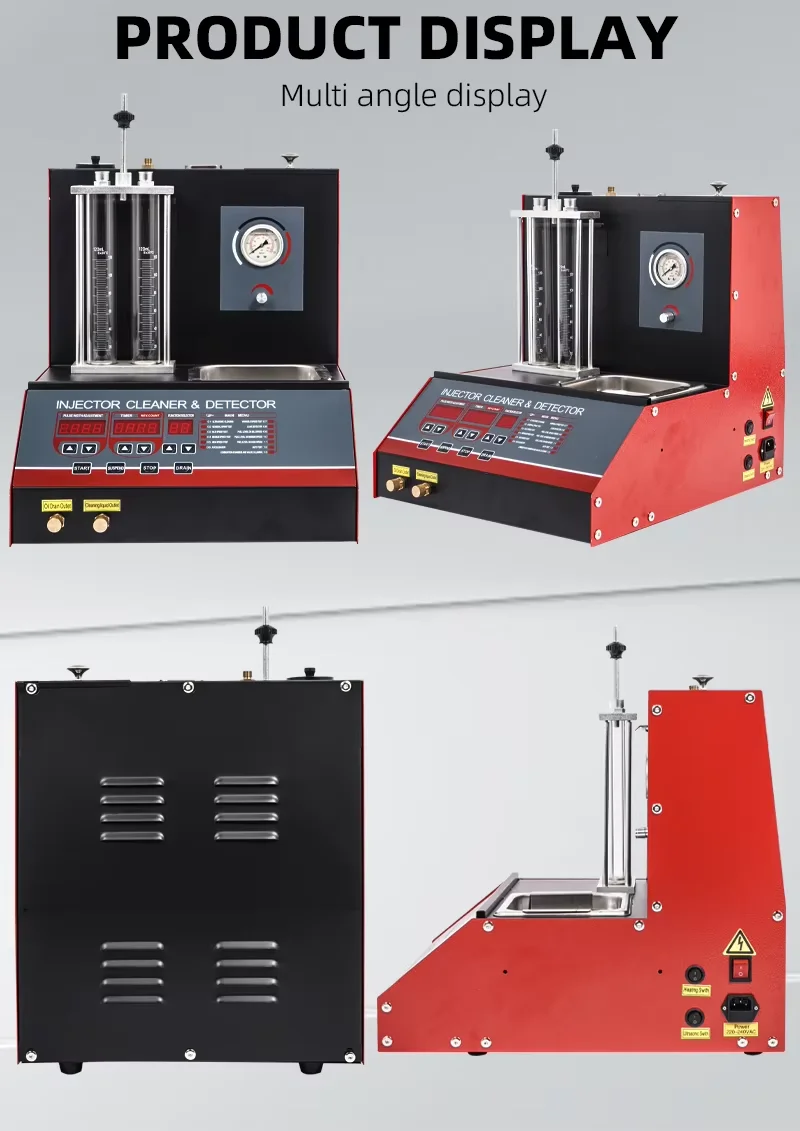

Factory OEM 220V 2 Cylinder 2 In 1 Ultrasonic Motorcycle Fuel Injector Cleaner Tester Machine For Motorcycle Tester

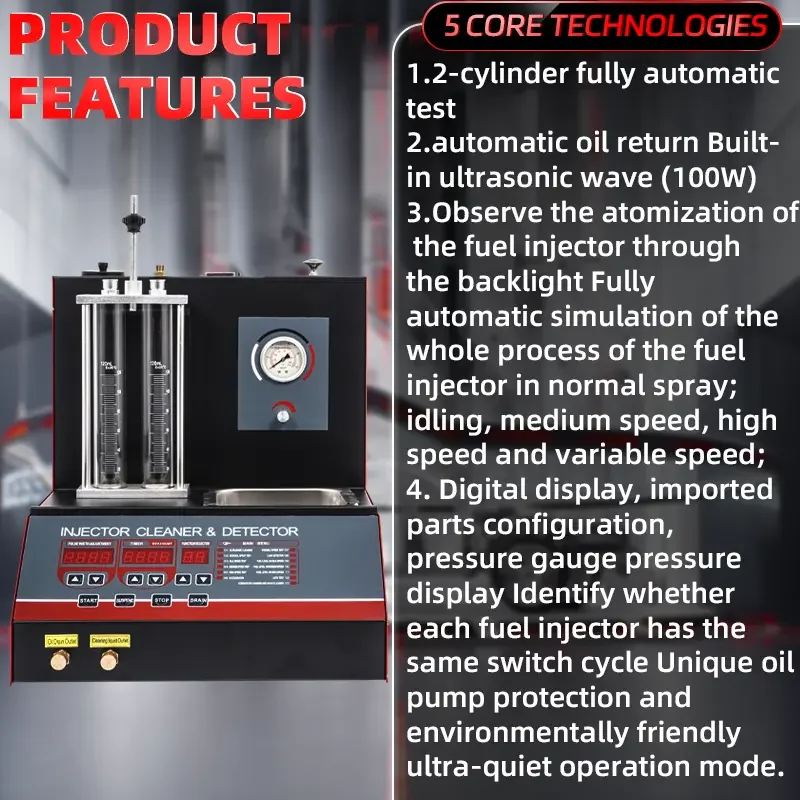

2-cylinder fully automatic test Automatic oil return Built-in ultrasound (100W) Observe the atomization condition of the fuel injector through the backlight Fully automatic simulation of the entire process of the fuel injector working at normal injection, idle speed, medium speed, high speed, and variable speed. Digital display, imported parts configuration, pressure gauge pressure display Identifies whether each injector has the same switching cycle.
Unique oil pump protection and environmentally friendly ultra-quiet operation mode
Technical Data:
Voltage: AC220V/110V±10%, 50/60Hz
Operation Temperature:-10C°~40ºc
Tank Capacity: 2L

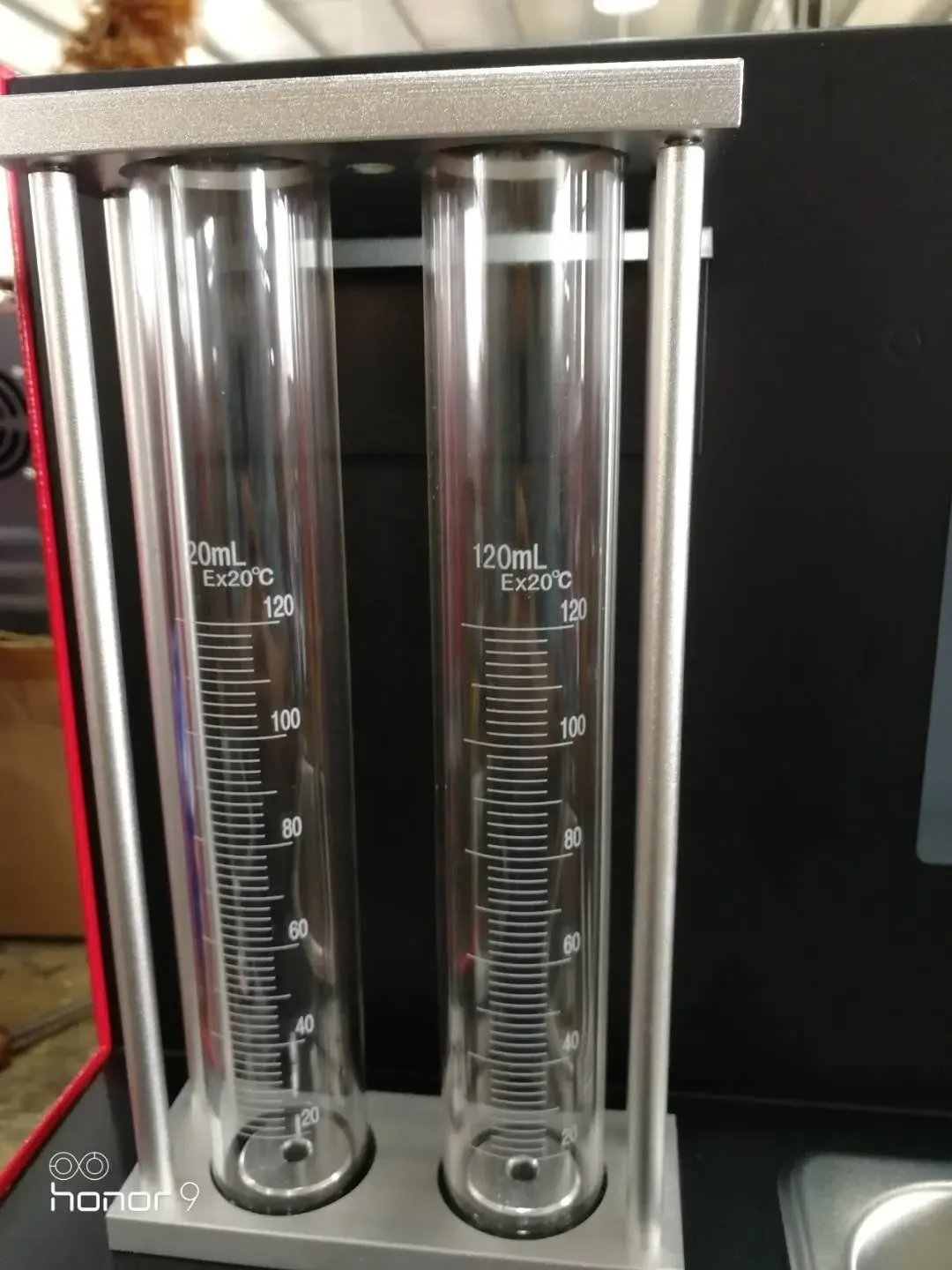

Test Tube Capacity: 125CC
Ultrasonic Frequency: 28KHZ±0.5 KHZ
Rotation Speed: 0~15000r/min
Step: 100r/min
Time Counting Range: 0~9900 sec
Step: 50 sec (adjustable)

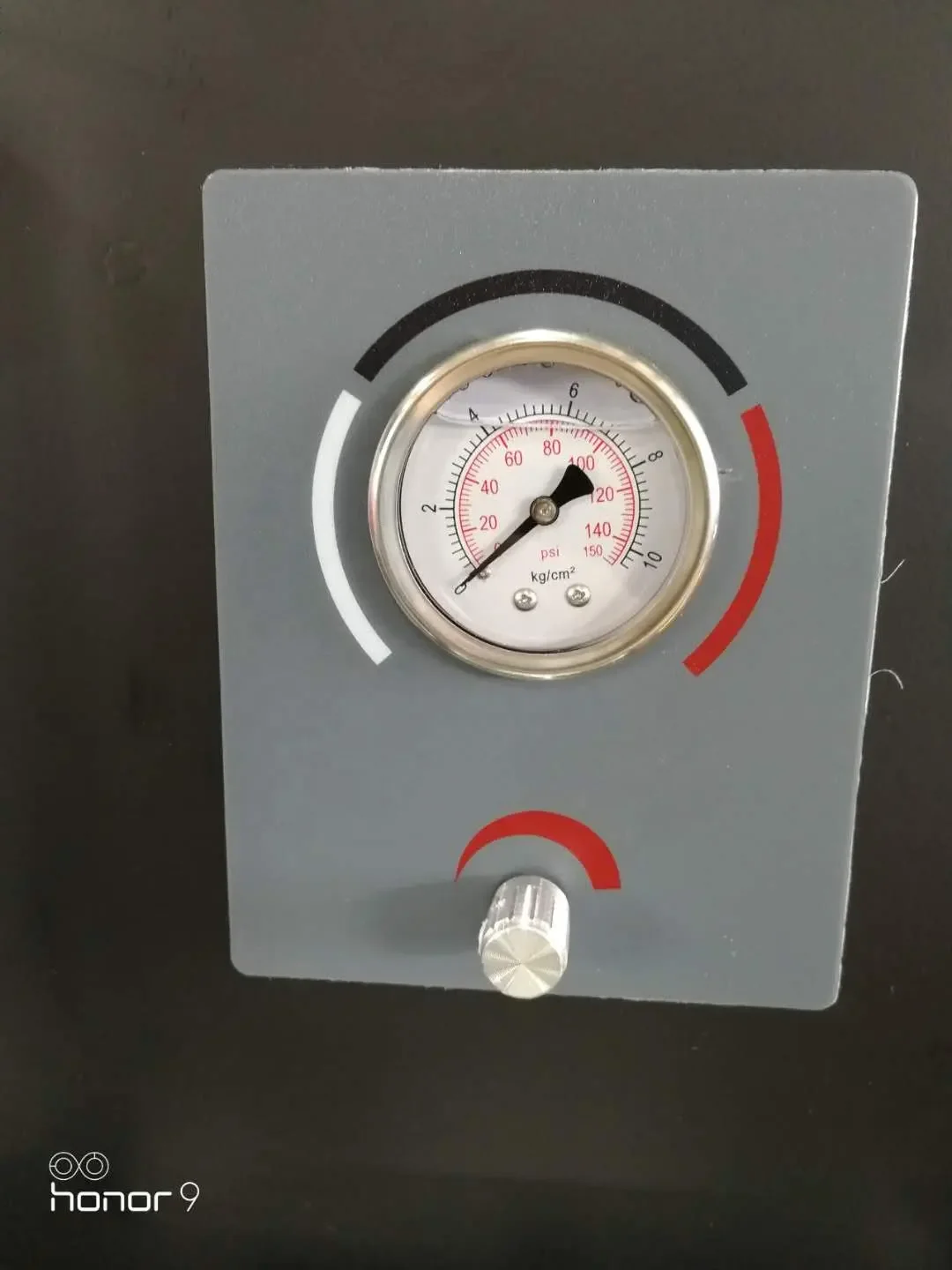

Oil Pump Pressure: 1.8kg/cm²----10kg/cm²
Fuel Flow: 4.5 L/min
Main Functions:
1. Ultrasonic cleaning
2. Idling test (1500r/min)
3. Medium speed test (9000r/min)
4. High speed test (15000r/min)
5. Accelerating test
6. Shifting speed test
7. Leakage testing
8. Idling spray value test
9. Medium and high speed spray value test
10. Reverse flush
11. Free dismantle cleaning
12. LED display facility
13. Built-in 2L ultrasonic cleaning tank
14. Easy operating with adjustable heating function
15. Automatic oil drain
16. Test shortest cycle of fuel injector On and Off
17. Test leakage, block, pulverization of fuel injector, spray angles, spraying amount and spraying uniformity
1. Ultrasonic cleaning
2. Idling test (1500r/min)
3. Medium speed test (9000r/min)
4. High speed test (15000r/min)
5. Accelerating test
6. Shifting speed test
7. Leakage testing
8. Idling spray value test
9. Medium and high speed spray value test
10. Reverse flush
11. Free dismantle cleaning
12. LED display facility
13. Built-in 2L ultrasonic cleaning tank
14. Easy operating with adjustable heating function
15. Automatic oil drain
16. Test shortest cycle of fuel injector On and Off
17. Test leakage, block, pulverization of fuel injector, spray angles, spraying amount and spraying uniformity
