Factory Price High Quality Color Steel Corrugated Roofing Machine from professional manufacturer
- Category: >>>
- Supplier: Jiangyin Dingbo Technology Co. Ltd.
Share on (1601259593786):
Product Overview
Description
Corrugated Roll Forming Machine
Product Descriptions
1. This machine contains our experiences in 30 years and many times improvements by our engineers.
2. In our service, we support the equipment and profiles that customers really need and including our most sincere recommends.
3. Our roll forming machines are driven by chain in hydraulic system. Chain Drive System can save the power compare with other system. That also means that customers do not need to pay the extra power fee during production of steel panel.
This kind of machine used in simple house , steel plants and other wall board production, speeds up to 30 m / min, greatly improve the production efficiency .
Version to design

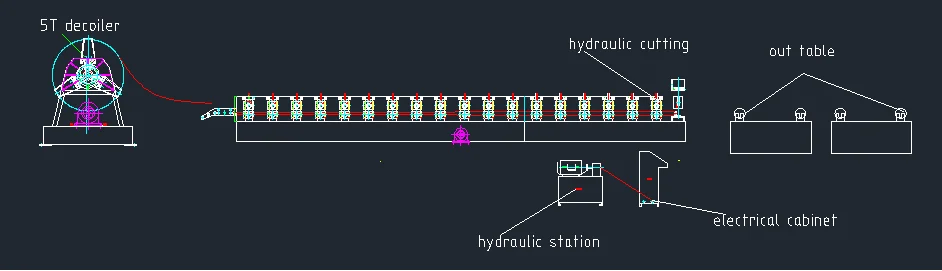

Working Flow
Uncoiler → Leveling → Punching → Roll forming → Hydraulic Cutting → Output table
Product Parameters
Model Number | DBRF |
Condition | New |
Material thickness | 0.3-0.8mm |
Forming speed | 10-15m/min |
Motor power | 5.5 Kw(Depend on final design) |
Hydraulic cutting power | 3 Kw(Depend on final design) |
Roller material | 45#steel Chrome Plated |
Raw material | Galvanized color sheet G550 |
Shaft material | High quality 45# steel with heat treatment. Roller grinder milling. |
Cutting blade material | Cr12 Mould Steel |
Shaft diameter | 76mm |

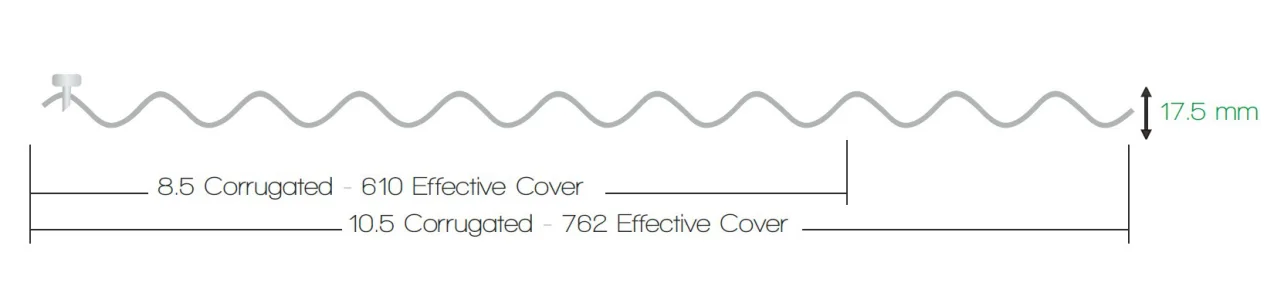

Effective width | 762mm |
Coil width | Up to the design |
Control system | PLC with touch screen(Panasonic/Siemens) |
Machine’s size | About 10.5m×1.8m× 1.5m (Depend on final design) |
Main Components
No. | Name | Qty |
1 | Hydraulic Decoiler | 1 |
2 | Main roll forming machine | 1 |
3 | PLC Control box | 1 |
4 | Hydraulic station | 1 |
5 | Output table | 2 |

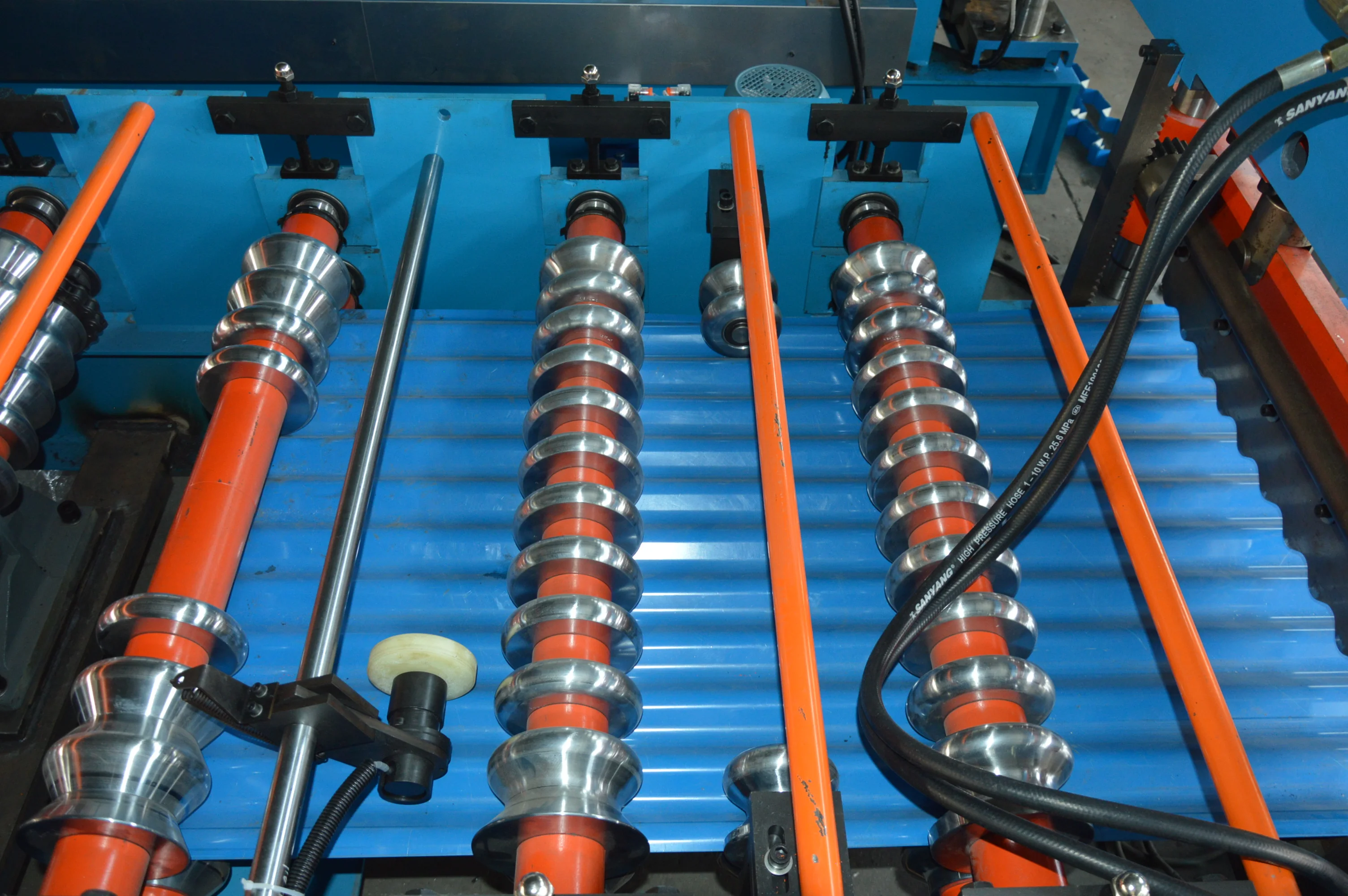

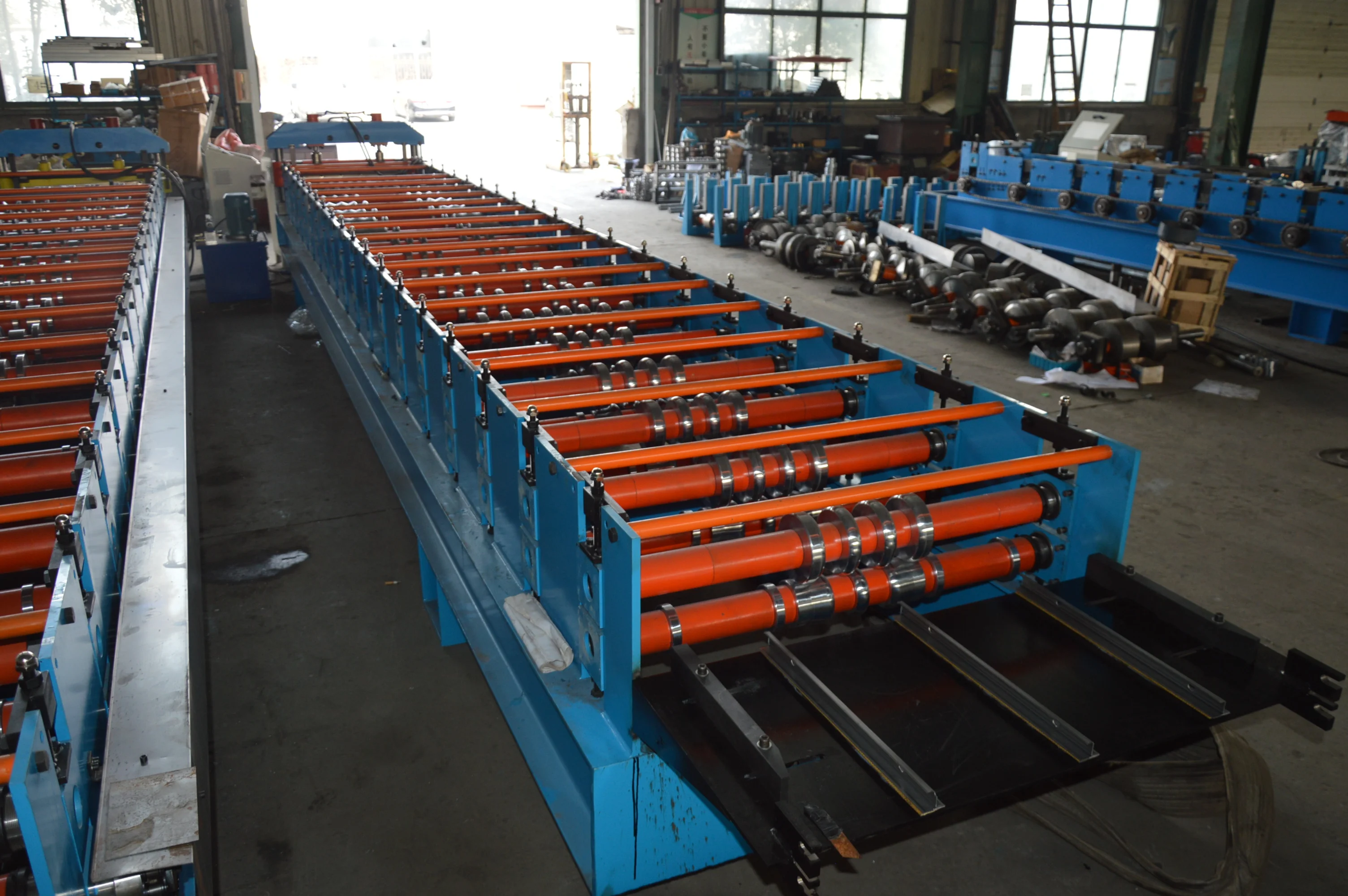

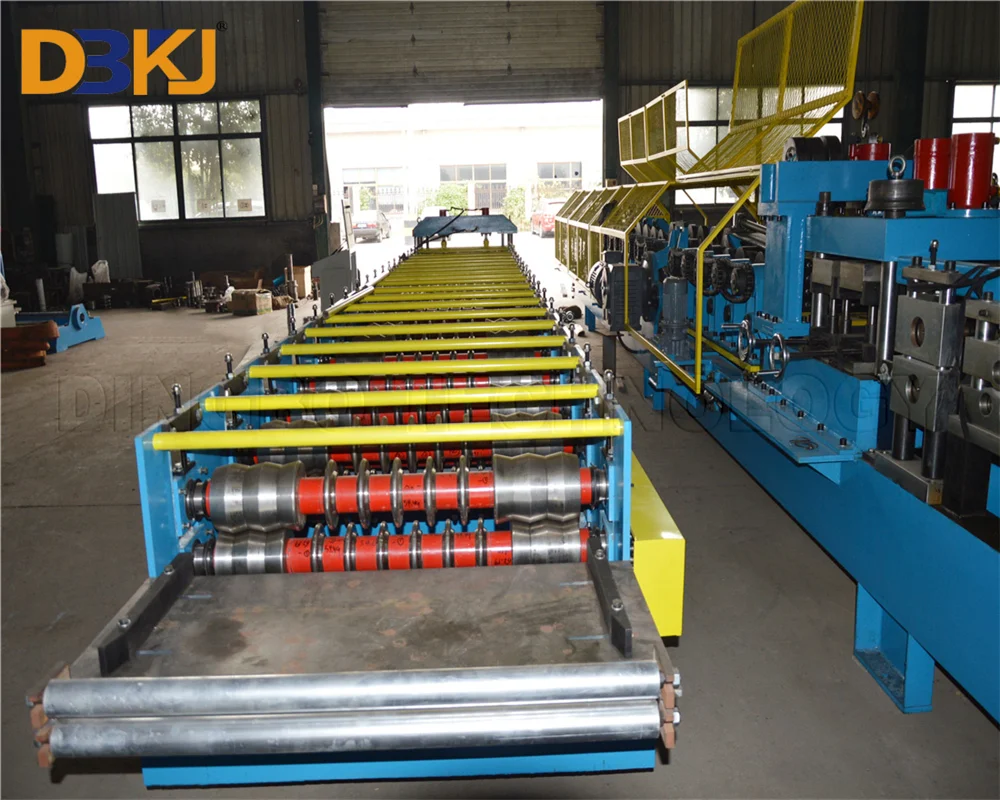

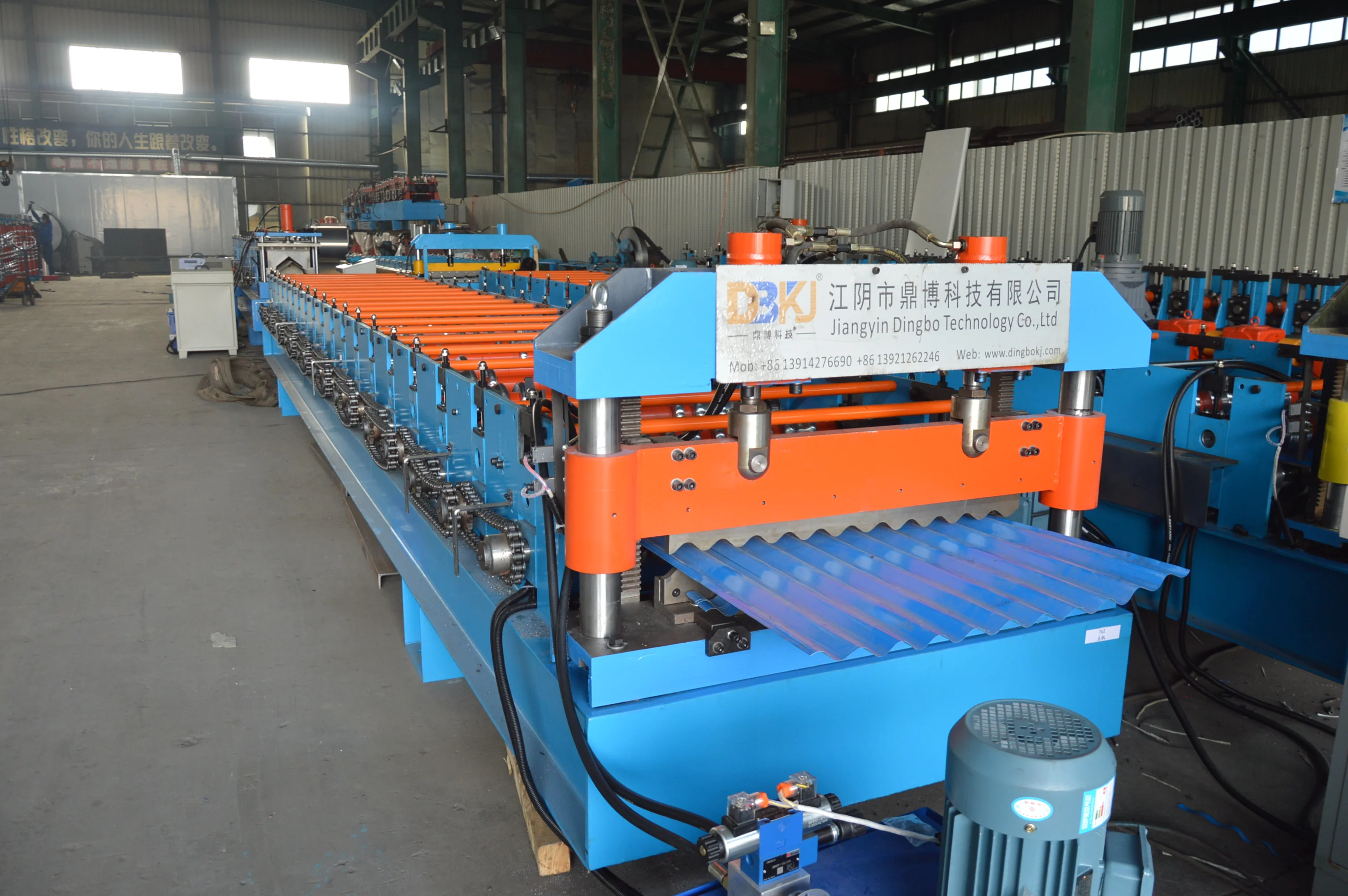

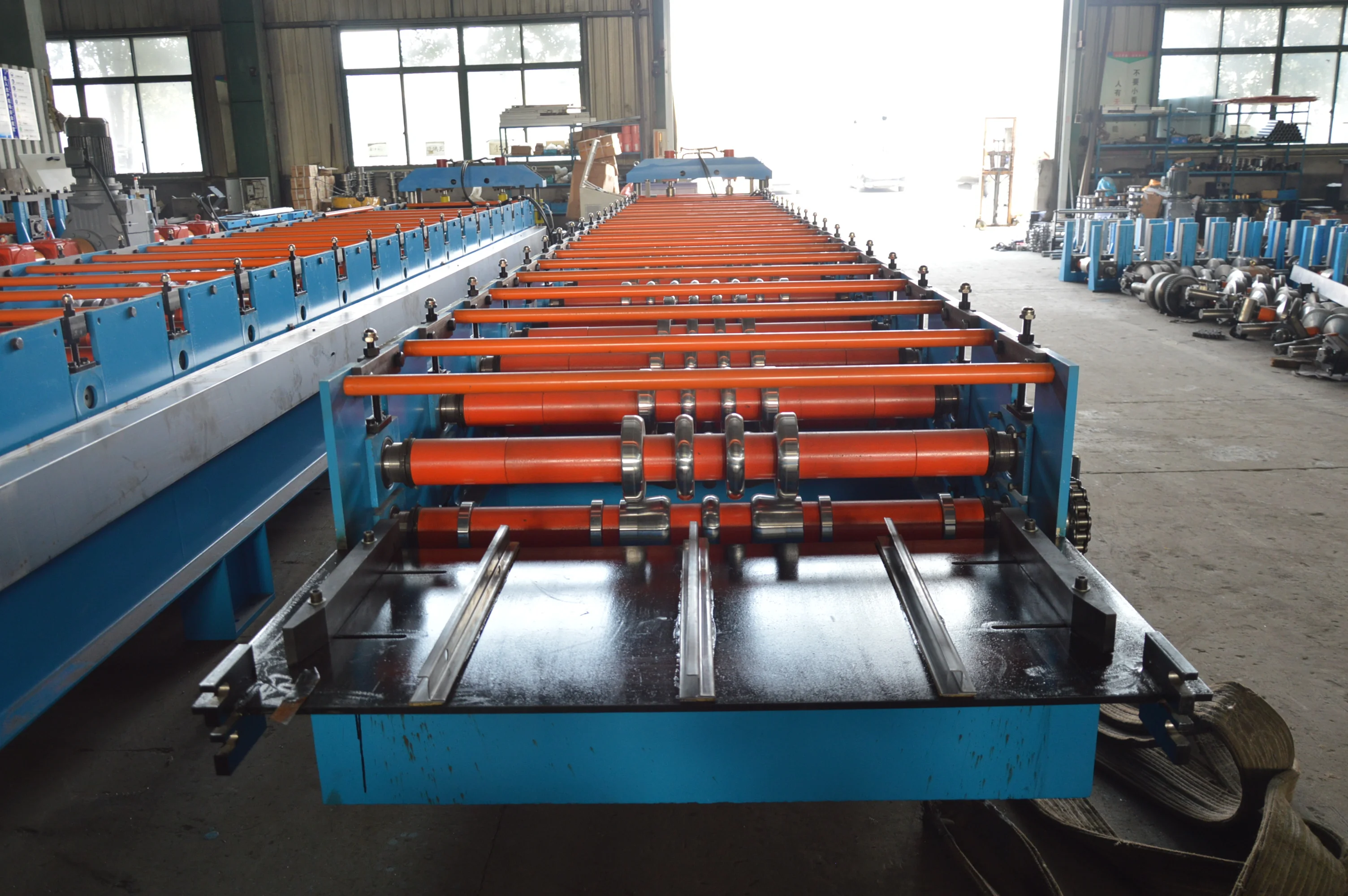

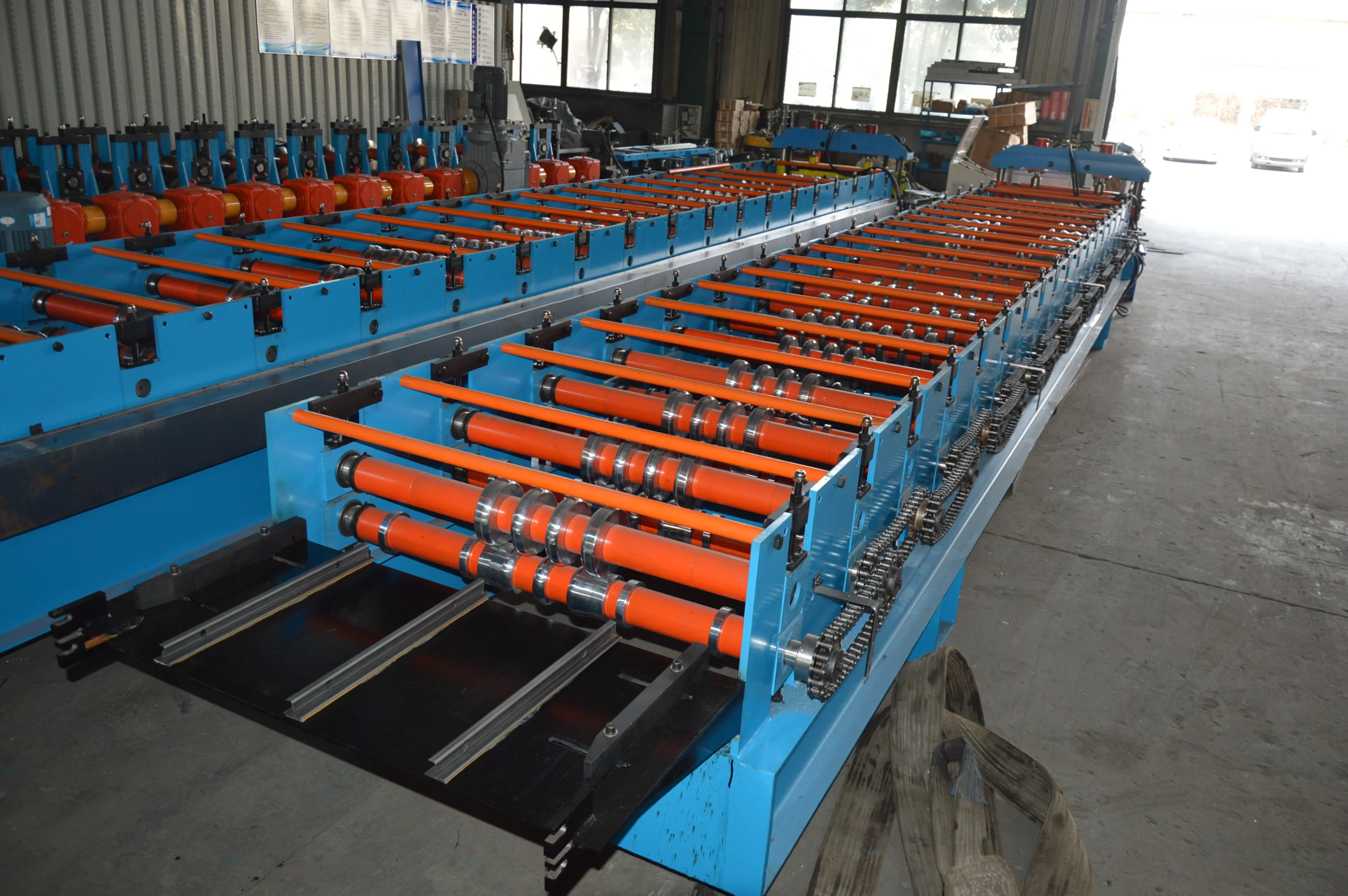

Machine Pictures
Application Pictures
The finished product of Corrugated Panel Roll Forming Machine
is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
roof related
FAQ
1. Q: What's the warranty period? (24hours online)
12 months warranty period, starting from the date of the successful installation and commissioning of the equipment at the Buyer’s Installation site. During which all parts damaged because of quality problem will be changed for free.
2. Q: Do you have installation and commissioning service?
A.If buyers come to our factory to inspect, the training to install and operate is provided face to face. If not, manual and video is provided to show how to install and operate.
B. If buyer need we will send technician to buyer site to do installation and commissioning and training.
C.installation and commissioning cost: One engineer will visit Buyer’s workshop for installing, commission and training. The buyer has to pay USD100/per day and visa fee, air tickets fee, accommodation and food, necessary communication, etc.
(Normally ,It takes about a week to install )
3. Q: What’s your after-sales service ?
We provide 24-hour online service for our customers.
And we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.
4. Q: What's your delivery time ?
Normally we can finish production and testing within 45-70 days after receiving deposit. Some machines in stock, can be delivered at any time
5. Q: You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
6. Q: Do you provide customized machine?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.
7. Q: How to place order ?
Inquiry---confirm the profile drawings and technical specification and price----confirm the PI---arrange the deposit or L/C---start production-- do inspection--- Shipment
8.What are your terms of payment ?
First payment: 30 % by T/T, second payment: 70% by T/T, after the successful inspection at seller’s workshop, and before delivery.
