Product Overview
Description

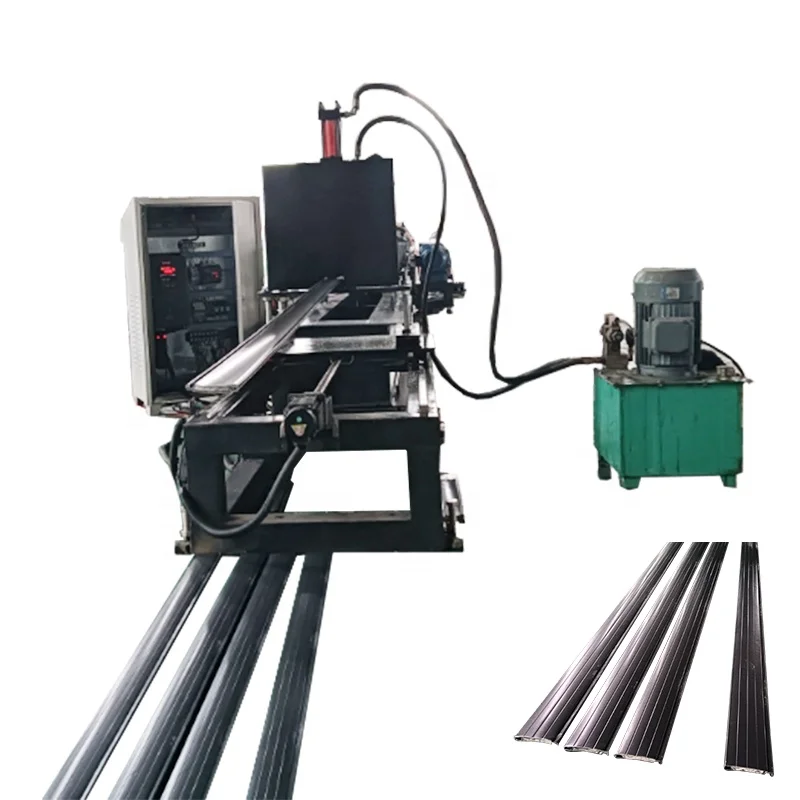

High Speed Galvanized Steel Metal Slat Roller up Shutter Door Frame Profile Panel Roll Forming Making Machine

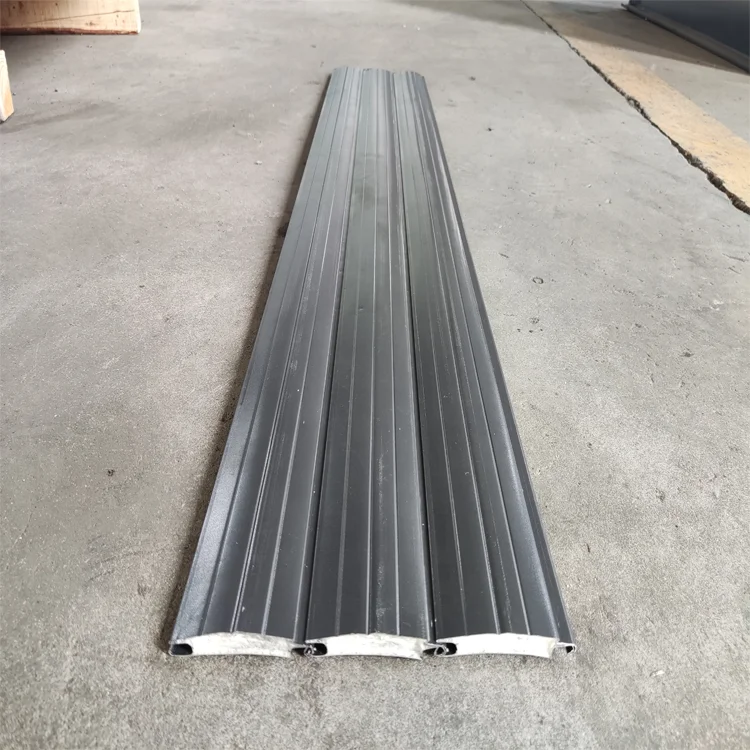

The processing speed is fast, and different patterns or logos can be
embossed according to the needs, and the surface of the slats is
very smooth and beautiful
embossed according to the needs, and the surface of the slats is
very smooth and beautiful
1. More efficient and accurate execution of production orders.
2. High equipment reliability.
3. Little waste of materials and energy.
4. High productivity.
5. High quality materials, get a longer service life.
2. High equipment reliability.
3. Little waste of materials and energy.
4. High productivity.
5. High quality materials, get a longer service life.
6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to
ensure that customers can get qualified products at the same time, it can avoid the scratch of the color
steel surface paint, and increase the service life of the roll.
ensure that customers can get qualified products at the same time, it can avoid the scratch of the color
steel surface paint, and increase the service life of the roll.
7. Customized coil processing solutions to solve all aspects of technical problems.
Material | Galvanized color steel strip/aluminum strip/stainless steel strip | ||||
Material thickness | 0.23-0.35 mm or customized | ||||
Machine speed | within 20-30m/min | ||||
Forming station | 35 stations + 5 leveling stations | ||||
Roller material | GCr15 high-quality steel heat treatment (HRC58-62); after finishing, the surface is polished and plated with hard chromium, and the thickness of chromium plating is 0.05mm on one side | ||||
Shaft material | No. 45 high-quality steel quenched and tempered (HRB260-280); shaft diameter φ40-50, fine turning and grinding to ensure coaxiality 0.005mm | ||||
Machine base frame | adopt thick-wall steel welding (gantry planing processing) | ||||
Machine stands | adopt detachable wall cast iron material structure | ||||
Transmission Method | Gearbox Vientiane section transmission | ||||
Main motor power | 11KW variable frequency speed regulating motor | ||||
cutting motor power | 2.4 kw , flying saw cut type | ||||
Cutting off the working state of the flying saw | using pneumatic pressure and return; tracking the flying saw to cut without stopping the machine | ||||
Cut off flying saw blade material | original imported alloy saw blade | ||||
PU foam pouring machine | single-group low-pressure reaction pouring machine; high-precision internal gear pump, steplessly adjustable discharge volume, heating function, cleaning function | ||||

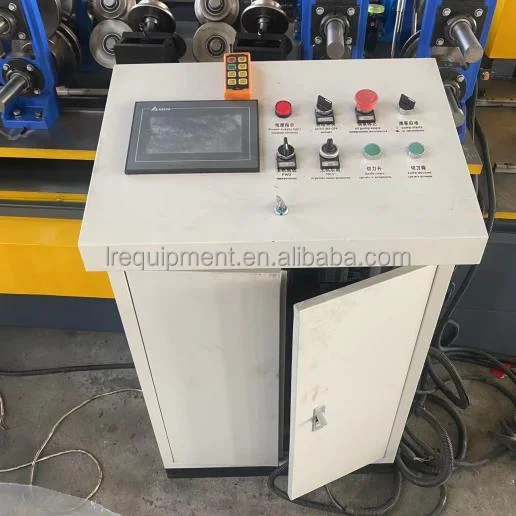

Control system | the whole machine adopts industrial panel control (automatic cut-off at fixed length) | ||||
Machine weight | 10500KGS | ||||
High Speed Galvanized Steel Metal Slat Roller up Shutter Door Frame Profile Panel Roll Forming Making Machine
Rack
Feed platform

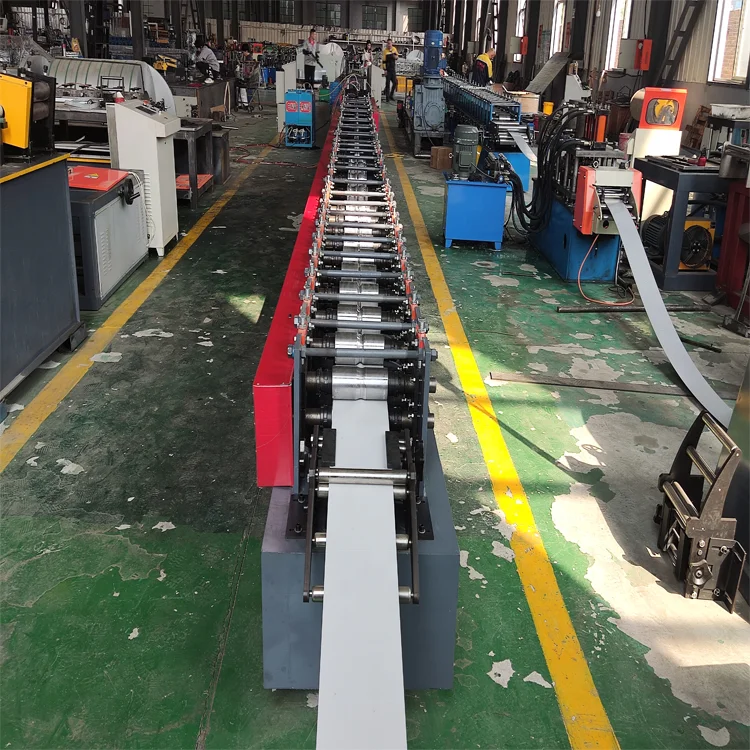

Molding (shaft, wheel)
Cutter
Pumping station
Control system

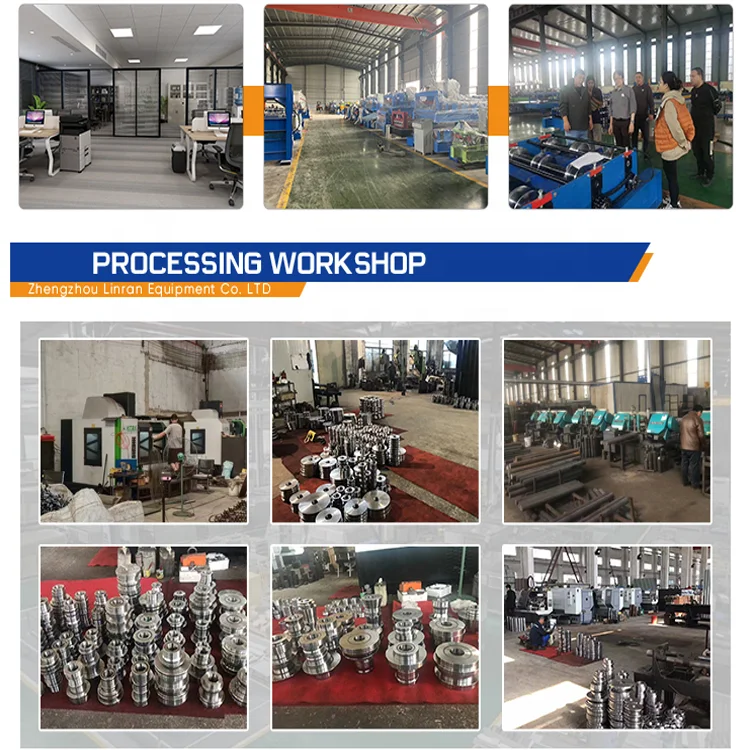

Zhengzhou Linran equipment Co., LTD established in the year 2003, manufacturing and exporting Metal Roll Forming Machines.All efforts are devoted to the research and development of how to provide customers with high-quality and durable molding machines.Our main product Metal Roll Forming Machine, such as C/Z Purlin Roll Forming Machine, Cold Sheet Forming Machine,Metal Deck Roll Forming Machine,Omega profile roll forming machine, Guardrail roll forming machine, Downspout roll forming machine, Rain gutter roll forming machine etc. have been exported more than 100countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, India etc.Our company has successfully established and passed the ISO9001 quality insurance system, also had been approved with CE certificate.For our roll former, 36 month free warranty, and our company promises that we will provide product service life maintenance service.
1. Packing:
1)Machine is nude loaded in the container
2)The electric controlling box is packed by protect film
3)All the spare parts are put in the wooden box
1)Machine is nude loaded in the container
2)The electric controlling box is packed by protect film
3)All the spare parts are put in the wooden box
2.Packing method
1. For Middle Asia customer, we offer export standard wooden packing to suitable long
distance train or road delivery
2. Commonly by shipping delivery, adopts film packing, small parts will be packed in
wooden box or paper box
1. For Middle Asia customer, we offer export standard wooden packing to suitable long
distance train or road delivery
2. Commonly by shipping delivery, adopts film packing, small parts will be packed in
wooden box or paper box
Q1. What's your payment terms and delivery time?
30% deposit by T/T, 70% balance by T/T before shipment. Of course, L/C at sight is accep- table. The delivery time is about 30-45days after receipt of the deposit or L/C.
Q2. Can you provide some spare parts?
Yes,the quick-wear parts will send you together with the machine.
30% deposit by T/T, 70% balance by T/T before shipment. Of course, L/C at sight is accep- table. The delivery time is about 30-45days after receipt of the deposit or L/C.
Q2. Can you provide some spare parts?
Yes,the quick-wear parts will send you together with the machine.
Q3. Do you sell only standard machines?
No, most of our machines were produced according to customers' specifications, we accept OEM.
Q4. What will you do if the machine is broken?
Within the warranty(12months),if the broken parts can't be repaired well, we can send you the new ones freely,
but you should pay the express cost. If it is beyond the warranty period, we can discuss how to solve theproblem perfectly, anyhow we offer the technical support for the whole life of the machine.
Q5. Can you be responsible for transport?
Yes, please tell me the destination port or your address. we have rich experience in transportation.
Q6. How to visit your company?
1) Fly to Beijing airport, by high speed train From Beijing Nan to Cangzhou Xi railway station(1hour);
2)or Fly to Shanghai Airport, by high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),...we would meet you at Cangzhou Xi railway station.
No, most of our machines were produced according to customers' specifications, we accept OEM.
Q4. What will you do if the machine is broken?
Within the warranty(12months),if the broken parts can't be repaired well, we can send you the new ones freely,
but you should pay the express cost. If it is beyond the warranty period, we can discuss how to solve theproblem perfectly, anyhow we offer the technical support for the whole life of the machine.
Q5. Can you be responsible for transport?
Yes, please tell me the destination port or your address. we have rich experience in transportation.
Q6. How to visit your company?
1) Fly to Beijing airport, by high speed train From Beijing Nan to Cangzhou Xi railway station(1hour);
2)or Fly to Shanghai Airport, by high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),...we would meet you at Cangzhou Xi railway station.
