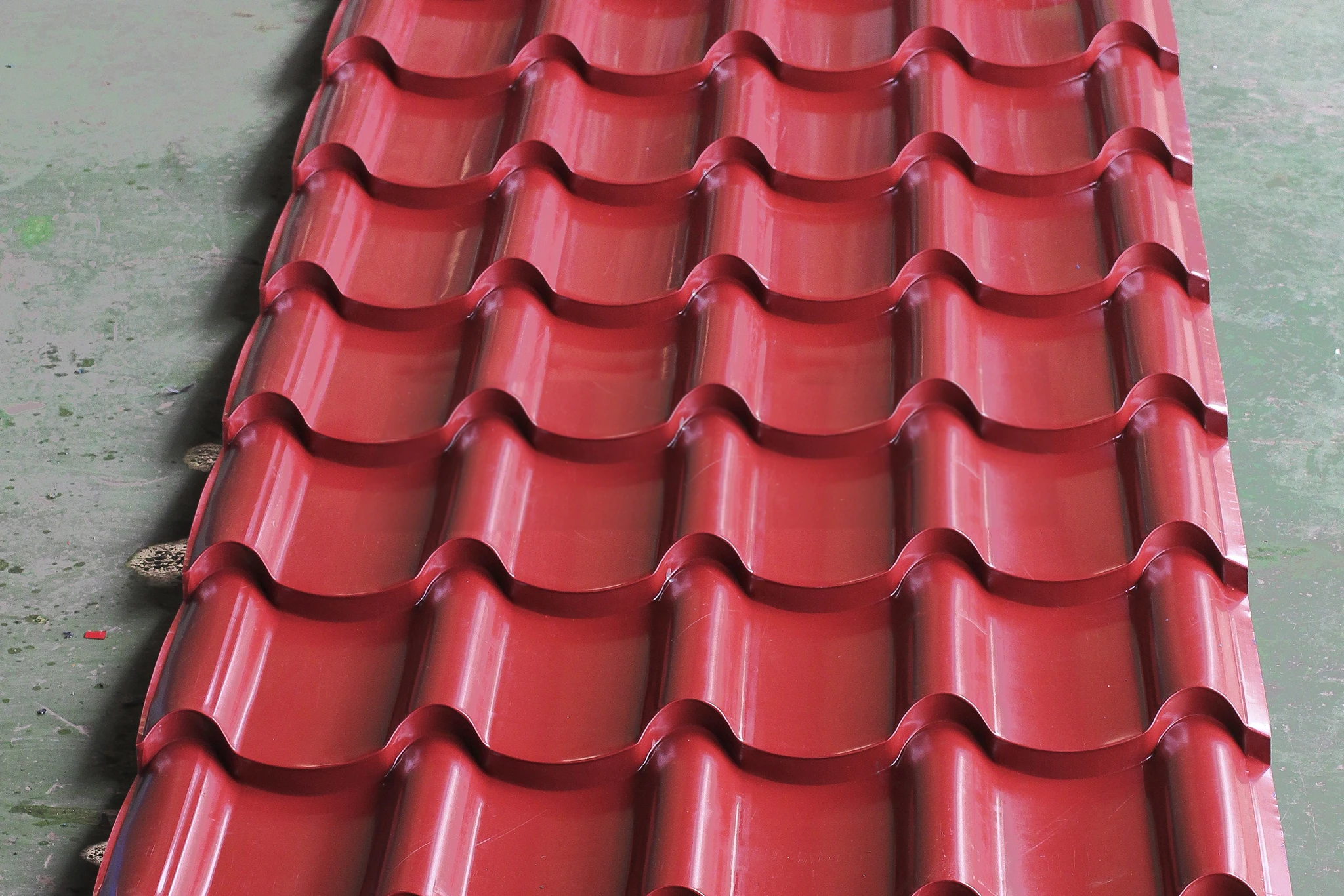

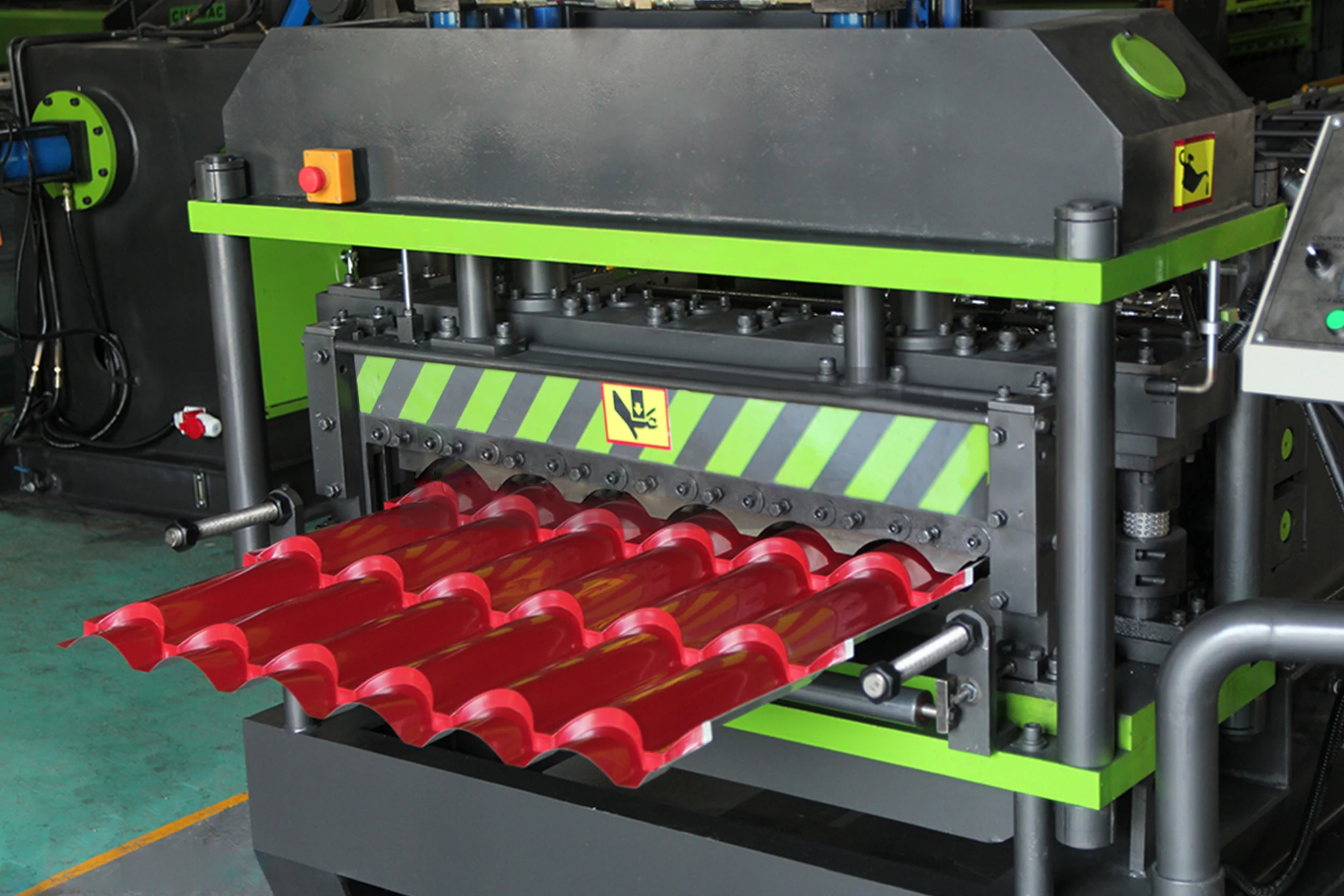

Step Tile roll forming machine
What is a Step Tile roll forming machine？
The machine is fully automatic and it is easy to operate with friendly HMl panel. it consists of one decoiler, sheet guiding equipment, roll forming section, PLC control system, Hydraulic cutting, collection table.
Their main advantages are beautifully customized designs, easy and stable operation with strong body frame.

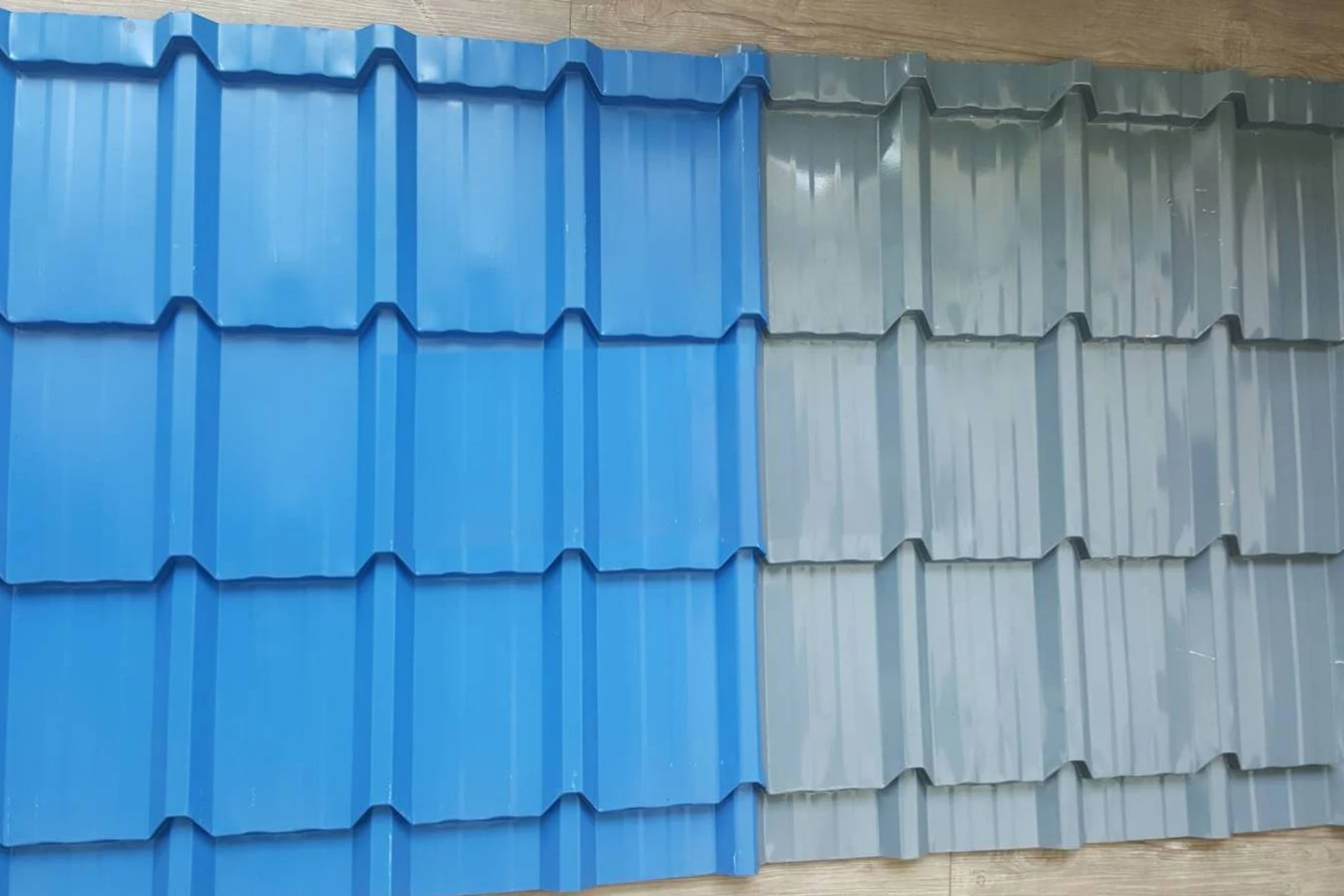

Glazed Tile Roll Forming Machine has many profiles: classic tile, Master tile, puby tile, Roman tile, Nosen tile, wood tile, Nuoutile, Aspirant tile, PVDF tile, Modern tile, Nopad tile, wave tile (concave), paragon tile, excellent tile, universe tile, hoduras tile.
Their main advantages are beautifully customized designs, easy and stable operation with strong body frame.
Glazed Tile Roll Forming Machine has many profiles: classic tile, Master tile, puby tile, Roman tile, Nosen tile, wood tile, Nuoutile, Aspirant tile, PVDF tile, Modern tile, Nopad tile, wave tile (concave), paragon tile, excellent tile, universe tile, hoduras tile.
Introduction to each part of the machine

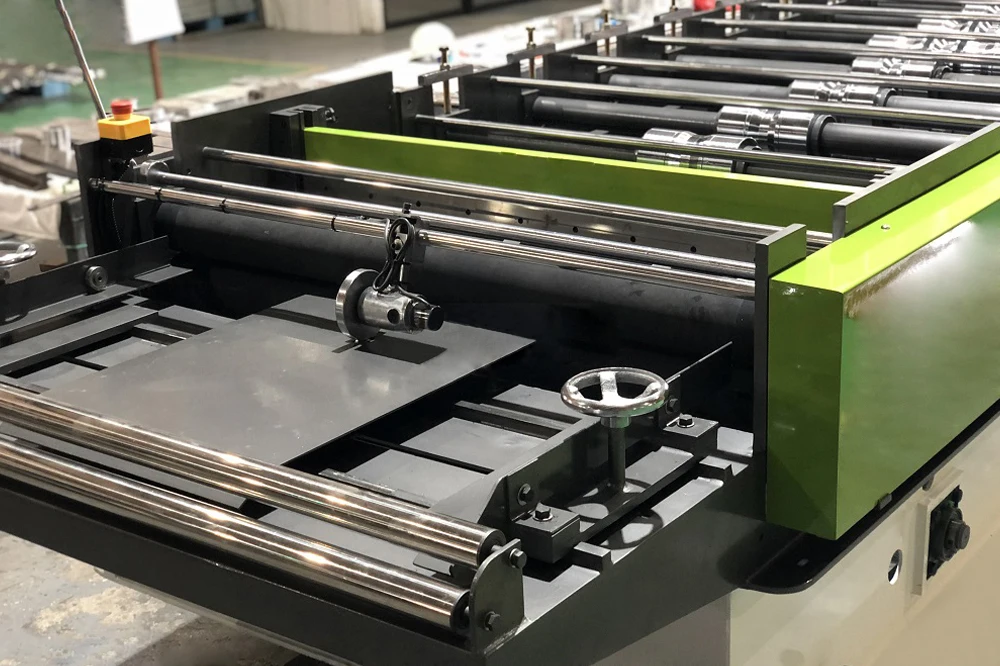

Feeding material
1. With several support rollers, to feed the material more smoothly.
2. Equipped with 2 groups nylon wheels in the middle of the platform, prevent the materialsurface from being damaged, and feed the material more easily and quickly .
3. Can be With hand wheels to adjust the feeding size, more conveniently.
4. Every layer with two gears on the outside, so that the upper axis of each layer runs passively to actively, with more power and faster.
5 Entry guides with vertical guide rolls & all lateral movement manual screw type.
4. Every layer with two gears on the outside, so that the upper axis of each layer runs passively to actively, with more power and faster.
5 Entry guides with vertical guide rolls & all lateral movement manual screw type.

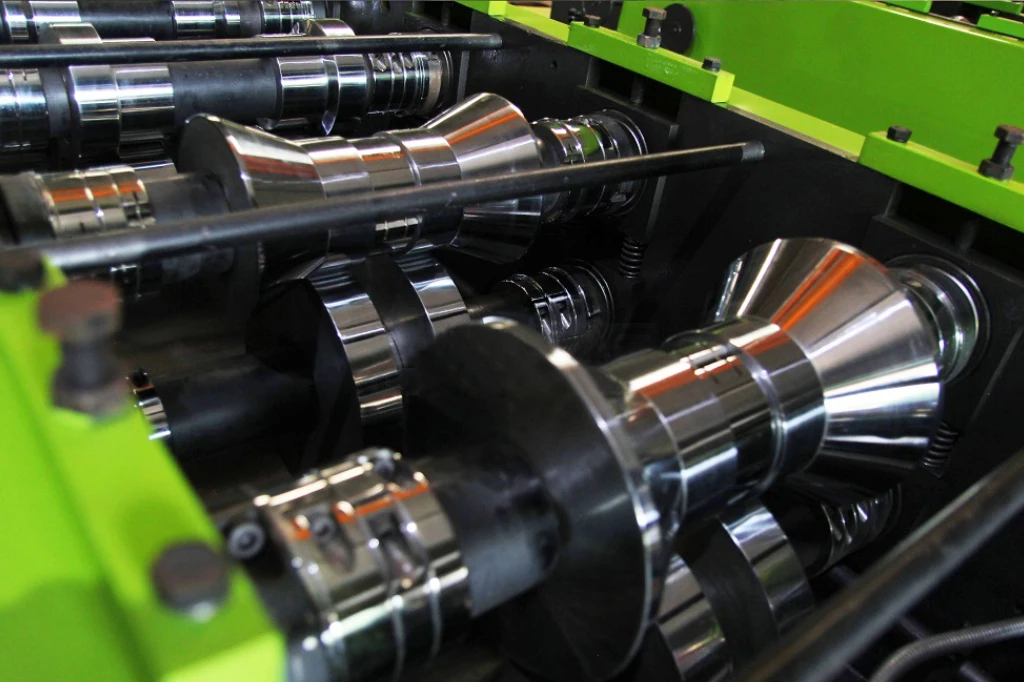

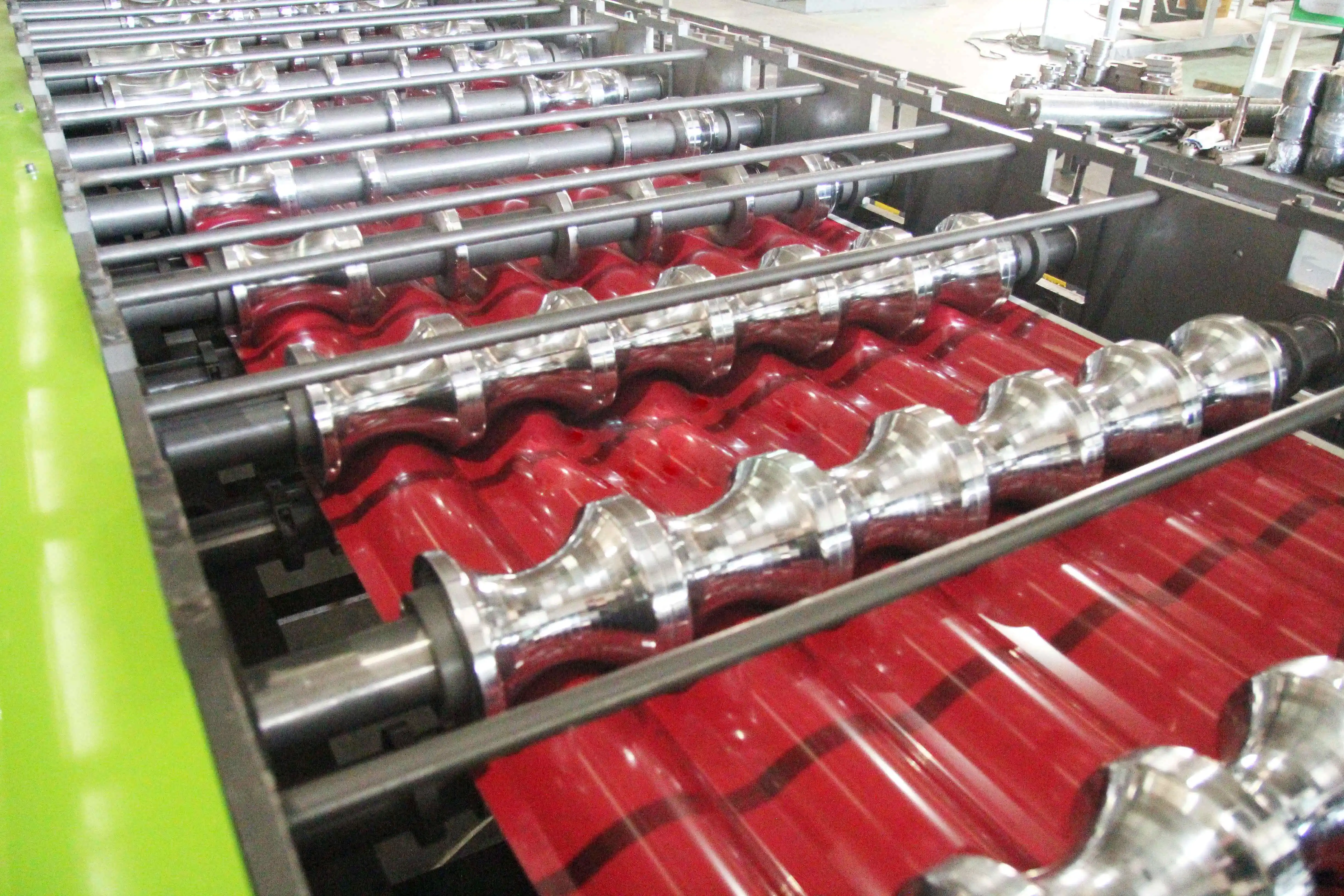

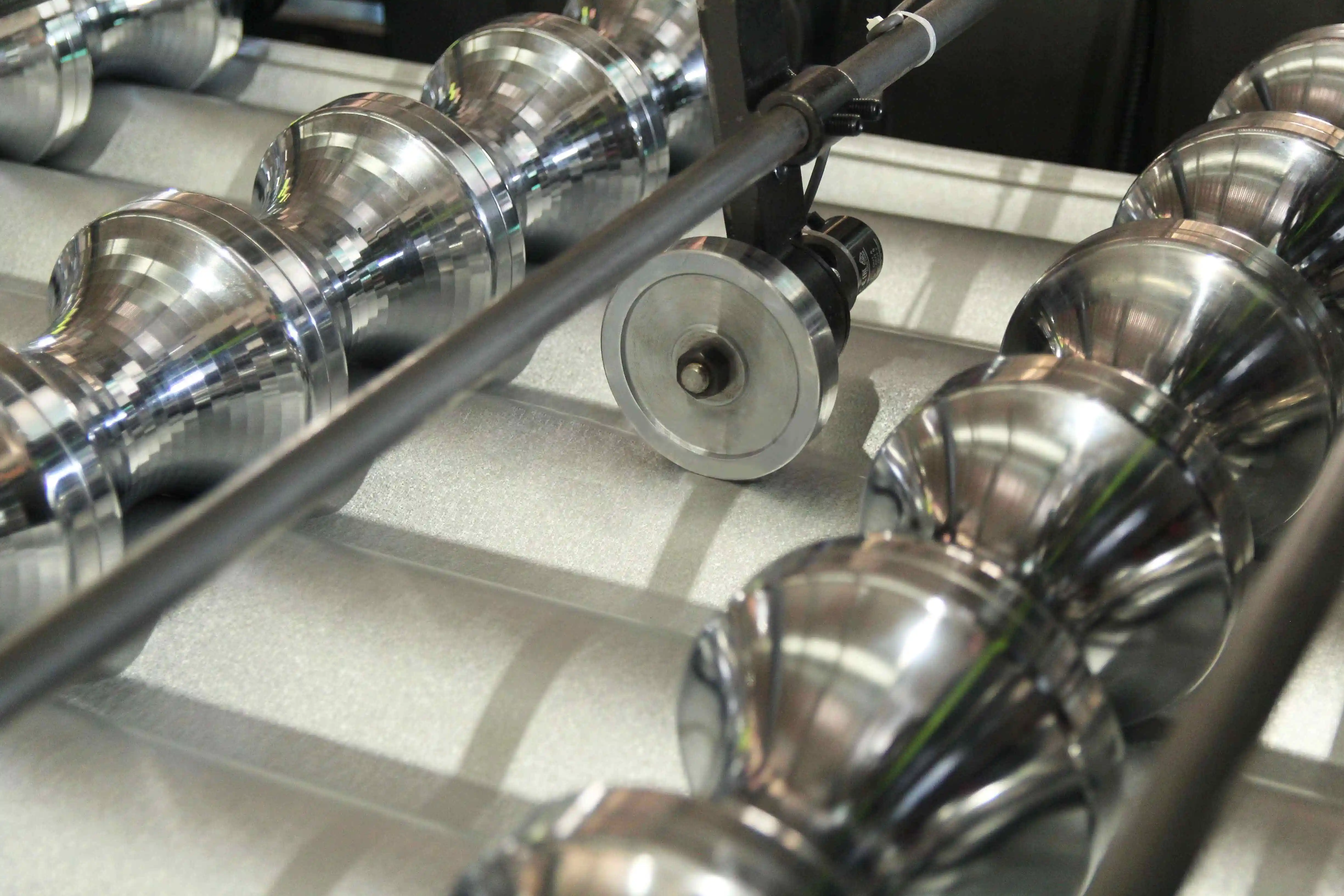

Roll pressing system
Cr12 (also known as D3) steel is a high-carbon, high-chromium steel alloy used in the production of rollers for various
applications, including the manufacturing of asymmetrical sectional steel, round steel, and flat steel. Cr12 steel is known for its high wear resistance, toughness, and strength, making it an ideal material for roller production. used for roll forming
machine.
applications, including the manufacturing of asymmetrical sectional steel, round steel, and flat steel. Cr12 steel is known for its high wear resistance, toughness, and strength, making it an ideal material for roller production. used for roll forming
machine.
Cutting device
1.Our machine uses hydraulic shearing.
2.Cutting as stop forming line cuts length +/- 1 mm and very high line speed cuts the blank or profile single word. Press is
designed to accept type die or dropping die without slug while cutting.
2.Cutting as stop forming line cuts length +/- 1 mm and very high line speed cuts the blank or profile single word. Press is
designed to accept type die or dropping die without slug while cutting.
Technical Parameter
STEP TILE ROLL FORMING MACHINE SPECIFICATION | ||||
Items | STANDARD model | HIGH SPEED model | ||
Total powver | 11-15KW (3 phase, 50hz,380v) | 15-18 (3 phase, 50hz,380v) | ||
Speed | 5-10/min | 7-15/min | ||
Dimension (LxWxH) | （8-11)m x(1.6-2.2)m x1.8m | (9-12)m x(1.6-2.2)m x1.8m | ||
Weight | 9-12 tons | 10-14 tons | ||
Roller station | 12-20 pairs | 12-20 pairs | ||
Material thickness | 0.15-0.5mm(G300- G550) | 0.15-0.5mm(G300- G550) | ||
Material width | 914;1200; 1219;1450mm | 914;1200; 1219;1450mm | ||
Transmission system | Hydraulic motor | Servo motor withgear box | ||
Cutting system | Hydraulic cylinder(rear & front cutting) | Hydraulic cylinder(rear & front cutting) | ||
Control system | Automatic withPLC, HMl, Inverter | Automatic with PLCHMl. Servo | ||

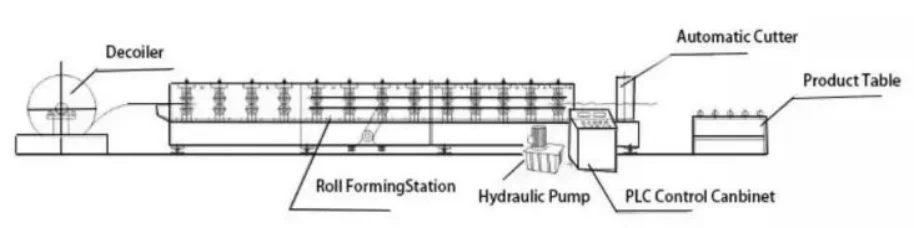

Usage scenario diagram
