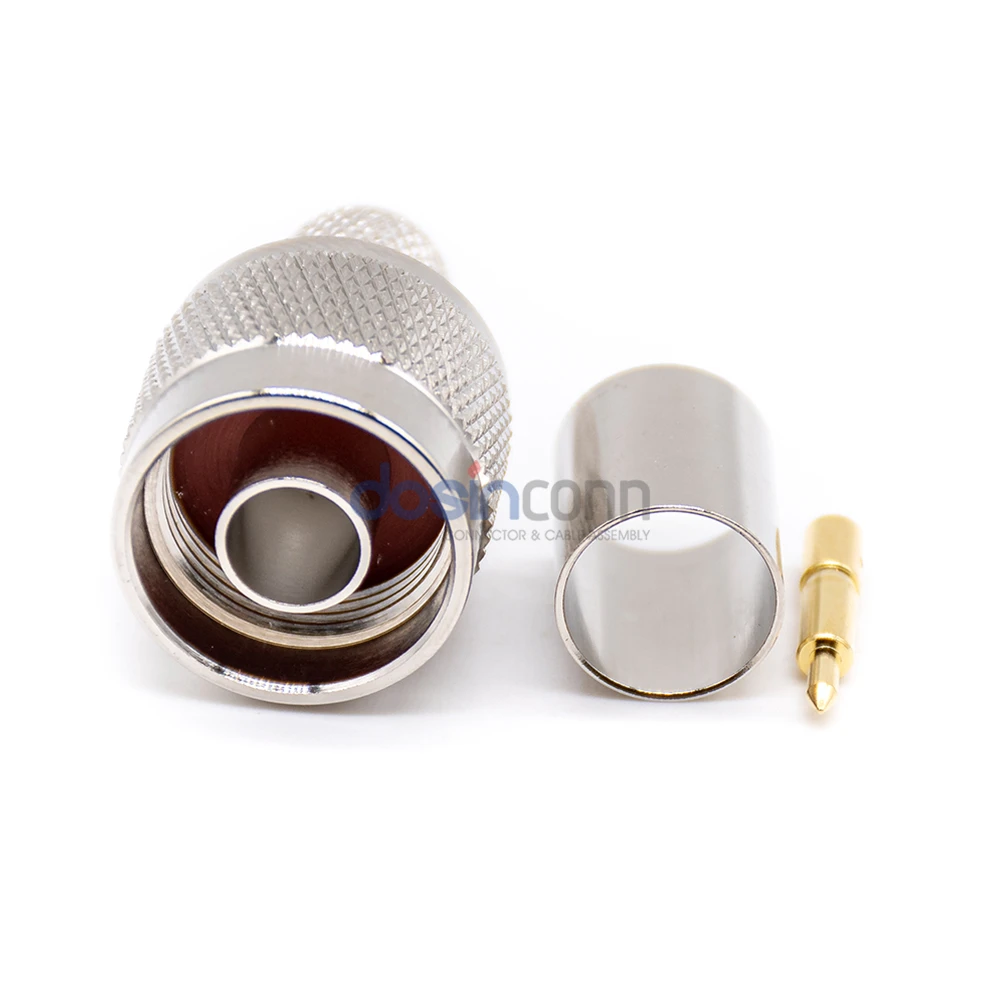

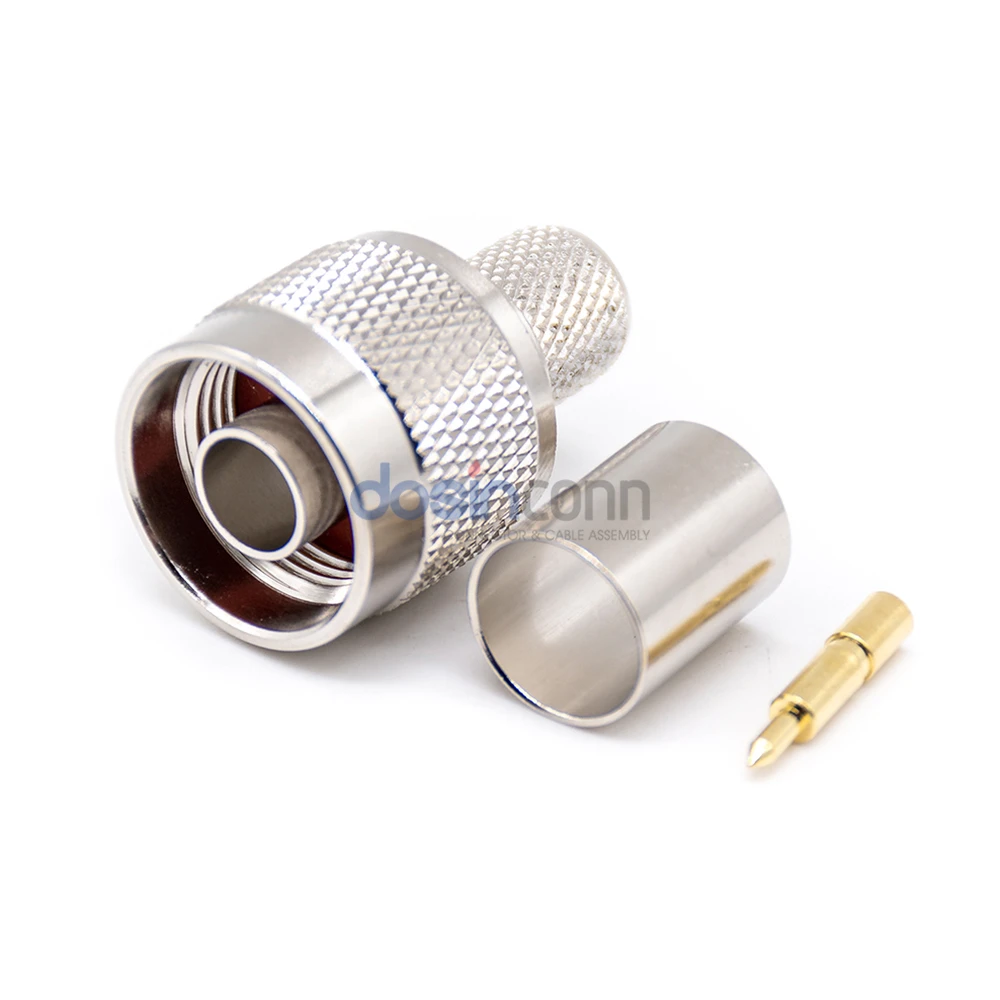

N Brass Plated Nickel Straight RF N Type Female connector for Cable with Dust Cap
N Brass Plated Nickel Straight RF N Type Female connector for Cable with Dust Cap
N Brass Plated Nickel Straight RF N Type Female connector for Cable with Dust Cap
N Brass Plated Nickel Straight RF N Type Female connector for Cable with Dust Cap

N Brass Plated Nickel Straight RF N Type Female connector for Cable with Dust Cap

Share on (1601263213632):


Price:$0.58 - $1.50

Quantity:


Product Overview

Description

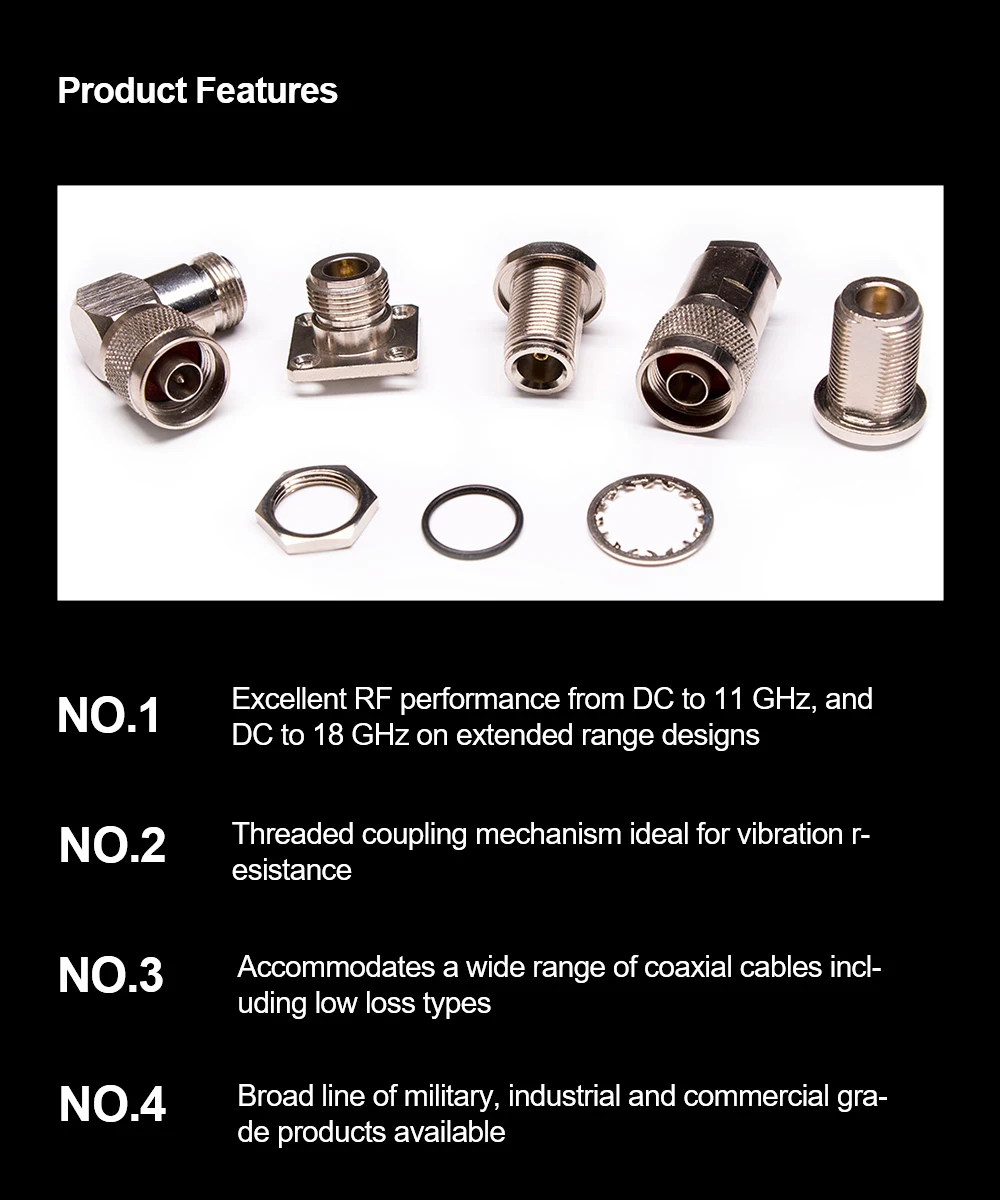

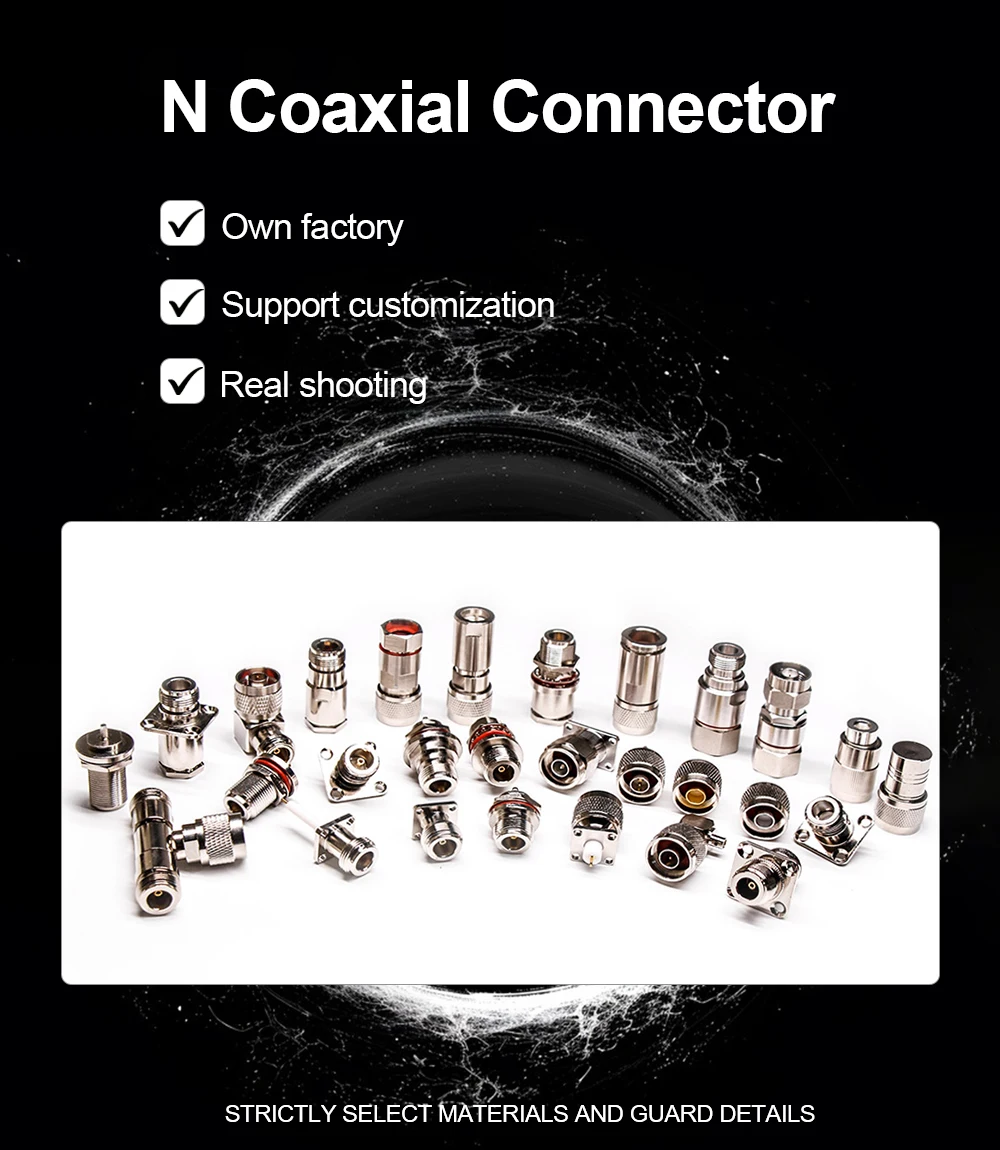

The N Connector (also, type-N connector) is a threaded, weatherproof, medium-size RF connector used to join coaxial cables. It was one of the first connectors capable of carrying microwave-frequency signals. The screw-type coupling mechanism provides a sturdy and reliable connection. Connector styles are available for flexible, conformable, semi-rigid and corrugated cables. Both crimp and clamp cable termination processes are used for this series.




Gender
Plug / Socket
Orientation
Straight / Right Angle
Impedence
50Ω
Frequency
DC - 11GHz
Voltage Rating
500 Volts RMS Max Continuous
Withstanding Voltage
1500 VRMS Max
Working Voltage
2700V Max
Body
Brass / Gold Plated
Center Conductor
Brass / Phosphor Bronze
Insulator
PTFE
Temperature Range
-65°C to +165°C
Durability (matings)
≥ 500 (cycles)




If You Still Not Found a Suitable Product, Please Contact Us>>










Stamping Workshop

Insert Metal Plate between the top and bottom mold, and then apply pressure to cut the plate. Ideal for mass production as high production capacity with only one die mold.

Die Casting Workshop

Forcing the molten metal under high pressure into a mold cavity. In DOSIN, this workshop is main for die casting moulding to make Zinc Alloy or Aluminium Alloy parts.



Injection Moulding Workshop

Injection moulding requires to transfer the polymeric material in powder or granule form from a feed hopper to a heated barrel. And then the plastic melted and injected into a mould. This process is automated, so the production capacity is high.

Lathe Turning

Lathe is used to remove unwanted material from a cylindrical workpieces by machine tool. We used lathe to produce copper parts and insulators (like Teflon). No mould required for this process. The production capactity limited by products' structure and quantity of machine.
