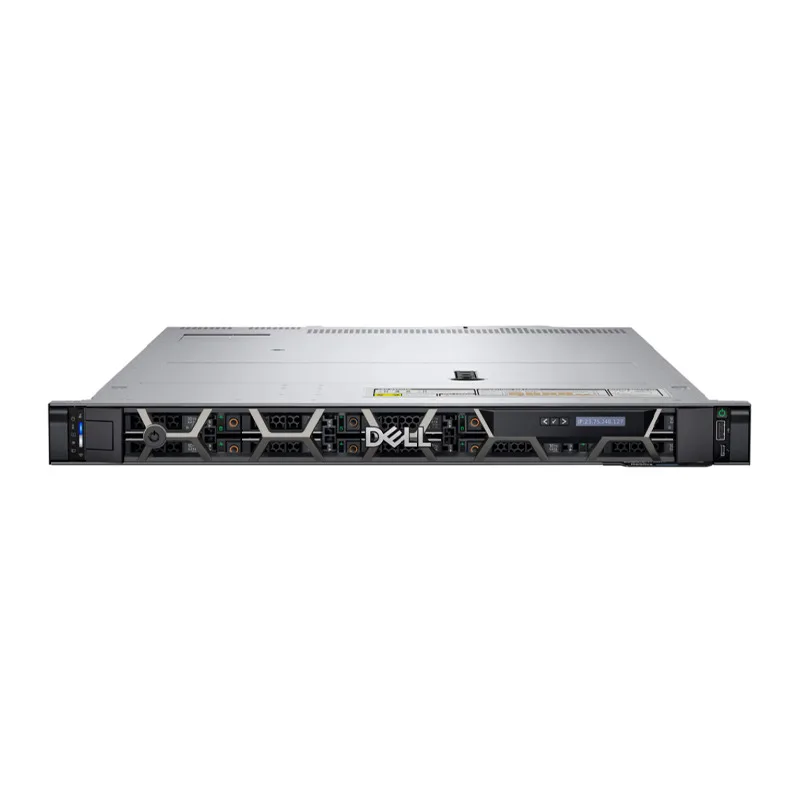

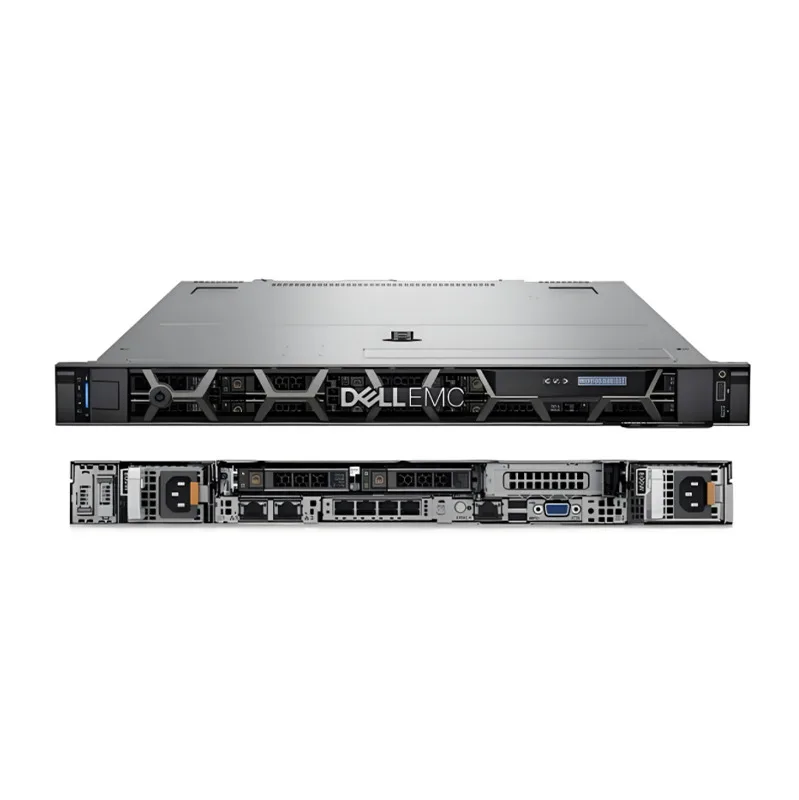

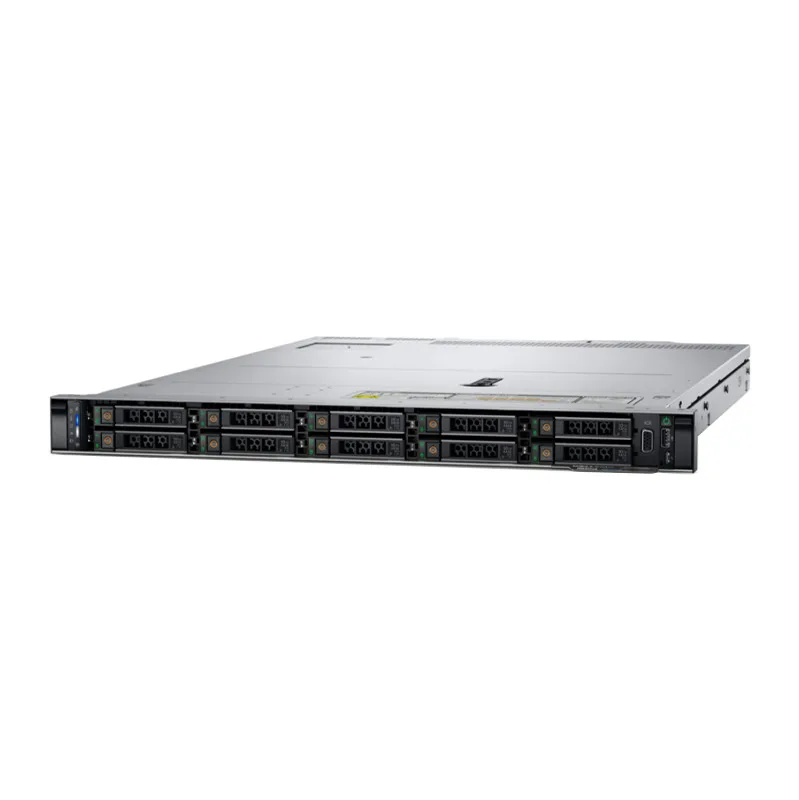

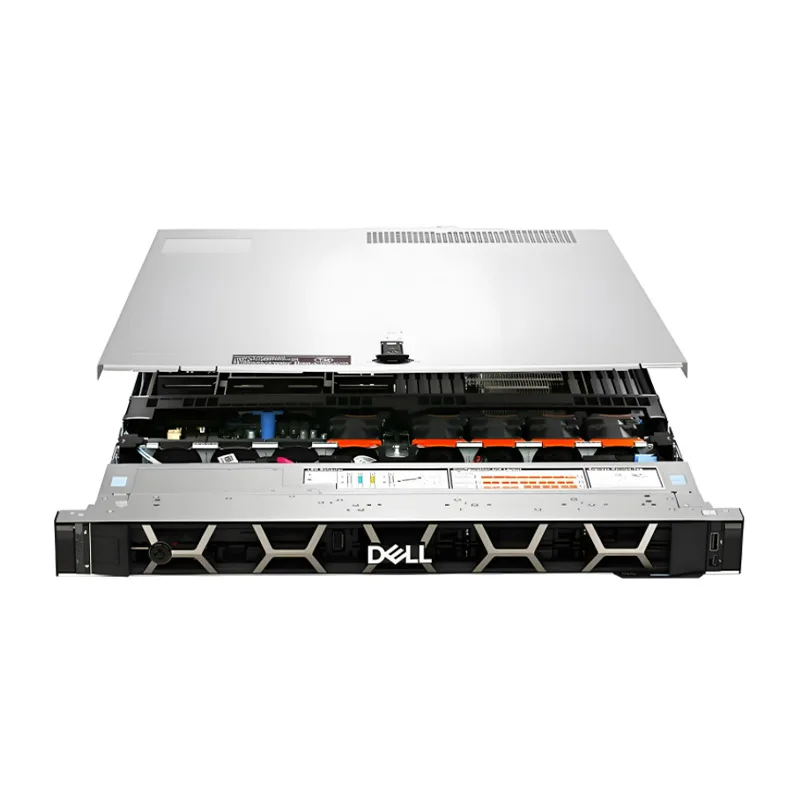

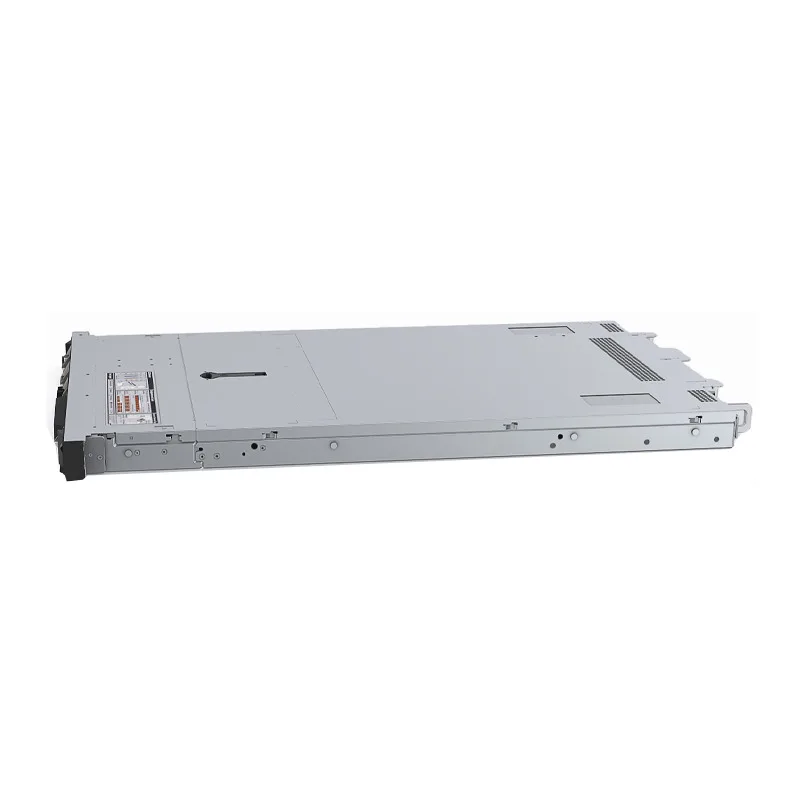

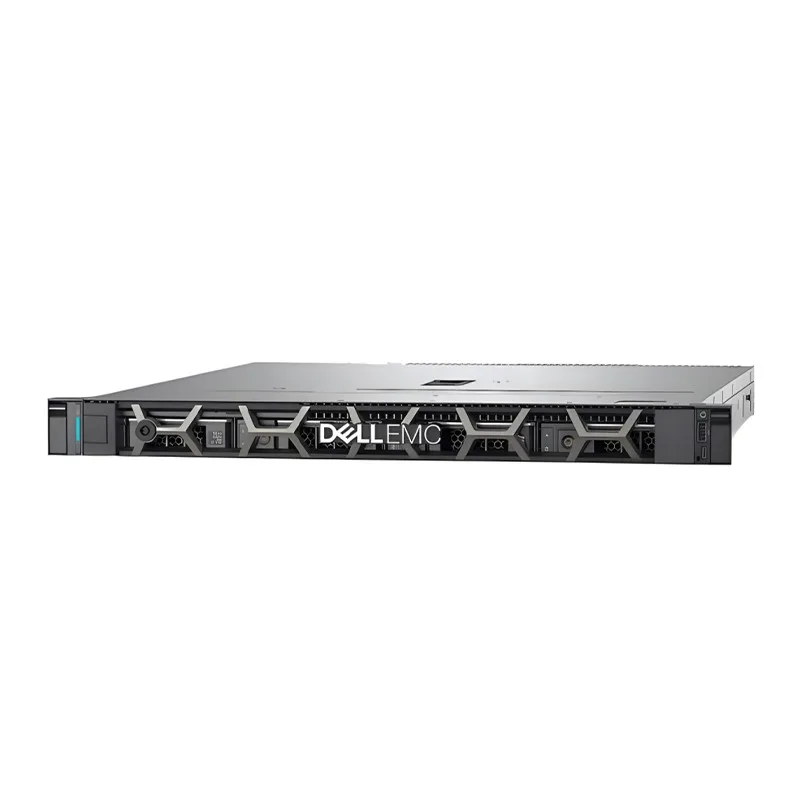

Dell PowerEdge R650XS 1U rack server






Parameters and pictures


The Dell EMC PowerEdge R650xs is a 1U, 2-socket server with up to two 3rd Gen Intel® Xeon® Scalable processors with up to 32 cores per socket
• Accelerate memory workloads: Up to 16 DDR4 RDIMMs, 3200 MT/s
• Increase throughput, reduce latency: Up to 5 PCIe 4.0 slots with support for OCP 3.0 and SNAP I/O NICs
• Includes flexible storage: Up to 12 3.5-inch SAS/SATA HDDs or SSDs; or up to 16 2.5-inch SAS/SATA HDDs or SSDs and 8 NVMe




model
POWEREDGE R650XS
Form Factor
1U, 2-socket rack server
Processor
Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores
Memory
• 16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s
• Supports registered ECC DDR4 DIMMs only
Storage controllers
• Internal controllers: PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150
• Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSSS1): HWRAID 2 x M.2 SSDs, USB
• External PERC (RAID): PERC H840, HBA355e
Drive bays
Front bays:
• 0 drive bay
• Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
• Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 76.8 TB
Rear bays:
• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
Power supplies
• 600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
• 700W Titanium Mixed Mode (200-240Vac or 240Vdc) hot swap redundant
• 800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
• 1100W Titanium Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
• 1400W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
• 1100W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc to -60Vdc power input)
• 1800W Titanium Mixed Mode (200-240Vac or 240Vdc) hot swap redundant
Fans
• Standard (STD) fans, High performance SLVR fans or High performance GOLD fans
• Up to seven cabled fans
Dimensions
•Height – 42.8 mm (1.68 inches)
• Width – 482 mm (18.97 inches)
• Depth – 734.95 mm (28.92 inches) – without bezel
748.79 mm (29.47 inches) – with bezel
Embedded management
• iDRAC9
• iDRAC Service Module
• iDRAC Direct
• Quick Sync 2 wireless module
Bezel
Optional LCD bezel or security bezel
OpenManage™ Software
• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage SupportAssist plugin
• OpenManage Update Manager plugin
Integrations and Connections
OpenManage Integrations
• BMC Truesight
• Microsoft System Center
• Red Hat Ansible Modules
• VMware vCenter and vRealize Operations Manager
Connections:
•IBM Tivoli® Netcool/OMNIbus
•IBM Tivoli® Network Manager IP Edition
•Micro Focus® Operations Manager
•OpenManage Connections
•Nagios® Core
•Nagios® XI
Security
• Cryptographically signed firmware
• Secure Boot
• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC
2 x 1 GbE LOM
Network Options
1 x OCP 3.0

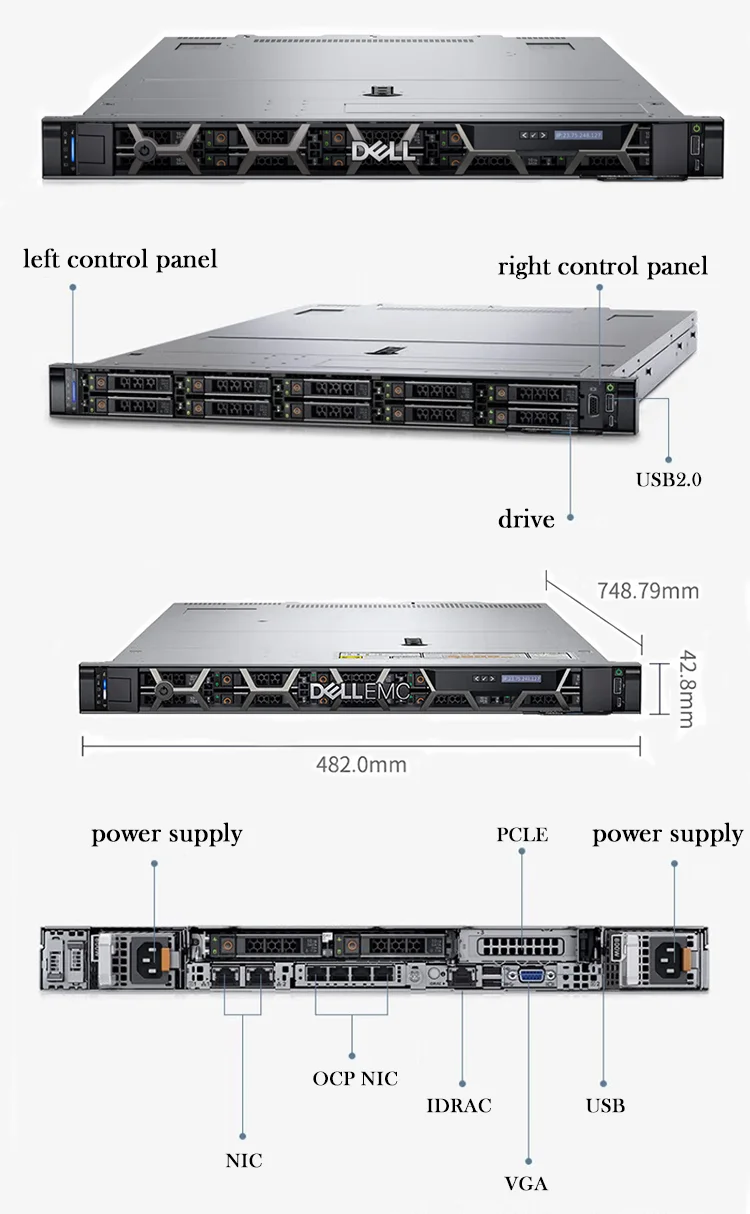

I/O & Ports
Front Ports
•1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 2.0
• 1 x VGA
Rear Ports
• 1 x USB 2.0
•1 x Serial (optional)
• 1 x USB 3.0
• 2 x Ethernet
• 1 x VGA
PCIe
Up to 3 x PCIe Gen4 slots
Operating System and Hypervisors
• Canonical Ubuntu Server LTS
• Citrix Hypervisor
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux • SUSE Linux Enterprise Server
• VMware ESXi


Products Description








packaging and shipping






Company Profile










Certifications




FAQ


Q1. What products does your company mainly sell?
A: Our company mainly sells Dell, Huawei, Lenovo, Inspur, H3C Xfusion servers and storage and server accessories, such as server hard drives, memory cards, etc.

Q2. Are your products formal?
A: We are a formal agent authorized by Huawei and Lenovo manufacturers. We have agent qualifications issued by these manufacturers, and our products are all original and formal products.

Q3. Where is your company located?
A: We have been engaged in the IT industry in Beijing for more than 10 years, and we all have very professional experience

Q4. How is your product after-sales service?
A: We have professional engineers with more than 10 years of experience, who can provide free remote service support, then identify the problem and replace the corresponding parts

Q5. How do you pay?
A: Our company supports payment methods such as Western Union and Alibaba

Q6. How do you transport these products?
A: We have our own freight forwarder, which can deliver the products to anywhere you need
