Haide 3d dimensional buckle plate press and roller press machine

Product Overview

Description



3D wall panel machine for decoration

--Botou Haide Machinery Manufacturing Co.,Ltd



Parameters of machine

model	ZS-HN53
voltage&electric heating	AC220V(3 Phase),1200W(50~60HZ)
size of hot plate	400*400mm
size of base plate	500*500mm
maximum pressure	4000kg
temperature controller	0~400℃
maximum gap	250mm
maximum stroke	150mm
roll leaf feeding device	0~900mm
time controller	0~12 seconds
applied power	oil tank pump 2HP
dimensions(L*W*H)	800*600*1200mm
net weight	350kg+(oil 45kg)
liquid pressure oil	China oil R68#(40L)
packing dimensions(L*W*H)	1000*900*1400mm
gross weight	350k

Applications of the 3d metal wall panel  machine

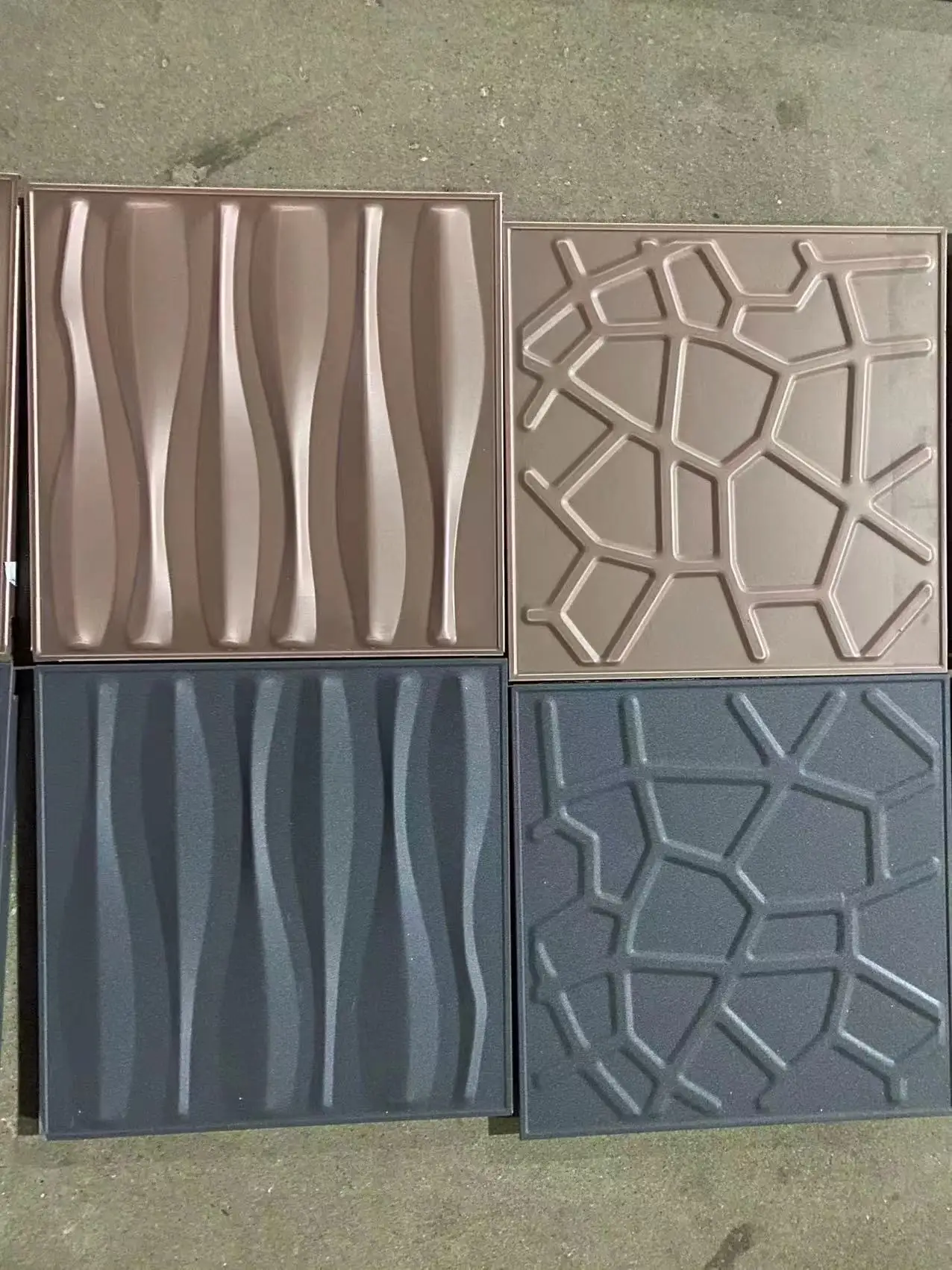

Make 3D metal wall panel to decorate rooms or advertising board.

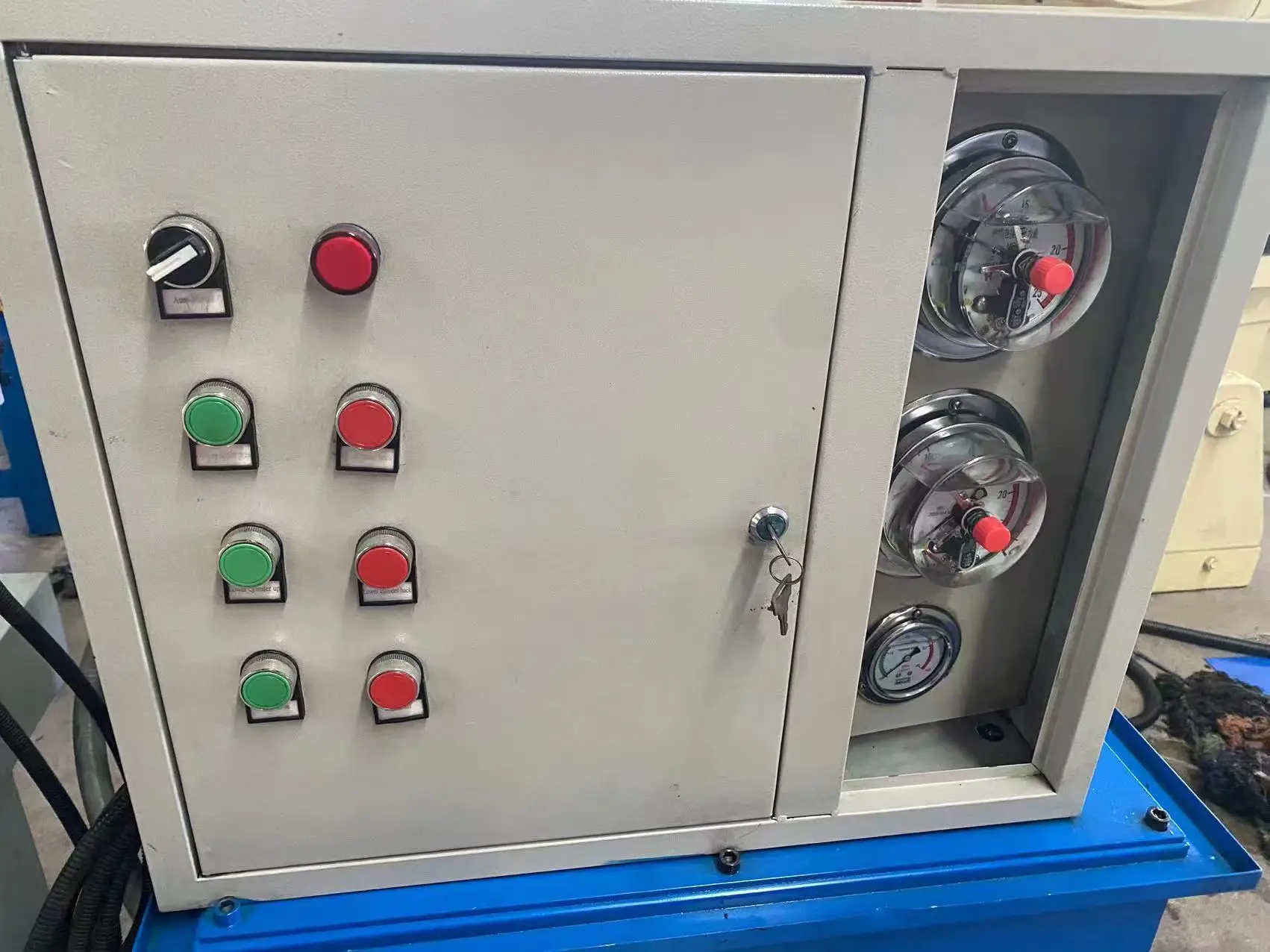

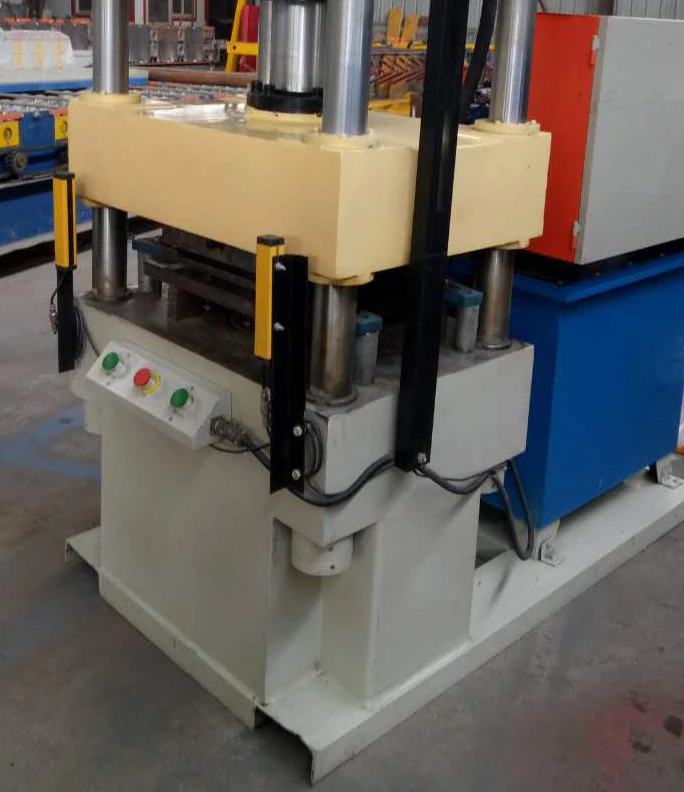

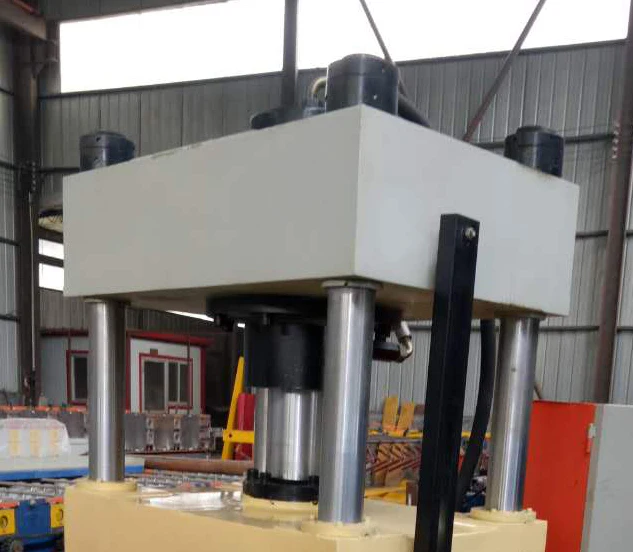

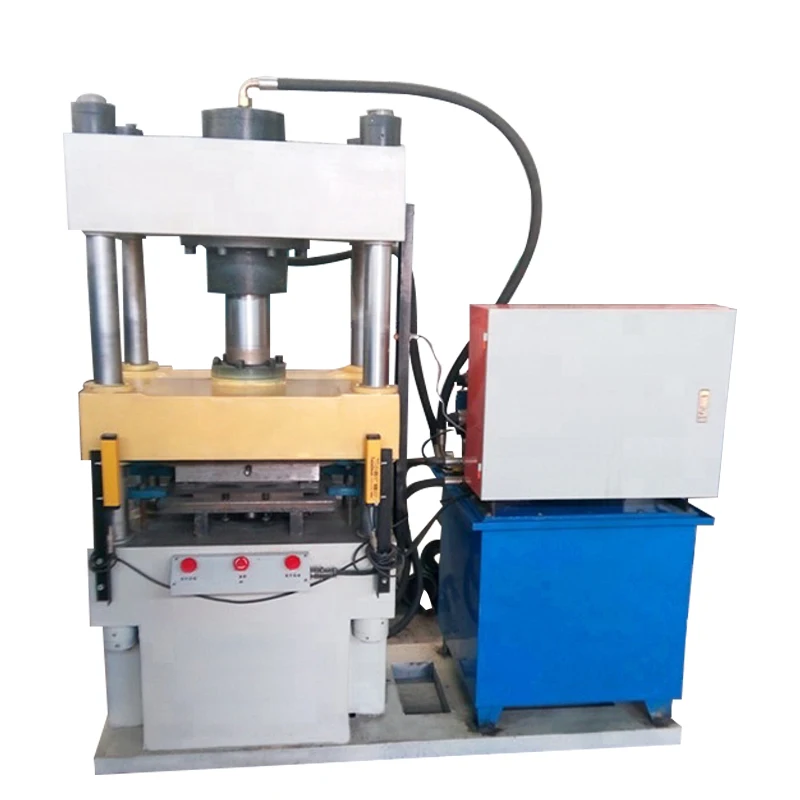

Whole machine pictures
