Three Layers Roof Sheets Roll Forming Machine
- Category: >>>
- Supplier: Cangzhou Zhongtuo International Trade Co. Ltd.
Share on (1601264863553):
Product Overview
Description
Product Description
Three Layers Roof Sheets Roll Forming Machine
The Three Layers Roof Sheets Roll Forming Machine is a crucial piece of equipment in the roofing industry. It creates three layers of roof sheets quickly and accurately. With its series of rollers, it shapes metal sheets well. This machine is widely used in building construction as it offers durability and increases production efficiency. The Three Layers Roof Sheets Roll Forming Machine is truly essential. Again, it plays a significant role in providing high-quality roof sheets.

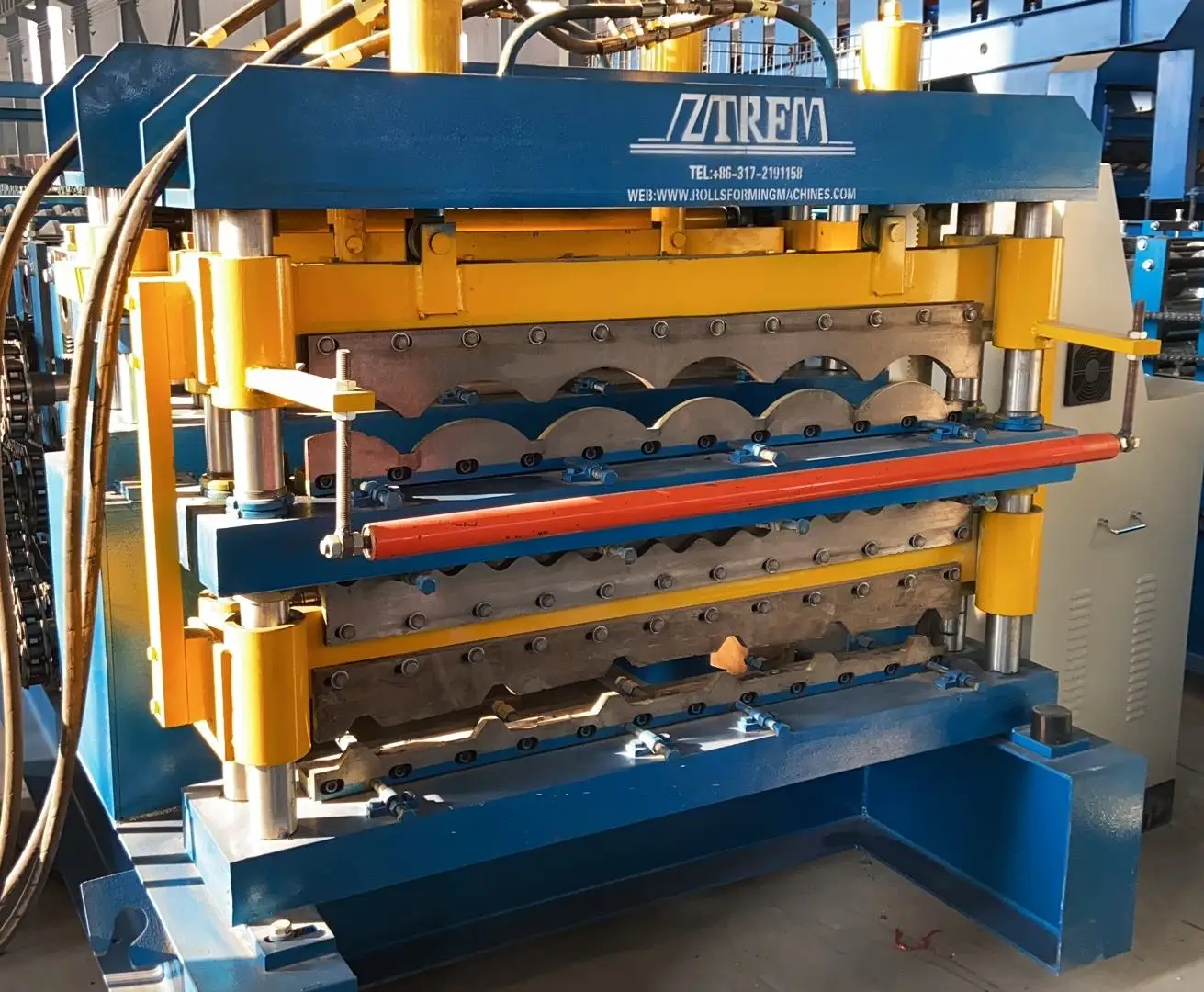

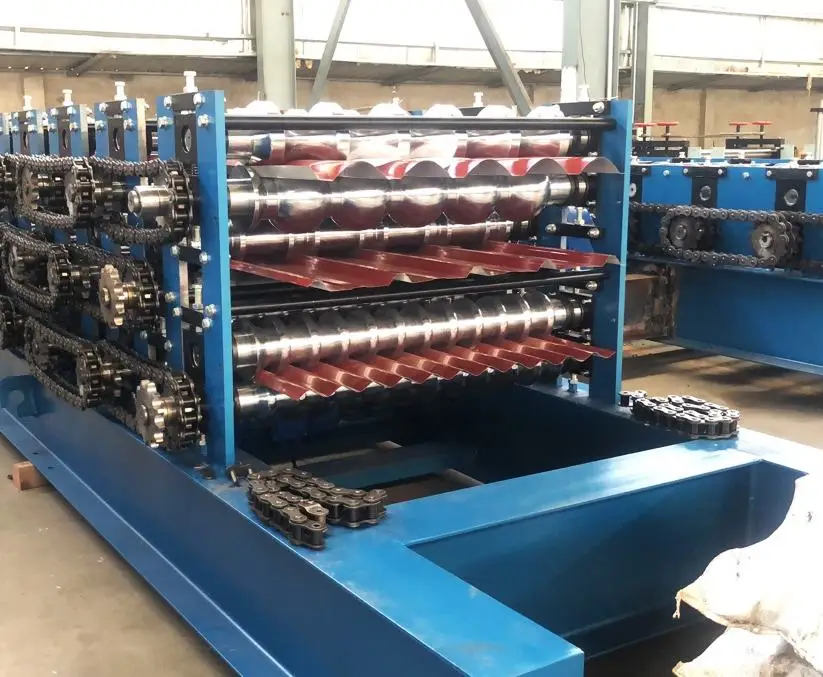

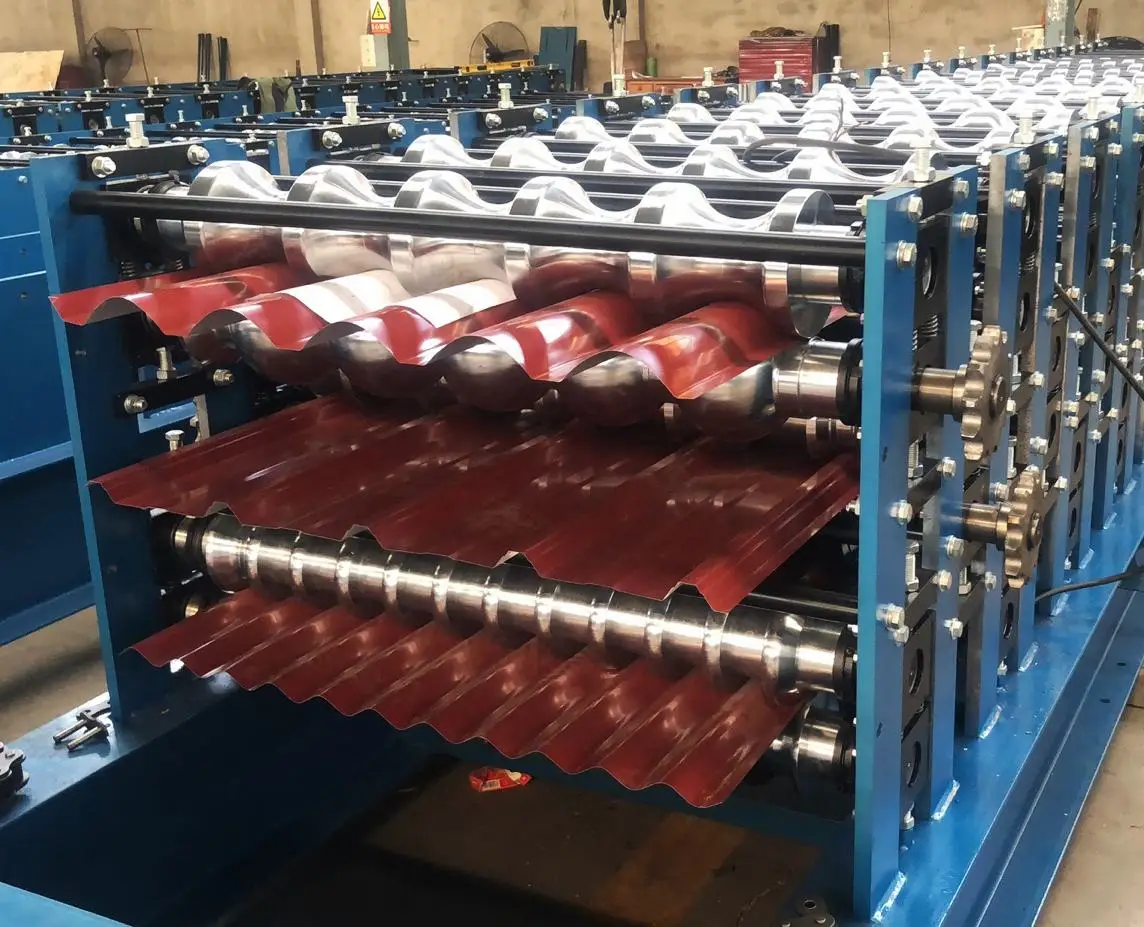

Roofing sheet roll forming machine's picture:

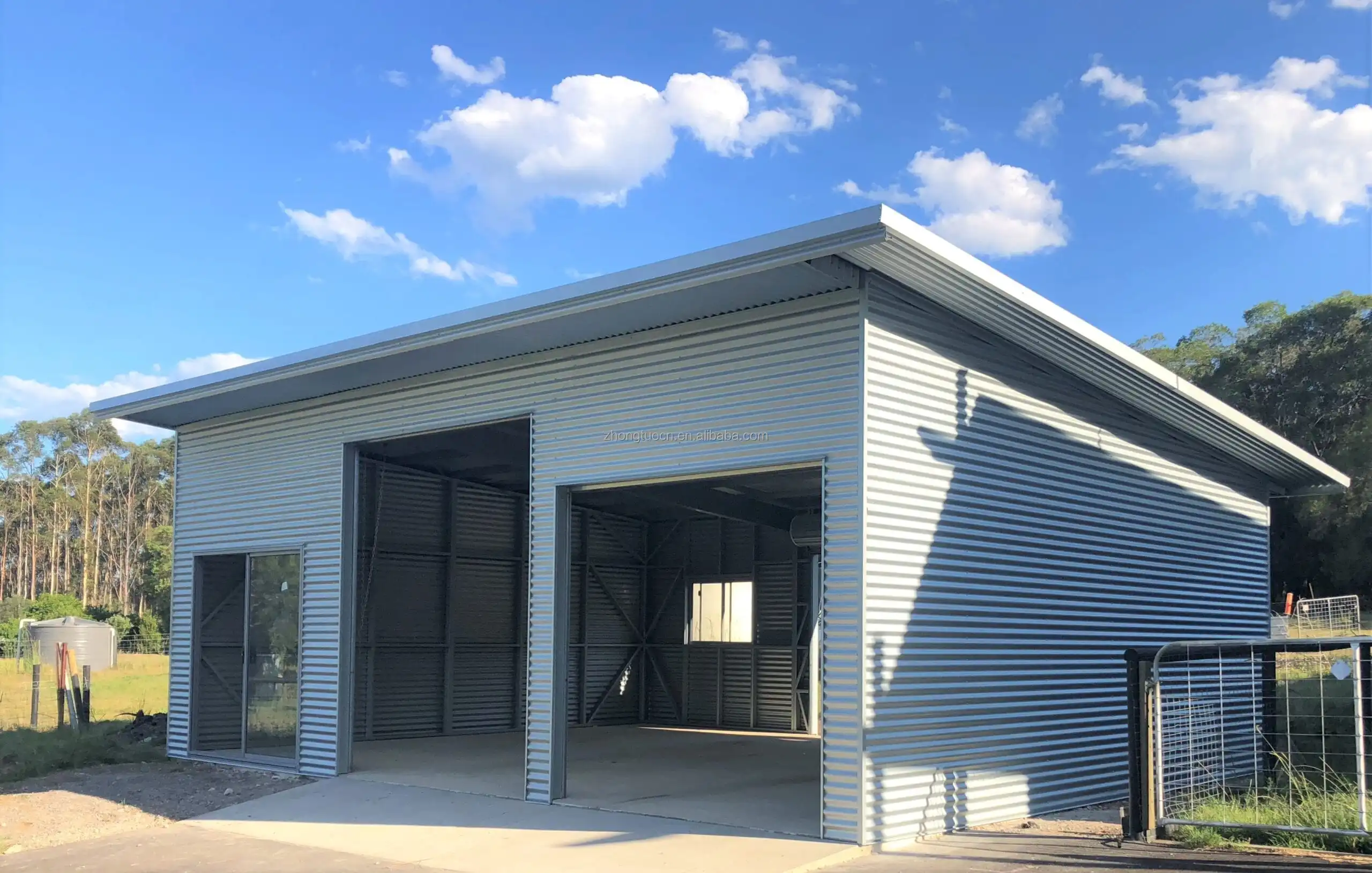

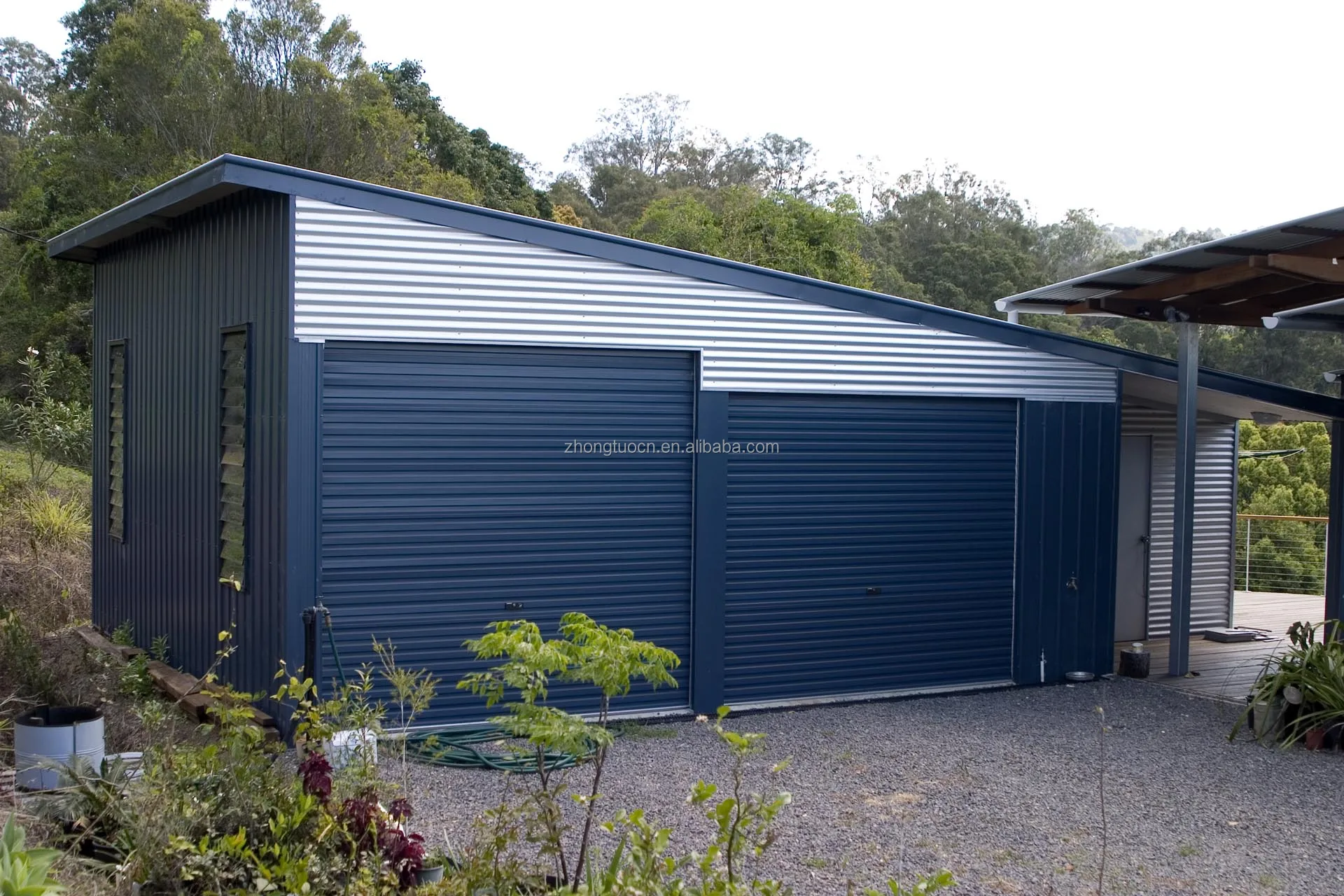

Roofing sheet installation and application:
Steel Roof Sheet Double Layer Roll Forming Machine | ||||||||
1.Formed Material | PPGI,GI,AI,GL | Thickness:0.3-0.8mm Width:As per profile drawing | ||||||
2.Decoiler | Hydraulic automatic decoiler | 5Tdecoiler(will give you as free） | ||||||
3.Main body | Roller station | 16+18 +16 rows(As your requirement) | ||||||

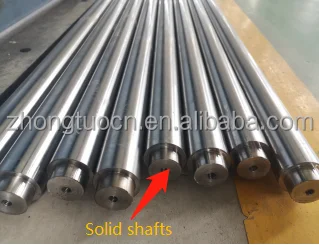

Diameter of shaft | 80mm solid shaft | |||||||
Material of rollers | 45# steel, hard chrome plated on the surface | |||||||

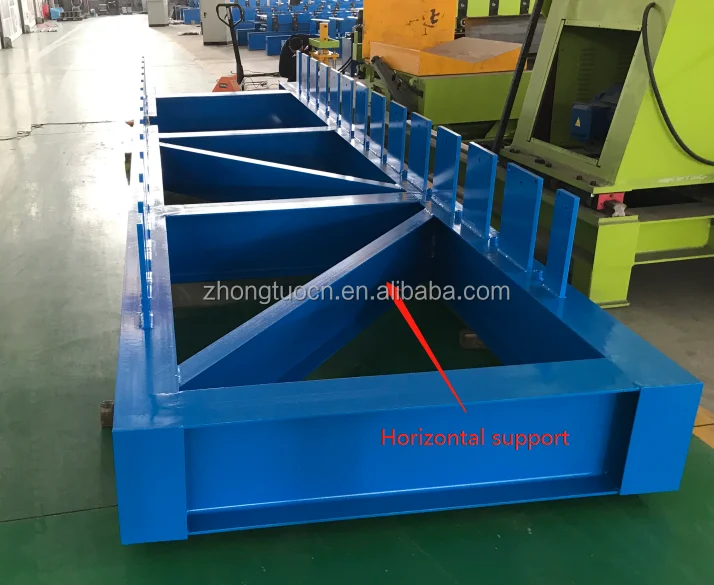

Machine body frame | 350 H steel | |||||||
Drive | Chain transmission | |||||||
Dimension(L*W*H) | customize | |||||||
Weight | 11.5T | |||||||
4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||||||
5.Power | Motor Power | 7.5KW | ||||||

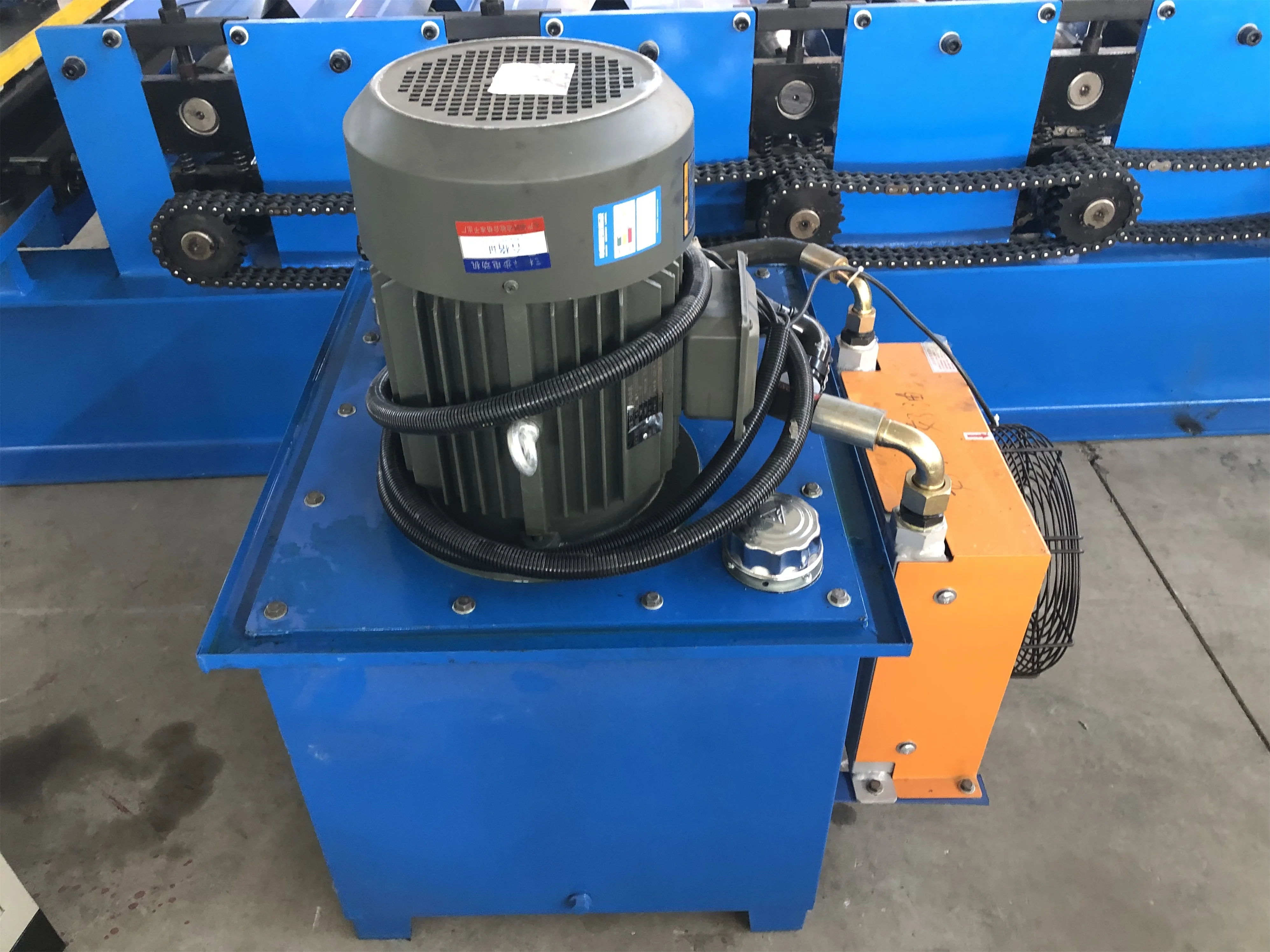

Hydraulic system power | 5.5KW | |||||||
6.Voltage | 380V 50Hz 3Phase | As your requirement | ||||||

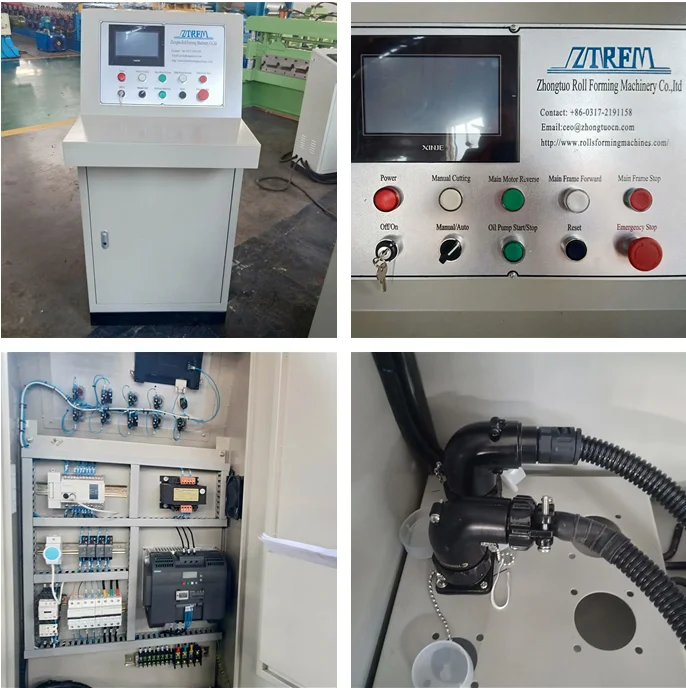

7.Control system | Electric Box | Customized(famous brand) | ||||||
Language | English(Support multiple languages) | |||||||
PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||||||
18.Forming Speed | 15-20m/min | The speed depends on the shape of the tile and the thickness of the material. | ||||||
More detailed pictures for the whole production line:
Hydraulic decoiler
1.Automatic working
2.Hydraulic expansion
3.With press arm to keep the coil from loosing
4.With braking system and speed sensor to match the speed with other machines
Manual decoiler
1.Working type:Unpowered
2.With hand-wheel for easy operation
3.With manual braking system

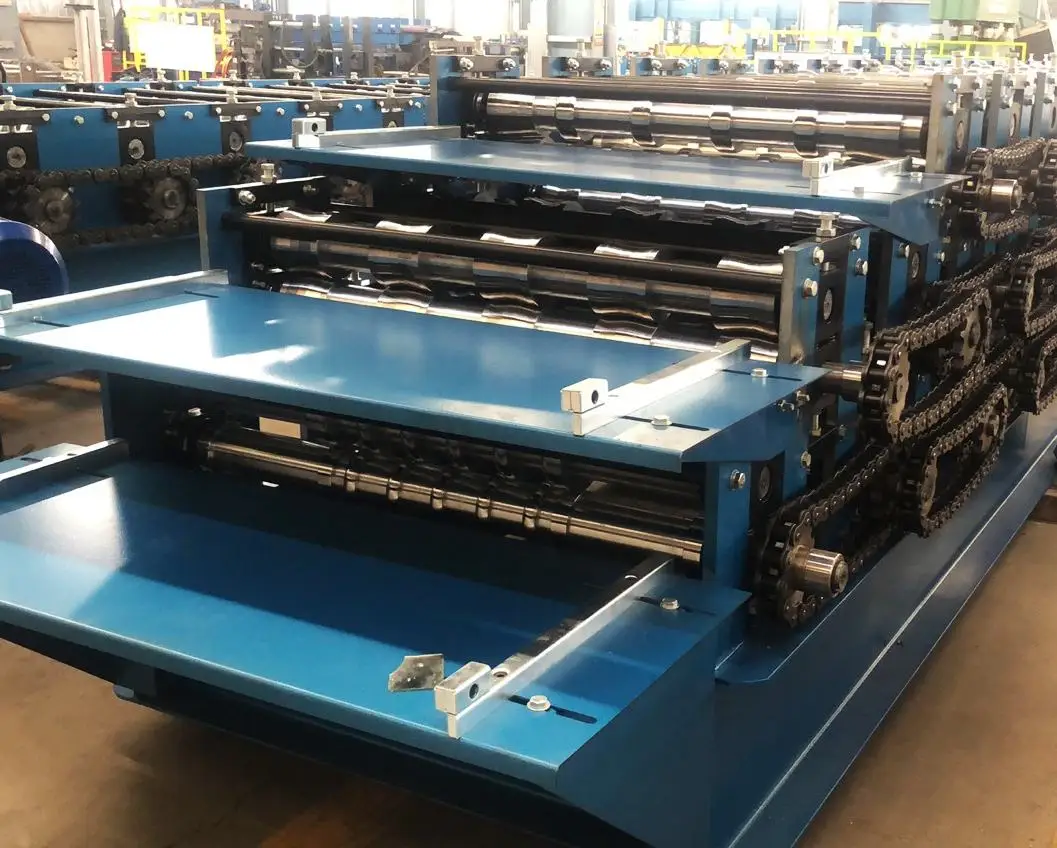

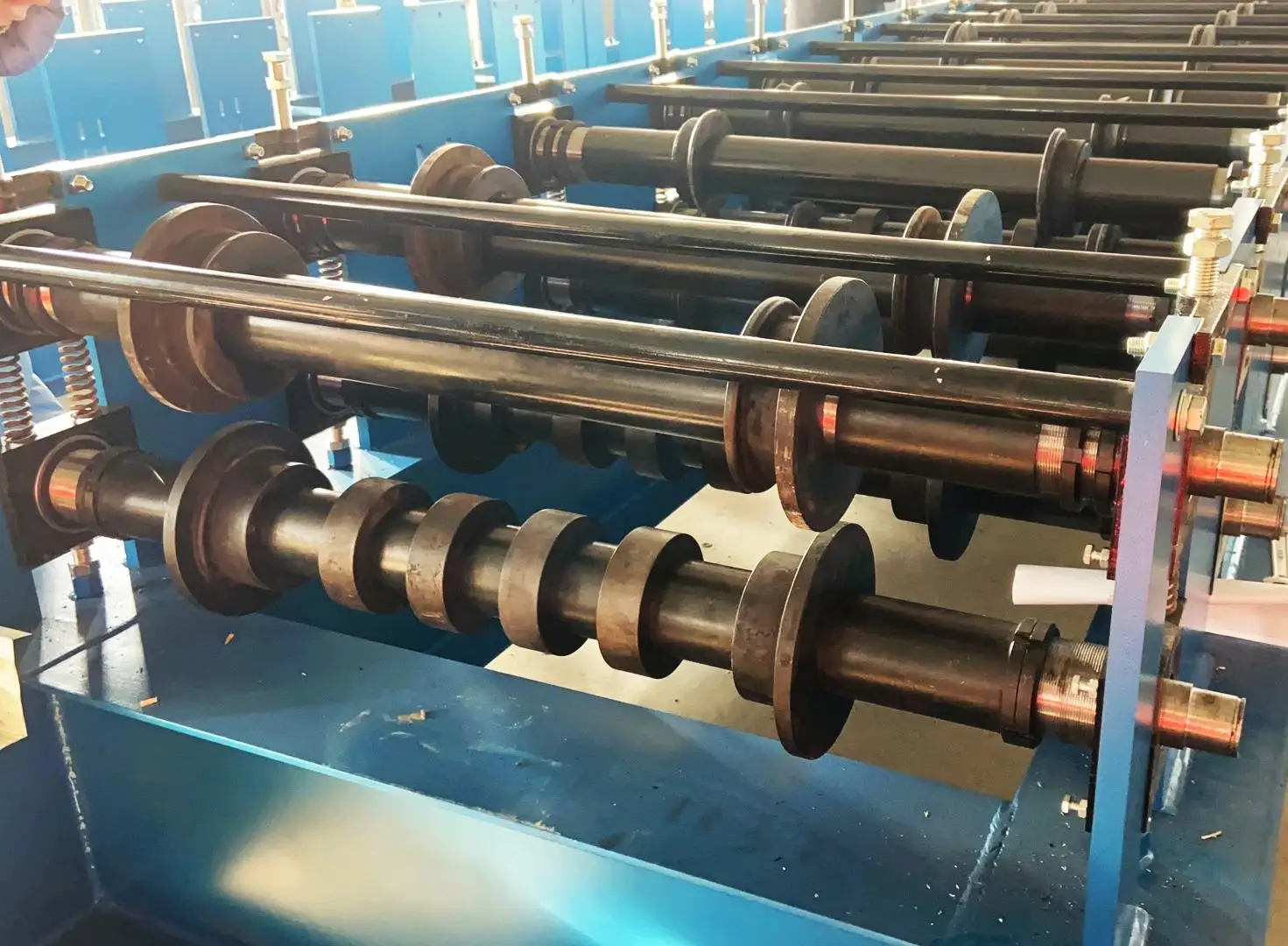

Main roll former
Stainless rollers as the feeder,will protect the material from scratching the surface

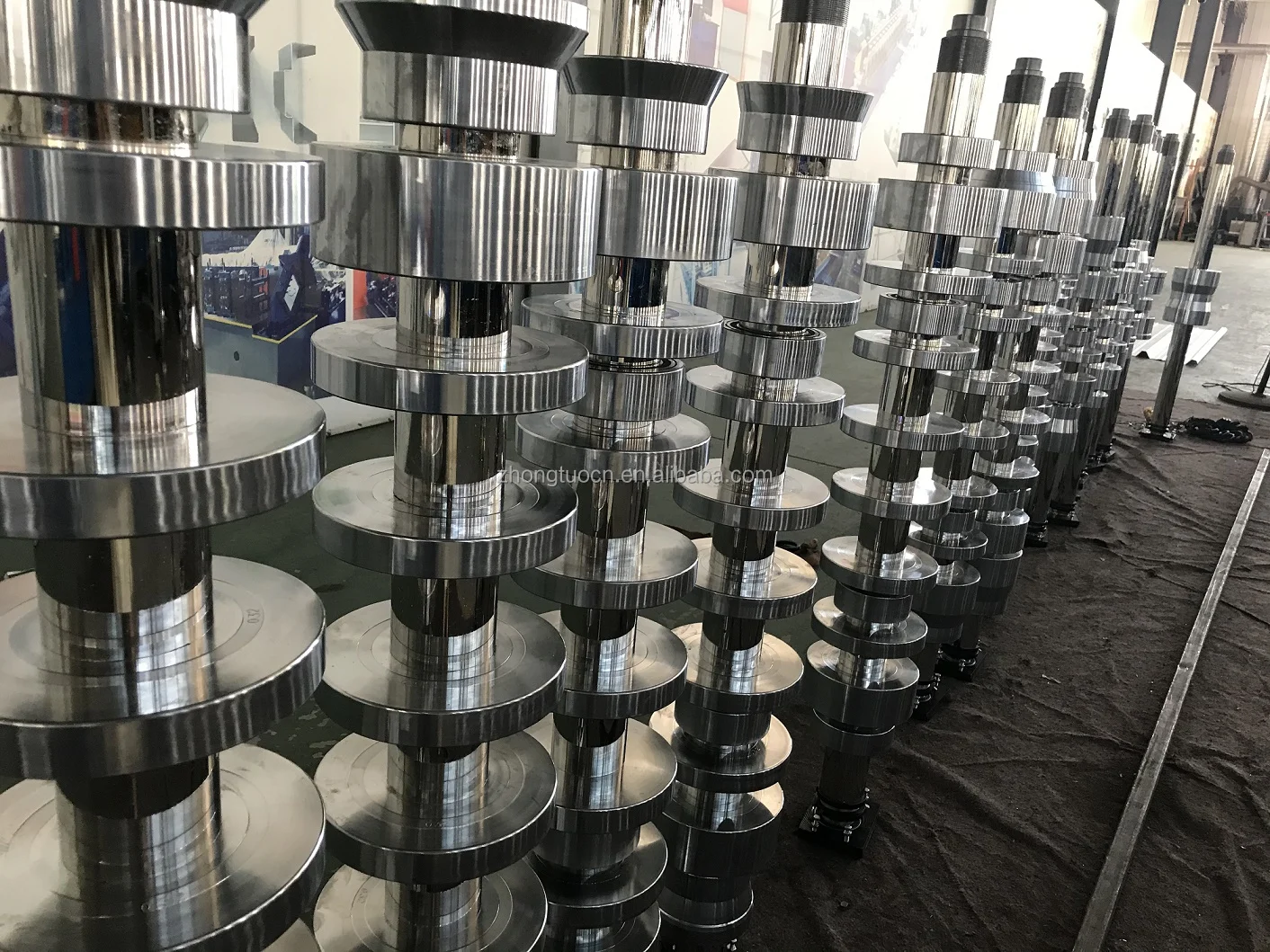

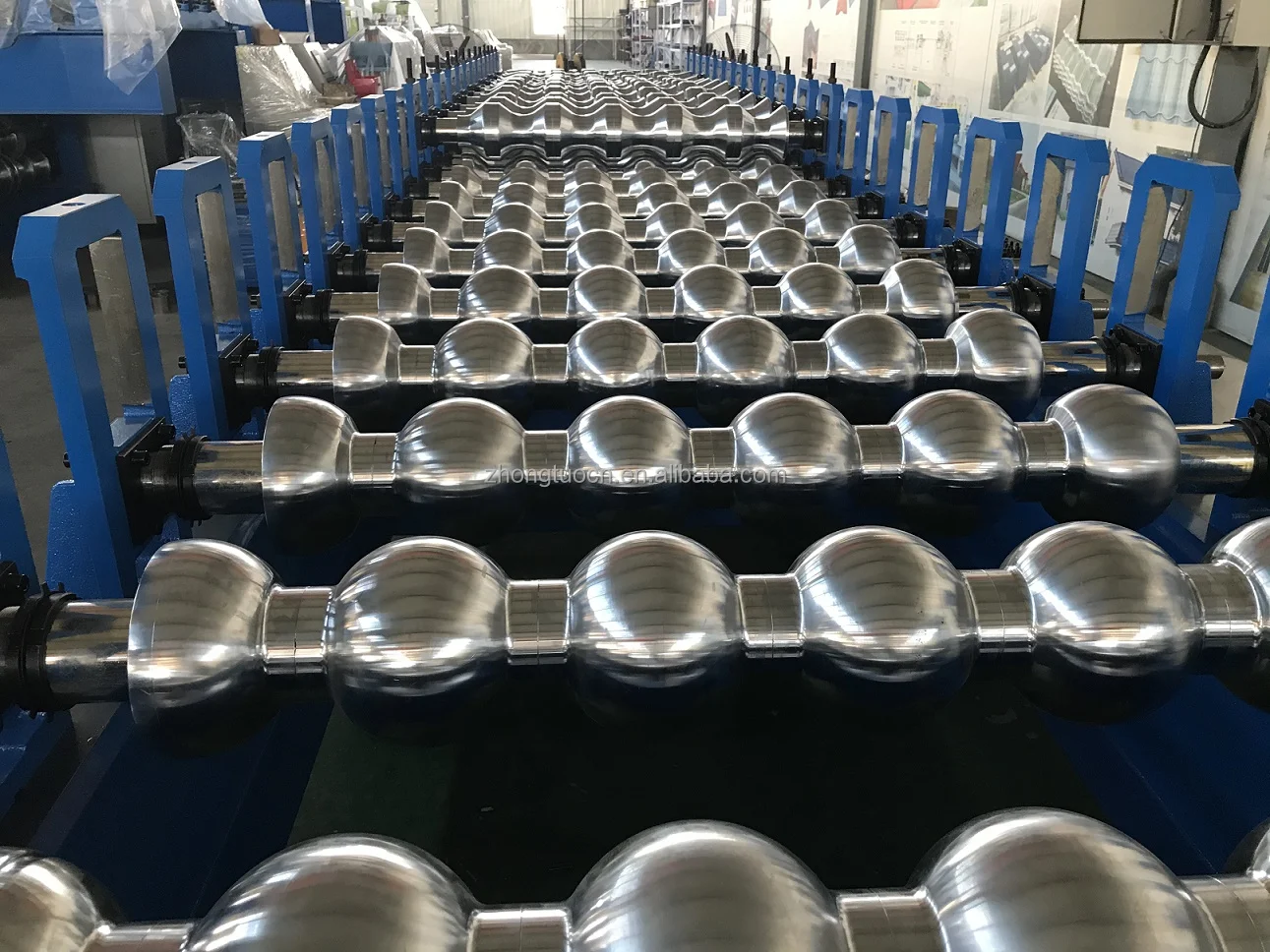

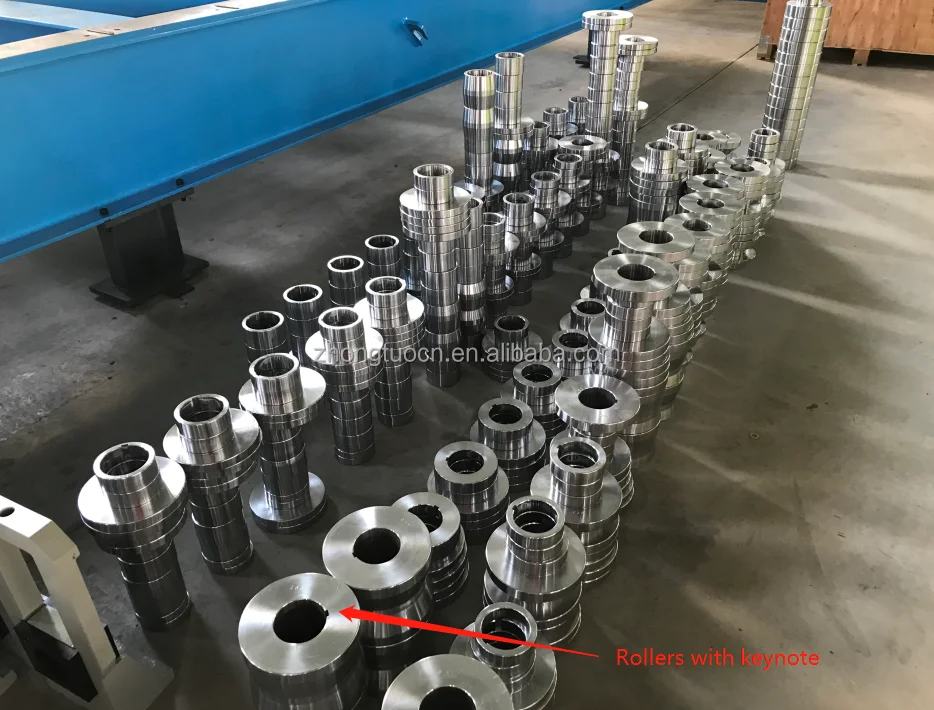

Rollers
1.Surface with chromed treatment2.Material:45# steel

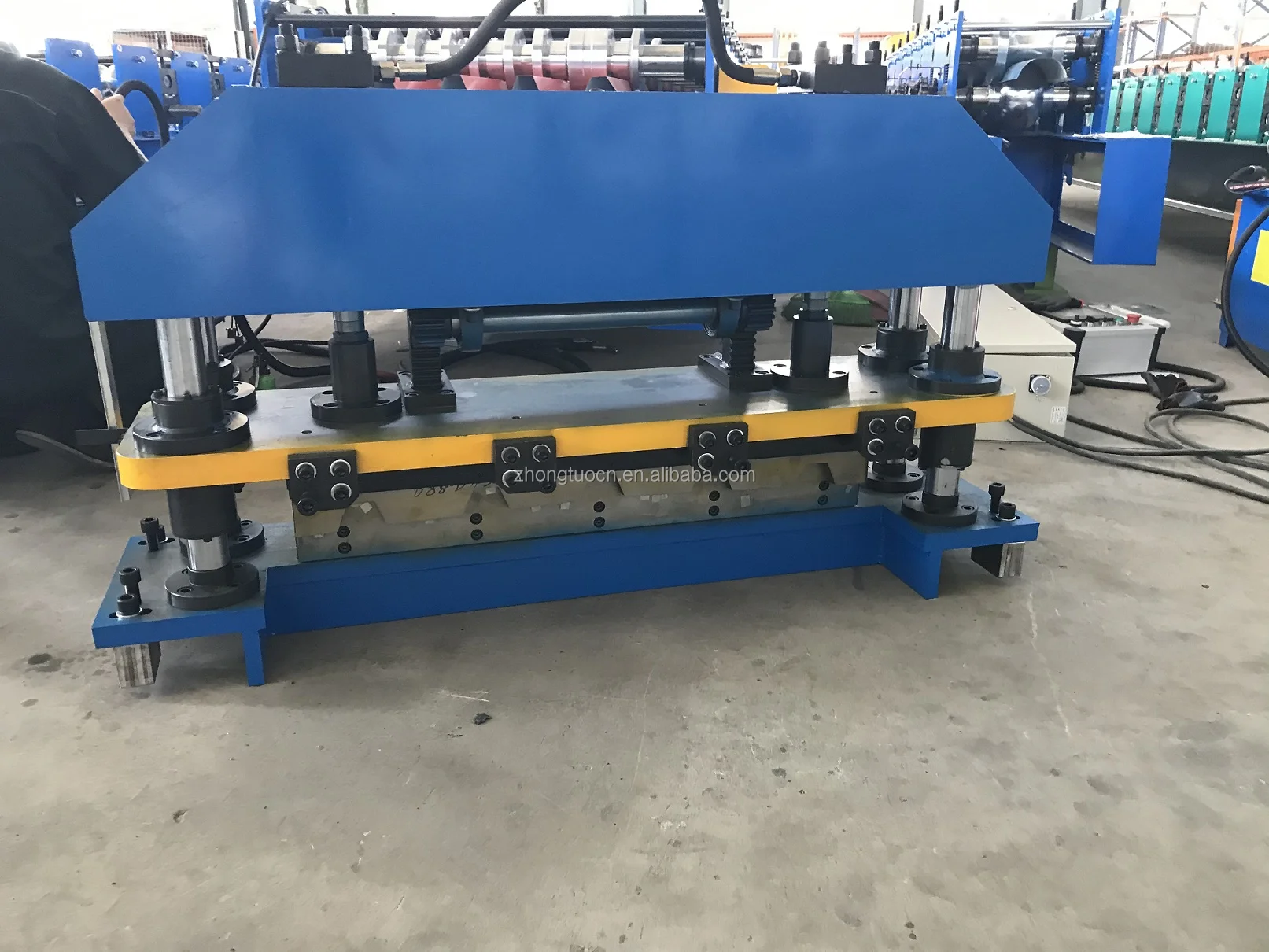

Cutter
1.Four-guide post cutting frame2.Strong cutting blade
Product table
1.Manual or hydraulic as optional
2.Length:3-12m as request
2.Length:3-12m as request
Cooperated brand
Production process

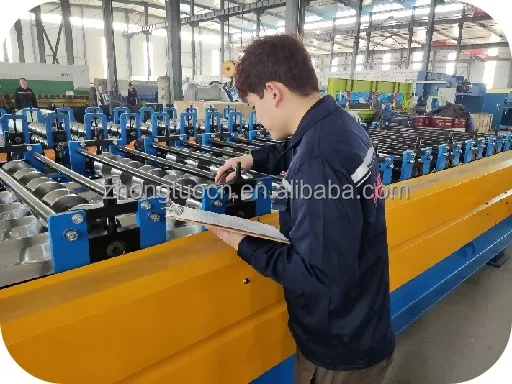

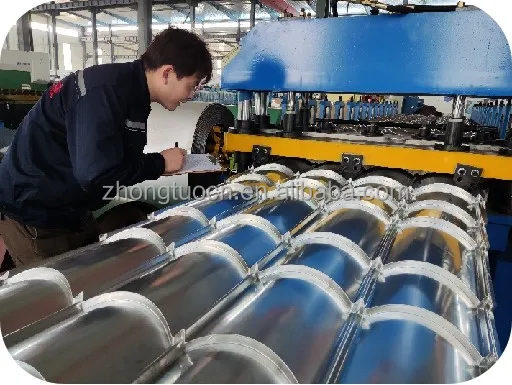

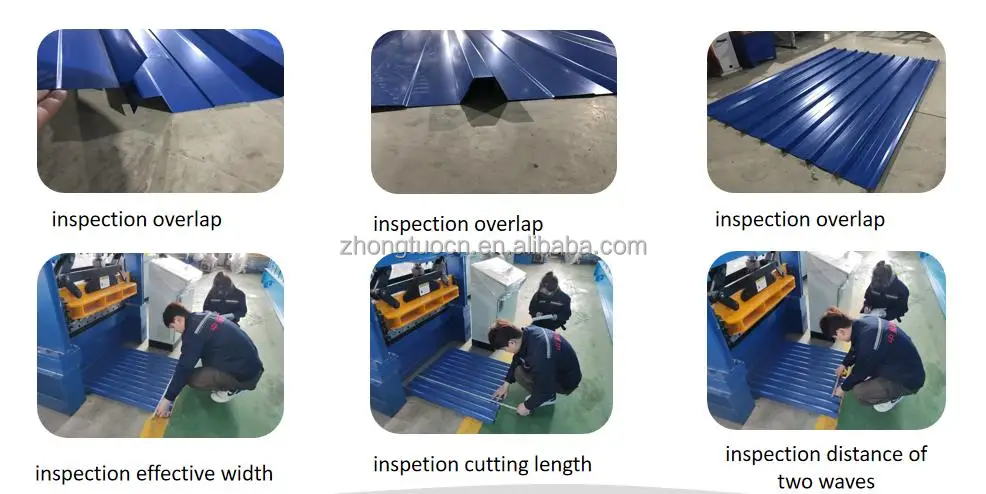

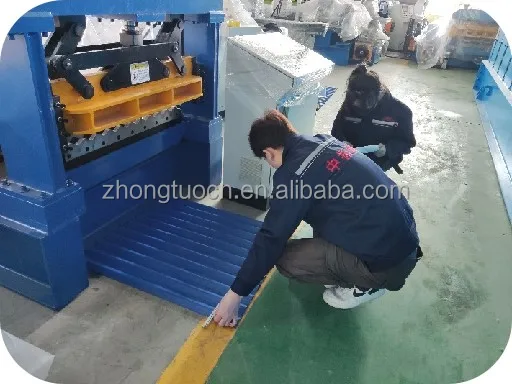

Finished roll forming machine testing before delivery:

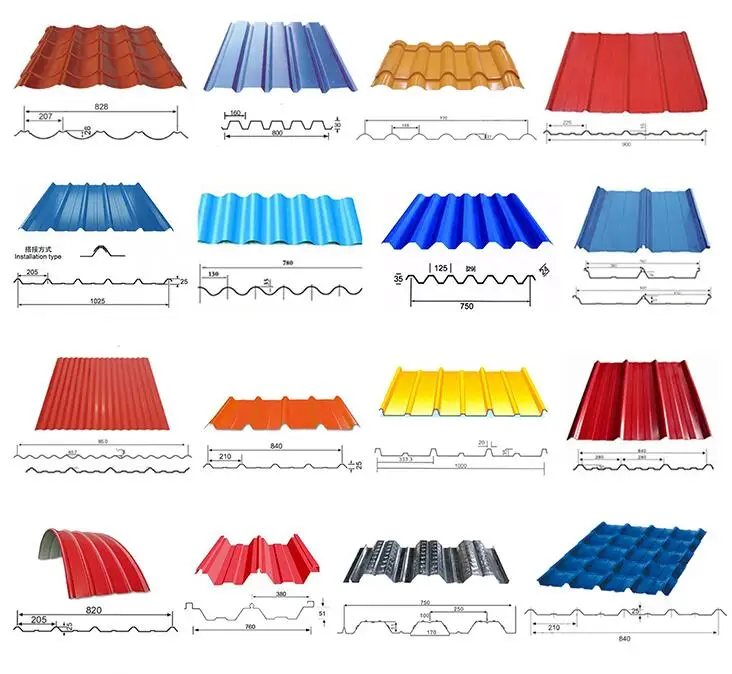

Machines are customized as your drawing,here hot sale drawing profiles for your reference.
Why Choose Us
Recommend Products
Company Profile
Customer Photos

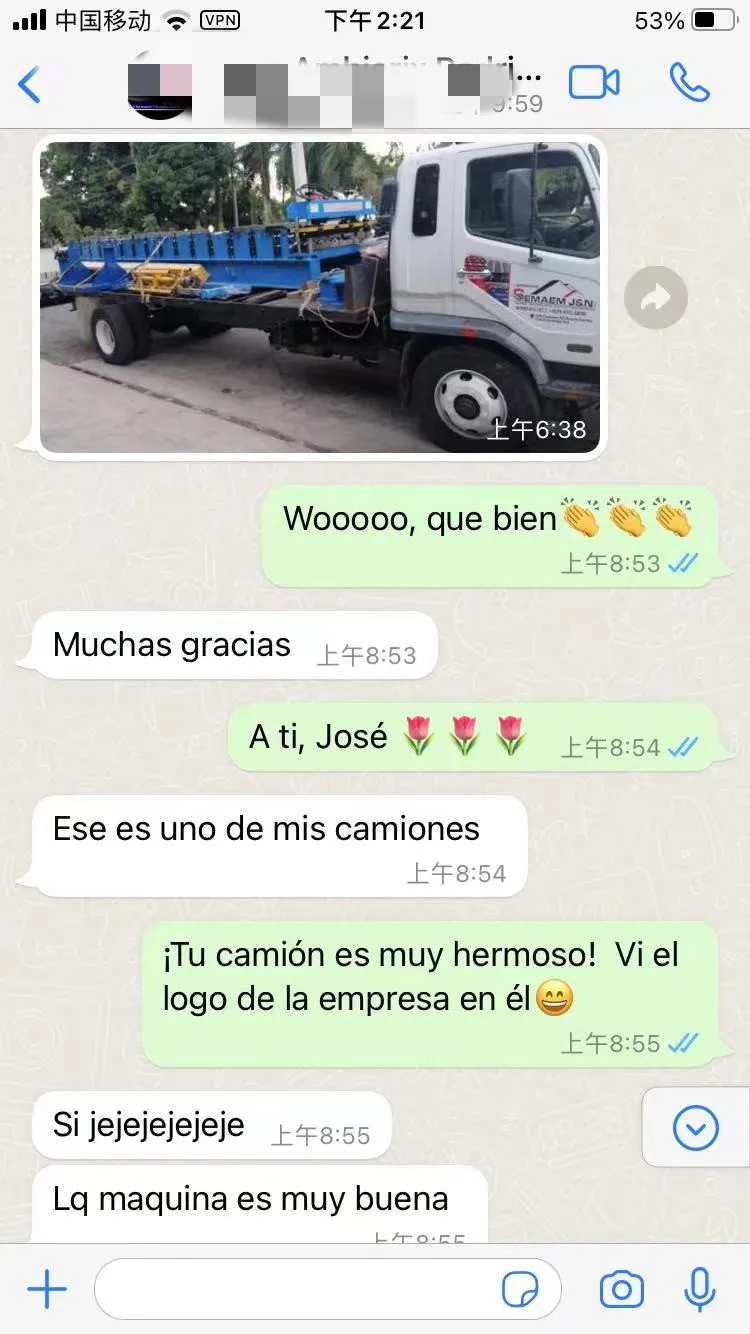

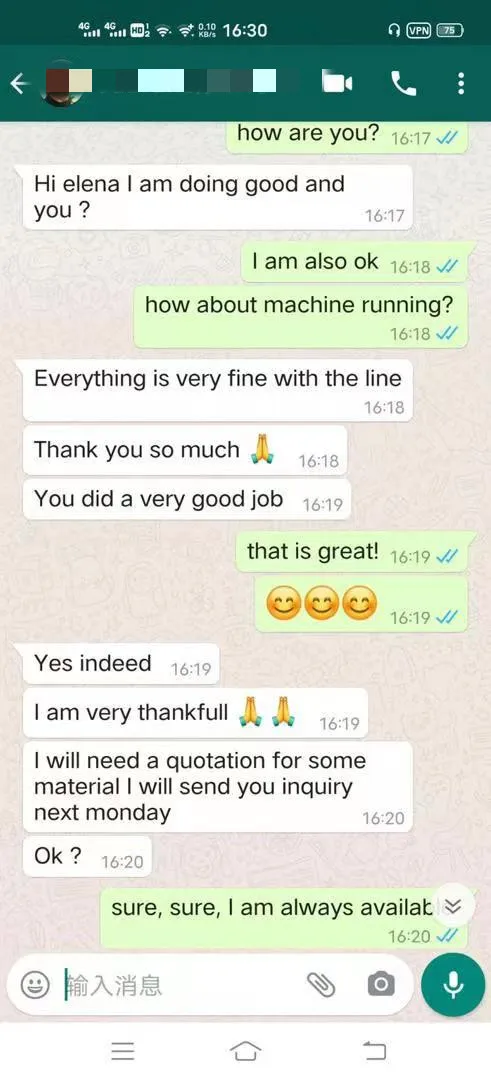

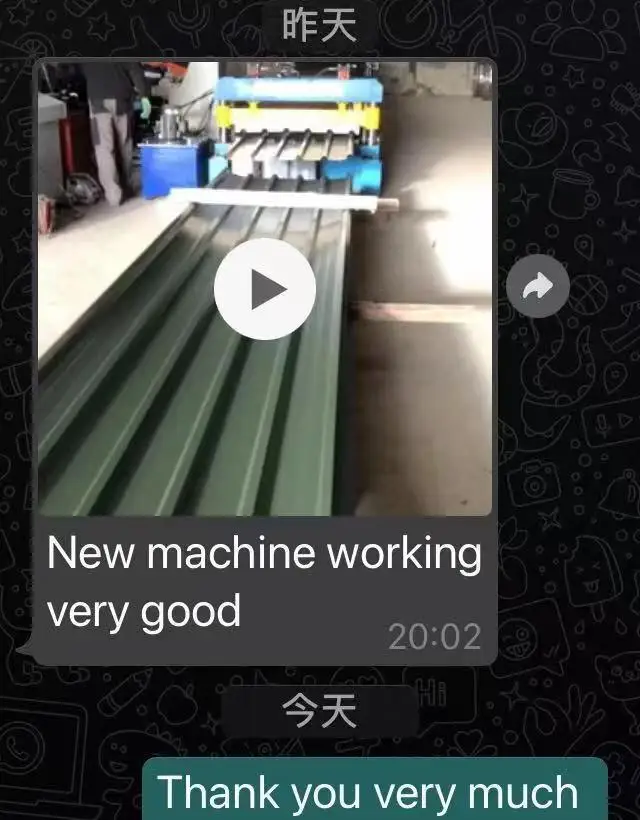

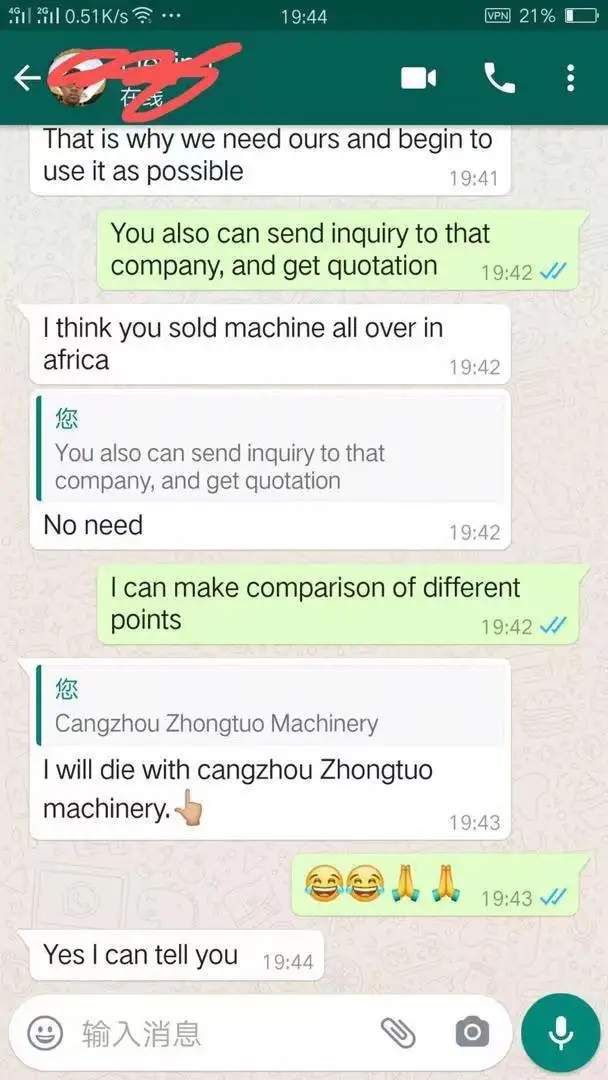

Customer good feedback of our machines:
Product packaging
