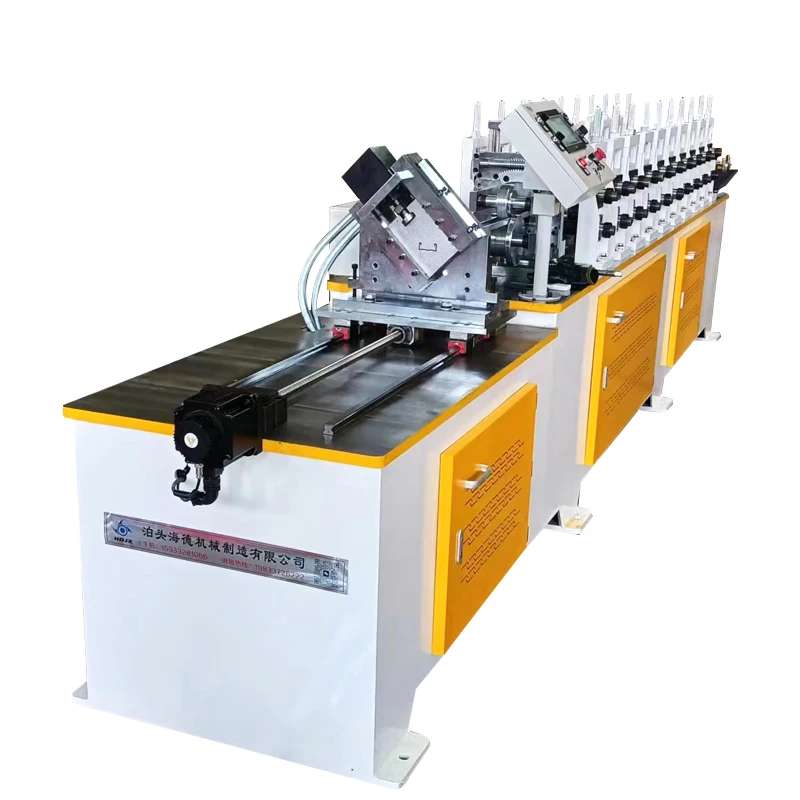

Haide Automatic C channel steel stud and track keel forming machine frame making machine
- Category: >>>
- Supplier: Botou Haide Machinery Manufacturing Co. Ltd.
Share on (1601265962338):
Product Overview
Description
Alibaba certified production plant for 16 Years
Building decoration profile roll forming machine Manufacturer
Working Flow
Uncoiling — Sheet guiding — Roll forming — Measure length — Pressure pattern — Cutting — Panels to product stand
Uncoiling — Sheet guiding — Roll forming — Measure length — Pressure pattern — Cutting — Panels to product stand
Machine detail parameter | ||||
No | Item | Data | ||
Material | Raw material | Galvanized steel coil GI GL PPGL or PPGI | ||
Thickness | 0.3-1.0 mm | |||
Machine | Roller station | 13 or depend on customer' drawing | ||
Shaft diameter | 55 mm | |||
Solid shaft material | High grade 45# steel with Cr12 mov coated, quenching & tempering & treatment | |||
Roller material hardness 30-40 HRC | Cr12 | |||
Working speed | 30m/min | |||
Cutting blade | Hardness | 50-65 HRC | ||
Cutting tolerance | ± 1mm | |||
Material | Cr12 | |||
Operate | Hydraulic cutting | |||
Power | Driving way | Chain 1.0 inch | ||
Main motor | 5.5 KW | |||
Pump motor for cutter | 4 KW | |||
Voltage | Delta made in Taiwan | |||

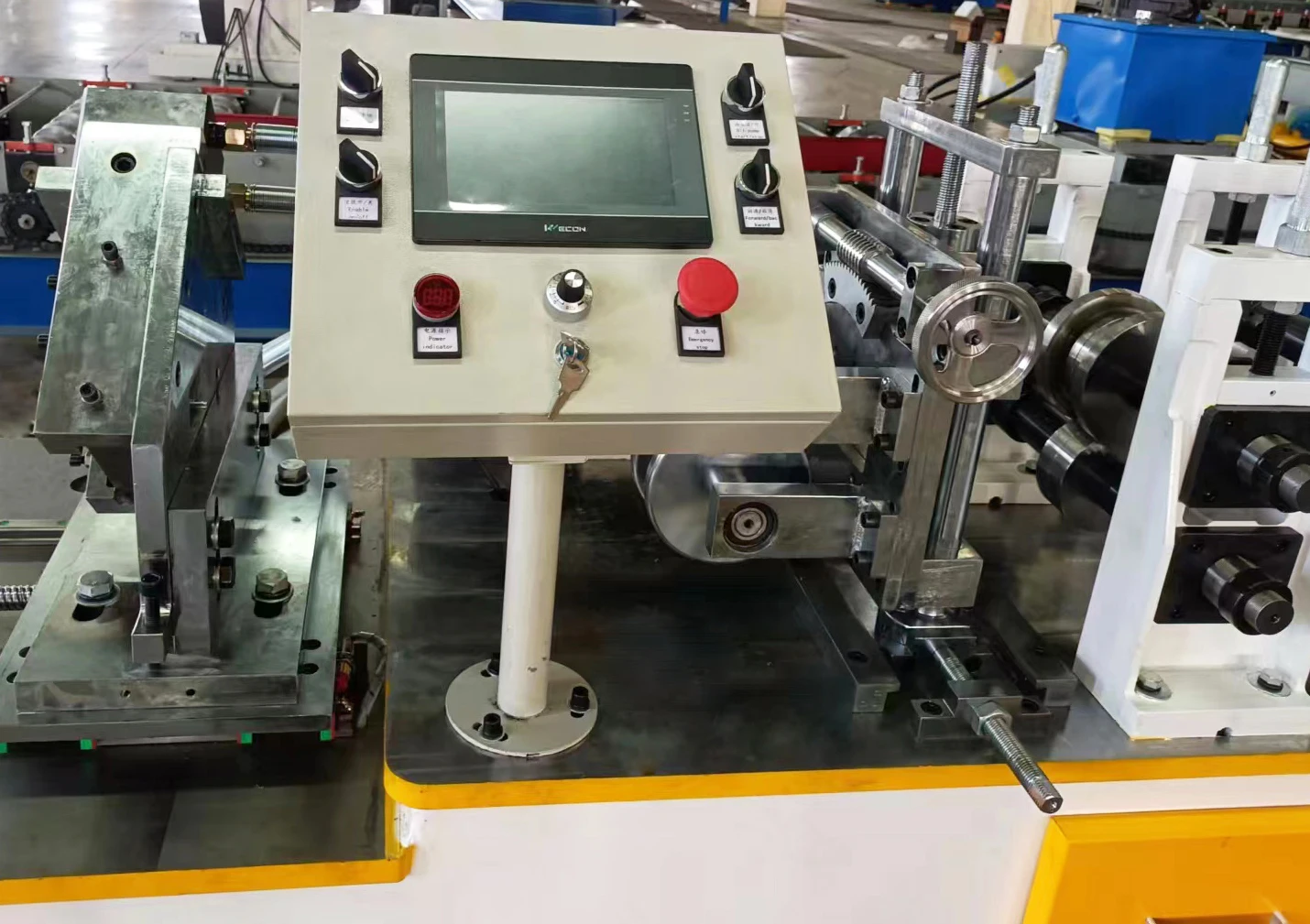

Control system | PLC brand | Touchable screen | ||
Screen | Chinese and English or add customer need language | |||
Language | Chinese and English or add customer need language | |||
Details Images

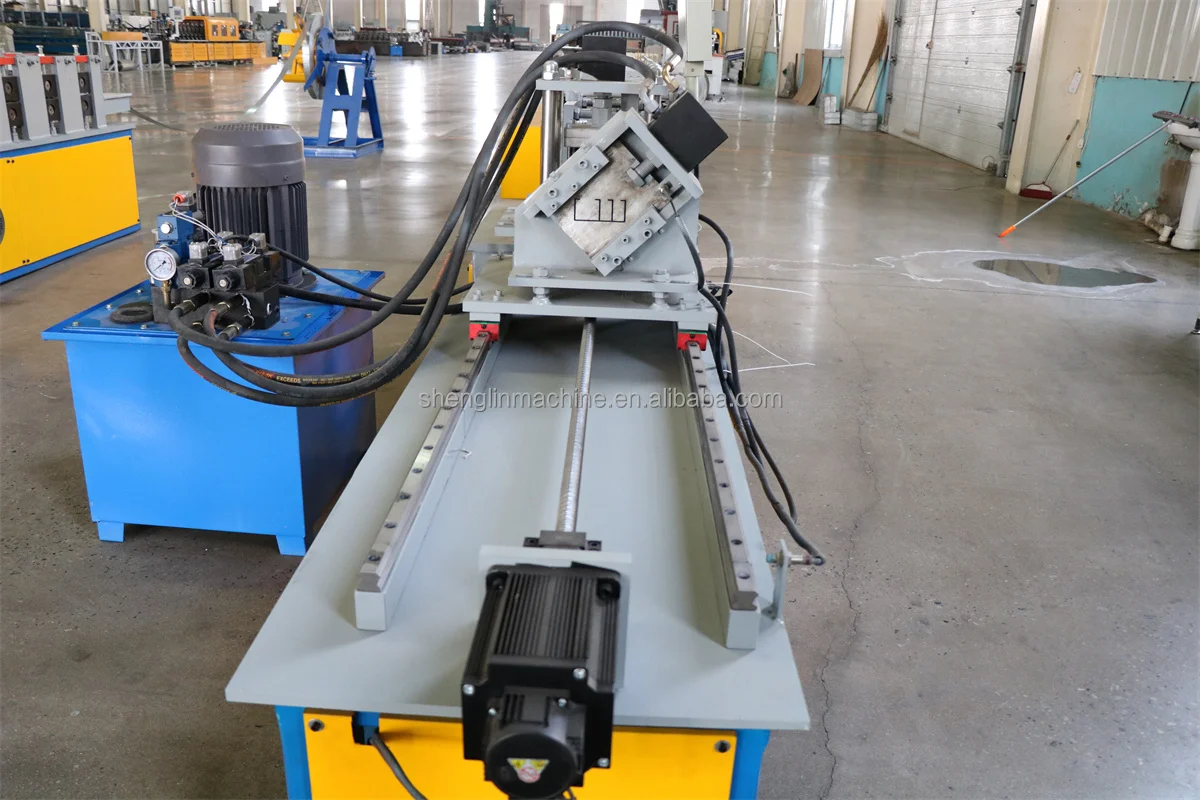

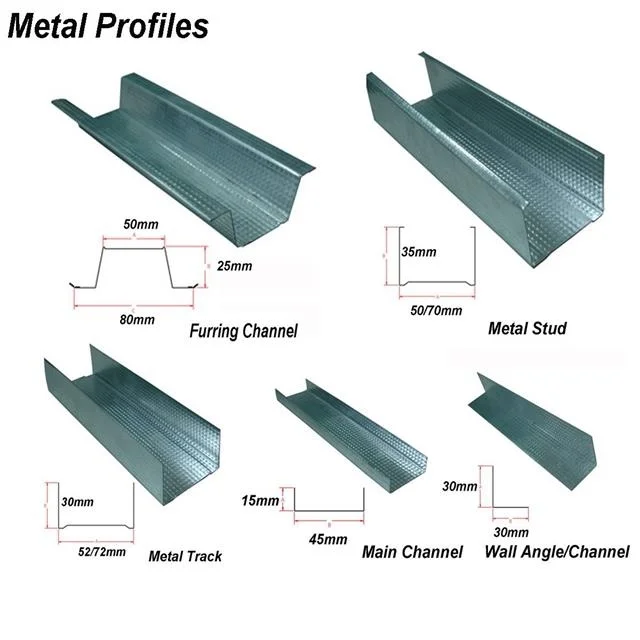

Stud roll forming machine
C stud (CD) roll forming machine
Save the cost of purchasing machinery
Quick size change, easy to operate.

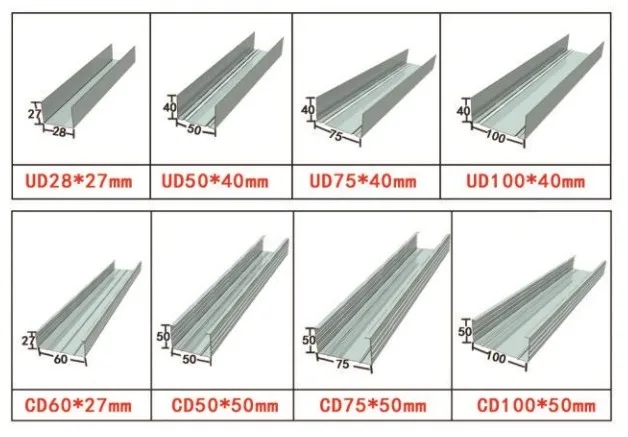

Track roll forming machine
U stud (UD) roll forming machine
One machine can produce 50,75,100 sizes.
Save the cost of purchasing machinery
Quick size change, easy to operate.
Detailed description
The company has vigorously introduced the German professional roller design software COPRA, which can design various rollers according to customer needs

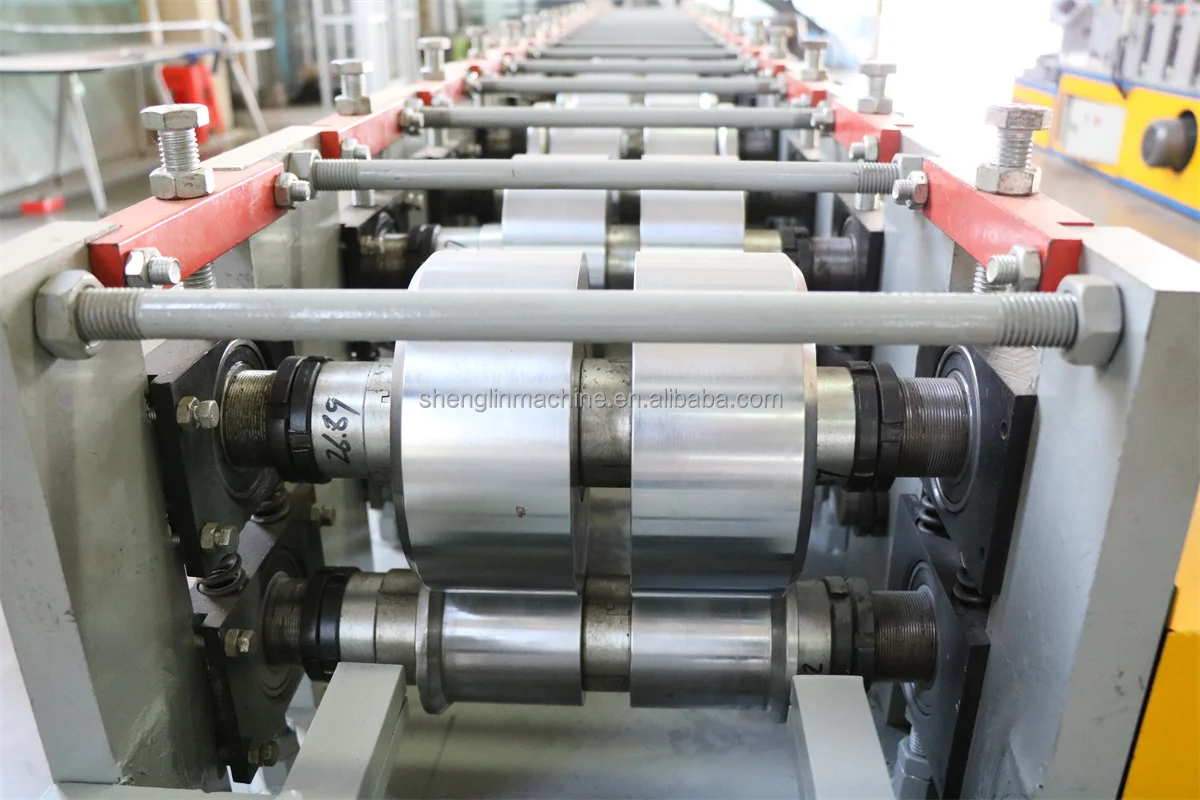

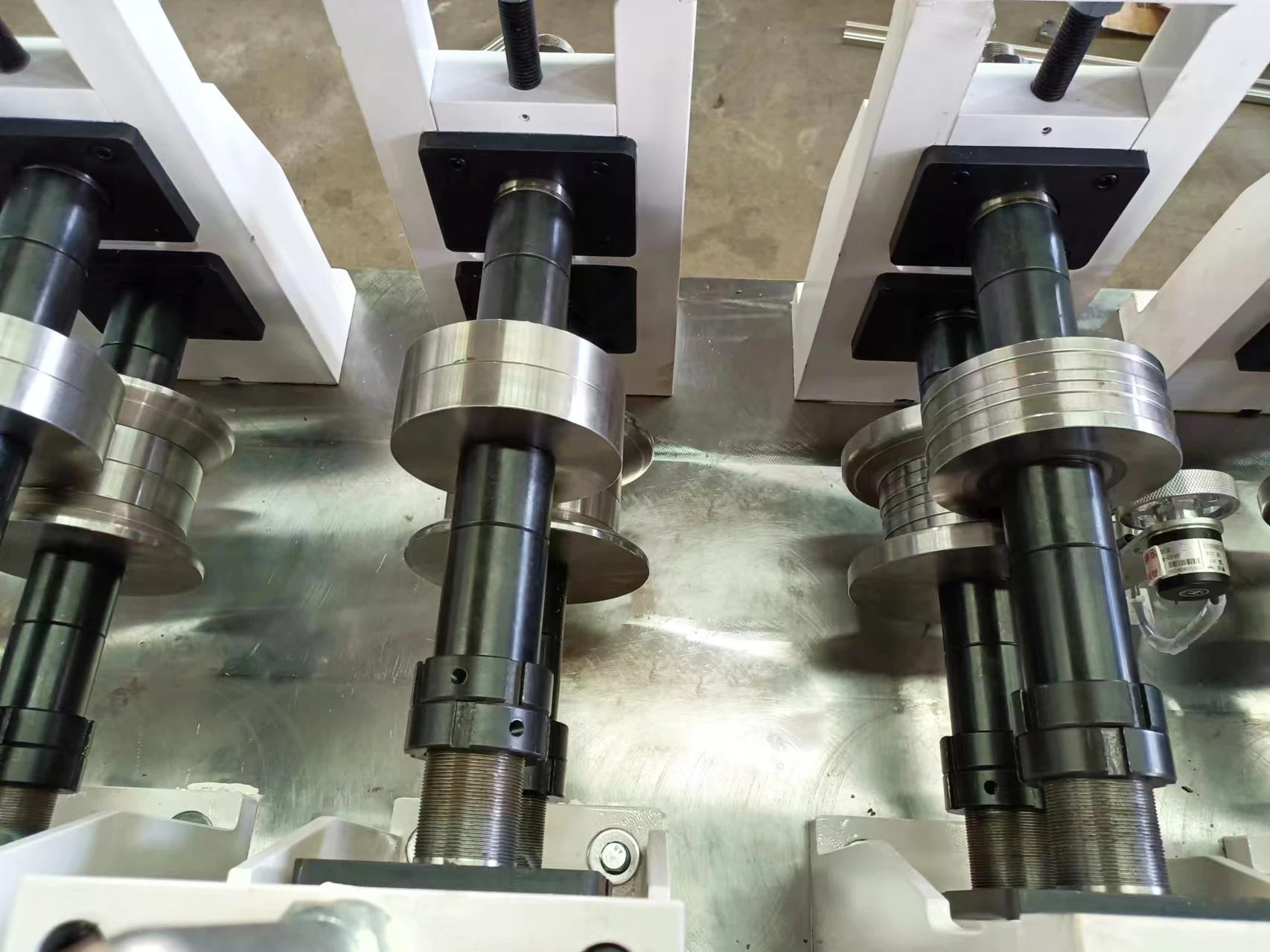

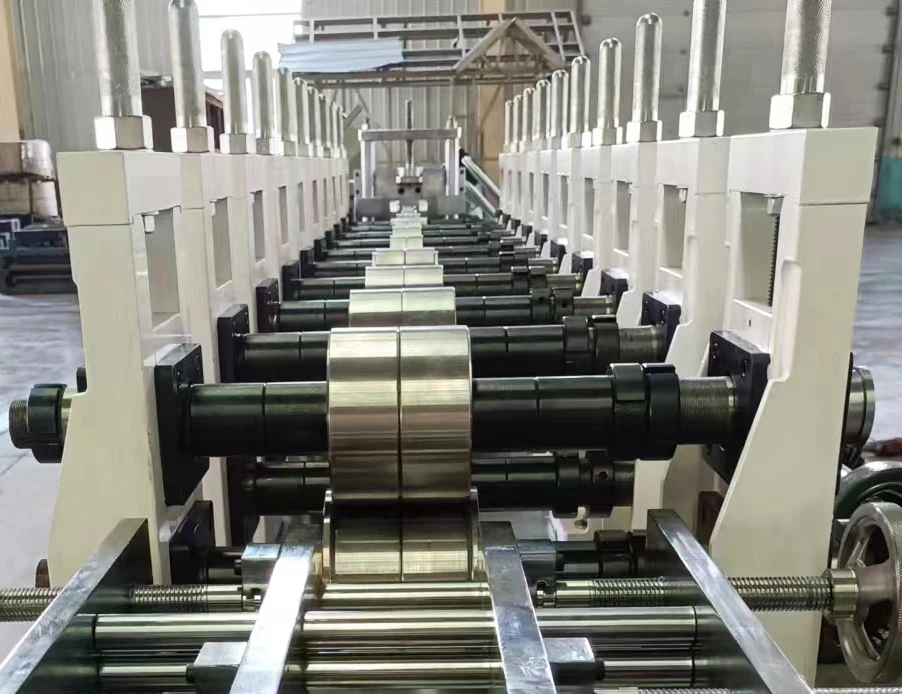

Cr12 roller
All machines are finished with Cr12 rollers.
Shaft hardness 58-60 .
Hardening depth 0.8mm .
Surface roughness ra0.1m-0.35m .
High quality shaft with a service life of over 15 years.

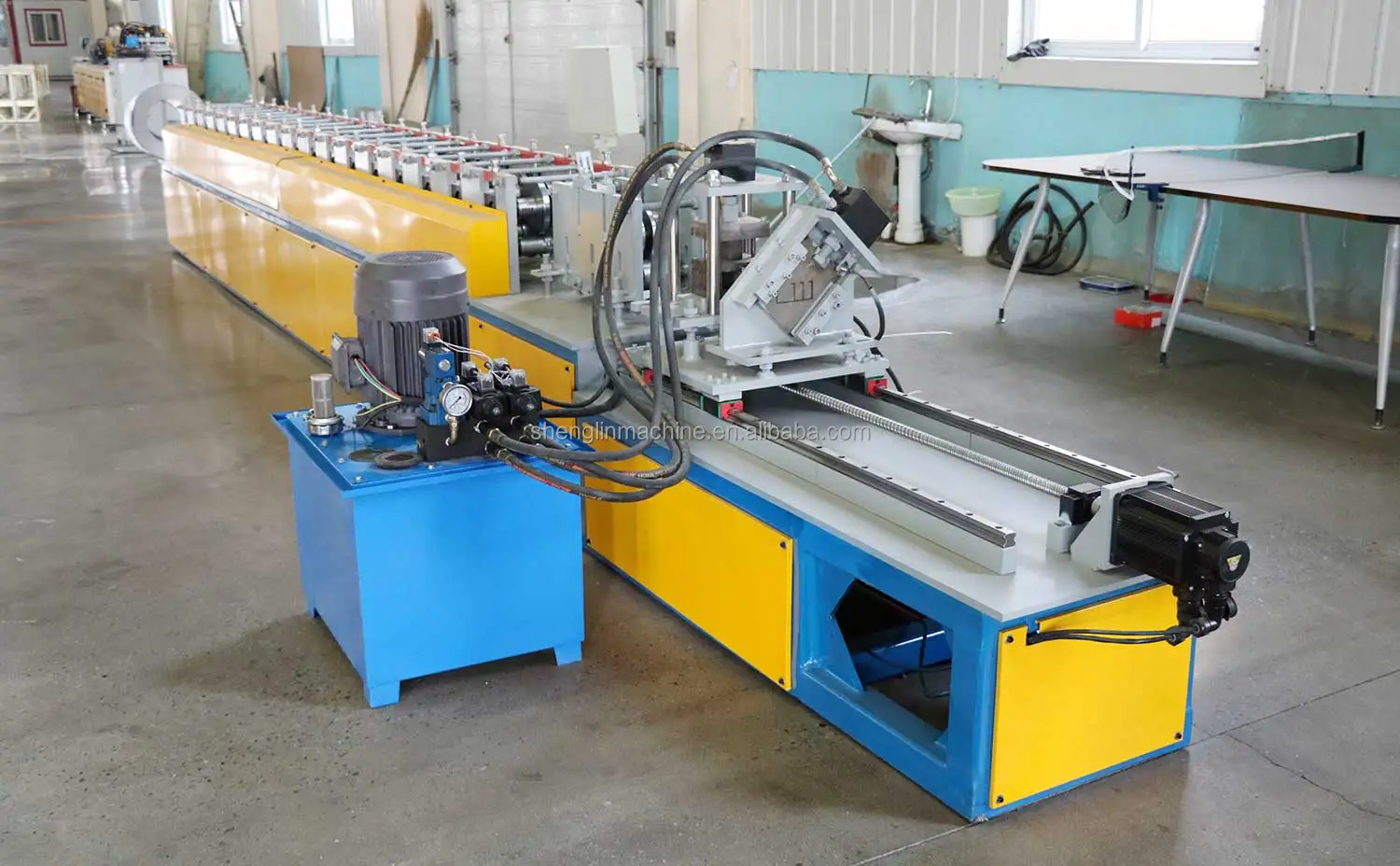

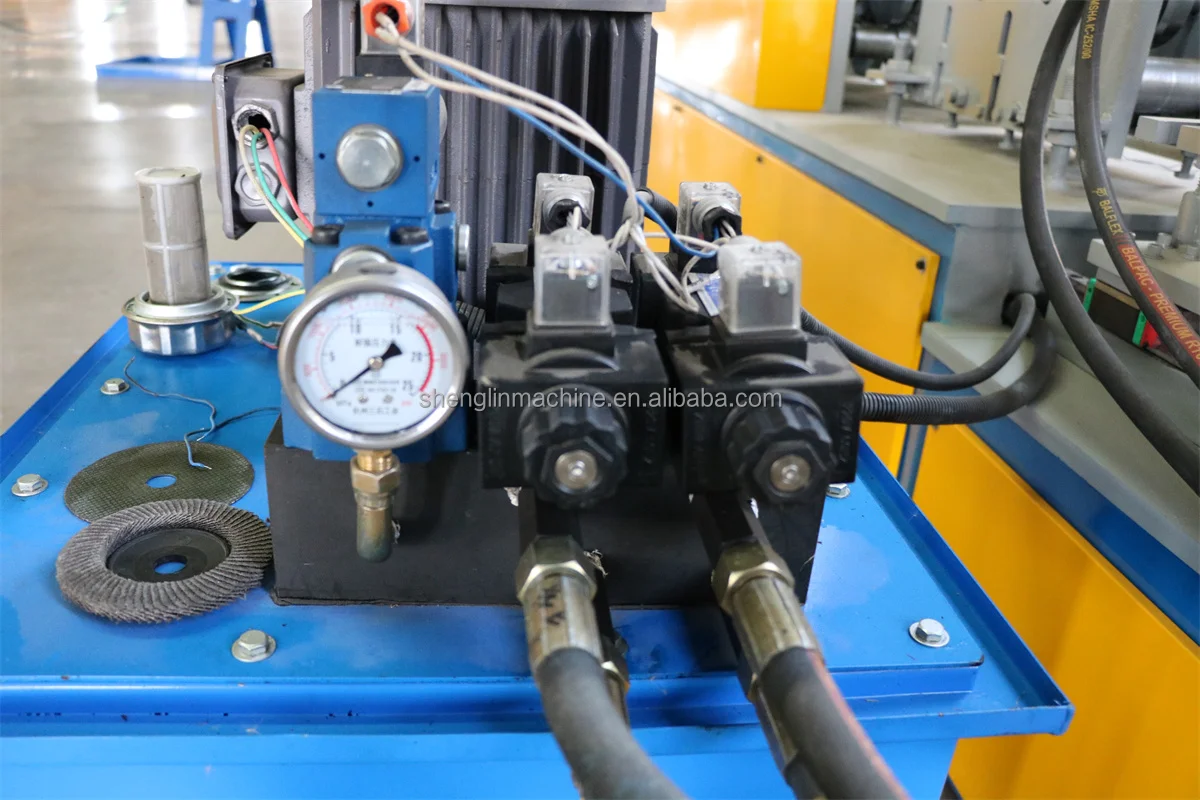

Hydraulic oil pump
Imported brand solenoid valve
Strong anti-interference ability
Stable voltage

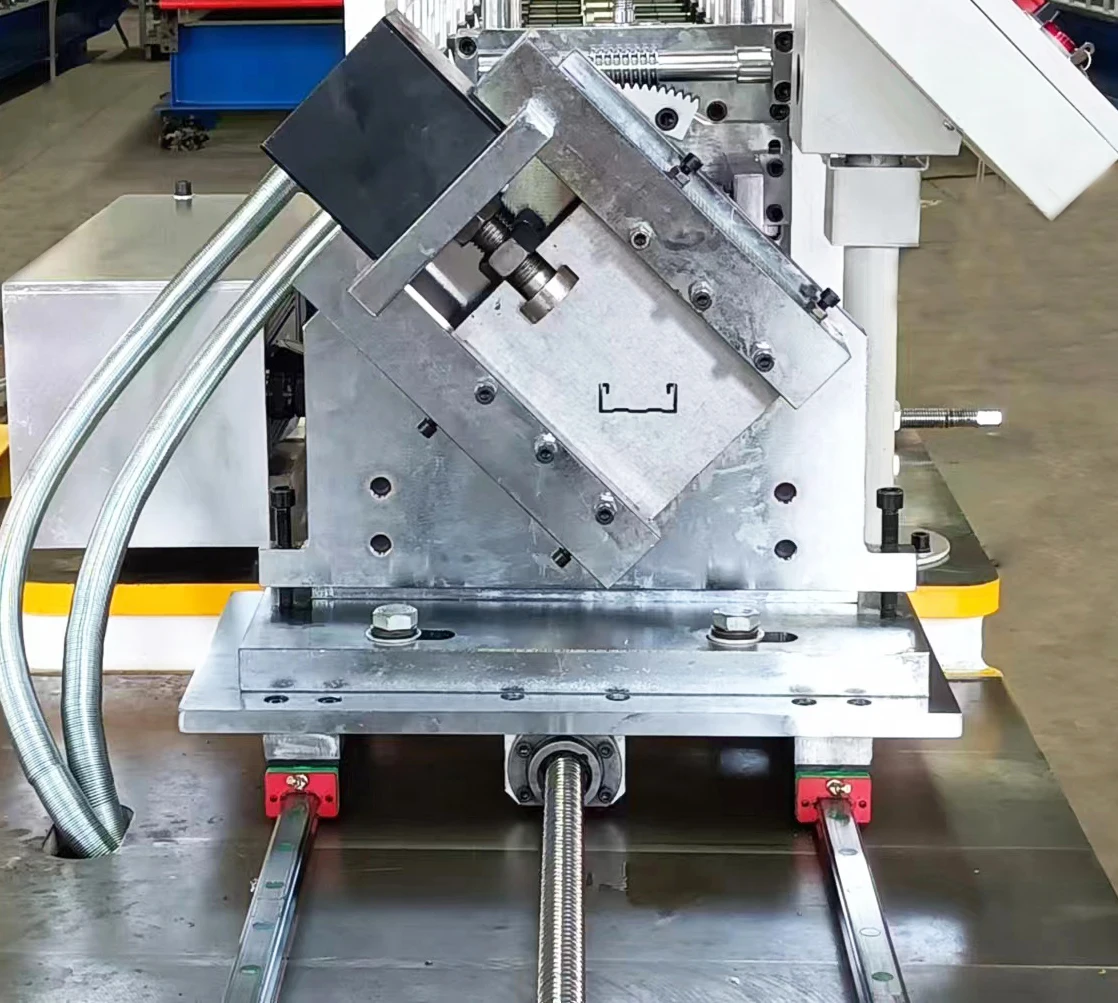

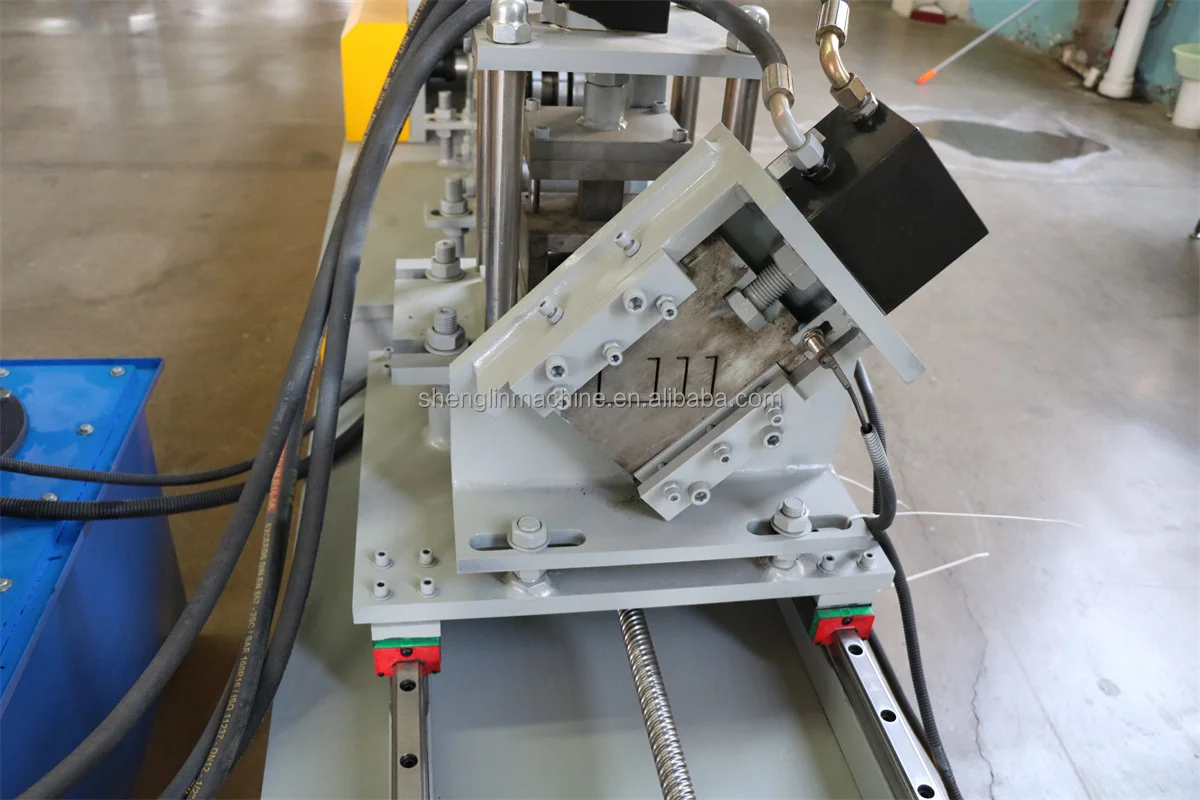

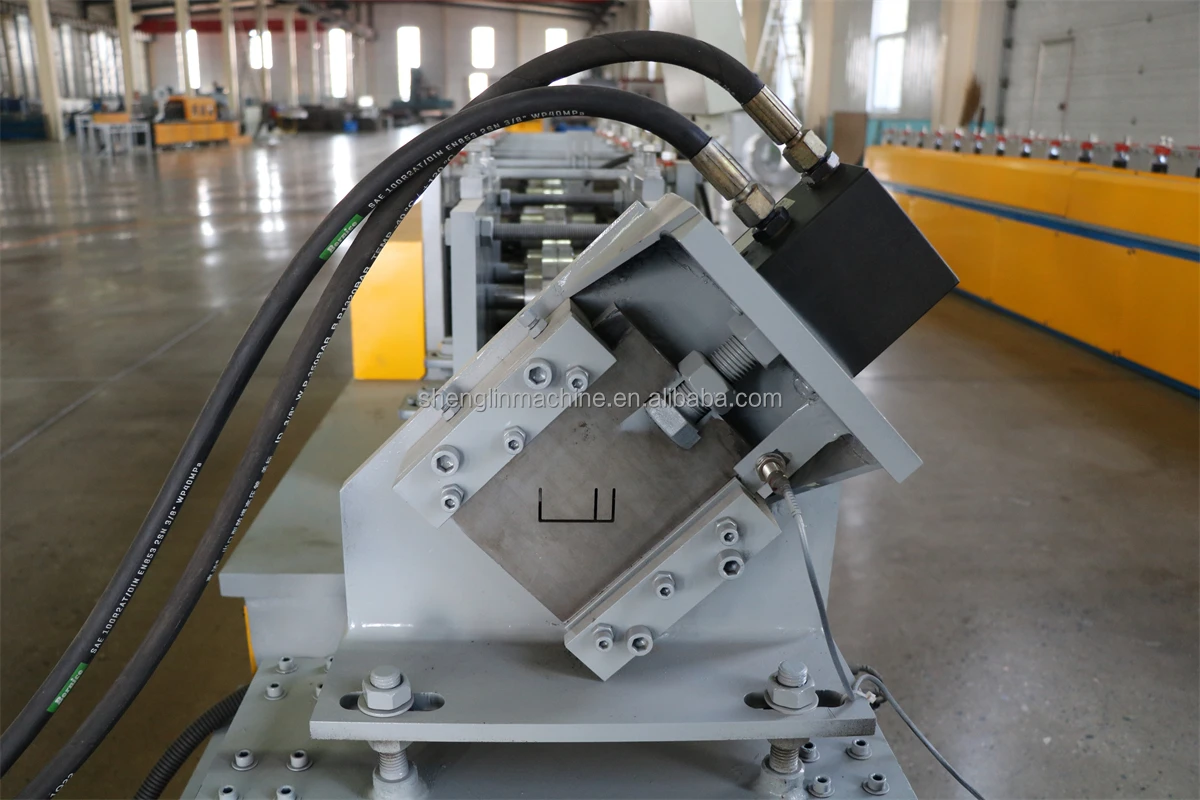

High speed non-stop cutting
High carbon steel double guide cutting support
Servomotor drive
Production cutting speed 30m/min
The blade is SKD-11
Life span up to 15 years

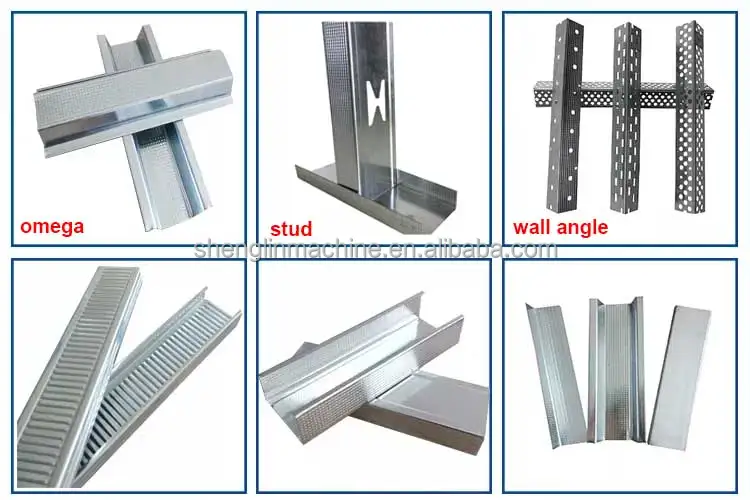

More product choices
Welcome to consult more other products
We can produce high-quality machines according to the product size you provide
Company Profile
Haide company has 16 years production certification in Alibaba
We can provide you with quality machines
Customer Photos
Our partners
Product packaging
FAQ
1. Does your company can customized my needed profile?
Yes sir/Madam. Our machines are all customized according to customers' requests. Just provided me your needed profile drawing and we can give you our professional machine design solution.
2. If i don't have profile drawing, but i want to buy one machine, can you help me?
Yes sir/ Madam. If you don't have profile drawings, the solutions have:
2.1 : Provide me with your profiles' pictures ;
2.2 : Tell me your country and i will check if we sell similar / related profile machines to your there. I will recommend you related profile drawings.
2.3 : Tell me any information you have and it will be helpful for me to clear your needed profiles. and then quote you.
3. What your company advantages?
Yes sir/Madam. Our advantages have :
3.1: We are a 15 years big factory. We have abundant machine designing and making experience. We can give you the best machine solution.
3.2: We have completed production system. And more than 20 sets of CNC machines which can support lots of machine orders' making and guarantee the delivery.
3.3 : We have 20 years foreign trade exported experience. Our sellers abundant experience can guarantee you will have a pleasant purchase and use of the machine and after-sales experience. And cooperated with us , you can get more details about the machine, including those problems that you can't think of but we can think of, we can tell you to ensure that you can buy the most suitable machine for you.
3.4 : We are a golden integrity roll forming machine company.
About the after-sale services, no worries, we will responsible for you.
4. Will i receive a good machine ? Same Like I wanted to?
Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received is a good machine. Because after you satisfied with the machine, and then you pay balance.
5. What is the machine minimum quantity?
One machine is okay.
6. What is your payment terms?
6.1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.
6.2 : We accept 100% L/C at sight
6.3: We accept Western Union payments.
6.4 : Other payment terms you want to pay, please let me know and i will check and reply you.
2. If i don't have profile drawing, but i want to buy one machine, can you help me?
Yes sir/ Madam. If you don't have profile drawings, the solutions have:
2.1 : Provide me with your profiles' pictures ;
2.2 : Tell me your country and i will check if we sell similar / related profile machines to your there. I will recommend you related profile drawings.
2.3 : Tell me any information you have and it will be helpful for me to clear your needed profiles. and then quote you.
3. What your company advantages?
Yes sir/Madam. Our advantages have :
3.1: We are a 15 years big factory. We have abundant machine designing and making experience. We can give you the best machine solution.
3.2: We have completed production system. And more than 20 sets of CNC machines which can support lots of machine orders' making and guarantee the delivery.
3.3 : We have 20 years foreign trade exported experience. Our sellers abundant experience can guarantee you will have a pleasant purchase and use of the machine and after-sales experience. And cooperated with us , you can get more details about the machine, including those problems that you can't think of but we can think of, we can tell you to ensure that you can buy the most suitable machine for you.
3.4 : We are a golden integrity roll forming machine company.
About the after-sale services, no worries, we will responsible for you.
4. Will i receive a good machine ? Same Like I wanted to?
Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received is a good machine. Because after you satisfied with the machine, and then you pay balance.
5. What is the machine minimum quantity?
One machine is okay.
6. What is your payment terms?
6.1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.
6.2 : We accept 100% L/C at sight
6.3: We accept Western Union payments.
6.4 : Other payment terms you want to pay, please let me know and i will check and reply you.
