Liugong CLG4180D 180HP Mini Motor Grader with Low Price
- Category: >>>
- Supplier: Oriemac Machinery & Equipment (Shanghai) Co. Ltd.Oriemac Ltd.
Share on (1601266047229):
Product Overview
Description
180hp Motor Grader CLG4180D
Product Description
* Fuel Efficient Dong feng Cu mins Engine.
* Low Vibration, Noise, Dust +UV Resistant cab
* Meritor wet axle with "no-spin" differential lock as standard
* Balance box enables the 4 rear wheels to swing up and down by +/- 15°
* Low Vibration, Noise, Dust +UV Resistant cab
* Meritor wet axle with "no-spin" differential lock as standard
* Balance box enables the 4 rear wheels to swing up and down by +/- 15°
Specification
Operating weight | 15500 kg |
Weight on front wheels | 4650 kg |
Weight on rear tandem | 10850 kg |
Drawbar pull | 86 kN |
Model | Cum-mins 6BTAA5.9-C190 |
Emission regulation | Tier 2 / Stage II |
Rated power | 142 kW (190 hp) @ 2200 rpm |
Net power | 115 kW (172 hp) @ 2200 rpm |
Type | Power shift |
Speeds | 6f / 3r |
Maximum travel speed, forward | 42 km/h |
Maximum travel speed, reverse | 26.2 km/h |
Turning radius | 7200 mm |
Articulation angle | ±27º |
Maximum overall height | 3380 mm |
Width over tires | 2600 mm |
Blade width | 3960 mm |
Overall length | 9090 mm |

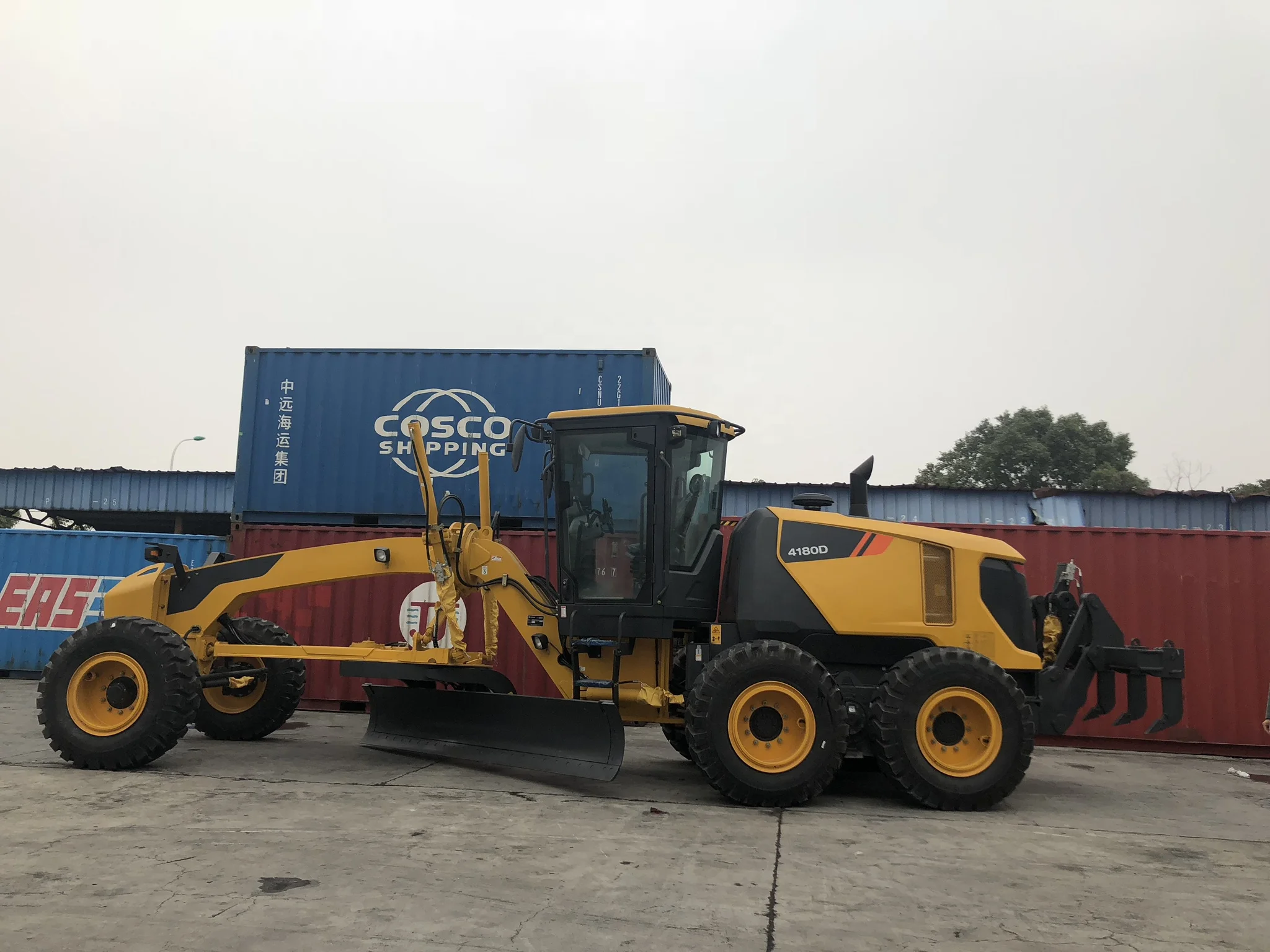

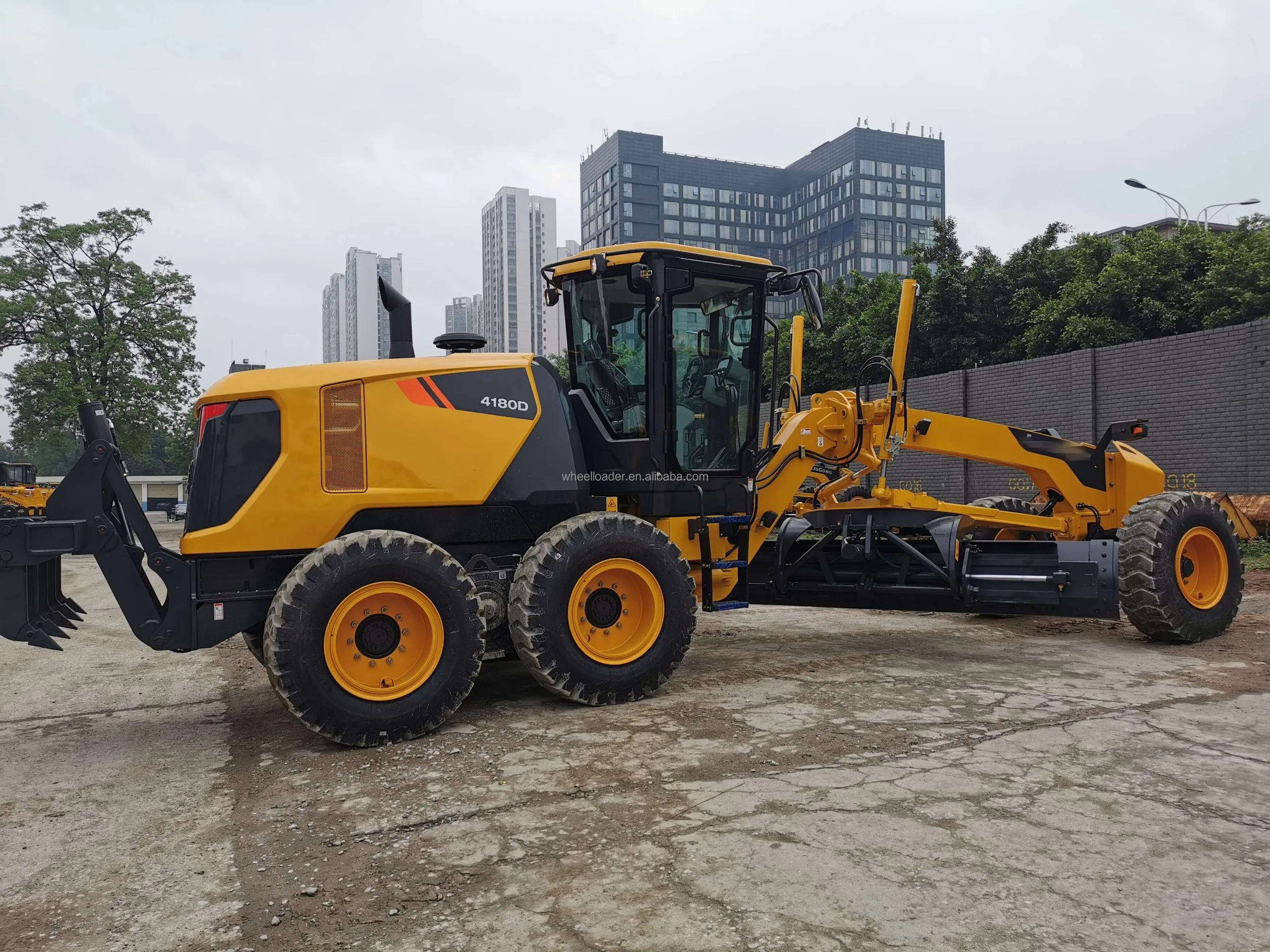

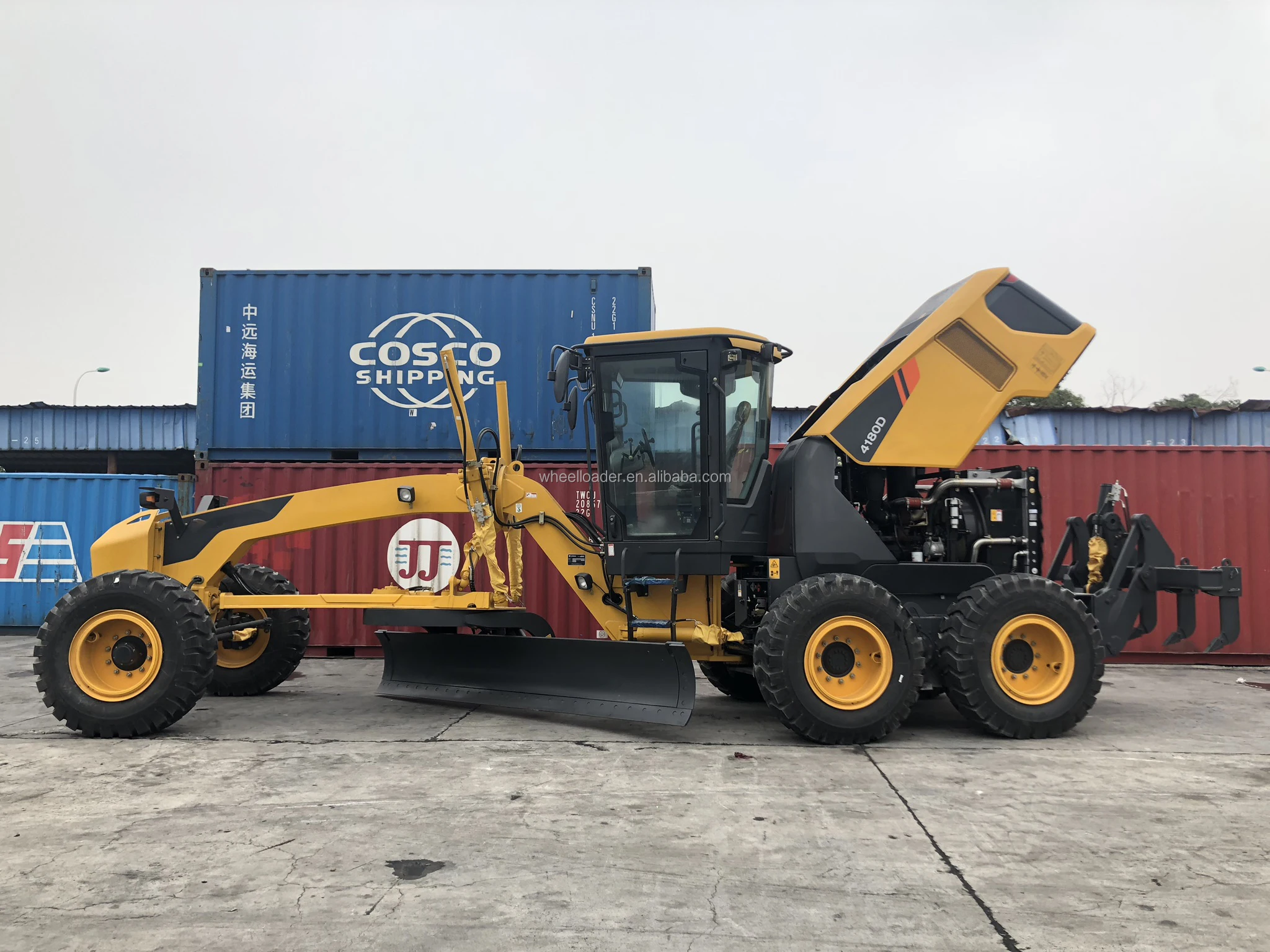

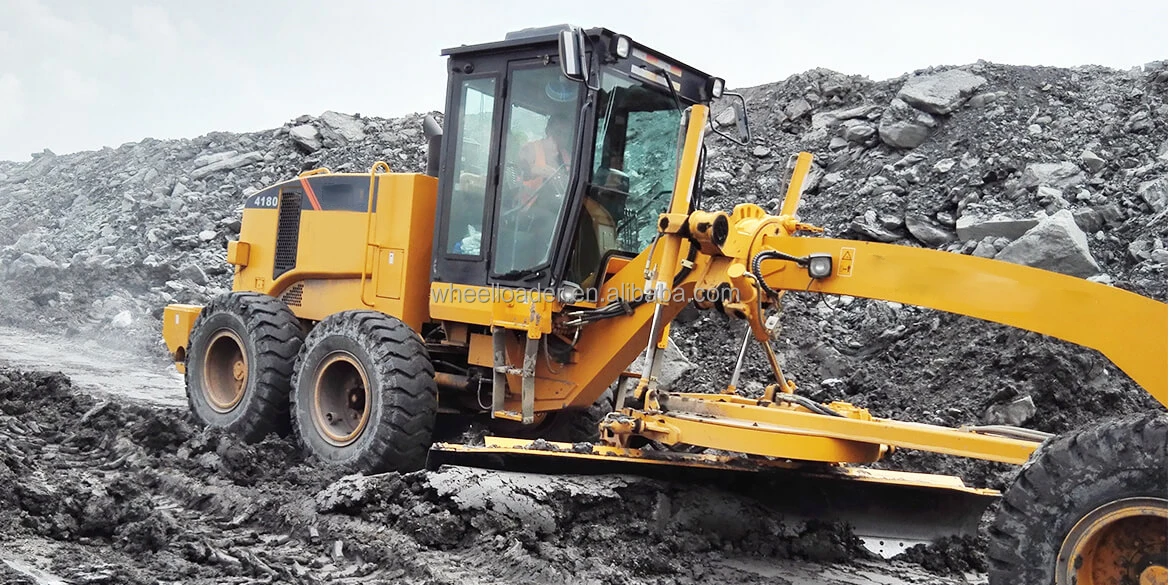

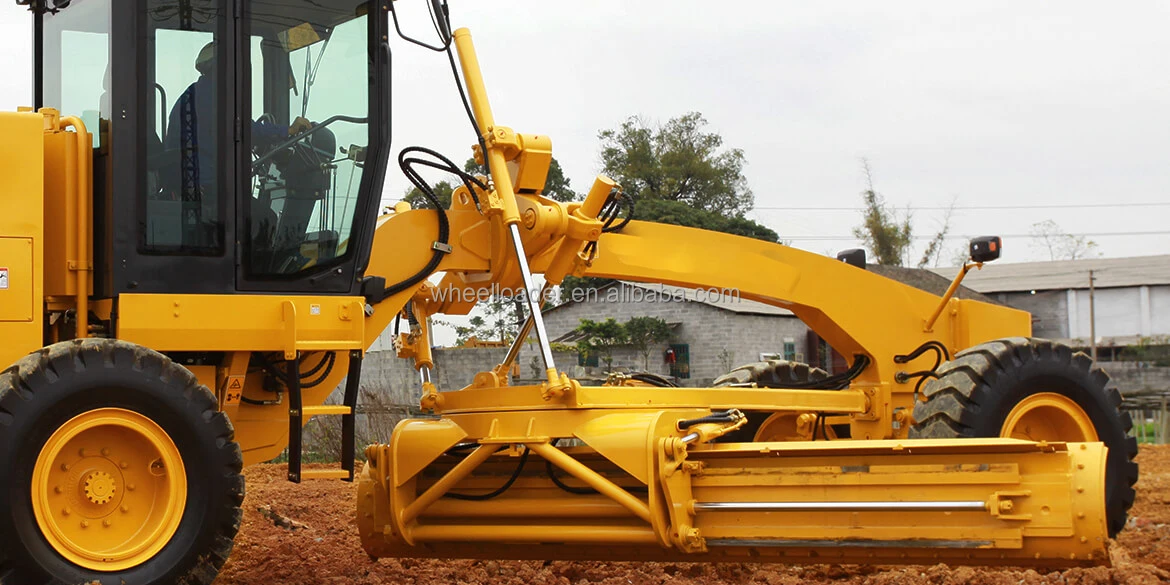

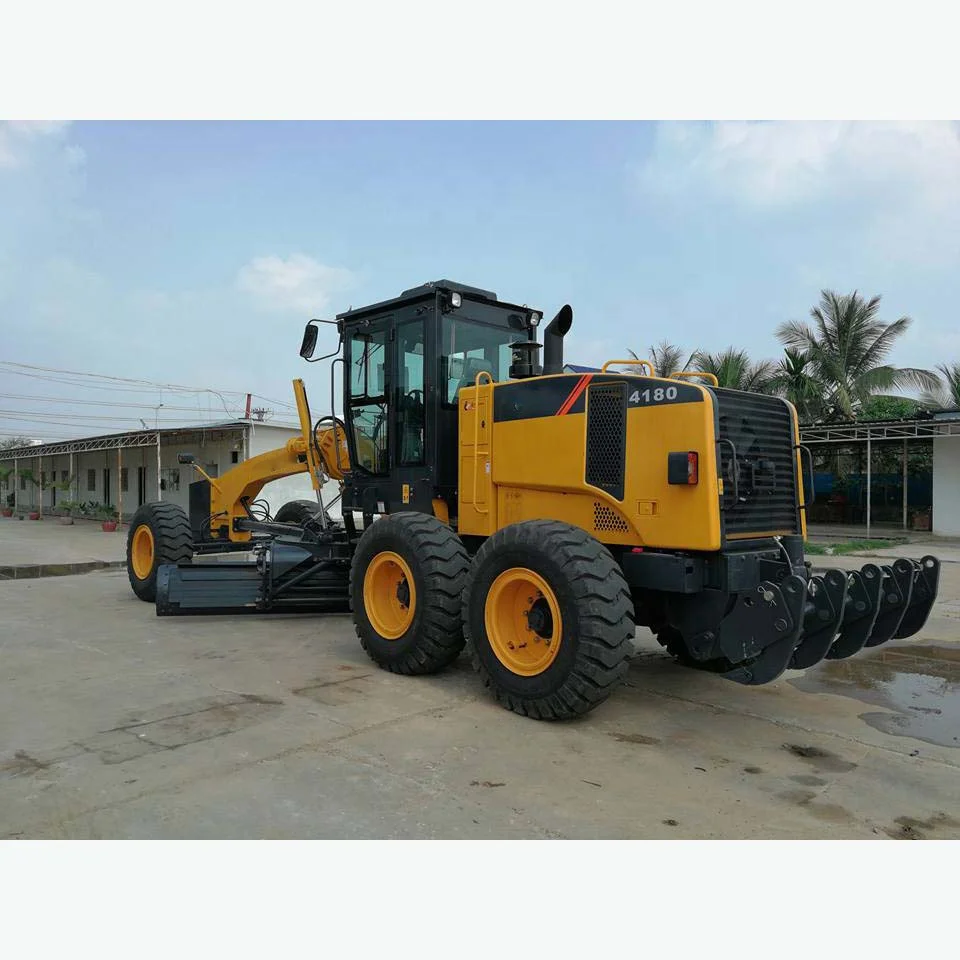

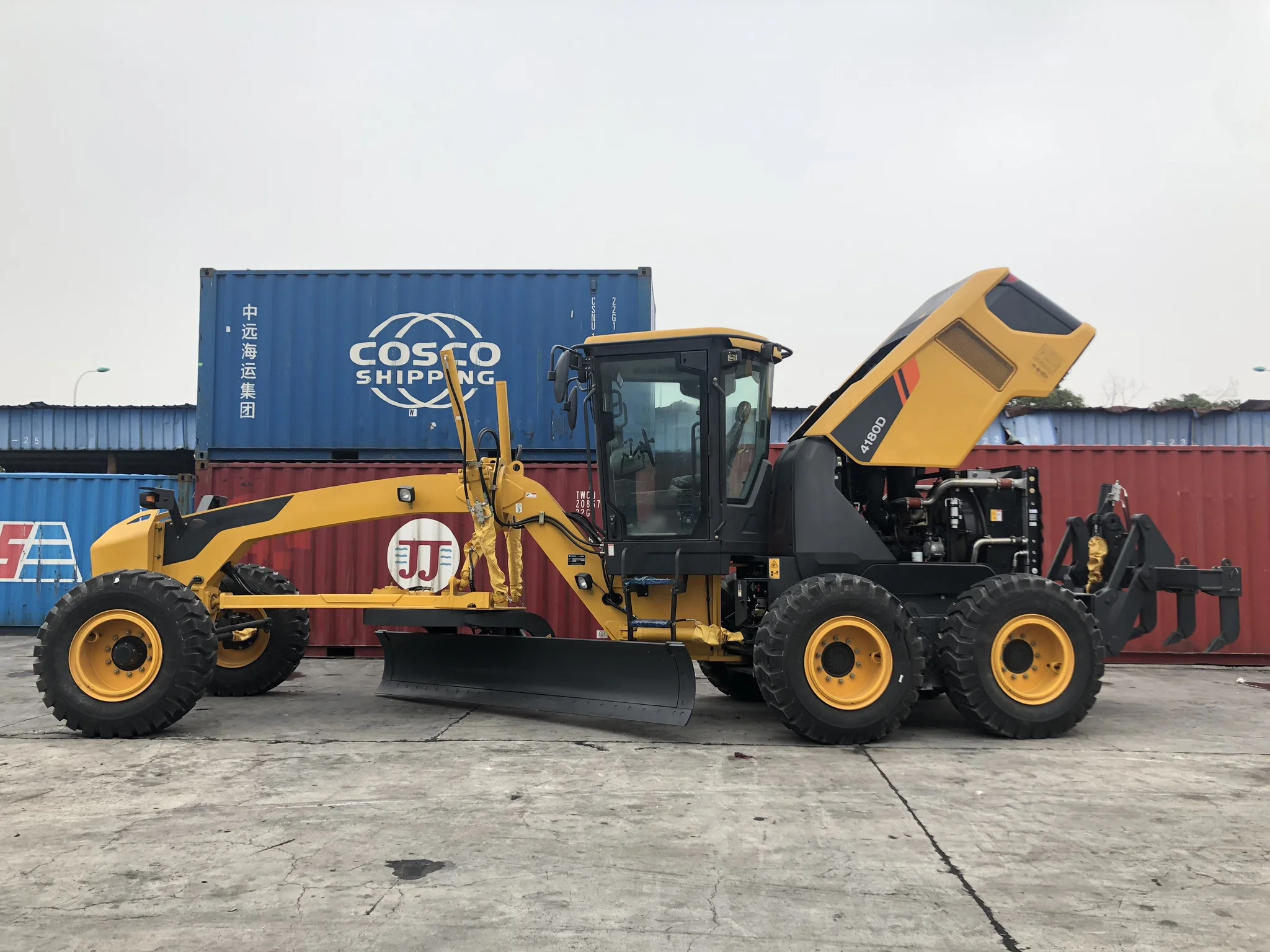

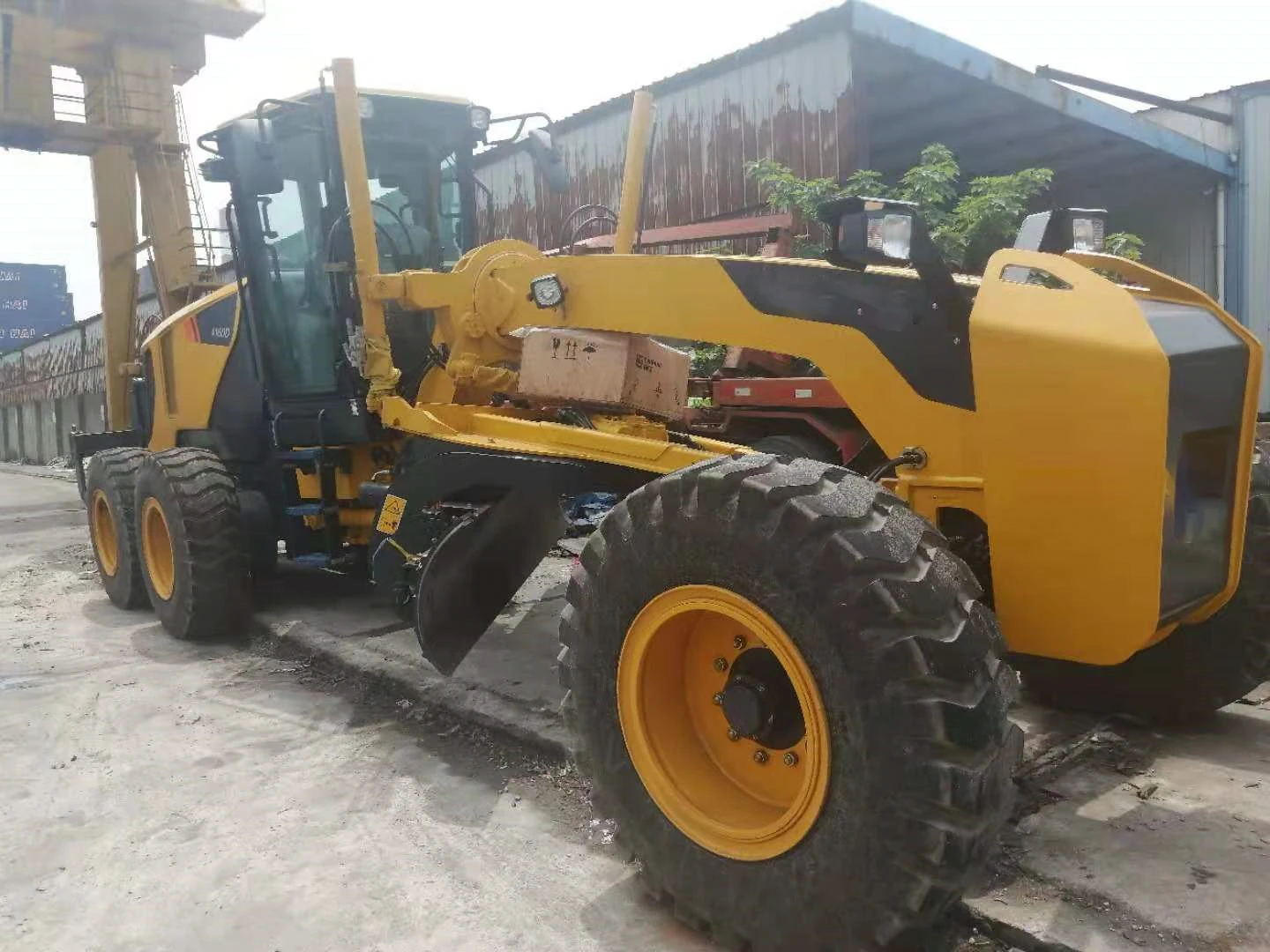

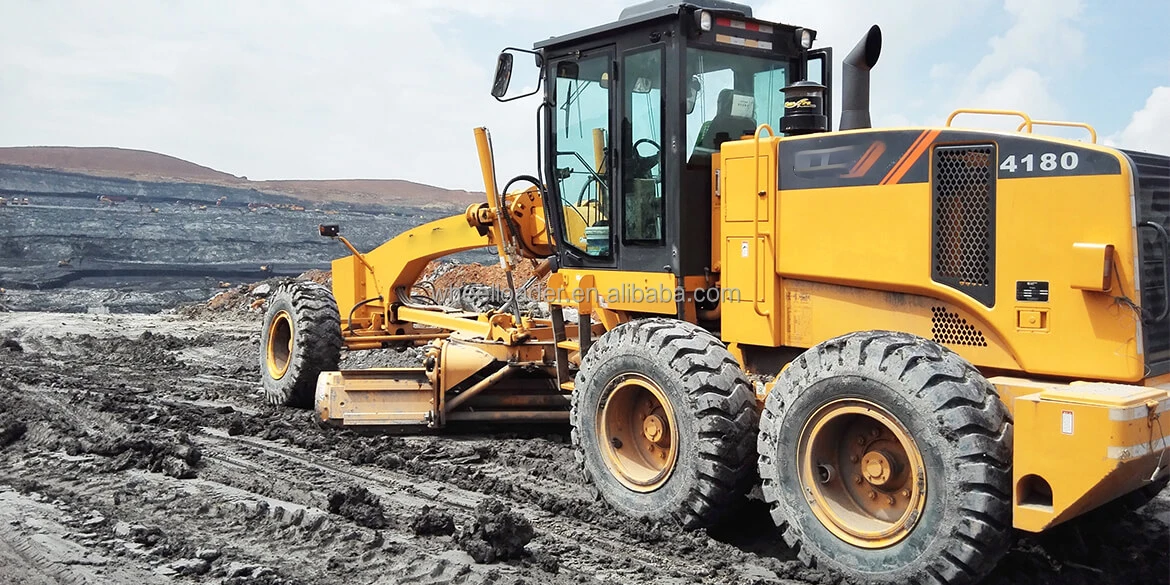

Product Show
Marketing Campaign
Recommend by Clients
Contact me
Laura Chen
Mobile/Whatsapp/Wechat: +86 18737330327
Email: laura @ oriemac.com
Mobile/Whatsapp/Wechat: +86 18737330327
Email: laura @ oriemac.com

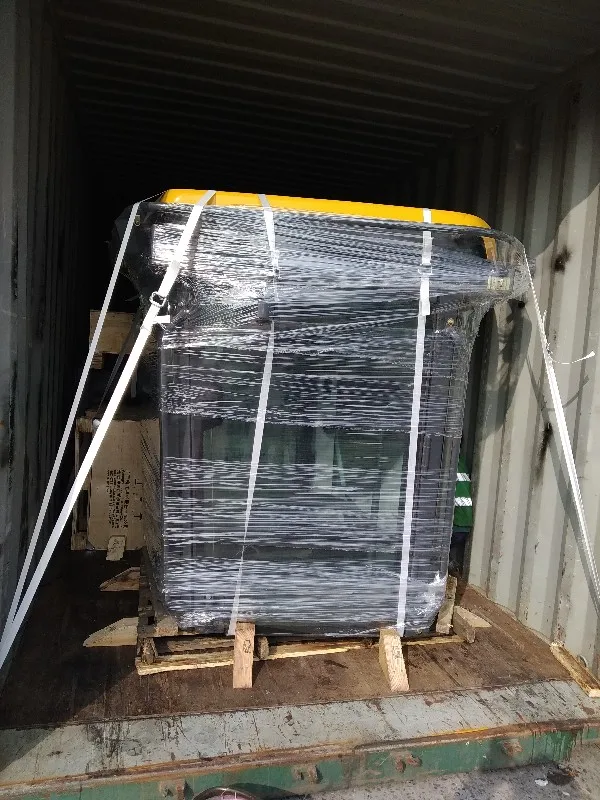

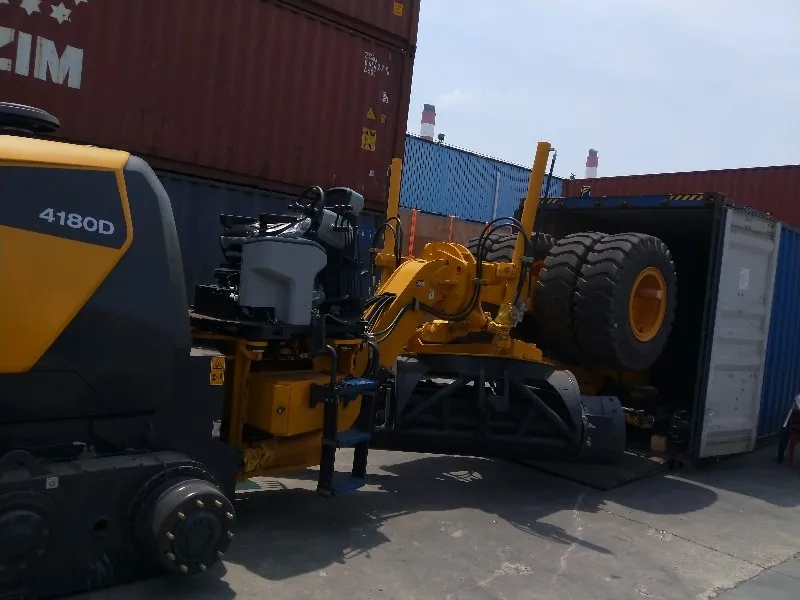

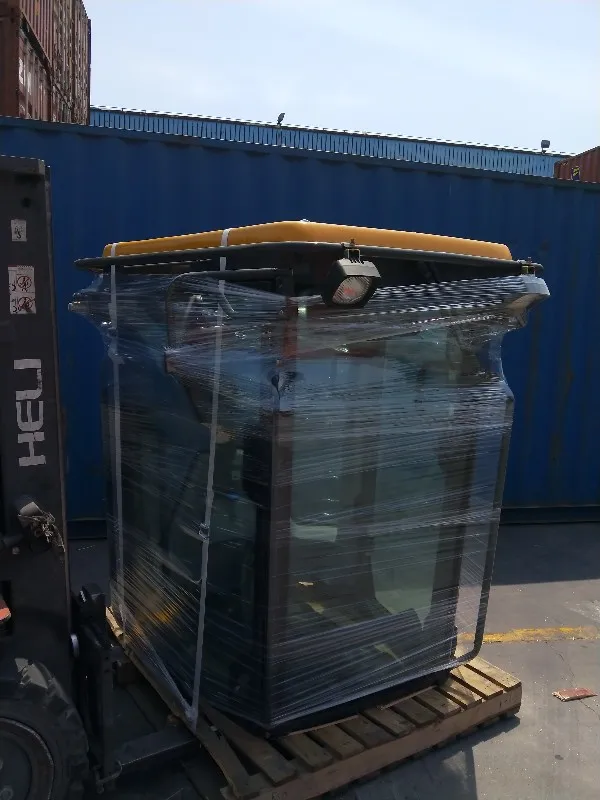

Packing & Shipping
