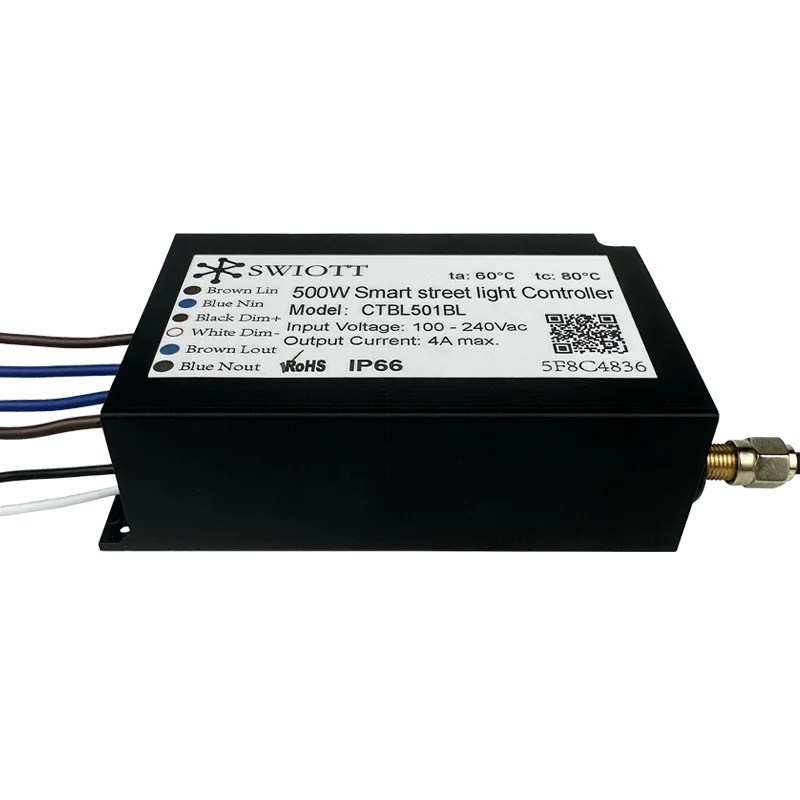

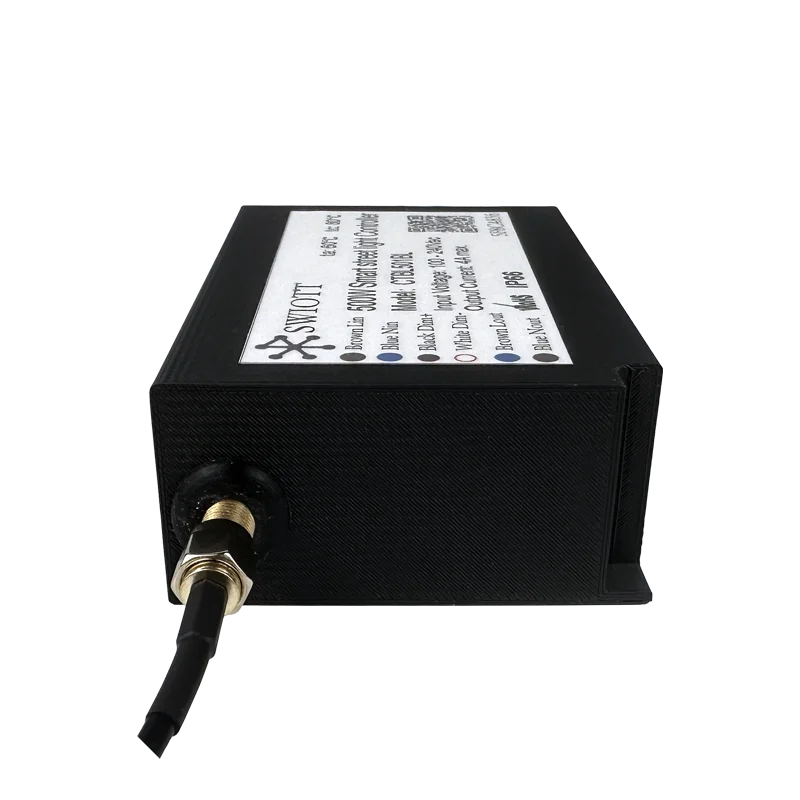

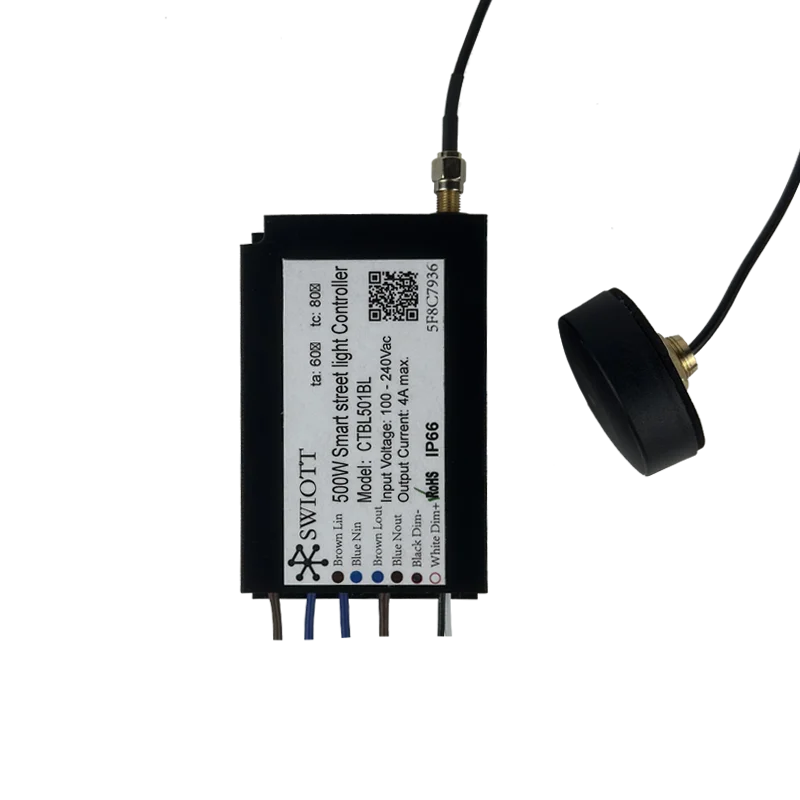

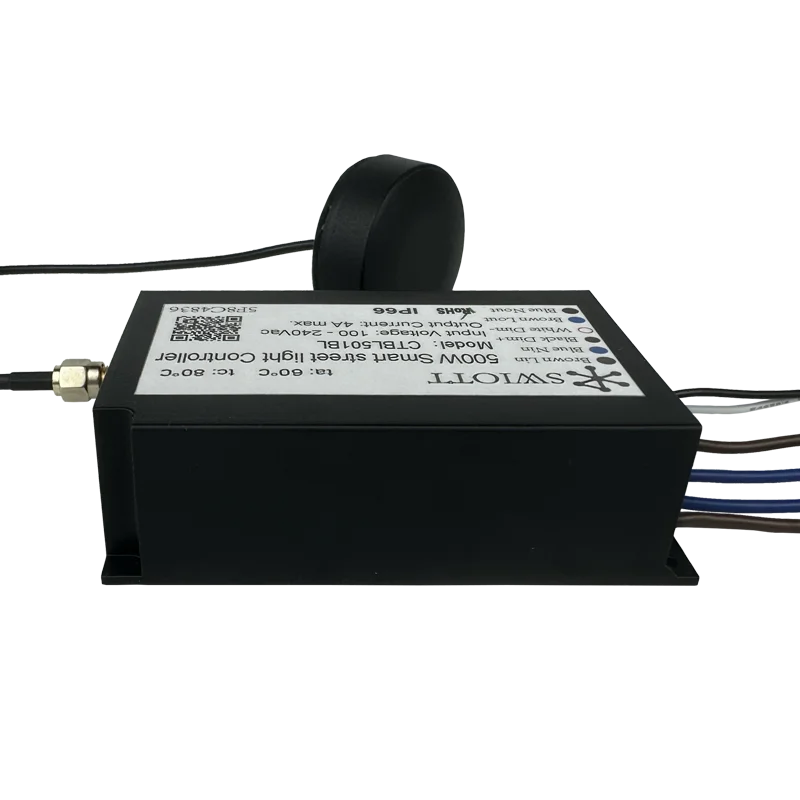

CTWL501 DALI PWM Output 0 10V dimming signal LoRaWAN smart led light control Intelligent Street Lamp Controller
- Category: >>>
- Supplier: Guangzhou Shuwang Technology Co. Ltd.
Share on (1601266150279):
Product Overview
Description
Product Description
Characteristic
⚪ Output Over Load protection
⚪IP66 water proof level, can be install indoor and outdoor
⚪Built-in electric meter chip, The measure accuracy is up to 2%. Voltage, power, current, energy consumption, power factor, temperature and frequency.
⚪LoRaWAN Communication, 2G GSM (Optional)
⚪ Life time > 60000 hours
⚪ 5 years warranty
⚪IP66 water proof level, can be install indoor and outdoor
⚪Built-in electric meter chip, The measure accuracy is up to 2%. Voltage, power, current, energy consumption, power factor, temperature and frequency.
⚪LoRaWAN Communication, 2G GSM (Optional)
⚪ Life time > 60000 hours
⚪ 5 years warranty
⚪Magnetic ballast
⚪ High pressure gas discharge lamp ballast
⚪LED driver
⚪Fan and water pump
⚪Commercial installation
⚪ High pressure gas discharge lamp ballast
⚪LED driver
⚪Fan and water pump
⚪Commercial installation
⚪The design is flexible and provides drivers for a variety of lighting devices
⚪Built-in communication function, digital management
⚪Product performance is guaranteed
⚪Long life, can be installed freely, adapt to all kinds of temperature and humidity
⚪Compact size for easy installation
⚪Built-in communication function, digital management
⚪Product performance is guaranteed
⚪Long life, can be installed freely, adapt to all kinds of temperature and humidity
⚪Compact size for easy installation
Descriptions
Output 0-10V dimming signal, DALI and PWM dimming signal (compatible with IEC60929 international standard). Built-in network LoRaWAN communication chip can be connected to internet within SIM card.
The system provides Web-based WEB client, users can control, manage and maintain any lighting node through PC, mobile phone, iPAD and other devices, through the background can realize the management of historical data and real-time data.
The system provides Web-based WEB client, users can control, manage and maintain any lighting node through PC, mobile phone, iPAD and other devices, through the background can realize the management of historical data and real-time data.
Specification
Input voltage | 100Vac~277Vac | Short-Circuit protect | None |
Rated voltage | 230Vac | Heat protect | Yes |
Input frequency | 47Hz to 63Hz | Water proof | IP66 |
Max load power | 500W | MTBF | >200khours |
Max load current | 4A | Operate temperature | -40℃ to +60℃ |
Standby consumption | <2W | Store temperature | -40℃ to +85℃ |
LoRaWAN Region | CN470, EU868, AU915, AS923, US915, RU864… | Package（L*W*H） | 92mm*61mm*30mm |
Dimming signal | 0V-10V @ 27mA(max) | Weight | 0.5kg |
measuring accuracy | <2% | Tc | 80℃ |
THD | <10% | Standard | CE、FCC、CB |
Over-load protect | Yes | EMC | EN55015、EN55022 |
Fault alarm description | ||||||
Fault type | Fault condition | Action | Note | |||
Over temperature | ＞95℃±2℃ | Report failure, shutdown, temperature < 90℃±2℃ to restore to the state before shutdown | Internal temperature | |||
Under temperature | ＜-25℃±2℃ | Report fault, do not shut down, the temperature > -25℃±2℃ to remove the fault state | Internal temperature | |||
Output short circuit | Short-circuit | Report fault, shut down, and the output returns to normal in the boot state to cancel the alarm | ||||
Output openloop | Open-loop | Report the fault, shut down, and recover after the fault is removed | ||||
Over voltage | ＞285V±3V | Report failure, shut down, < 280V±3V return to the state before shutdown | ||||
Under voltage | ＜95V±3V | Report failure, shut down, > 100V±3V return to the state before shutdown | ||||
Note:
1.State before shutdown: the working state of the product when no alarm is generated. If the product fails at 50% dimming, it should be restored to this state after the fault is removed.
2.Restart: The product needs to be disconnected from the power supply and then connected to the power supply.
3.Execution action: all within 4 seconds.
2.Restart: The product needs to be disconnected from the power supply and then connected to the power supply.
3.Execution action: all within 4 seconds.
Smart features | Features description |
Dimming | LoRaWAN communication can be used to adjust the output power of the LED Lamp, the dimming range is 10%~100%, and the pole-free dimming can be divided into single point dimming, group dimming and broadcast dimming modes. |
Electric meter | The built-in power metering function of the driving power supply can report the power data to the cloud server through LoRaWAN communication. The measured power includes: input voltage, input current, power, power factor, output voltage, output current and temperature, and the measurement accuracy can reach 2%. |
Fault report | Real-time report of driving power supply running status through LoRaWAN, including temperature, short circuit, open circuit, over voltage, under-voltage, street light pole tilt, normal, dimming and other status. |
Company Profile
Guangzhou SWIOTT Technology Co., Ltd. is a company integrating the Internet of Things, communications, large-scale Data and other technological means are applied to enterprises in the field of lighting, and the team has many years of experience in the development and research of smart lighting solutions, dedicated to provide scientific overall solutions for customer lighting application scenarios.
At present, the company's urban smart lighting and industrial IoT related products have been widely used.It is distributed in dozens of countries around the world and a few provinces in China, and the products mainly include Including PLC (power line carrier communication) module, wireless LoRa self-organized network mode block, intelligent street light controller, intelligent LED power supply, multi-color temperature intelligence LED power supply, centralized controller and intelligent street light management system.
Our philosophy is to create a low-carbon life with the power of science and technology.
Practical Application
Production Process
Manufacture
QC
Product aging
Packing
Certifications
Packing & Delivery
FAQ
Q1. Can the light controller be ordered as a sample?
A: Yes, we accept sample orders, welcome to order samples to test and check the quality.
Q2. Are you a trader or a manufacturer?
A: We are the source manufacturers with our own R & D team and factory for development and production of products to ensure that we can respond to technical product issues in a timely manner.
Q3.Do your products come with a guarantee?
A: Yes, we provide 3 years warranty on our products.
Q4. How many lighting controllers can a gateway usually control?
A: A gateway can control 200 pcs lighting controller.
Q5.What can you buy from us?
A: Smart street light controller,iot gateway,led dirver,iot module,solar street light controller,controller enclosure,mounting receptacle.
