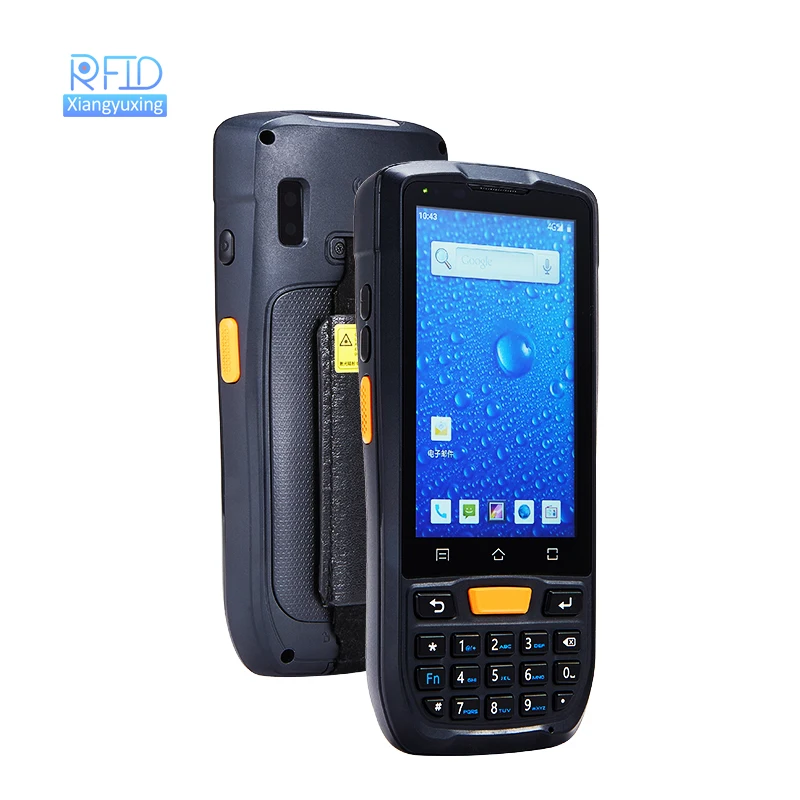

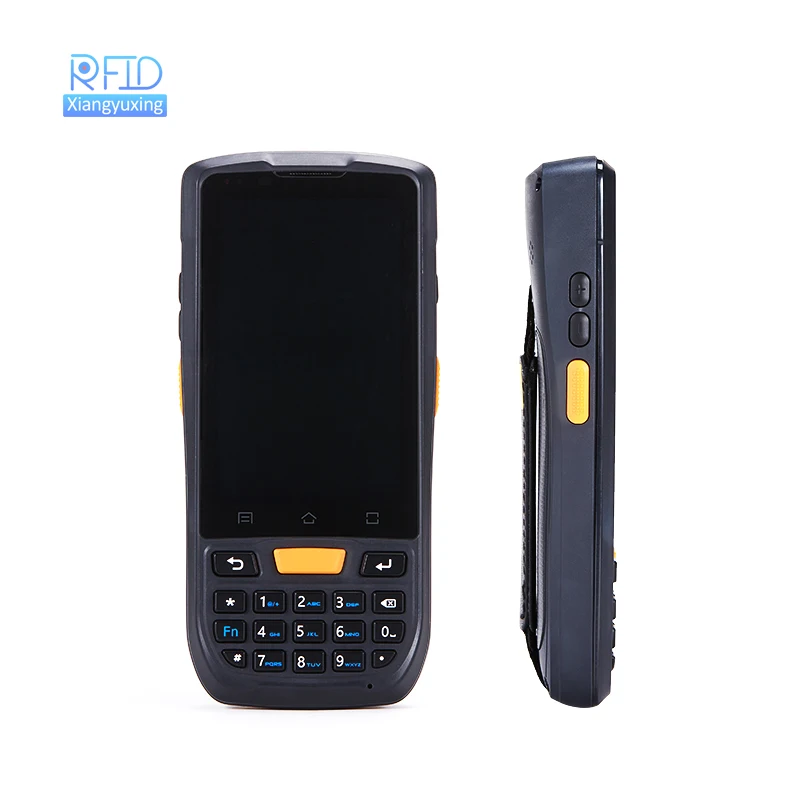

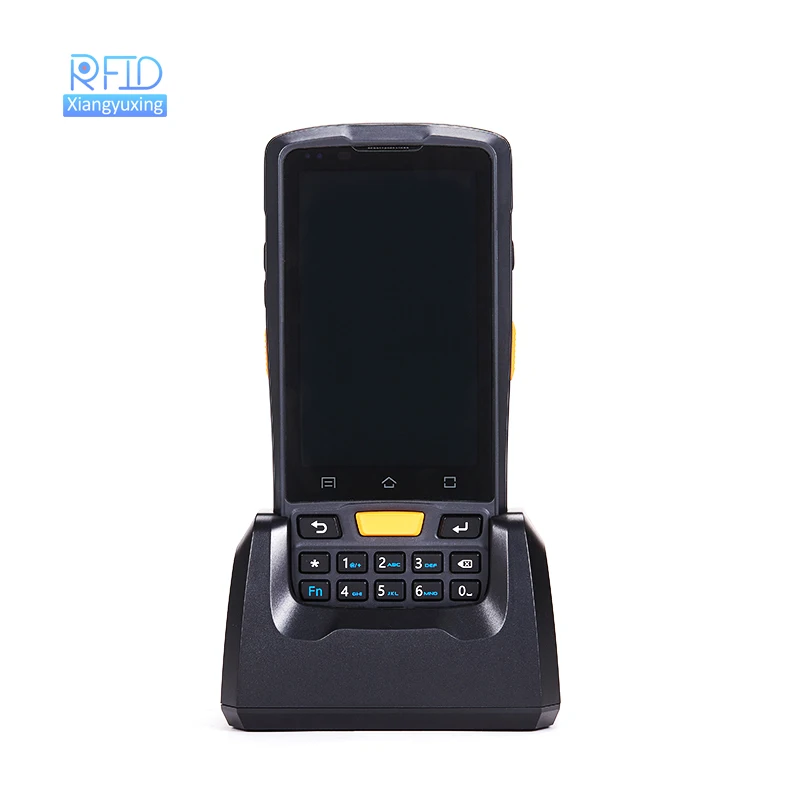

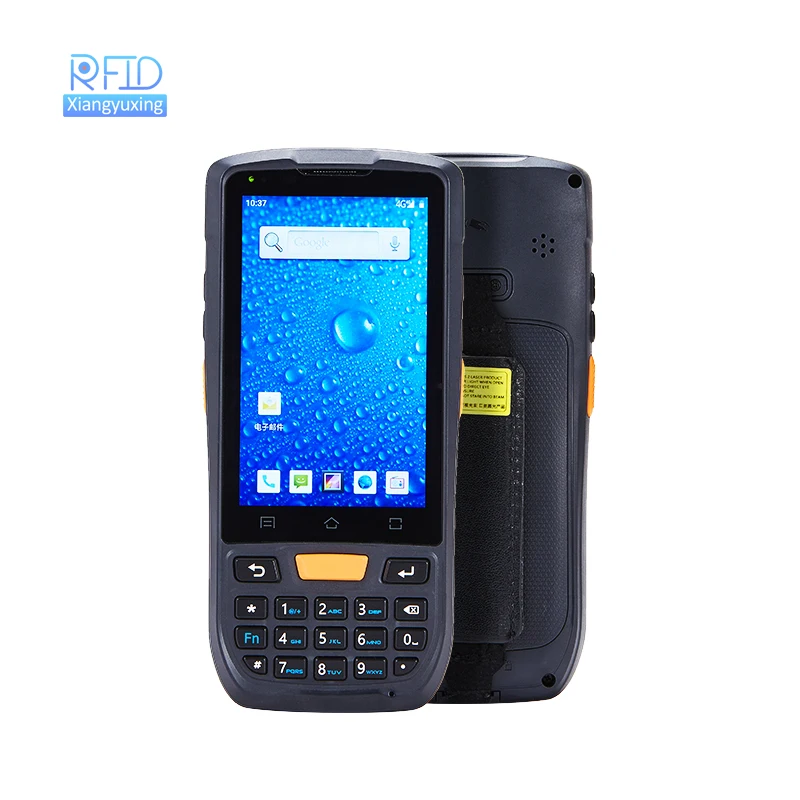

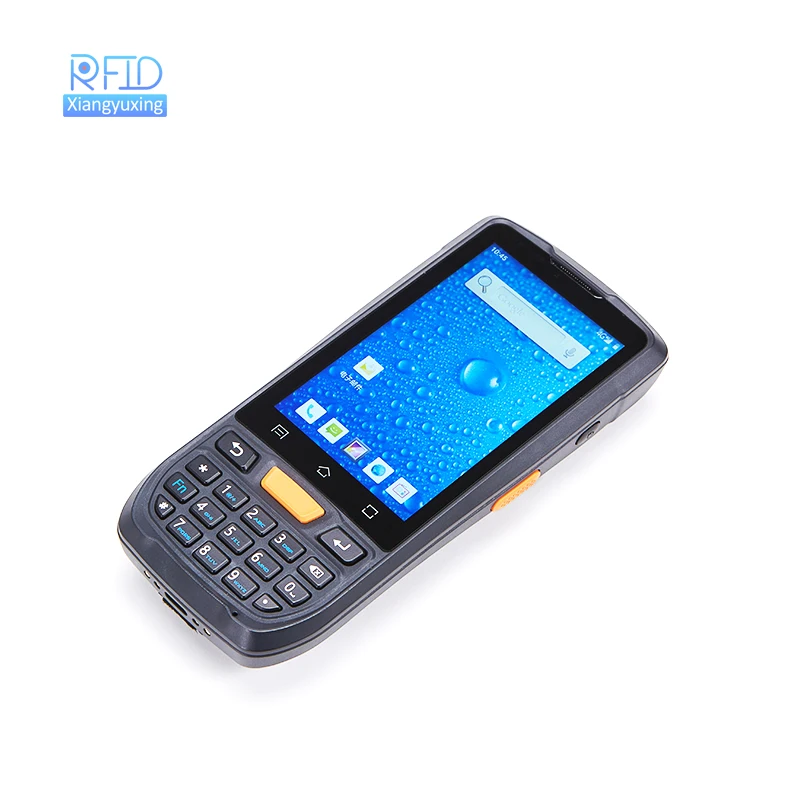

FDX LF 125khz 134.2khz pda android 12 handheld reader rugged RFID reader
- Category: >>>
- Supplier: Shenzhen Xiangyuxing Technology Co. Ltd.
Share on (1601267334533):
Product Overview
Description
Product Description
Specification
Structural Parameter | ||
Dimensions | 157（H）*73（W）*21.6(T)mm（head 26mm） | |
Weight | <500g | |
Display Screen | 4 inch color display with resolution 480*800 | |
TP | Corning Gorilla glass, supports two-touch Supported gloves and we thands | |
Expand Port | PSAM x 2( Optional), Micro SIM card x 1 , TF card × 1 | |
Interfaces | Type-C USB x 1, OTG,POGO Pin x 1 | |
Battery Capacity | rechargeable polymer battery (3.8V 4300mAh) removable | |
Standby time >350 hours | ||
Working time > 13 hours | ||
Charging time ＜3H, using standard power adapter and data cable | ||
Keypad | Support touch screen soft keypad and physical keypad | |
Sensor | Gravity Sensor,Vibration motor | |
Performance Parameter | ||
OS | Android 12 | |
CPU | Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor | |
RAM+ROM | 3GB+16GB | |
Expansion | SD/TF port (Max up to 128G) | |
Data Communication | ||
WI-FI | Dual-band 2.4GHz / 5GHz, Supporting IEEE 802.11 a/b/g/n/ac protocol | |
FDD/TDD-LTE 4G | 2G:GSM(850/900/1800/1900Mhz) 3G:WCDMA(850/900/1900/2100Mhz) CDMA EVDO:BCO 4G: (B1/B3/B5/B7/B8/B20/B38/B39/B40/B41) | |
WCDMA 3G | ||
GSM 2G | ||
Blue tooth | Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS Transmission distance 5-10 meters | |
Standard Modules | ||
Camera | 8MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting | |
GNSS | Support GPS, Galileo, Glonass, Beidou | |
Operating Environment | ||
Operating | -20°C to 50°C | |
Storage Temperature | -40°C to 70°C | |
Environment Humidity | 5%RH-95%RH(no condensation) | |
Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature | |
Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area | |
Sealed Environment | IP66 | |
Barcode Scanning (OPTIONAL) | ||
1D Scanner | Mindeo SE966 Honey well N4313 Newland EM1300(CCD) | |
2D SCANNER | Zebra SE4710 / SE4750/Honey well N6603/EM3090 | |
1D Symbologies | Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaber,Interleaved 2 of 5,China post 25,ISBN/ISSN, Code93,UCC/EAN-128, GS1 Databar,HIBC, etc. | |
2D Symbologies | PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code, MaxiCode,Hanxin Code, etc. | |
NFC Reader (Optional) | ||
Frequency | 13.56MHz | |
Protocol | ISO14443A/B,ISO15693,NFC-IP1,NFC-IP2,etc. | |
Range | 2-5cm | |
LF Reader(Optional) | ||
Frequency | 125k/134.2k | |
Protocol | ISO11784/ISO11785; ISO18000-2(FDX-B ) | |
Range | 3-5cm | |
Company Profile
Certifications
Exhibition
FAQ
1. CAN YOU OFFER US FEW SAMPLES ?
After we know clearly what products you need, then we can offer similar existing sample for yourreference.
Sample free with shipping cost you paid.
If you need customized tag sample based on your design and requirement,there is reasonable samplecost charged accordingly.
2. WE ARE NOT AN EXPERT BUYER IN YOUR TECHNOLOGY, WHAT INFORMATION DOYOU NEED FROM US TO QUOTE ?
Dear friend, please inform us clearly the tag's application, what goal do you want to achieve,
we would propose you the suitable product in good price
3. WE HAVE A CONCERN THAT WE PAID, BUT YOU DON'T SEND US THE GOODS .
We are a leading company doing honest business in the internat market for years.
We always get positive feedback from our worldwide customers.
Furthermore, our company support Trade Assurance on Alibaba,
you can place order through Alibaba that guarantees your money safe and order go smoothly.
4. CAN WE VISIT YOUR FACTORY ?
Yes, warmly welcome your factory tour. And it's honored to be your guide in your China trip.
After we know clearly what products you need, then we can offer similar existing sample for yourreference.
Sample free with shipping cost you paid.
If you need customized tag sample based on your design and requirement,there is reasonable samplecost charged accordingly.
2. WE ARE NOT AN EXPERT BUYER IN YOUR TECHNOLOGY, WHAT INFORMATION DOYOU NEED FROM US TO QUOTE ?
Dear friend, please inform us clearly the tag's application, what goal do you want to achieve,
we would propose you the suitable product in good price
3. WE HAVE A CONCERN THAT WE PAID, BUT YOU DON'T SEND US THE GOODS .
We are a leading company doing honest business in the internat market for years.
We always get positive feedback from our worldwide customers.
Furthermore, our company support Trade Assurance on Alibaba,
you can place order through Alibaba that guarantees your money safe and order go smoothly.
4. CAN WE VISIT YOUR FACTORY ?
Yes, warmly welcome your factory tour. And it's honored to be your guide in your China trip.
