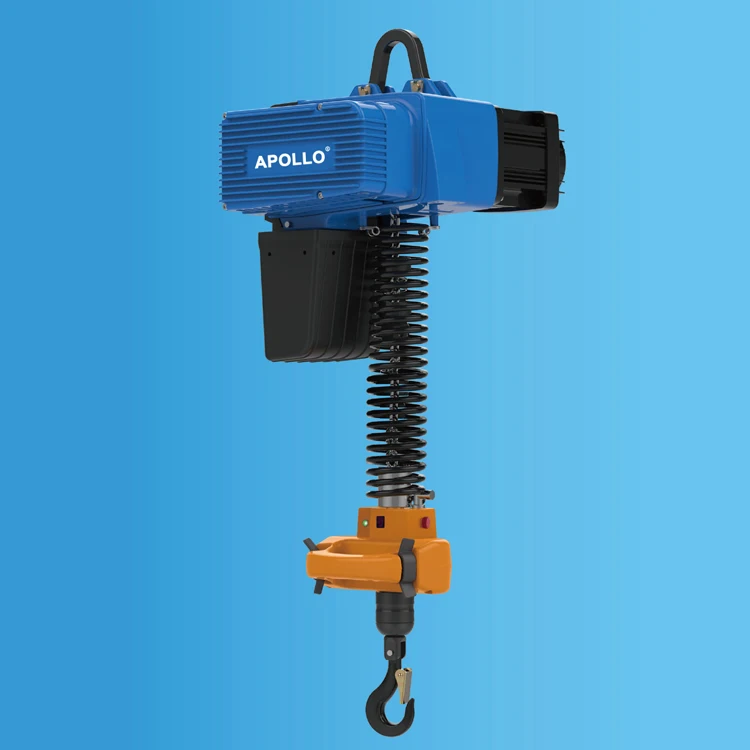

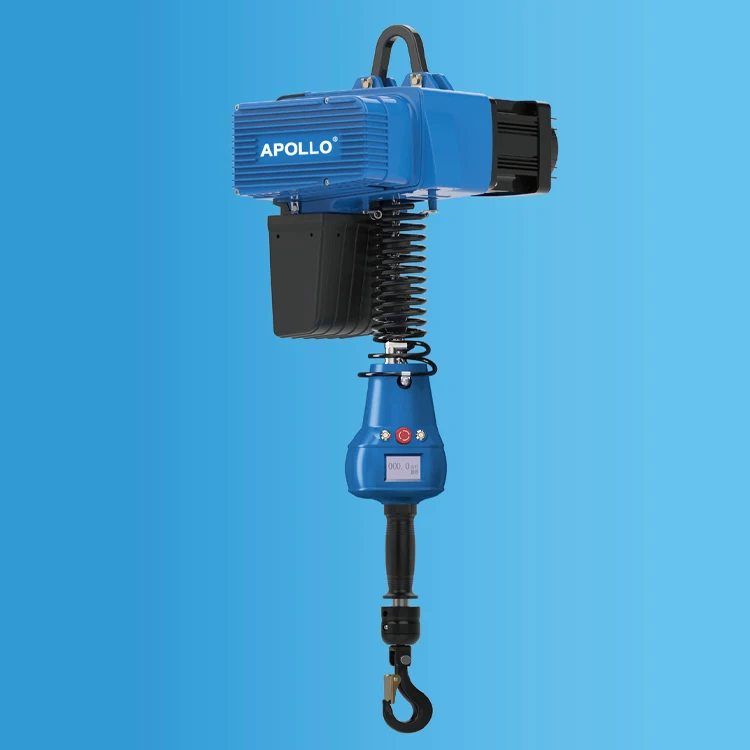

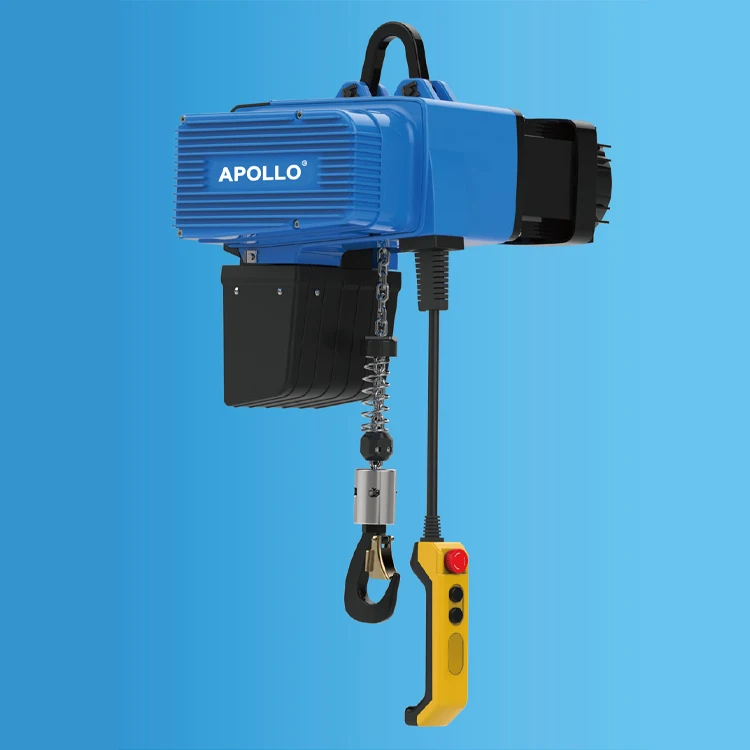

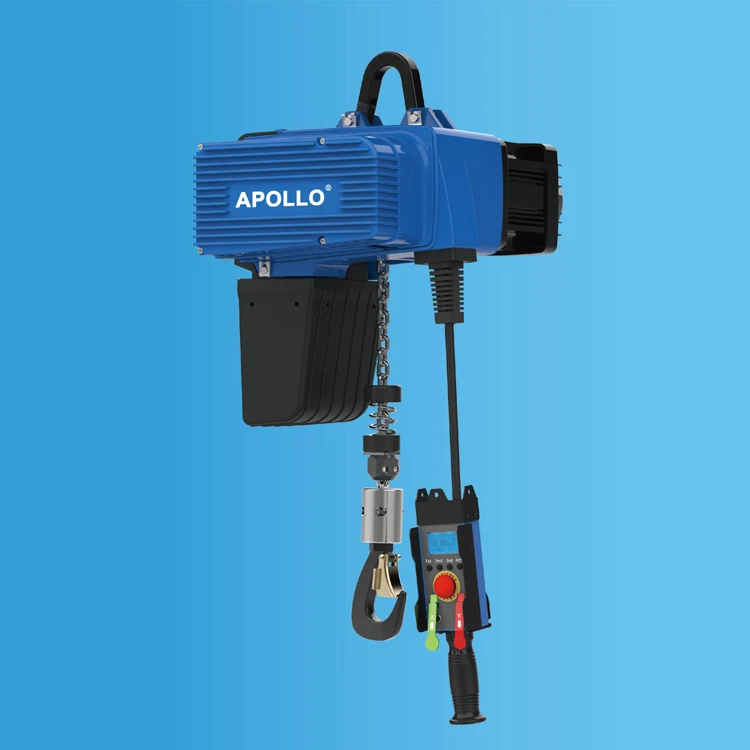

APOLLO D2 series variable frequency chain hoist new electric hoist KAWASAKI hoist 125 kg 3m M6 380V/220V
- Category: >>>
- Supplier: Hangzhou Apollo Lifting Equipment Co. Ltd.
Share on (1601268362250):
Product Overview
Description
Products Description
Model | D2B012 | D2B025 | D2B050 | D2B100 | D2B200 | ||||
Max.load(kg) | 125 | 250 | 500 | 1000 | 2000(double chain) | ||||
Standard speed(m/min) | 1/12 | 1/12 | 1/8 | 1/8 | 0.5/4 | ||||
Customized speed(m/min) | 0.5/12 | 0.5/12 | 0.5/8 | 0.5/8 | ______ | ||||
Rated power(kw) | 0.75 | 0.75 | 1.1 | 2.2 | 2.2 | ||||
Vertical Max.stroke(m) | 4/5/8/11(customizable) | ||||||||
Control mode | Wire control button/remote control button | ||||||||
Self Weight(kg) | 25 | 25 | 32 | 56 | 67 | ||||
Chain specifications(mm) | 5.0 | 5.0 | 5.0 | 7.1 | 7.1 | ||||
Voltage | standard 380 V(operation 220 V) | ||||||||
Working level of the organization | 3m/M6 | 3m/M6 | 3m/M6 | 2m/M5 | 2m/M5 | ||||
Working temperature(℃） | -10℃~55℃ | ||||||||
Product Specifications and Dimensions
Outline Specification(Unit:mm)
Model | A | B | C | D | E | F |
D2B012 | 346 | 424 | 219 | 167 | 296 | h<470 |
D2B025 | 346 | 424 | 219 | 167 | 296 | h<470 |
D2B050 | 350 | 468 | 260 | 188 | 313 | h<480 |
D2B100 | 446 | 546 | 303 | 233 | 349 | h<590 |
D2B200 | 446 | 546 | 303 | 233 | 349 | h<650 |
Product Details

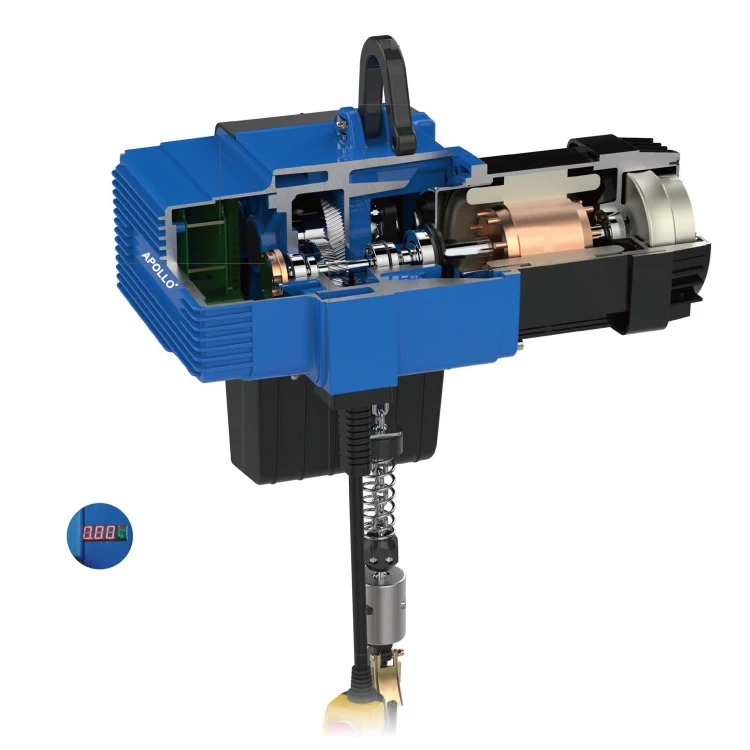

Product Brief
It adopts aluminum shell, which is lightweight and sturdy.
Adopting low headroom, servo drive control and special servomotors, which enable to achieve function of adjustable speed.
At low speeds, it can be lower than half of the conventional gear.
At high speeds, it can be higher than 50% of the conventional gear.
Smooth operation and low vibration during lifting.
The operation has no impact, low failure rate and complete protection functions, enable it has long product life.
And multiple reserved interfaces, which is convenient for automation control.
Product Features
Specially designed servo motor for smooth operation performance.
The system has soft limit, reducing the risk of collision and providing flexible working range.
Stepless speed change and accurate positioning. It has wide speed range and high accuracy. The minimum speed can reach 0.05 m/min.
Low noise.Smooth operation without vibration. High precision.
Low noise.Smooth operation without vibration. High precision.
The design of electronic friction clutch can maximize the life of the entire machine, And it does not require maintenance.
Diverse interfaces, adaptable to various interface.

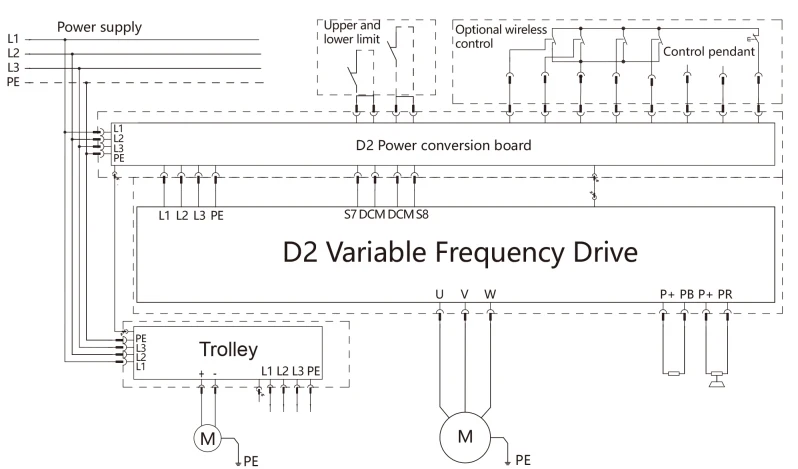

Wiring Diagram

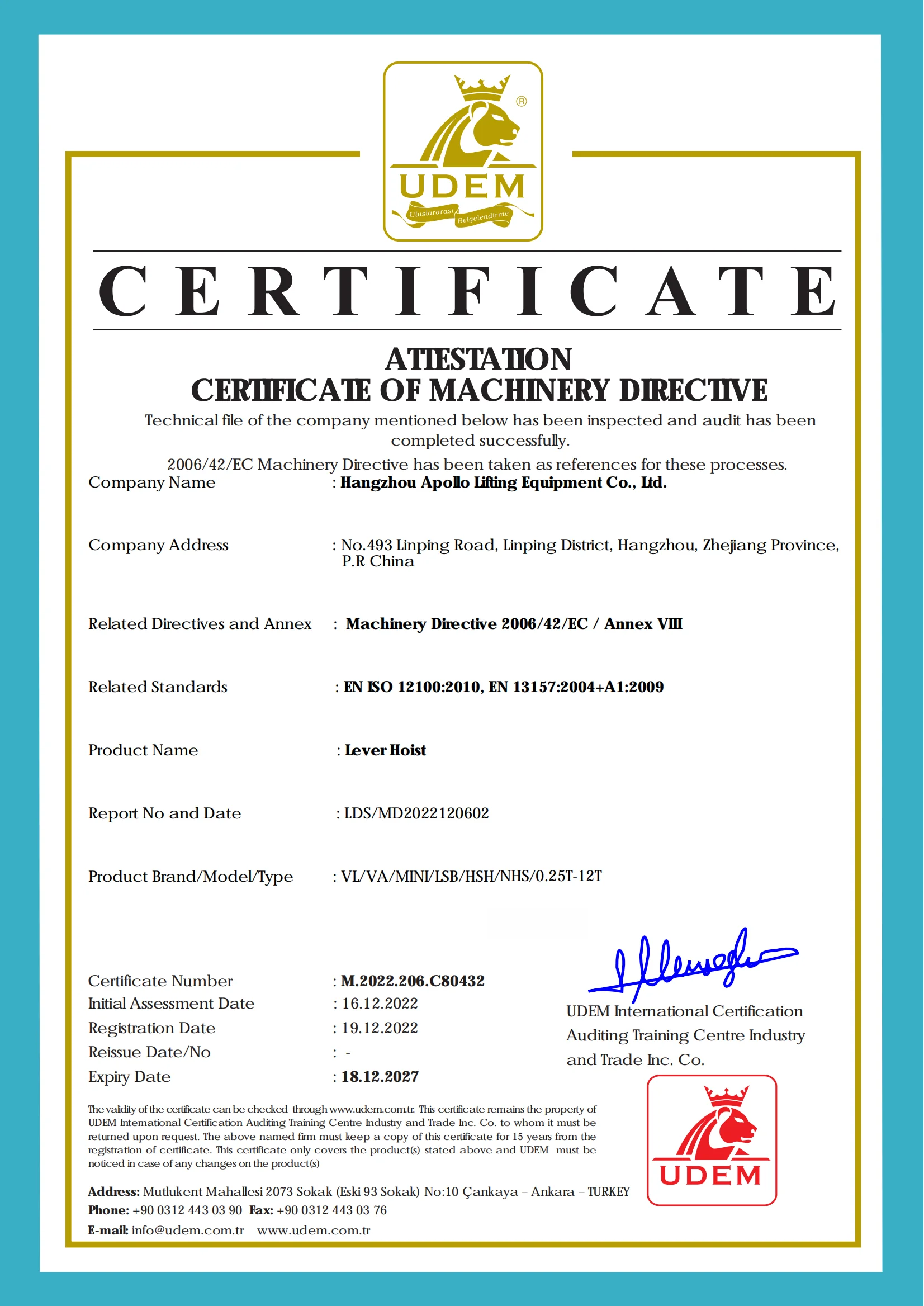

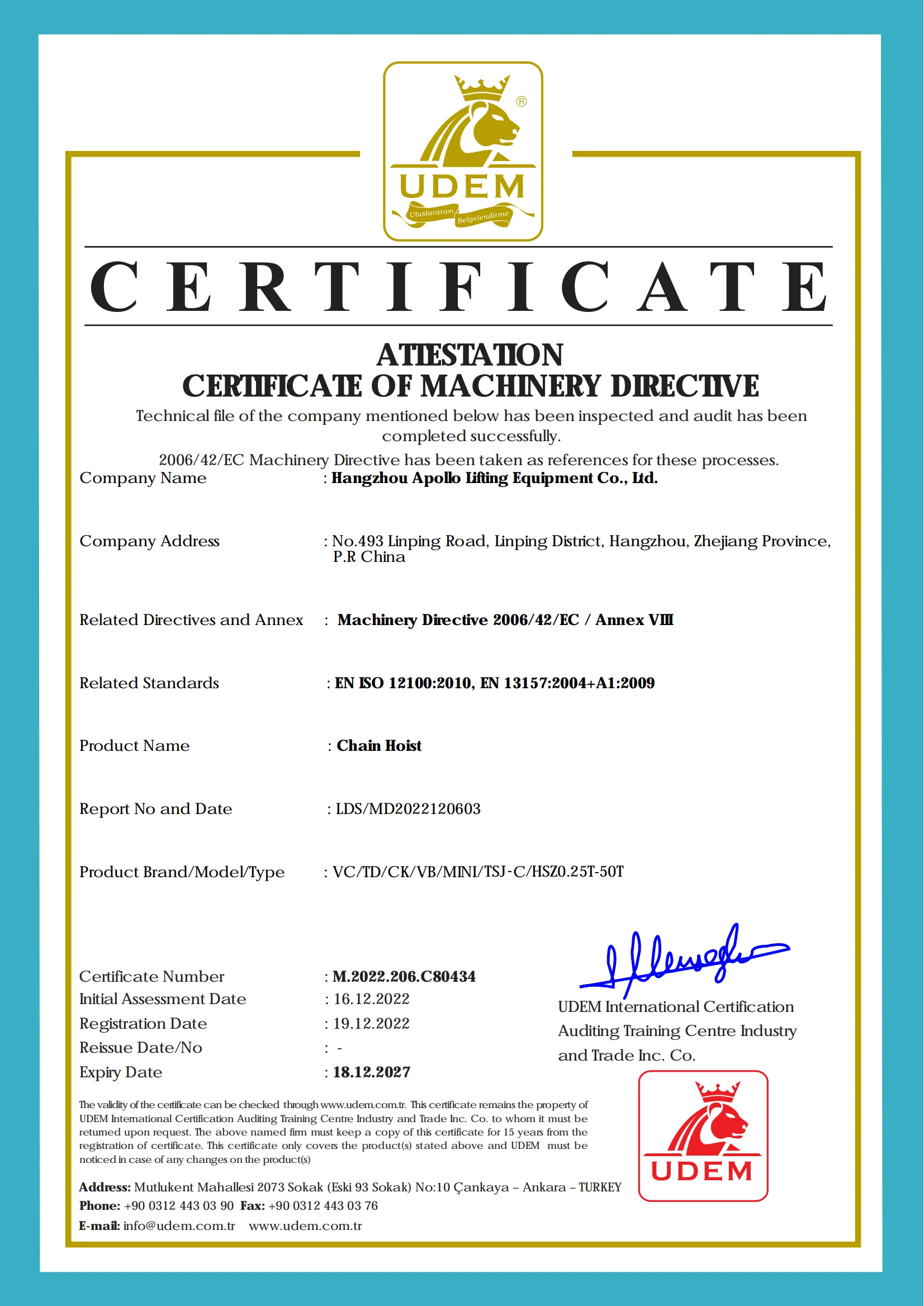

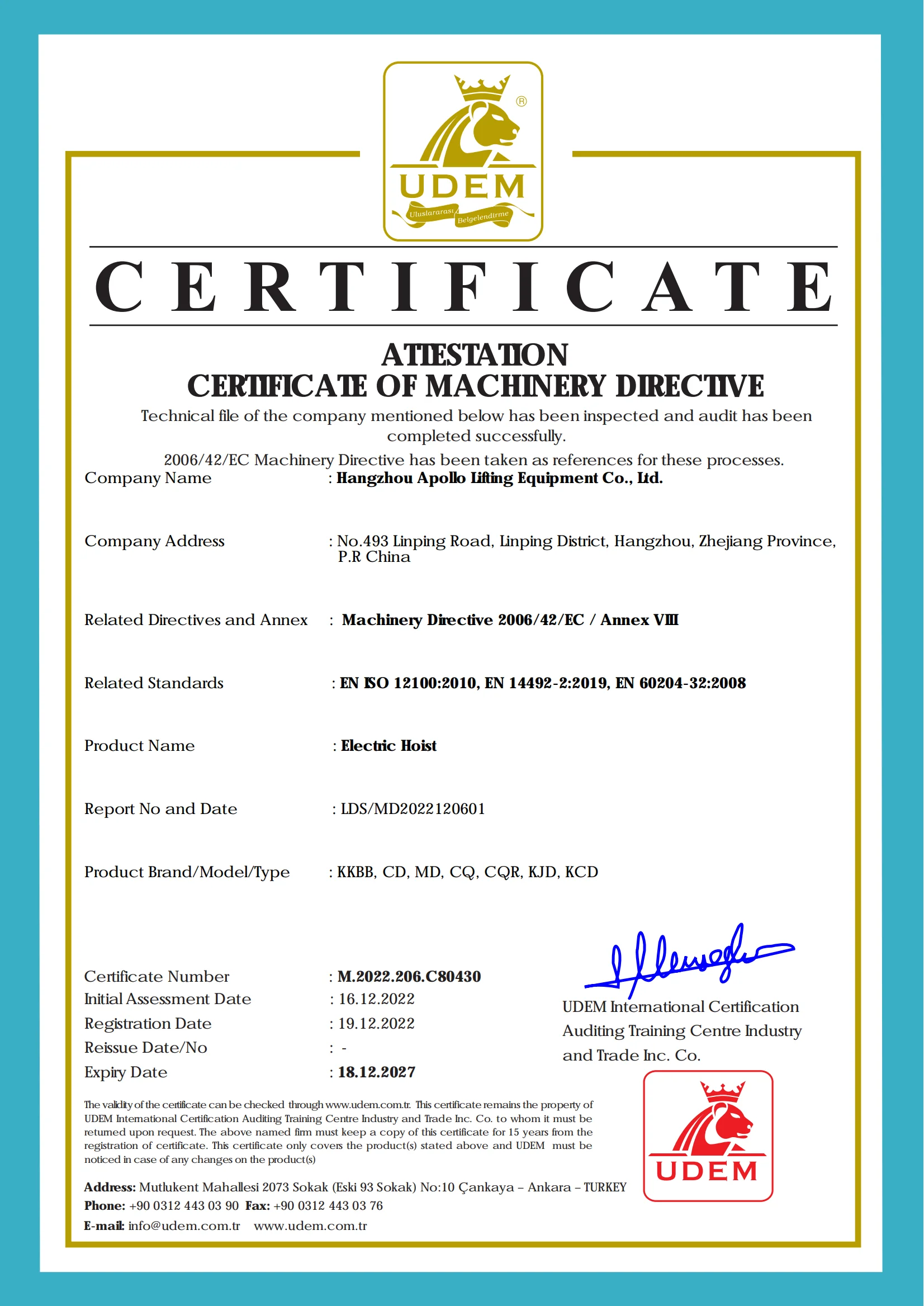

Certifications
Our Advantages
Five Reasons To Choose Us
1
MATERIAL
High quality alloy steel casting for superior hardness
2
TECHNOLOGY
20+ years of manufacturing and production experience, mature process, reliable quality
3
ACCURACY
One year warranty for direct delivery from the original factory, providing technical consul-ting services
4
DESIGN
A reliable design team with sufficient experience in R&D and design
5
CERTIFICATE
The products have passed EU certification and have CE/GS qualifications. The company has passed ISO9000 certification.
