APOLLO new product hoist D3 series workstation smart hoist 125 kg 3m M6 380v/220v electric chain hoist
- Category: >>>
- Supplier: Hangzhou Apollo Lifting Equipment Co. Ltd.
Share on (1601268499069):
Product Overview
Description
Products Description
Model | D3L012 | D3L025 | D3L050 | ||
Max.load(kg) | 125 | 250 | 500 | ||
Standard speed(m/min) | 0-16 | 0-16 | 0-10 | ||
Rated power(kw) | 0.75 | 0.75 | 1.1 | ||
Vertical Max.stroke(m) | 2.8(customizable) | ||||
Control mode | Coaxial sliding handle | ||||
Self Weight(kg) | 25 | 25 | 32 | ||
Chain specifications(mm) | 5.0 | 5.0 | 5.0 | ||
Voltage | standard 380 V(operation 220 V) | ||||
Working level of the organization | 3m/M6 | 3m/M6 | 3m/M6 | ||
Working temperature(℃） | -10℃~55℃ | ||||
Product Details
Product Brief

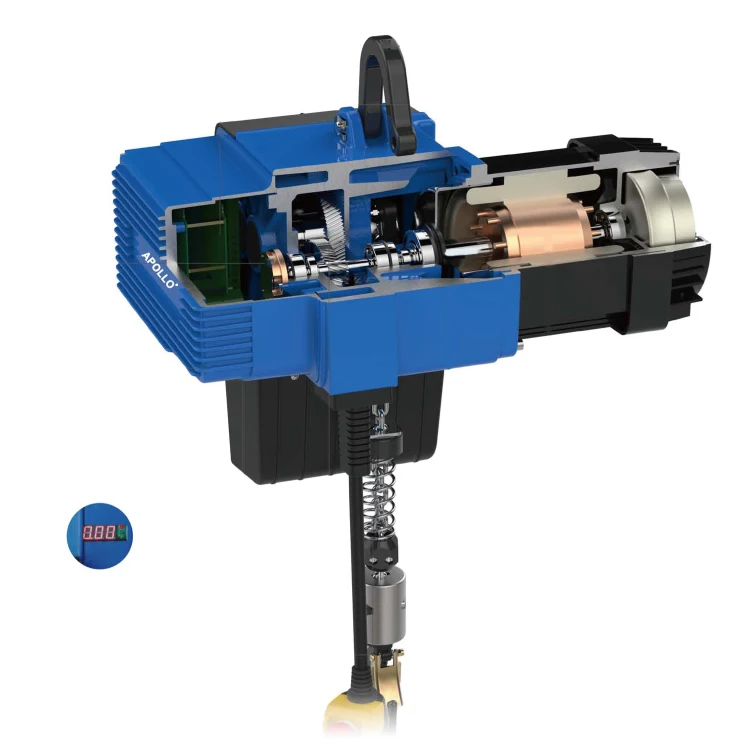

It adopts aluminum shell, which is lightweight and sturdy. Andwe have a unique patented technology, servo system controlledby industrial processors, which help D3 series workstation smarhoist improve lifting speed and assembly accuracy. lt combineshigh technology and human action instructions, which makes iteasier to move heavy object. Jinzhou smart hoist can maximizeproduction efficiency and reduce the physical pressure ofworker. At the same time, it can reduce product damage rate andindustrial accident.
Product Features
01 HANDLE/SUSPENSION DUAL MODE
Handle mode:
According with ergonomics. Person with one hand can operate.
Suspension mode:
It can move easily through handle. It can also directly move the item to precise position.
02 STEPLESS SPEED CHANGE/CONTROLLABLE SPEED
The speed change according to the action speed of operators. It is suitable for situation that require different speed to achieve precise position.
The speed change according to the action speed of operators. It is suitable for situation that require different speed to achieve precise position.
03 PRECISE POSITIONING FUNCTION
Enable operator to move precise equipment and fragile product accurately and smoothly.
04 SAFE AND RELIABLE
Overload protection function : Automatic weight induction system. It will give an alarm and stop working when
it senses overload. Photoelectric induction function:
it senses overload. Photoelectric induction function:
There is an integrated photoelectric sensor in the handle. Only after sensing that the operator is in place can the hoist be operated, which can prevent accidental contact.
Anti rebound function:
Anti rebound function:
Prevent sudden changes in weight from causing movement and rebound,which can eliminate potential security risks. Power off protection function:
When the power supply fails, the safety brake automatically locks, the load will not fall.
Soft limit function:
Soft limit function:
The system has soft limit, reducing the risk of collision and providing flexible working range.

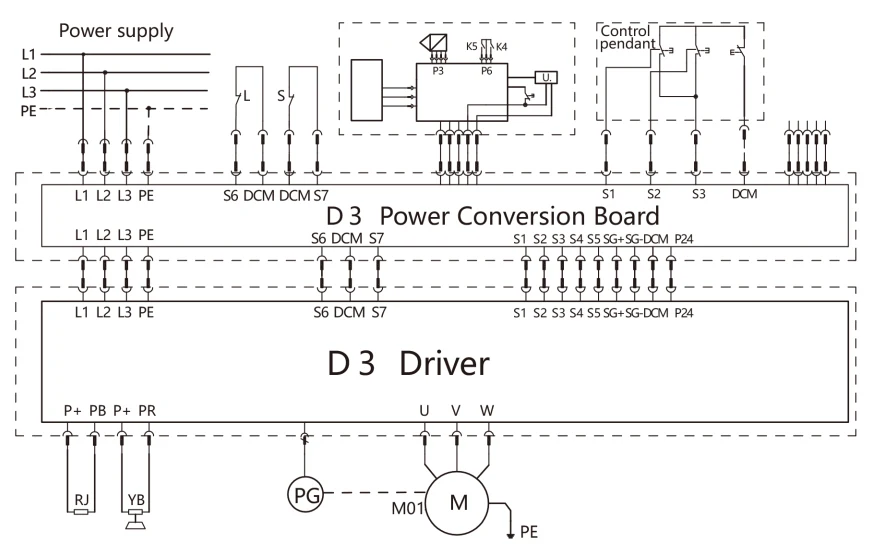

Wiring Diagram
Fit for situation that the item has small volume .
And the lifting range is not high, which workers can reach it.
Fit for situation that the item has small volume .
And the lifting range is not high, which workers can reach it.
Fit for situation that the item has small volume .
And the lifting range is not high, which workers can reach it.
Suitable for heights that workers cannot touch and the volume is large.
The handle is connected to the main machine through a detached handle box.
Suitable for heights that workers cannot touch and the volume is large.
The handle is connected to the main machine through a detached handle box.
Suitable for heights that workers cannot touch and the volume is large.
The handle is connected to the main machine through a detached handle box.
Certifications
Our Advantages
Five Reasons To Choose Us
1
MATERIAL
High quality alloy steel casting for superior hardness
2
TECHNOLOGY
20+ years of manufacturing and production experience, mature process, reliable quality
3
ACCURACY
One year warranty for direct delivery from the original factory, providing technical consul-ting services
4
DESIGN
A reliable design team with sufficient experience in R&D and design
5
CERTIFICATE
The products have passed EU certification and have CE/GS qualifications. The company has passed ISO9000 certification.
Company Profile
OUR FACTORY THREE CORE ADVANTAGES
Years of industry experience and excellent product quality have won praise from many customers.
1 22 years of production experience, quality assurance
EXOUISITE PRODUCTION TECHNOLOGY
A powerful manufacturer of lifting equipment with 22 years of experience, since its establishment in 2001, it has continuously updated its products, upgraded production technology and production capacity, and at the same time strengthened the training of technical management personnel, production employees, sales and dealer teams.
Years of industry experience and excellent product quality have won praise from many customers.
1 22 years of production experience, quality assurance
EXOUISITE PRODUCTION TECHNOLOGY
A powerful manufacturer of lifting equipment with 22 years of experience, since its establishment in 2001, it has continuously updated its products, upgraded production technology and production capacity, and at the same time strengthened the training of technical management personnel, production employees, sales and dealer teams.
Ensure the project quality and service quality of customer terminals, and help upgrade construction technology and construction quality.
Has 3000 square meters+ factory building and 30+ employees.
We promise not to pass it off as good, and will be fined ten for every fake one.
2 After-sales service and technical support
PERFECT AFTER SALES SERVICE
Manufacturer production, first-tier brands, second-tier prices, creating value for customers
7X24 hours fast service
One year after-sales, lifetime technical support
3 Shipped from the original factory, quality guaranteed
QUALITY ASSURANCE HEALTH AND ENVIRONMENTAL PROTECTION
The products have passed EU certification and have CE/GS qualifications. The company has passed ISO9000 certification.
It has an independent R&D and design team that can provide wholesale, retail and customized services.
Through continuous high-standard repeated testing by engineers, the quality and stability have been highly praised by customers.
Has 3000 square meters+ factory building and 30+ employees.
We promise not to pass it off as good, and will be fined ten for every fake one.
2 After-sales service and technical support
PERFECT AFTER SALES SERVICE
Manufacturer production, first-tier brands, second-tier prices, creating value for customers
7X24 hours fast service
One year after-sales, lifetime technical support
3 Shipped from the original factory, quality guaranteed
QUALITY ASSURANCE HEALTH AND ENVIRONMENTAL PROTECTION
The products have passed EU certification and have CE/GS qualifications. The company has passed ISO9000 certification.
It has an independent R&D and design team that can provide wholesale, retail and customized services.
Through continuous high-standard repeated testing by engineers, the quality and stability have been highly praised by customers.
