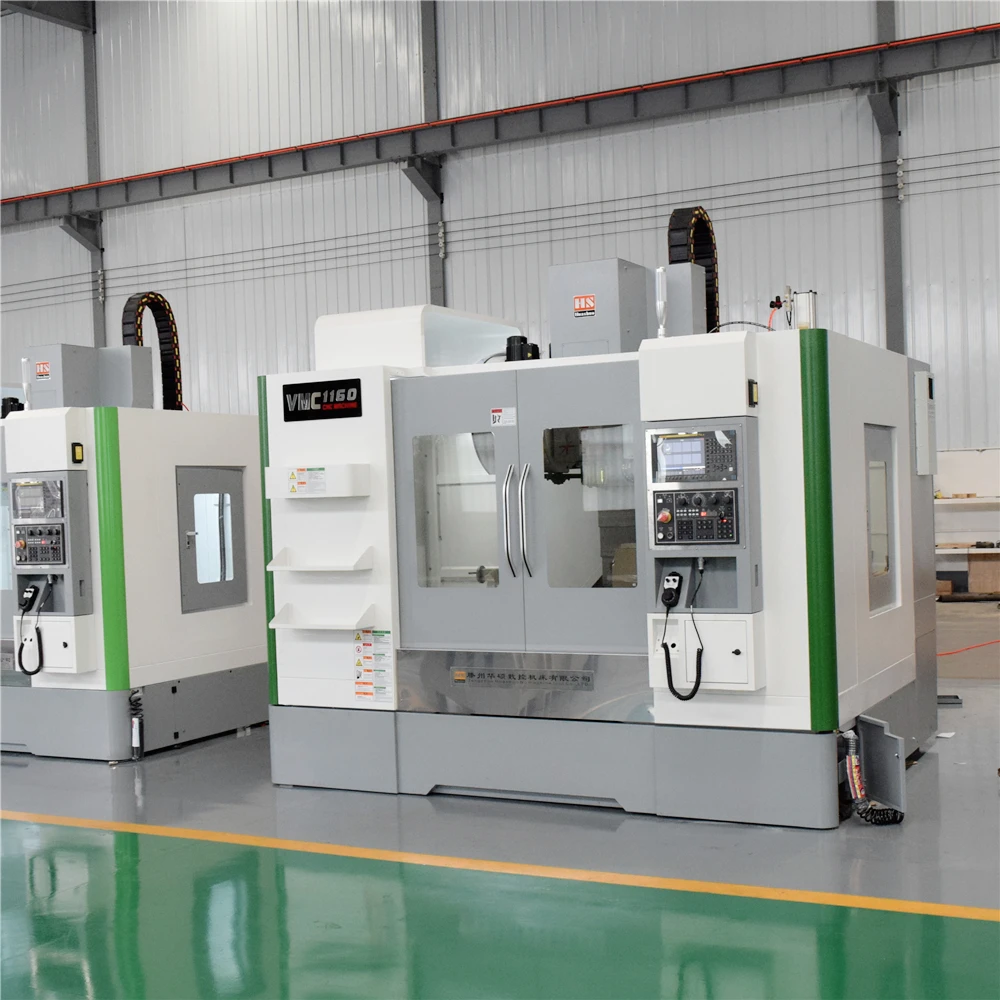

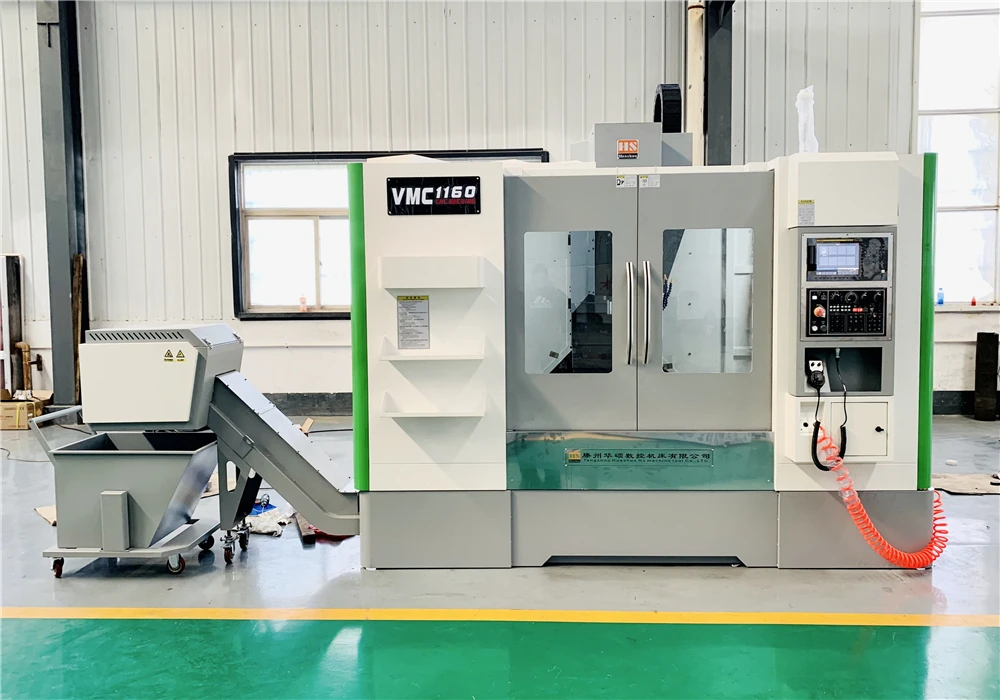

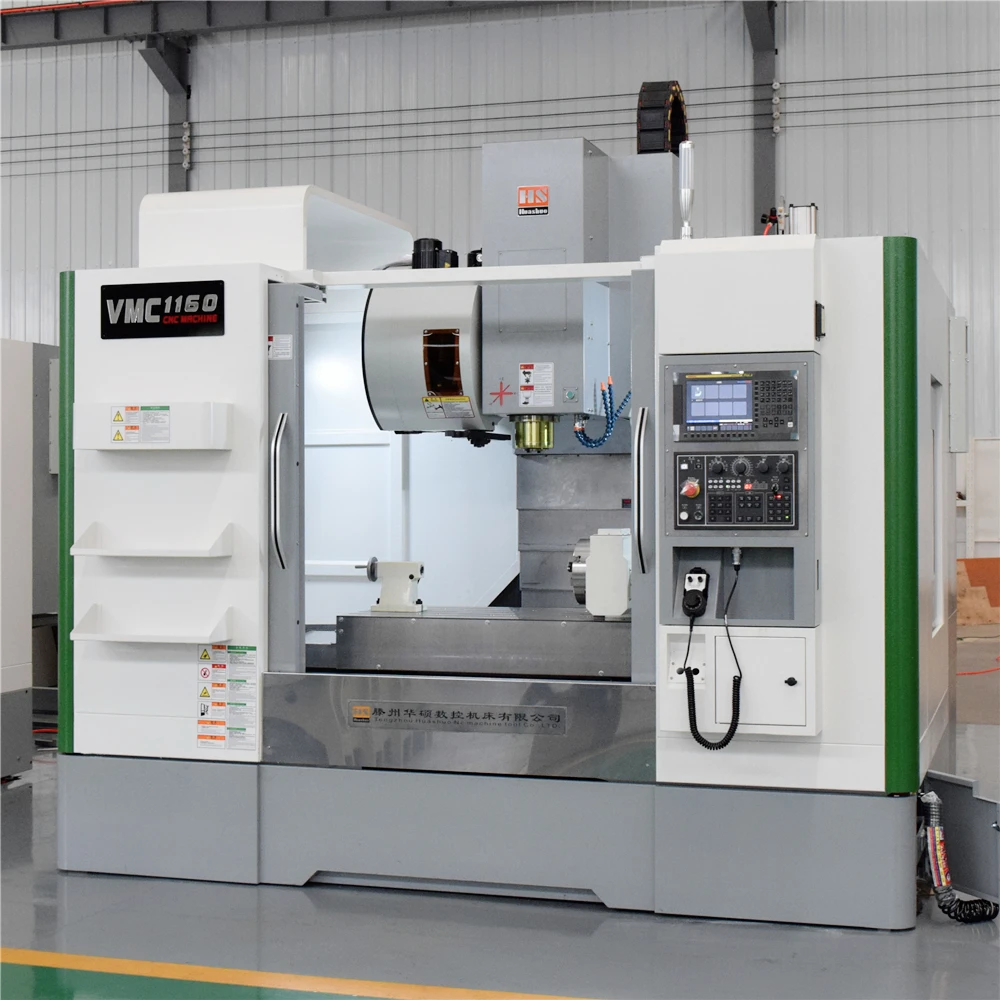

Multifunction CNC Mill 5 Axis VMC1160 for Metal with 5.5kw Spindle CNC Milling Machine Center
- Category: >>>
- Supplier: Tengzhou Huashuo Nc Machine Tool Co. Ltd.
Share on (1601268369403):
Product Overview
Description
pioject | Content | unit | Vmc1160 |
workbench | Workbench area | mm | 1200×600 |
T-shaped groove | mm | 5-18-100 | |
Max capacity | Kg | 1500 | |
trip | Moving range X、Y、Z | mm | 1100×600×600 |
Distance from spindle nose to workbench | mm | 120-720 | |
Distance from spindle center to column guide rail surface | mm | 650 | |
Feed | Fast moving speed x, y, Z | m/min | 36/34/34/min |
Cutting feed speed x, y, Z | mm/min | 10~10000mm/min | |
Spindle | Spindle taper hole | BT40 | |
Spindle speed | r/min | 0-10000pm | |
Spindle power | kw | AC servo 11-15 | |
Tool magazine | Tool magazine capacity | bundle | 24 |
Maximum tool weight | kg | 8kg | |
Maximum tool size | mm | φ150×300 | |
Accuracy | Accuracy positioning accuracy x/y/z | mm | ±0.008 |
Repeat positioning accuracy x/y/z | mm | ±0.005 | |
Dimensions | Overall dimension length width height | mm | 3200*2400*3000 |
weight | KG | 6500 |
Serial numer | name | Vmc1160 |

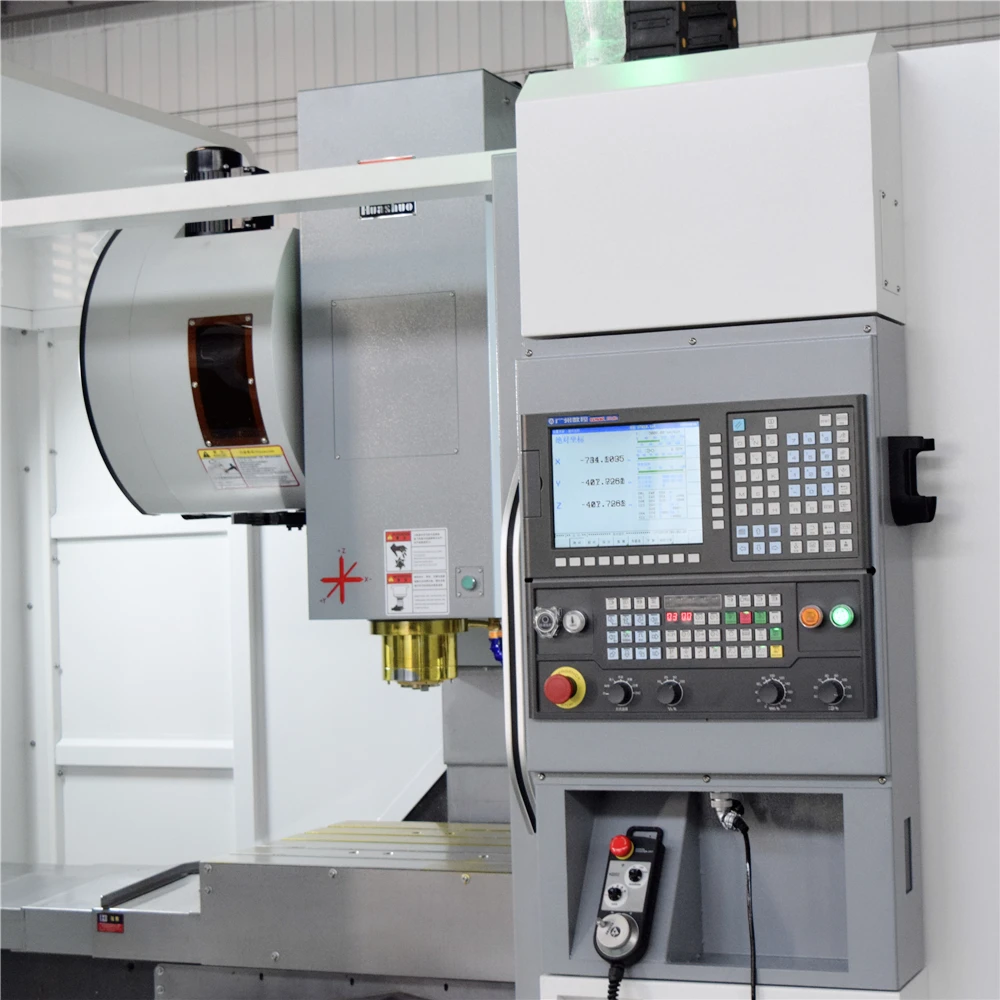

1 | System | GSK 25i |
2 | electric machinery | Three axis servo feed, spindle servo |
3 | guide | Three axis precision linear guide rail (precision level P) |
4 | Screw rod | Three axis precision ball screw (accuracy class C3) |
5 | Spindle | Precision BT40 spindle unit |
6 | Bearing | Japan Nachi screw rod bearing (P4 grade) |
7 | Tool magazine | 24t manipulator disc magazine |
8 | Protection | Metal internal and external protection |
9 | Lighting | Explosion proof LED |
10 | Cooling | 750W high pressure cooling |
11 | Packing | Export wooden case packaging |
1 | Four axis turntable | Four axis turntable, including chuck and manual tailstock (plus 15000-35000 yuan) |
2 | Automatic cutting | Drag chain automatic cutting machine, including pin car (plus 8000 yuan) |
3 | High speed spindle | Direct connected 12000 turn spindle unit (plus 12000 yuan) |
4 | CNC systems of different brands | GSK 25i |
Q: What time is your work time?
A: We work online 24 hours a day, offer quotes and technical support at any time.
Q: Do you use theTrade Assurance on Alibaba?
A: Yes, all of the order use this. Can guarantee the quality of the product and your payment.
Q: How toget a quote?
A: Please tell us the model you need or send us drawings of the workpiece, then we can recommend the most suitable
products to you. We will give you the best offer within 24 hours.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer thesample for free charge but do not pay the cost of freight.
Q: How do you ship the goods and how long does it take to arrive?
Weusually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
