Sunricher 15W 2 Channel 100 700mA DALI DT8 LED Driver for Tunable White
- Category: >>>
- Supplier: Shenzhen Sunricher Technology Co. Ltd.
Share on (1601268950061):
Product Overview
Description
Product Description
Advantage
• Dimmable LED driver, max. output power 15W total
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
• Built-in DALI-2 interface, DALI DT8 device

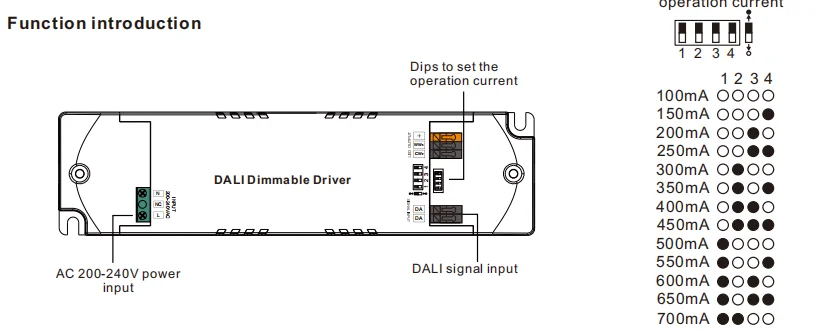

• 2 channel 100~700mA constant current output, select by DIP switch
• High power factor and efficiency
• Hybrid(PWM+CCR) dimming, smooth and deep dimming to 0.1%
• Compatible with universal DALI masters that support DT8 commands
• Error report function, support DALI DT8 type
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
• Built-in DALI-2 interface, DALI DT8 device
• 2 channel 100~700mA constant current output, select by DIP switch
• High power factor and efficiency
• Hybrid(PWM+CCR) dimming, smooth and deep dimming to 0.1%
• Compatible with universal DALI masters that support DT8 commands
• Error report function, support DALI DT8 type
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty

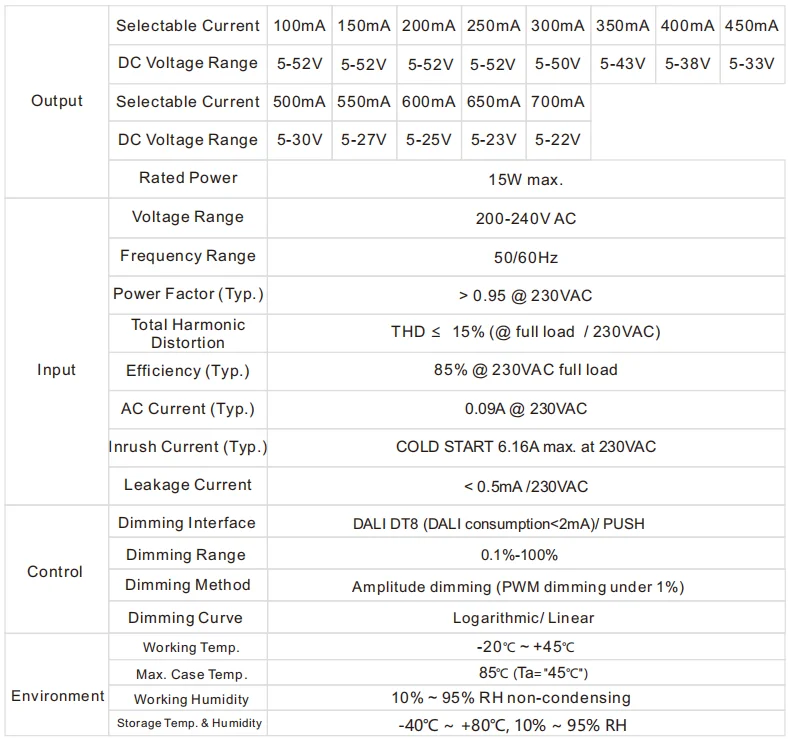

Specification
item | value |
Warranty(Year) | 5-Year |
Lighting solutions service | Project Installation |
Product Weight（kg） | 0.2 |
Place of Origin | China |
Guangdong | |
Brand Name | sunricher |
Type | DALI LED Driver |
Max. Load Power | 15w |
Connection Mode | wired |
lnput | 200-240VAC |
Power | 15w |
Remarks | Constant Current |
Size(LxWxH) | 135x35x20mm |
