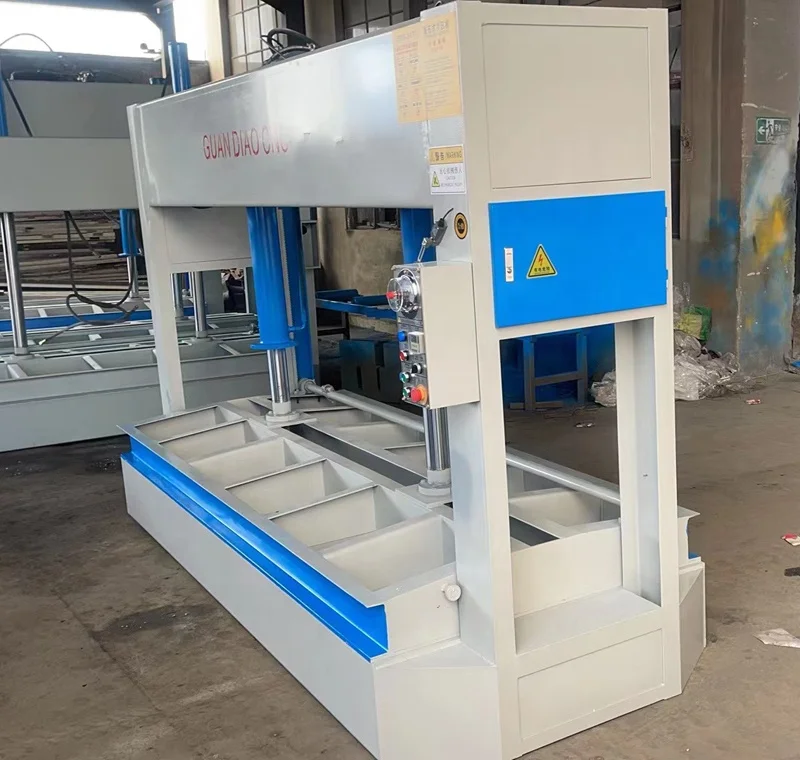

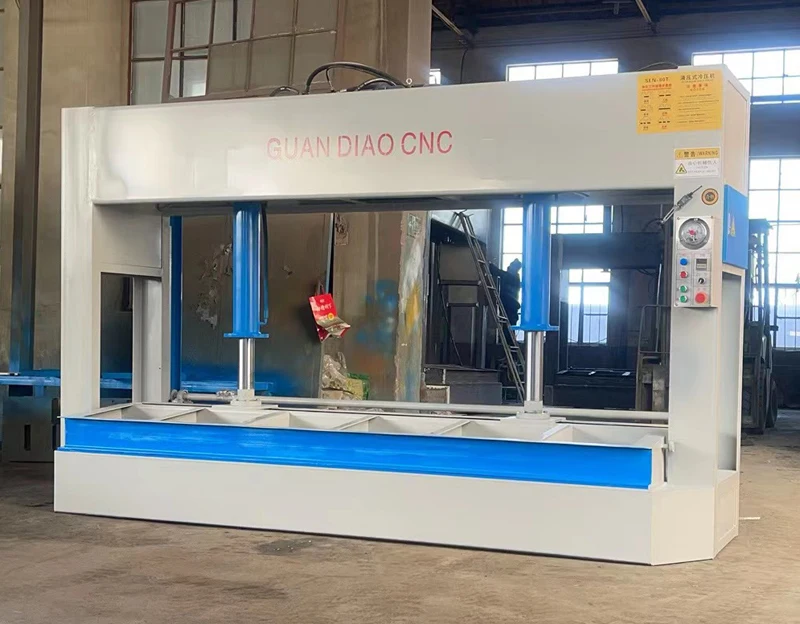

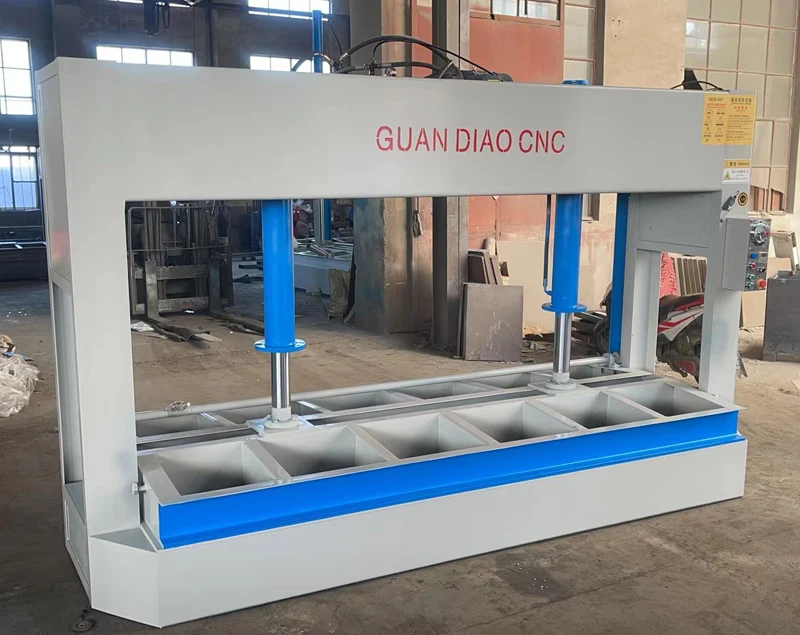

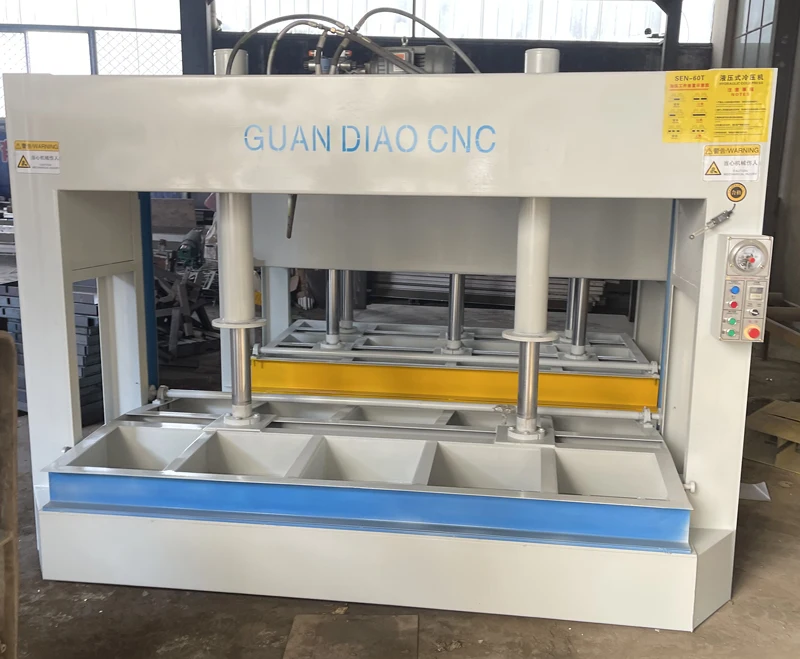

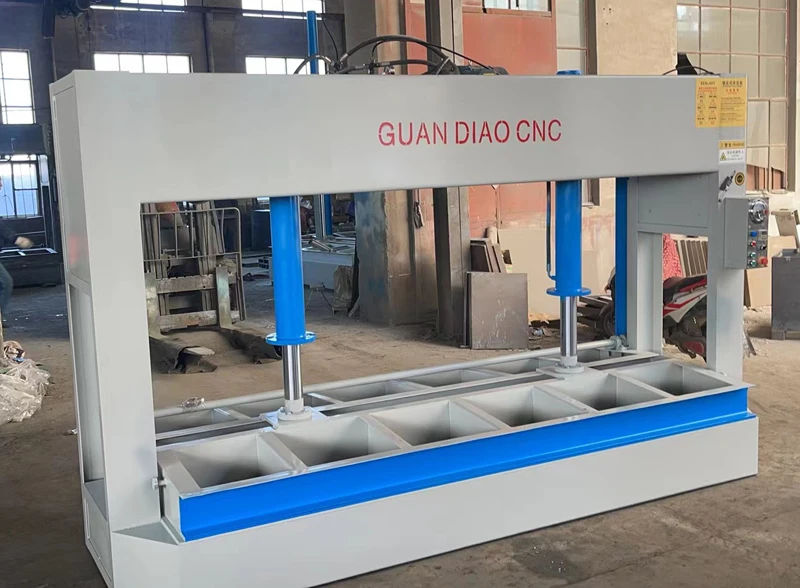

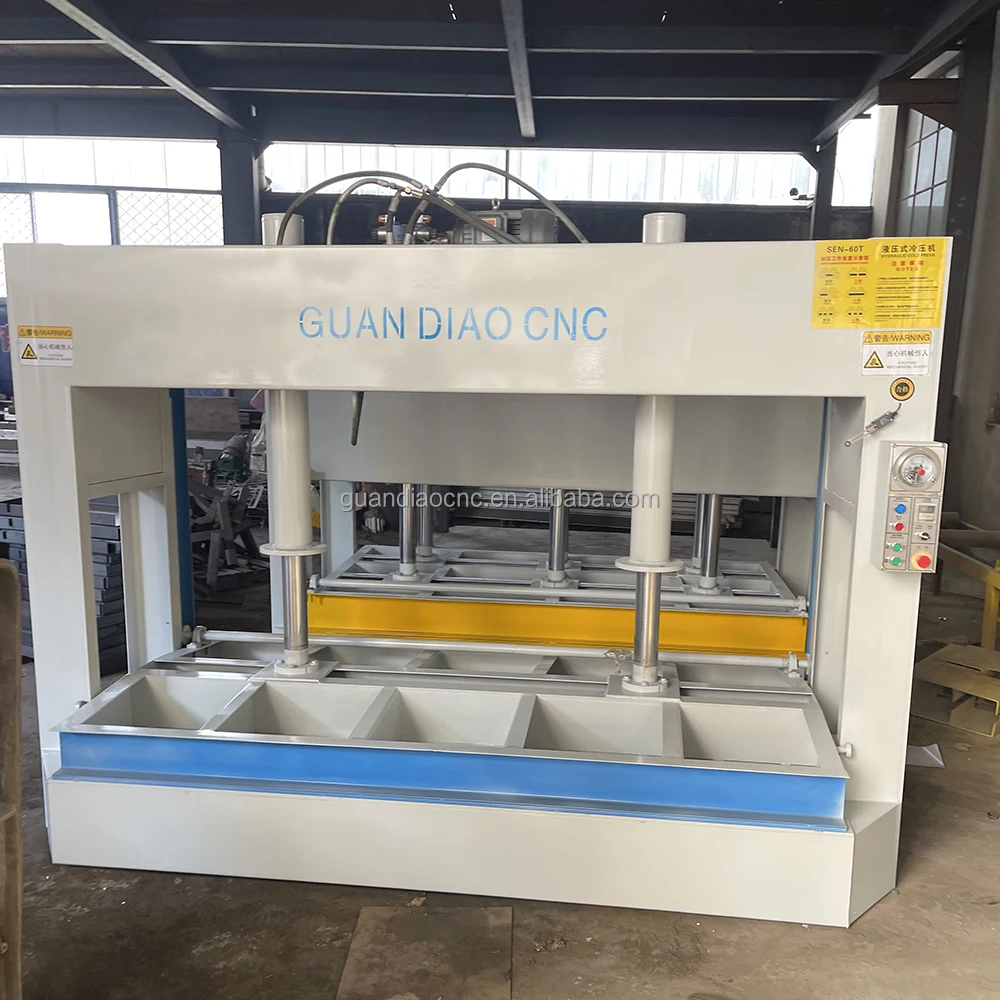

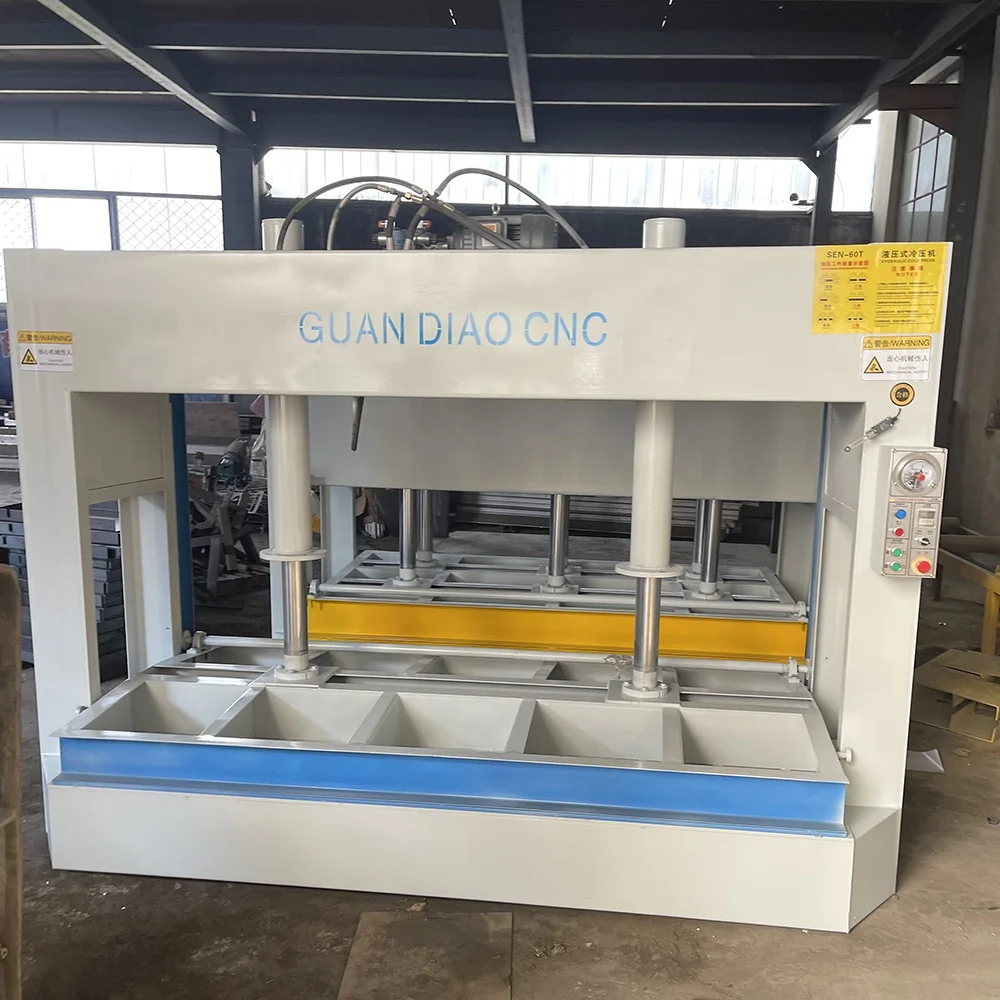

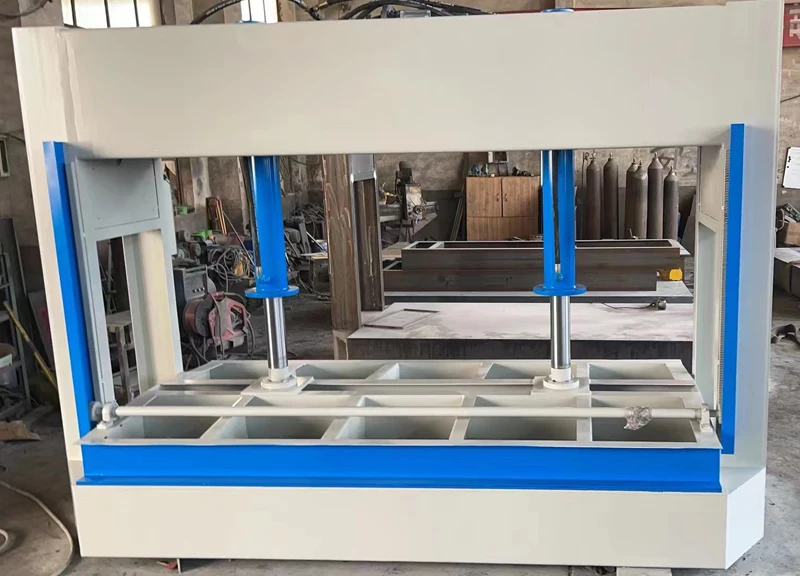

Hydraulic MDF Board Plywood Laminating Cold Press Machine Veneer Door Press Wood Cold Press Machine
- Category: >>>
- Supplier: Shandong Guandiao CNC Equipment Co. Ltd.
Share on (1601268980930):
Product Overview
Description
Product Description

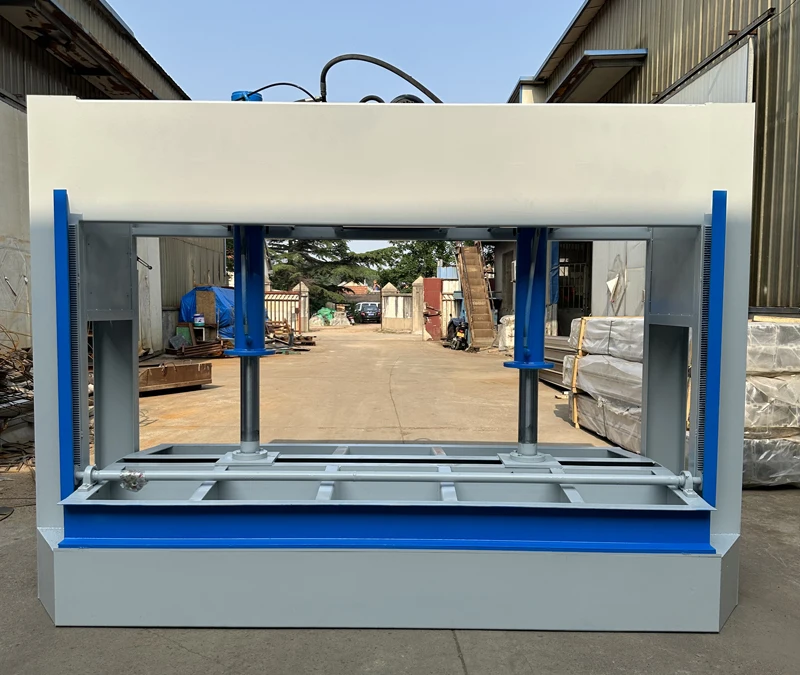

Wood Door Hydraulic Cold Press Machine Features：
The hydraulic press is mainly composed of: hydraulic system, electrical control system, pressure plate and fuselage. Oil pressure system: It consists of oil cylinder, oil tank, oil pump, oil pump motor, control valve block and pressure gauge. The oil tank is filled with oil, and the oil pump is electrically driven by the oil pump to pump oil, and the oil is sent to the oil cylinder through the connecting oil pipe to make the oil cylinder work. Its overflow valve can make the pressing piece generate back pressure during the extrusion process, which plays a stable role. The valve is used to maintain the pressure set by the system,
and the pressure gauge is used to display the pressure.
and the pressure gauge is used to display the pressure.
Show details
Field welding

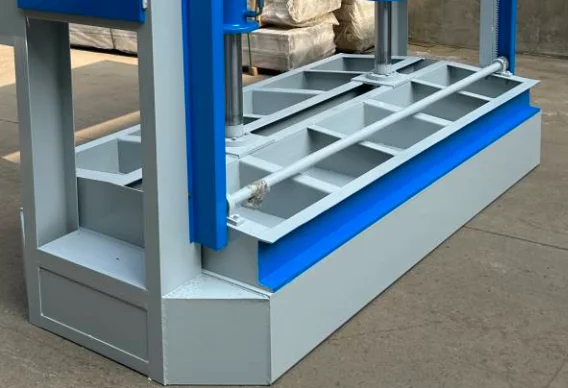

The "Tian" character welding method is used to press down the table, which can make the pressure distribution of the whole table even and ensure the flatness of the pressing surface for a long time.
Control panel
Push button operation panel, simple operation, equipped with digital display timer and graduated pressure gauge, intuitive and convenient display. Push type emergency stop switch, power-off emergency stop. The upper and lower fibers form a switch to automatically stop the lifting. Thickened Fuselage
The fuselage is made of national standard channel steel, which can effectively ensure the stability of the machine and improve the
service life.
service life.
Integrated oil cylinder
The machine adopts integrated oil cylinder to ensure no oil leakage after long-term use and achieve good pressure holding effectExcellent electrical appliances
The solenoid valve is Yadeke, and other electrical appliances are Chint. The internal lines are safe and tidy, and the machine works more stably.Specification
Name Model | 2500*1.25 stroke 1 meter | 2500*1.25 stroke 1.5 meters | ||
Platen Size | 1250*2500 | 1250*2500 | ||
Pressure | 50T | 50T | ||
Distance | 1000mm | 1300mm | ||
Installed Power | 4KW | 4KW | ||
Dimensions | 2910*1250mm | 2910*1250mm | ||
Net Weight | 1.8t | 2.2t | ||
Name Model | 3000*1.25 stroke 1 meter | 3000*1.25 stroke 15 meters | ||
Platen Size | 1250*2500 | 1250*2500 | ||
Pressure | 50T | 50T | ||
Distance | 1300mm | 1500mm | ||
Installed Power | 4KW | 4KW | ||
Dimensions | 3410*1250mm | 3410*1250mm | ||
Net Weight | 2.0t | 2.4t | ||
Samples Display
Cold press machine applicable to: household panels, steel, door panels, stone, honeycomb panels, multi-layer panels, insulation panels and other materials. It is used for setting and flattening the panels, which can make the adhesion between the panels stronger, with strong pressure and no force back.

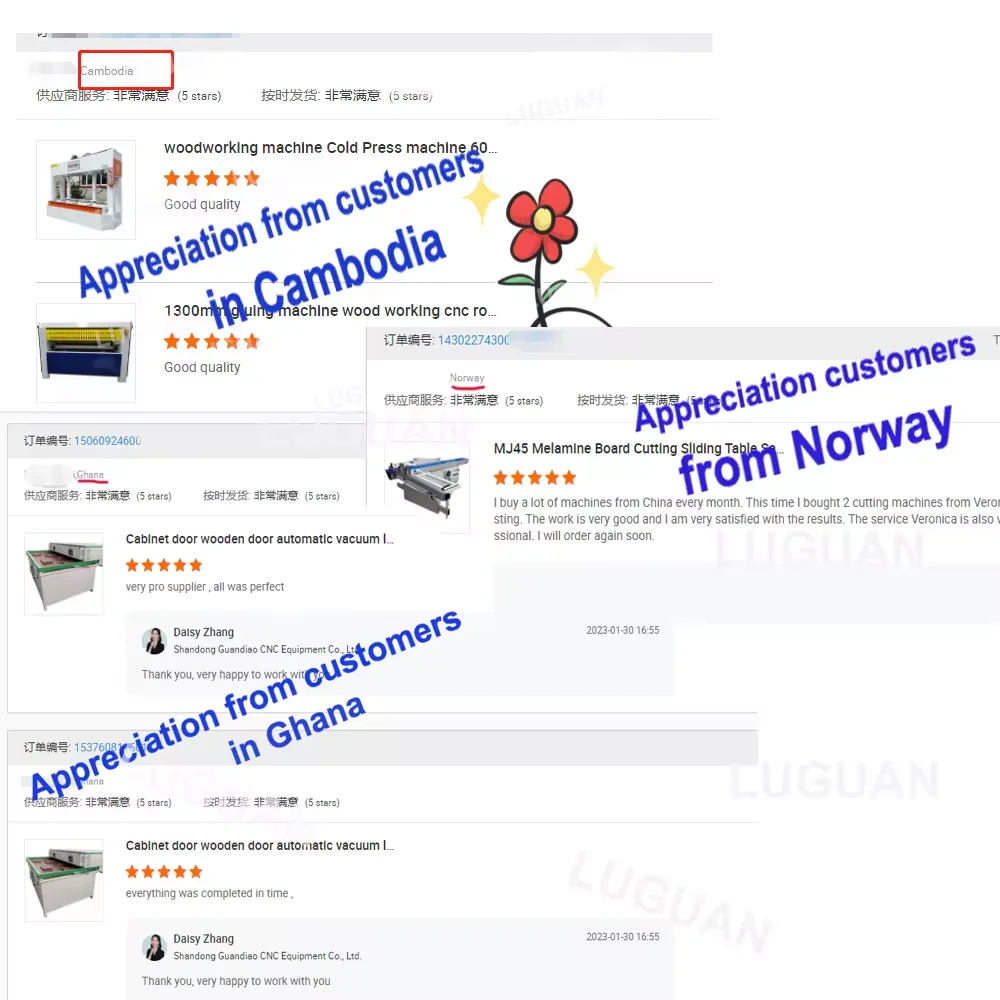

Good Feedback
Packing & Delivery

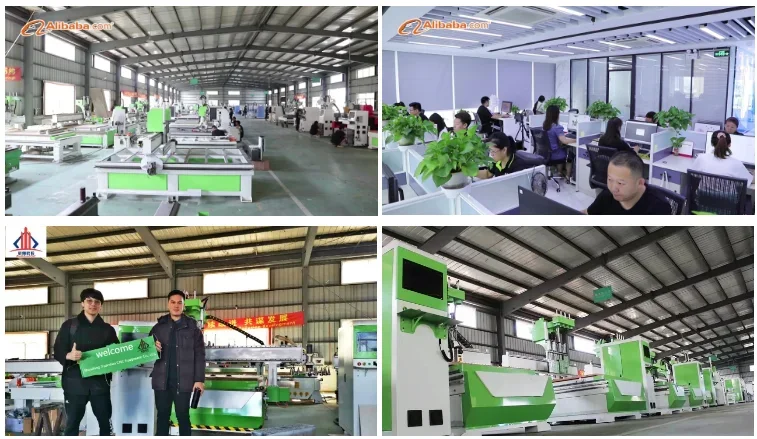

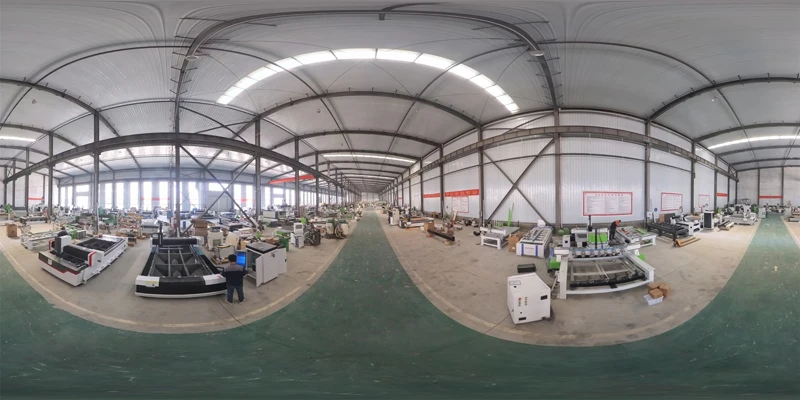

Company Profile
