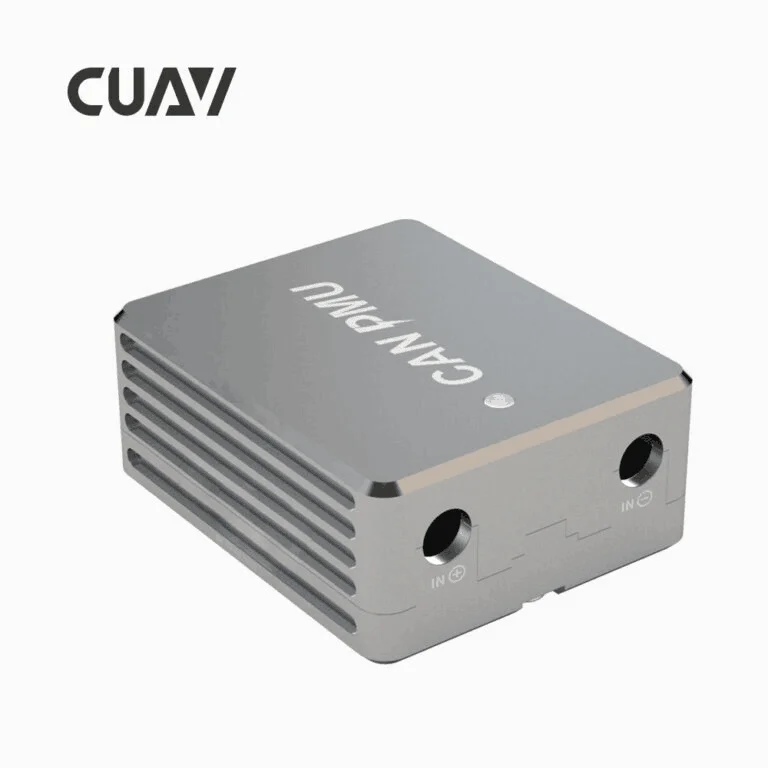

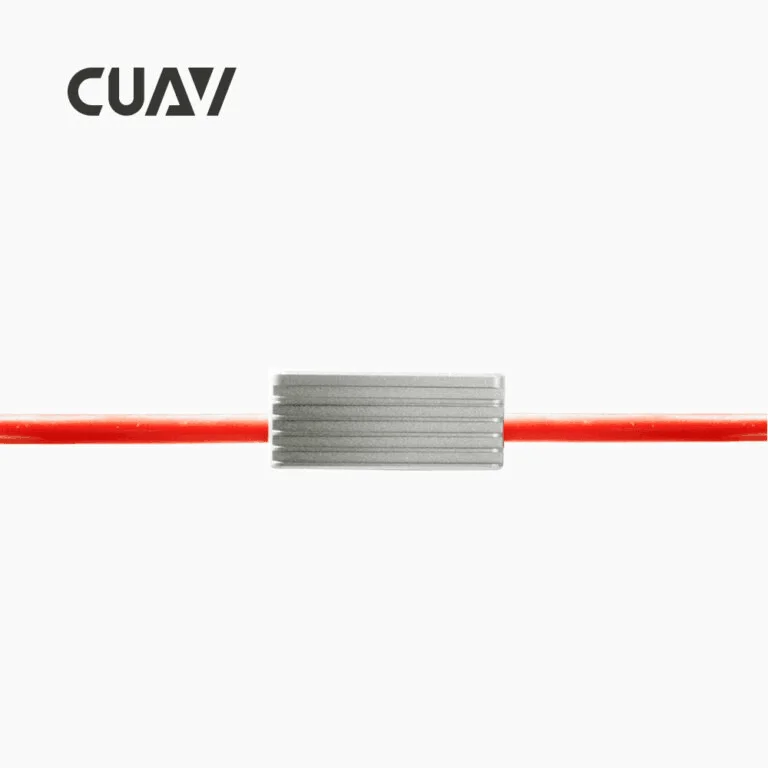

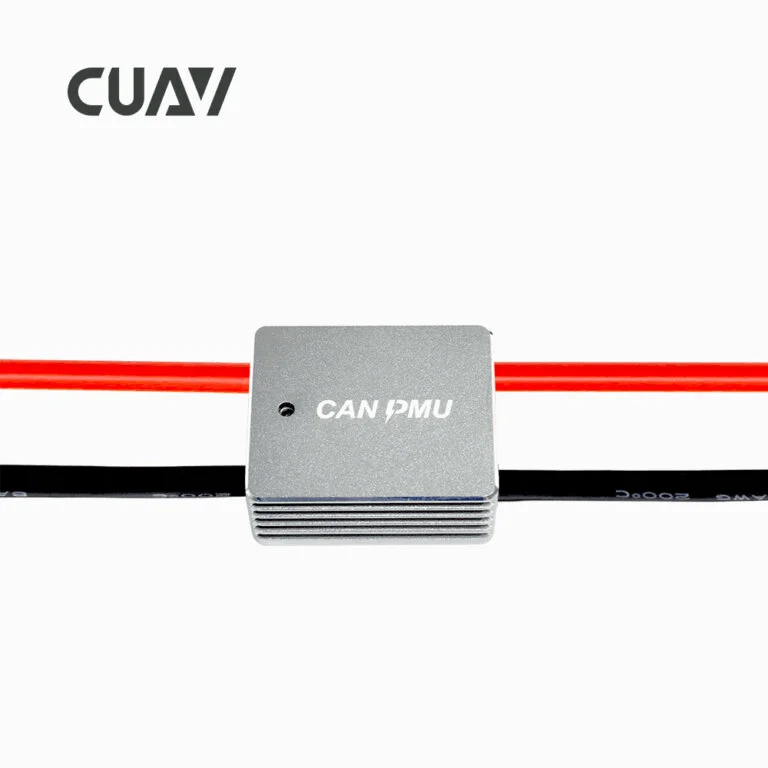

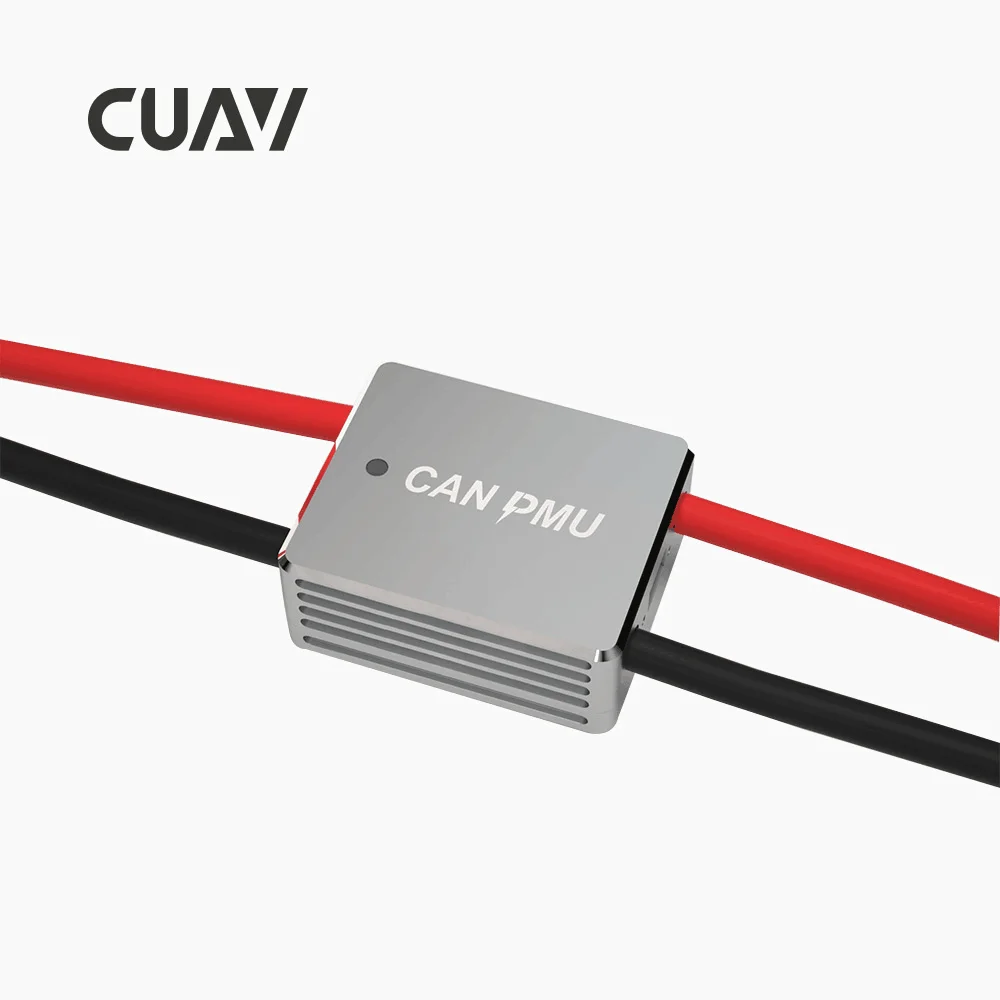

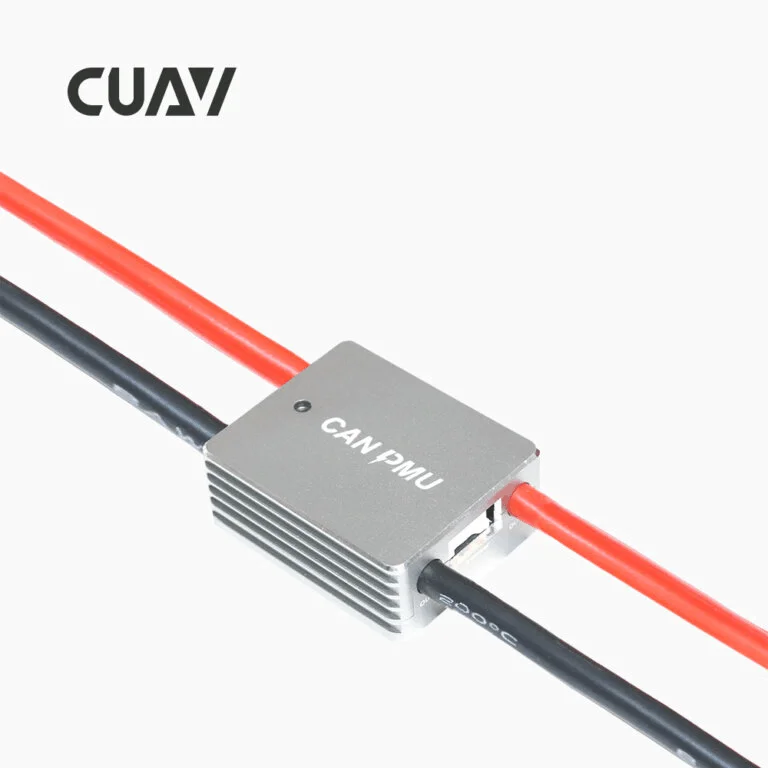

CUAV CAN PMU PIX APM UAV Drone High Precision Voltage Current Power Detection Unit For unmanned Hardware Management Unit Module

Share on (1601269119201):


Price:$88.00 - $98.00

Quantity:


Product Overview

Description



Features


CAN PMU is a drone power management unit with a built-in STM32F4 processor and running the CUAV ITT algorithm. It can accurately measure the drone voltage and current in real time. It supports a maximum of 6-62V voltage and 110A current and can output 5.4V 5A. (Maximum instantaneous 8A / 120s, constant 5A) Powers the flight controller, uses CAN bus communication, supports standard UAV CAN protocol, and each PMU unit is factory calibrated to ensure good consistency and high accuracy.
- Processor: STM32F412 100Mhz 512K Flash 256K RAM
- Voltage input: 6-62V(2-15S)
- Max current: 110A
- Voltage accuracy: ±0.05V
- Current accuracy: ±0.1A
- Resolution: 0.01A/V
- Max output power: 6000W/90S
- Max stable power: 5000W
- Power port output: 5.4V/5A
- Protocol: UAVCAN
- Operating temp: -20℃ ~ +100℃
- Firmware upgrade: Support
- Calibration: No need
Interface Type
- IN/OUT: XT90(Cable end)/Amass 8.0(Module end)
- Power: 5025850670
- CAN: GHR-04V-S
Appearance
- Size: 46.5mm×38.5mm×22.5mm
- Weight: 76g



Product Description




Package Included:
1x CUAV CAN PMU High Precision Power Detection Unit For unmanned Hardware
