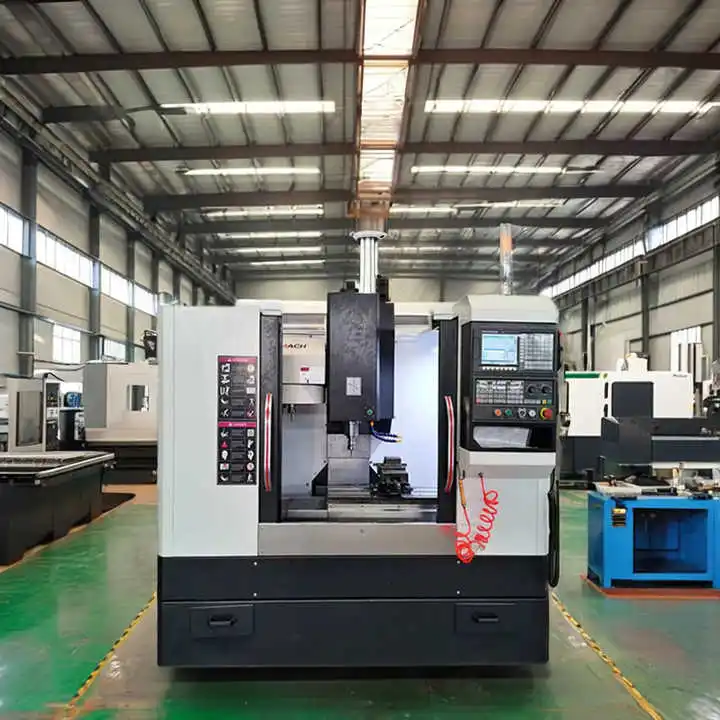

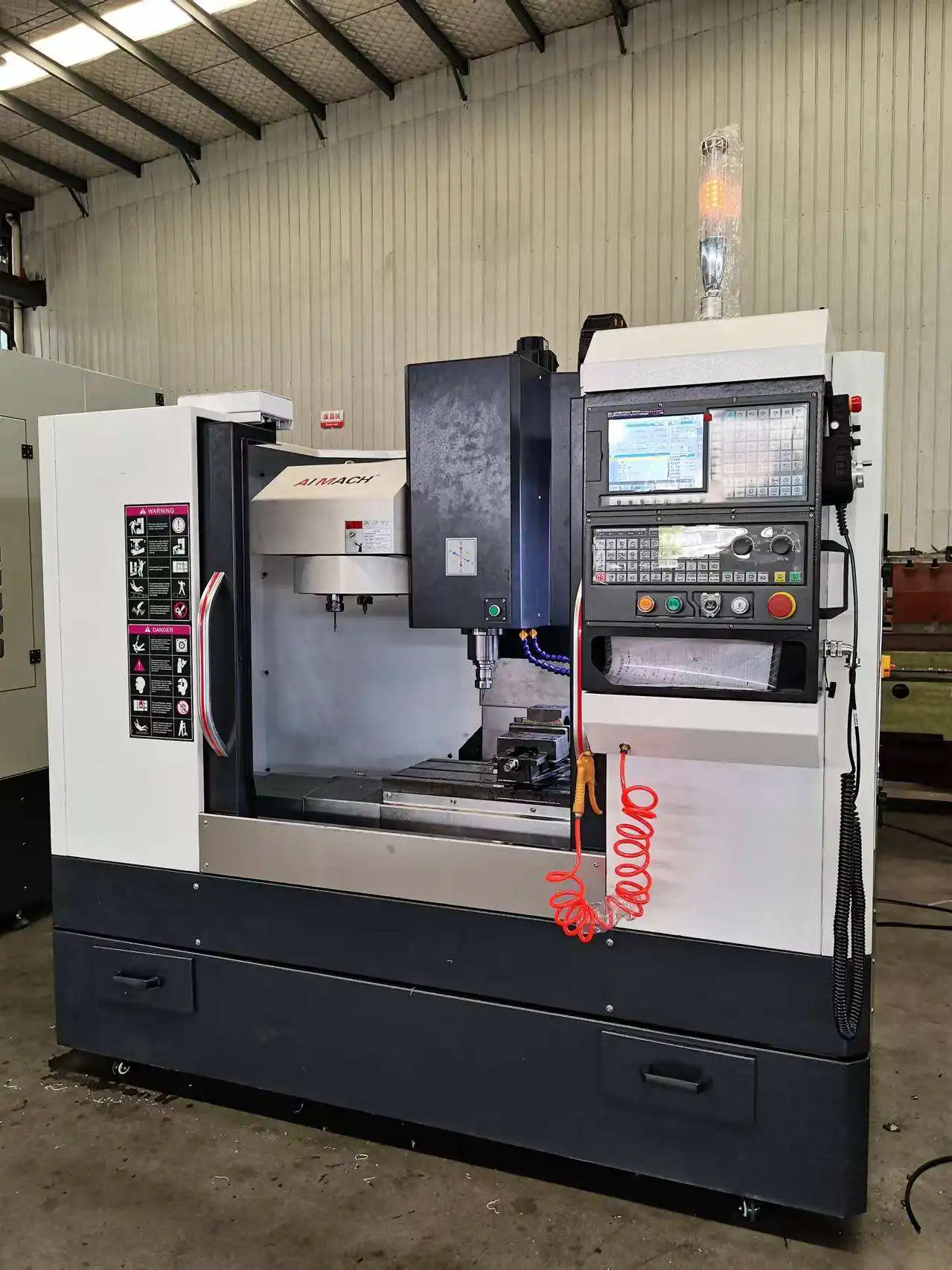

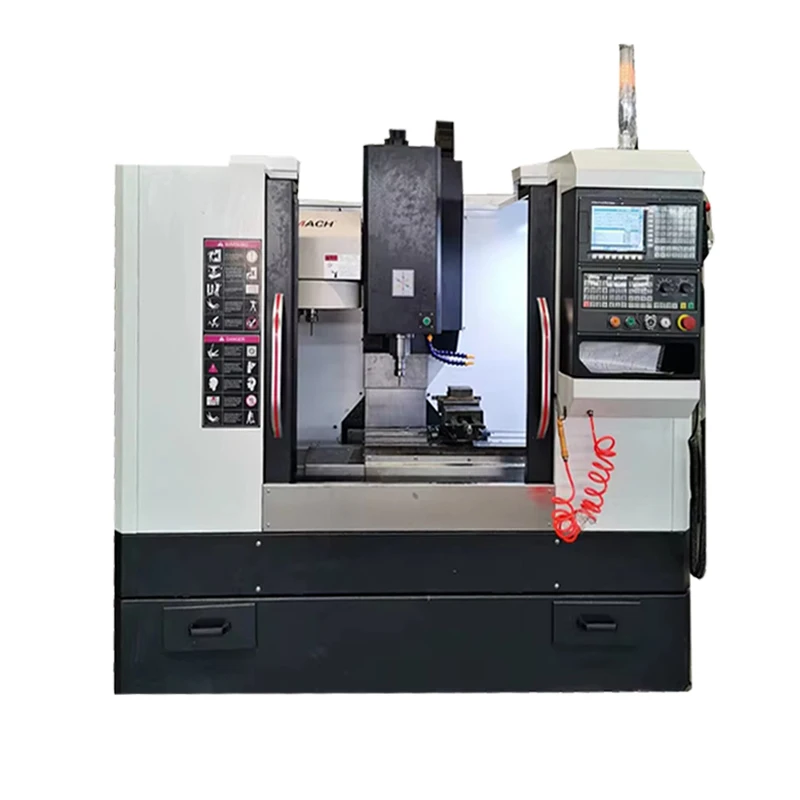

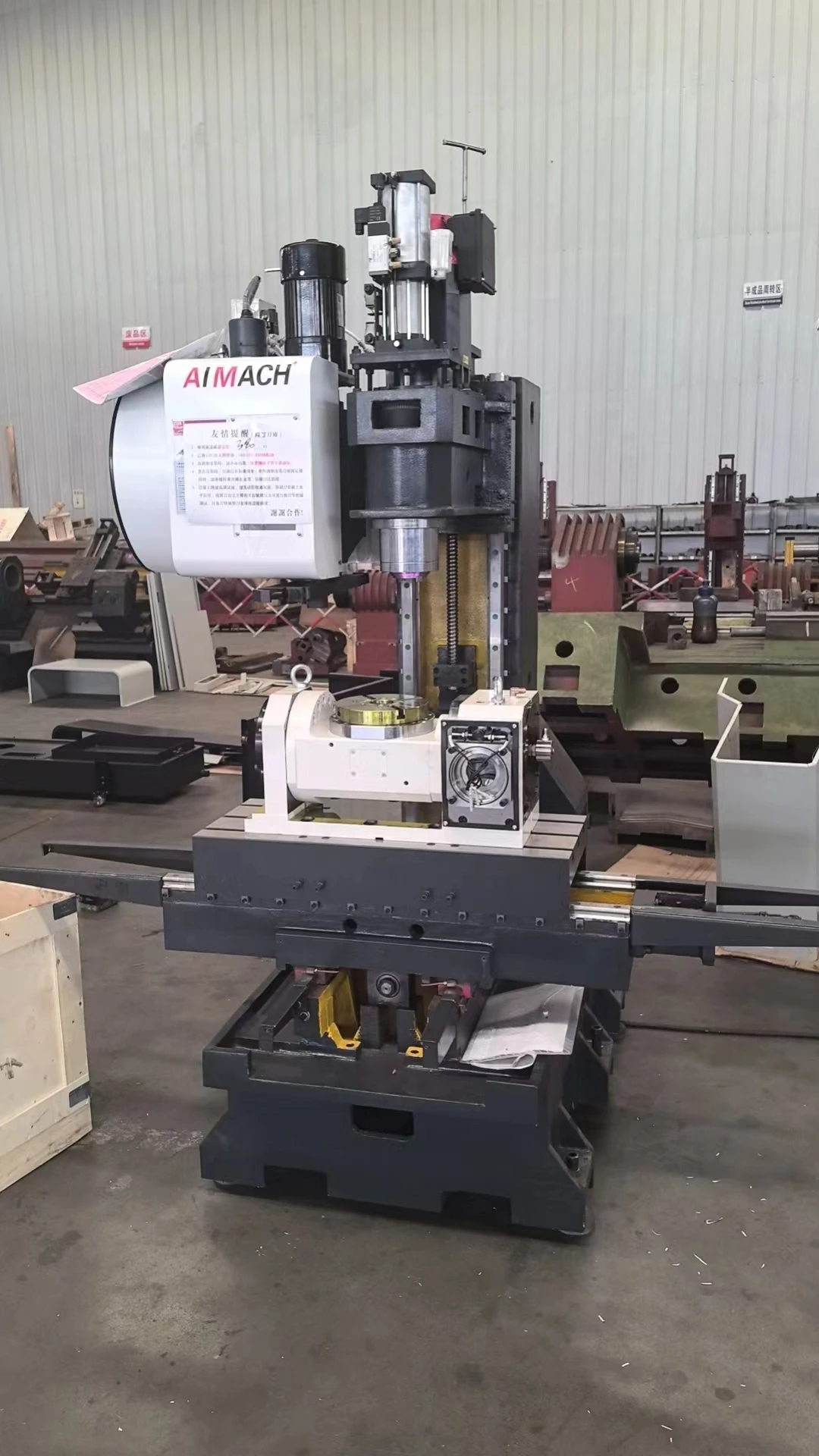

Competitive Price 5 Axis CNC Mill Machining Center Vertical Machining Centers with High Precision Milling
- Category: >>>
- Supplier: Zaozhuang Sente Cnc Equipment Co. Ltd.
Share on (1601269201002):
Product Overview
Description
Vertical machining centers are mainly used for processing high-precision, multi process, and complex shaped parts such as plates, disks, shells, and molds. They can continuously complete milling, drilling, expanding, reaming, boring, tapping, and precise machining of two-dimensional and three-dimensional surfaces and slopes in one clamping process. The machining is programmed, shortening the production cycle and enabling users to achieve good economic benefits.
Main technical parameters | VMC430 |
Workbench size (LxW) | 700x260mm |
X-axis travel | 500mm (550 limit) |
Travel Y-axis | 500mm (550 limit) |
Z-axis travel | 500mm (550 limit) |
Distance from spindle center to column guide surface | 384mm |
The distance between the spindle end face and the worktable | 100-580mm |
T-slot number/width/spacing | 3-14-80 |
3-14-110 | |
Workbench load-bearing capacity | 400kg |
Spindle taper hole/installation size | BT40/¢120 |
Spindle speed | 6000rpm |
Feed rate | 10 meters per minute |
Fast moving speed | 15 meters per minute |
positioning accuracy | 0.01 |
Repetitive positioning accuracy | 0.005 |
Knife storage | BT40/bamboo hat style |
Knife storage capacity | 12 |
Machine tool external dimensions | 2050X1580X2050 |
weight | 1450Kg |

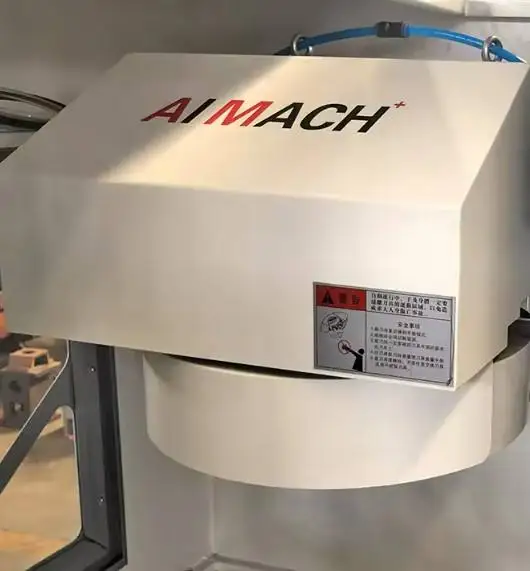

standard: 16 armless
optional: 24 arm type drum ATC
TAIWAN PRECISION
SPINDLE
High precision
High surface finish

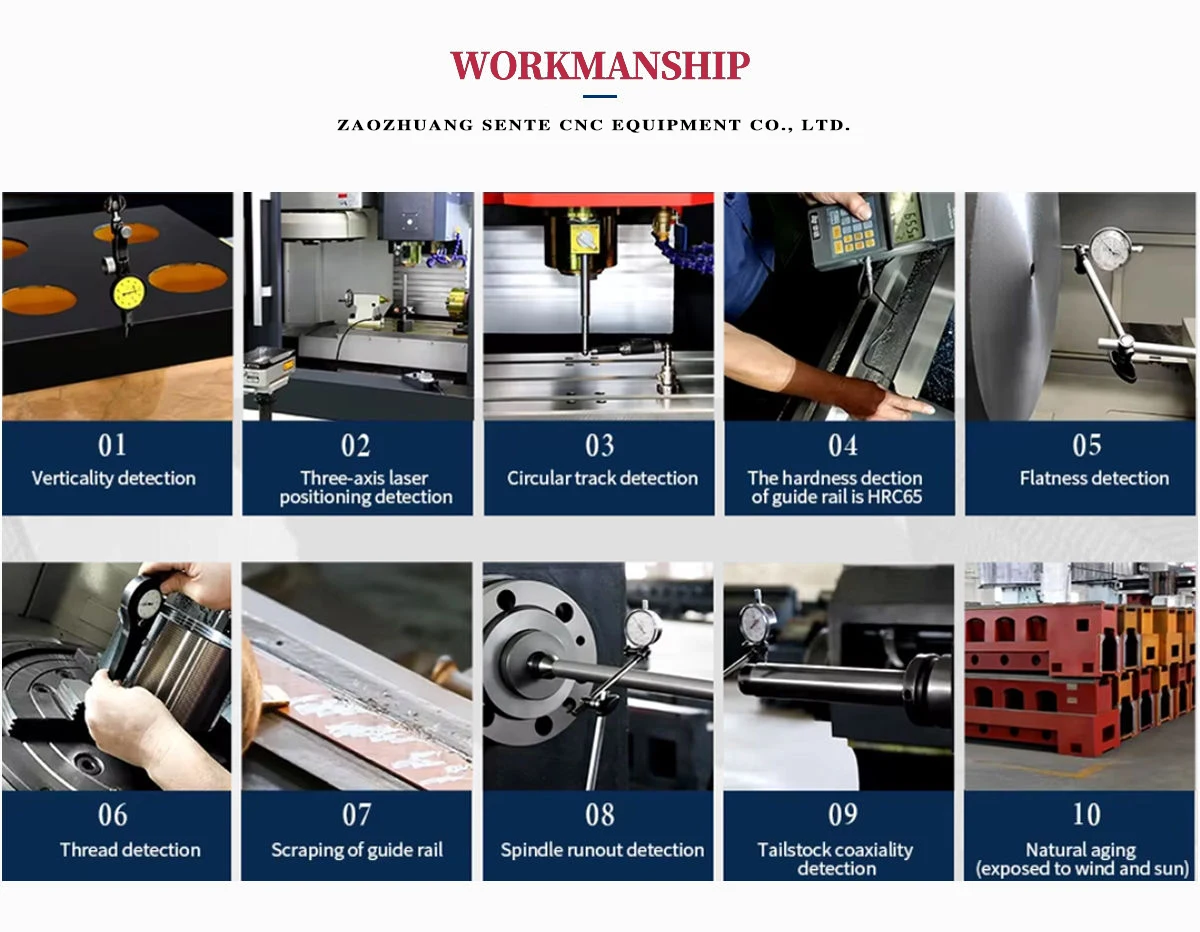

PRECISION OPTICAL MACHINE
Precision casting
precision machiningprecision assembly
precision testing

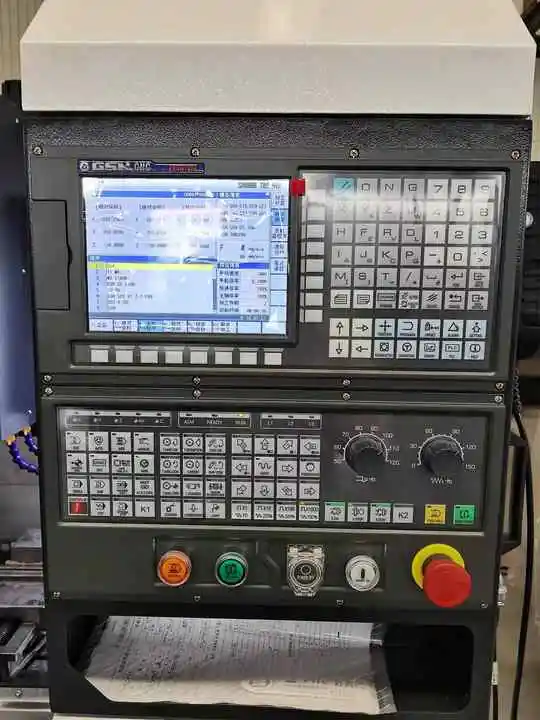

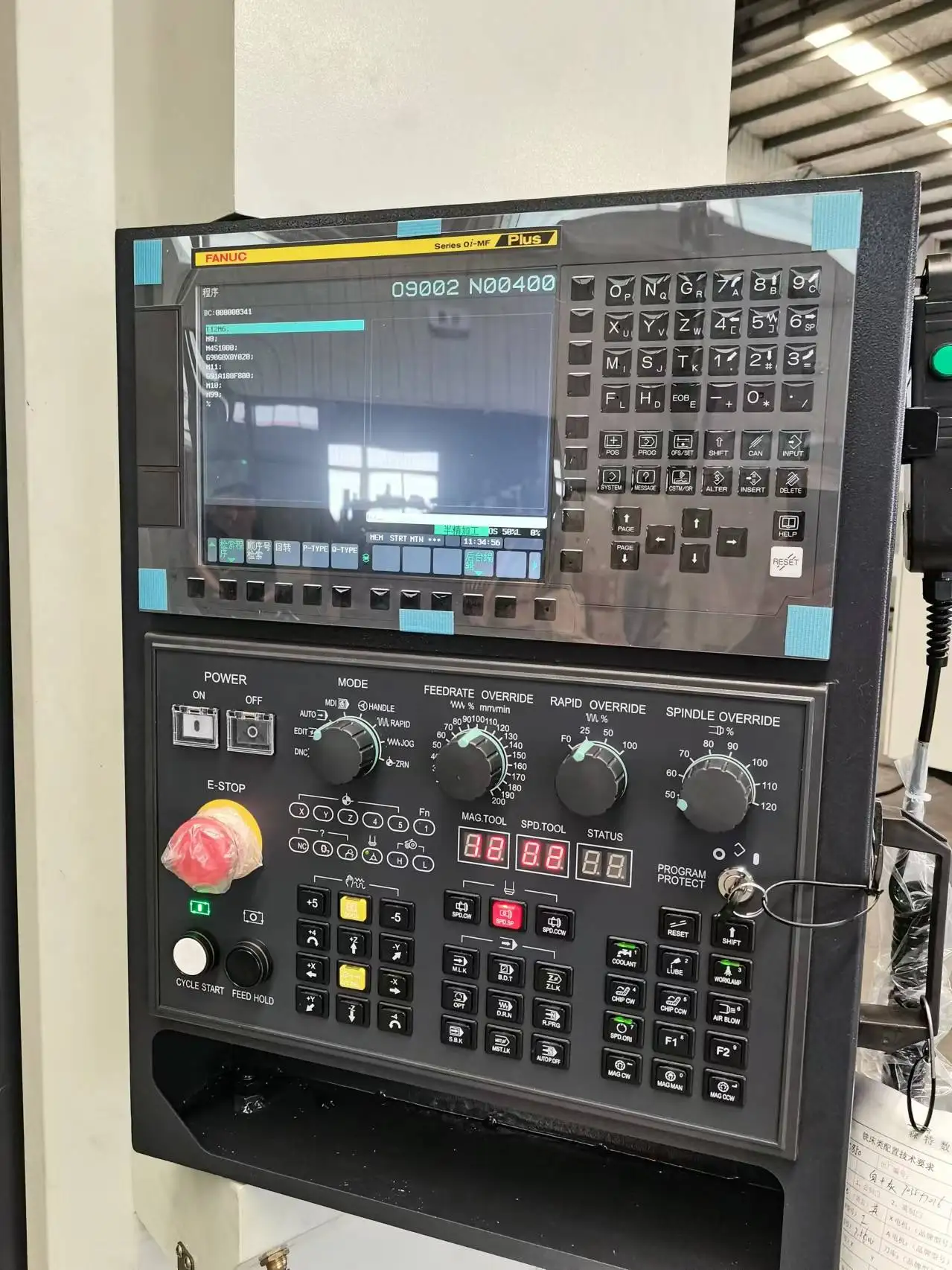

CNC SYSTEM
Optional :Siemens, Fanuc,Syntec, Mitsubishi and others.

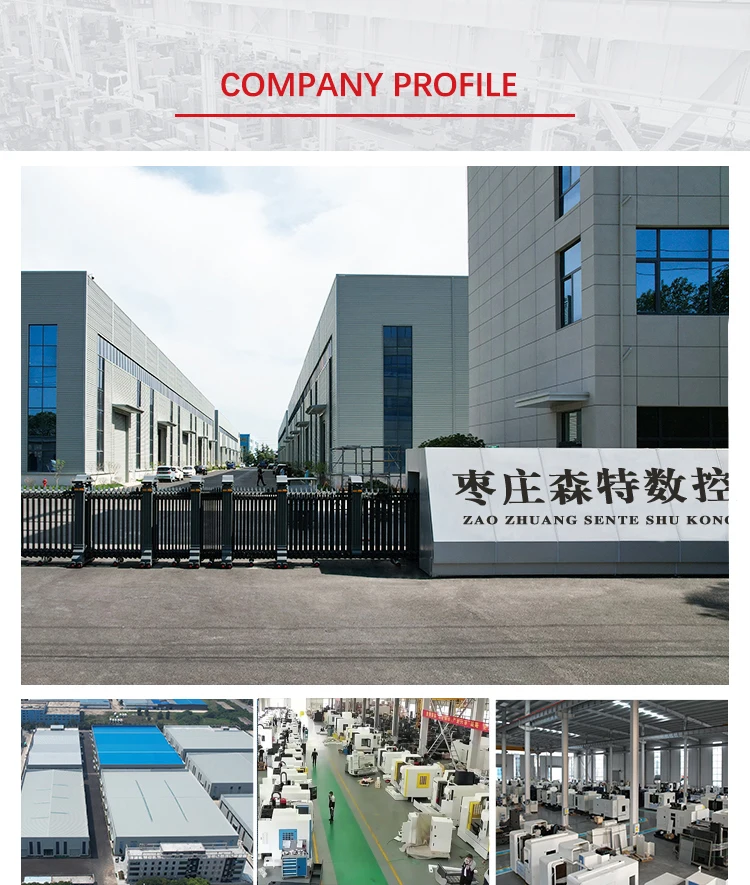

Zaozhuang Sente CNC equipment Co., Ltd.lt is a company integrating research and development, design, production, processing, sales andservice of advanced CNC machinery and equipment, The company wasest ablished in 2011, and the technical backbone personnel have more than 20 years of work experience, The company has won the title of China's high-tech enterprise and has more than ten CNC machinery technologies. The main output is CNC turning center, CNC machining center, CNC lathe, milling machine, and various design and custom CNC mechanical equipment that supports ODM/OEM.
1. Can you provide design customization service?
Yes, we support ODM/OEM, and can design and customize exclusive models according to your needs.
2. How to choose the most suitable machine?
Please tell me your specification, we can choose the best model for you, you can also send us the product drawing, we will choose the most suitable machine for you.
2. How to choose the most suitable machine?
Please tell me your specification, we can choose the best model for you, you can also send us the product drawing, we will choose the most suitable machine for you.
3. What is your payment terms?
30% down payment after the contract, 70% payment
before shipment, can be discussed according to your situation.
before shipment, can be discussed according to your situation.
4: Where is our factory located?
Our factory is located in Tengzhou City, Zaozhuang, China, zip code 277500. Warmly welcome you to visit us.
5. What is your delivery time?
Delivery depends on different machines with different configurations. Please contact us to confirm availability.
