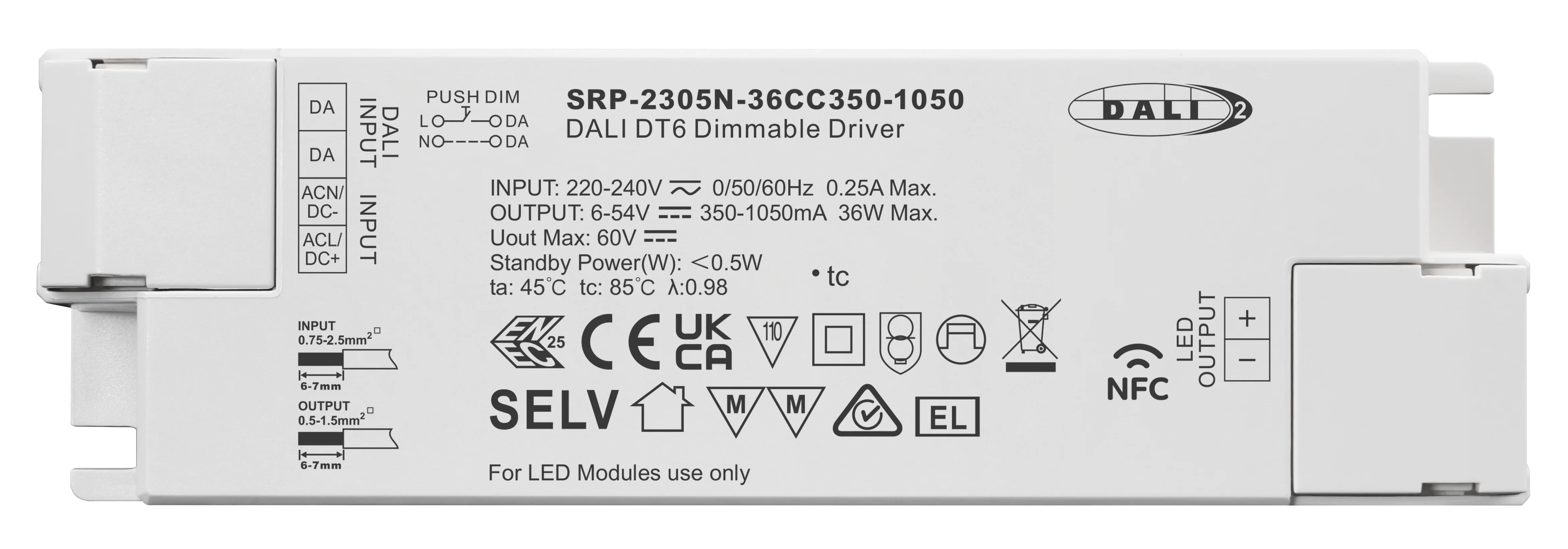

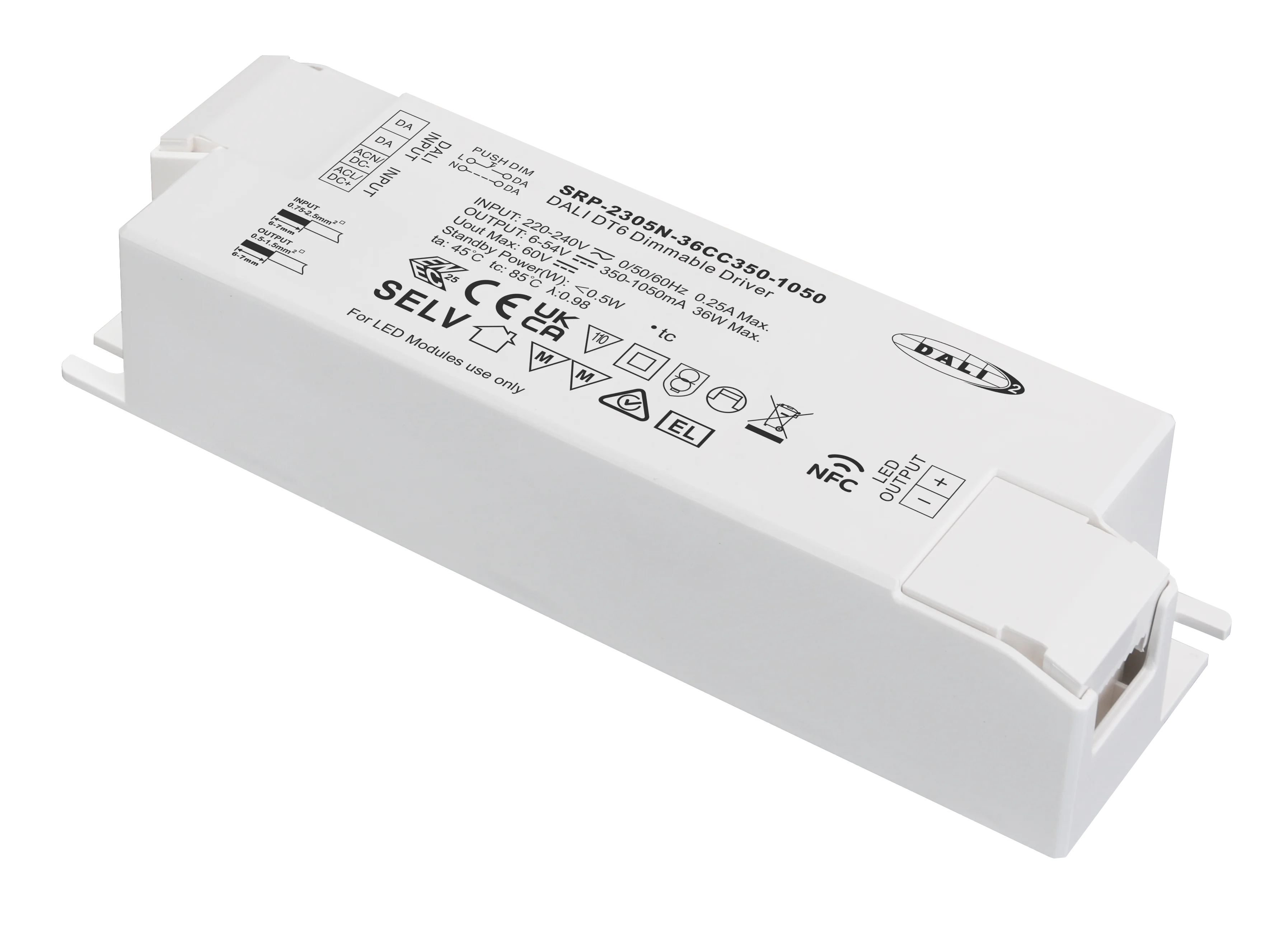

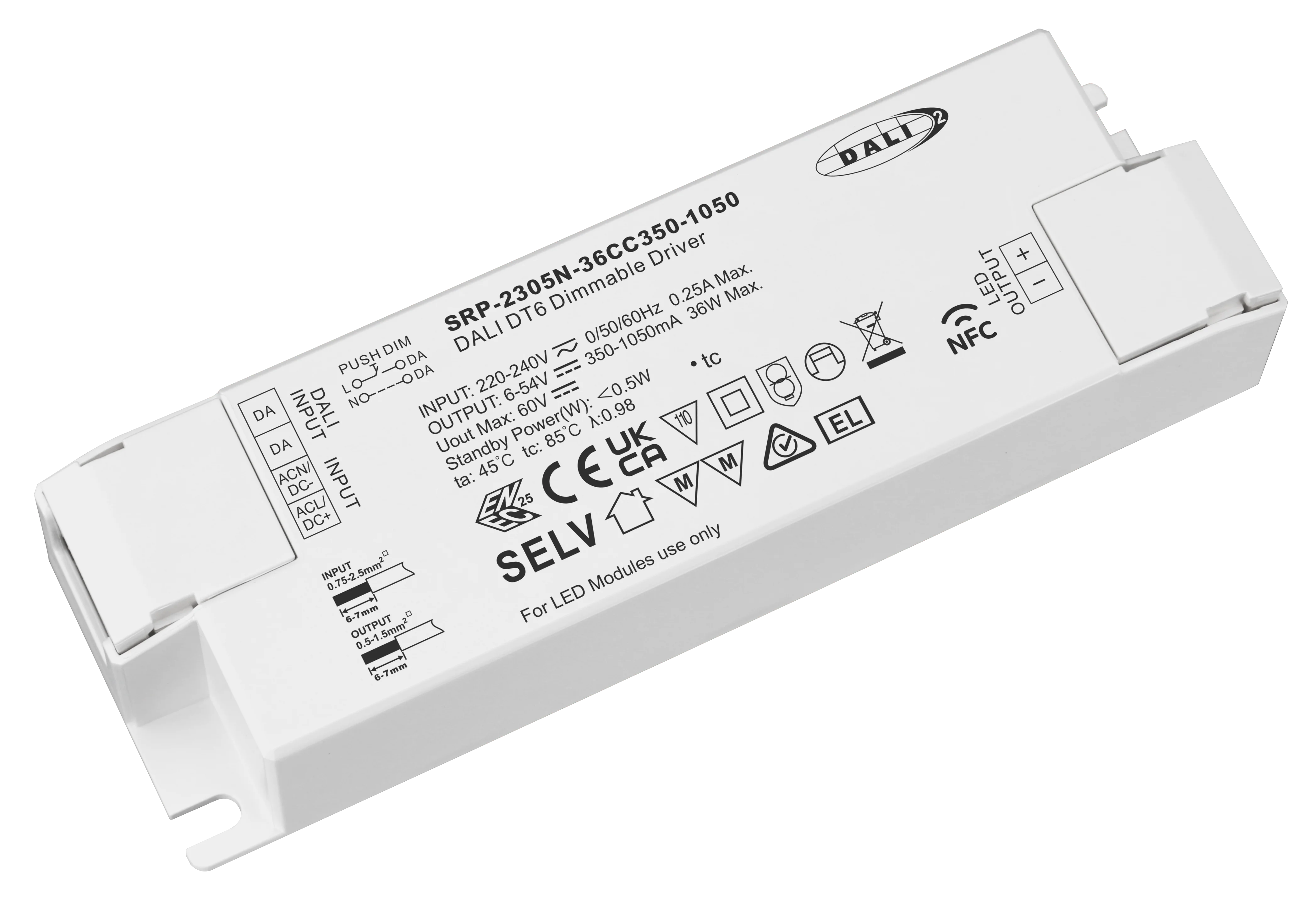

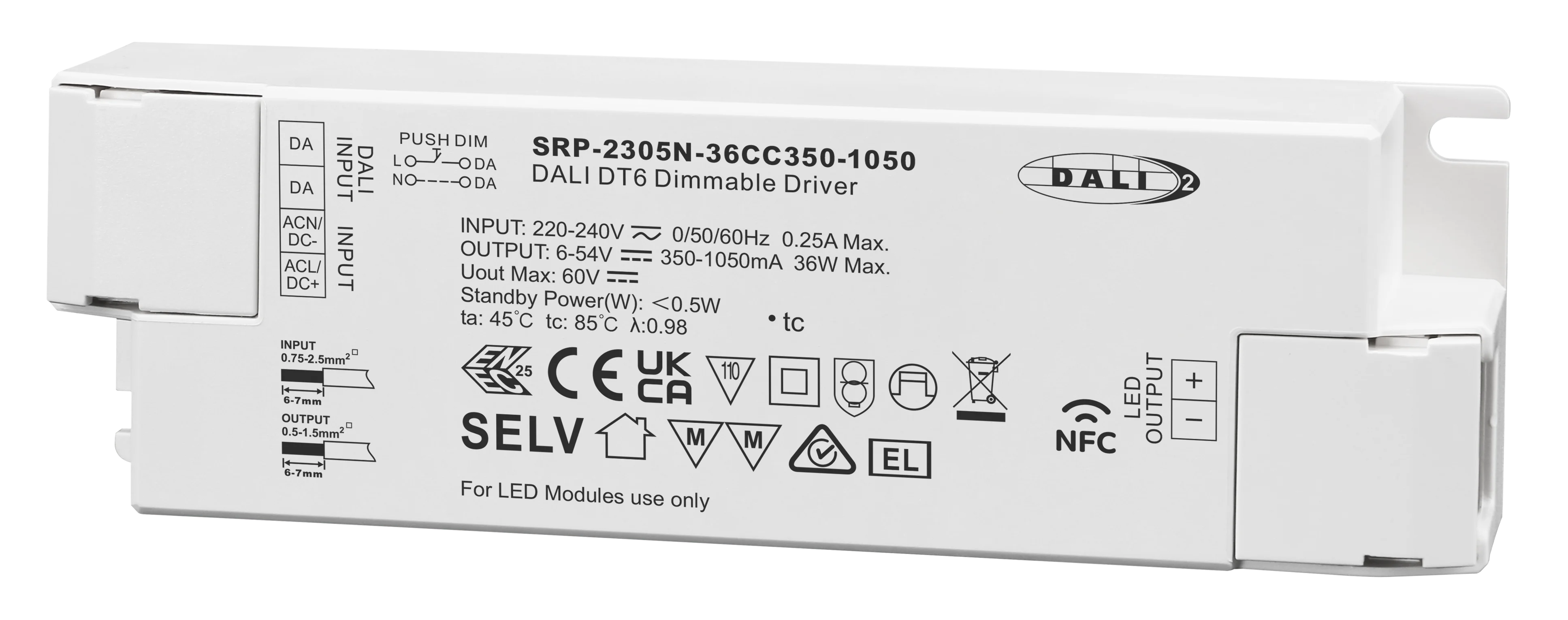

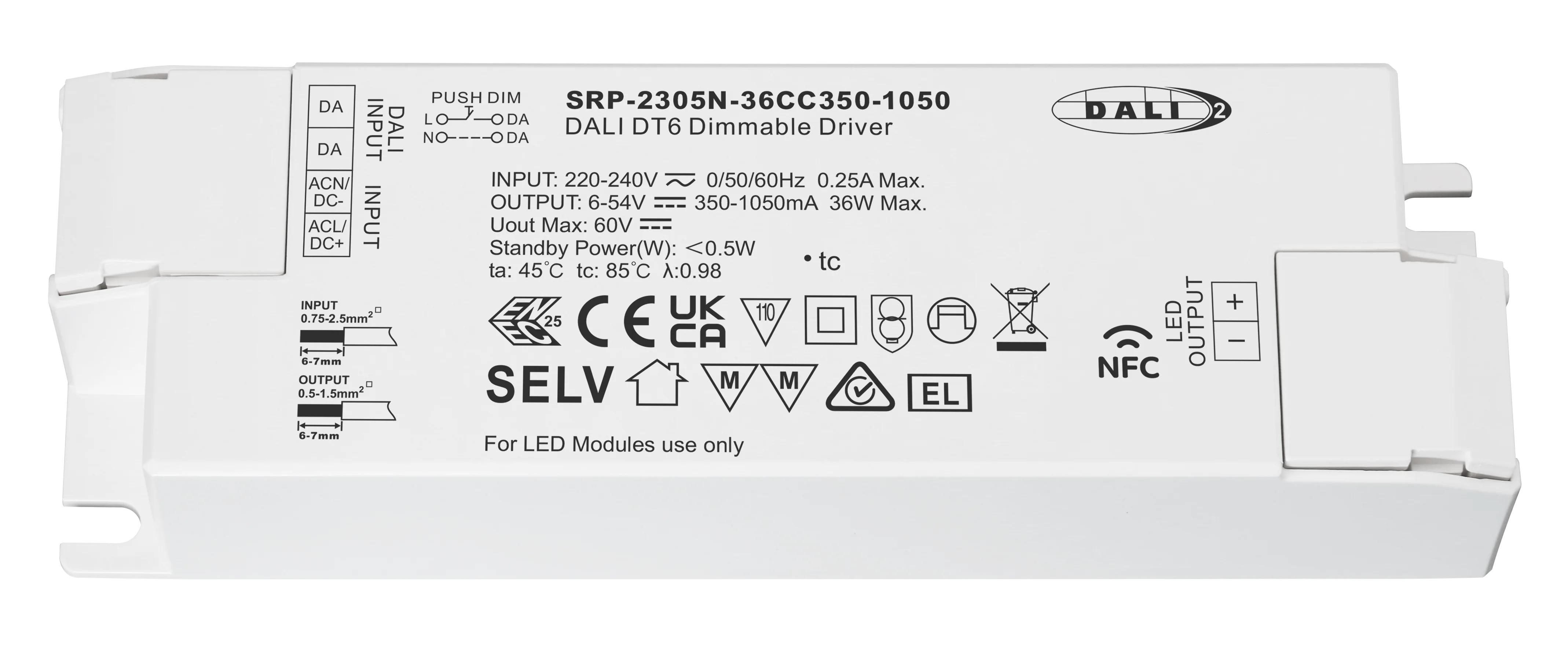

Sunricher 36W DALI DT6 NFC Enabled LED Driver With 350 1050mA Current Selectable via NFC Program Tool.
- Category: >>>
- Supplier: Shenzhen Sunricher Technology Co. Ltd.
Share on (1601269523408):
Product Overview
Description
Product Description
Advantage
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2，
• Built-in DALI-2 interface, DALI DT6 device
• Dimmable LED driver. Max. output power 36W
• 350-1050mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• DALI Address/Group/Scene setting via NFC program tool.
• Class Ⅱ power supply, full isolated plastic case
• High power factor and efficiency
• To switch and dim LED lighting luminaries
• Amplitude/CCR dimming, smooth and deep dimming
• Compatible with universal DALI masters that support DT6 commands
• Error report function
• DALI-251/252/253 Enabled,DALI data inside
• Built-in DALI-2 interface, DALI DT6 device
• Dimmable LED driver. Max. output power 36W
• 350-1050mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• DALI Address/Group/Scene setting via NFC program tool.
• Class Ⅱ power supply, full isolated plastic case
• High power factor and efficiency
• To switch and dim LED lighting luminaries
• Amplitude/CCR dimming, smooth and deep dimming
• Compatible with universal DALI masters that support DT6 commands
• Error report function
• DALI-251/252/253 Enabled,DALI data inside

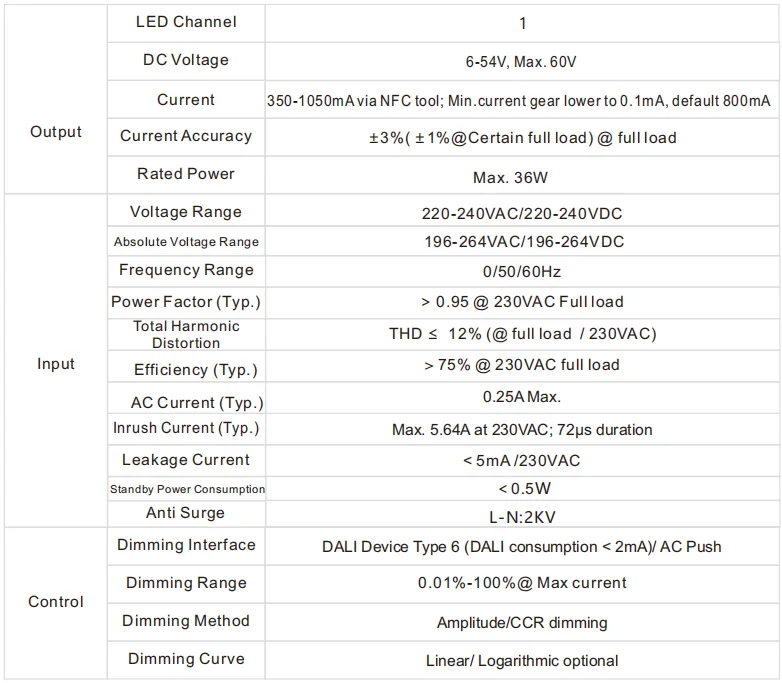

Specification
item | value |
Warranty(Year) | 5-Year |
Lighting solutions service | Project Installation |
Product Weight（kg） | 0.3 |
Place of Origin | China |
Guangdong | |
Brand Name | sunricher |
Type | DALI LED Driver |
Max. Load Power | 36w |
Connection Mode | wired |
Remarks | Constant Current |
Size(LxWxH) | 145x45x28mm |
Company Profile
Shenzhen Sunricher Technology Limited
* 18 years experience in high-end smart light control system and smart driver
* The 1st choice of OEM/ODM service for professional customers and TOP-tier brands globally.
* DALI, DMX512&RDM, KNX, Zigbee, Bluetooth, RF/Wi-Fi, Z-wave get the global advanced level.
*The Alliance member of DALI, KNX, Zigbee, Z-Wave, and Bluetooth.
We have designed and manufactured various high quality product types for our global clients. We always take good
care of our clients with:
* Well experienced and powerful R&D team.
* High efficient production and strict quality control.
* Good after-sales service.
* Global high end certification such as UL, TUV CE, FCC, SAA, PSE, CCC etc.
* Patented design and functionality.
* DALI-2, KNX, Zigbee3.0, Z-Wave Plus, Bluetooth certification.
* DALI, DMX512&RDM, KNX, Zigbee, Bluetooth, RF/Wi-Fi, Z-wave get the global advanced level.
*The Alliance member of DALI, KNX, Zigbee, Z-Wave, and Bluetooth.
We have designed and manufactured various high quality product types for our global clients. We always take good
care of our clients with:
* Well experienced and powerful R&D team.
* High efficient production and strict quality control.
* Good after-sales service.
* Global high end certification such as UL, TUV CE, FCC, SAA, PSE, CCC etc.
* Patented design and functionality.
* DALI-2, KNX, Zigbee3.0, Z-Wave Plus, Bluetooth certification.
