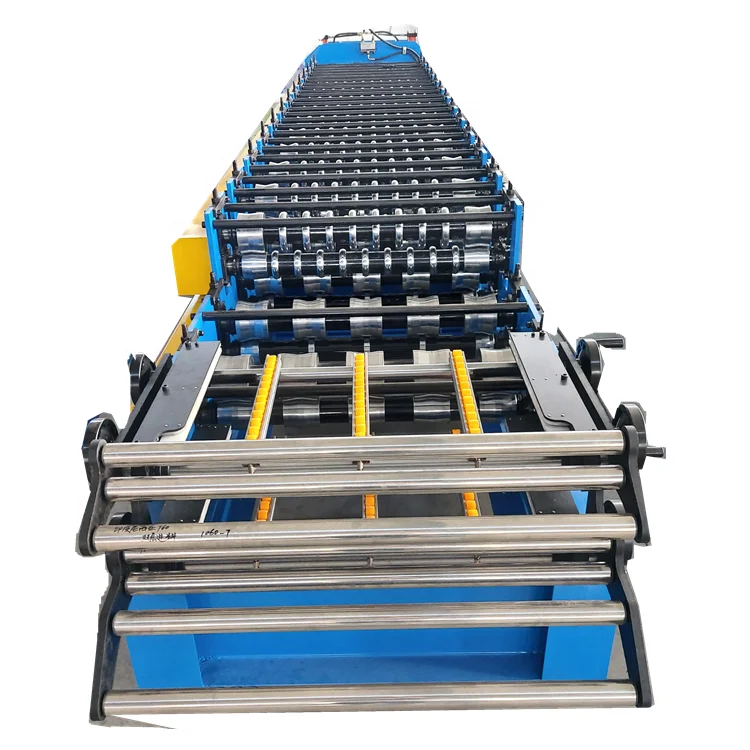

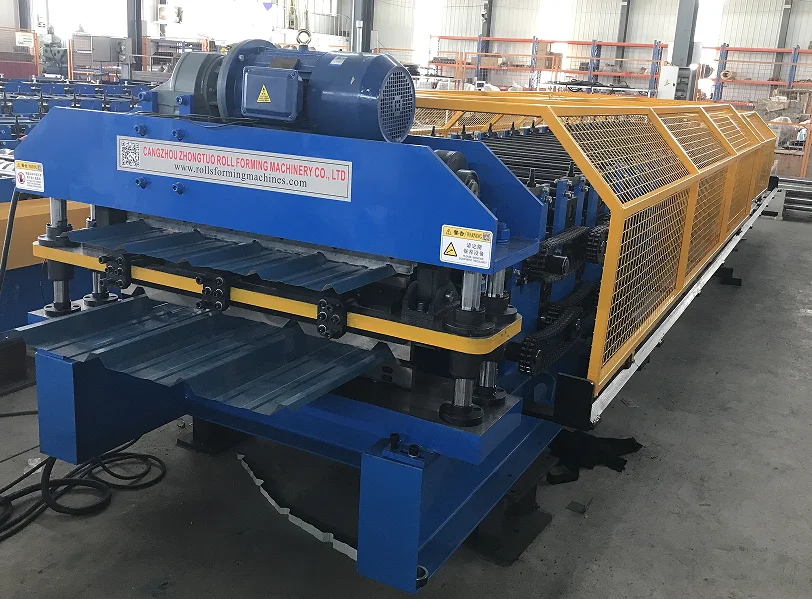

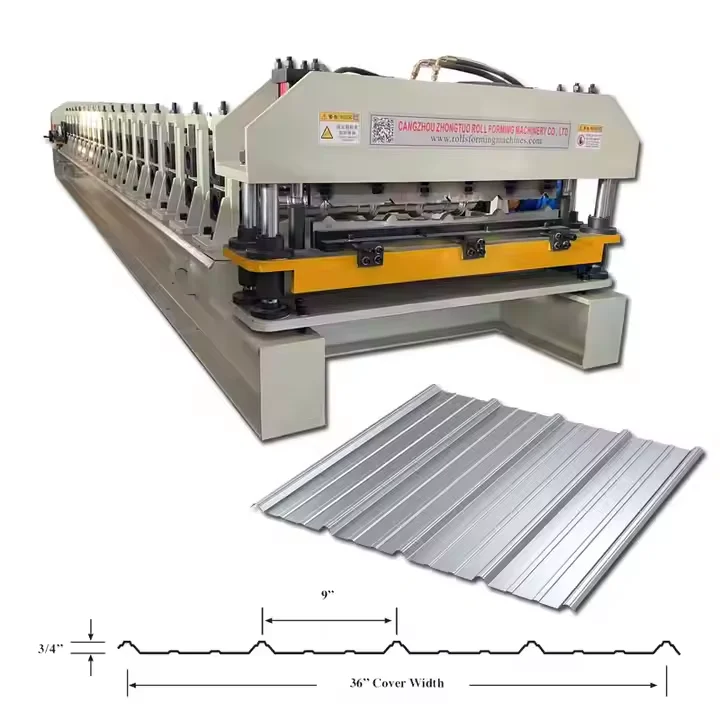

High-Efficiency Double Deck Trapezoidal AG Panel Roll Forming Machine for Metal Roofing in America

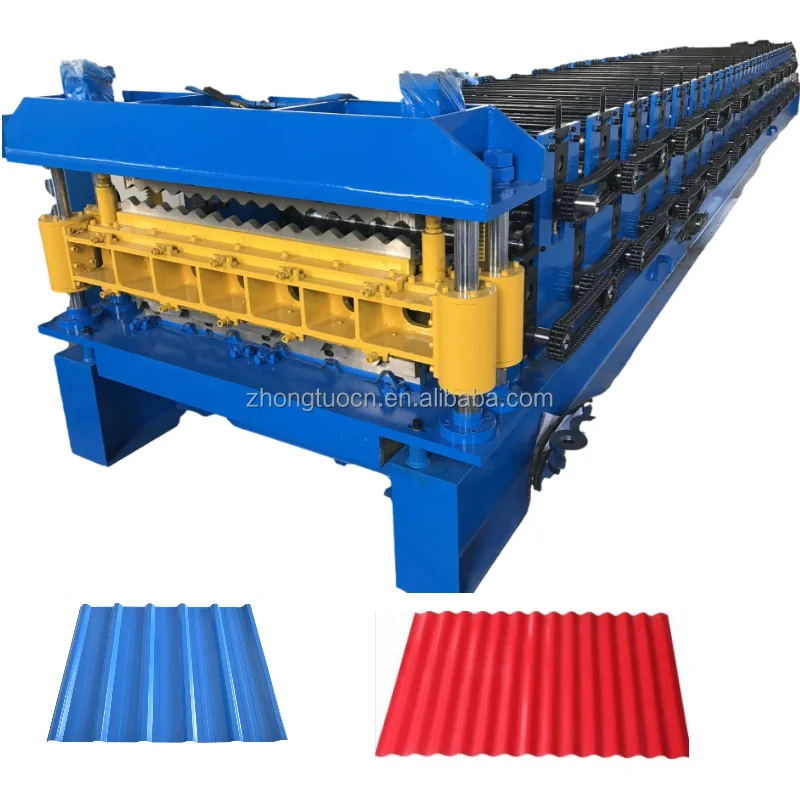

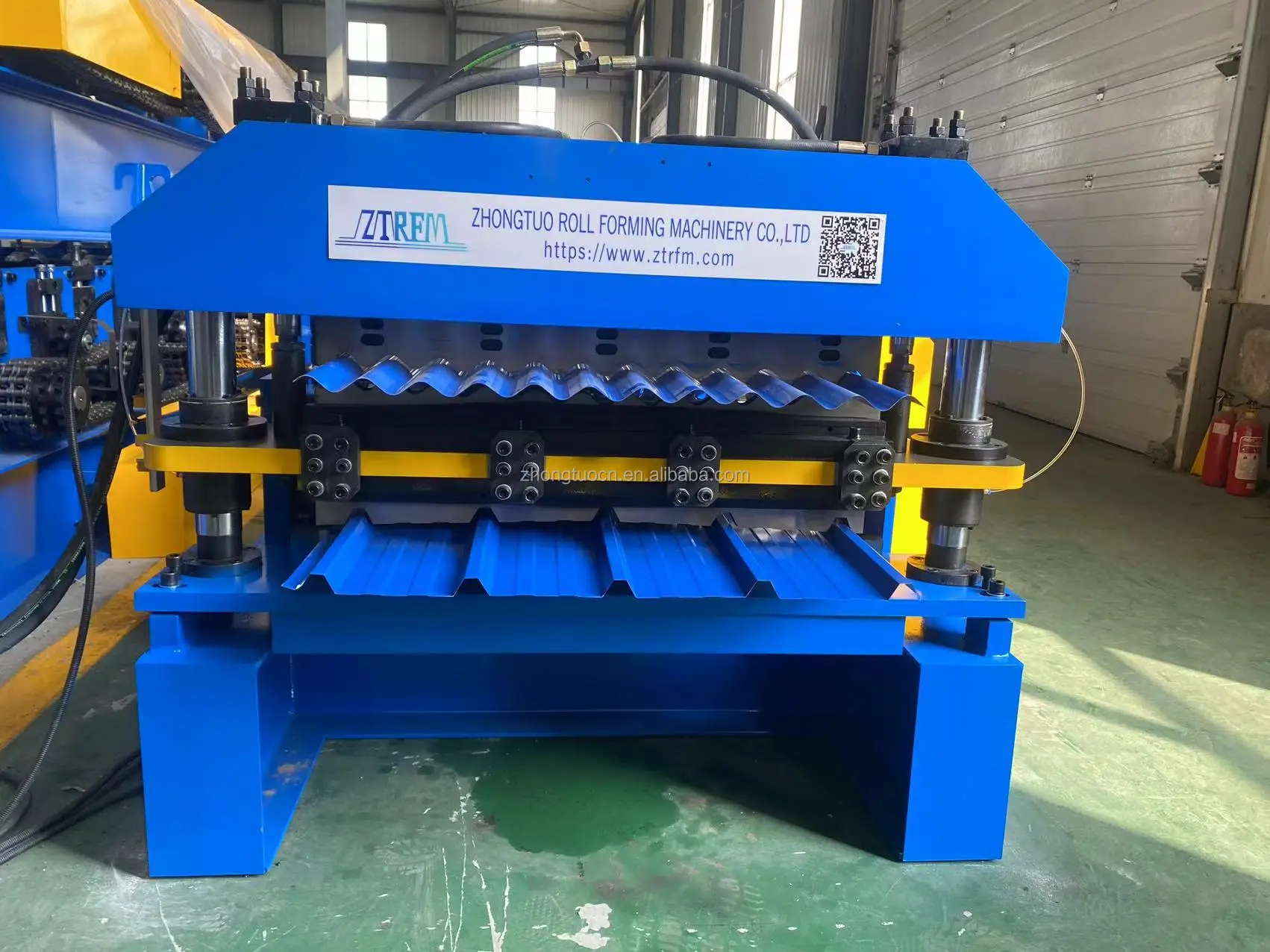

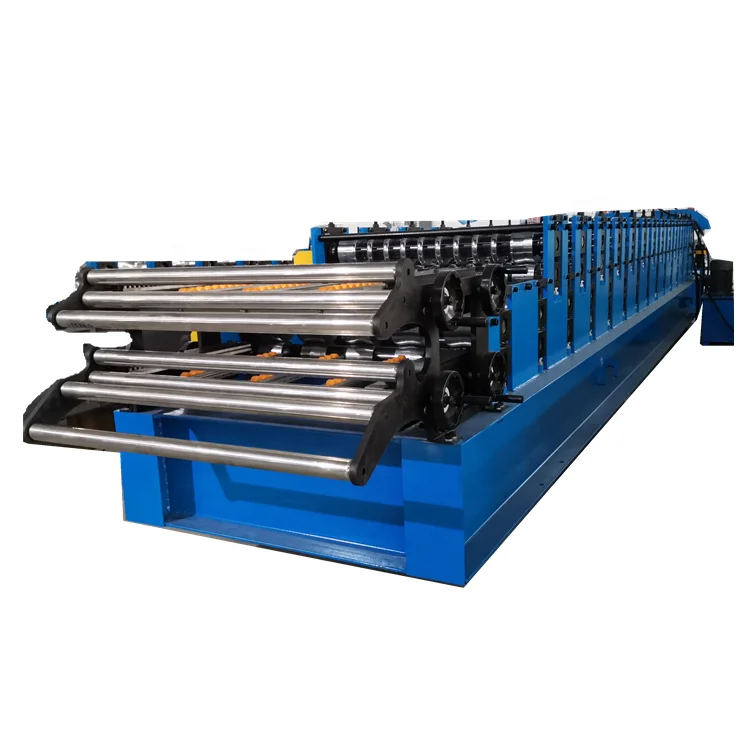

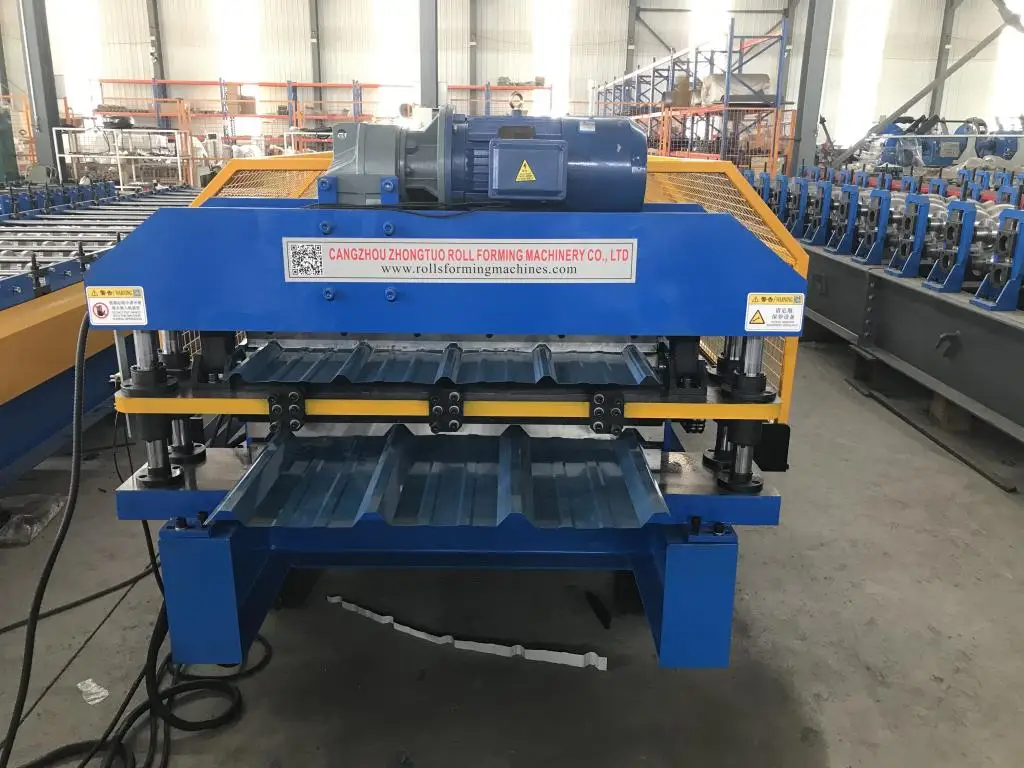

Double layer roof sheet roll forming machine can produce two profile roof sheets on one machine,this machine is hot sale to America,which up layer can produce AG panel,and down layer for produce R panel.
This machine with follow advantages:
Higher speed:speed 0-30m/min Twice as fast as normal design mode.Main motor uses Servo motor to improve the speed,Electric motor cutting instead of hydraulic cutting
Full automatic easy operation

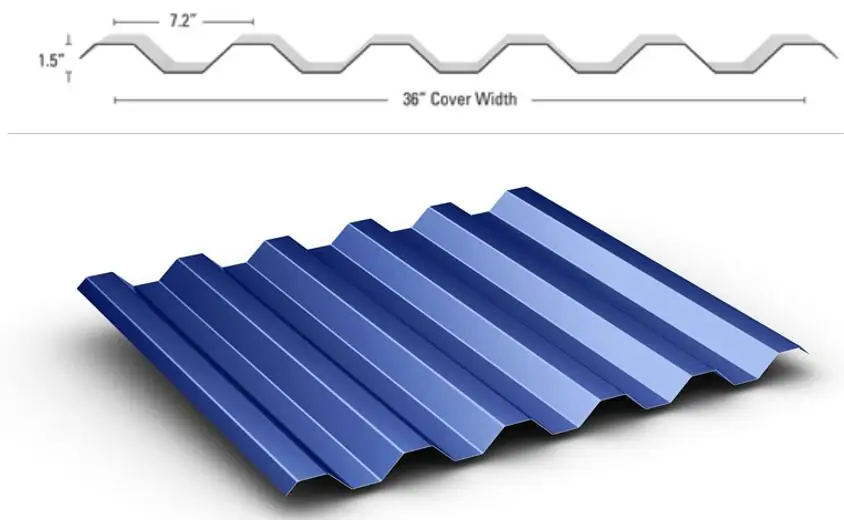

These two profile drawings are very famous in America,it is almost the standard profiles.The raw material width for 1066mm and 1090mm is also used a lot in USA,especially 1066mm.

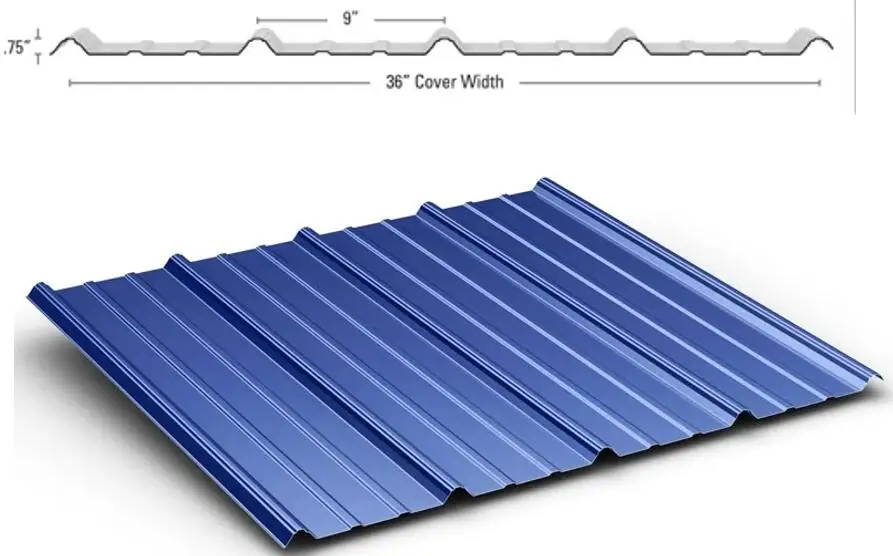

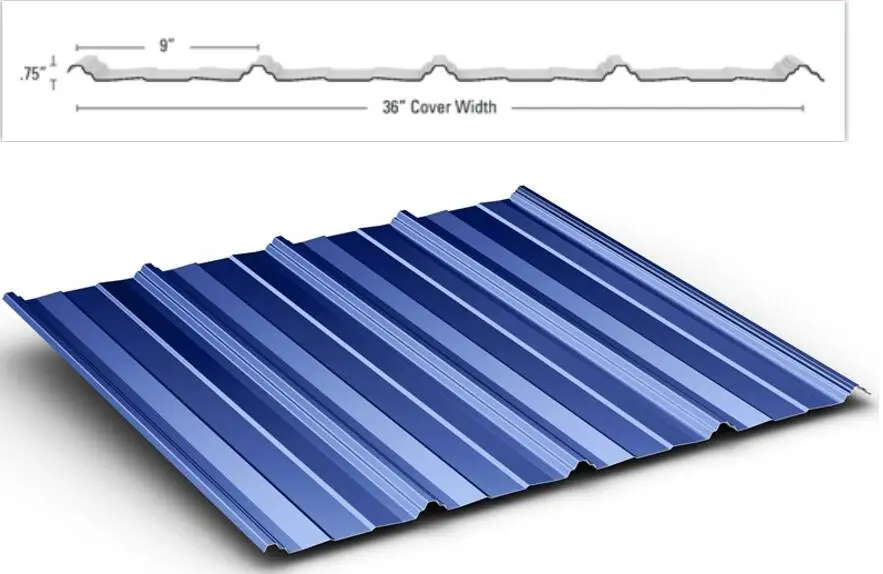

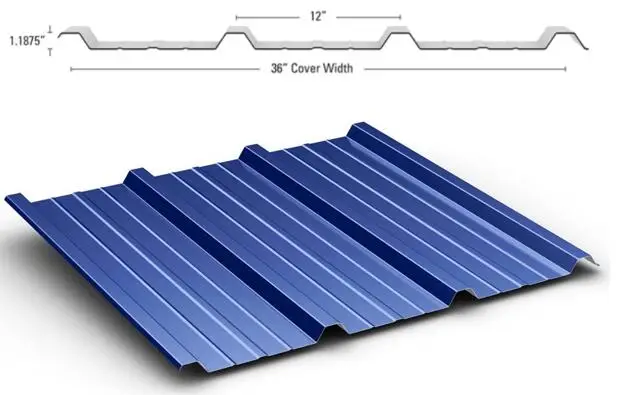

Up layer for AG panel

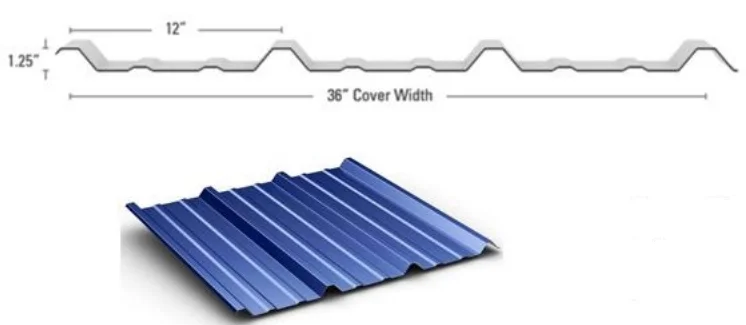

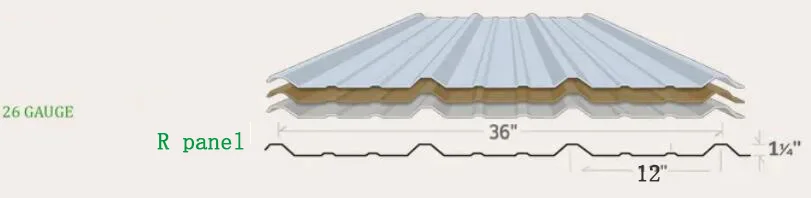

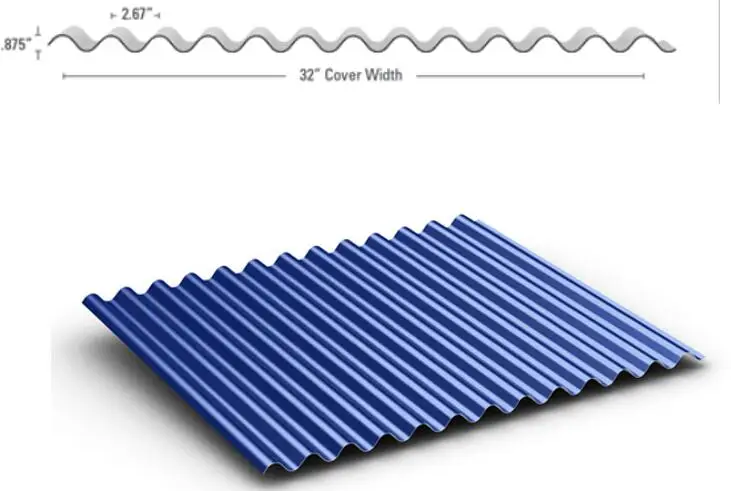

Down layer for R panel

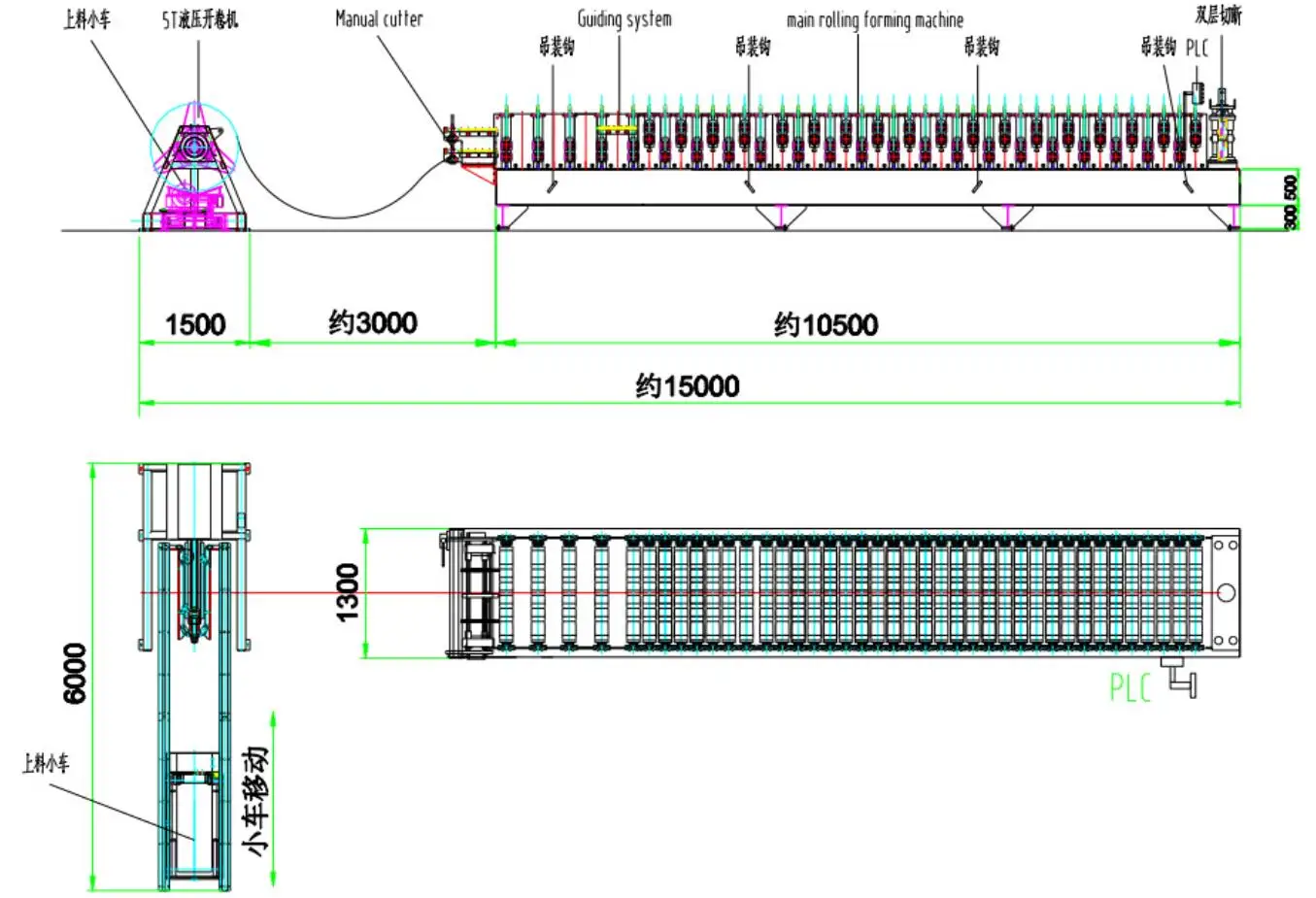

Processing flow:
decoiling-feeding device-roll forming device-electric motor cutting device-receiving


 High-Efficiency Double Deck Trapezoidal AG Panel Roll Forming Machine for Metal Roofing in America
Main frame
350mm H beam structure
Material of rollers
High grade 45 high quality steel by CNC machining and hard chrome coating
Forming stations
16 stations + 17 stations
Diameter of shafts
Φ80mm solid(Guaranteed)
Material of shafts
High grade 45#,with heat treatment
Forming speed
About 0-30m/min
Voltage
220V/50HZ/3P
Transmission way
By double chains
Main motor
Servo motor 7.5kw,Yaskawa
Cutting blade material
Cr12Mov quenched treatment to improve hardness
Cutting type
Electric cutting
Driving method
By motor,5.5 kw
Cover
Whole cover for roll former,without cutter.2 parts can slide side to side easily.






Electric Cutting device


Electric high speed cutting,good cutting shape no bending and no burring.
