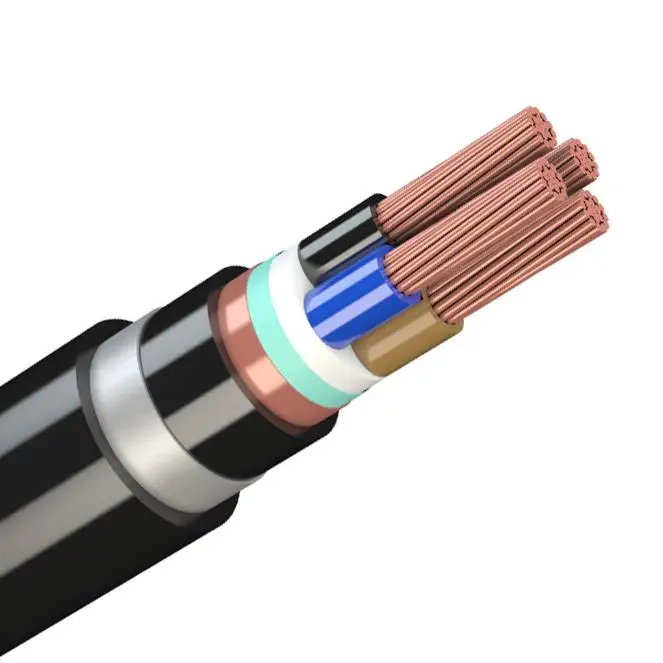

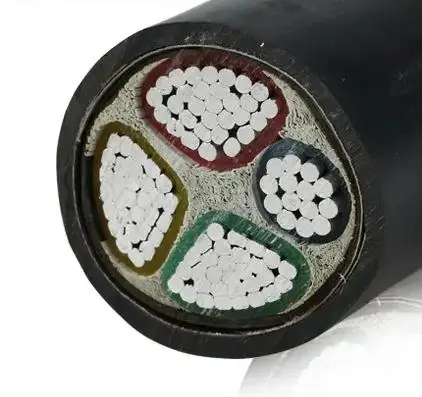

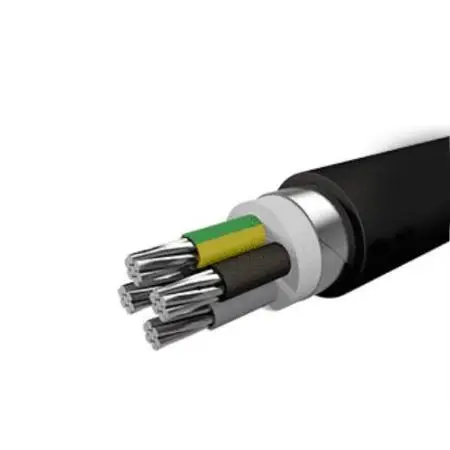

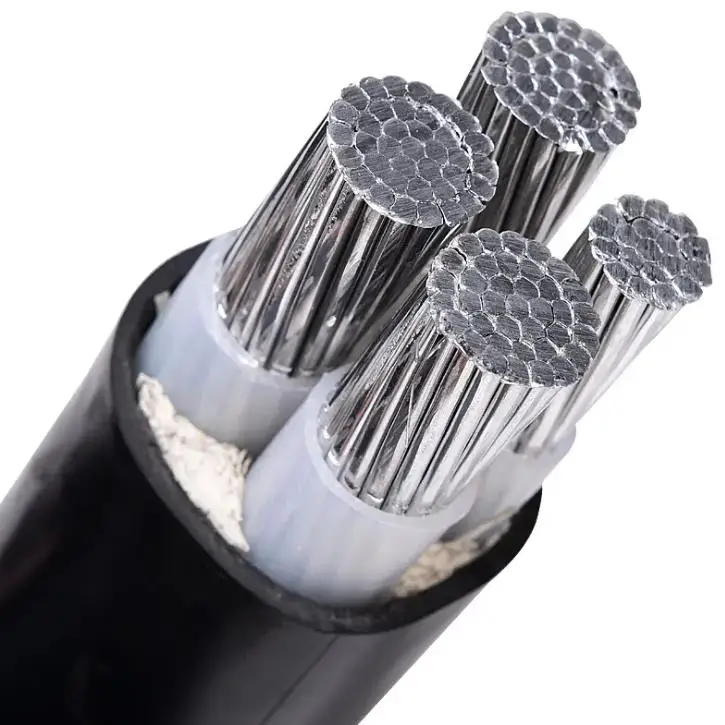

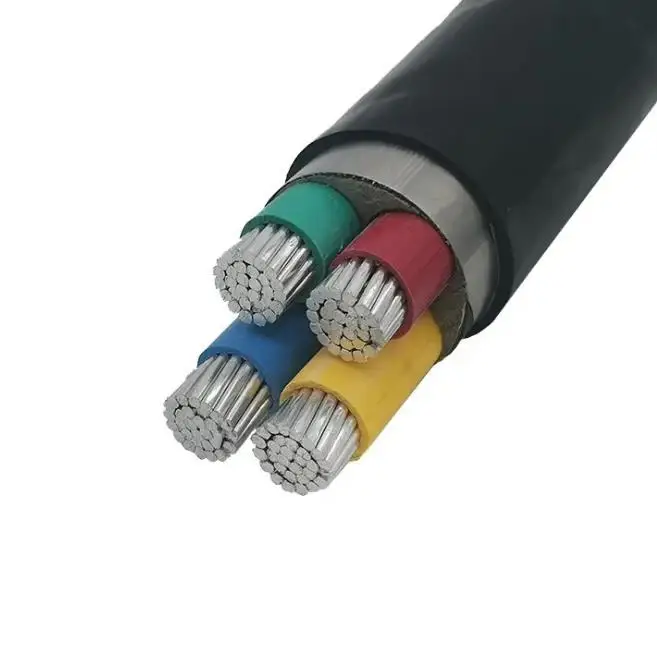

AR2V 4 Core XLPE Insulated PVC Halogen Free Aluminum Power Cable Single Low Voltage Copper Conductor Construction Applications

XLPE insulated Halogen Free Marine Power Cable

XLPE insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE power cable has high electric strength, mechanical strength, high-ageing resisting, environmental stress resisting anti-chemical corrosion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.

The flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology (peroxide, silane and irradiation cross-linking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke non-halogenated and three classes of A,B,C.

Product Description:

1. Conductors: copper or aluminum.

2. Both armored and non-armored type power cables are available.

3. Voltage rating: 0.6/1kV 3.6/6kV 6/10kV 8.7/15kV 26/35kV.

4. PVC or PE sheathed.

5. Number of cable cores: one core (Single core),two cores(Double cores),three cores,

Four cores (Four Equal-section-area cores or three equal-section-area cores and one smaller section area neutral core),

Five cores (Five equal-area cores or three equal-section-area cores and two smaller section area neutral cores).

6. Standards: IEC 60502.IEC, BS, DIN, ASTM, CSA, NFC, AS, GOST etc. Or other special characteristics as customers request.

Marine Cable(power cable)
The rated voltage is 0.6/1KV,long time allowed working temperture 70 Deg

The cable is intended for power, lighting and control system of shipboard and off-shore building, and it is also available to metallurgical industry chemical works, power planted and mines etc.

1.Standard :

IEC60502,GB/T 12706

2. Specification:

3. Nominal Cross-sectional Areas:

1.5 mm² , 2.5 mm²  ,4 mm² , 6 mm² , 10 mm²  , 16 mm² ,25 mm²  , 35 mm² , 50 mm²  ,70 mm²  , 95 mm²  ,120 mm²  ,150 mm² ,185 mm²  ,240 mm² ,300 mm²  400 mm² 500 mm² 630 mm² 800 mm²

4. Production Range:

single core cable from 1.5 mm²  to 800 mm²,muli-core cable from 1.5 mm²   to 400 mm²

5. Operating Characteristics:

Rated power-frequency voltage u0/u:0.6/1 KV

Max permissible continuous operating temperature of conductor 70

Max short-circuit temperature of the conductor shall not exceed (Max 5 seconds duration): cross-section of conductor  300 mm²

The ambient temperature under installations should not be below 0

The bending radius of single core cable should not be less than 20 times of the cable diameter ,the bending radius of multi-core cable should not be less than 15 times of the cable diameter

NA: Fire-resisting cable

NC/NSC: Fire-resisting cable halogen-free, low-smoke, low-toxicity
