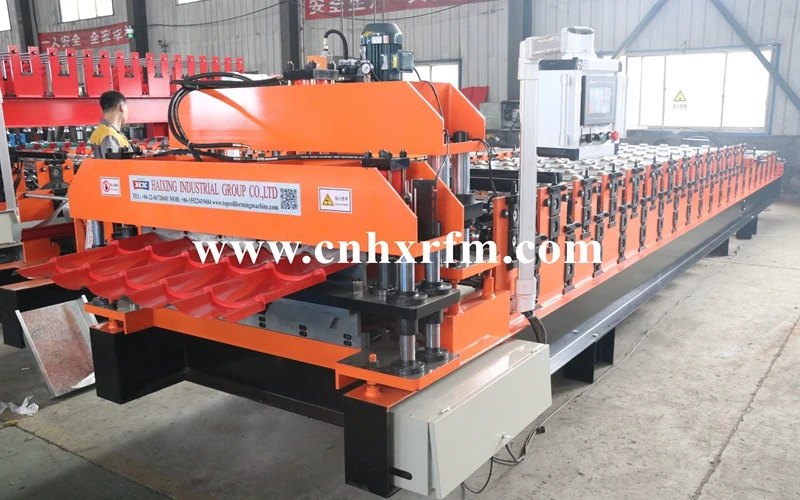

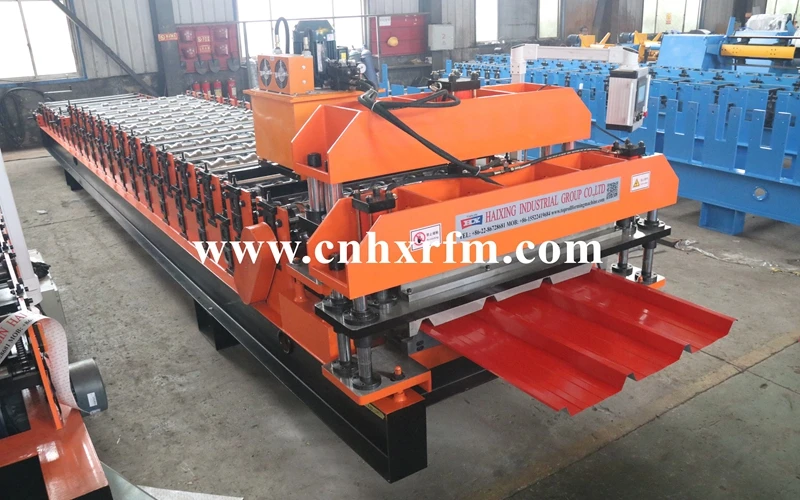

hot selling product 2024 trapezoidal sheet metal 1075 glazed tile roll forming machine double layer roofing roll forming machine
- Category: >>>
- Supplier: HAIXING (TIANJIN) INTELLIGENT EQUIPMENT CO. LTD
Share on (1601269599286):
Product Overview
Description

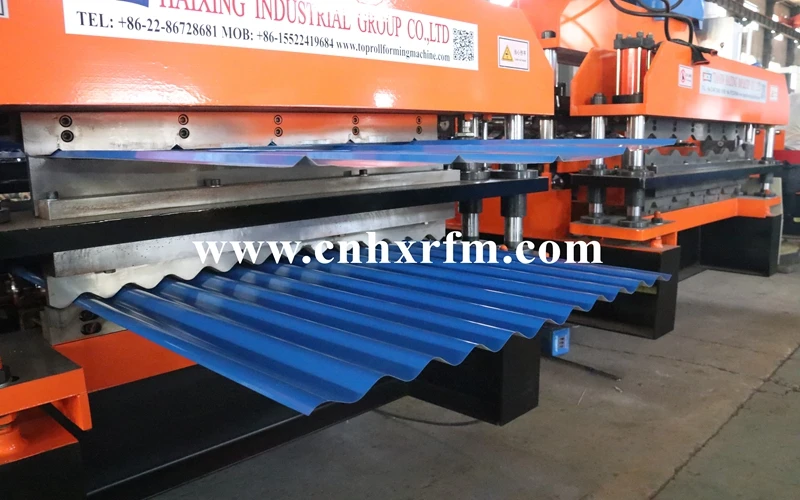

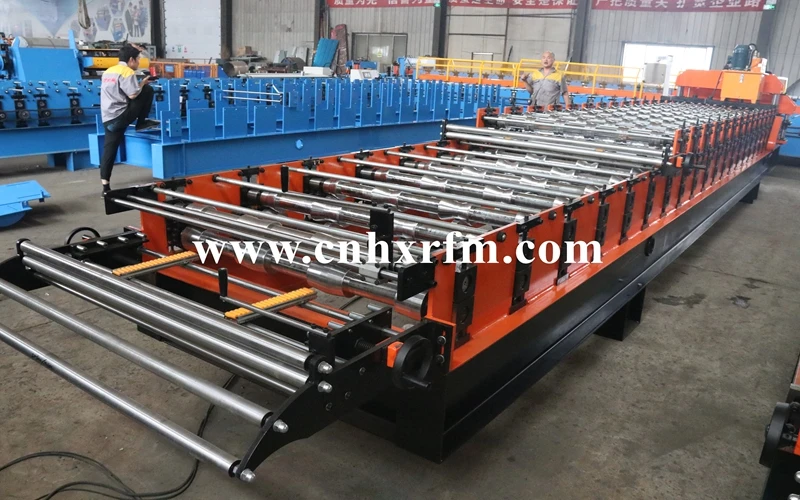

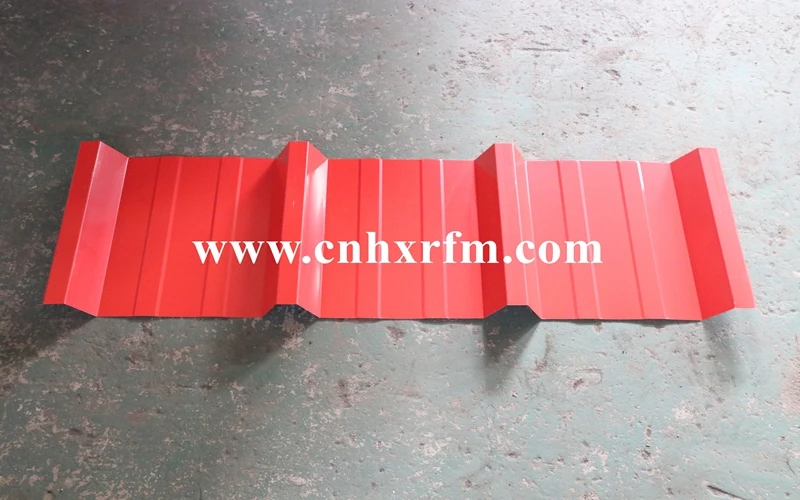

hot selling product 2024 trapezoidal sheet metal 1075 glazed tile roll forming machine double layer roofing roll forming machine
trapezoidal sheet metal 1075 glazed tile roll forming machine double layer roofing roll forming machine | ||||
Formed Material | GI/GL, PPGI/PPGL | Thickness: 0.3-0.8mm, Width: 1220mm(customized) | ||
Decoiler | Hydraulic decoiler | Manual decoiler(will give you as free) | ||
Main body | Roller station | glazed: 14 rows/pv4: 20 rows (As your requirement) | ||
Diameter of shaft | 70mm solid shaft | |||
Material of rollers | 45# steel, forging with chromium plate 0.05mm, | |||
Machine body frame | 350 H Beams | |||
Dimension(L*W*H) | 6000 * 1550 * 1600mm (customize) | |||
Weight | 5 Ton | |||
Automatic | Cr12 Mov quenched treatment 58℃-62℃ | |||
Cutting tolerance | ±1mm | |||
Power | Motor Power | 5.5KW | ||
Hydraulic system power | 4KW | |||
Reducer | 8# gear reducer | |||
Voltage | 380V 50Hz 3Phase | As your requirement | ||
chain | 1 inch | As your requirement | ||
Control system | Electric Box | Delta (As your requirement) | ||
Language | English, Spanish, etc.(Support multiple languages) | |||
PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
Forming Speed | 10-15m/min | The speed depends on the shape of the tile and the thickness of the material. | ||

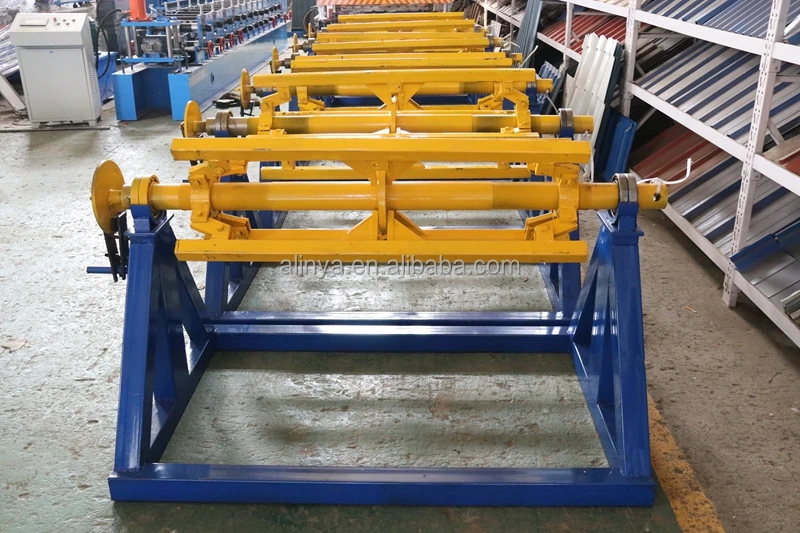

Manual decoiler
1.Capacity: 5T
2.Coil diameter: 470-520mm
3.Coil outer diameter: 1000mm
4.Coil width: 940mm(as customers' request)
2.Coil diameter: 470-520mm
3.Coil outer diameter: 1000mm
4.Coil width: 940mm(as customers' request)

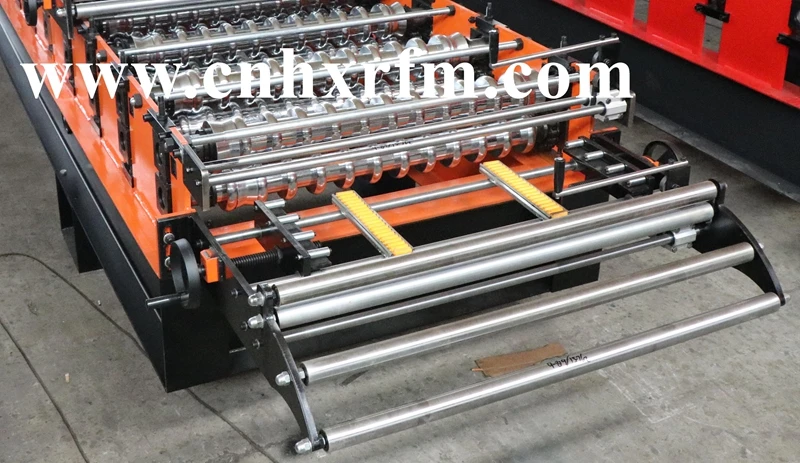

Feeding table
Function and advantages:
1.Reduce friction: It can reduce the contact 2.area between the material and the surface of the feeding table, thereby reducing friction and making the material move more easily.
3.Save space and easy to maintain.
Remarks: The tail is marked with a hand pull knife (one for each layer, the lower layer is inclined to feed the material)
Remarks: The tail is marked with a hand pull knife (one for each layer, the lower layer is inclined to feed the material)

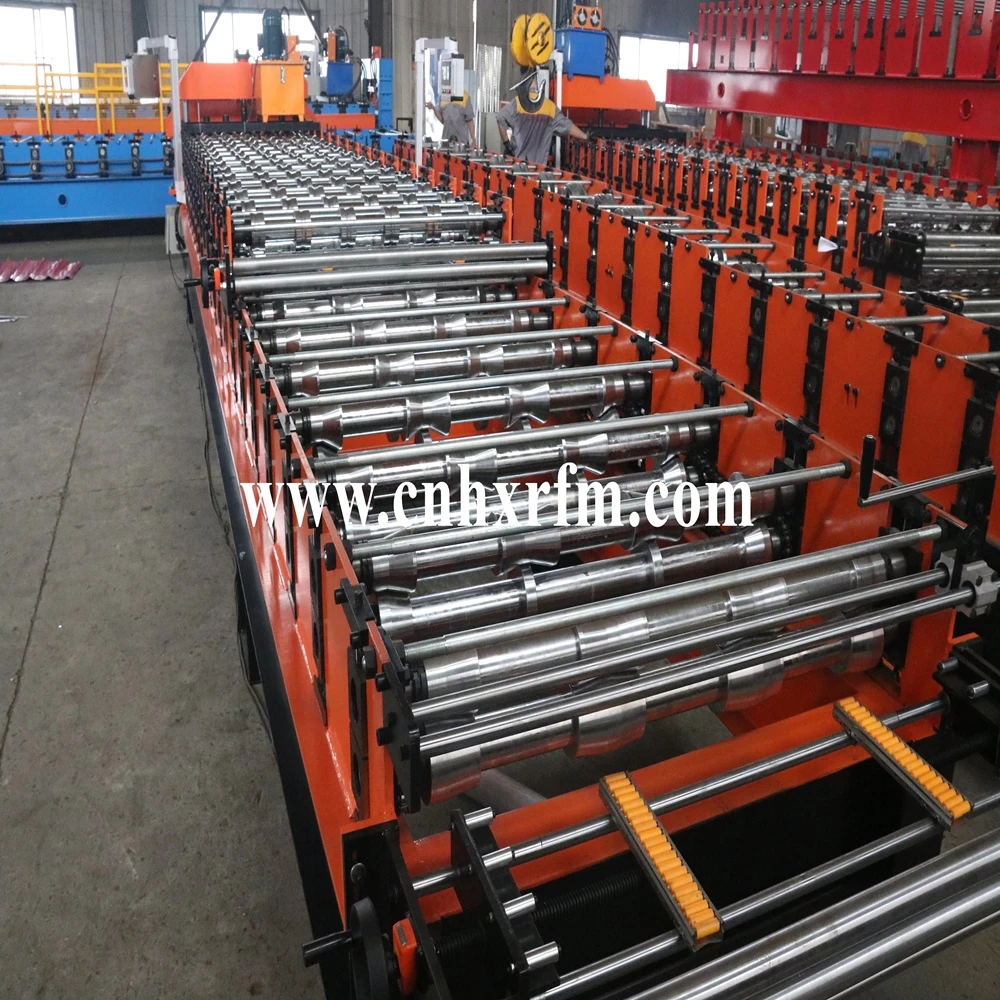

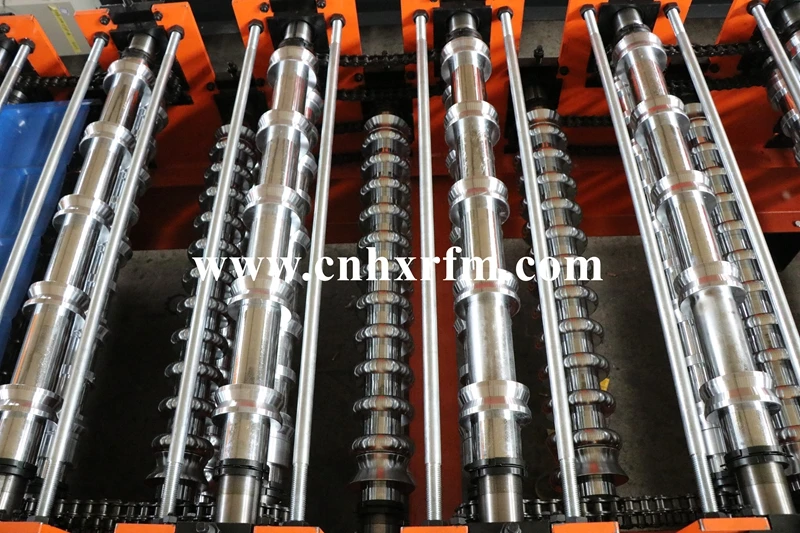

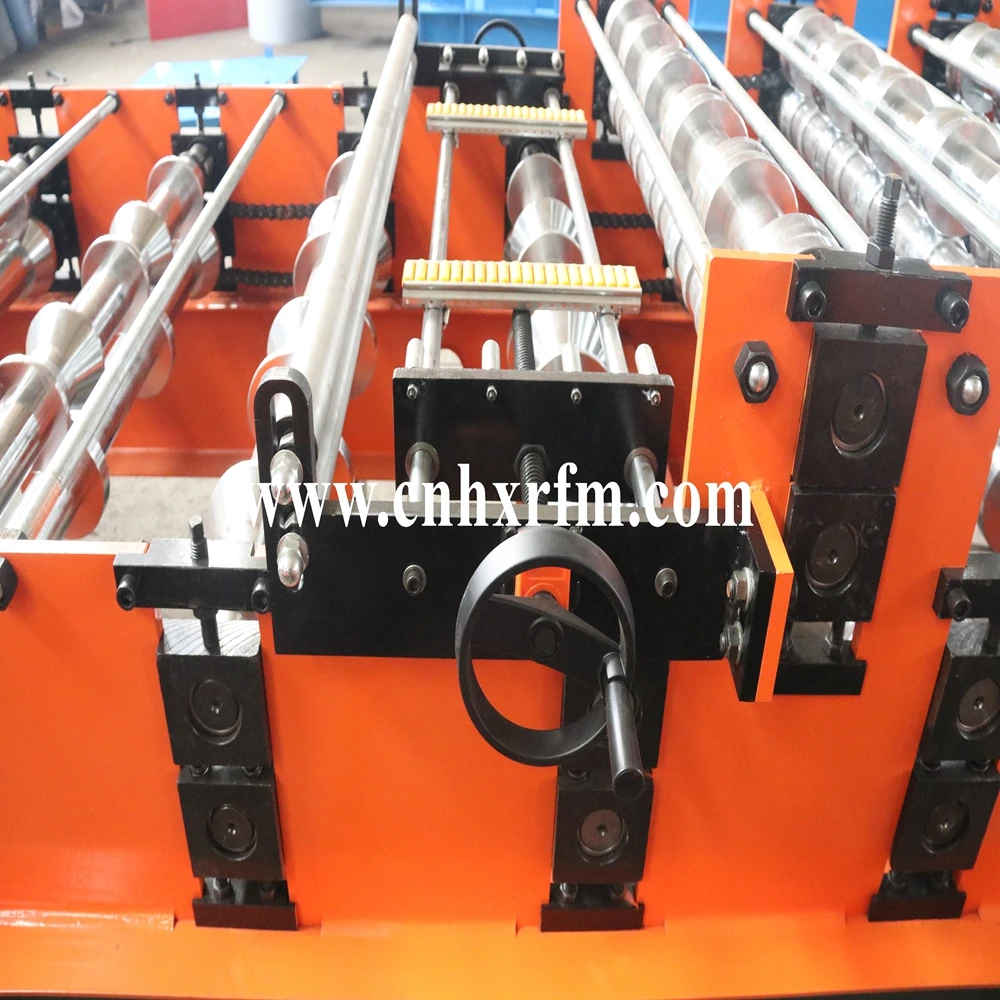

Main rollers
1.Roller stations: 5v: 9 row wheels, corrugated: 13 row wheels (according to different design, depend on the profile drawing)
2.Roller materila: 45# steel with quenched treatment and hard chroming
3.Shaft diameter: 70mm, solid.
4.Shaft material: 45# steel with tempering treatment.
5.Wheel speed: 10-15M/min

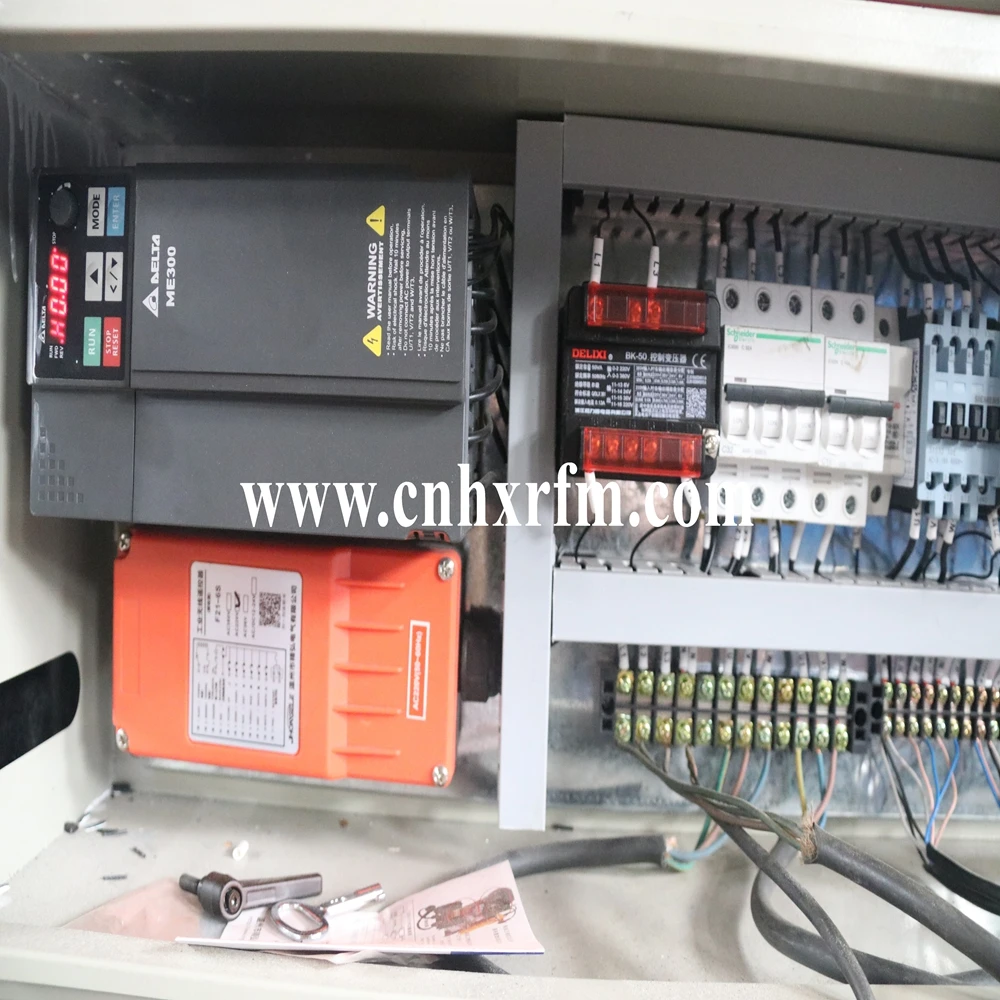

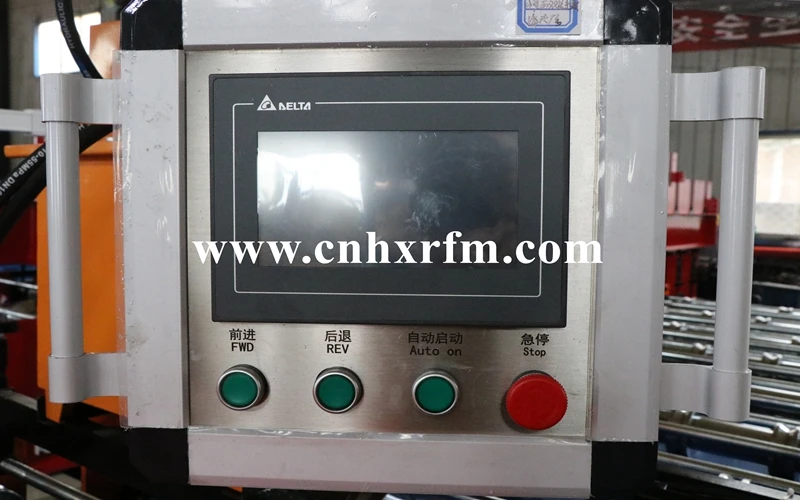

Computer Control Cabinet
Function and advantages:
1.The PLC control system will be in charge of the working condition like the speed, cutting length and cutting quantity.
2.Switching languages is easy to operate, the language can be English, Spanish or as required.
3.The touch screen interface is designed to be intuitive.

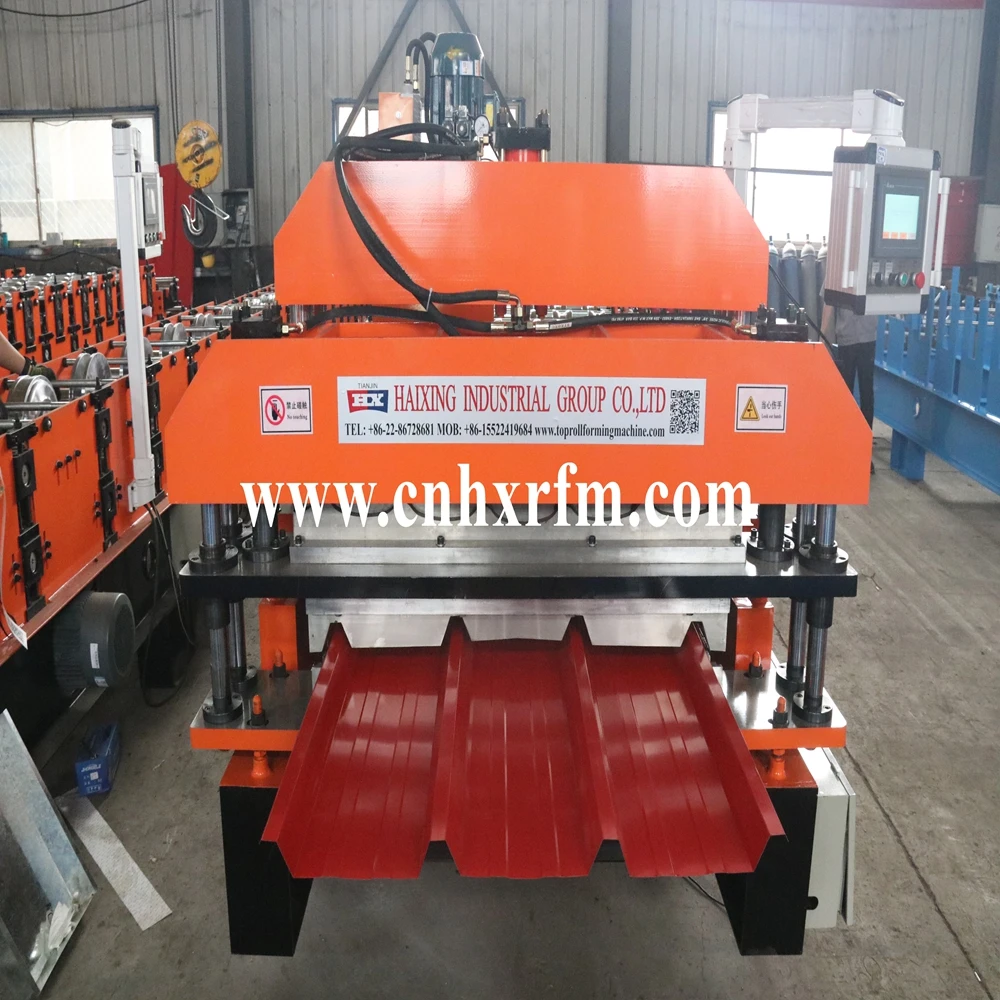

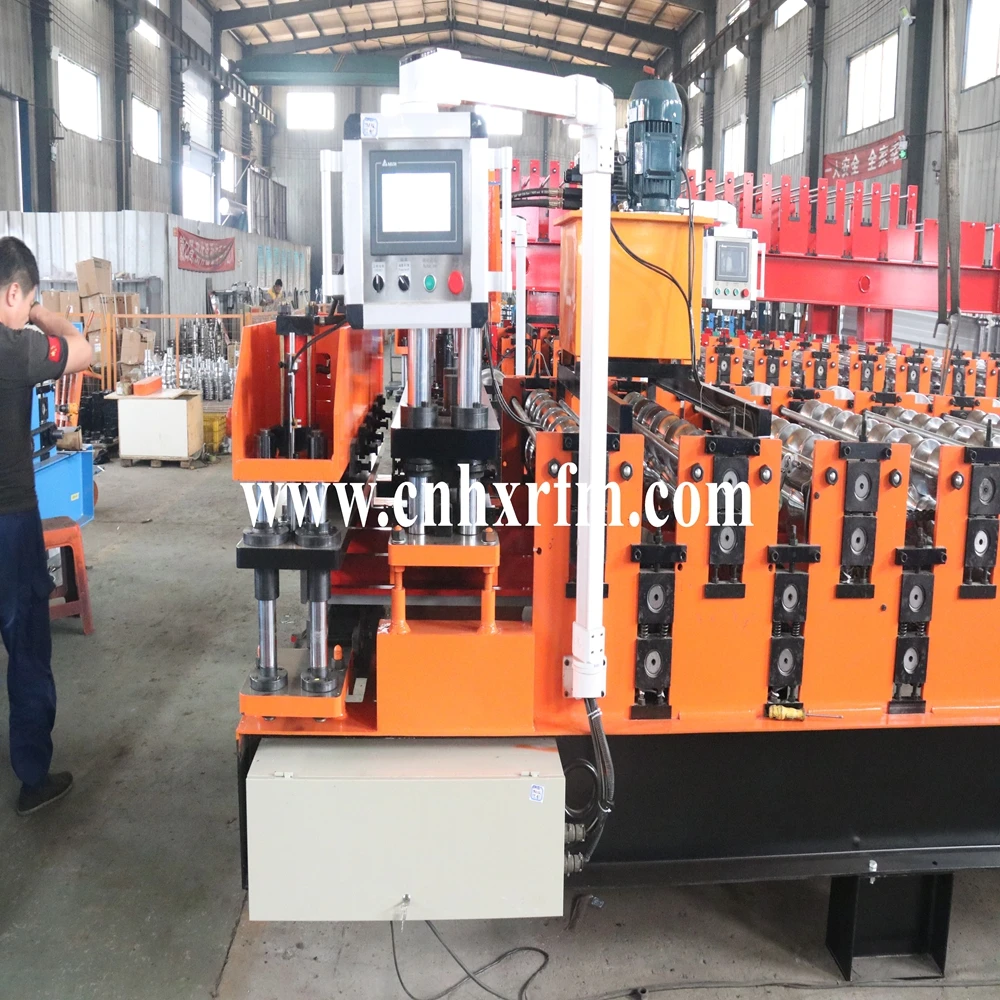

Cutting head
1.Work type: Hydraulic
2.Driving method: By Cylinder
3.Cutter material : Cr 12/CR12MOV, Heat treatment, HRC58-62°
4.Cutting length tolerance: ±1.0mm
5.Advantages:Energy saving effect, hydraulic technology can achieve higher energy conversion efficiency and reduce energy consumption, the hydraulic drive response speed is fast.

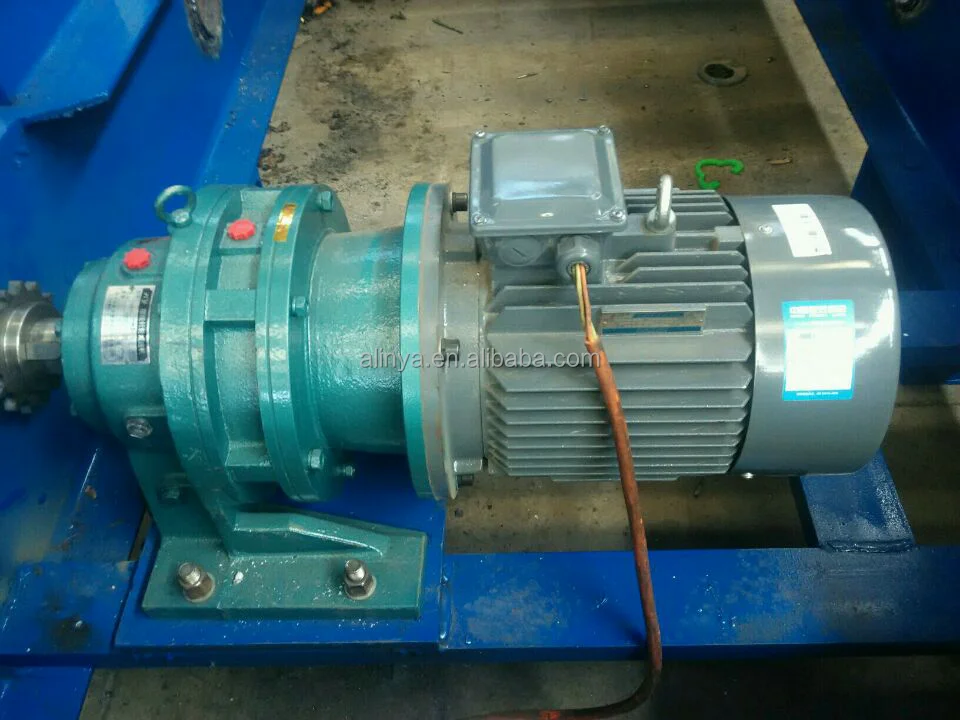

Motor driver
1.Main motor size : 5.5 kw
2.Brand: The famous brand from Jermany or according to customer's need
3.Solenoid valve: 2 groups
4.Hydraulic oil: 46#hydraulic oil Color:Blue (or as customer's request)
5.Working pressure: 12-1 6Mpa adjustable
2.Brand: The famous brand from Jermany or according to customer's need
3.Solenoid valve: 2 groups
4.Hydraulic oil: 46#hydraulic oil Color:Blue (or as customer's request)
5.Working pressure: 12-1 6Mpa adjustable

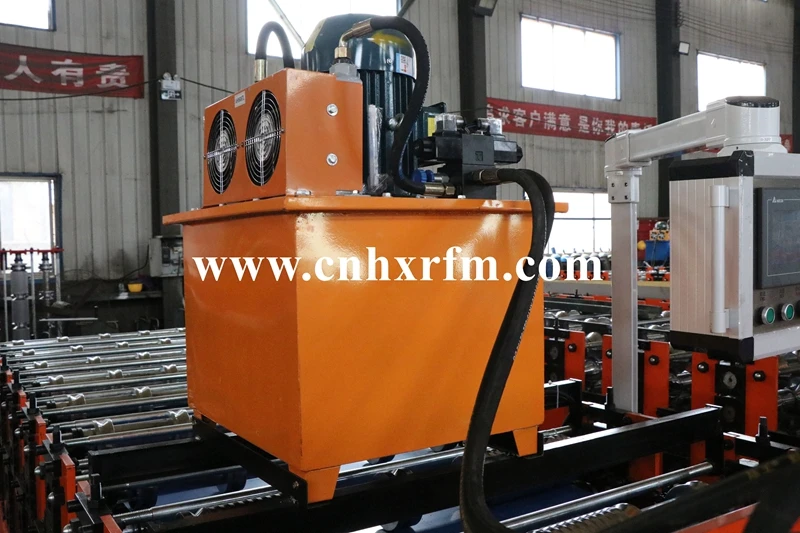

Hydraulic station power
Hydraulic pump station provide cutting power
1.Hydraulic station power: 4Kw
1.Hydraulic station power: 4Kw
2.Brand: Lichao, Shanghai
3.Motor with pump capacity of tank: 45L
3.Motor with pump capacity of tank: 45L
4.Advantages:The free included fan helps reduce oil temperature, extend service life, improve system reliability, and prevent overheating protection, reduce energy consumption and reduce maintenance costs.

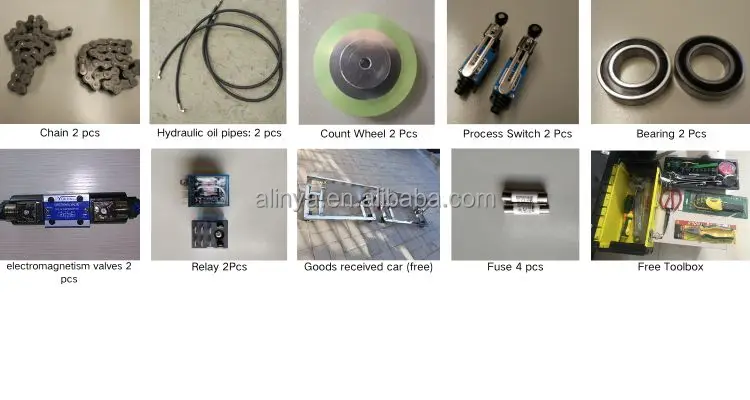

We will provide the consumable parts of the trapezoidal sheet metal 1075 glazed tile roll forming machine double layer roofing roll forming machine for free！

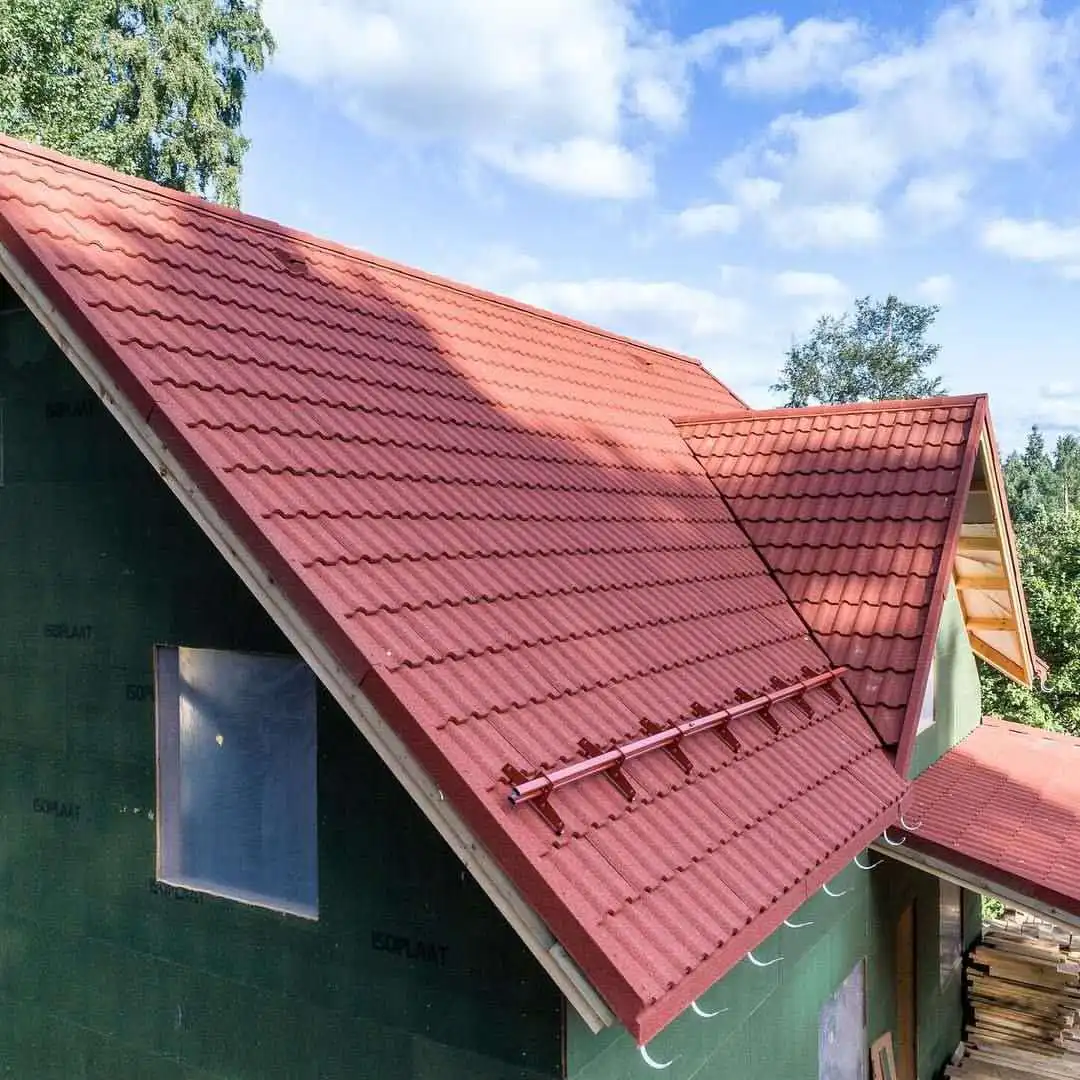

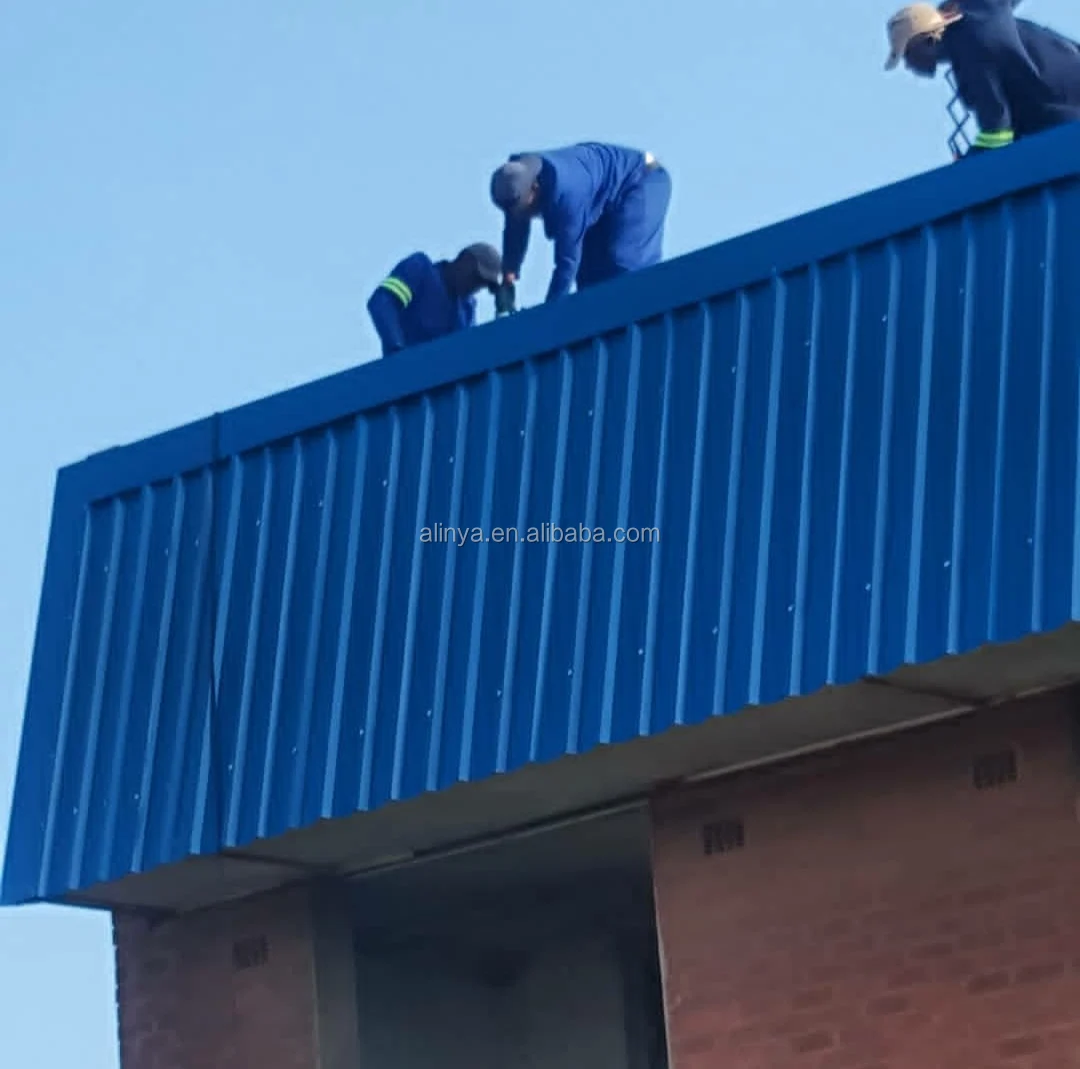

Application

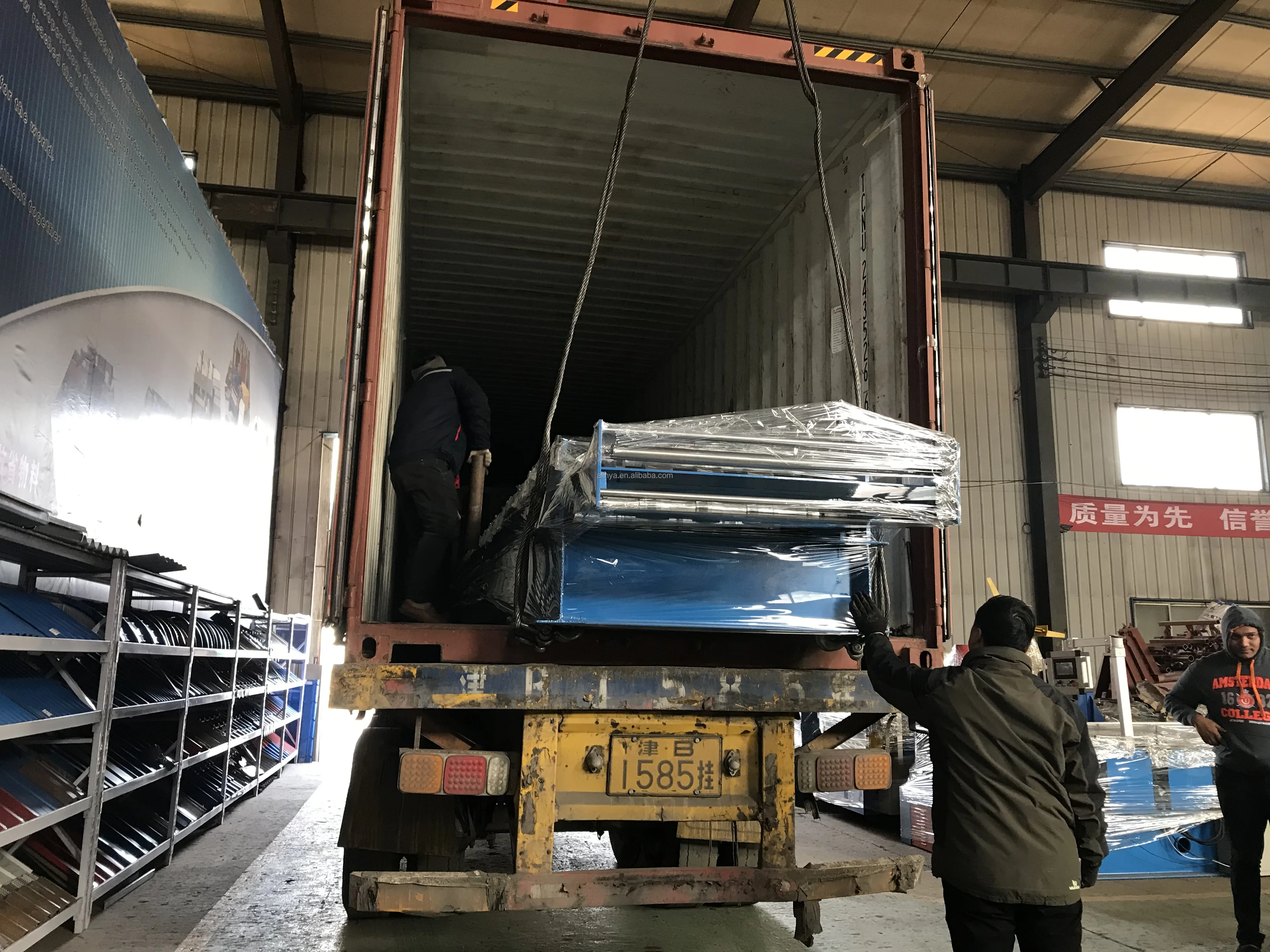

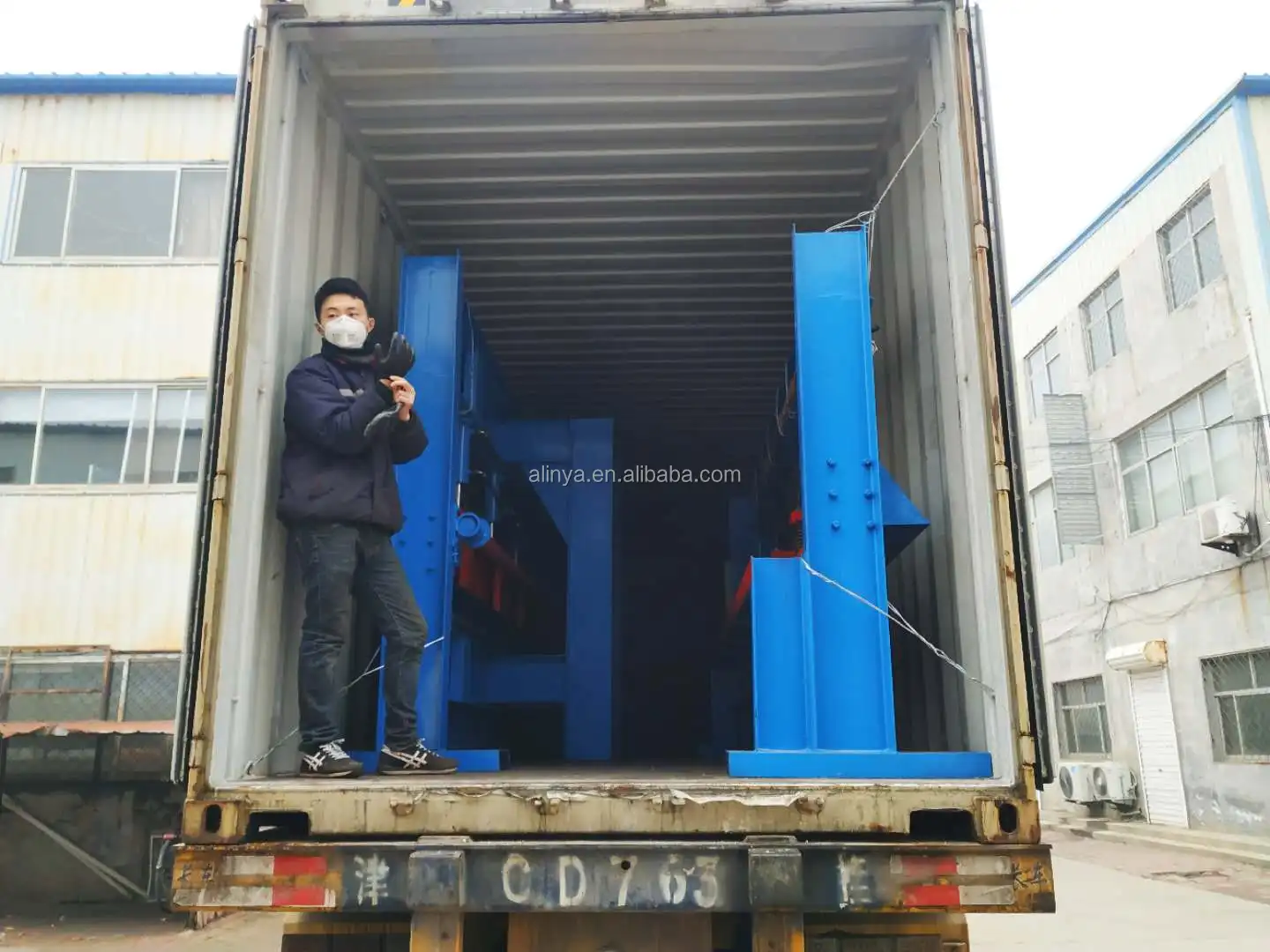

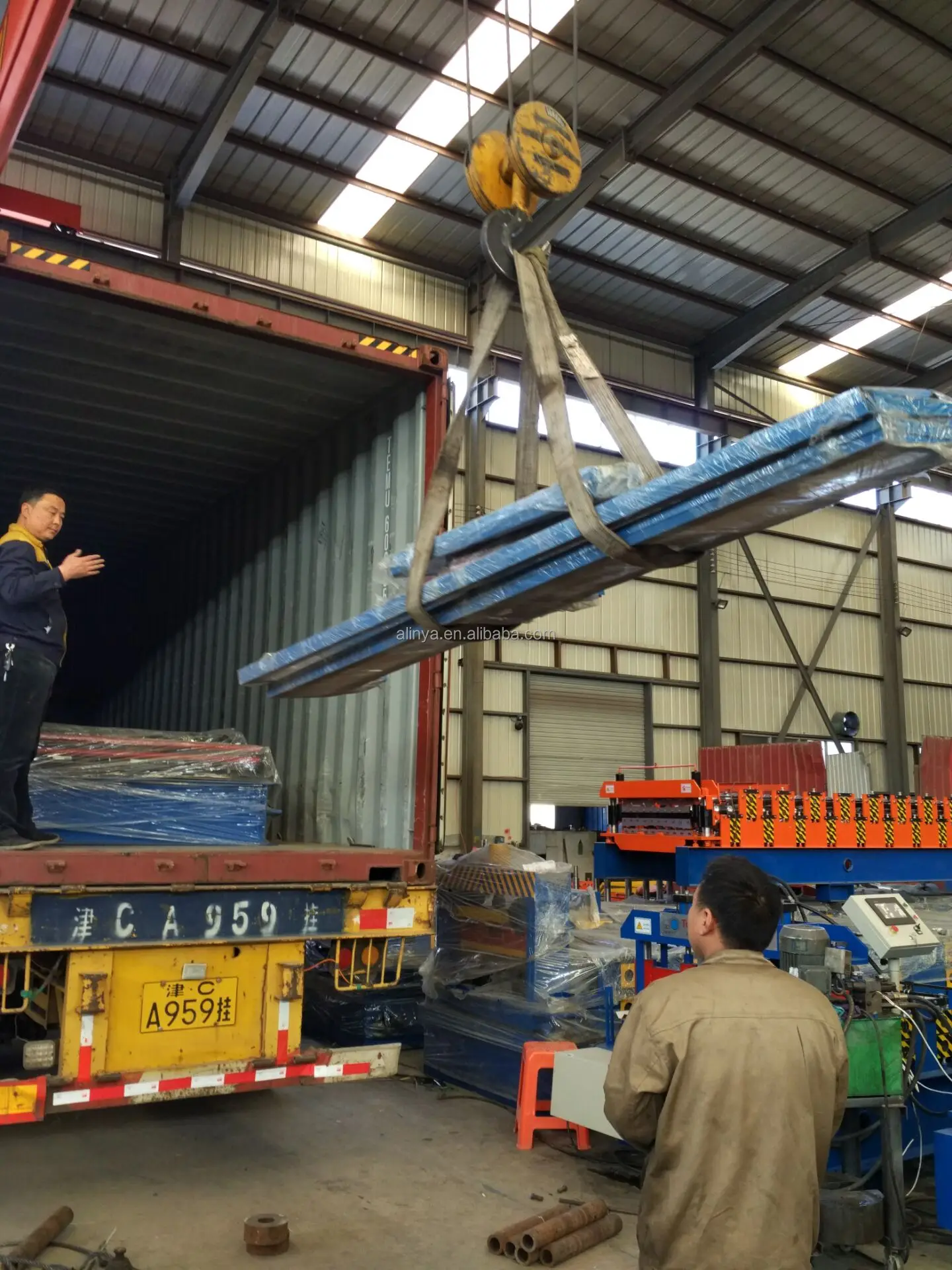

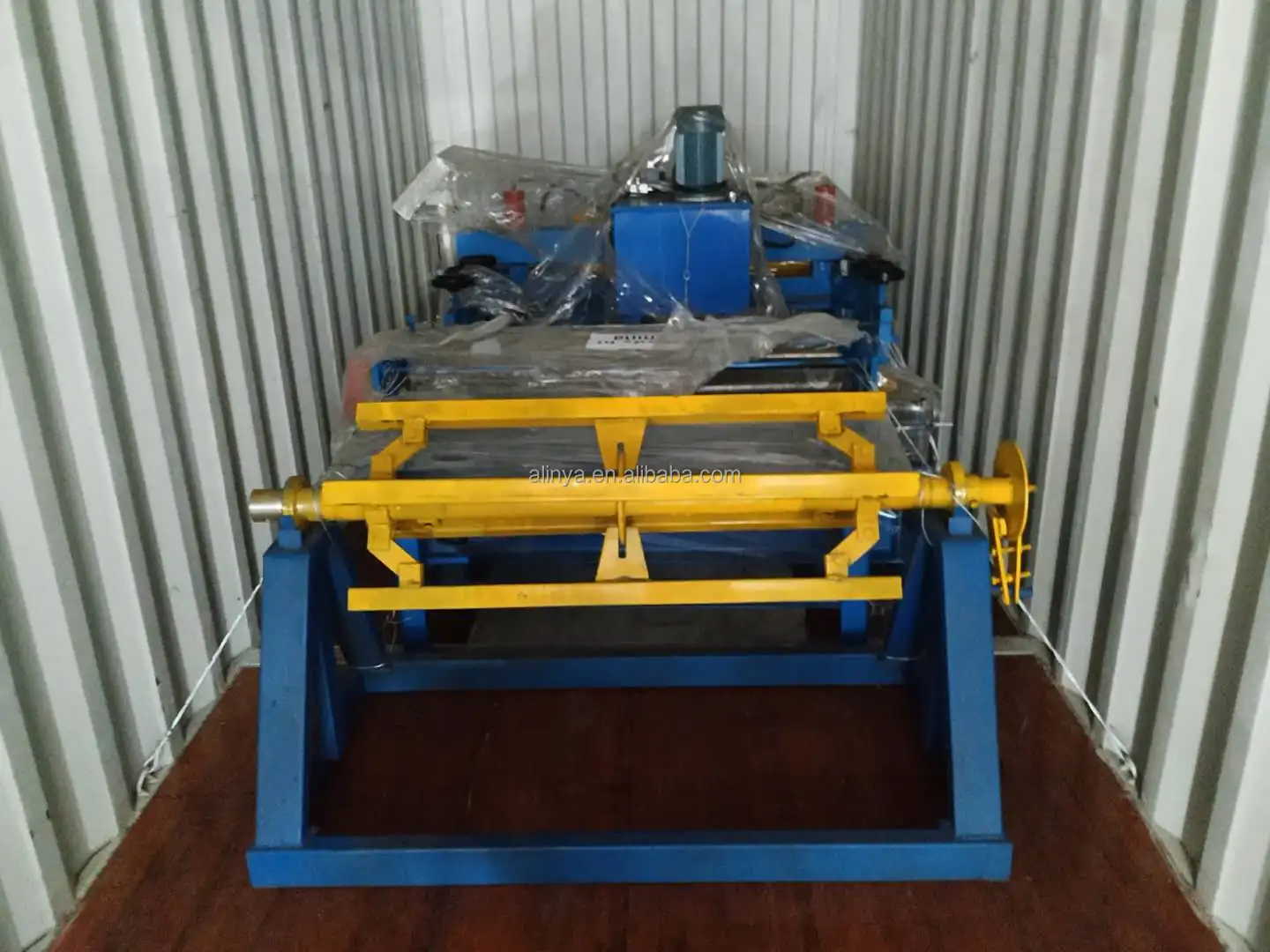

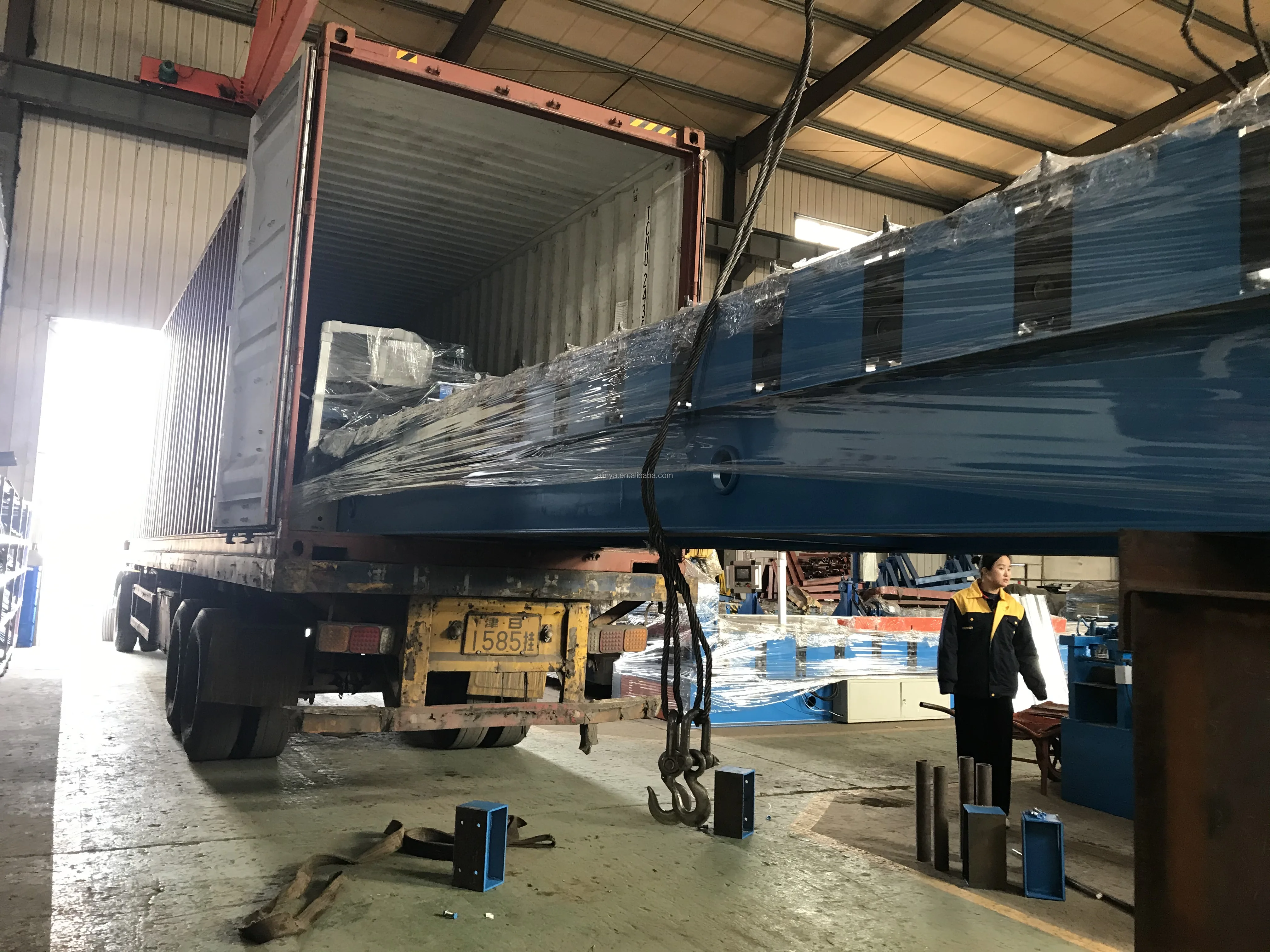

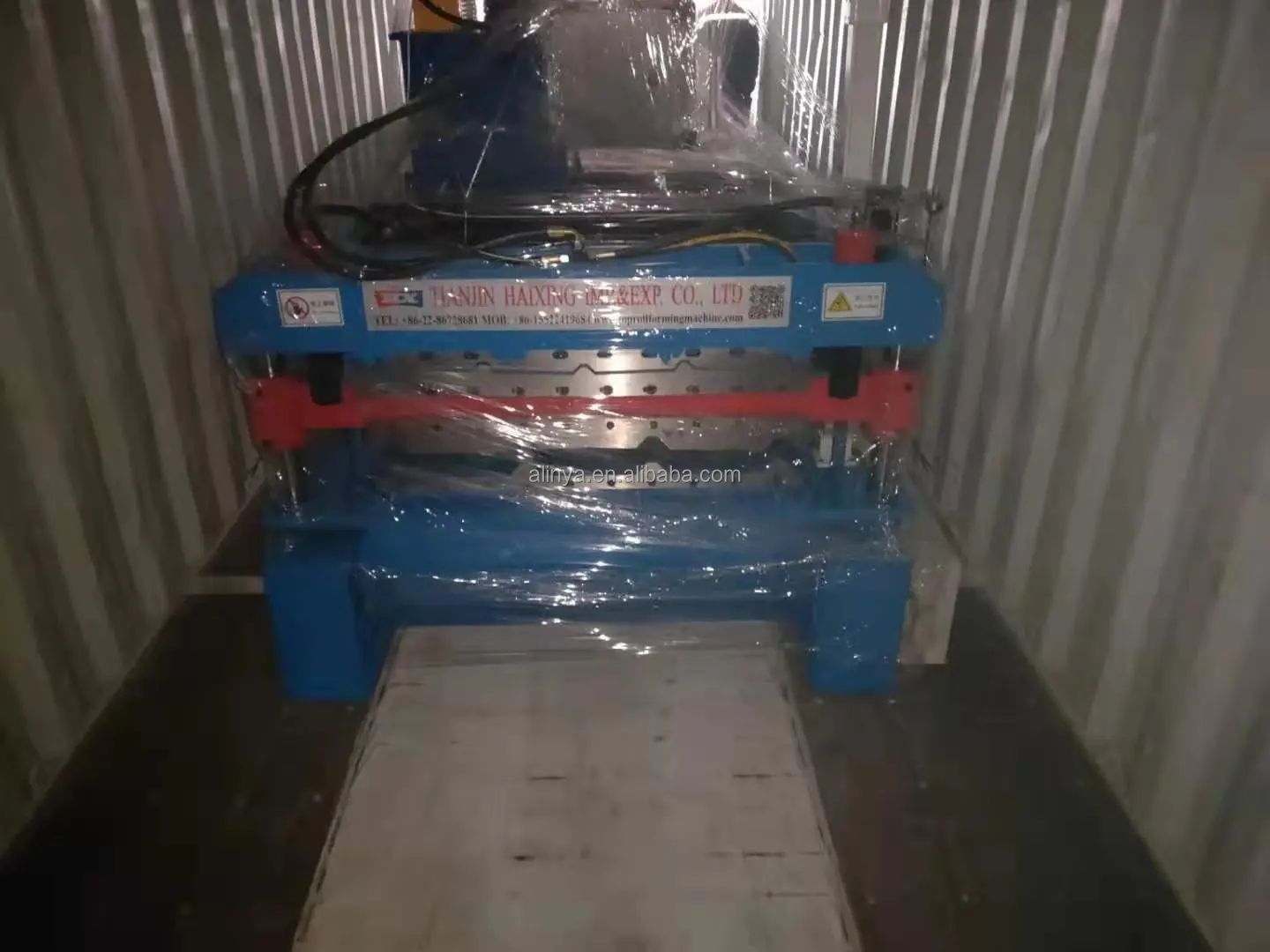

1.Nude, with waterproof cloth and stow-wood.lmported computercontrol system packedwith waterproof cloth and card board.
2.This producing line is maintained free of charge for 18 months.When the machine isused in China, we will install.and debug themachine for free; if it is used at abroad, we willsend the professional technician to debugBuyers should take all the fees for technicianstravelling abroad.
3.All the parts in the roll forming machine is free to maintain long life. If in 18 months ourcompany bear the cost for exchanged the broken partlike the new parts cost and expresscost, if more than 18 month, we also free to maintain the broken parts but for send the newparts, the buyer need bear the express cost.
4.When ship the trapezoidal sheet metal 1075 glazed tile roll forming machine double layer roofing roll forming machine, we will also send one set CD and specification (Chi-nese and English) to you with the machine, they can teach you how to operater themachines.
More Styles
FAQ
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for trapezoidal sheet metal 1075 glazed tile roll forming machine double layer roofing roll forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the trapezoidal sheet metal 1075 glazed tile roll forming machine double layer roofing roll forming machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for trapezoidal sheet metal 1075 glazed tile roll forming machine double layer roofing roll forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the trapezoidal sheet metal 1075 glazed tile roll forming machine double layer roofing roll forming machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
