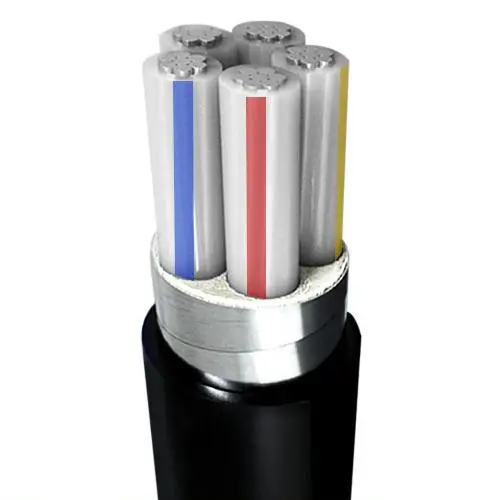

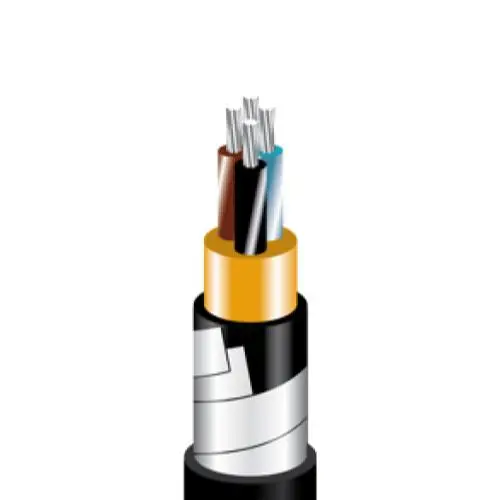

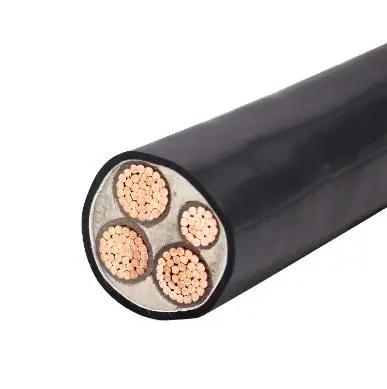

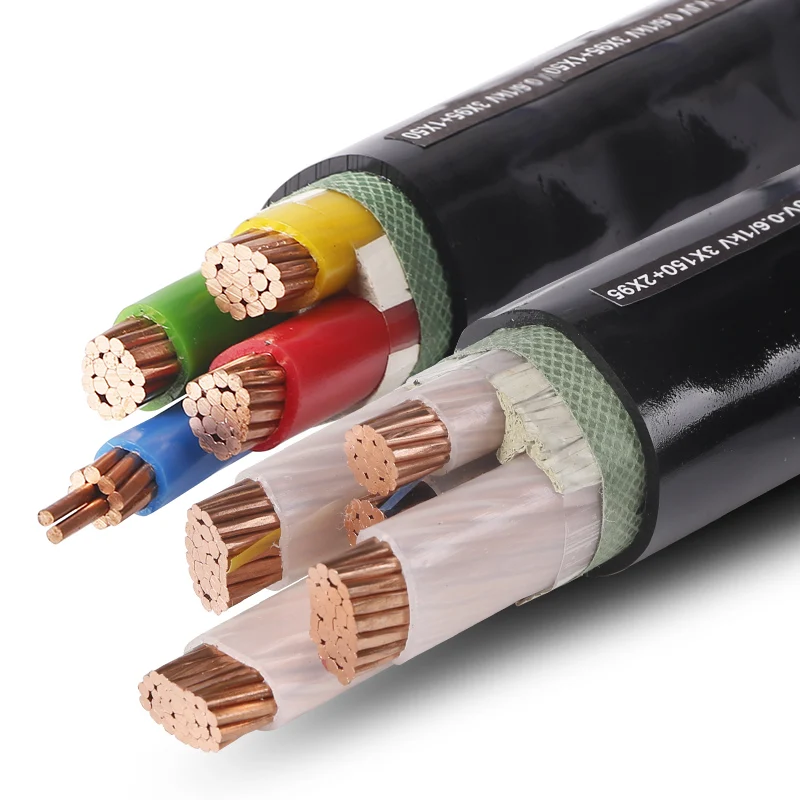

FRLS Copper Cable 50 mm2 with PVC Insulation for Industrial Low Voltage Applications Flame Retardant and Low Smoke

Product Overview

Description

FR Copper Core PVC Insulated Power Cable



(1)Chinese standard (GB) & International standard (TEC)
(2)CCC, ISO9001:2008
(3)Good chemical stability

(4)Fast delivery, Best factory price

(5)18 years experience



Application:

This kind of PVC power cables are mainly laid indoor, in cable conduit, tube or loose earth. Can’t bear greater pull and press. It can be used as power distribution and transmission line at rated voltage 0.6/1KV which can be fixed.



General Characteristics:

1)   The long time working temperature of cable should not be higher than 70°C .

2)   When core is in short circuit(max5s) the temperature should not exceed 160°C.

3)   While installation the ambient temperature should not be lower than 0°C,and

the bending radius should not be less than 10 times of outer diameter of cable.

4)   Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance.
5)   Light weight, perfect bending properties, installed and maintained easily and conveniently.
6)   Voltage rating: 0.6/1KV, 3.6/6KV



Mode ,Name:

Cu Core	AL Core	Description
VV NH-VV	VLV NH-VLV	Cu(Al)Core PVC Insulated PVC Sheathed Power Cable Cu(Al)Core PVC Insulated PVC Sheathed Fire Resistant Cable
VY NH-VY	VLY NH-VLY	Cu(Al)Core PVC Insulated PE Sheathed Power Cable Cu(Al)Core PVC Insulated PE Sheathed Fire Resistant Cable
VV22 NH-VV22	VLV22 NH-VLV22	Cu(Al)Core PVC Insulated Steel Tape Armored PVC Sheathed Power Cable Cu(Al)Core PVC Insulated Steel Tape Armored PVC Sheathed Fire Resistant Cable
VV23 NH-VV23	VLV23 NH-VLV23	Cu(Al)Core PVC Insulated Steel Tape Armored PE Sheathed Power Cable Cu(Al)Core PVC Insulated Steel Tape Armored PE Sheathed Fire Resistant Cable
VV32 NH-VV32	VLV32 NH-VLV32	Cu(Al)Core PVC Insulated Fire Steel Wire Armored PVC Sheathed Power Cable Cu(Al)Core PVC Insulated Fire Steel Wire Armored PVC Sheathed Fire Resistant Cable
VV33 NH-VV33	VLV33 NH-VLV33	Cu(Al)Core PVC Insulated Fire Steel Wire Armored PE Sheathed Power Cable Cu(Al)Core PVC Insulated Fire Steel Wire Armored PE Sheathed Fire Resistant Cable
VV42 NH-VV42	VLV42 NH-VLV42	Cu(Al)Core PVC Insulated Thick Steel Wire Armored PVC Sheathed Power Cable Cu(Al)Core PVC Insulated Thick Steel Wire Armored PVC Sheathed Fire Resistant Cable
VV43 NH-VV43	VLV43 NH-VLV43	Cu(Al)Core PVC Insulated Thick Steel Wire Armored PE Sheathed Power Cable Cu(Al)Core PVC Insulated Thick Steel Wire Armored PE Sheathed Fire Resistant Cable



Number of cable cores:

one core(Single core), two cores(Double cores), three cores, four cores(Four Equal-section-area cores or three equal-section-area cores and one smaller section area neutral core), five cores (Five equal-section-area cores or three equal-section-area cores and two smaller section area neutral cores), we provide armoured type and non-armoured type for the cables stated above.
