Good price VMC850 china high precision 4 axis 5 axis siemens 808d cnc control vertical cnc milling machine center VMC machines
- Category: >>>
- Supplier: Shandong Yijin Cnc Machine Tool Co. Ltd.
Share on (1601270440508):
Product Overview
Description

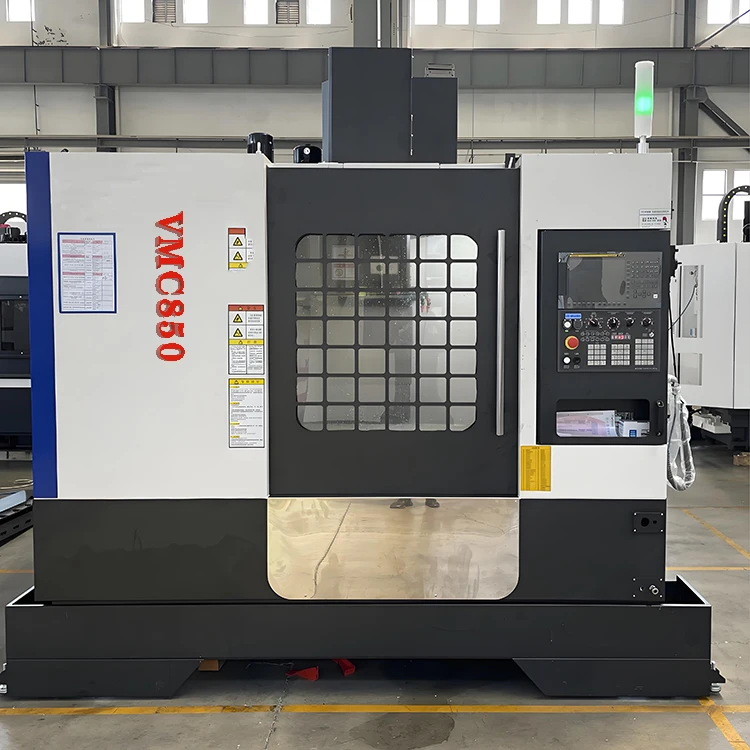

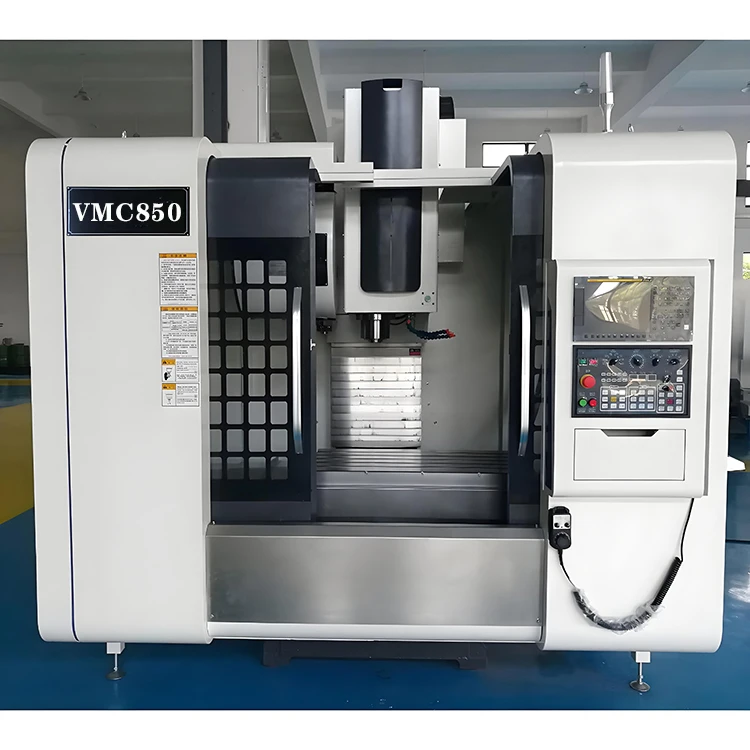

CNC mill high precision CNC vmc machines vmc machine 850 VMC850 machining center

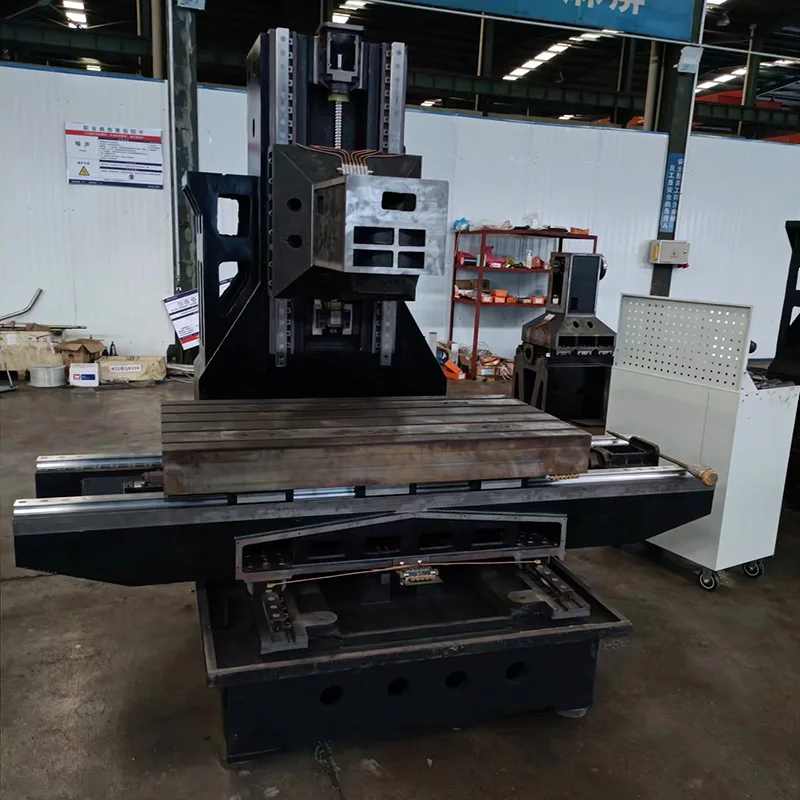

VMC850 is a high performance vertical machining center, it has the characteristics of high speed, high performance, high rigidity and high stability. All castings of this machine are secondary tempered to provide excellent rigidity and stability to the machine, which can make this machine maintain high speed and high stability in the process of processing.
Specification
Product name | VMC850 |

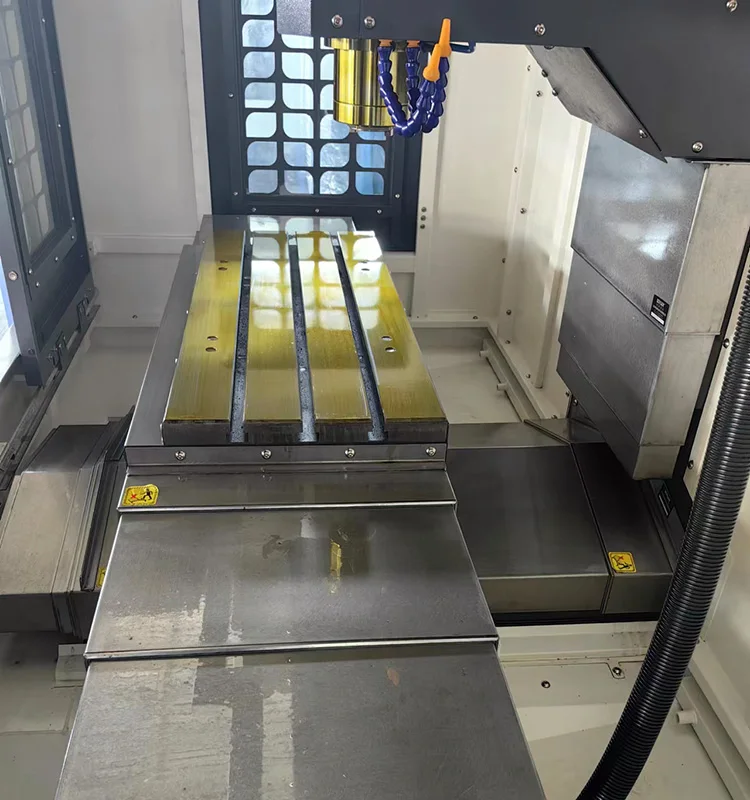

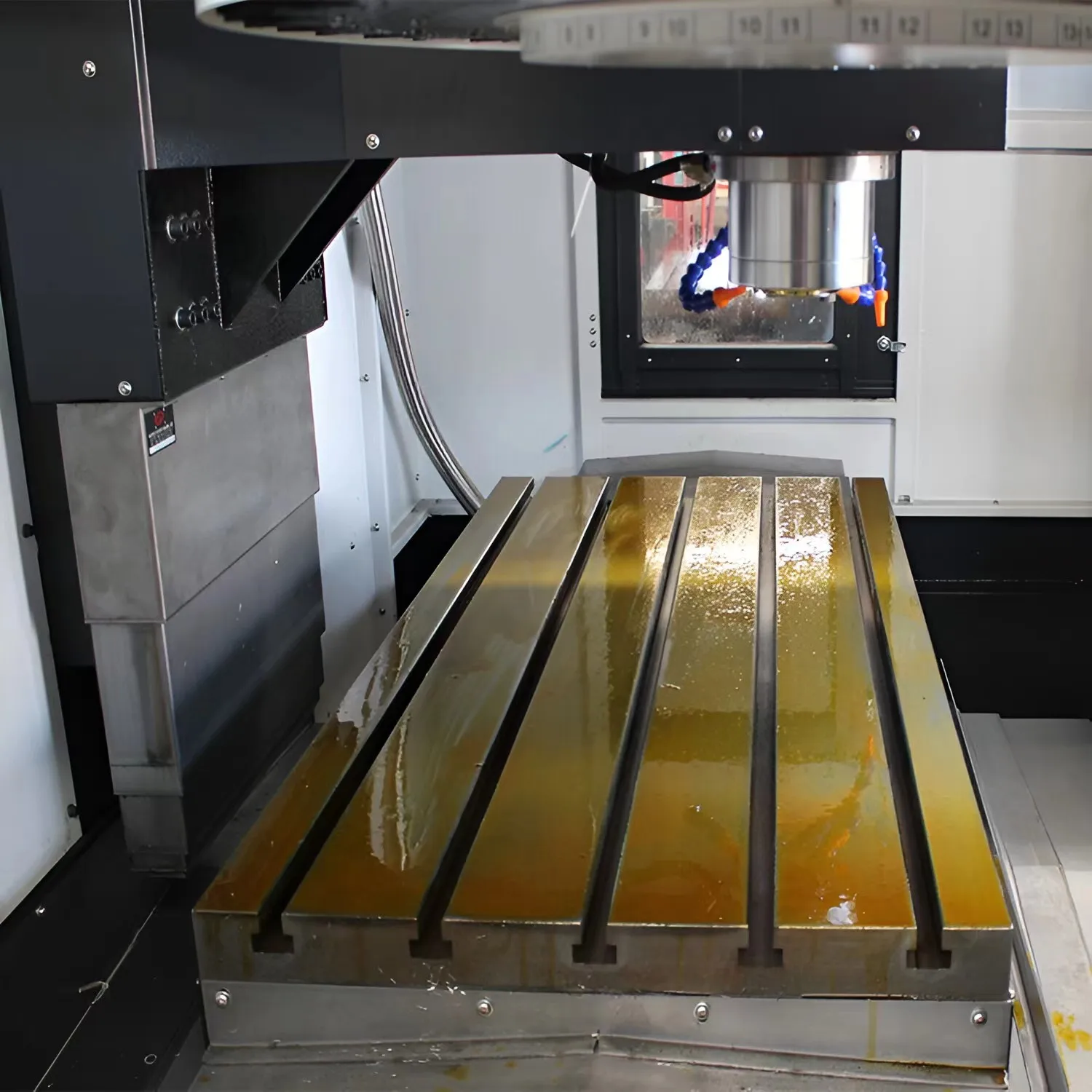

Table area | 1000*500mm |
X-axis travel | 800mm |
Y-axis travel | 500mm |
Z-axis travel | 500mm |
Distance from spindle nose to table | 120-620mm |
Distance from spindle center to column | 580mm |
Rapid traverse of X/Y/Z-axis | 24/24/18min |
Cutting federate | 1-5000mm/min |
Spindle motor power | 7.5KW |
Spindle speed | 80~8000rpm |
Spindle diameter | 150mm |

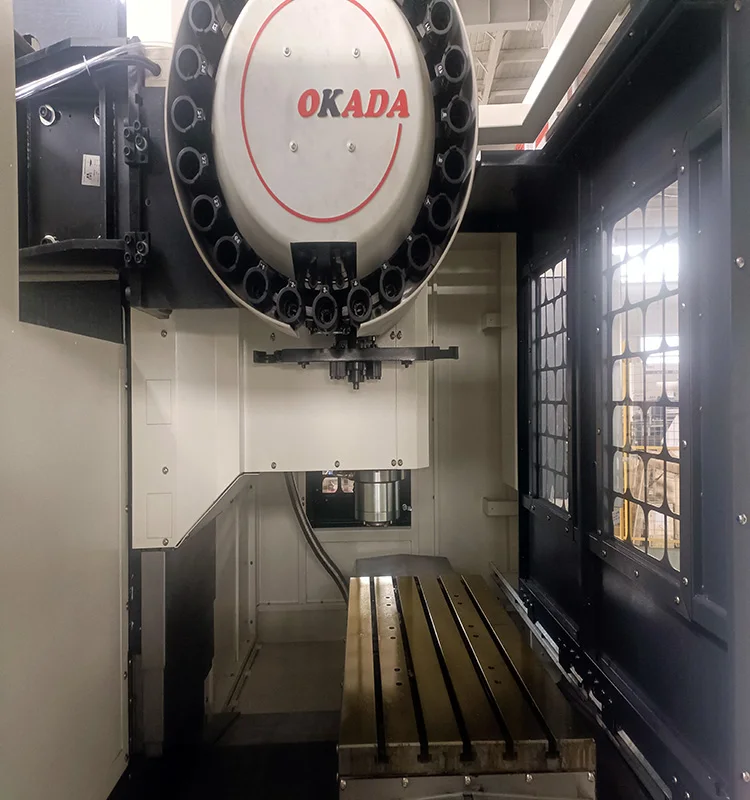

Tool magazine capacity | 24T |
Positioning accuracy | 0.01mm |
Repeated positioning accuracy | ±0.005mm |
T slots(No.×W×P) | 5*18*90mm |
Detailed configuration
Standard Configuration
1. Full Cover shield
2. Self-lubrication system
3. Working lights
4. Warning lights
5. Working condition warning lights
6.Self-powered electrical shutoff system
7. Clean air gun/ Water Tank / Transformer
8. Spindle air curtain and dust control system
9. 8000 rpm
3. Working lights
4. Warning lights
5. Working condition warning lights
6.Self-powered electrical shutoff system
7. Clean air gun/ Water Tank / Transformer
8. Spindle air curtain and dust control system
9. 8000 rpm
spindle(Optional:10000/12000rpm)
10.Worktable cleannig water gun
Optional Configuration
1. 24 disc manipulator tool magazine 2. Automatic chip chain conveyor

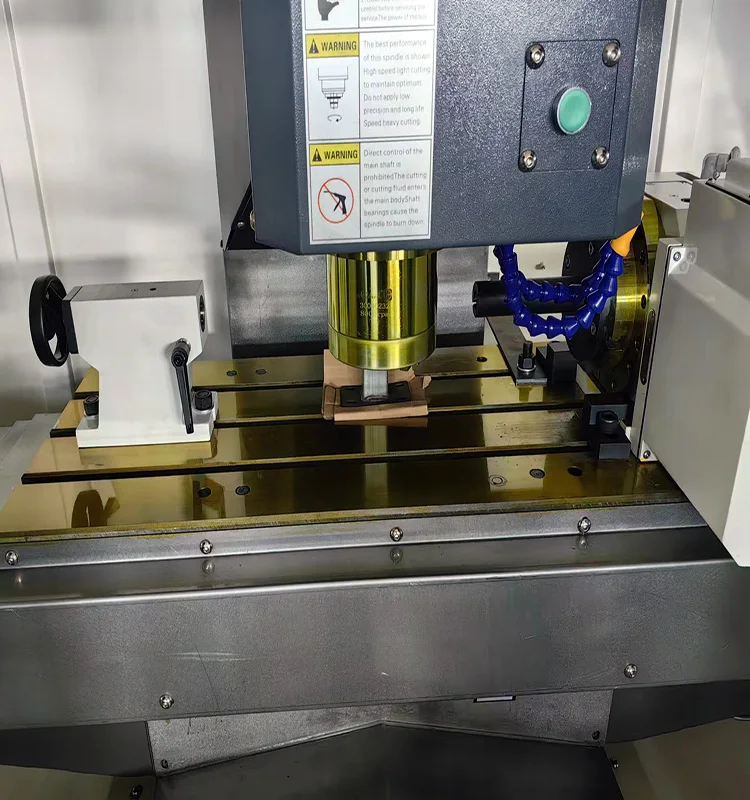

3. 4th axis CNC rotary table
4. 5th axis CNC rotary table
5. CTS（Spindle center water outlet）30Bar
6. Spindle oil cooler
7. Tool detection system
8. Nitrogen balance device
9. 12000 RPM Direct connection spindle
10. Oil mist purifier 11.FANUC/Siemens/Mitsubishi/GSK/Syntec CNC system
3. 4th axis CNC rotary table
4. 5th axis CNC rotary table
5. CTS（Spindle center water outlet）30Bar
6. Spindle oil cooler
7. Tool detection system
8. Nitrogen balance device
9. 12000 RPM Direct connection spindle
10. Oil mist purifier 11.FANUC/Siemens/Mitsubishi/GSK/Syntec CNC system

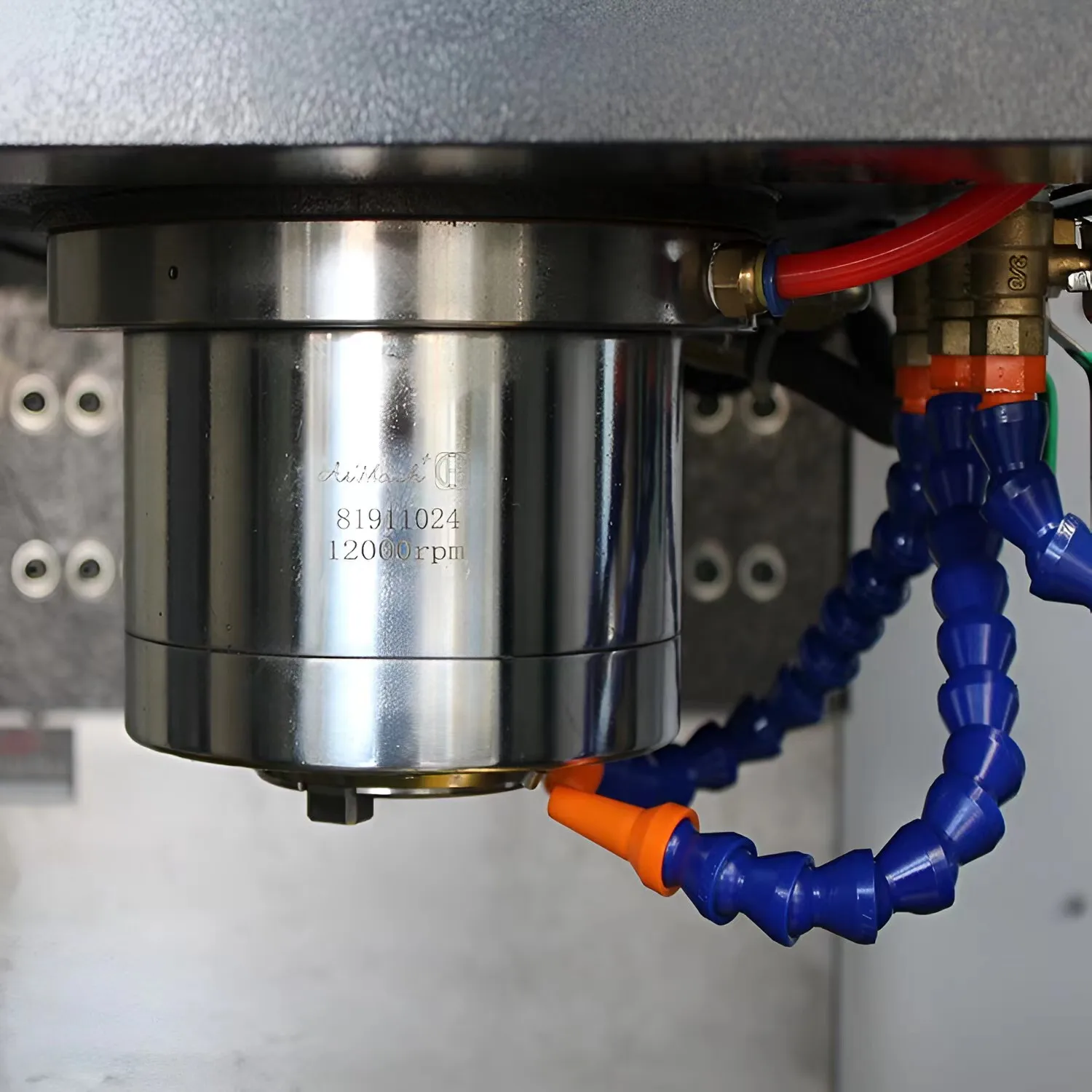

Standard configuration is8000rpm
and the options are 10,000 RPMand 12000rpm;
High speed spindle.

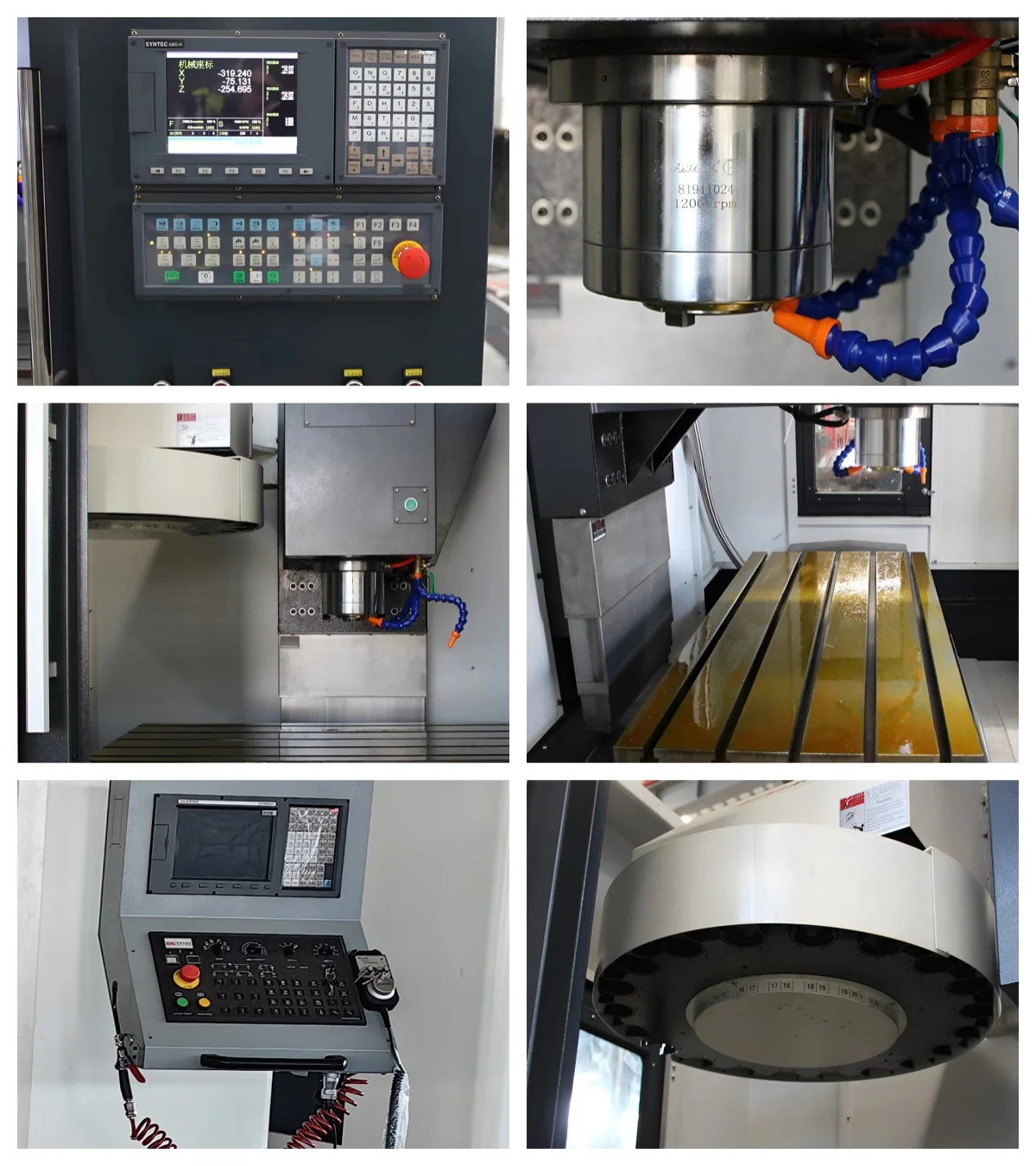

CNC control systemcan choosed.Like GSK/ Siemens/FANUCMitsubish and other
good system.
Taiwan precision spindle High speed, high precision and high rigidity.on structure.
Company Profile

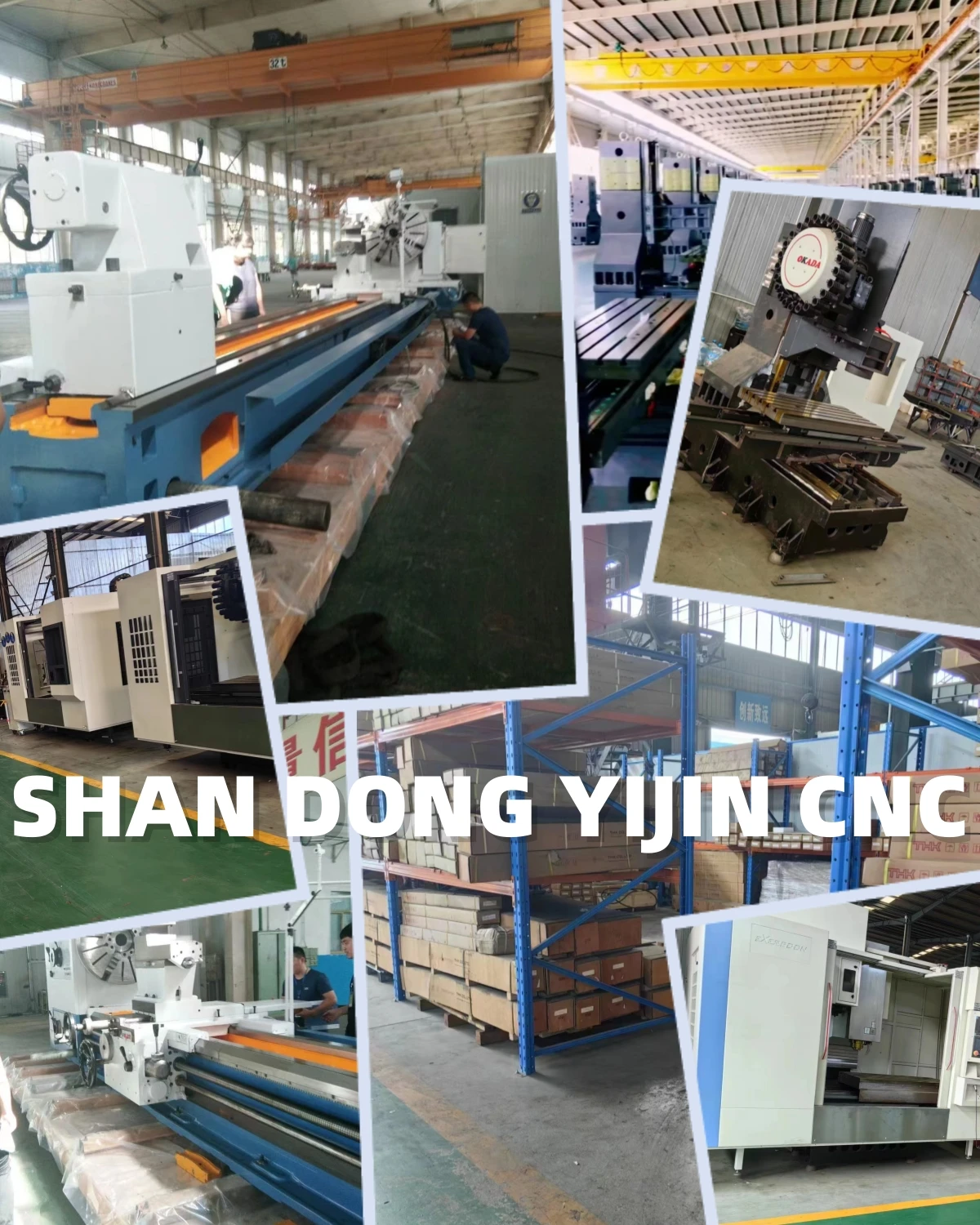

SHAN DONG YIJIN CNC
Shandong Yijin CNC Machine Tool Co., Ltd. is a supplier of comprehensive intelligent solutions for efficient, dedicated, precision CNC machine tools, combined machine tools and CNC flexible automatic machining lines. The company has the core technology of intelligent manufacturing industry chain from processing technology, processing equipment, measurement and detection to standard formulation. With a strong aircraft independent research and development capabilities and equipment remanufacturing and a full set of technical service capabilities, to provide customers with professional intelligent manufacturing system solutions.
Quality is the lifeblood of the enterprise, grasp the details, open innovation. The company invites to join and agent, willing to
work with our customers and strategic partners to create a better future together.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
4: What's the MOQ?
A: MOQ is one set, and warranty is one year.
