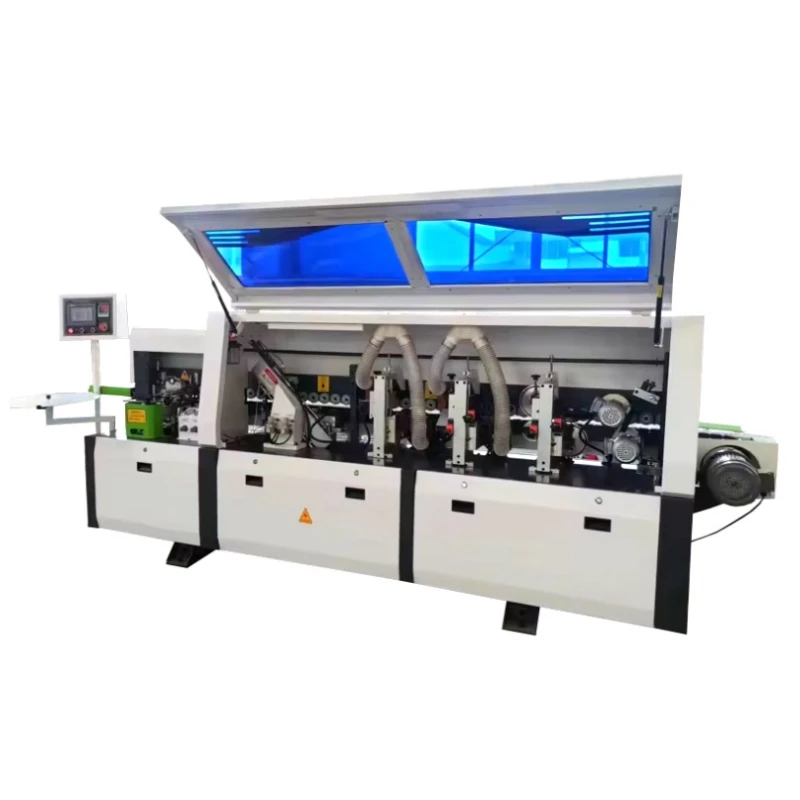

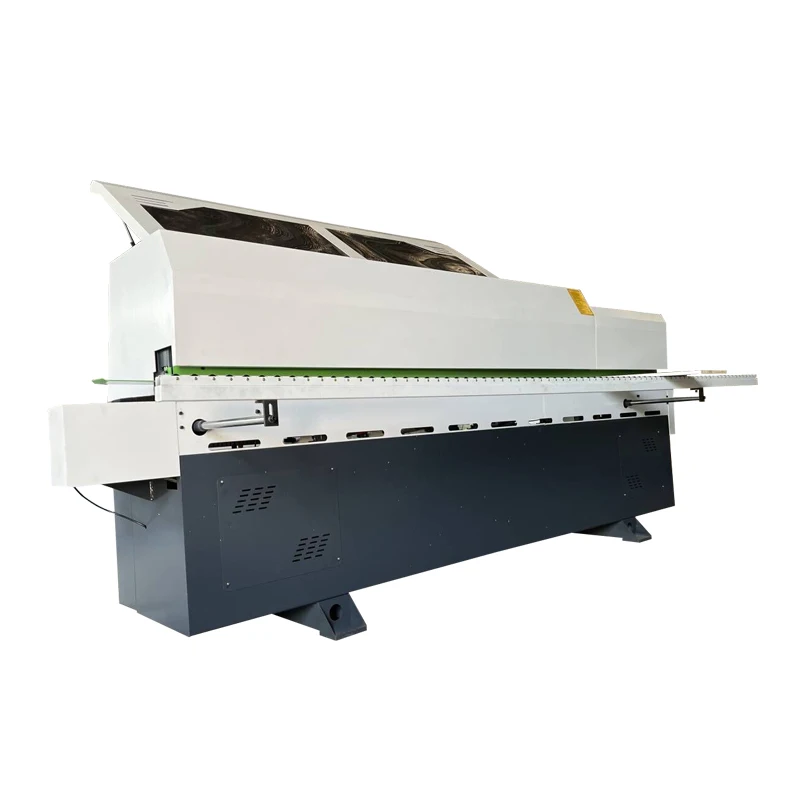

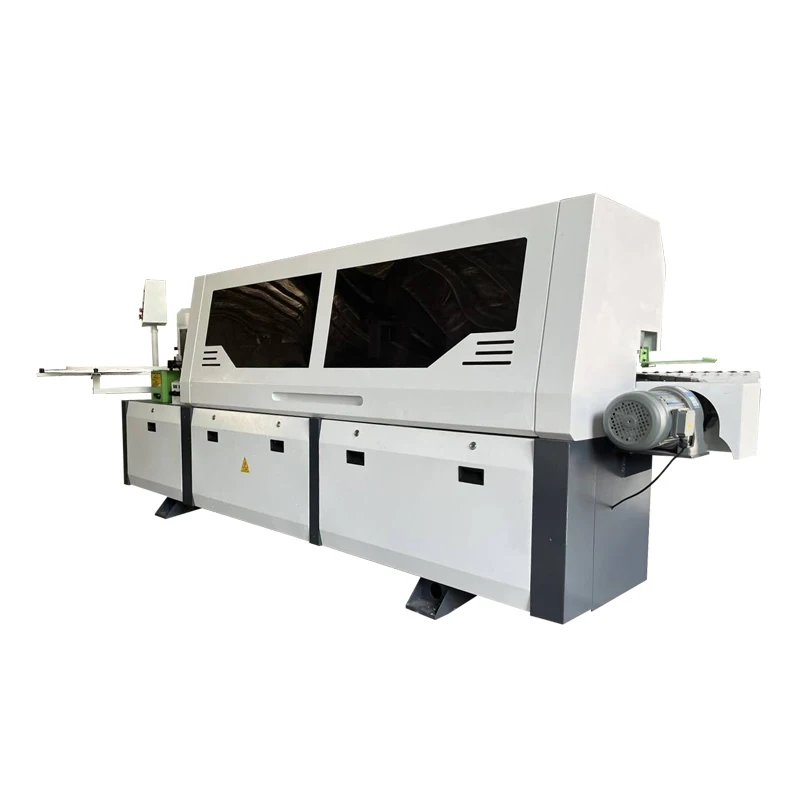

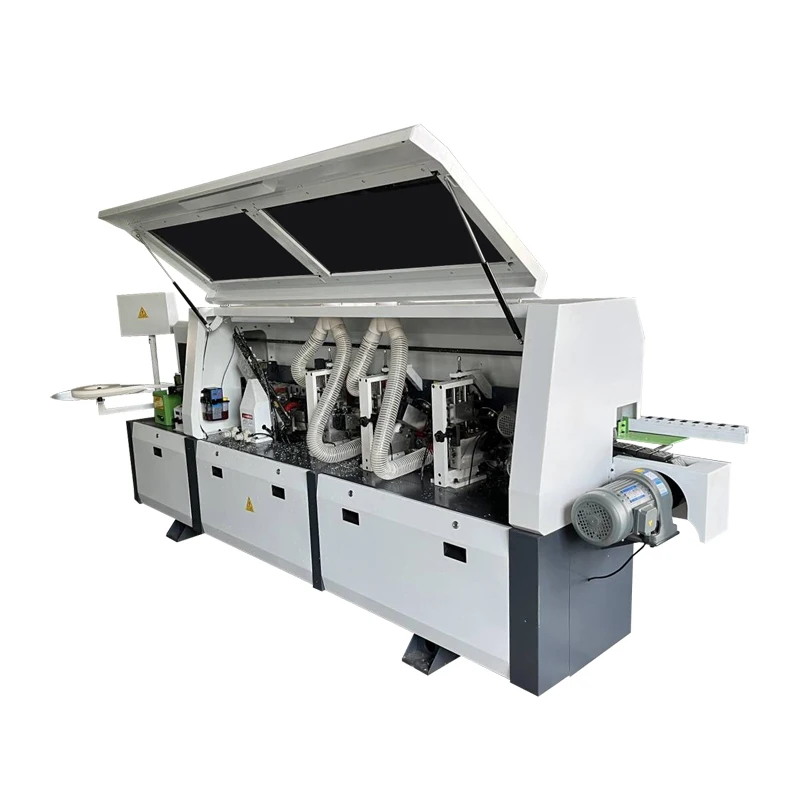

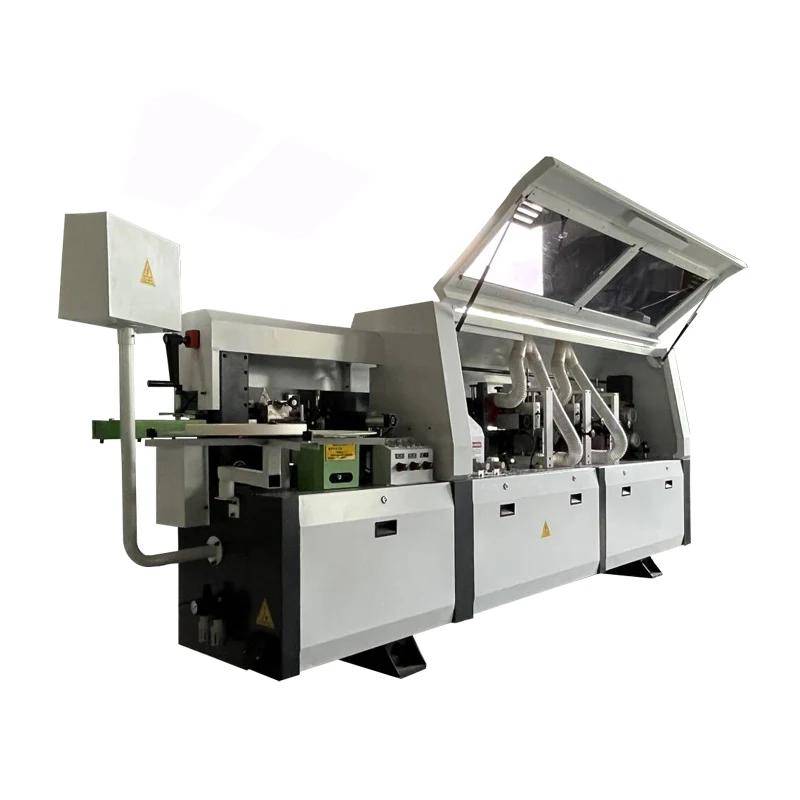

Woodworking fully automatic board PVC cabinet furniture edge bander MDF edge banding machine for wood
- Category: >>>
- Supplier: Shandong Guandiao CNC Equipment Co. Ltd.
Share on (1601270515519):
Product Overview
Description
Product Description
Specification
Model | GD-5300 |
Edge banding thickness | 0.3-4mm |
Edge banding height | 12-60mm |
Banding tape width | 10-55mm |
Mini work piece length | >=80mm |
Mini Work piece width | >=60mm |
Heating power of plastic box | 1.5kw |
Plate preheating power | 0.3KW |
End cutting motor power | 0.55kw * 2 1200r / min200HZ |
Transmission motor power | 2.2KW |
Polishing motor power | 0.2kw*2 1400r / min 300Hz |
Fine trimming motor power | 0.75kw*2 1800r / min 300Hz |
Conveying speed | 0-30m / min |
Air pressure | 0.9MPA |
Total Power | 11KW |
Power supply | 220V/50HZ |
Machine weight | 1500KG |
Machine size | 5300*1000*1800mm |
Packaging dimension | 5300*1020*1820mm |
Packaging weight | 2200kg |
Show details
Brief introduction
1. End triming and triming unit adopt imported high-motor, it is high precision, lower noise, long life, processing stability.
2. Adopt imported frequency converter, action is sensitive and reliable and with good stability.
3. The function including 6 function：preheating pressing , gluing, end cutting, rough trimming, fine trimming scraping.
2. Adopt imported frequency converter, action is sensitive and reliable and with good stability.
3. The function including 6 function：preheating pressing , gluing, end cutting, rough trimming, fine trimming scraping.
4.Machine frame: Welding frame adopts national standard 50 * 90 * 5mm rectangular pipe square tube and bottom 40 * 80 * 5 channel steel welded frame structure, pre-milled table of heavy-duty gantry milling machine to ensure the flatness of the equipment and the whole machine plastic appearance Beautiful and not rusty.
5.The beams are all 18mm thick high-quality high-strength ship plates. Sheet metal shells are 1.8-6mm thick cold plates.
6.There are feed plates and discharge plates on the front and back of the equipment to ensure the smooth operation of the board.
It is more convenient to not touch the material.
5.The beams are all 18mm thick high-quality high-strength ship plates. Sheet metal shells are 1.8-6mm thick cold plates.
6.There are feed plates and discharge plates on the front and back of the equipment to ensure the smooth operation of the board.
It is more convenient to not touch the material.

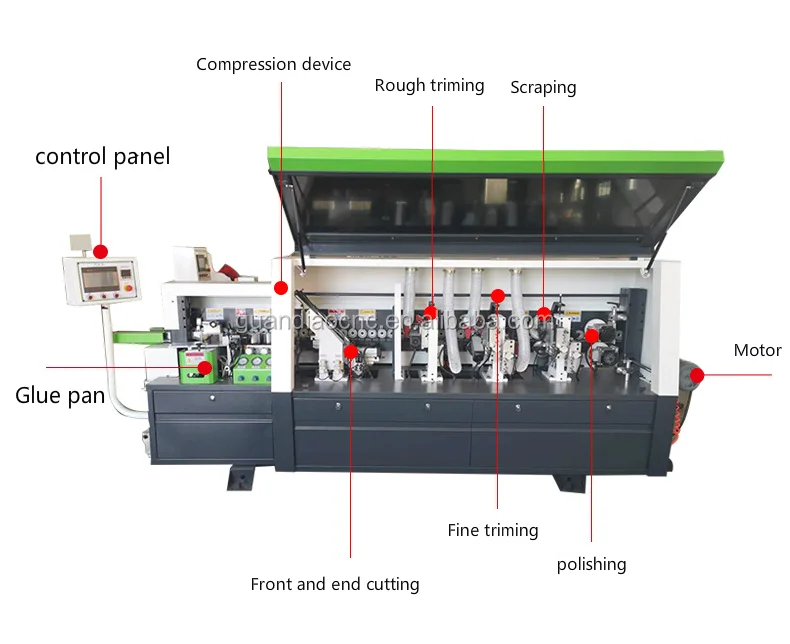

1.Control Panel
2.Glue and pressing
3.Front and end cutting
4.Rough and Fine Triming
5,Corner Trimming
6.Scraping
7.Polishing
Application

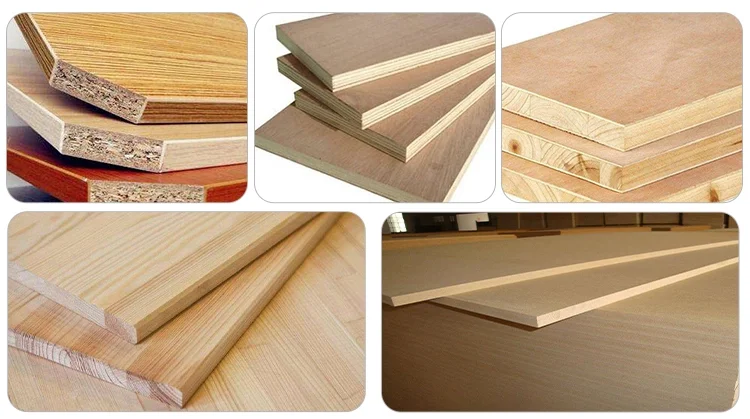

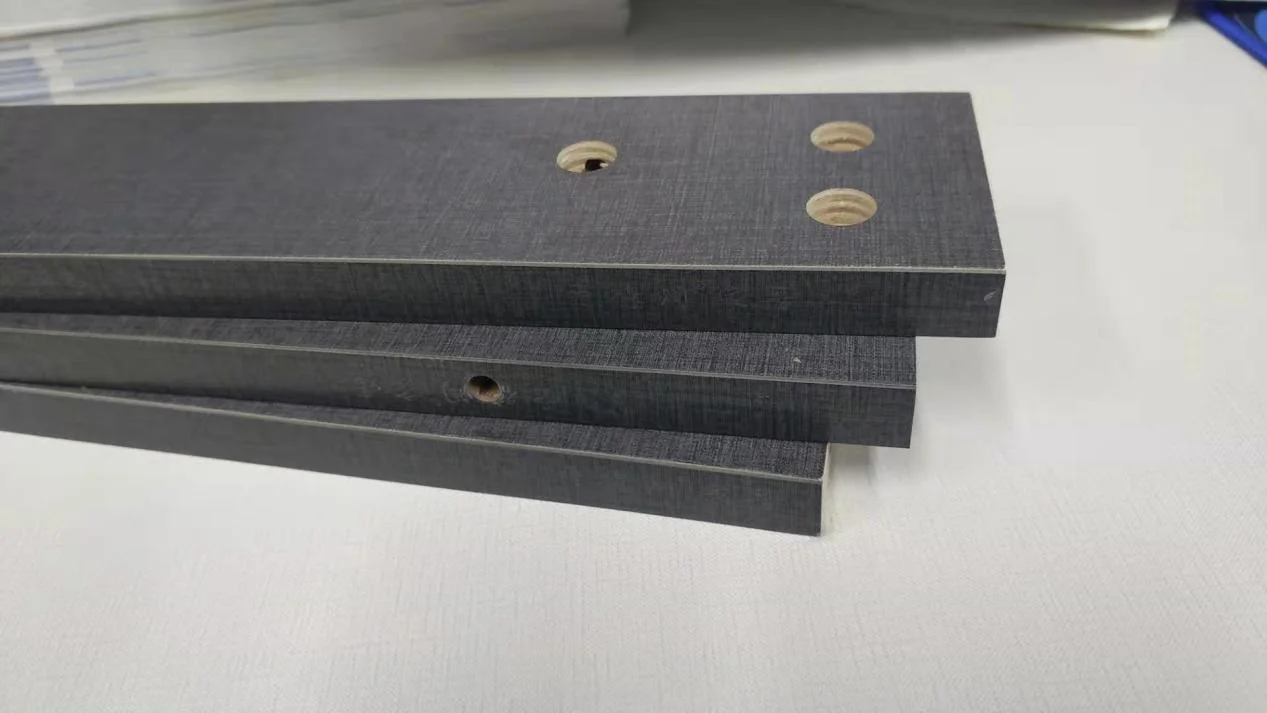

The automatic linear edge banding machine is suitable for such plates: MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.

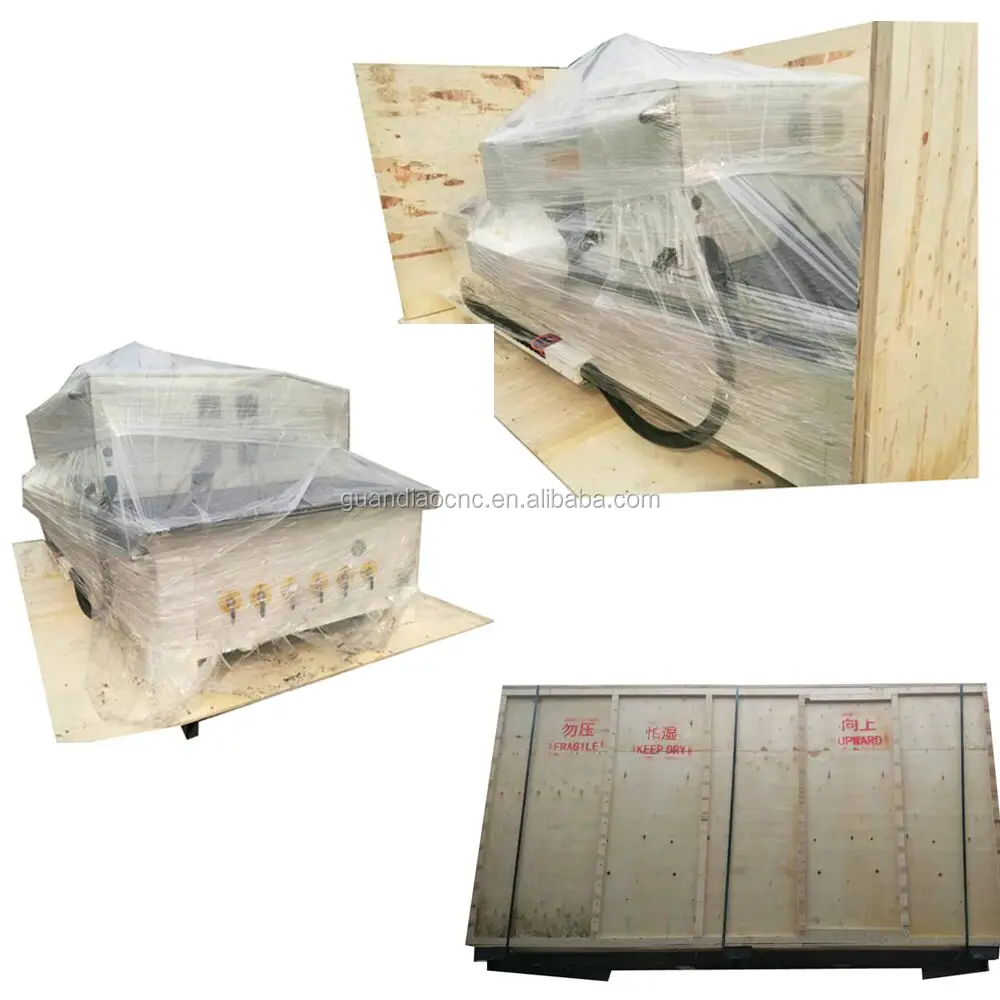

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

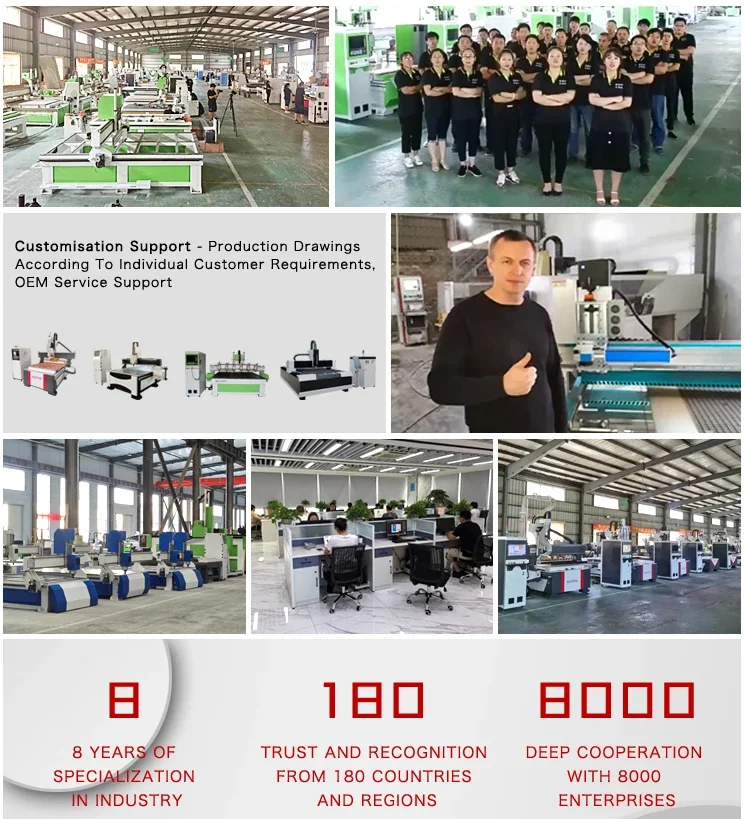

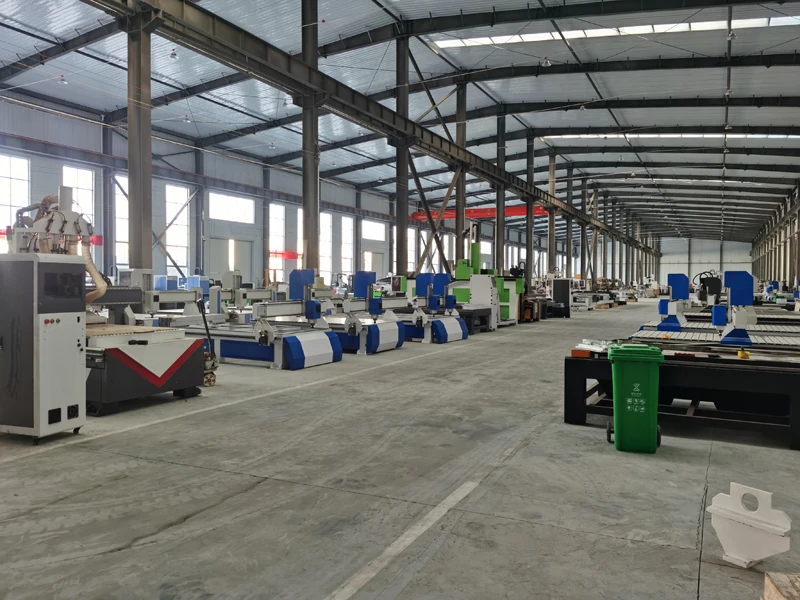

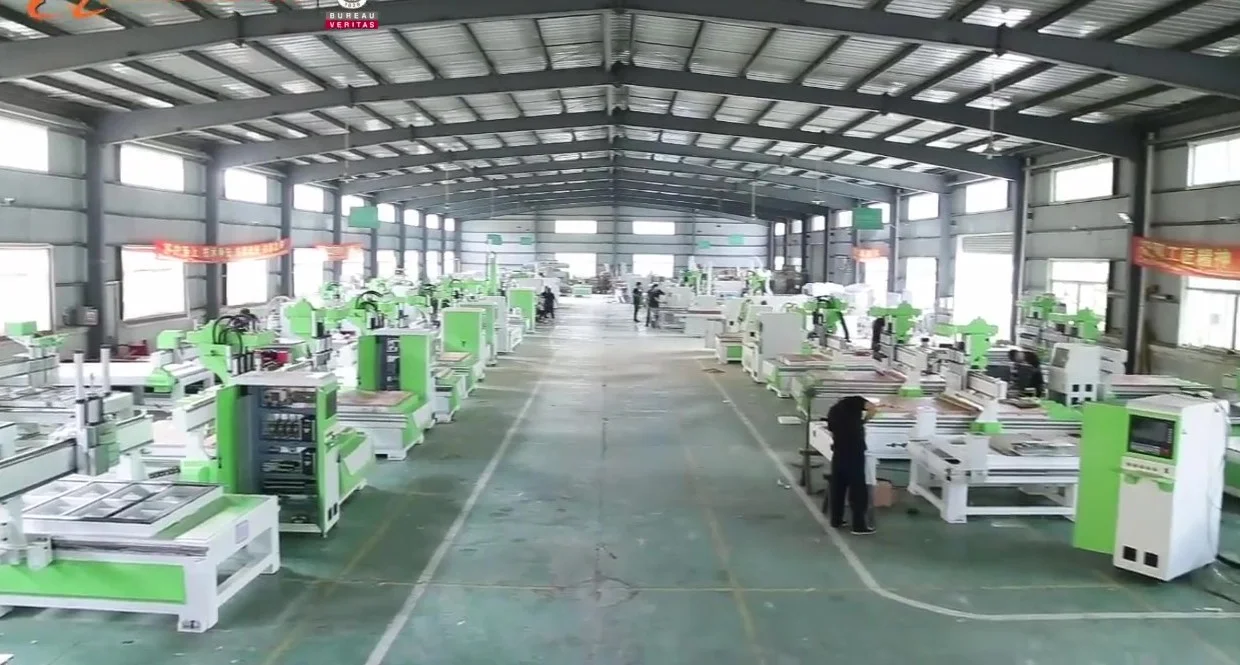

Company Profile
Shandong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development, production, sales and good after- sales service. The company’s main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc.
After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.
We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive.
We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive.
FAQ
1. This is the first time I buy the machine, is it easy to operate?
A: We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer" online, with telephone or Skype explain.
2. ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
3. Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
A: We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer" online, with telephone or Skype explain.
2. ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
3. Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
After sale-service
1.24 hours online by Ali Trademanager, Skype, Email, QQ, Whatsapp or telephone.
2.We will provide free training, free maintenance, free technical upgrading,
3.We accept the ODM, OEM
4.Oversea agents wanted, if any interest, pls let me know.
1.24 hours online by Ali Trademanager, Skype, Email, QQ, Whatsapp or telephone.
2.We will provide free training, free maintenance, free technical upgrading,
3.We accept the ODM, OEM
4.Oversea agents wanted, if any interest, pls let me know.
