Factory Wh1919Y 850 4000Mhz High Perfomance Radio Frequency Rf Drop In Circulator For Wireless Sensors
Factory Wh1919Y 850-4000Mhz High Perfomance Radio Frequency Rf Drop In Circulator For Wireless Sensors
Factory Wh1919Y 850-4000Mhz High Perfomance Radio Frequency Rf Drop In Circulator For Wireless Sensors
Factory Wh1919Y 850-4000Mhz High Perfomance Radio Frequency Rf Drop In Circulator For Wireless Sensors
Factory Wh1919Y 850-4000Mhz High Perfomance Radio Frequency Rf Drop In Circulator For Wireless Sensors
Factory Wh1919Y 850-4000Mhz High Perfomance Radio Frequency Rf Drop In Circulator For Wireless Sensors
Factory Wh1919Y 850-4000Mhz High Perfomance Radio Frequency Rf Drop In Circulator For Wireless Sensors

Factory Wh1919Y 850 4000Mhz High Perfomance Radio Frequency Rf Drop In Circulator For Wireless Sensors

Share on (1601270761566):


Price:$76.70 - $86.70

Quantity:


Product Overview

Description







Recommend Products




Specification


Item
Value
Product name
RF Circulators
Model Number
Wh1919Y
Place of Origin
Sichuan,China
Brand Name
RFTYT
Style
High-tech products
Filter technology
Passive technology
Frequency Range
1.6-3.2 GHz(full)
Power (max)
100W
Reverse Power
20/100W
RoHS compliant
Yes
Inner conductor
Brass
Shell
Steel


Product Description



STRONG RESEARCH AND DEVELOPMENT CAPABILITY:

We have a group of RF technology developers who value Independent Intellectual Property Rights. We always adhere to independent research and continuous innovation, and continuously strengthen our own technological investment.



RICH EXPERIENCE:

experienced in microwave telecommunication industry over 20 years with stringent quality control measures, leading to consistent product quality and reduced defects.




ADVANCED PROCESSING TECHNOLOGY:

The product adopts the leading domestic small a type production line and precision CNC machining and eutectic sintering
technology, providing microwave assembly processing services.




CUSTOMIZATION:

we offer various customizable products for your needs. Please kindly contact us with your requirements.



Product Paramenters





RF Broadband Circulator

Broadband Circulator is a three port device. The frequency range of wideband circulator is 56MHz to 18GHz, and the bandwidth is up
to 12GHz. As an important microwave passive component, broadband circulator is used more widely and deeply.



BASIC SPECIFICATIONS：

Impedance
50 Ω
Operating temperature

-30~+70 ℃/-40~+85 ℃
Storage temperature
-50~+90 ℃

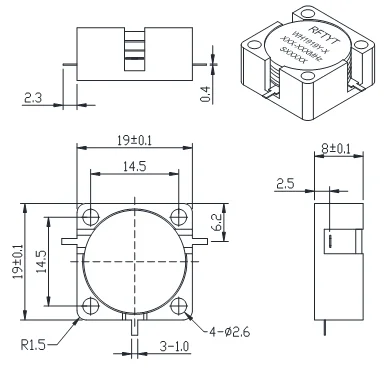

Size(mm)
19.0*19.0*8.0


SPECIFICATIONS：
Model No.
(X=1: →Clockwise)
(X=2: ←Anticlockwise)
Freq. Range
MHz
IL.
dB (max)
Isolation
dB (min)
VSWR
(max)
POWER
W
WH1919Y-X/850-855MHz
850-855
0.30
23.0
1.20
500
WH1919Y-X/925-960MHz
925-960
0.35
23.0
1.20
500
WH1919Y-X/5000-1200MHz
5000-1200
0.50
18.0
1.3
500
WH1919Y-X/1030-1090MHz
1030-1090
0.35
20.0
1.20
500
WH1919Y-X/1070-1210MHz
1070-1210
0.50
18.0
1.30
500
WH1919Y-X/1500-1300MHz
1500-1300
0.50
18.0
1.30
500
WH1919Y-X/1200-1400MHz
1200-1400
0.50
19.0
1.25
500
WH1919Y-X/1250-1450MHz
1250-1450
0.40
20.0
1.25
500
WH1919Y-X/1325-1375MHz
1325-1375
0.30
23.0
1.20
500
WH1919Y-X/1450-1550MHz
1450-1550
0.30
23.0
1.20
500
WH1919Y-X/1500-1700MHz
1500-1700
0.40
20.0
1.25
500
WH1919Y-X/1550-1650MHz
1550-1650
0.30
23.0
1.20
500
WH1919Y-X/1626-1660MHz
1626-1660
0.30
23.0
1.20
500
WH1919Y-X/1700-1900MHz
1700-1900
0.40
20.0
1.25
500
WH1919Y-X/1700-2000MHz
1700-2000
0.40
19.0
1.25
500
WH1919Y-X/1710-1785MHz
1710-1785
0.30
23.0
1.20
500
WH1919Y-X/1710-2170MHz
1710-2170
0.50
18.0
1.30
500
WH1919Y-X/1800-2400MHz
1800-2400
0.60
18.0
1.30
500
WH1919Y-X/1805-1880MHz
1805-1880
0.30
23.0
1.20
500
WH1919Y-X/1805-2110MHz
1805-2110
0.40
20.0
1.25
500
WH1919Y-X/1920-1990MHz
1920-1990
0.30
23.0
1.20
500
WH1919Y-X/2000-2200MHz
2000-2200
0.40
20.0
1.20
500
WH1919Y-X/2000-2400MHz
2000-2400
0.50
18.0
1.3
500
WH1919Y-X/2500-2700MHz
2500-2700
0.50
18.0
1.35
500
WH1919Y-X/2110-2170MHz
2110-2170
0.30
23.0
1.20
500
WH1919Y-X/2135-2365MHz
2135-2365
0.40
20.0
1.25
500
WH1919Y-X/2200-2300MHz
2200-2300
0.30
23.0
1.20
500
WH1919Y-X/2200-2500MHz
2200-2500
0.40
20.0
1.25
500
WH1919Y-X/2300-2400MHz
2300-2400
0.30
23.0
1.20
500
WH1919Y-X/2300-2700MHz
2300-2700
0.40
20.0
1.20
500
WH1919Y-X/2500-2700MHz
2500-2700
0.40
20.0
1.20
500
WH1919Y-X/2600-2690MHz
2600-2690
0.30
23.0
1.20
500
WH1919Y-X/2700-2900MHz
2700-2900
0.30
20.0
1.20
500
WH1919Y-X/2700-3500MHz
2700-3500
0.40
20.0
1.25
500
WH1919Y-X/2700-3500MHz
2700-3500
0.50
18.0
1.30
500
WH1919Y-X/2900-3300MHz
2900-3300
0.40
20.0
1.20
500
WH1919Y-X/2900-3500MHz
2900-3500
0.50
18.0
1.30
500
WH1919Y-X/3500-3500MHz
3500-3500
0.40
20.0
1.25
500
WH1919Y-X/3150-3250MHz
3150-3250
0.30
23.0
1.20
500
WH1919Y-X/3300-3600MHz
3300-3600
0.30
20.0
1.20
500
WH1919Y-X/3300-3800MHz
3300-3800
0.40
20.0
1.25
500
WH1919Y-X/3400-3900MHz
3400-3900
0.40
20.0
1.25
500
WH1919Y-X/3550-3700MHz
3550-3700
0.30
23.0
1.20
500
WH1919Y-X/3600-3800MHz
3600-3800
0.30
23.0
1.20
500
WH1919Y-X/3800-4000MHz
3800-4000
0.30
23.0
1.20
500


INSTRUCTIONS：

1, The circulator connector can be selected SMA, N, male and female head can be used with the user;
2, The circulator only provides through power, indicating that the transmission to the antenna and the antenna to The receiving
are through power;
3, Only some common frequencies in the table, can be produced according to the user's requirements;
4, If you do not find what you are looking for, please contact us!


Product Application


APPLICATION
Our products are widely used in radar, instrument, navigation, microwave multi-channel communication, space technology, mobile communication, image transmission and 5G application systems and microwave integrated circuits.


Company Profile




RFTYT designs and manufactures high quality Wireless and Microwave Telecommunications products. The company was founded in 2006 and now is based in Mianyang, Sichuan Province where is also the hometown of lovely pandas.

RFTYT is a Professional Customized RF Components Manufacturer with long history of producing RF Isolators, RF Circulators, RF Resistors, RF Attenuation Chips, Coaxial Load (Dummy Load), Coaxial Attenuator, RF Filter, RF Diplexer, RF Combiner, RF Coupler,Power Divider, Bridge, RF Amplifier, Coaxial Cable and other microwave communication products.

RFTYT strives to support the best solution with highest performance products at the best price as possible. Come to share your requirements AND we will support you with effective solutions.

Our mission: Ready For Tackle Your Troubles at all time.

For more information,please refer to the company website: https://www.rf-tyt.com/

LEARN MORE



Our Advantages


OUR TEAM

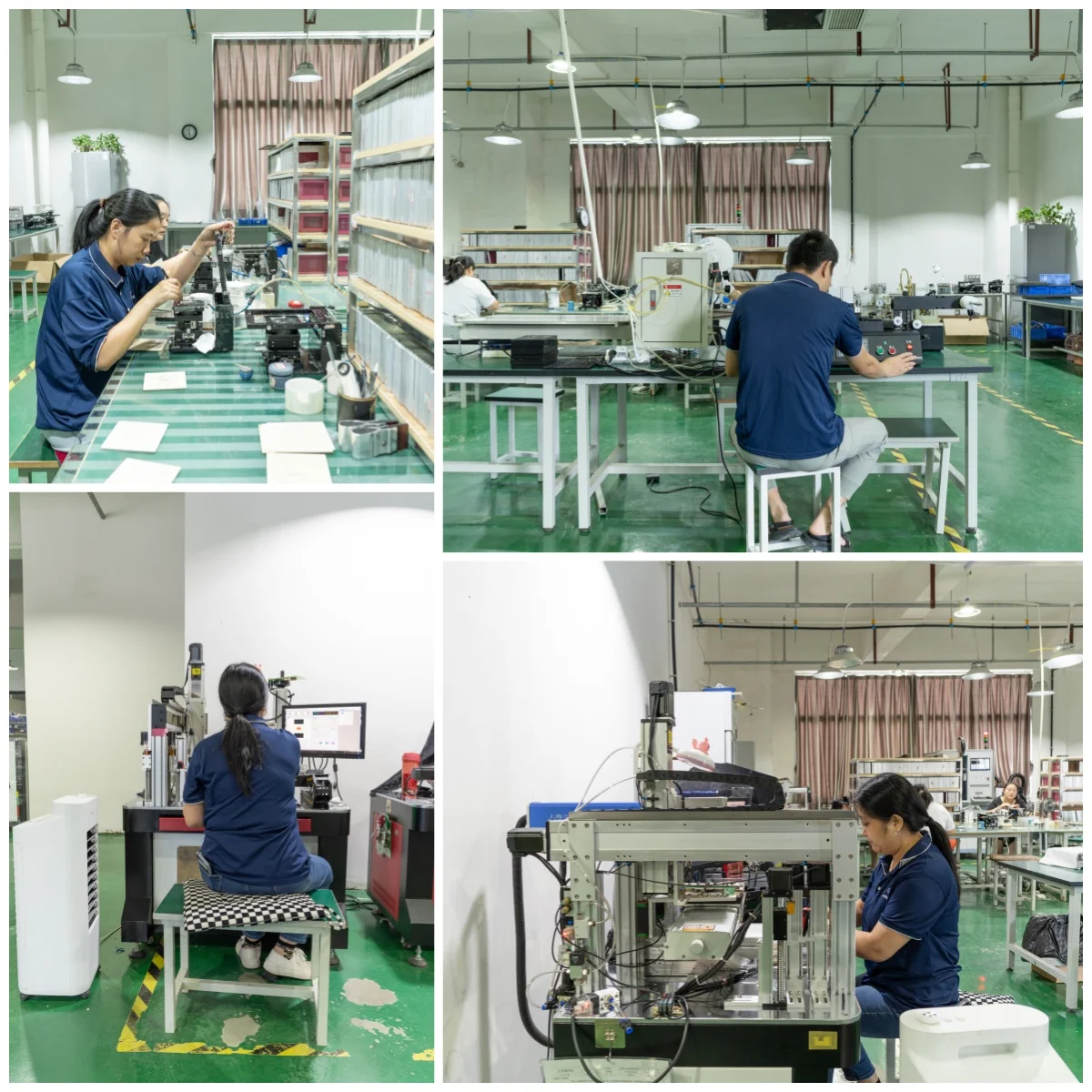

WORKSHOP DISPLAY

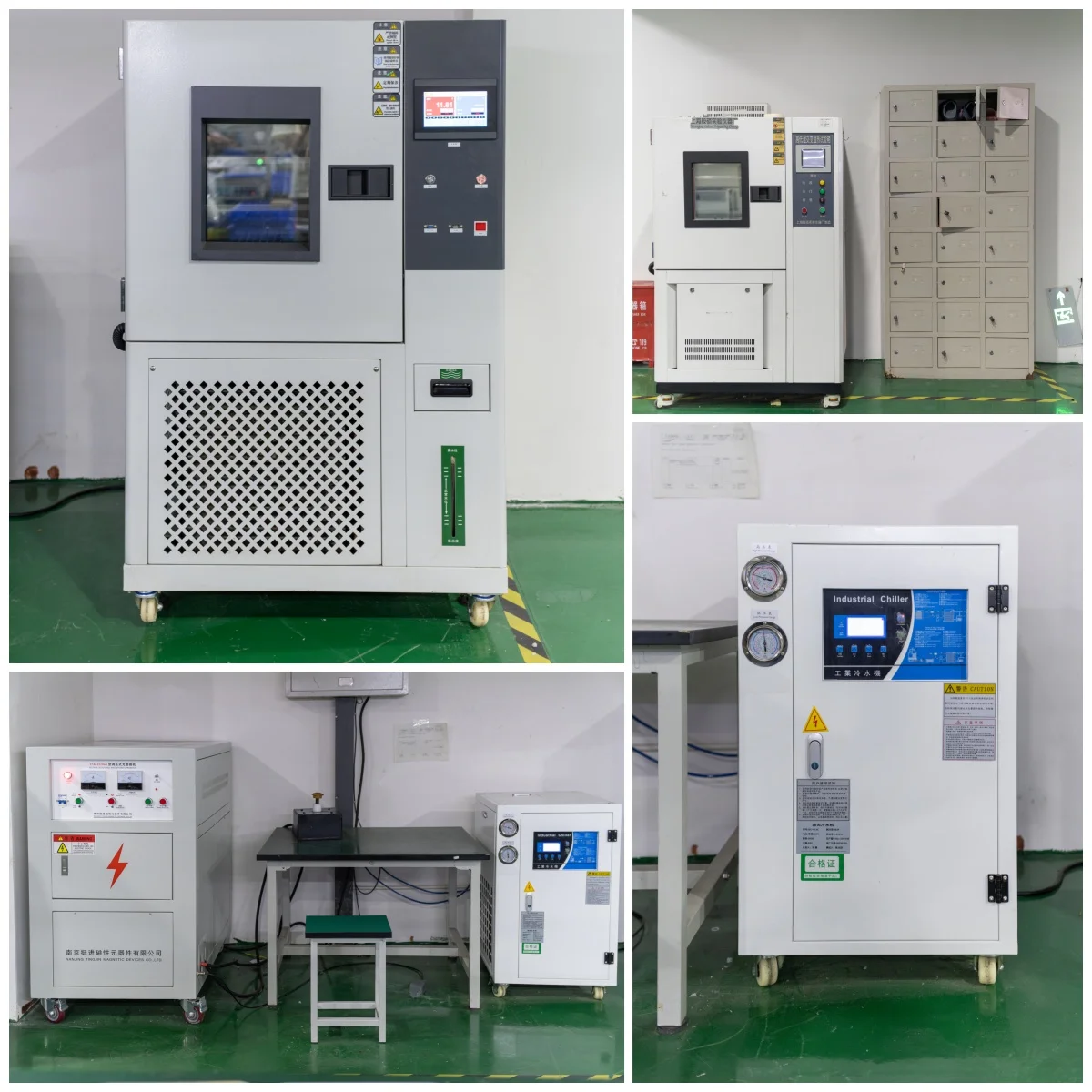

OUR EQUIPMENTS




1. With wealthy e-commerce experience and manufacturing experience.
2.Many well-known enterprises at home and abroad have reached strategic cooperative relations.
3.Have a professional technical team and advanced intelligent manufacturing equipment.
4.A number of patented technology, a variety of certificates of qualification.

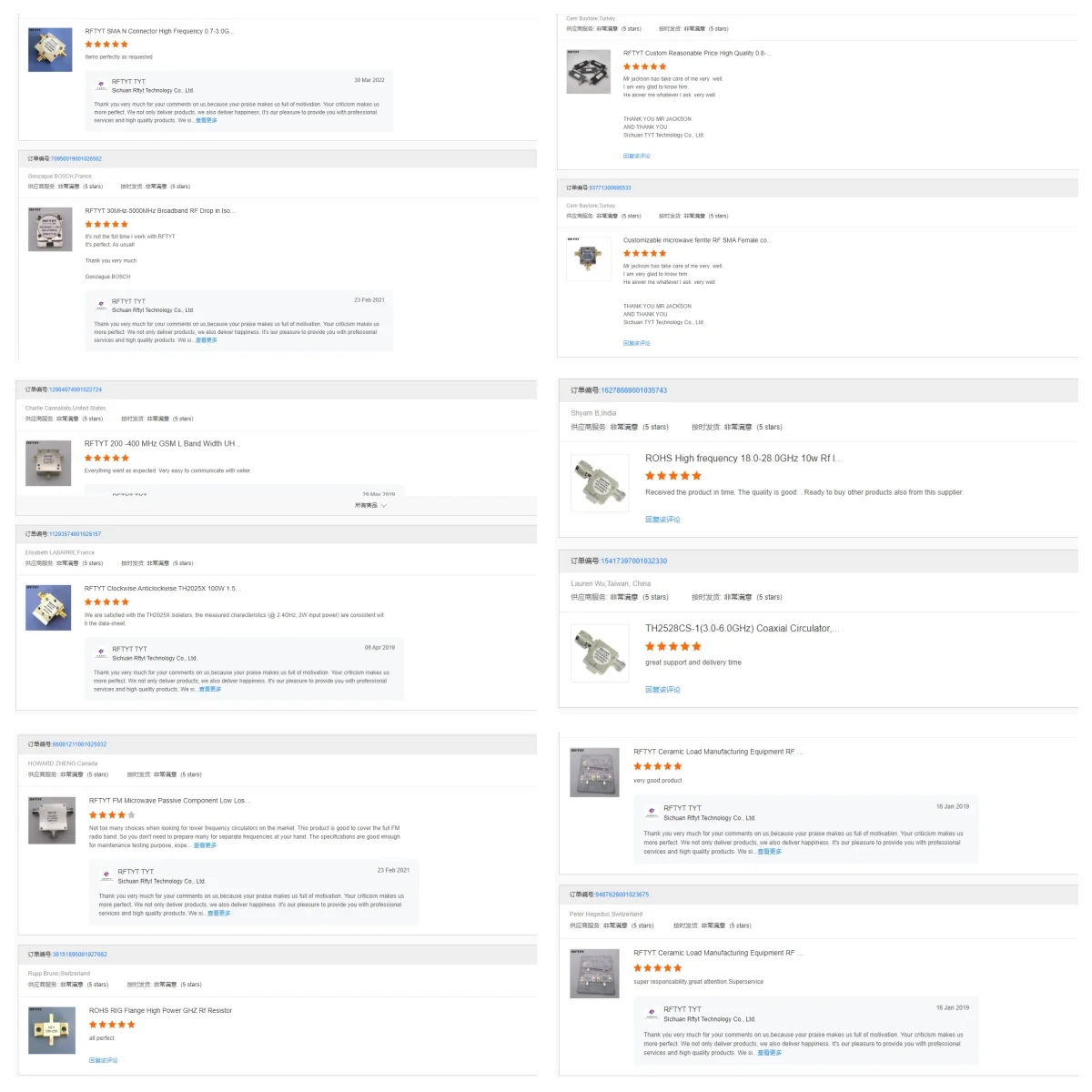

CUSTOMERS' FEEDBACK




MARKETS AROUND THE WORLD




FAQ


Q:How and how long can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality. Then after you send us confirmed
files, the samples will be ready for delivery in 7 days. The samples will be sent to you via express and arrive
in 5-7 workdays.

Q:How to order our product ?
A: 1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.

Q: Can I have a visit to your factory before the order?
A: Welcome! Our factory address: 677# Tangfang Road, Jingkai District, Mianyang, Sichuan, China

Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the
most proper shipment method.

Q: What's about MOQ?
A: First order MOQ=1pcs

Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C,etc.

Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.

Q: What basic information we needed when ordering?
A: Generally the center frequency,holder or package type, resistance(ESR), frequency tolerance, frequency stability, load
capacitance, operating temperature, drive power, aging, etc,or your OEM requesting.
