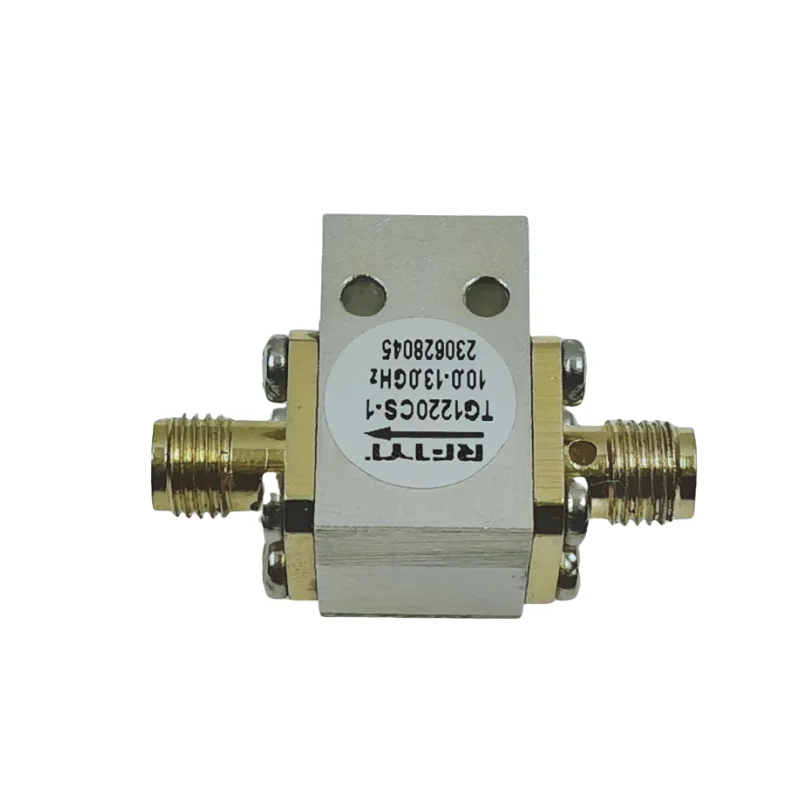

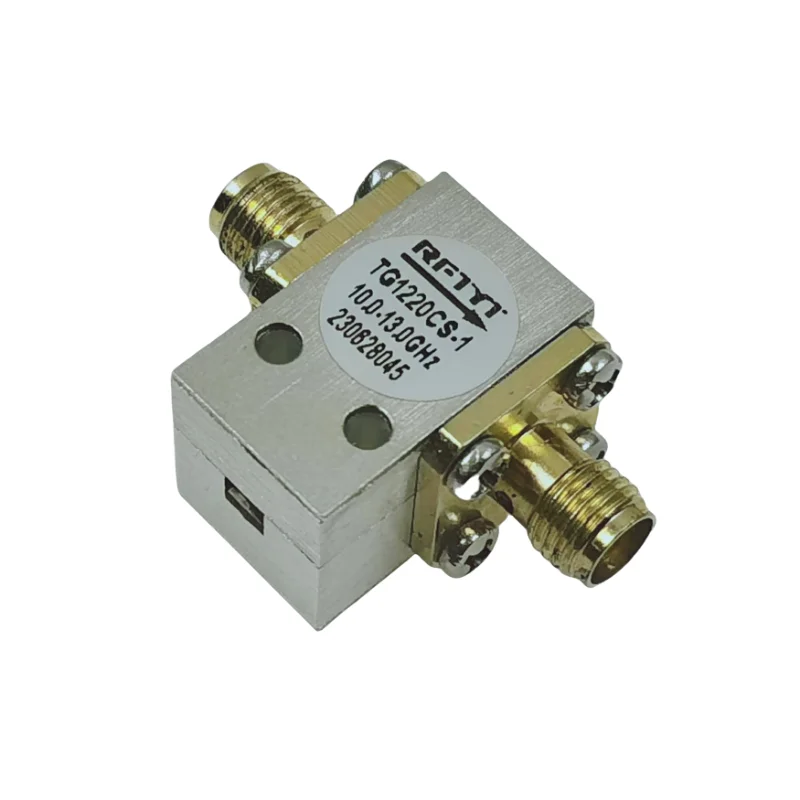

Customizable Tg6466Es(100 200Mhz) Passive Device High Isolation Directional Coaxial Rf Isolator For Amplifiers In Aerospace
- Category: >>>
- Supplier: Sichuan Rftyt Technology Co. Ltd.
Share on (1601276992288):
Product Overview
Description
TYT Technology Co., Ltd
Professional technical team
The company has a strong supply chain and operation team,and it has wealthy e-commerce experience.
The company has a strong supply chain and operation team,and it has wealthy e-commerce experience.
Experienced company
The company has many years engaged in the engineering and technical personnel of the development and design of microwave ferrite devices and passive components.
Various products
The company mainly sales microwave passive devices (radio frequency isolator, circulator, RF resistor, attenuator, coaxial load and attenuator) and microwave passive components.
The company mainly sales microwave passive devices (radio frequency isolator, circulator, RF resistor, attenuator, coaxial load and attenuator) and microwave passive components.
The product has been developed and can be shipped in bulk.
Due to the inconsistent weight of goods and regional charges,
the express charges in some regions in our store are set too high.
Please contact customer service for accurate charges before purchasing.
MORE+
Specification
Item | Value |
Product name | RF Coaxial Isolators |
Model Number | TG6466ES |
Place of Origin | Sichuan,China |
Brand Name | RFTYT |
Style | High-tech products |
Filter technology | Passive technology |
Feature | Good temperature stability |
Frequency Range | 6.0- 12.0GHz |
Power (max) | 20W |
Reverse Power | 5W |
RoHS compliant | Yes |
Inner conductor | Brass |
Shell | Steel |
Product Description

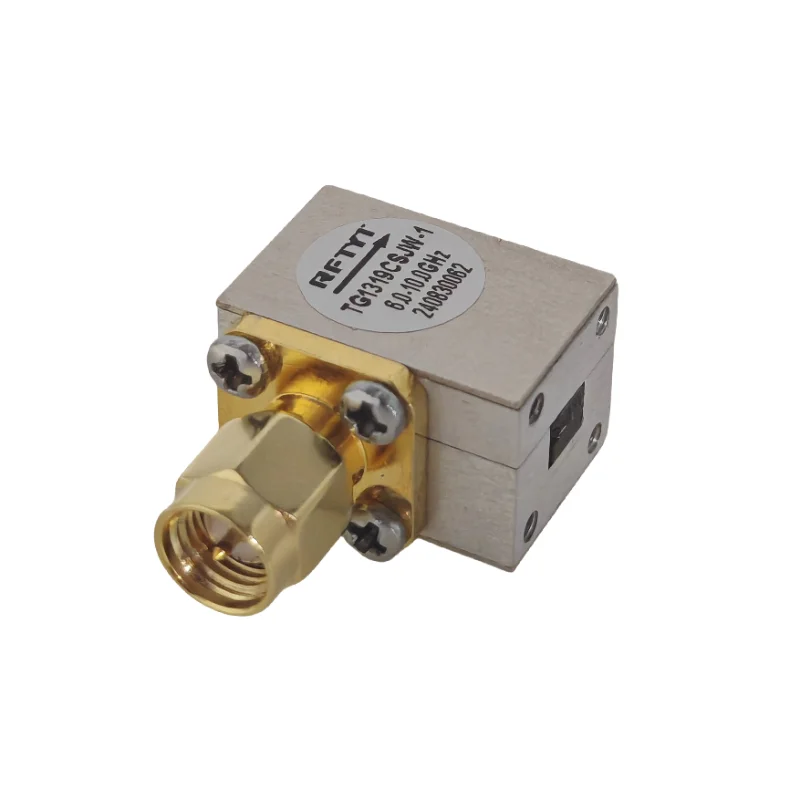

Coaxial Isolators
Coaxial isolator is connected with instruments and equipment by coaxial connector such as SMA or N or L29. It has the
characteristics of convenient connection. The third end of the coaxial isolators will have attenuation chip or RF resistor.
characteristics of convenient connection. The third end of the coaxial isolators will have attenuation chip or RF resistor.
2.Low Insertion Loss, High power handling.
3.High quality, Low price, Fast delivery.
3.High quality, Low price, Fast delivery.
Dual / Multi Junction Isolators
Dual junction isolator can also be called multi Junction isolator, that is, it is composed of two or more single junction isolators. According to different connection forms, it can also be divided into dual junction / multi junction coaxial isolator or
dual junction / multi...
Broadband Isolator
Broadband isolator has the advantages of wide frequency band, good isolation performance, good port standing wave, simple
structure and easy processing.
structure and easy processing.
Drop in Isolator
Drop in isolator is connected with instruments and equipment by strip line. It can be dual junction even three for higher
isolation. The third end of the drop in isolator will have attenuation chip or RF resistor.
isolation. The third end of the drop in isolator will have attenuation chip or RF resistor.
2.Meet ROHS standard, Military Standard System Certification, ISO9001.
3.The frequency can be produced according to the needs of users.
Product Paramenters
Connector Type：
SMA Type Connector Options | N Type Connector Options | ||||||||
Port 1 | Port 2 | Abbreviation | Port 1 | Port 2 | Abbreviation | ||||
SMA-F | SMA-F | S | N-F | N-F | N | ||||
SMA-F | SMA-M | SKJ | N-F | N-M | NKJ | ||||
SMA-M | SMA-F | SJK | N-M | N-F | NJK | ||||
SMA-M | SMA-M | SJ | N-M | N-M | NJ | ||||
Basic Specifications： | ||
Impedance | 50 Ω | |
Connector Type | SMA-F | |

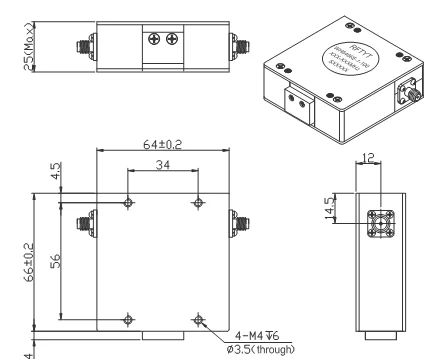

Size(mm) | 64.0*66.0*25.0 | |
Operating Temp | -30~+75℃ / -45~+85℃ | |
Storage temperature | -50~+90 ℃ | |
SPECIFICATIONS： | ||||||||||
Model No. (X=1: →Clockwise) (X=2: ←Anticlockwise) | Freq. Range MHz | IL. dB (max) | Isolation dB (min) | VSWR (max) | POWER W | Reverse Power W | ||||
TG6466ES-X/100-105MHz | 100-105 | 0.80 | 18.0 | 1.30 | 100 | 20/100 | ||||
TG6466ES-X/105-115MHz | 105-115 | 0.80 | 18.0 | 1.30 | 100 | 20/100 | ||||
TG6466ES-X/130-150MHz | 130-150 | 0.60 | 20.0 | 1.25 | 100 | 20/100 | ||||
TG6466ES-X/140-160MHz | 140-160 | 0.60 | 20.0 | 1.25 | 100 | 20/100 | ||||
TG6466ES-X/140-148MHz | 140-148 | 0.50 | 23.0 | 1.20 | 100 | 20/100 | ||||
TG6466ES-X/145-155MHz | 145-155 | 0.50 | 20.0 | 1.25 | 100 | 20/100 | ||||
TG6466ES-X/148-174MHz | 148-174 | 0.50 | 20.0 | 1.25 | 100 | 20/100 | ||||
TG6466ES-X/150-170MHz | 150-170 | 0.50 | 20.0 | 1.25 | 100 | 20/100 | ||||
TG6466ES-X/160-190MHz | 160-190 | 0.70 | 18.0 | 1.30 | 100 | 20/100 | ||||
TG6466ES-X/170-174MHz | 170-174 | 0.45 | 23 | 1.20 | 100 | 20/100 | ||||
TG6466ES-X/170-200MHz | 170-200 | 0.70 | 18.0 | 1.30 | 100 | 20/100 | ||||
TG6466ES-X/180-220MHz | 180-220 | 0.65 | 18.0 | 1.30 | 100 | 20/100 | ||||
INSTRUCTIONS：
1, The circulator connector can be selected SMA, N, male and female head can be used with the user;
2, The circulator only provides through power, indicating that the transmission to the antenna and the antenna to The receiving
are through power;
3, Only some common frequencies in the table, can be produced according to the user's requirements;
4, If you do not find what you are looking for, please contact us!
1, The circulator connector can be selected SMA, N, male and female head can be used with the user;
2, The circulator only provides through power, indicating that the transmission to the antenna and the antenna to The receiving
are through power;
3, Only some common frequencies in the table, can be produced according to the user's requirements;
4, If you do not find what you are looking for, please contact us!
