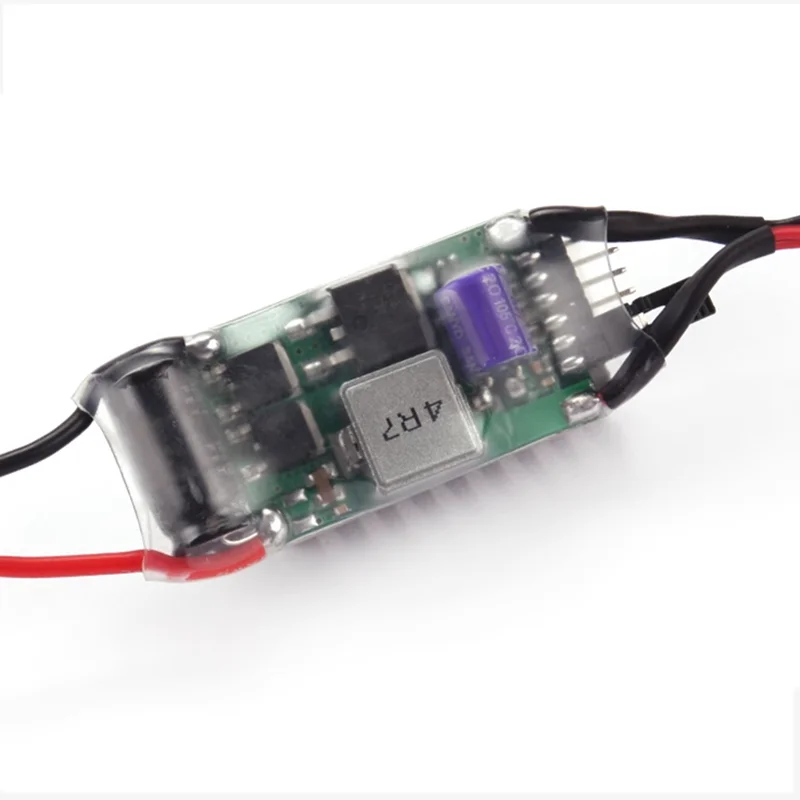

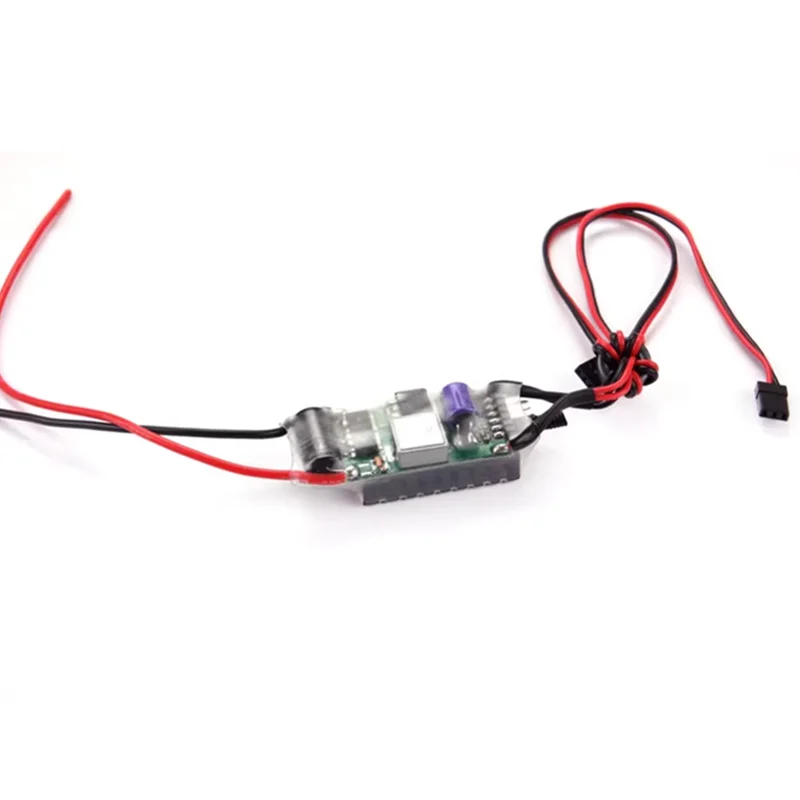

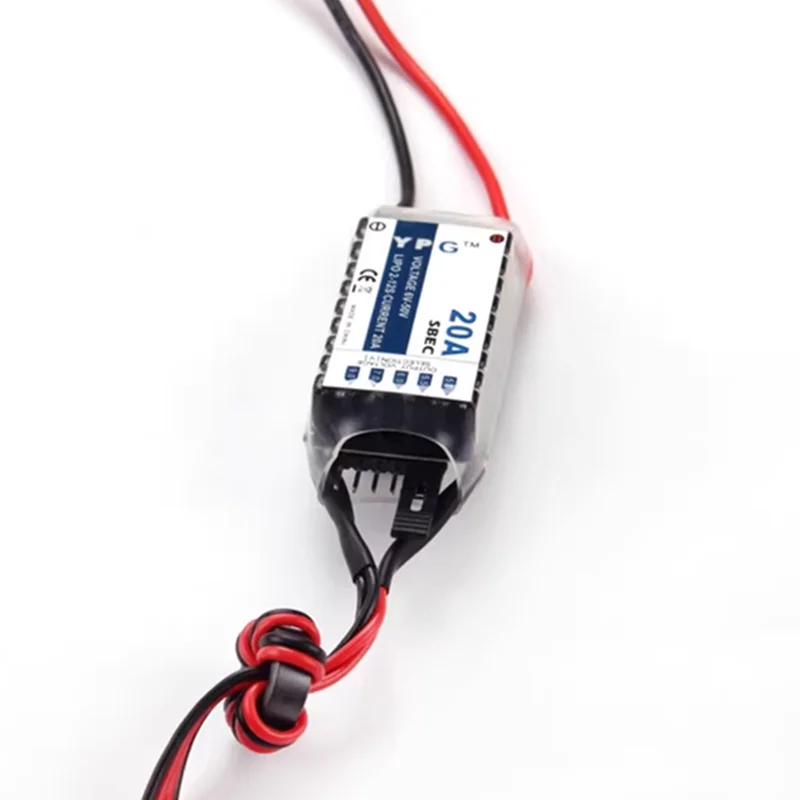

YPG 20A HV (2~12S) SBEC w/Selectable Voltage Output 5V 9V
- Category: >>>
- Supplier: Shenzhen Feite Model Co. Ltd.
Share on (1601270780802):
Product Overview
Description
Product Description
The YEP 20A HV SBEC is a must have for any model where clean, reliable power for your electronics is required. Offering a wide
input voltage range of 6~50V, the YEP 20A SBEC can be used with just about any application from small models all the way up to 800
size helis or large gas airplanes.
The voltage output is selectable by jumper for 5V, 5.5V, 6V, 7V or 9V operation. Additionally, this unit features dual output
leads which not only provides power redundancy, it also spreads the current load over two sets of leads to ensure you are not
putting too many Amps through one lead.
Features:
Switching BEC
High voltage input (2~12S lipoly)
Convenient jumper selectable voltage output of 5V/5.5V/6V/7V/9V (no programming required)
High current handling of up to 20A
Dual output leads offering power redundancy
Integrated heatsink
input voltage range of 6~50V, the YEP 20A SBEC can be used with just about any application from small models all the way up to 800
size helis or large gas airplanes.
The voltage output is selectable by jumper for 5V, 5.5V, 6V, 7V or 9V operation. Additionally, this unit features dual output
leads which not only provides power redundancy, it also spreads the current load over two sets of leads to ensure you are not
putting too many Amps through one lead.
Features:
Switching BEC
High voltage input (2~12S lipoly)
Convenient jumper selectable voltage output of 5V/5.5V/6V/7V/9V (no programming required)
High current handling of up to 20A
Dual output leads offering power redundancy
Integrated heatsink
Specification
Model: | ICE-20A-SB |
BEC: | yes, Switch BEC |
Output Voltage: | 5V , 5.5V , 6V , 7V , 9V ( jumper selection ) |
MAX Output Current : | 20 Amps |
Input: | 6V-50.4V ( 2-12 cells lithium battery pack ) |
Quiescent current : | 60uA-200uA |
Size : | 45mm x 26mm x 8mm |
Weight : | 30g |
Packing & Delivery
1x YPG 20A SBEC
