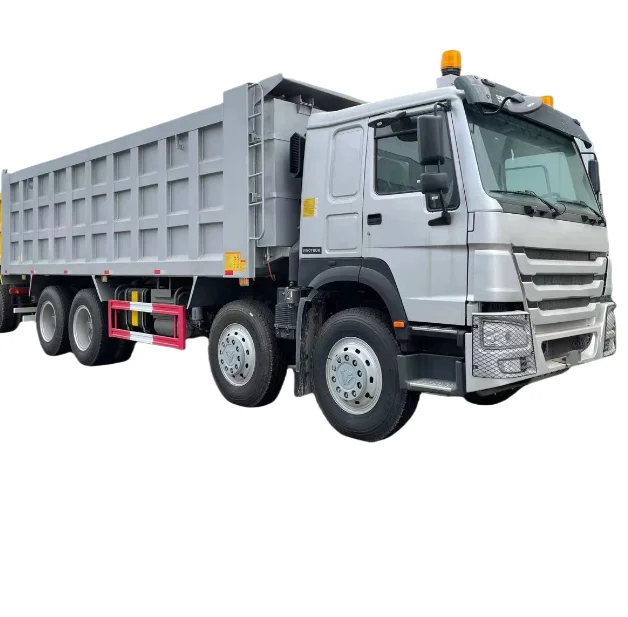

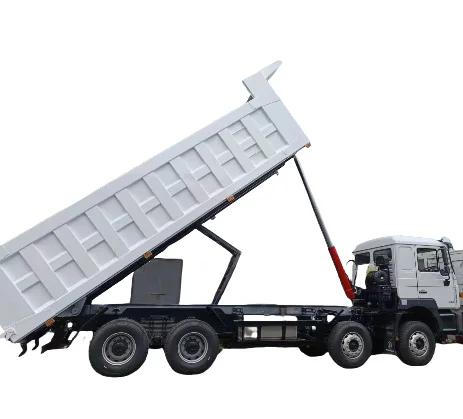

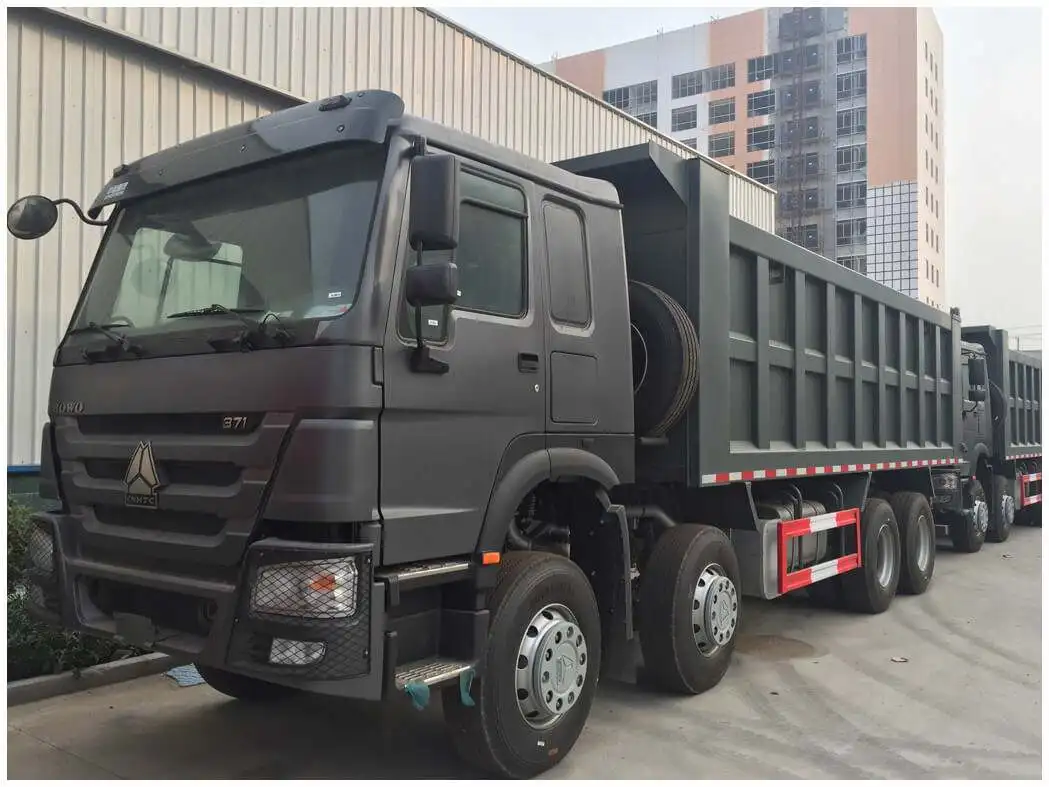

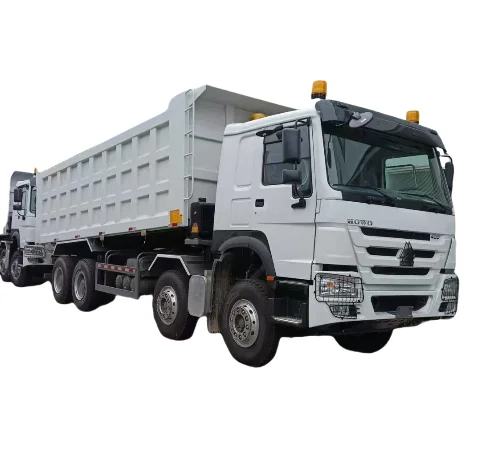

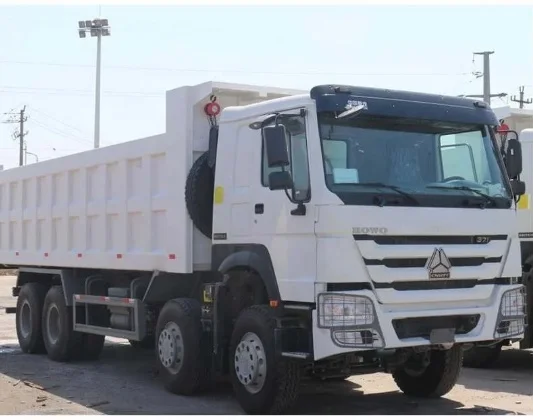

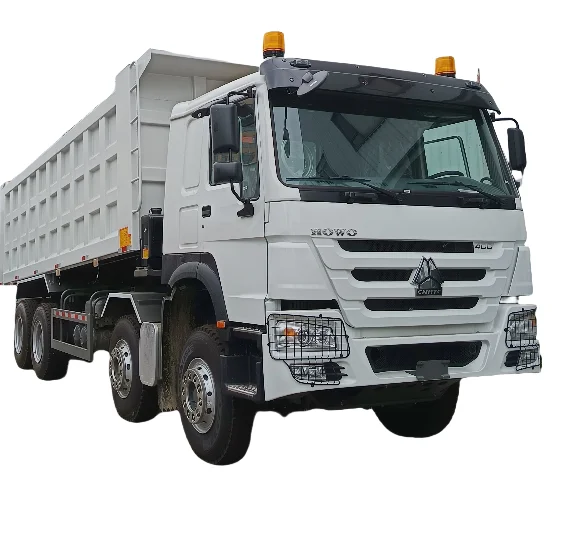

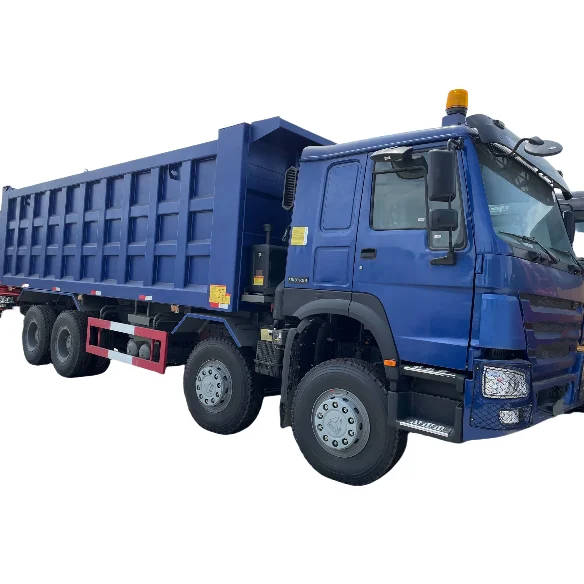

Good Quality Brand New 2024 Sinotruk Howo Truck Price Low Sitrak 8*4 Dump Truck 380hp 400hp 12 Wheels for Sale

Chassis Model

ZZ3257N3847N1

Driving Type

LHD (RHD is optional)

Cabin

A7-W, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with
heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with
transverse stabilizer, with four piont support floating suspension+shock absorber.

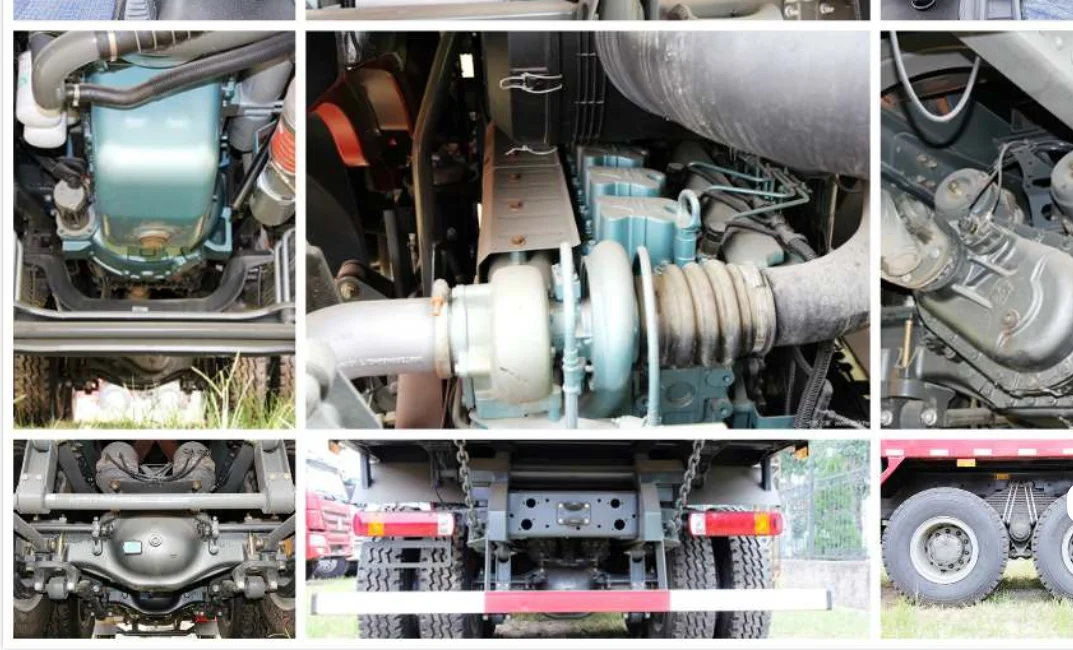

Engine

Make: SINOTRUK
Engine model: WD615.47, Euro 2, 371 HP

Transmission

HW19710, 10F & 2R, with PTO
Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Steering

ZF power steering, modol ZF8118, hydraulic steering with power assitance

Front Axle

HF9,1x9000 KGS
Steering with doubleT-cross section beam

Rear Axle

HC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
Ratio:5.73

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer

Brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Electrics

Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah

Tyres

12.00R20, radial tyres with one spare tyre

Fuel Tank

300L

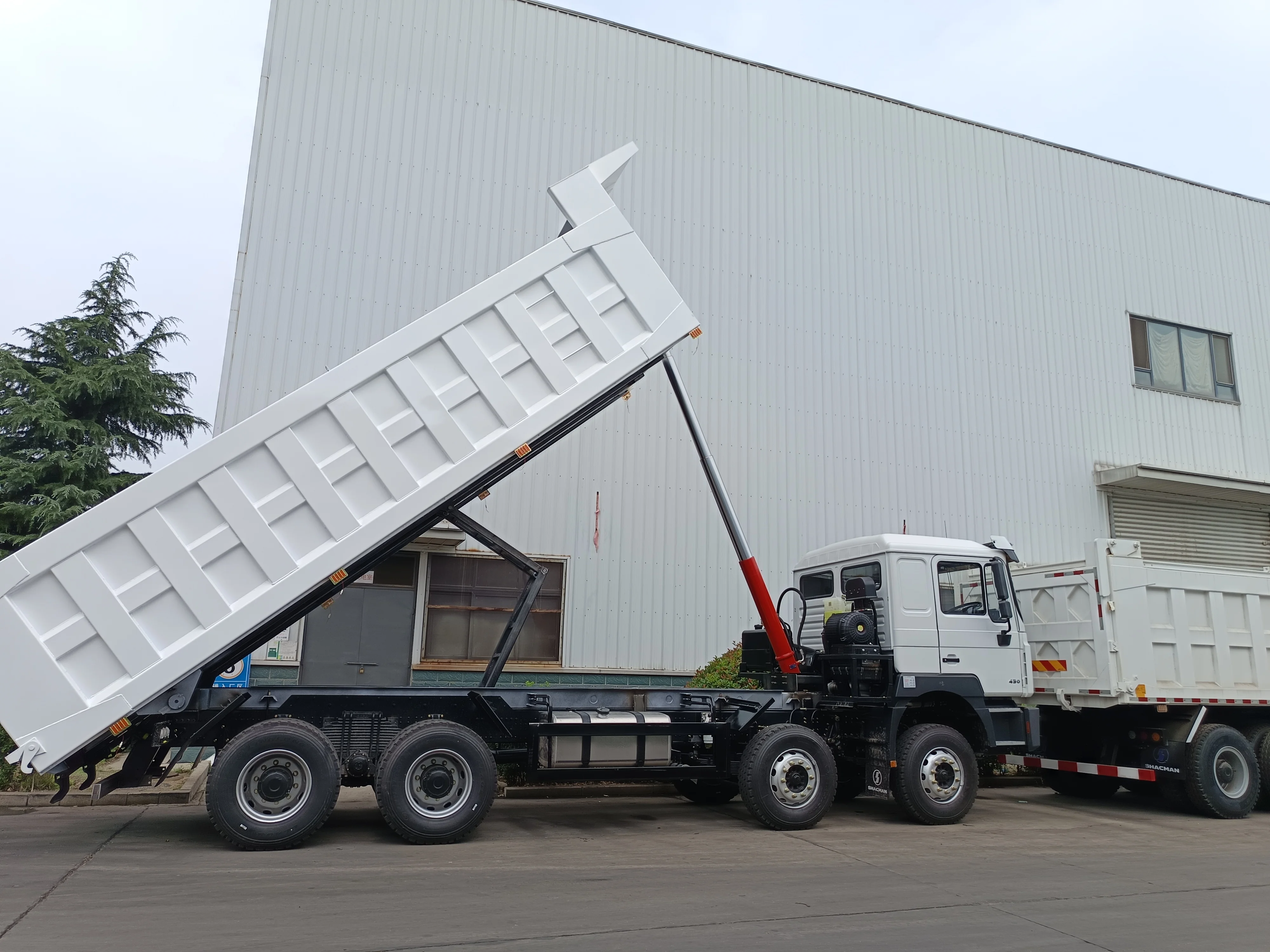

Cargo Body

7800*2300*1500 mm, 27 CBM, Floor 10mm Side 8mm

Overall Dimension

10800*2550*3250mm
