SKZ1050 C3H8 High Precision Anti interference Infrared Detection Principle Methane Detector C3H8 Gas Measurement

Share on (1601271034268):


Price:$1,020.00 - $1,175.00

Quantity:


Product Overview

Description





SKZ1050-C3H8 High Precision Anti-interference Infrared Detection Principle Methane Detector C3H8 Gas Measurement
Application
1.Furniture, flooring, wallpaper, paint, gardening, interior decoration and renovation, dyes, paper, pharmaceutical, medical,
food, corrosion
2.Disinfection, chemical fertilizers, resins, adhesives and pesticides, raw materials, samples, process and breeding plants,waste treatment plants, perm places
3.Biopharmaceutical production workshops, home environment, livestock breeding, greenhouse cultivation, storage and logistics,brewing fermentation, agricultural production
Function
1. Monitoring of the environment, or the concentration of HCLin a confined space and give an alarm
2. With self-check function, zero calibration function, so that gas monitoring more accurate and reliable
3. One key to restore the factory settings, can be removed from misuse problems
4. With temperature and pressure compensation, to achieve the perfect, different temperature and pressure environment, the gas concentration compensation
5. Two sound and light alarm, alarm point can be set their own
6. Large-capacity lithium polymer rechargeable battery
7. Pump suction sampling, adjustable suction pump
8. Shell with high-strength special engineering plastics, non-slip, waterproof, dustproof, explosion
9. Exquisite upscale aluminum suitcase
Feature
1.Using imported high-precision sensor
2. LCD dot matrix display technology, can display the type of gas, the gas unit, gas concentration values, measured maximum,local time, ambient temperature, etc.
3.Support Chinese and English operation interface, easy to switch
4.Gas concentration unit PPM, mg/m3 can quickly switch display
5.Built-in micro sampling pump, the pump suction size ten stalls adjustable
6.Explosion-proof certification, proof grade: Exia IICT4


Specification


Gas Detected
C3H8
Detection principle
Infrared principles
Measure Range
0-5000、10000ppm、5、50、100%Vol、100%LEL
Resolution
0.01%VOL;0.01%LEL
Sensor life
10 years
Sampling Method
Pump- suction, flow up 1L/min, pump suction size ten stalls
adjustable
Precision
2%FS
Data logger
100,000 sets of data can be stored, storage space available set,
minimum 5S, can be browse
Response Time
≤ 10S
Repeatability
≤ ± 1%
Zero shift
≤ ± 1% (F.S / Year)
Operating language
Support in English
Temperature
-20 ℃ ~ 50 ℃
Explosion-Proof
Exia Ⅱ CT4
Alarm mode
Sound, light, vibration
Dimensions
205*75*32mm
Recovery Time
≤ 10S
Linearity error
≤ ± 1%
Display
LCD dot matrix display technology
Gas unit
Support for multiple gas unit switch display
Humidity
0-95% RH
Degree of protection
IP66
Weight(net/gross)
330g
Standard
1 host computer,
1 charging plug,
1 aluminum alloy packing box,
1 manual,1 warranty card.
Optional
data download (EXCEL format) function, detachable needle,
hose, holster,
waterproof and dust-proof filter,
high temperature probe (up to 1100 degrees)


Product details




Customization service

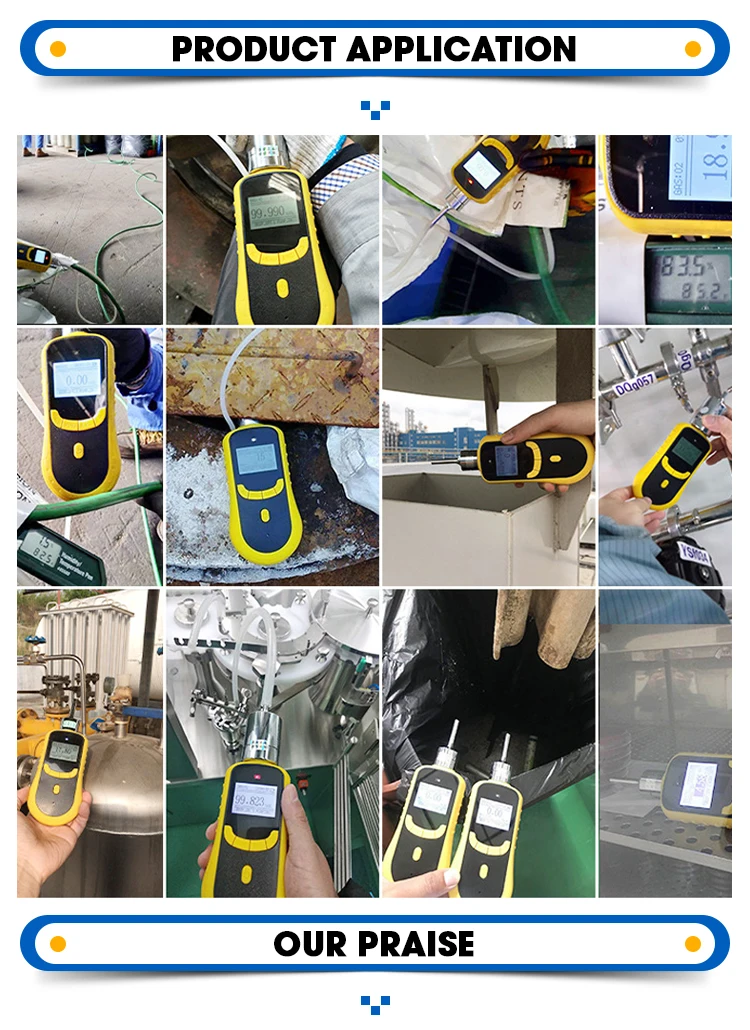

Application
