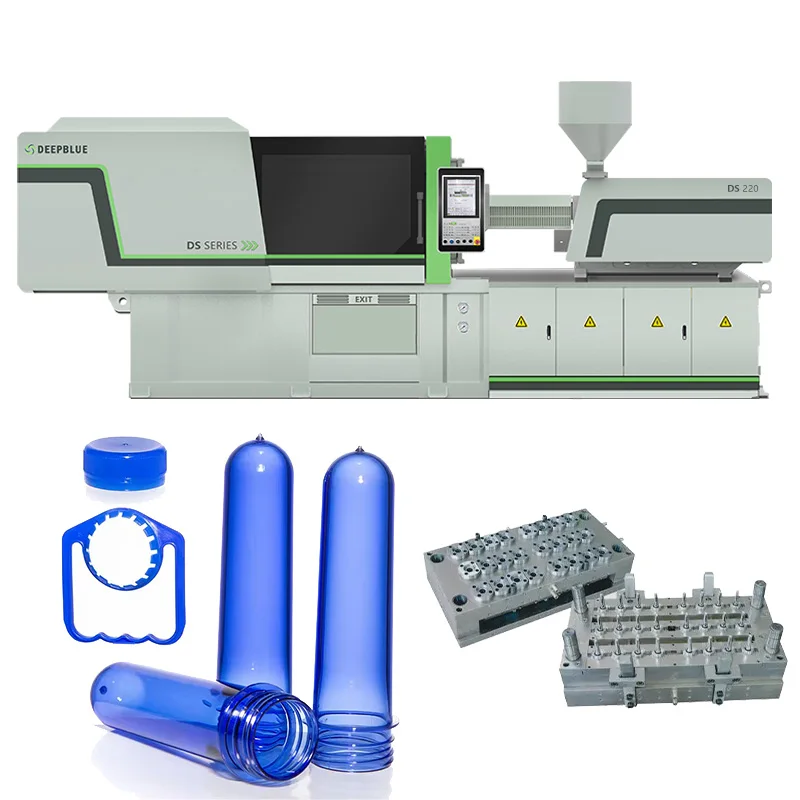

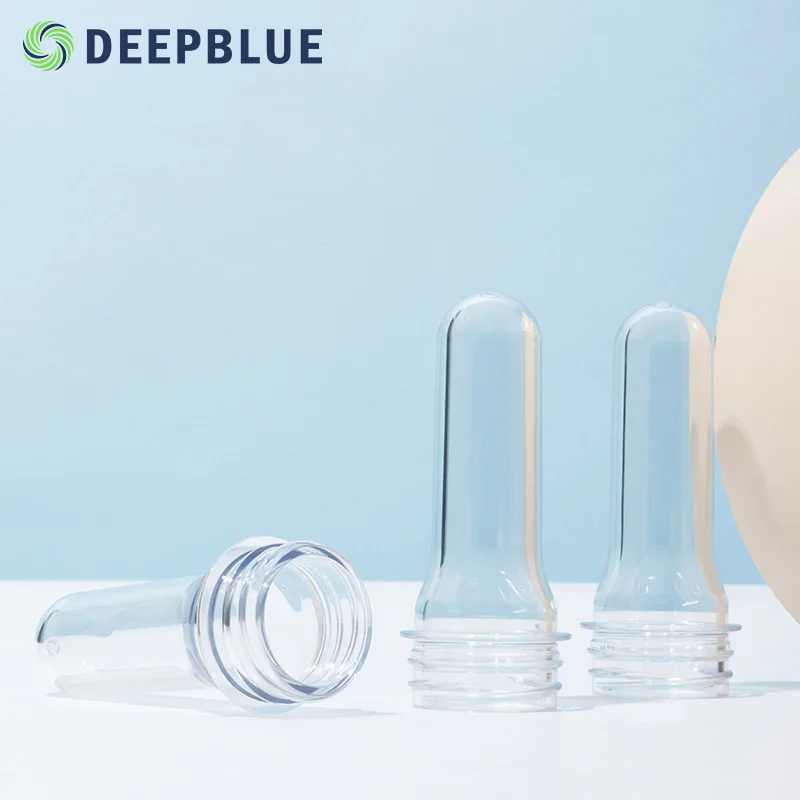

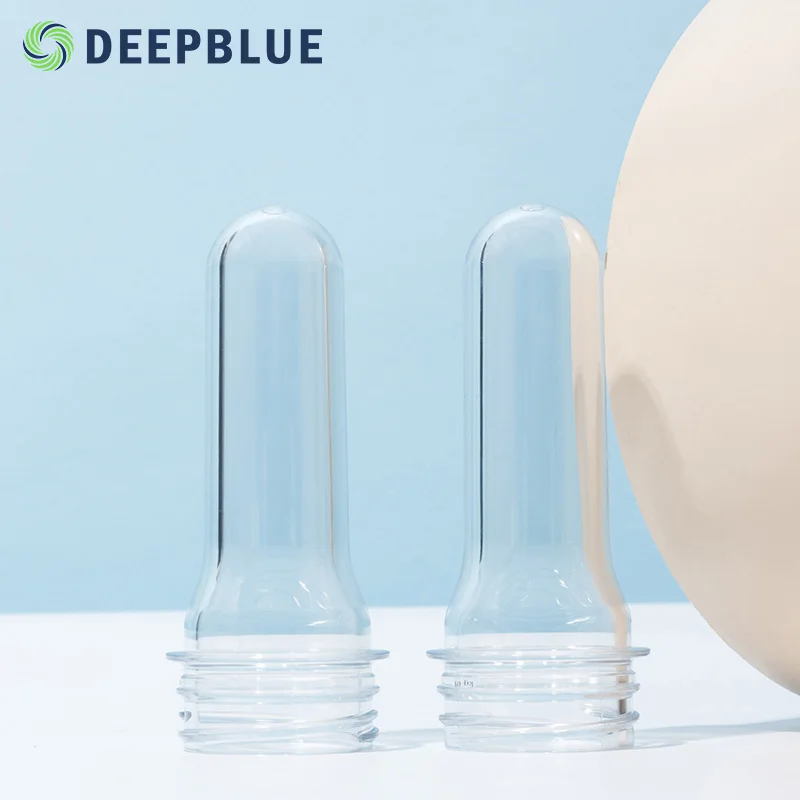

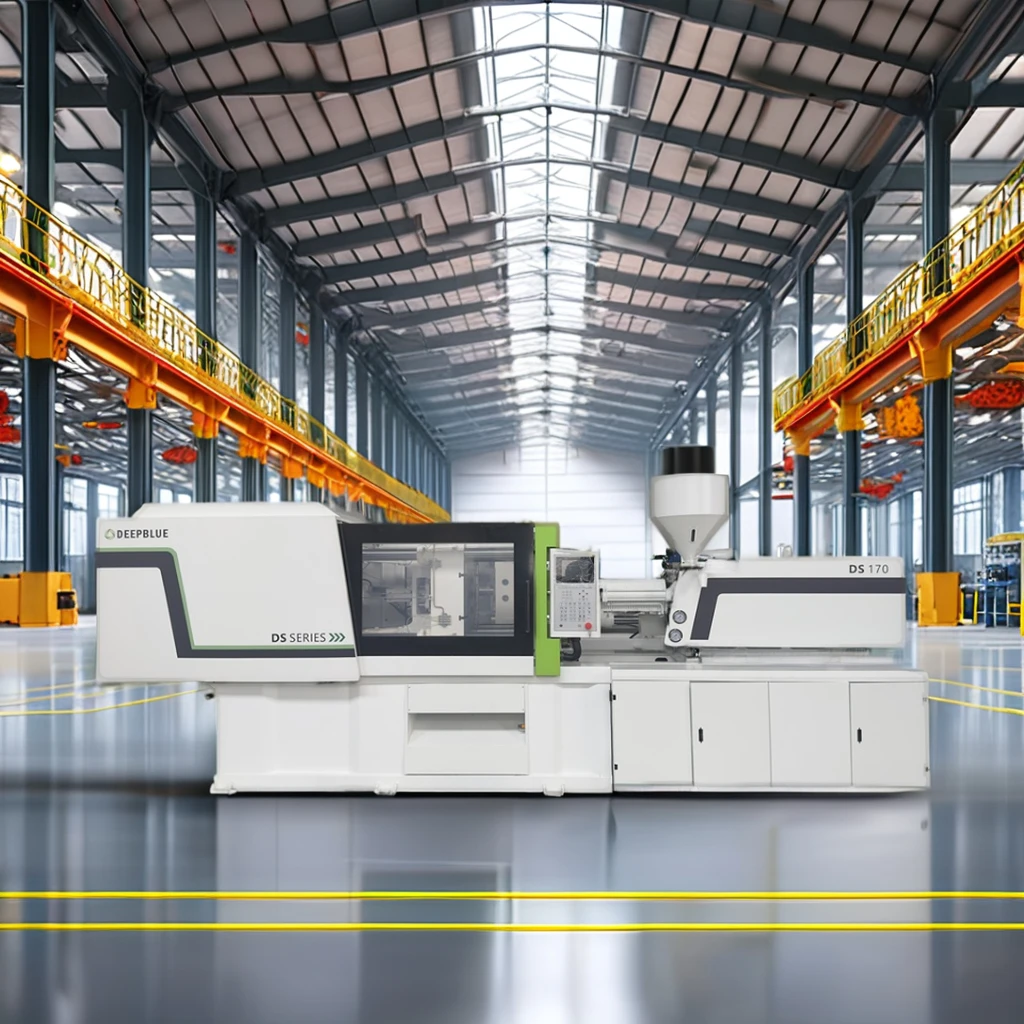

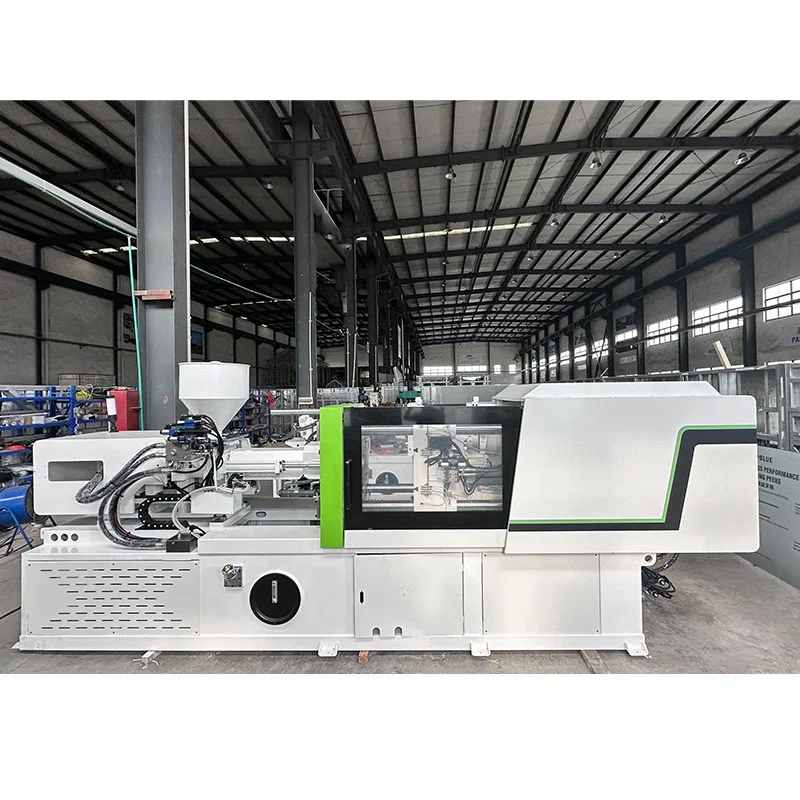

Pet preform Bottle sonly injection machine DS220 ton Energy saving injection molding machine with servo motor
- Category: >>>
- Supplier: DeepBlue Smart Equipment (Ningbo) Co. Ltd.
Share on (1601271293485):
Product Overview
Description
Products Description
DEEPBLUE Smart Equipments stands at the forefront of the injection molding industry, offering cutting-edge servo energy-saving plastic injection molding machines that are designed to exceed industry standards. Our 60-ton and 2600-ton machines are among our most distinguished products, crafted to fulfill the diverse needs of manufacturers worldwide. With a strong emphasis on energy efficiency, precision, and reliability, our machines integrate advanced servo technology to ensure reduced energy consumption and enhanced performance.
One-stop service
We offer a complete service package that includes not only advanced injection molding machines but also a broad range of auxiliary equipment and custom molds. Our machines are equipped to handle a variety of plastic particles such as PP, PE, ABS, PA, PET, TPR, EVA, PPS, PVC, PU, and NYLON, allowing them to be used across numerous industries from automotive to healthcare. Partnering with DEEPBLUE Smart Equipments ensures that you can achieve optimal production efficiency and product quality.
Product Paramenters
DS 220 | ||||||
Injection Unit | A | B | C | |||
Screw Diameter (mm) | 50 | 55 | 60 | |||
Screw L/D Ratio【L/D】 | 22 | 20 | 18.5 | |||
Theoretical Shot Vol Ume (cm*) | 510.3 | 617.4 | 734.7 | |||
Injection Weight (g) | 464.4 | 561.8 | 668.6 | |||
Injection Pressure (Mpa) | 158 | 132 | 113 | |||
Screw Speed(rpm) | 190 | |||||
CLAMPING UNIT | ||||||
Clamp Tonnage (KN) | 2000 | |||||
Toggle Stroke (mm) | 290 | |||||
Space Between Tie Bars (mm) | 530*5 30 | |||||
Max.mold Height (mm) | 550 | |||||
Min.mold Height (mm) | 200 | |||||
Ejector Stroke (mm) | 140 | |||||
Ejector Tonnage (KN) | 62 | |||||
Ejector Quantity (PC) | 5 | |||||
OTHERS | ||||||
MAX.PUMP PRESSURE (Mpa) | 17 | |||||
PUMP MOTOR POWER (KW) | 22 | |||||
EATER POWER (KW) | 14.9 | |||||
MACHINE WEIGHT (T) | 6.4 | |||||
Dimensions (mm) | 6300*1800*2200 | |||||
Manufacturing Technique

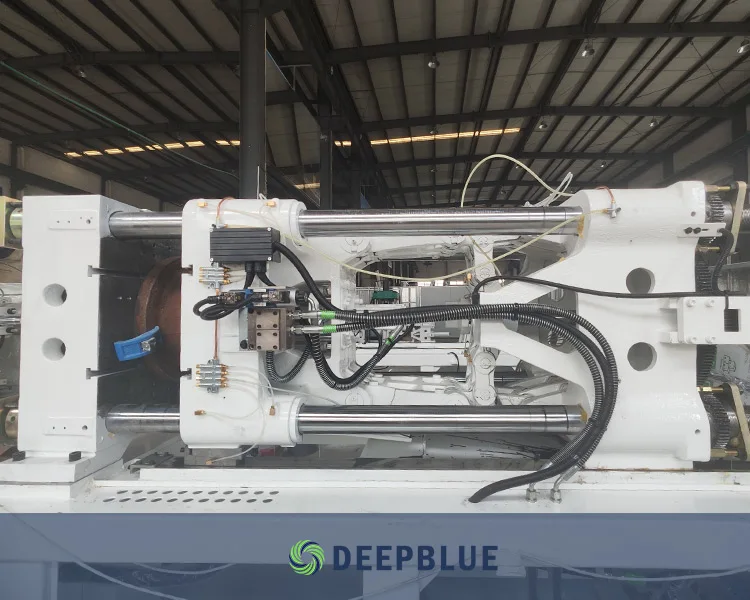

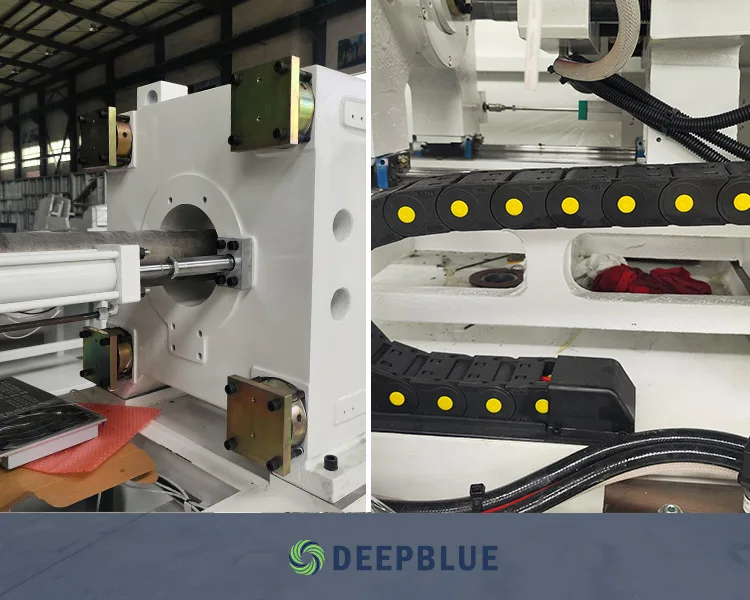

Clamping Unit
01.Optimized Platen Design with high rigidity and enlarged space between tie bars
02. Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds
03.New ejection system design with longer ejection stroke, bigger space and better rigidity
04.Hydraulic drivien gear-type mold height adjustion mechanism.
05. linkage structure for front connecting rod increases onnectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.
02. Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds
03.New ejection system design with longer ejection stroke, bigger space and better rigidity
04.Hydraulic drivien gear-type mold height adjustion mechanism.
05. linkage structure for front connecting rod increases onnectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.

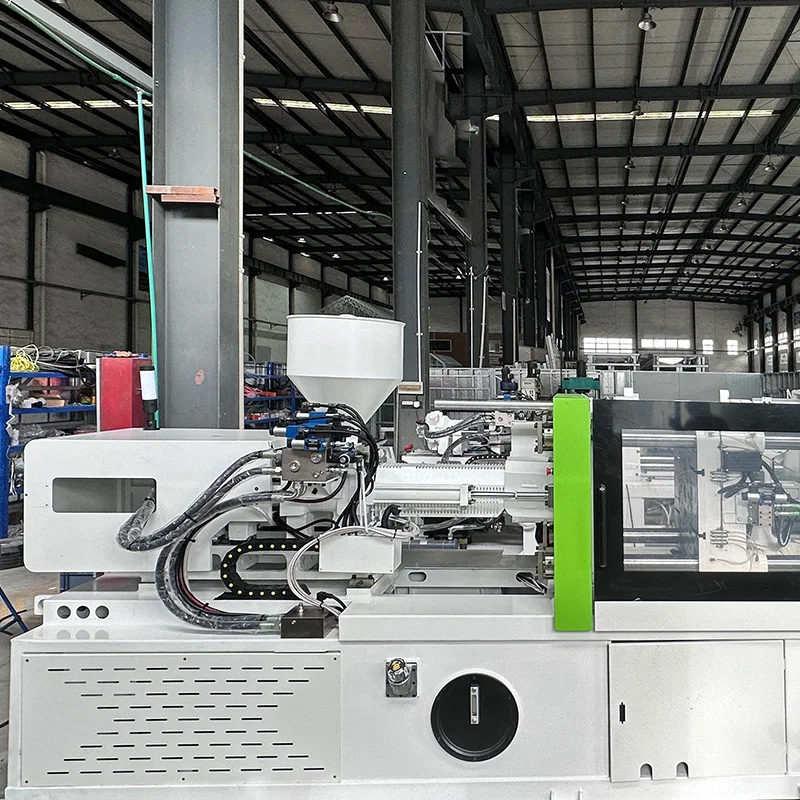

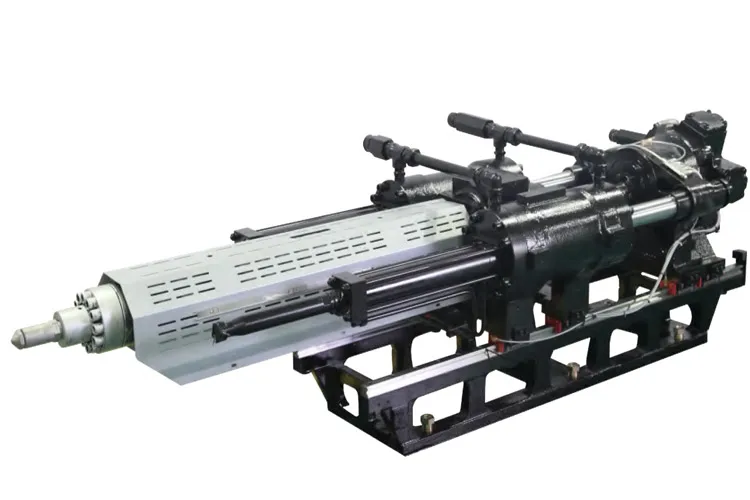

Injection Unit
A short powerful double cylinder injection system and high preecision linear guide rail, with low inertia and high response mechanism to ensure smooth injection, injection and template deformation, ptinmiza- tion design of screw assembly, achieve better plasticizing effect.
Hydraulic System
01. The double proportional compound valve control system pressure & flow, highly sensitive & stable

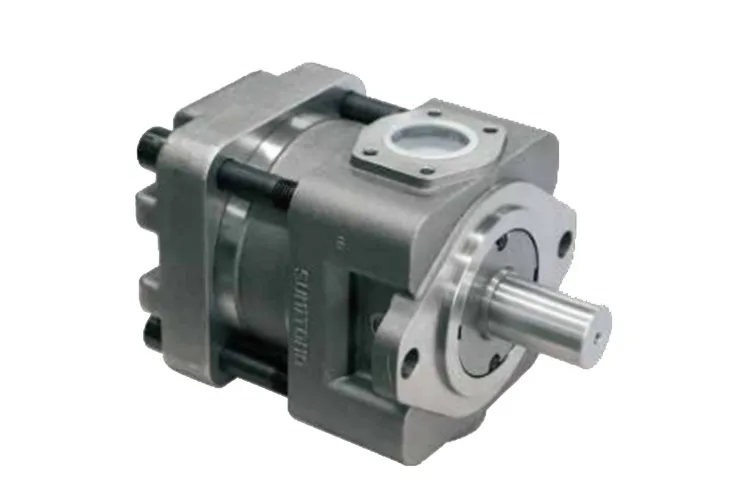

02.Imported high quality Pump, low in noise, long in lifespan & stable in performance

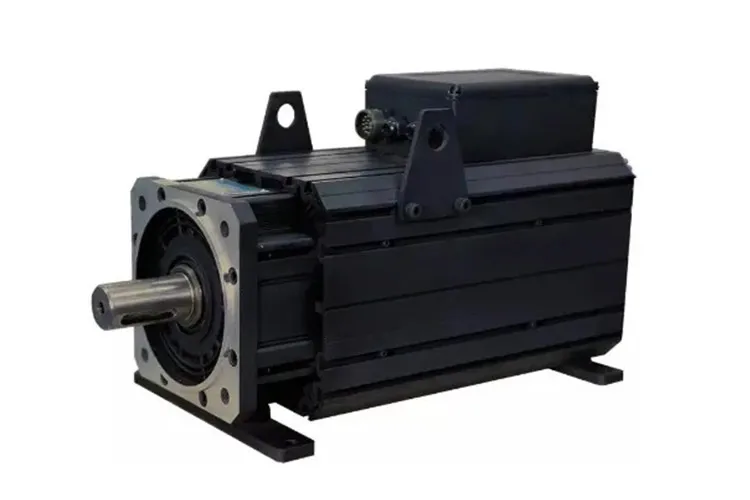

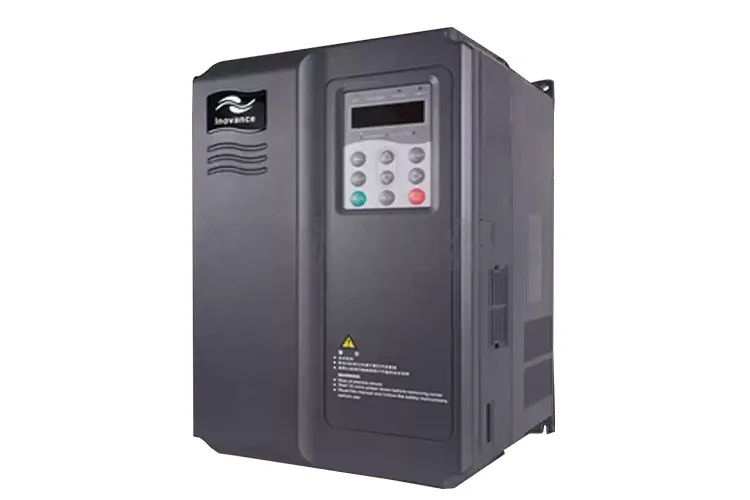

03. World-famous servo hydraulic system optional, better performance in lower noise & energy saving
04.The precise feedback control of servo system to the pressure & flow, with higher sensitivity & more accurate repeatability precision
05.High performance hydraulic valve, less failure, fast switch, convenient maintenance
06. Low pressure mold protect system, which is more suitable for the precise mould
07. Greese & lubrication oil in dependent lubrication system can lubricate everywhere in the best situation
02.Imported high quality Pump, low in noise, long in lifespan & stable in performance
03. World-famous servo hydraulic system optional, better performance in lower noise & energy saving
04.The precise feedback control of servo system to the pressure & flow, with higher sensitivity & more accurate repeatability precision
05.High performance hydraulic valve, less failure, fast switch, convenient maintenance
06. Low pressure mold protect system, which is more suitable for the precise mould
07. Greese & lubrication oil in dependent lubrication system can lubricate everywhere in the best situation
Electrical System
Customer need——fast speed, accurate control, easy operation, program for multiple processes, powerful.
Solution——upgraded controller, 8''/10''/12'' TFT true color display, 0.25ms of scan time, fully improved operational convenience, multiple processes for your need HONGXUN control system delivers better performance in machine control and adds to the stability of product and machine.
Solution——upgraded controller, 8''/10''/12'' TFT true color display, 0.25ms of scan time, fully improved operational convenience, multiple processes for your need HONGXUN control system delivers better performance in machine control and adds to the stability of product and machine.

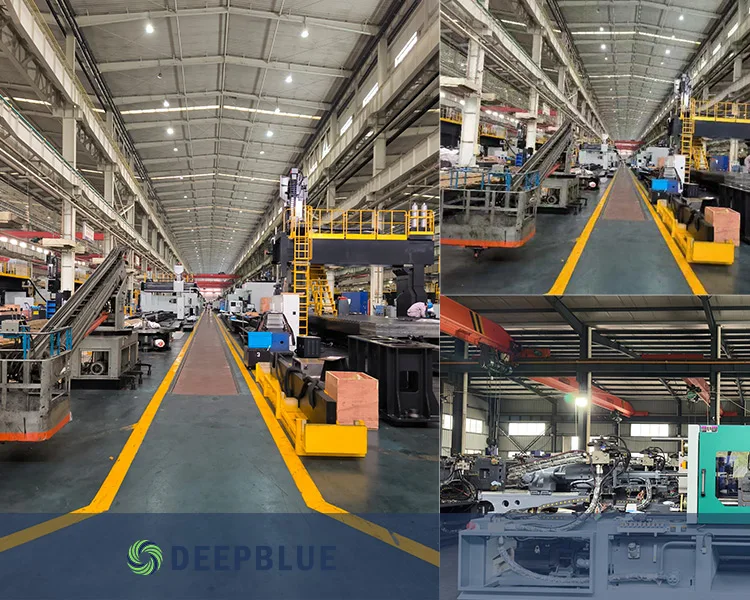

Company Profile
At Deepblue Smart Equipment Co., Ltd., we are leaders in the injection molding machine industry. Our team comprises seasoned professionals from the HAITIAN Group, the world’s number one group for injection machines. With our expertise and commitment to excellence, we deliver top-notch manufacturing solutions to clients globally.
FAQ
Q1. What's your special service?
A1: We provide one-stop service, from injection molding machines to auxiliary machines to molds, things of which allow you to purchase in China.
Q2. Can the machine customized for my products?
A2: We have specail machines for some specail products. also can customized the screw and barrel, base height and structure, hydraulic system, electric design , machine colors and others.
Q3. Delivery time
A3: Normally Machine orders takes 45 days after pre-payment received, ， Special and customized orders, please inquiry sales.
Q4.Where is your factory located? How can I visit there?

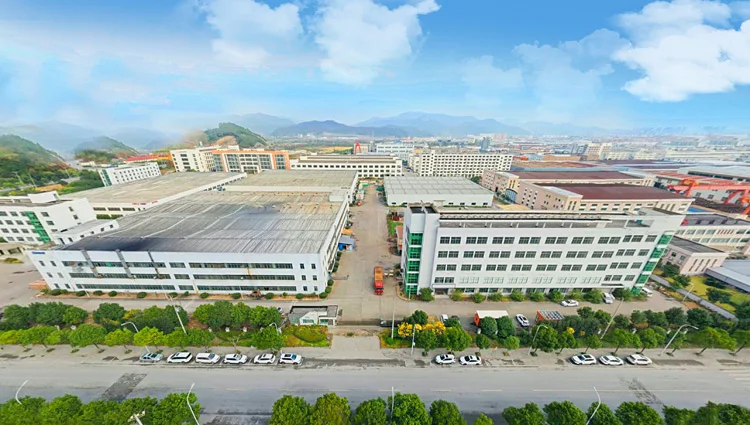

A4.: Our factory is located in Ningbo City, Zhe Jiang Province, China. There has flight from Shanghai(1 hour), Guang Zhou(2 hrs) and Shen Zhen(2 hrs) to our city. Train from Shanghai to our city is 2 hrs. Welcome to visit our factory.
Q5. Can you engineer come to our place to help with machine installation & commission?
A5: Yes, our engineers are available to travel to your place under safe situation. Round flight tickets, meal & accommodation need you bear it.
Q6:How Many spare parts you will prepare for customer?
A6: Spare parts included: mould clamp, long and short nozzle,heating band,Wrench,Switch,Thermocouple,Operation manual Tool box,Lubricate Oil,Sealing,Filter etc.
A1: We provide one-stop service, from injection molding machines to auxiliary machines to molds, things of which allow you to purchase in China.
Q2. Can the machine customized for my products?
A2: We have specail machines for some specail products. also can customized the screw and barrel, base height and structure, hydraulic system, electric design , machine colors and others.
Q3. Delivery time
A3: Normally Machine orders takes 45 days after pre-payment received, ， Special and customized orders, please inquiry sales.
Q4.Where is your factory located? How can I visit there?
A4.: Our factory is located in Ningbo City, Zhe Jiang Province, China. There has flight from Shanghai(1 hour), Guang Zhou(2 hrs) and Shen Zhen(2 hrs) to our city. Train from Shanghai to our city is 2 hrs. Welcome to visit our factory.
Q5. Can you engineer come to our place to help with machine installation & commission?
A5: Yes, our engineers are available to travel to your place under safe situation. Round flight tickets, meal & accommodation need you bear it.
Q6:How Many spare parts you will prepare for customer?
A6: Spare parts included: mould clamp, long and short nozzle,heating band,Wrench,Switch,Thermocouple,Operation manual Tool box,Lubricate Oil,Sealing,Filter etc.
