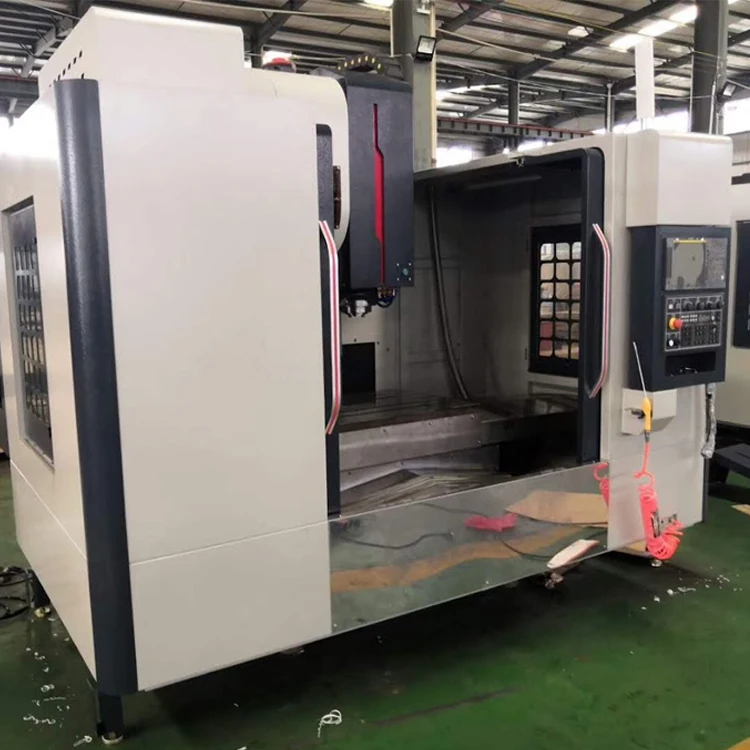

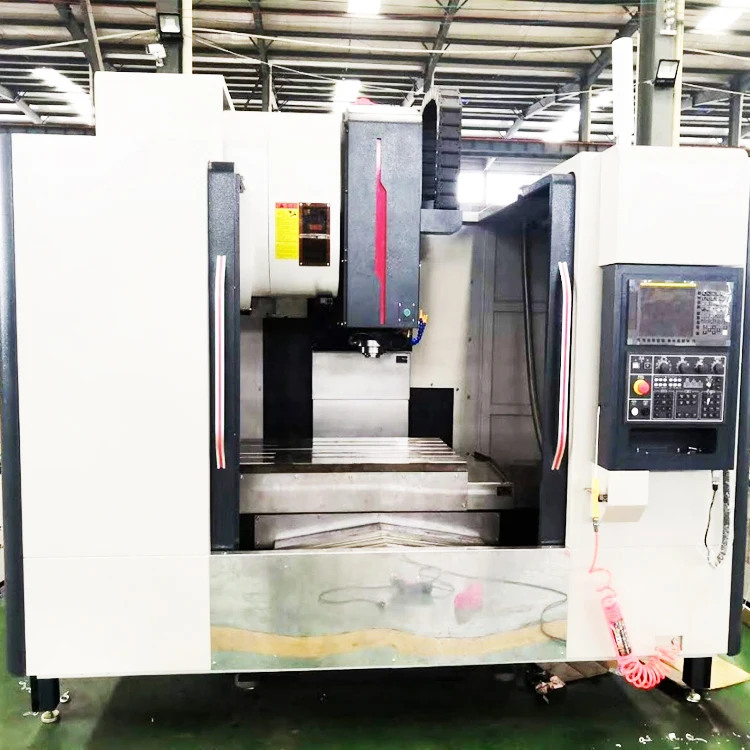

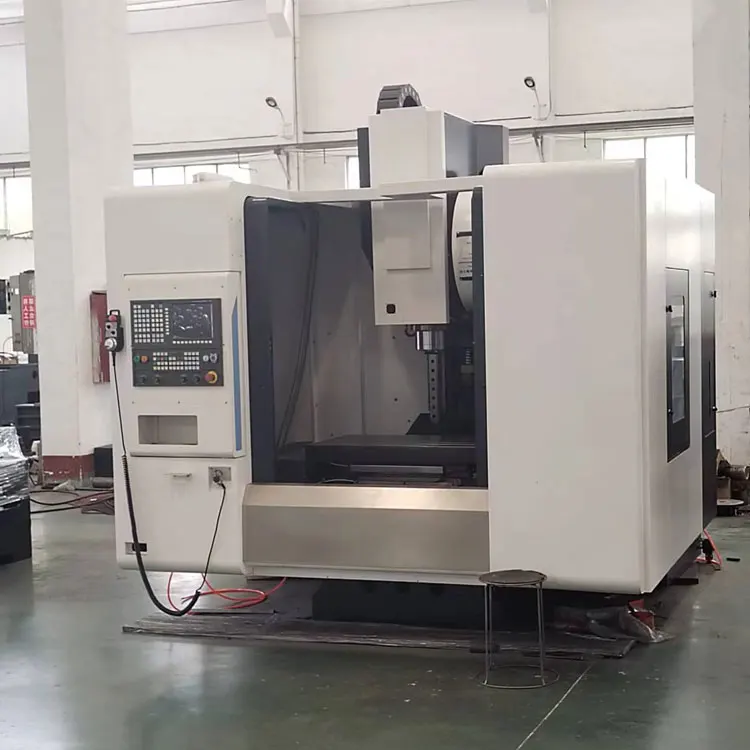

VMC1160 New GSK Controller Vertical CNC Machining Center Fanuc/Mitsubishi/Siemens Control Systems BT40 Spindle Taper Motor Core
- Category: >>>
- Supplier: Shandong Jiucheng Machine Tool Co. Ltd.
Share on (1601271407540):
Product Overview
Description
SPECIFICATION | UNIT | VMC1060 | VMC1160 | VMC1270 |
X/Y/Z axis travel | mm | 1000/600/600 | 1100/600/600 | 1200/700/600 |
The distance from spindle nose to worktable surface | mm | 120-720 | 120-720 | 140-700 |
The distance from spindle center to column surface | mm | 650 | 650 | 780 |
T-slot | mm | 5-18*120 | 5-18*125 | 3-18*125 |
Worktable size | mm | 1200*600 | 1200*600 | 1300*700 |
Worktable max loading | kg | 800 | 800 | 1000 |
Spindle speed | rpm | 8000 | 8000 | 8000 |
Main motor | kW | 11/15 | 11/15 | 11/15 |
Spindle taper | - | BT40(Φ150) | BT40(Φ150) | BT40(Φ150)/ optional BT50 |
Rapid traverse speed | m/min | 24/24/20 | 24/24/20 | 24/24/18 |
Cutting feed speed | mm/min | 1-8000 | 1-8000 | 1-6000 |
Positioning accuracy | mm | ±0.0075 | ±0.0075 | ±0.0075 |
Repeat Positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 |
Magazine tool capacity | pcs | 24(disc type) | 24(disc type) | 24(disc type) |
Machine overall size | mm | 3200*2300*2580 | 3200*2300*2580 | 3870*2900*2580 |
Machine weight | kg | 4000 | 5000 | 6000 |
Q: What is the minimum order quantity (MOQ)?
A: MOQ is one set. (Only some low cost machines will be more than 1 set)
Q: How can I choose the most suitable machines?
A:Please tell us your requirement of the machine, or you can also send us the products drawing, then we will give you the best solutions.
Q: What's the Payment Terms?
A: 30% by T/T as deposit, 70% balance by T/T before delivery. As for other payment terms, we can discuss.
Q: Where is your factory located?

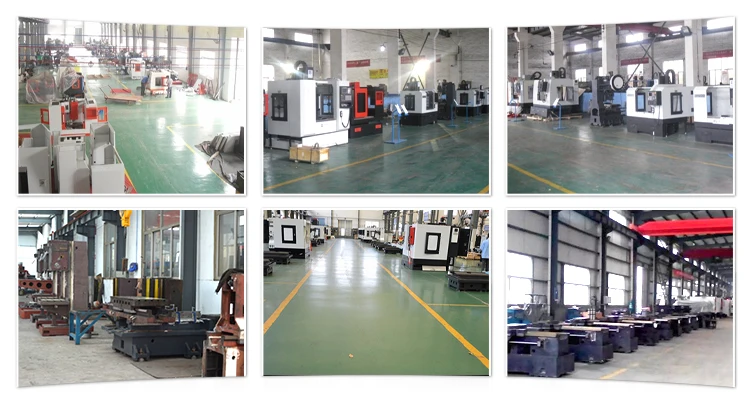

A: Our factory is located in Tengzhou, Shandong province, China.
Q: What's the main products of your company?
A: We specialized in many kinds of machines, such as CNC machining centers, CNC milling machines, CNC lathes, milling machines, lathe machines, drilling machines, sawing machines, etc.
Q: What is your market advantage?
A: We provide not only machine tools, but one-stop solutions for machine tools. If there is any problem with the equipment, we can go abroad for after-sales service.
Q: What is the package? Is it suitable for shipment?
A: Machines will be packed by exporting standard package, with water proof, anti-rust and fumigation-free. It is very strong for oversea transportation.
A: MOQ is one set. (Only some low cost machines will be more than 1 set)
Q: How can I choose the most suitable machines?
A:Please tell us your requirement of the machine, or you can also send us the products drawing, then we will give you the best solutions.
Q: What's the Payment Terms?
A: 30% by T/T as deposit, 70% balance by T/T before delivery. As for other payment terms, we can discuss.
Q: Where is your factory located?
A: Our factory is located in Tengzhou, Shandong province, China.
Q: What's the main products of your company?
A: We specialized in many kinds of machines, such as CNC machining centers, CNC milling machines, CNC lathes, milling machines, lathe machines, drilling machines, sawing machines, etc.
Q: What is your market advantage?
A: We provide not only machine tools, but one-stop solutions for machine tools. If there is any problem with the equipment, we can go abroad for after-sales service.
Q: What is the package? Is it suitable for shipment?
A: Machines will be packed by exporting standard package, with water proof, anti-rust and fumigation-free. It is very strong for oversea transportation.
