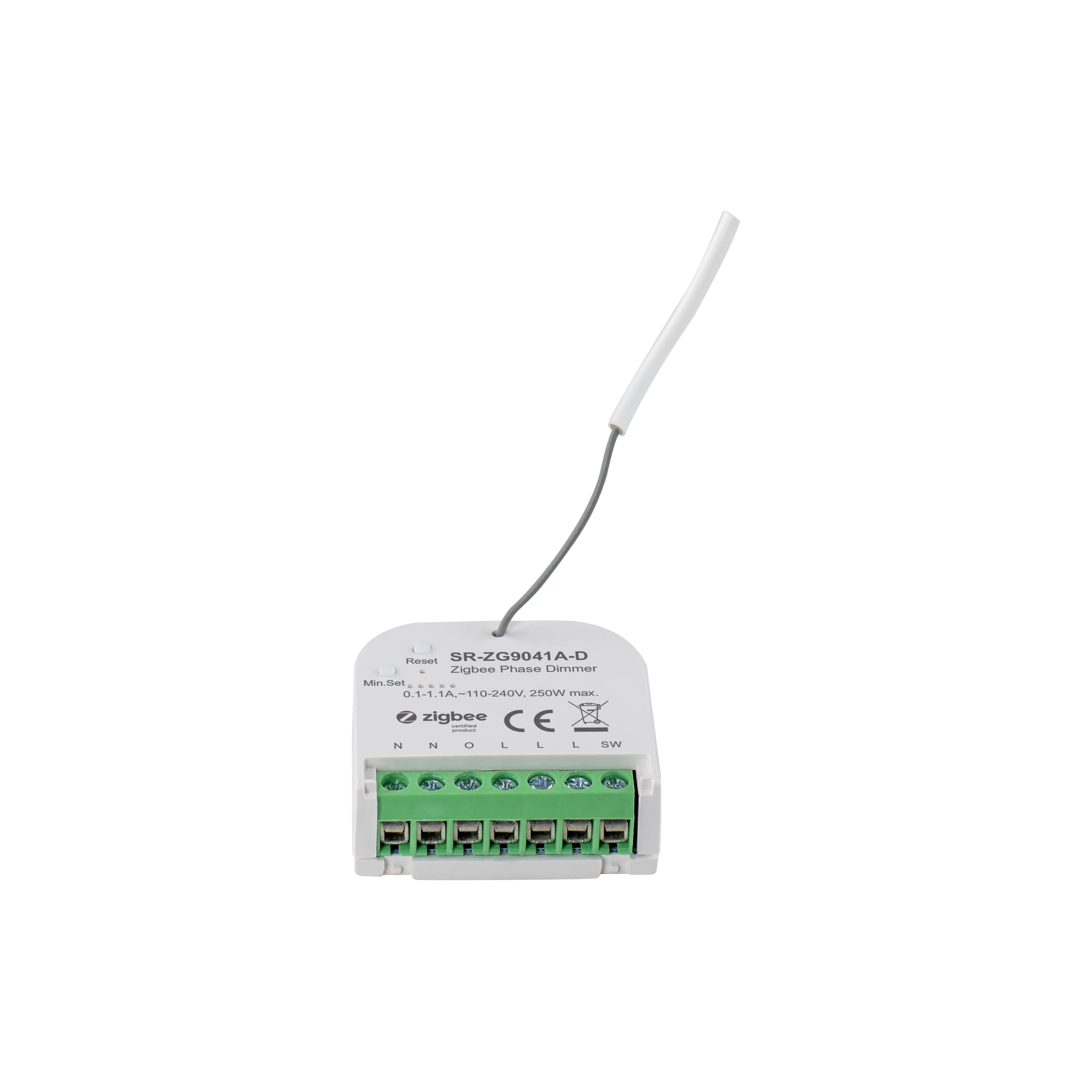

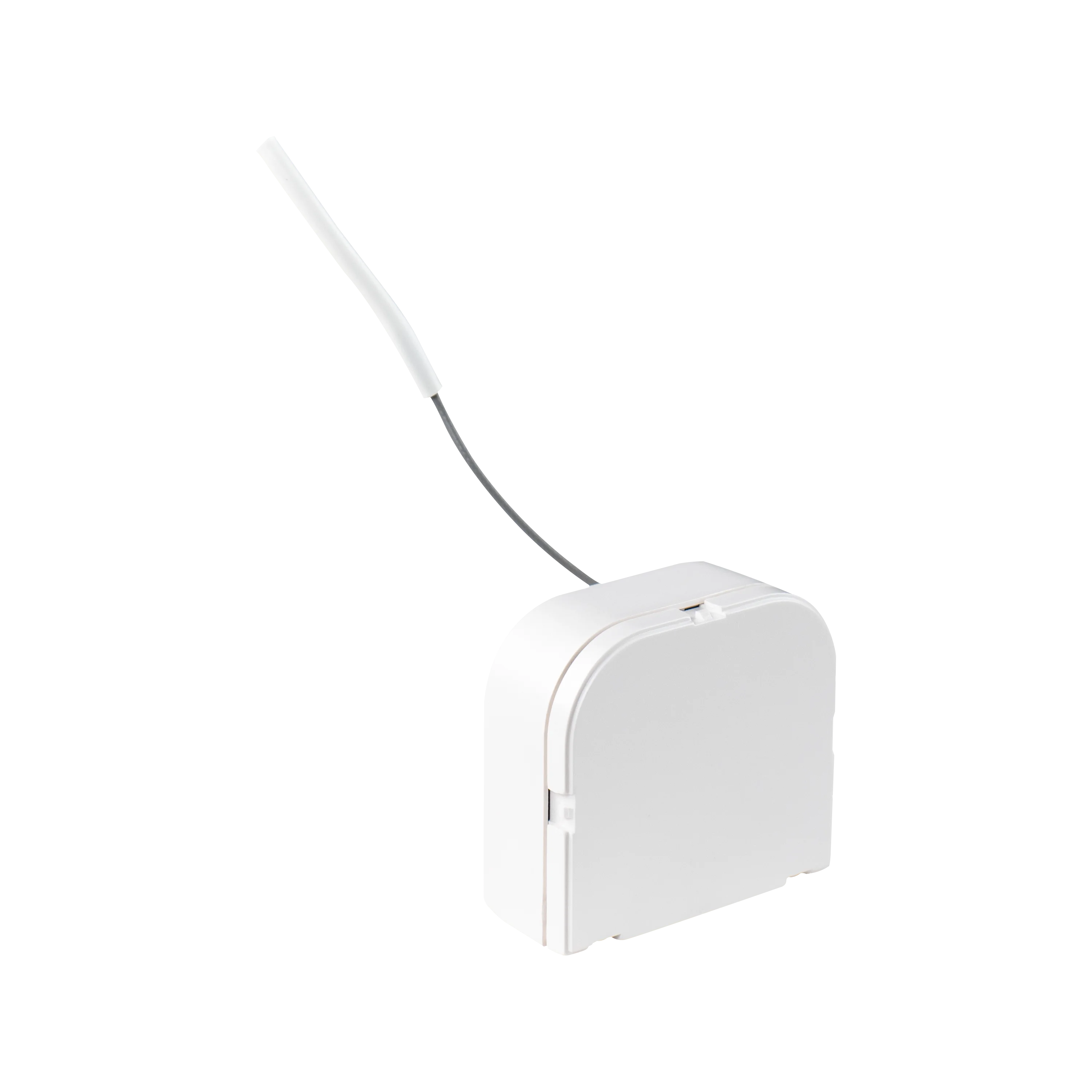

Sunricher 250W ZigBee AC Micro Smart Phase Cut Dimmer With 100 240VAC Wide Input and Output Voltage
- Category: >>>
- Supplier: Shenzhen Sunricher Technology Co. Ltd.
Share on (1601271419586):
Product Overview
Description
Products Description
• ZigBee AC phase cut dimmer based on latest ZigBee 3.0 protocol
• 100-240VAC Wide Input and Output Voltage

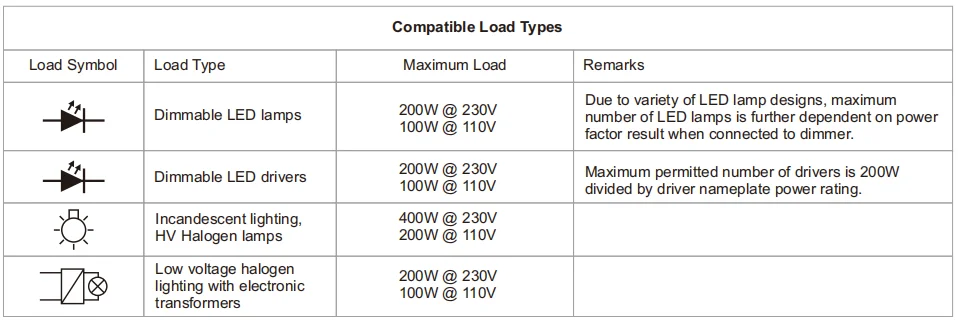

• Supports resistive loads, capacitive loads or inductive loads
• 1 Channel Output, Up to 400W
• Input and Output with Screw Terminals, Safe and Reliable
• Both leading edge version and trailing edge versions are available for choosing, preset by factory setting
• Enables to control ON/OFF and light intensity of connected light source
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
• Compatible with universal ZigBee gateway products
• Support power metering
• 100-240VAC Wide Input and Output Voltage
• Supports resistive loads, capacitive loads or inductive loads
• 1 Channel Output, Up to 400W
• Input and Output with Screw Terminals, Safe and Reliable
• Both leading edge version and trailing edge versions are available for choosing, preset by factory setting
• Enables to control ON/OFF and light intensity of connected light source
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
• Compatible with universal ZigBee gateway products
• Support power metering
Specification
Warranty(Year) | 5-year |
Type | Zigbee Controller |
Power Supply | 100-240VAC |
Place of Origin | Guangdong, China |
Brand Name | Sunricher |
Dimensions | 90x66x18mm |
Output Current | 0.1-1.8A |
