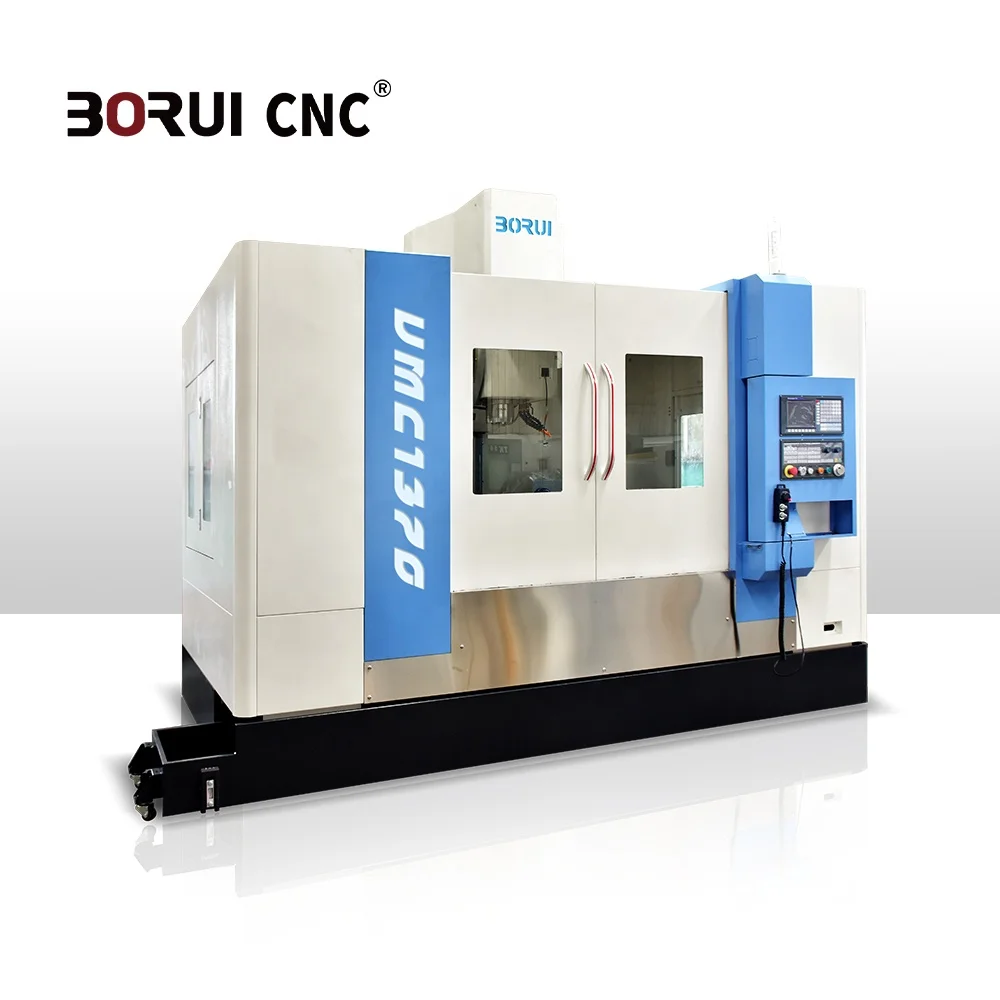

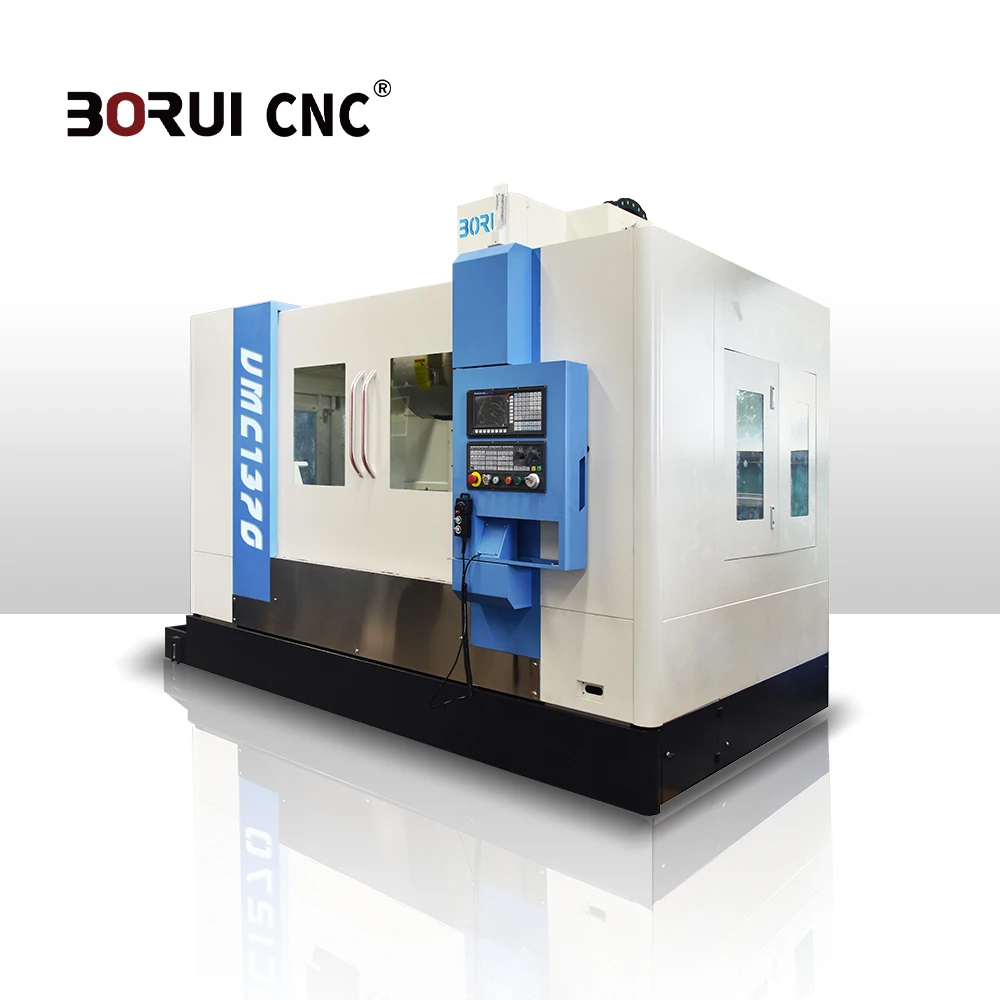

BORUI Vmc1370 6 Axis Machining Center CNC Twin Spindle Vertical For Storefront And Curtain Wa Bt40/50 90 Degree Angle Head
- Category: >>>
- Supplier: Tengzhou Borui CNC Machine Tool Co. Ltd.
Share on (1601271570554):
Product Overview
Description

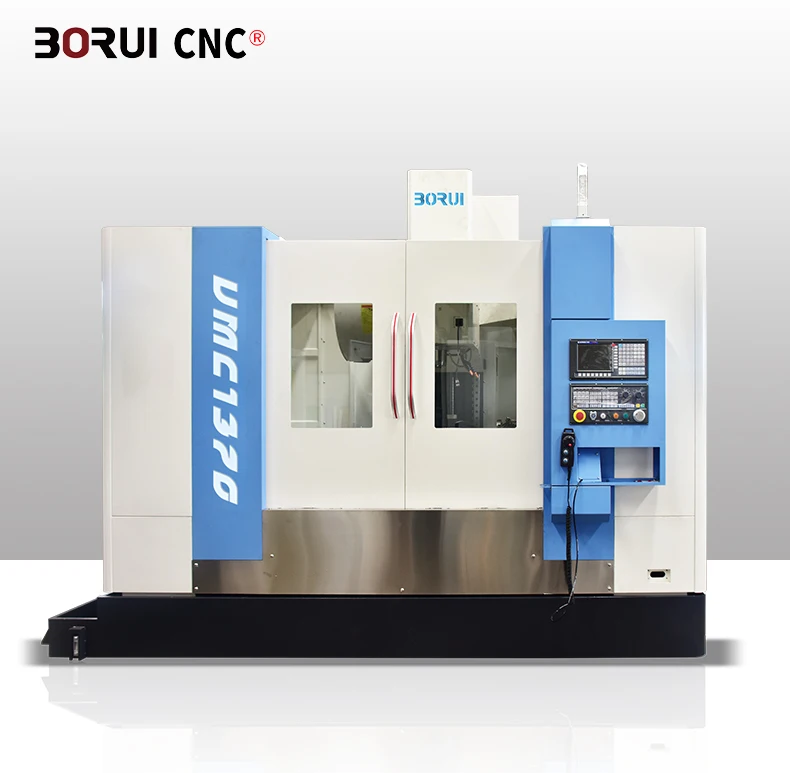

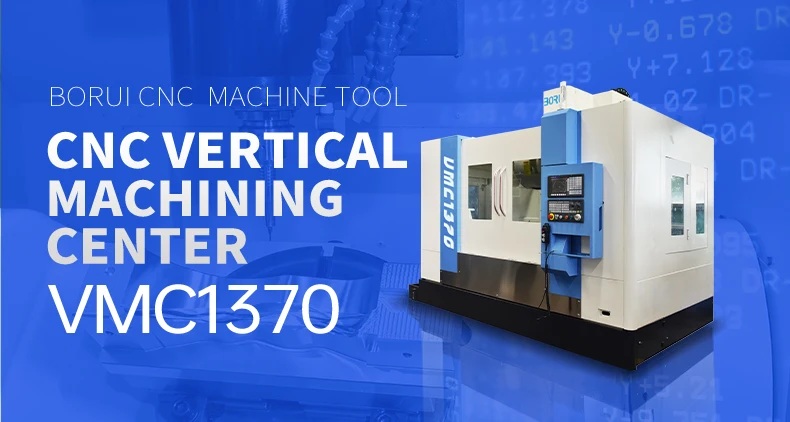

VMC1370 cnc milling machine vertical machining center
Product Description
Product main technical parameters:
Type | Unit | VMC1370 | ||
Processing | ||||

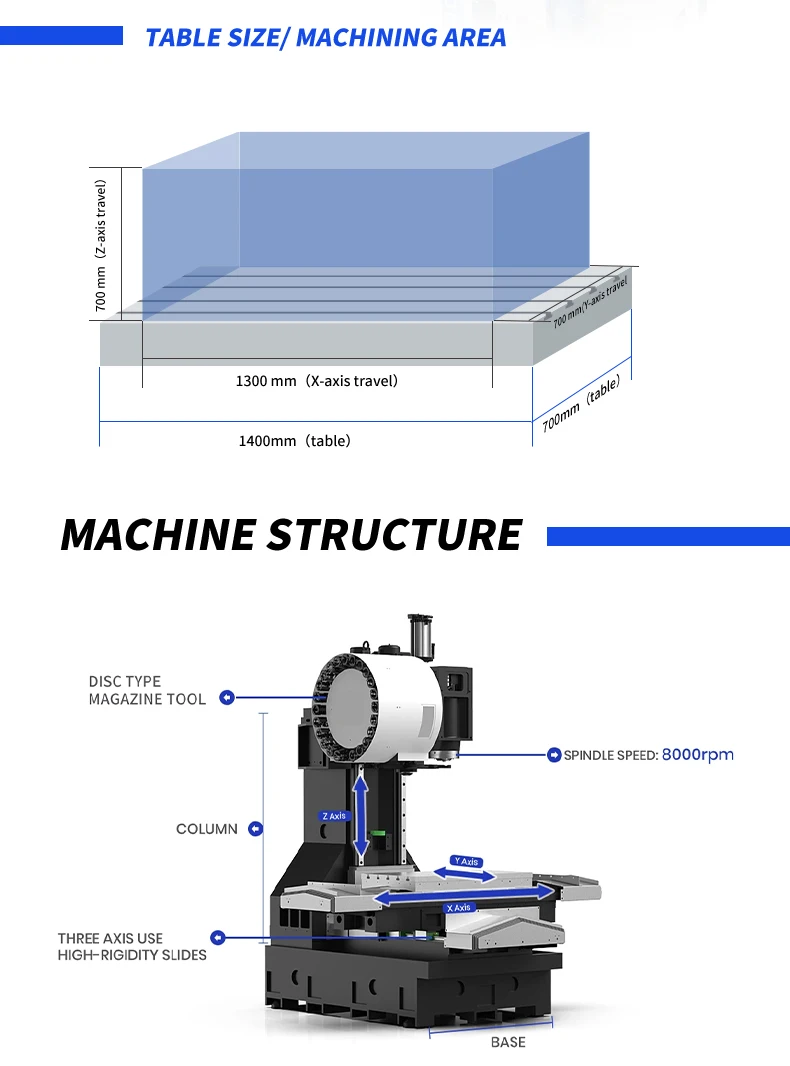

X axis travel | mm | 1300 | ||
Y axis travel | mm | 700 | ||
Z axis travel | mm | 700 | ||
Spindle nose to table surface | mm | BT40- ∮ 150：100-800；BT50- ∮ 155：70-770 BT50- ∮ 190:120-820 | ||
Spindle center to Column surface | mm | 773 | ||
Worktable Size | ||||
Worktable Size(X-axis direction) | mm | 1400 | ||
Worktable Size(Y-axis direction) | mm | 700 | ||
T slot qty-width*distance | mm | 18x5x110 | ||
Spindle Specification | ||||

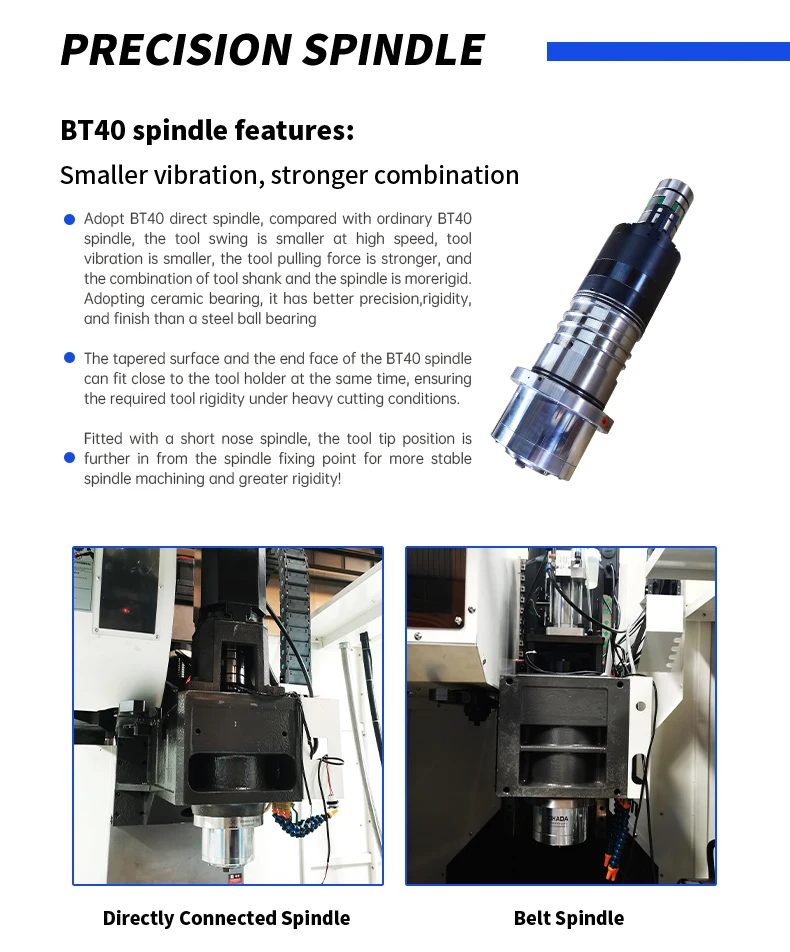

Spindle speed（Belt type） | rpm | 8000 | ||
Main motor power | kW | 11 | ||
Spindle taper | BT40(BT50) | |||
Feeding System | ||||
X/Y/Z axis rapid feed | m/min | 24/24/24 | ||
Cutting rapid feed | mm/min | 1-10000 | ||
Three-axis servo motor power | kW | 3 X 3 X 3.5 | ||

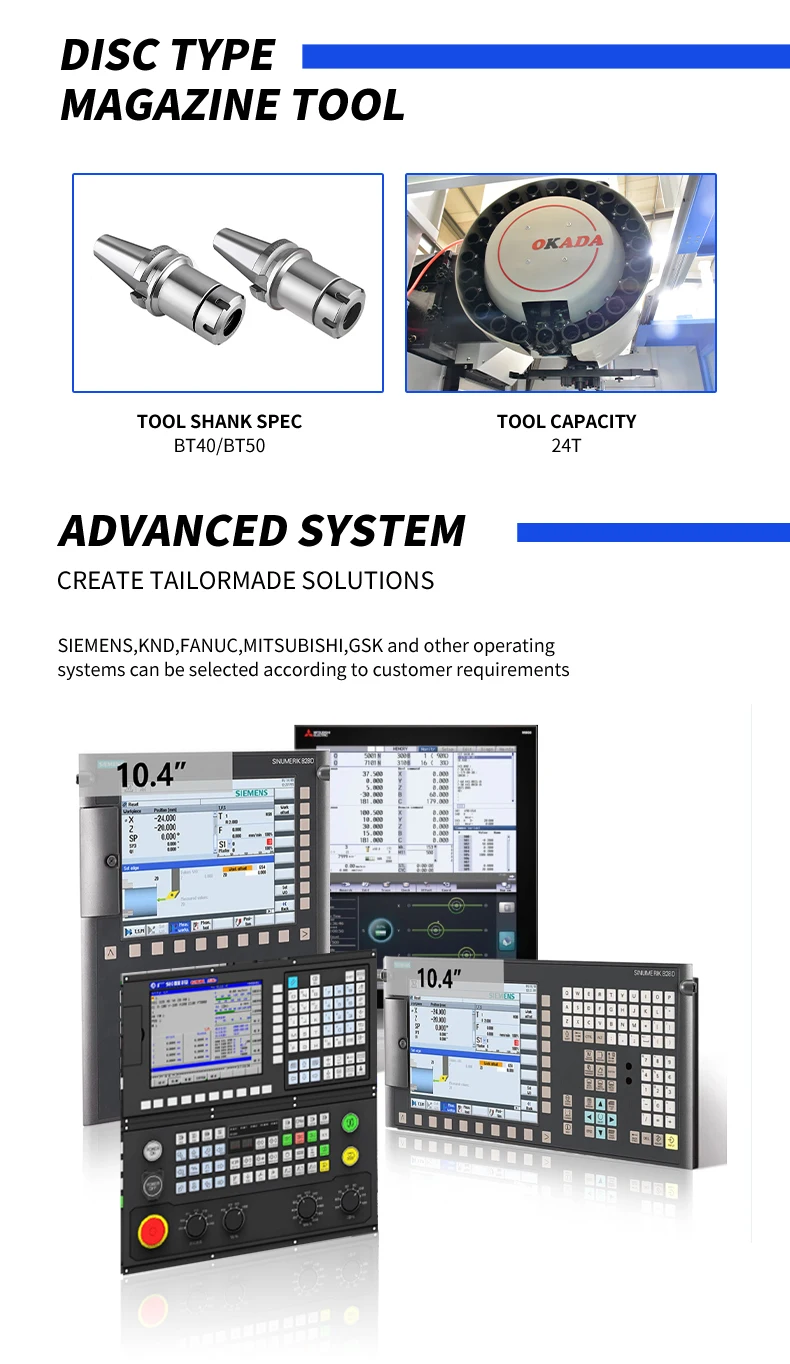

Tool Library System(OPT) | ||||
Tools capacity | pcs | Disc Type 24 | ||
Machine Size | ||||
Machine length | mm | 3200 | ||
Machine width | mm | 2540 | ||
Machine high | mm | 2600 | ||
Machine weigth | kg | 8800 | ||

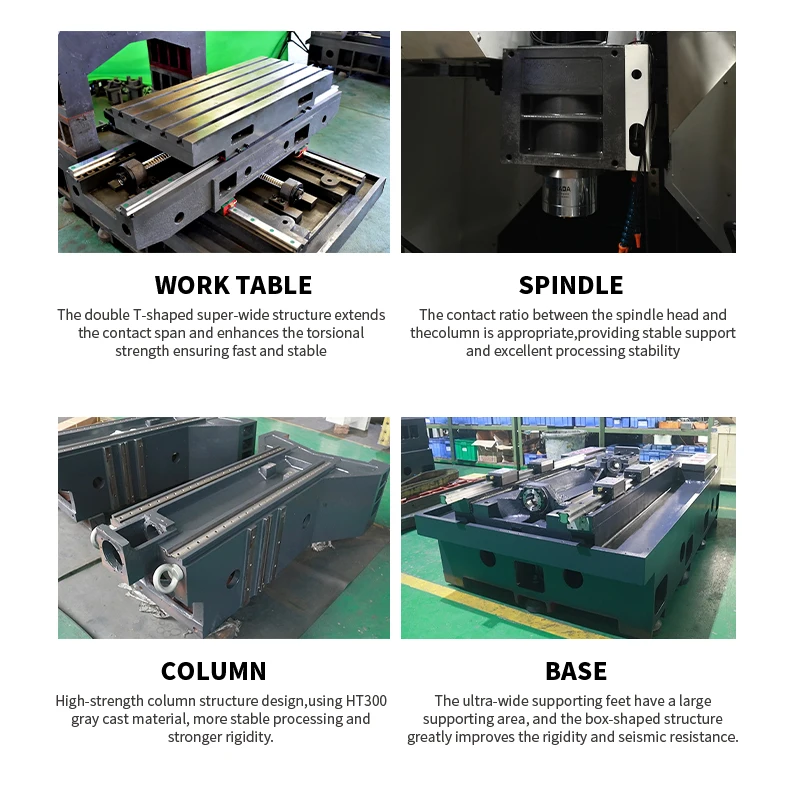

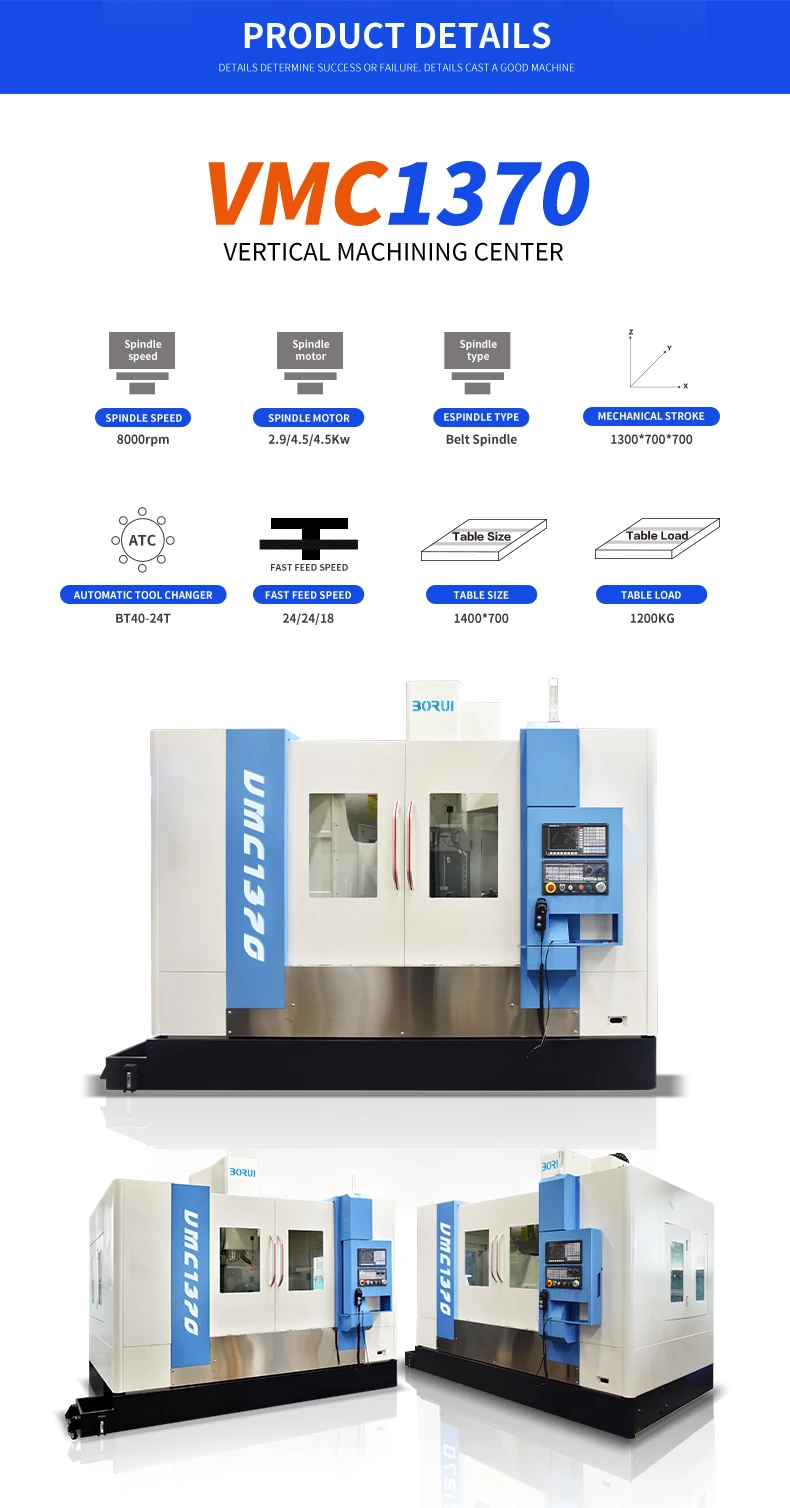

Details Display
Company Profile
Why Choose Us
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
