China CNC machining center CNC four axis machining center VMC1690 fully automatic vertical CNC milling machine
- Category: >>>
- Supplier: Shandong Yijin Cnc Machine Tool Co. Ltd.
Share on (1601271969862):
Product Overview
Description

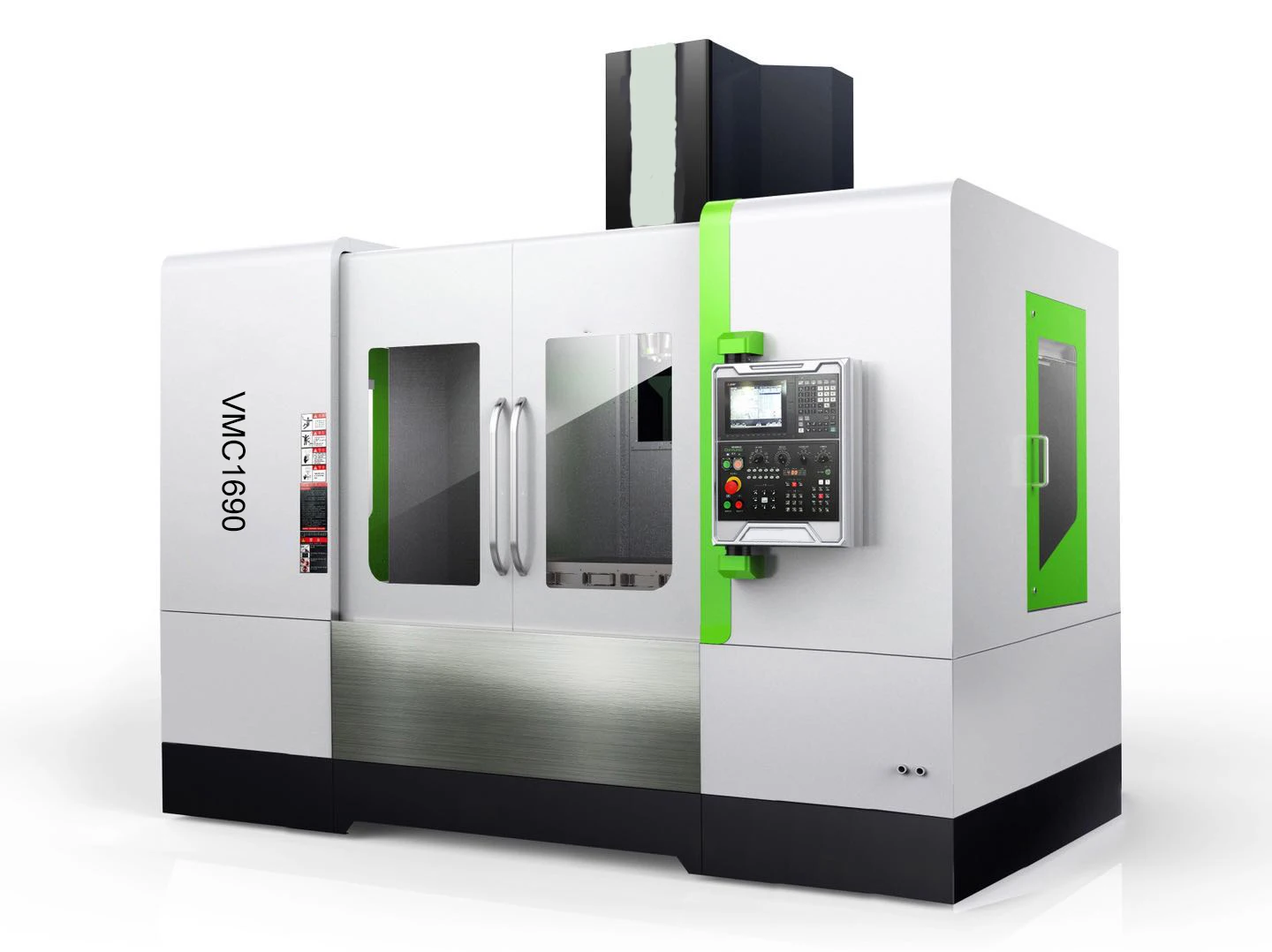

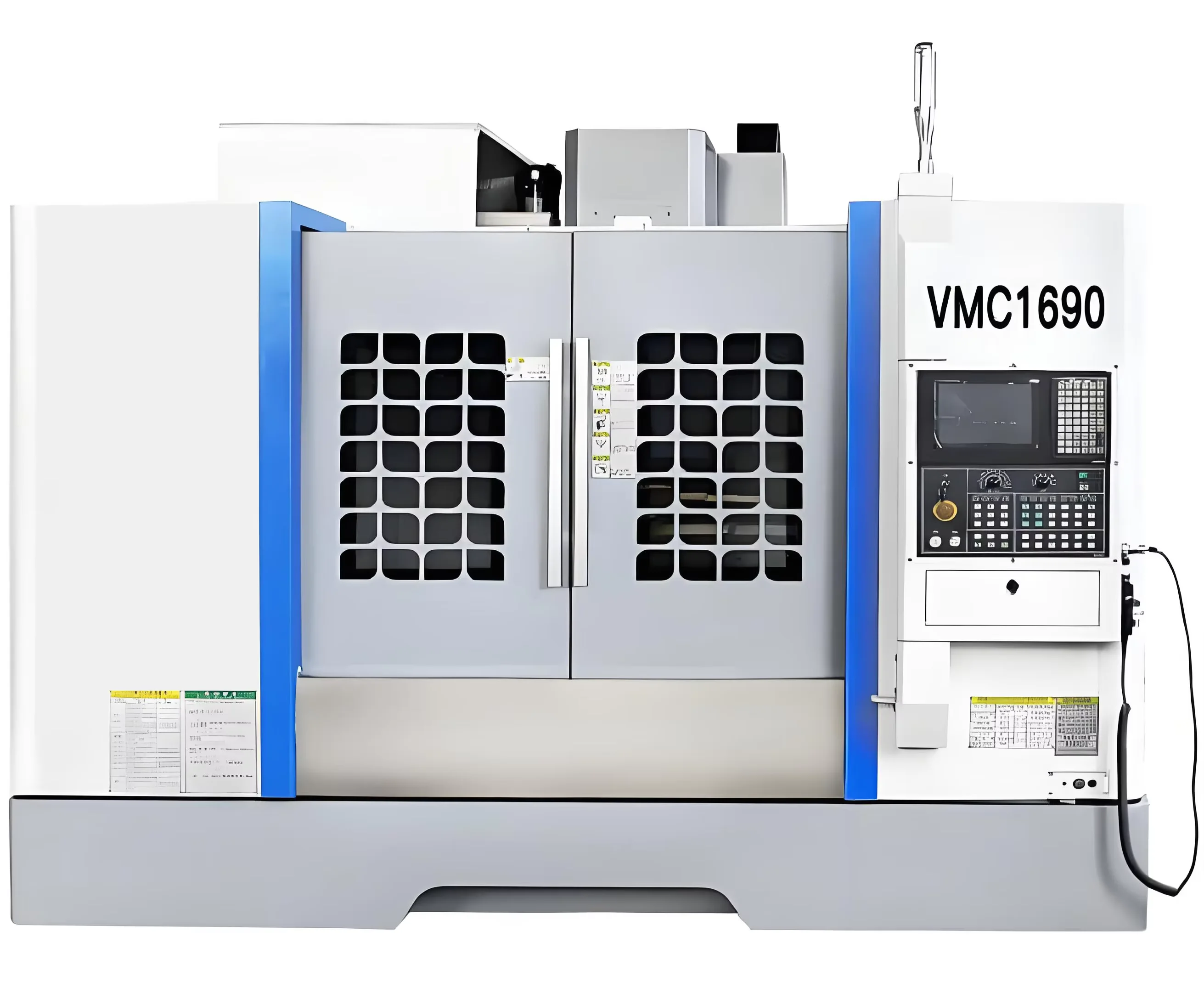

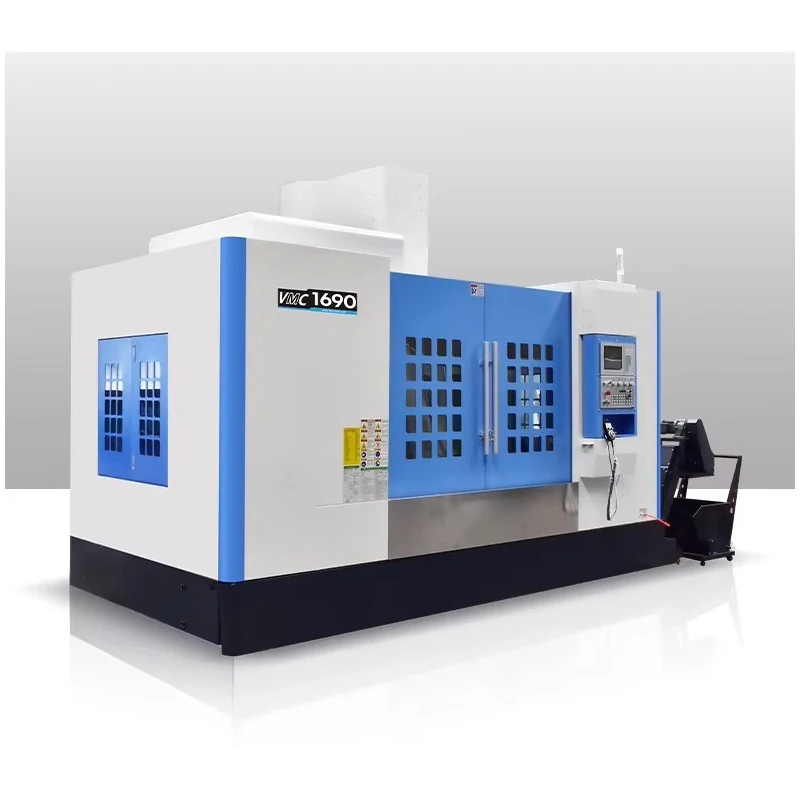

International brand VMC1690 BT50 vertical CNC machining center
VMC1690 is a versatile vertical machining center renowned for its precision and efficiency in various manufacturing applications. With its robust construction and advanced technology, VMC1690 delivers superior performance in milling, drilling and tapping operations.
VMC1690
Vertical machining centers are mainly used for processing high-precision, multi process, and complex shaped parts such as
plates, discs, shells, molds, etc. It can complete milling, drilling, expanding, reaming, boring and other processes continuously in one clamping operation. Programmable tapping and precision machining of 2D and 3D surfaces and slopes, shortening production cycles and enabling users to achieve good economic benefits.
plates, discs, shells, molds, etc. It can complete milling, drilling, expanding, reaming, boring and other processes continuously in one clamping operation. Programmable tapping and precision machining of 2D and 3D surfaces and slopes, shortening production cycles and enabling users to achieve good economic benefits.
Spindel
Adopting a Taiwan spindle, you can choose between an 8000 rpm belt type spindle or a 12000 rpm direct connected spindle, with high
spindle accuracy and low noise
Tool Magazine
Adopting 24 disc type tool libraries ,produced in Taiwan, with a tool change time of only 2.5 seconds, stable tool change, and
high efficiency
Linear rail
Taiwan HIWIN roller type linear guide rail, with fast spindle and worktable movement speed and high accuracy.
Ball Screw
Taiwan HIWIN C3 ball screw, low noise, high accuracy, and wear-resistant.
TAIWAN SPINDLE
Using Taiwan famous brand high-speed, high-precision, high-rigidity spindle unit, strong axial and radial bearing capacity, speed up to 8000rpm.
OPTICAL MACHINE
lt can be selected according to diff-erent processing requirements.Different Operating Systems.Choose Excellent The system can achieve high accuracy and operation.Convenie-nt and more stable.
Electronic control system
System original driver, using Schneider electrical components
Lubrication System
Positive displacement lubrication pump, intermittent oil supply, automatic lubrication of each part.
Four axis（A axis）
Can choose from bridge deck four axis or chuck type four axis
Five axis（A axis and C axis）
Five axis four linkage or five axis five linkage, the five linkage requires the tool tip to follow
FANUC System
FANUC 0i MF PLUS
Siemens System
Siemens 808D or 828D system
SYNTEC System
SYNTEC 22MA system
Mitsubishi System
Mitsubishi M80 system
KND System
KND 220 M PLUS system
GSK System
GSK 25i system
item | value |
Condition | New |
Spindle Taper | BT50 |
No. of Spindles | Single |
Type | VERTICAL |
Dimension(L*W*H) | 4450*3395*2150 |
Weight (T) | 14T |
Table Size (mm) | 1800*900 |
CNC Control System | GSK, FANUC, MITSUBISHI, KND, Siemens, DELEM |
Number of Axes | 3, 4, 5 |
Table Travel (X) (mm) | 1600 |
Table Travel (Y) (mm) | 900 |
Table Travel (Z) (mm) | 680 |
Positioning Accuracy (mm) | 0.008 |
Repeatability (X/Y/Z) (mm) | 0.005 |
Range of Spindle Speed(r.p.m) | 1r.p.m - 6000r.p.m |
Spindle Motor Power(kW) | 15-18.5 |
Max. Table Load(kg) | 1600kg |
Feed Speed(mm/min) | 1mm/min - 10000mm/min |
Rapid Feed Speed(m/min) | 24/24/15 |
Min. Time of Tool Change(s) | 2 |
Tool Magazine Capacity | 24, 32 |
Key Selling Points | High-accuracy |
Warranty | 3 years |
Brand Name | China |
Voltage | |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Other |
Showroom Location | None |
Marketing Type | New Product 2024 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 3 years |
Core Components | PLC |
